3. When the chocks are in place, release the regular
brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P) for an
automatic transmission or REVERSE (R) for a
manual transmission.
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal down
while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the chocks.
4. Stop and have someone pick up and store
the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when you’re
pulling a trailer. SeeScheduled Maintenance on
page 6-4for more information. Things that are especially
important in trailer operation are automatic transmission
uid (don’t overll), engine oil, axle lubricant, drive
belt, cooling system and brake system. Each of these is
covered in this manual, and the Index will help you
nd them quickly. If you’re trailering, it’s a good idea to
review this information before you start your trip.
Check periodically to see that all hitch nuts and bolts
are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat during
severe operating conditions. SeeEngine Overheating on
page 5-31.
4-45

Wheel Alignment and Tire Balance..................5-77
Wheel Replacement......................................5-77
Tire Chains..................................................5-78
If a Tire Goes Flat........................................5-79
Changing a Flat Tire.....................................5-81
Compact Spare Tire......................................5-91
Appearance Care............................................5-92
Cleaning the Inside of Your Vehicle.................5-92
Care of Safety Belts......................................5-94
Weatherstrips...............................................5-94
Cleaning the Outside of Your Vehicle.................5-95
Sheet Metal Damage.....................................5-97
Finish Damage.............................................5-97Underbody Maintenance................................5-97
Chemical Paint Spotting.................................5-97
Vehicle Care/Appearance Materials..................5-98
Vehicle Identication......................................5-99
Vehicle Identication Number (VIN).................5-99
Service Parts Identication Label.....................5-99
Electrical System..........................................5-100
Add-On Electrical Equipment.........................5-100
Windshield Wiper Fuses...............................5-100
Power Windows and Other Power Options......5-100
Fuses and Circuit Breakers..........................5-100
Removing the Rear Seat Cushion..................5-105
Capacities and Specications........................5-111
Section 5 Service and Appearance Care
5-2

Doing Your Own Service Work
If you want to do some of your own service work,
you will want to use the proper service manual. It tells
you much more about how to service your vehicle
than this manual can. To order the proper service
manual, seeService Publications Ordering Information
on page 7-11.
Your vehicle has an air bag system. Before attempting
to do your own service work, seeServicing Your
Airbag-Equipped Vehicle on page 1-58.
You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perform. SeeMaintenance Record on page 6-16.{CAUTION:
You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.
Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before you attempt any vehicle
maintenance task.
Be sure to use the proper nuts, bolts and
other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
5-4

Adding Equipment to the Outside
of Your Vehicle
Things you might add to the outside of your vehicle
can affect the airow around it. This may cause
wind noise and affect windshield washer performance.
Check with your dealer before adding equipment to
the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part of the
proper maintenance of your vehicle.
Gasoline Octane
If your vehicle has the 3.6L V6 engine, use regular
unleaded gasoline with a posted octane of 87 or higher.
However, for best performance and for trailer towing,
you may wish to use middle grade or premium unleaded
gasoline. If the octane is less than 87, you may get a
heavy knocking noise when you drive. If this occurs,
use a gasoline rated at 87 octane or higher as soon as
possible. Otherwise, you might damage your engine.If your vehicle has the 3.2L V6 engine or the
5.7L V8 engine, use premium unleaded gasoline with a
posted octane of 91 or higher for best performance.
You may also use middle grade or regular unleaded
gasoline rated at 87 octane or higher, but your vehicle’s
acceleration may be slightly reduced. If the octane is
less than 87, you may get a heavy knocking noise when
you drive. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible. Otherwise,
you might damage your engine.
Gasoline Specications
It is recommended that gasoline meet specications
which were developed by automobile manufacturers
around the world and contained in the World-Wide
Fuel Charter which is available from the
Alliance of Automobile Manufacturers at
www.autoalliance.org/fuel_charter.htm. Gasoline
meeting these specications could provide improved
driveability and emission control system performance
compared to other gasoline.
5-5

Engine Air Cleaner/Filter
The engine air cleaner/lter is in the engine
compartment on the driver’s side of the vehicle, near
the front. SeeEngine Compartment Overview on
page 5-12for more information on location.
When to Inspect the Engine
Air Cleaner/Filter
Inspect the air cleaner/lter at every oil change
and replace it at the rst oil change after
25,000 miles (41 500 km).
How to Inspect the Engine
Air Cleaner/Filter
To inspect the air cleaner/lter remove the lter from
the vehicle and lightly shake the lter to release
loose dust and dirt. If the lter remains caked with dirt,
a new lter is required.
To inspect or replace the engine air cleaner/lter,
do the following:
1. Remove the two screws located on the sides
of the cover.
2. Lift the cover off.
3. Inspect or replace the engine air cleaner/lter.
SeeNormal Maintenance Replacement Parts
on page 6-15for the correct part number for
the lter.
4. Reinstall the cover by reversing Steps 1 and 2. CTS shown, CTS-Vsimilar
5-24

Hydraulic Clutch
(Manual Transmission)
It is not necessary to regularly check clutch uid unless
you suspect there is a leak in the system. Adding uid
will not correct a leak.
A uid loss in this system could indicate a problem.
Have the system inspected and repaired.
When to Check and What to Use
The hydraulic clutch reservoir is located in the
engine compartment on the driver’s side of the
vehicle, near the brake master cylinder reservoir.SeeEngine Compartment Overview on page 5-12
for more information on location.
Refer to the Maintenance Schedule to determine how
often you should check the uid level in your clutch
master cylinder reservoir and for the proper uid to use.
SeeOwner Checks and Services on page 6-9and
Recommended Fluids and Lubricants on page 6-13.
How to Check and Add Fluid
Make sure the uid level is
at the MIN line shown.
If it is not, remove the cap and add the proper uid
until the level reaches the MIN line on the side of
the reservoir.
5-28

For example, if someone puts in brake linings that are
wrong for your vehicle, the balance between your
front and rear brakes can change — for the worse.
The braking performance you have come to expect can
change in many other ways if someone puts in the
wrong replacement brake parts.
Battery
Your vehicle has a maintenance free battery.
When it is time for a new battery, get one that has the
replacement number shown on the original battery’s
label. We recommend an ACDelco
®replacement
battery. SeeEngine Compartment Overview on
page 5-12for battery location.
Warning:Battery posts, terminals and related
accessories contain lead and lead compounds,
chemicals known to the State of California to
cause cancer and reproductive harm. Wash hands
after handling.
{CAUTION:
Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
are not careful. SeeJump Starting on page 5-46
for tips on working around a battery without
getting hurt.
After a power loss, such as disconnecting the battery or
removing the maxi fuses in the power distribution
fuse block, the following steps must be performed to
calibrate the electronic throttle control. If this is not done,
the engine will not run properly.
1. Turn the ignition key to ON. Do not start the engine.
2. Leave the ignition in ON for at least three minutes
so that the electronic throttle control will cycle and
re-learn its home position.
3. Turn the ignition to OFF.
4. Start and run the engine for at least 30 seconds.
Also, for your audio system, seeTheft-Deterrent Feature
on page 3-124.
5-45

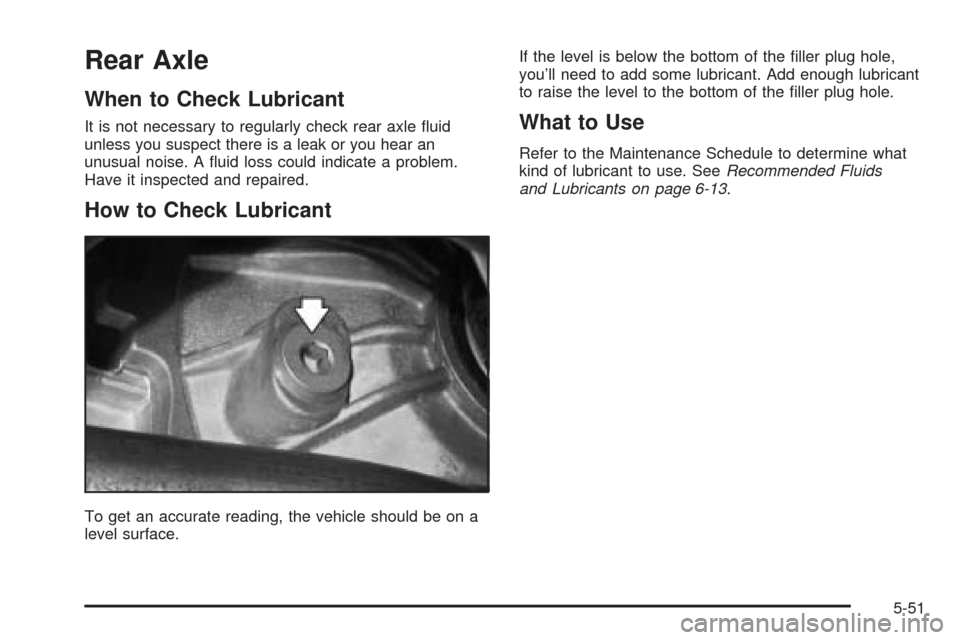

Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.If the level is below the bottom of the ller plug hole,
you’ll need to add some lubricant. Add enough lubricant
to raise the level to the bottom of the ller plug hole.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids
and Lubricants on page 6-13.
5-51

Replacement Bulbs
For any bulb not listed here contact your dealer.
Exterior Lamp Bulb Number
Back-Up Lamps 3157K
Fog Lamps 9145
Front and Rear Turn
Signal Lamps3157K
License Plate Lamps W5WLL
Rear Sidemarker Lamps 3157K
Stoplamps 3157K
Taillamps 3157K
Windshield Wiper
Blade Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. SeeOwner Checks
and Services on page 6-9.
It’s a good idea to clean or replace the wiper blade
assembly on a regular basis or when worn. For proper
windshield wiper blade length and type, seeNormal
Maintenance Replacement Parts on page 6-15.
To replace the wiper blade assembly, do the following:
1. Turn the ignition to ON with the engine off.
2. Turn on the windshield wipers and turn them off
again when the wipers are in the out-wipe position.
The driver’s side blade will be straight up and
down on the windshield.
3. Pull the windshield wiper assembly away from
the windshield.
5-56

The Tire and Loading Information label (tire information
placard) is attached, to either, the center pillar near the
driver’s door latch post or on the rear edge of the driver’s
side rear passenger door. The label shows the size of
your vehicle’s original tires and the correct ination
pressure for your vehicle’s tires when they are cold.
SeeInation - Tire Pressure on page 5-67andLoading
Your Vehicle on page 4-34for additional information.
Your vehicle’s TPM system can alert you about a low tire
pressure condition but it does not replace normal tire
maintenance. SeeTire Inspection and Rotation on
page 5-72andTires on page 5-58.
Each TPM sensor has a unique identication code that
is matched to one of the four tire positions on your
vehicle. Any time you rotate your vehicle’s tires
or replace one or more TPM sensors, the identication
codes will need to be matched to the new tire and
wheel position. The TPM matching process is performed
in a specic sequence and time limit. See your dealer
for service.Notice:Do not use a tire sealant if your vehicle
is equipped with Tire Pressure Monitors.
The liquid sealant can damage the tire pressure
monitor sensors.
The TPM system operates on a radio frequency subject
to Federal Communications Commission (FCC) Rules
and with Industry and Science Canada.
This device complies with Part 15 of the FCC Rules
and with RSS-210 of Industry and Science Canada.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received
including interference that may cause undesired
operation of the device.
Changes or modications to this system by other than
an authorized service facility could void authorization to
use this equipment.
5-71
