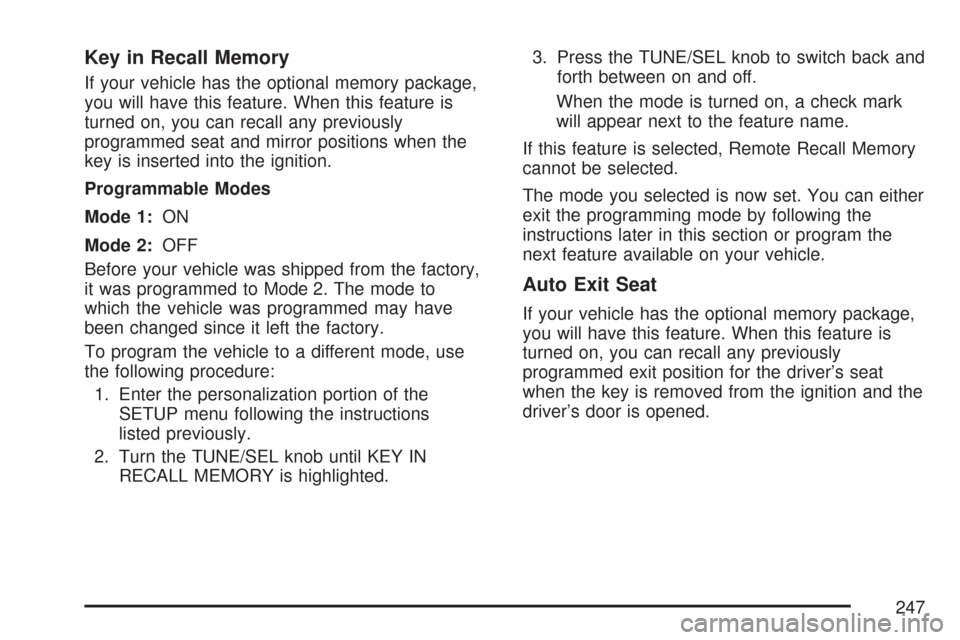

Key in Recall Memory
If your vehicle has the optional memory package,
you will have this feature. When this feature is
turned on, you can recall any previously
programmed seat and mirror positions when the
key is inserted into the ignition.
Programmable Modes
Mode 1:ON
Mode 2:OFF
Before your vehicle was shipped from the factory,
it was programmed to Mode 2. The mode to
which the vehicle was programmed may have
been changed since it left the factory.
To program the vehicle to a different mode, use
the following procedure:
1. Enter the personalization portion of the
SETUP menu following the instructions
listed previously.
2. Turn the TUNE/SEL knob until KEY IN
RECALL MEMORY is highlighted.3. Press the TUNE/SEL knob to switch back and
forth between on and off.
When the mode is turned on, a check mark
will appear next to the feature name.
If this feature is selected, Remote Recall Memory
cannot be selected.
The mode you selected is now set. You can either
exit the programming mode by following the
instructions later in this section or program the
next feature available on your vehicle.
Auto Exit Seat
If your vehicle has the optional memory package,
you will have this feature. When this feature is
turned on, you can recall any previously
programmed exit position for the driver’s seat
when the key is removed from the ignition and the
driver’s door is opened.
247

Fuses Usage
SPARE Not Used
CCP CCP (Climate Control Panel)
IGN 3Heated Seat Modules, Air Inlet
Motor, Shifter Assembly
SPARE Not Used
SPARE Not Used
FUSE PULLER Fuse Puller
L FRT HTD
SEAT MODDriver’s Heated Seat Module
MEM/ADAPT
SEATDriver’s Power Seat Switch, Memory
Seat Module
TRUNK
DR RELEASETrunk Release Motor
REVERSE
LAMPISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
SPARE Not Used
POSITION
LAMPTaillamp Assemblies, Front Position
Lamp Assemblies (Export Only)
J Cases Usage
AMP Audio Amplier
PUSHER FAN Pusher Fan (Export Only)
Relays Usage
BAS RELAY
MINIBrake Apply Sensor
PUSHER FAN Pusher Fan (Export Only)
L POSITION
RELAY MICRODriver’s Side Position Lamp
(Export Only)
TRK DR REL
SOL RELAY
MICROTrunk Release Motor
REV LAMP
RELAY MICROISRVM (Inside Rearview Mirror),
License Plate Lamp Assembly
R POSITION
RELAY MICROPassenger’s Side Position Lamp
(Export Only)
IGN 3 RELAY
MICROHeated Seat Modules, Air Inlet
Motor, Shifter Assembly
STANDING
LAMP
RLY MICROControl for Position Lamp Relays
(Export Only)
Circuit
BreakersUsage
SEAT C/BPower Seat Switches, Memory Seat
Module
Misc. Usage
JOINT
CONNECTORJoint Connector
454

Loss of Control........................................... 303
Lumbar
Power Controls.......................................... 10
M
Maintenance Schedule
Additional Required Services.................... 465
At Each Fuel Fill...................................... 469
At Least Once a Month............................ 470
At Least Once a Year.............................. 470
Introduction.............................................. 460
Maintenance Footnotes............................ 467
Maintenance Record................................ 477
Maintenance Requirements...................... 460
Normal Maintenance Replacement
Parts.................................................... 475
Owner Checks and Services.................... 469
Recommended Fluids and Lubricants....... 473
Scheduled Maintenance........................... 462
Using....................................................... 461
Your Vehicle and the Environment............ 460
Malfunction Indicator Light........................... 209
Manual Seats.................................................. 8Manual Transmission
Fluid........................................................ 354
Operation................................................. 126
Map Pocket................................................. 160
Memory Seat and Mirrors.............................. 11
Message
Center..................................................... 215
Check Engine Oil Pressure...................... 220
DIC Warnings and Messages................... 232
Hot Coolant Temperature Warning............ 219
Oil Temperature Warning.......................... 220
One-to-Four Shift..................................... 222
Tire Pressure Warning............................. 221
Transmission Fluid Hot............................. 219
Mirrors
Automatic Dimming Rearview with
OnStar
®................................................ 136
Automatic Dimming Rearview with
OnStar
®and Compass......................... 137
Outside Convex Mirror............................. 141
Outside Curb View Assist Mirror............... 141
Outside Heated Mirrors............................ 141
Outside Power Mirrors............................. 140
MyGMLink.com............................................ 485
511

Reporting Safety Defects (cont.)
General Motors........................................ 501
United States Government....................... 500
Restraint System Check
Checking the Restraint Systems................. 90
Replacing Restraint System Parts
After a Crash......................................... 91
Retained Accessory Power (RAP)................ 119
Right Front Passenger Position,
Safety Belts............................................... 34
Roadside
Service.................................................... 488
Rocking Your Vehicle to Get it Out.............. 321
Roof Rack Provisions.................................. 160
Routing, Engine Drive Belt.......................... 476
Run-Flat Tires............................................. 400
Running the Engine While Parked............... 135
S
Safety Belt
Pretensioners............................................. 41
Reminder Light........................................ 201
Safety Belts
Care of.................................................... 439
Driver Position........................................... 26Safety Belts (cont.)
How to Wear Safety Belts Properly............ 25
Questions and Answers About
Safety Belts............................................ 24
Rear Safety Belt Comfort Guides............... 38
Rear Seat Passengers............................... 34
Right Front Passenger Position.................. 34
Safety Belt Extender.................................. 41
Safety Belt Use During Pregnancy............. 33
Safety Belts Are for Everyone.................... 20
Safety Warnings and Symbols......................... 4
Scheduled Maintenance............................... 462
Seats
Head Restraints......................................... 17
Heated Seats............................................. 10
Manual........................................................ 8
Memory, Mirrors......................................... 11
Power Lumbar........................................... 10
Power Seats................................................ 9
Reclining Seatbacks................................... 14
Split Folding Rear Seat.............................. 18
Securing a Child Restraint
Rear Seat Position..................................... 63
Right Front Seat Position........................... 66
Security Light.............................................. 213
Service........................................................ 332
Accessories and Modications.................. 332
514
