Downloaded from www.Manualslib.com manuals search engine 5. Check that the jumper cables don’t have loose or missing insulation. If
they do, you could get a shock. The vehicles could be damaged, too.
Before you connect the cables, here are some basic things you should
know. Positive
(+ ) will go to positive (+) and negative (-) will go to
negative
(-) or a metal engine part. Don’t connect (+) to (-) or you’ll
get a short that would damage the battery and maybe other parts, too.
A CAUTION:
Fans or other moving engine parts can injure you badly. Keep
your hands away from moving parts once the engines are
running.
L
*
L’
.. . ..
.. I
6. Start by removing
the red positive
(+)
terminal cover.

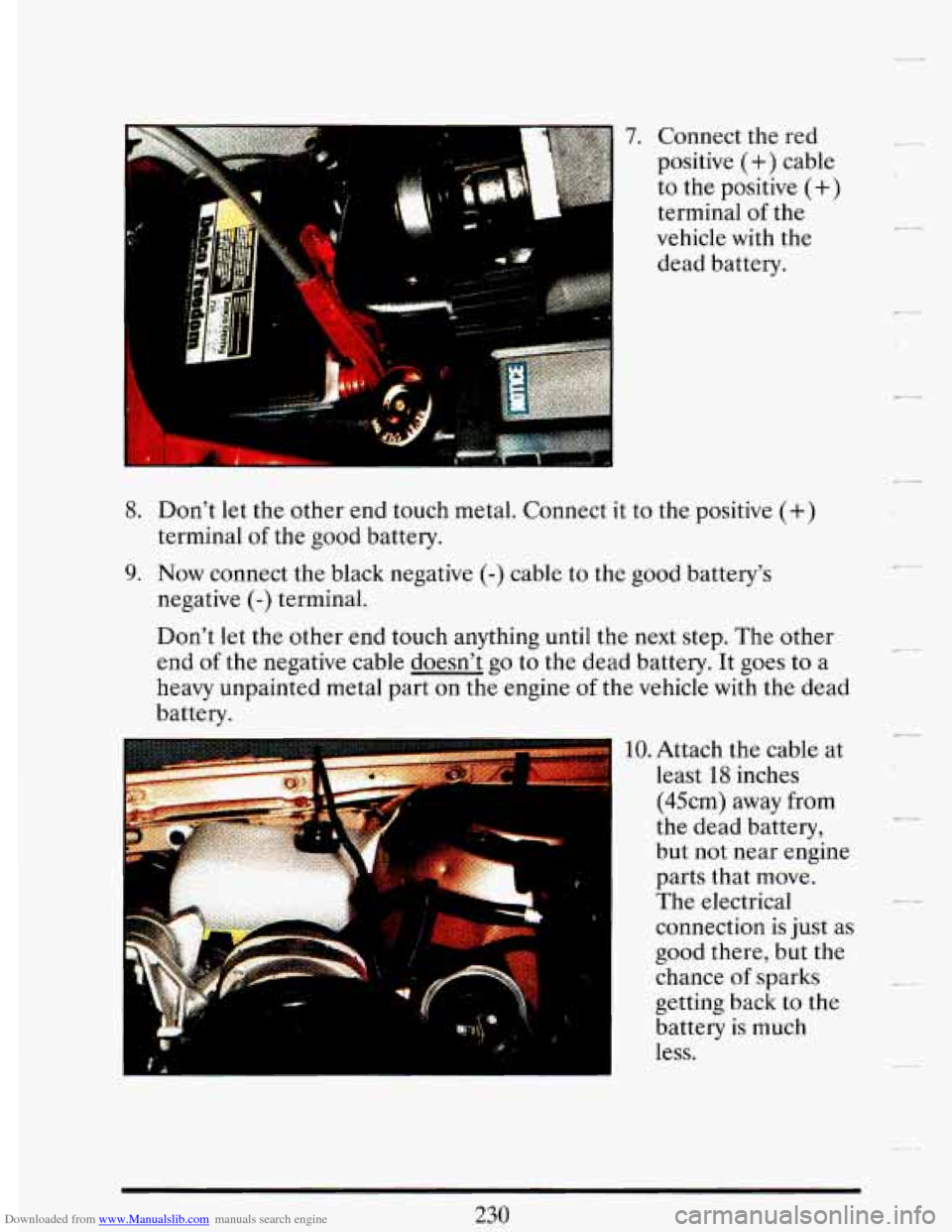

Downloaded from www.Manualslib.com manuals search engine 7. Connect the red
positive
(+) cable
to the positive
(+)
terminal of the
vehicle with the
dead battery.
8. Don’t let the other end touch metal. Connect it to the positive (+)
9. Now connect the black negative (-) cable to the good battery’s
terminal
of the
good battery.
negative
(-) terminal.
Don’t let the other end touch anything until the next step. The other
end
of the negative cable doesn’t go to the dead battery. It goes to a
heavy unpainted metal part on the engine
of the vehicle with the dead
battery.
10. Attach the cable at
least
18 inches
(45cm) away from
the dead battery,
but not near engine
parts that move.
The electrical
connection is just as
good there, but the
chance
of sparks
getting back to the
battery is much
less.
7
L
230
-

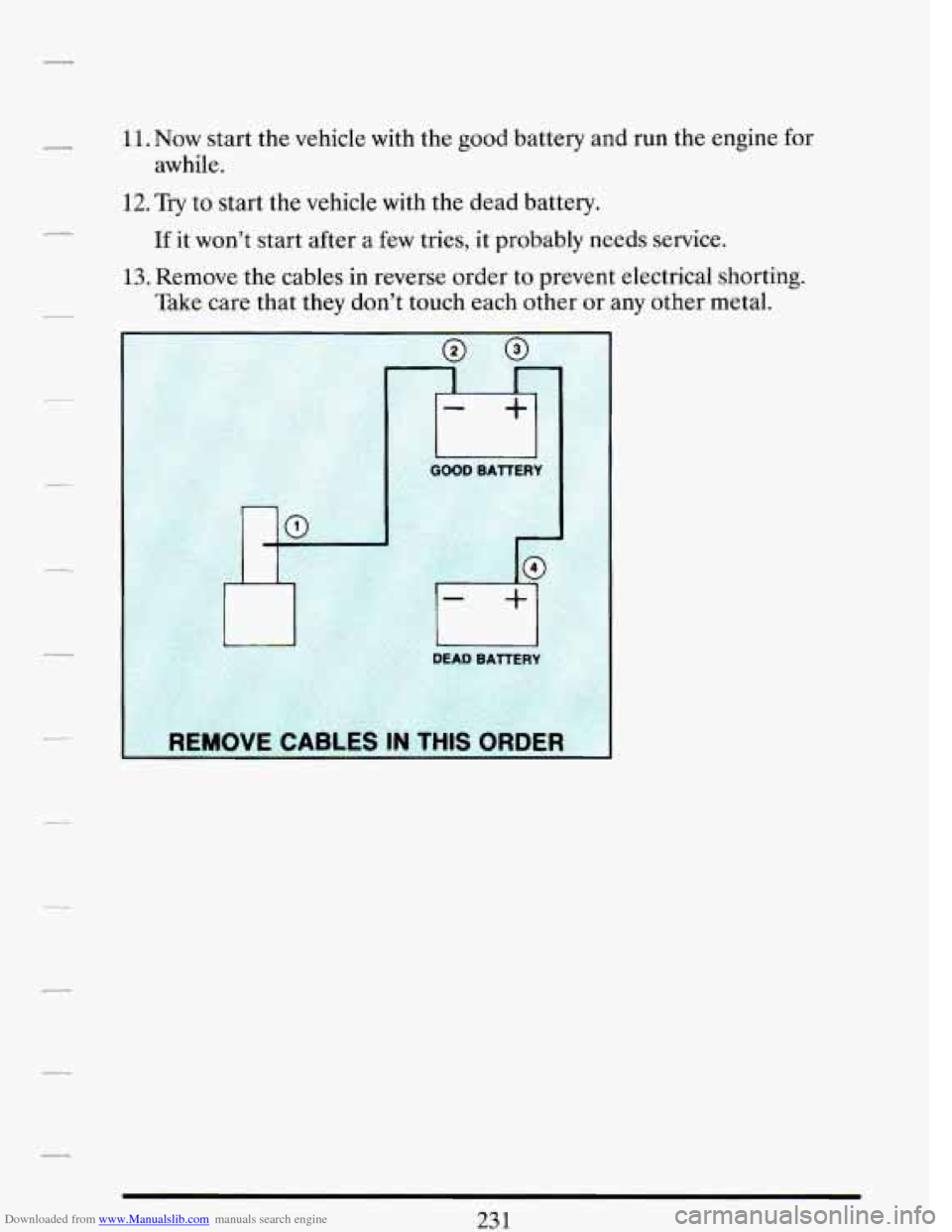

Downloaded from www.Manualslib.com manuals search engine r 11. Now start the vehicle with the good battery and run the engine for
12. Try to start the vehicle with the dead battery.
awhile.
If it won’t start after a few tries, it probably needs service.
13. Remove the cables in reverse order to prevent electrical shorting.
Take care that they don’t touch each other or any other metal.
E CABLES IN THIS ORDER

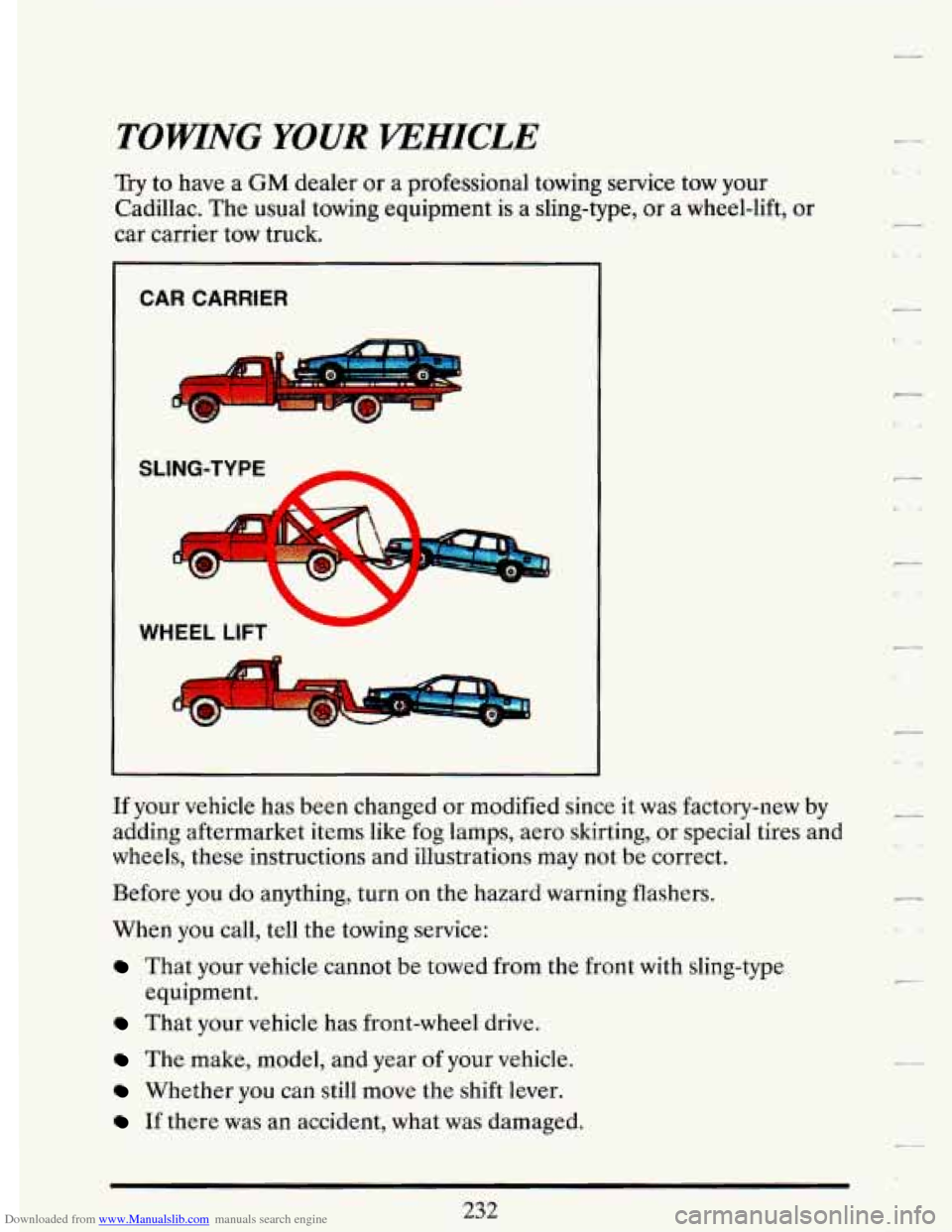

Downloaded from www.Manualslib.com manuals search engine TOMNG YOUR mHICLE
Try to have a GM dealer or a professional towing service tow your
Cadillac. The usual towing equipment
is a sling-type, or a wheel-lift, or
car carrier tow truck.
CAR CARRIER
.
SLING-TYPE
WHEEL LIFT
.
J
n
J
V
7
If your vehicle has been changed or modified since it was factory-new by
adding aftermarket items like fog lamps, aero skirting, or special tires and
wheels, these instructions and illustrations may not be correct.
Before you do anything, turn on the hazard warning flashers.
When you call, tell the towing service:
That your vehicle cannot be towed from the front with sling-type
That your vehicle has front-wheel drive.
The make, model, and year of your vehicle.
Whether you can still move the shift lever.
If there was an accident, what was damaged.
equipment.
232

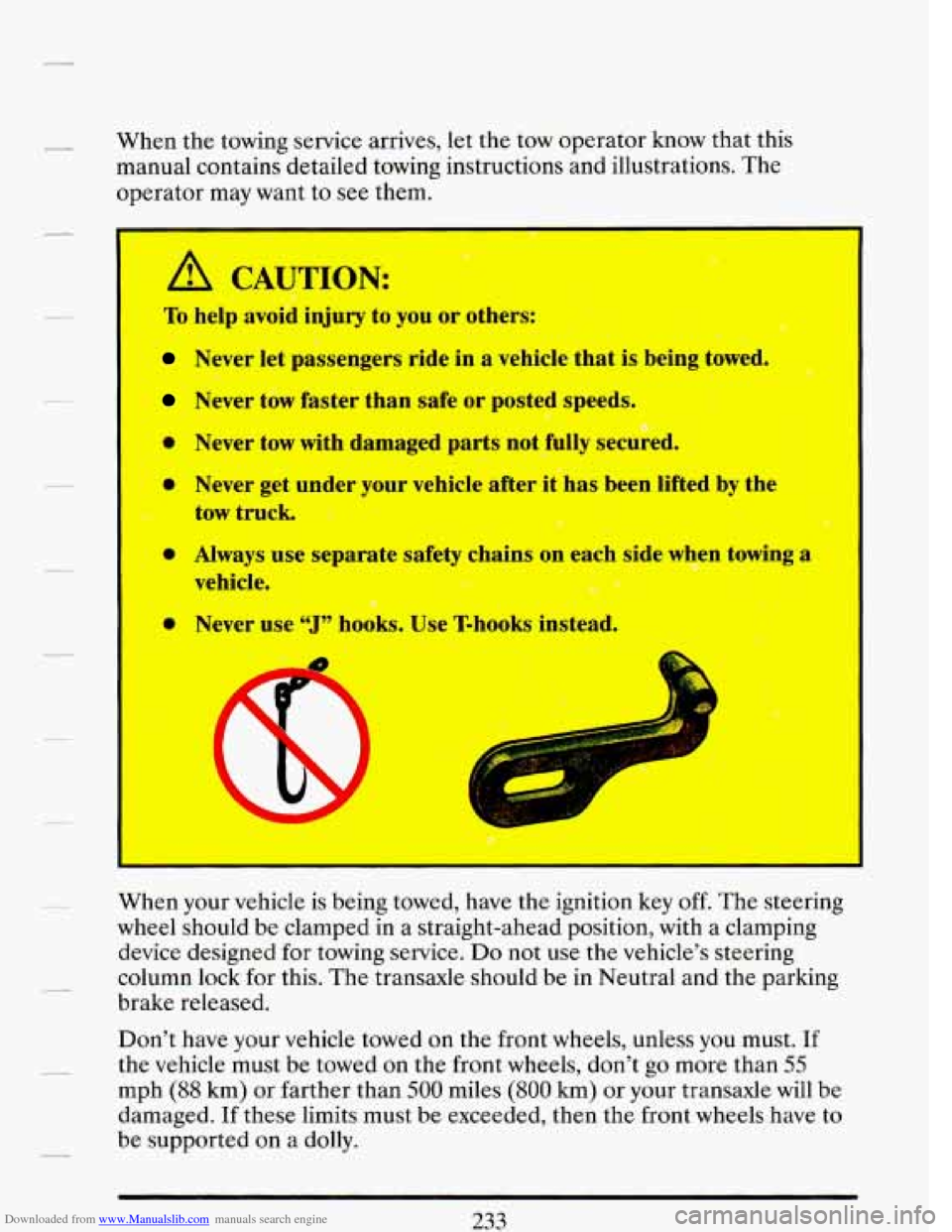

Downloaded from www.Manualslib.com manuals search engine When the towing service arrives, let the tow operator know that this
manual contains detailed towing instructions and illustrations. The
operator may want to see them.
~ A CAUTION:
, To help avoid injury to you or others: .. B c
Never let passengers ride in a vehicle that is being towed.
N- . er tow faster than safe or posted speeds.
0
0 Never tow with damaged parts not fully secured.
0 Never get under your vehicle after it has been lifted by the
tow truck.
0 Always use separate safety chains on each side when towing a
vehicle.
0 Never use “J” hooks. Use T-hooks instead.
*, 1 J
f
L
When your vehicle is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with a clamping
device designed for towing service.
Do not use the vehicle’s steering
column lock for this. The transaxle should be in Neutral and the parking
brake released.
Don’t have
your vehicle towed on the front wheels, unless you must. If
the vehicle must be towed on the front wheels, don’t go more than 55
mph (88 km) or farther than 500 miles (800 km) or your transaxle will be
damaged.
If these limits must be exceeded, then the front wheels have to
be supported on a dolly.

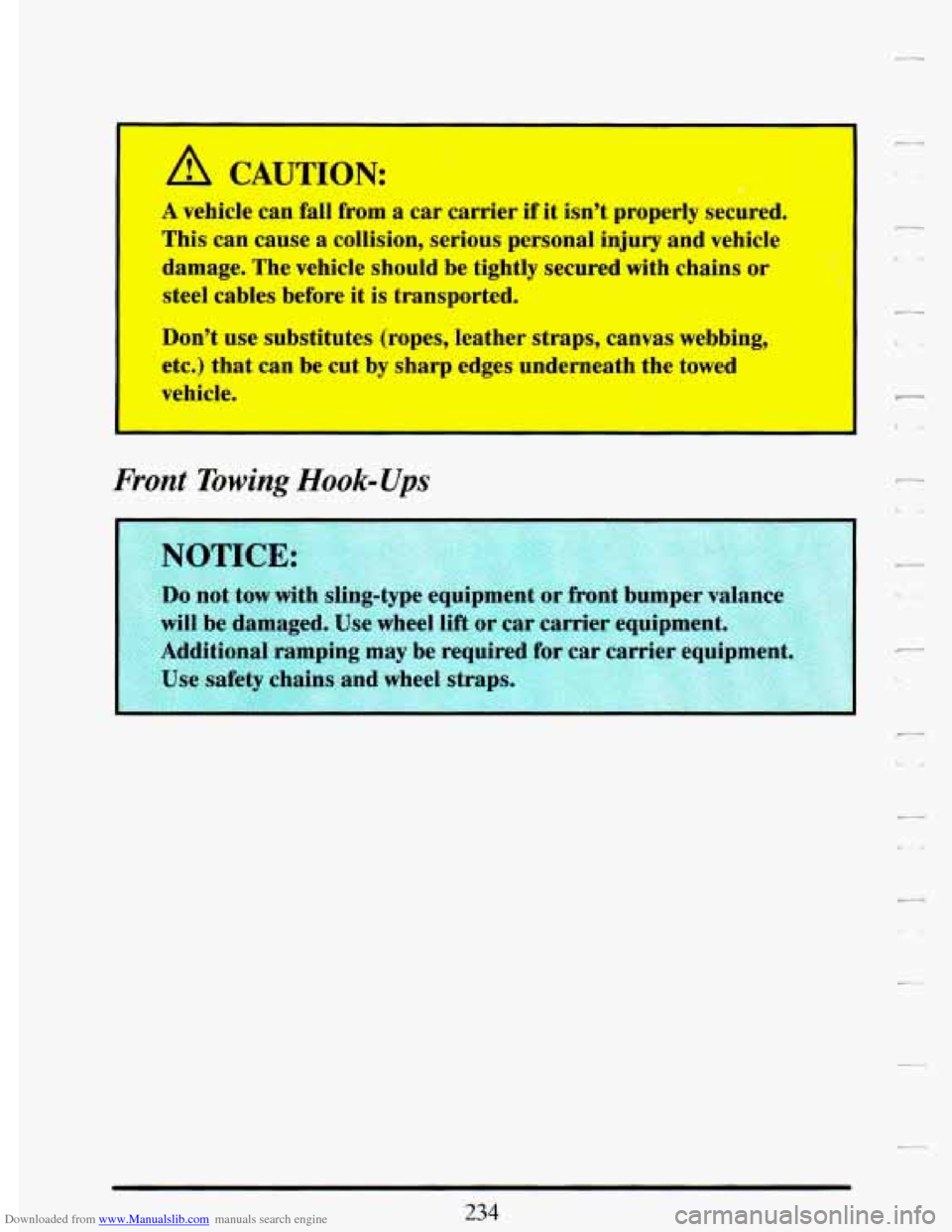

Downloaded from www.Manualslib.com manuals search engine A C UTION:
A vehicle can fall from a car carrier if it isn’t properly secured.
This can cause a collision, serious personal injury and vehicle
damage. The vehicle should be tightly secured with chains
or
steel cables before it is transported.
Don’t use substitutes (ropes, leather straps, canvas
etc.) that can be cut by sharp edges underneath the
vehicle. webbing,
towed
Front - -,wing Hook- Ups
Do
not tow wi
Use safety chains and wheel straps.
234

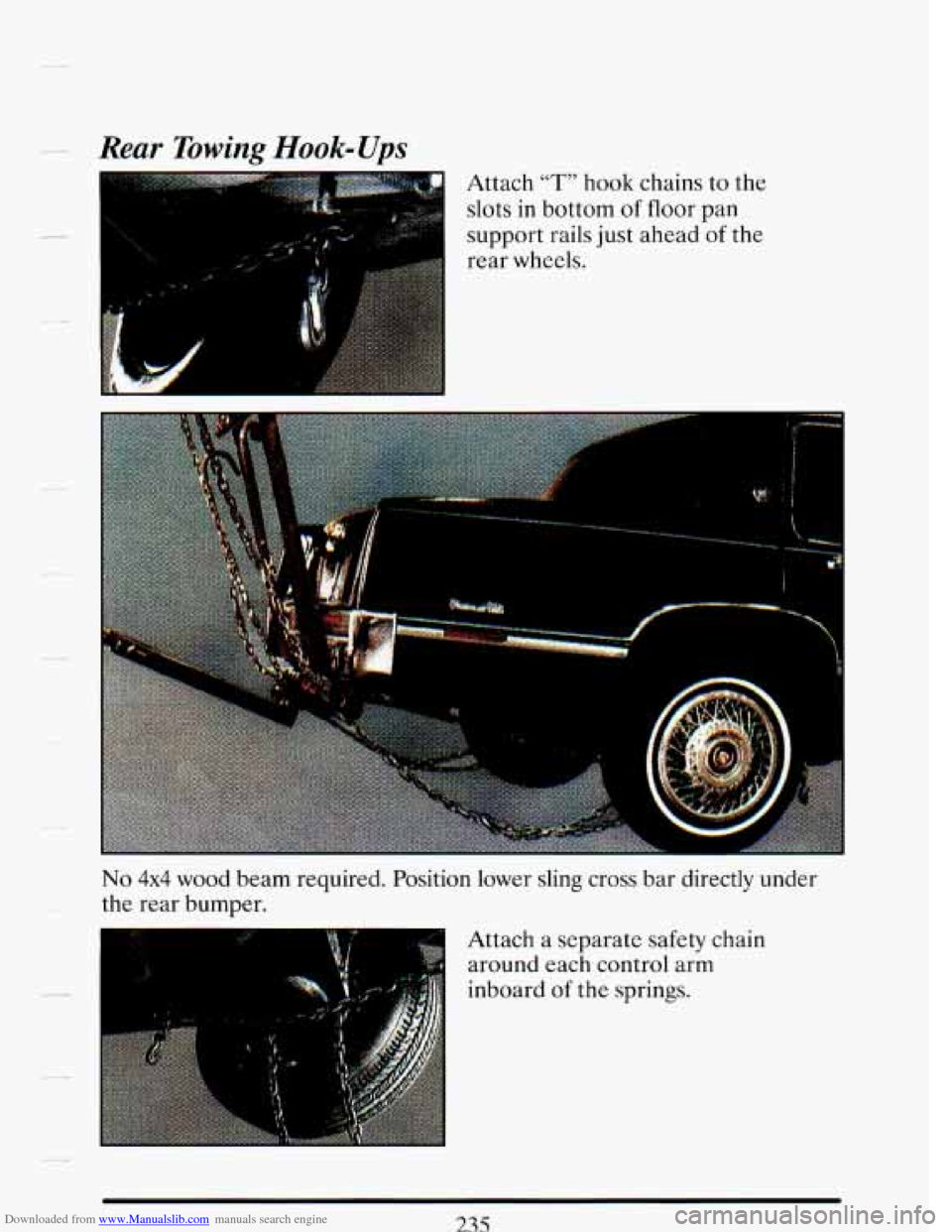

Downloaded from www.Manualslib.com manuals search engine - ., Rear Towing Hook-Ups
Attach “T” hook chains to the
slots
in bottom of floor pan
No 4x4 wood beam required. Position lower sling cross bar directly under
the rear bumper.
Attach
a separate safety chain
around
each control arm
inboard
of the springs.
235

Downloaded from www.Manualslib.com manuals search engine ENGINE 0VERH.EATING
YOU will find the two warning lights about a hot engine on your Cadillac
instrument panel.
If Steam Is Coming From Your Engine:
A CAUTION:
Steam from an overheated engine can burn you badly, even if
you just open the hood. Stay
away from the engine if you see or
hear steam coming from it. Just turn it
off and get everyone
away from the vehicle until it cools down. Wait until there is no
sign
of steam or coolant before opening the hood.
If you keep driving when your engine is overheated, the liquids
in it can catch fire. You or others could be badly burned. Stop
your engine if it overheats, and get out
of the vehicle until the I
1-
l-
engine is cool.
I I

Downloaded from www.Manualslib.com manuals search engine --

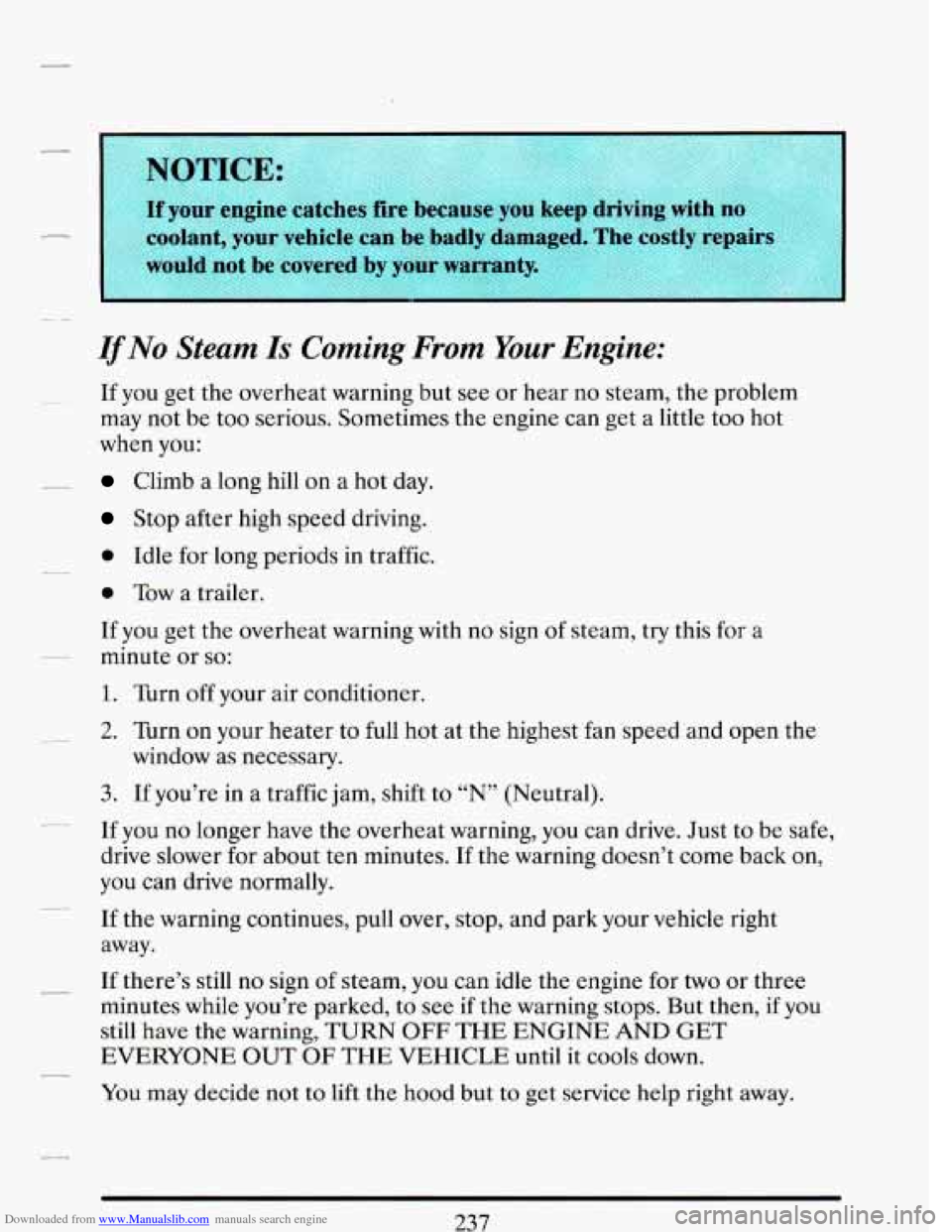

If No Steam Is Coming From Your Engine:
-- . If you get the overheat warning but see or hear no steam, the problem
may not be too serious. Sometimes the engine can get a little too hot
when you:
- Climb a long hill on a hot day.
Stop after high speed driving.
0 Idle for long periods in traffic.
0 Tow a trailer.
-
If you get the overheat warning with no sign of steam, try this for a
1. Turn off your air conditioner.
- minute or so:
- 2. Turn on your heater to full hot at the highest fan speed and open the
window as necessary.
3. If you’re in a traffic jam, shift to “N” (Neutral).
If you no longer have the overheat warning, you can drive. Just to be safe,
drive slower for about ten minutes.
If the warning doesn’t come back on,
you can drive normally.
-
-
If the warning continues, pull over, stop, and park your vehicle right
away.
237
e. If there’s still no sign of steam, you can idle the engine for two or three
minutes while you’re parked,
to see if the warning stops. But then, if you
still have the warning, TURN
OFF THE ENGINE AND GET
EVERYONE OUT
OF THE VEHICLE until it cools down.
You may decide not to lift the hood but to get service help right away.
