Page 40 of 406

Downloaded from www.Manualslib.com manuals search engine Q: What’s wrong with this? -
A: The belt is twisted across the body.
3 -
A CAUTION:
e You can be seriously injured by a twisted belt. In a crash, you
- wouldn’t have the full width of the belt to spread impact forces.
If a belt is twisted, make it straight so it can work properly, or
ask your dealer to Pix it.
-
27
Page 325 of 406

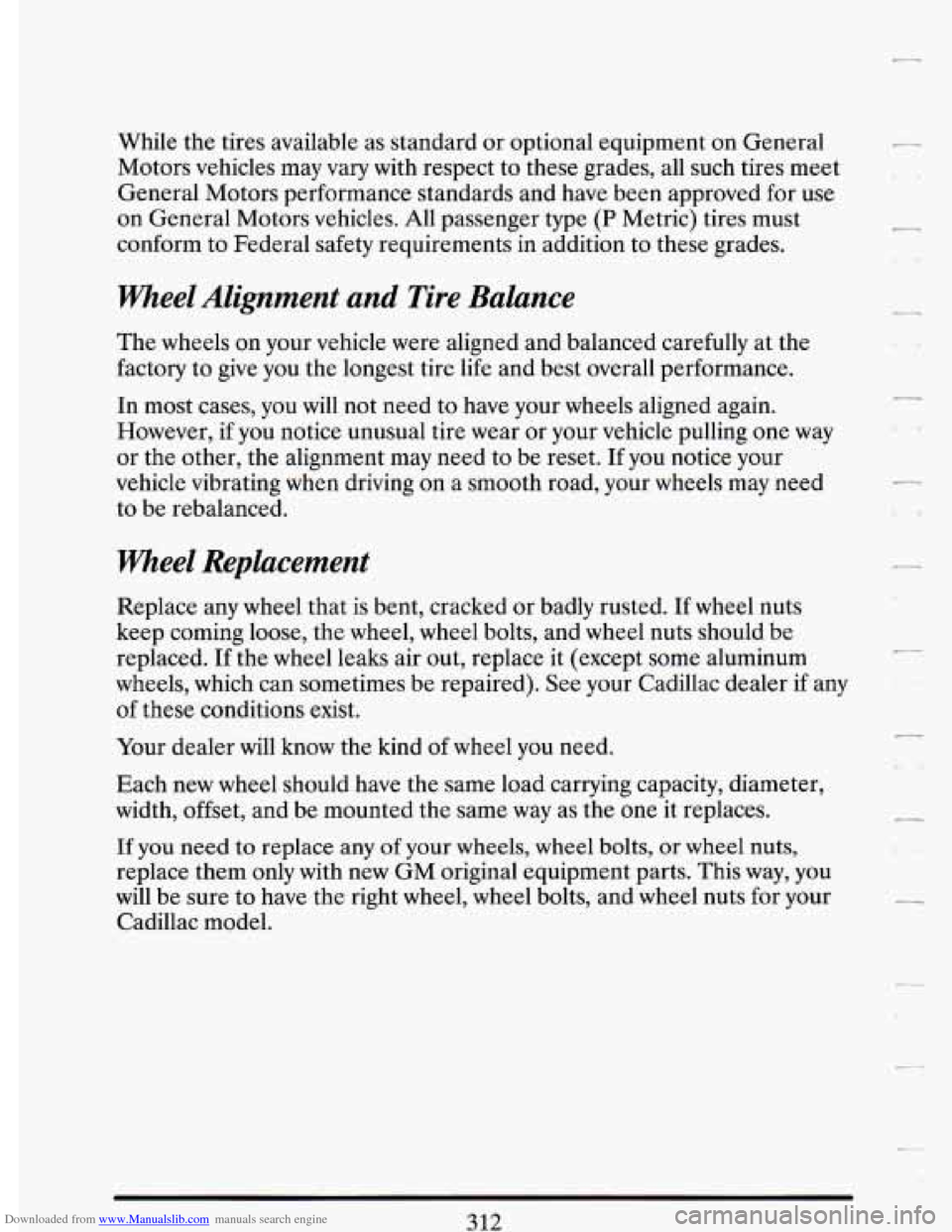

Downloaded from www.Manualslib.com manuals search engine While the tires available as standard or optional equipment on General
Motors vehicles may vary with respect to these grades, all such tires meet
General Motors performance standards and have been approved for use
on General Motors vehicles. All passenger type
(P Metric) tires must
conform
to Federal safety requirements in addition to these grades.
Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced carefully at the
factory to give you the longest
tire life and best overall performance.
In most cases, you will not need to have your wheels aligned again.
However, if you notice unusual tire wear or your vehicle pulling one way
or the other, the alignment may need to be reset.
If you notice your
vehicle vibrating when driving on a smooth road, your wheels may need
to be rebalanced.
Meel Replacement
Replace any wheel that is bent, cracked or badly rusted. If wheel nuts
keep coming loose, the wheel, wheel bolts, and wheel nuts should be
replaced. If the wheel leaks air out, replace it (except some aluminum
wheels, which can sometimes be repaired). See your Cadillac dealer
if any
of these conditions exist.
Your dealer
will know the kind of wheel you need.
Each new wheel should have
the same load carrying capacity, diameter,
width, offset, and be mounted the same way as the one
it replaces.
If you need to replace any of your wheels, wheel bolts, or wheel nuts,
replace them only with new GM original equipment parts. This way, you
will be sure to have the riqht wheel, wheel bolts, and wheel nuts for your
Cadillac model.
312
Page 349 of 406

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS
ENGINE
Displacement ............................... .4.9L (300 cu.in.)
No. of Cylinders .............................. 8 - 90 Degree V
Power (ACC. to SAE 51349) ............... 200 (bhp) @ 4100 rpm
Torque (ACC. to
SAE 51349) ............ 275 (lbs. ft.) @ 3000 rpm
Bore
....................................... 92mm (3.623 in.)
Stroke
..................................... 92mm (3.623 in.)
Compression Ratio
.................................... 9.5:l
Cylinder Block-
........................... Die Cast Aluminum
Cylinder Block Bore Liners
......................... Cast Iron
CylinderHead
..................................... Cast Iron
Intake Manifold
.............................. Cast Aluminum
Valve System
.......................... Roller Hydraulic Lifters
Intake Valve
................................ 45mm (1.772 in.)
Exhaust Valve
............................... 38mm (1.496 in.)
Pistons ...................................... Cast Aluminum
Firing Order
.................................. 1-8-4-3-6-5-7-2
Left Bank
.......................................... 1-3-5-7
Right Bank
......................................... 2-4-6-8
Camshaft
............................................. Steel
Width..
................................... .16.2mm (0.64 in.)
Pitch ..................................... .12.7mm (0.50 in.)
Drive vpe
.......................................... Chain
Crankshaft ............................. Pearlitic Nodular Iron
MainBearings
........................................... 5
...................................... 150 (kW) @ 4100 rprn
...................................... 375 (N-m) @ 3000 rpm
ENGINE LUBRYCATION SYSTEM
Oil Pressure @ 1000 rpm .............. 14.5-26 psi (100-180 kPa)
Type of Intake
..................................... Stationary
Filter System
...................................... Full-Flow
336
Page 352 of 406

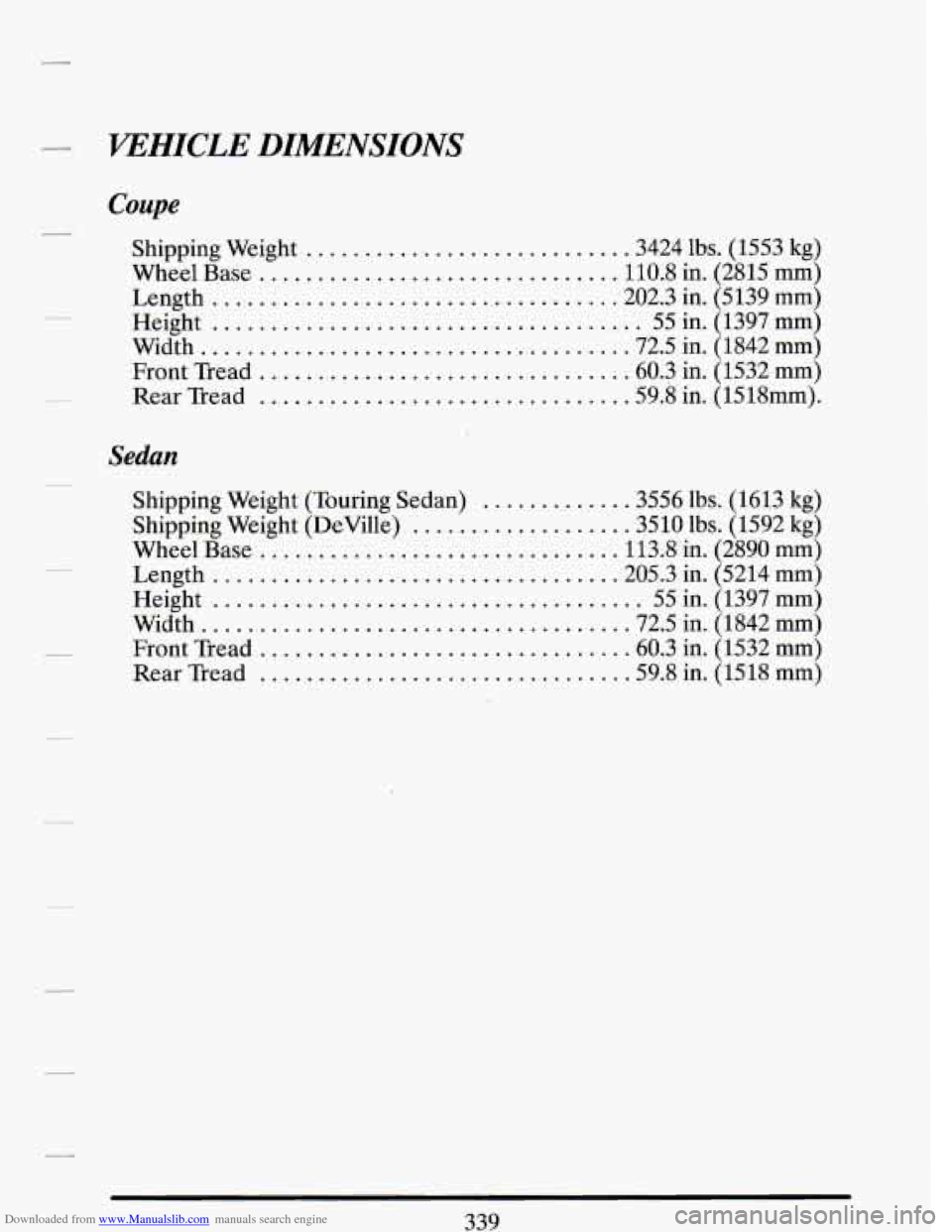

Downloaded from www.Manualslib.com manuals search engine VEJYIC'LE DIMENSIONS
Coupe
Shipping Weight ........................... -3424 lbs. (1553 kg)
Wheel Base
.............................. .110.8 in. (2815 mm)
Length
.................................. .202.3 in. (5139 mm)
Height
..................................... 55 in. (1397 mm)
Width.. .................................. .72.5 in. (1842 mm)
Front Tread
............................... .60.3 in. (1532 mm)
Rear Tread
............................... .59.8 in. (1518mm).
Sedan
Shipping Weight (Touring Sedan) ............ .3556 lbs. (1613 kg)
Shipping Weight (DeVille)
.................. -3510 lbs. (1592 kg)
Wheel Base .............................. .113.8 in. (2890 mm)
Length
.................................. .205.3 in. (5214 mm)
Height
..................................... 55 in. (1397 mm)
Width..
.................................. .72.5 in. (1842 mm)
Front Tread
............................... .60.3 in. (1532 mm)
Rear Tread ............................... .59.8 in. (1518 mm)
339
