Mix Multi-Purpose Powdered Cleaner following the directions on the
container label.
Use suds only and apply with a clean sponge.
Don’t saturate
the material.
Don’t rub it roughly.
As soon as you’ve cleaned the secnon, use a sponge to remove the
suds.
Rinse the section with a clean, wet sponge.
Wipe
off what’s left with a slightly damp paper towel or cloth.
Then dry
it immediately with an air hose, a hair dryer or a heat lamp.
0 Wipe with a clean cloth.
USING SOLVENFTTPE CLEANER ON
FABRlC
First, see if you have to use solvent-type cleaner at all. Some spots and
stains will clean off better with just water and mild soap.
If you need to
use it, then:
Gently scrape excess soil from the trim material with a clean, dull
knife or scraper. Use
very little cleaner, light pressure and clean cloths
(preferably cheesecloth). Cleaning should start at the outside
of the
stain, “feathering” toward the center. Keep changing to a clean
section of the cloth.
0 When you clean a stain from fabric, immediately dry the area with an
air hose, hair dryer, or heat lamp to help prevent a cleaning ring.
(See the previous
NOTICE.)
317

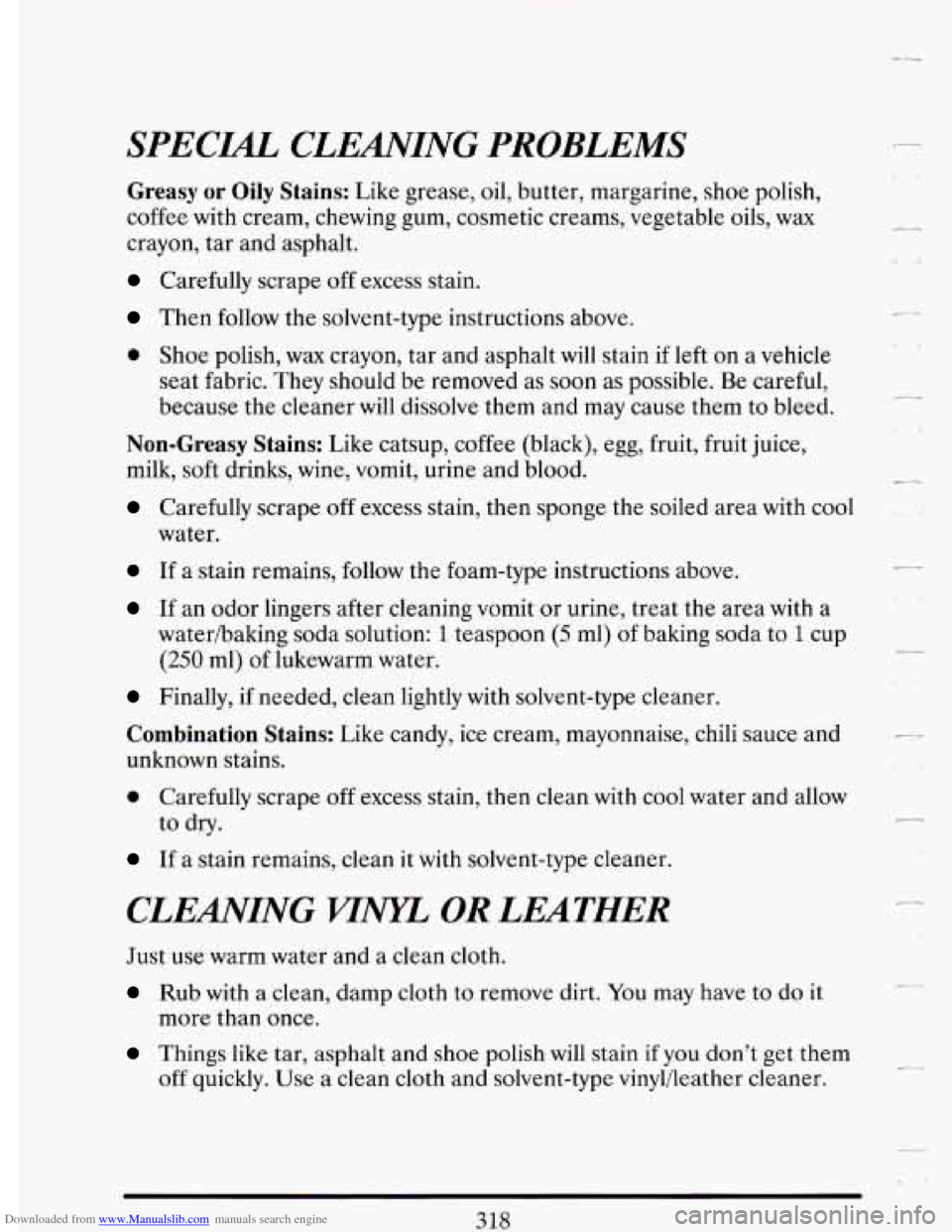

Downloaded from www.Manualslib.com manuals search engine SPEC. CLEMING PROBLEMS
Greasy or Oily Stains: Like grease, oil, butter, margarine, shoe polish,
coffee with cream, chewing gum, cosmetic creams, vegetable oils,
wax
crayon, tar and asphalt.
Carefully scrape off excess stain.
Then follow the solvent-type instructions above.
0 Shoe polish, wax crayon, tar and asphalt will stain if left on a vehicle
seat fabric. They should be removed as soon as possible. Be careful,
because the cleaner will dissolve them and may cause them to bleed.
Non-Greasy Stains: Like catsup, coffee (black), egg, fruit, fruit juice,
milk,
soft drinks, wine, vomit, urine and blood.
Carefully scrape off excess stain, then sponge the soiled area with cool
water.
If a stain remains, follow the foam-type instructions above.
If an odor lingers after cleaning vomit or urine, treat the area with a
waterbaking soda solution:
1 teaspoon (5 ml) of baking soda to 1 cup
(250 ml) of lukewarm water.
Finally, if needed, clean lightly with solvent-type cleaner.
Combination Stains: Like candy, ice cream, mayonnaise, chili sauce and
unknown stains.
@ Carefully scrape off excess stain, then clean with cool water and allow
If a stain remains, clean it with solvent-type cleaner.
to
dry.
CLEANING VINYZ OR LEATHER
Just use warm water and a clean cloth.
Rub with a clean, damp cloth to remove dirt. You may have to do it
Things like tar, asphalt and shoe polish will stain if you don’t get them
off quickly. Use a clean cloth and solvent-type vinyl/leather cleaner.
more
than once.
318

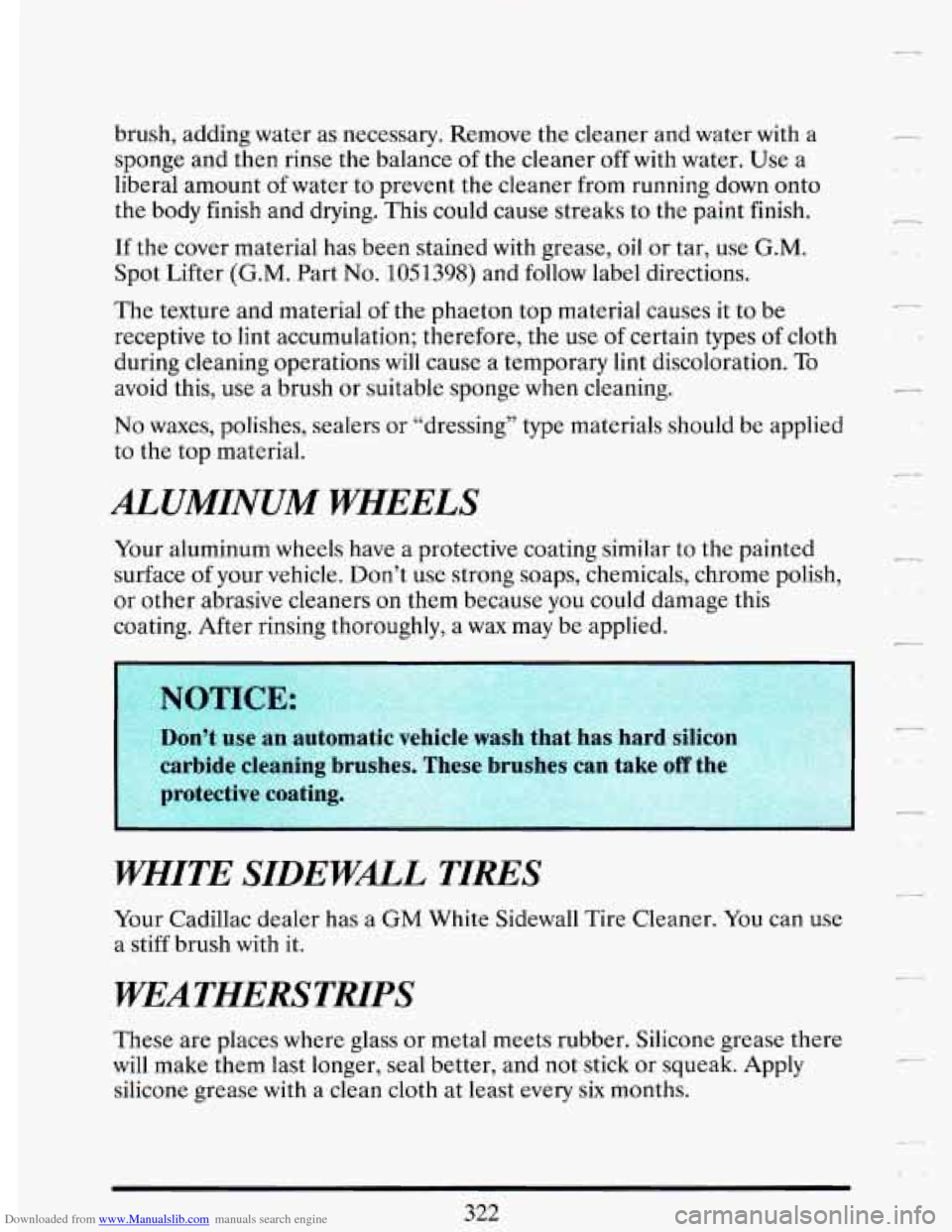

Downloaded from www.Manualslib.com manuals search engine brush, adding water as necessary. Remove the cleaner and water with a
sponge and then rinse the balance
of the cleaner off with water. Use a
liberal amount
of water to prevent the cleaner from running down onto
the body finish and drying. This could cause streaks to the paint
finish.
If the cover material has been stained with grease, oil or tar, use G.M.
Spot Lifter (G.M. Part No. 1051398) and follow label directions.
The texture and material
of the phaeton top material causes it to be
receptive to lint accumulation; therefore, the use
of certain types of cloth
during cleaning operations
will cause a temporary lint discoloration. To
avoid this, use a brush or suitable sponge when cleaning.
No waxes, polishes, sealers or “dressing” type materials should be applied
to the top material.
ALUMINUM WHEELS
Your aluminum wheels have a protective coating similar to the painted
surface
of your vehicle. Don’t use strong soaps, chemicals, chrome polish,
or other abrasive cleaners
on them because you could damage this
coating. After rinsing thoroughly, a
wax may be applied.
Don’t use an automatic vehicle wash that has hard silico
carbide cleaning b
WHITE SIDEWaL TIIRES
Your Cadillac dealer has a GM White Sidewall Tire Cleaner. You can use
a stiff brush with it.
WEATHERSTRIPS
These are places where glass or metal meets rubber. Silicone grease there
will make them last longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth at least every six months.
322
cc
L

Downloaded from www.Manualslib.com manuals search engine L.
f-
I-
r I

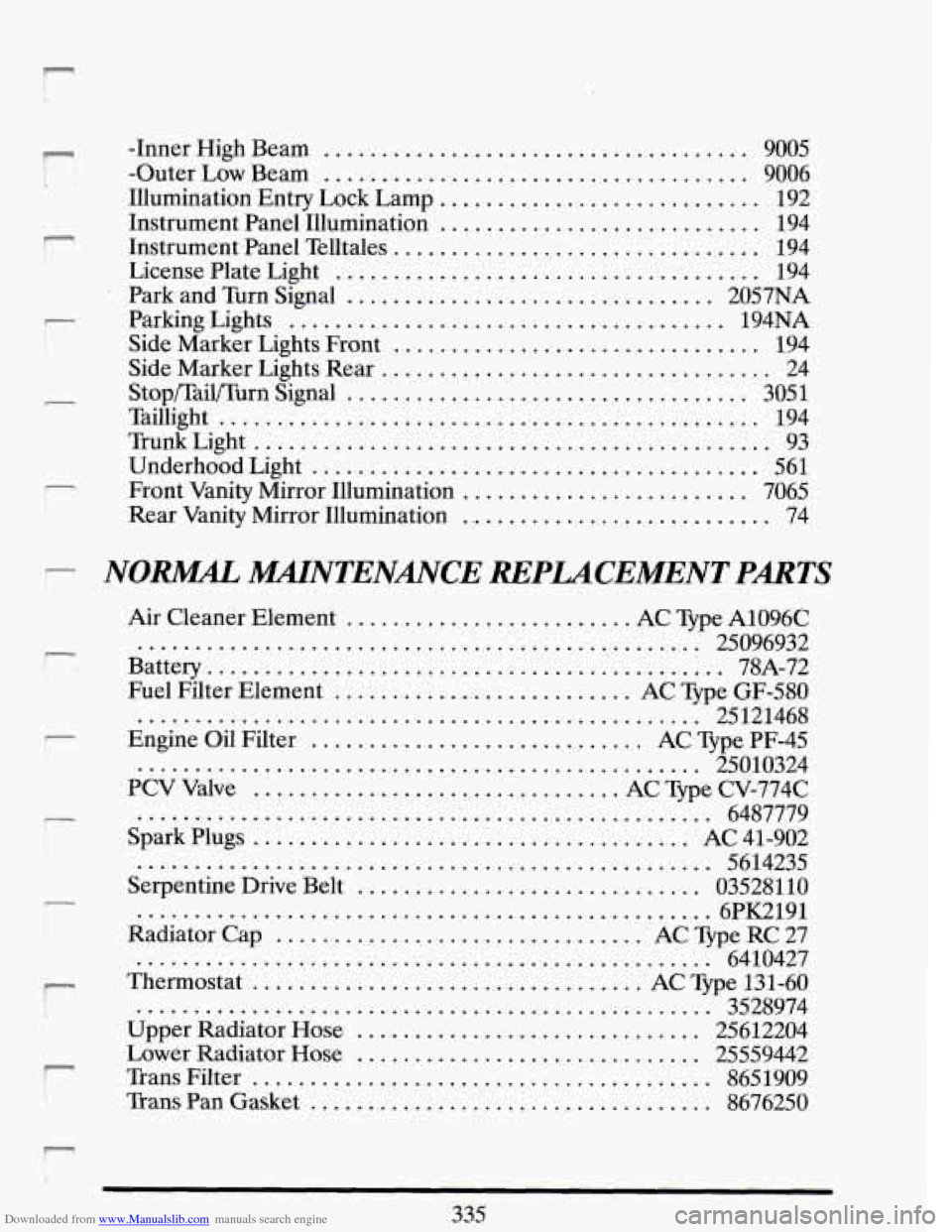

-Inner High Beam ..................................... 9005
-Outer Low Beam
..................................... 9006
Illumination Entry
Lock Lamp ............................ 192
Instrument Panel Illumination
............................ 194
Instrument Panel Telltales
................................ 194
License Plate Light
..................................... 194
Park and Turn Signal
................................ 2057NA
Parking Lights
...................................... 194NA
Side Marker Lights Front
................................ 194
Side Marker Lights Rear
.................................. 24
Stop/Tail/Turn Signal
................................... 3051
Taillight
............................................... 194
Trunk Light
............................................. 93
Front Vanity Mirror Illumination
......................... 7065
Rear Vanity Mirror Illumination
............................ 74
Underhood
Light
....................................... 561
7 NORlMAL MNTENANCE REPLACEMENT PARTS
P
I-
Air Cleaner Element ......................... AC Type A1096C
................................................. 25096932
Battery
............................................. 78A-72
Fuel Filter Element
............................ AC Type GF-580
................................................. 2512.1468
7 Engine Oil Filter ............................. AC Type PF-45
................................................. 25010324
PCV Valve ................................ AC Type CV-774C
.................................................. 6487779
Sparkplugs
...................................... AC 41-902
.................................................. 5614235
Serpentine Drive Belt
.............................. 03528110
.................................................. 6PK2191
Radiator Cap
................................ AC Type RC 27
.................................................. 6410427
Thermostat
.................................. AC Trpe 131-60
.................................................. 3528974
Upper Radiator Hose
.............................. 25612204
Lower Radiator
Hose .............................. 25559442
TransFilter
........................................ 8651909
TransPanGasket
................................... 8676250
-
335

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS
ENGINE
Displacement ............................... .4.9L (300 cu.in.)
No. of Cylinders .............................. 8 - 90 Degree V
Power (ACC. to SAE 51349) ............... 200 (bhp) @ 4100 rpm
Torque (ACC. to
SAE 51349) ............ 275 (lbs. ft.) @ 3000 rpm
Bore
....................................... 92mm (3.623 in.)
Stroke
..................................... 92mm (3.623 in.)
Compression Ratio
.................................... 9.5:l
Cylinder Block-
........................... Die Cast Aluminum
Cylinder Block Bore Liners
......................... Cast Iron
CylinderHead
..................................... Cast Iron
Intake Manifold
.............................. Cast Aluminum
Valve System
.......................... Roller Hydraulic Lifters
Intake Valve
................................ 45mm (1.772 in.)
Exhaust Valve
............................... 38mm (1.496 in.)
Pistons ...................................... Cast Aluminum
Firing Order
.................................. 1-8-4-3-6-5-7-2
Left Bank
.......................................... 1-3-5-7
Right Bank
......................................... 2-4-6-8
Camshaft
............................................. Steel
Width..
................................... .16.2mm (0.64 in.)
Pitch ..................................... .12.7mm (0.50 in.)
Drive vpe
.......................................... Chain
Crankshaft ............................. Pearlitic Nodular Iron
MainBearings
........................................... 5
...................................... 150 (kW) @ 4100 rprn
...................................... 375 (N-m) @ 3000 rpm
ENGINE LUBRYCATION SYSTEM
Oil Pressure @ 1000 rpm .............. 14.5-26 psi (100-180 kPa)
Type of Intake
..................................... Stationary
Filter System
...................................... Full-Flow
336

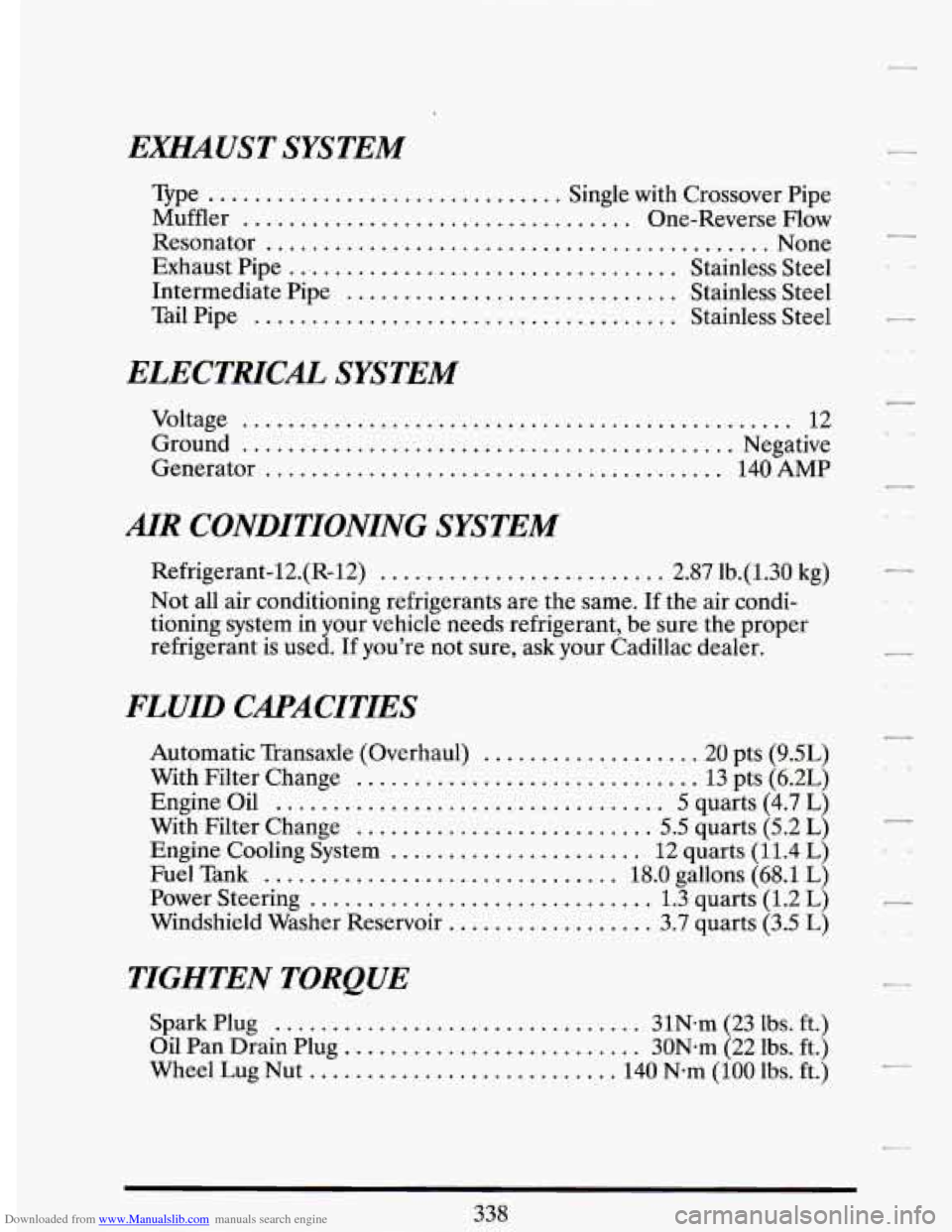

Downloaded from www.Manualslib.com manuals search engine EXECAUST SYSTEM
Type ............................... Single with Crossover Pipe
Exhaust Pipe
.................................. Stainless Steel
Intermediate Pipe
............................. Stainless Steel
Tail Pipe
..................................... Stainless Steel
Muffler
.................................. One-Reverse Flow
Resonator ............................................ None
ELECTHCAL, SYSTEM
Voltage ................................................ 12
Generator
........................................ 140 AMP
Ground
........................................... Negative
AIR CONDITIONING SYSTEM
Refrigerant-12.(R-12) ......................... 2.87 lb.(1.30 kg)
Not all
air conditioning refrigerants are the same. If the air condi-
tioning system
in your vehicle needs refrigerant, be sure the proper
refrigerant is
used. If you’re not sure, ask your Cadillac dealer.
FLUID CAPACITIES
Automatic Transaxle (Overhaul) ................... 20 pts (9.5L)
With Filter Change .............................. 13 pts (6.2L)
Engine Oil
.................................. 5 quarts (4.7 L)
With Filter Change .......................... 5.5 quarts (5.2 L)
Engine Cooling System ...................... 12 quarts (1 1.4 L)
Fuel Tank ............................... 18.0 gallons (68.1 L)
Power Steering
.............................. 1.3 quarts (1.2 L)
Windshield Washer Reservoir .................. 3.7 quarts (3.5 L)
TIGHTEN TURQUE
Spark Plug ................................ 31N.m (23 lbs. ft.)
Oil Pan Drain Plug.
......................... 30N-m (22 lbs. ft.)
Wheel Lug Nut
........................... 140 N-m (100 lbs. ft.)
338

Downloaded from www.Manualslib.com manuals search engine Ethanol In Gasoline ................................ 262
Exhaust. Caution ................................. 89. 216
Exhaust. Dangerous Gas In ........................ 89. 216
Expectant Mothers. Use Of Safety Belts By .............. 33
Explanation of Maint . Service ........ See Maint . Book. p.18
Express Down Window (Driver’s Side)
.................. 90
Expressway Driving
................................. 202
Extender. Safety Belt ................................ 55
Exterior Appearance ................................ 320
I .
..
...
.. ...
F
Fabric. Foam-Type Cleaner On ....................... 316
Fabric. Solvent-me Cleaner On ...................... 317
Fasteners. Replacement ............................. 260
Features And Controls ............................... 58
Fetus. Risk To .. From Safety Belt Use .................. 33
Filling Your Fuel Tank .............................. 263
Filter. Oil .......................................... 335
Finish Damage ..................................... 323
First Gear. When To Use ............................. 82
Flat Tire .......................................... 246
Flat Tire. Changing A ............................... 247
Flooded Engine. Starting A ........................... 76
Floor Mats ........................................ 117
Fluid Capacities .................................... 338
Fluids & Lubricants. Recommended ... See Maint . Book. p.38
Fluid. Brake ....................................... 284
Fluid. Power Steering ............................... 281
Fluid Usage Label .................................. 267
FM Stereo Radio Reception ......................... 144
Foam-Type Cleaner On Fabric ........................ 316
Fog. Driving In ..................................... 199
Fog: Getting It Off the Windshield .................... 141
Foreign Operation .................................. 263
Francais. Guide En ...................... See Introduction
Freedom Battery
................................... 287
Freeing Car From Sand. Mud. Ice or Snow ............. 257
Freeway Driving ................................... 202
French Language Manual ................. See Introduction
Front Brake Wear Indicators
......................... 185
Front Seatback Latches ............................... 9
Front Seatbacks. Reclining
............................. 7
Front Towing Hook-Ups ............................. 234
Fuel .............................................. 261
Fuel Data Center ................................... 130
Fluid. Transaxle .................................... 275
