CADILLAC DEVILLE 1994 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine The low beam headlights will come on at reduced brightness in daylight
0
0
0
A
when:
The ignition is on
The headlight switch is off, and
The transaxle is not in
“P” (Park).
.ts
,t
dusk,
if the Twilight Sentinel feature is turned on, the exterior ligh
will come on automatically and the low beams
will change to full
brightness. At dawn, the exterior lights will go out and the low beams will
..
change to the reduced brightness of DRL (if the headlight switch is off).
Of course, you may still turn on the headlights any time you need to.
To idle your vehicle with the DRL
off, shift the transaxle into “P” (Park).
The DRL will stay off until you shift out
of “P” (Park).
Operation of Lights
Although your vehicle’s lighting system (headlights, parking lights, fog
lamps, side marker lights and taillights) meet all applicable federal
lighting requirements, certain states and provinces may apply their own
lighting regulations that may require special attention before you operate
-
these lights.
For example, some jurisdictions may require that you operate your. lower
beam lights with fog lamps at all times, or that headlights be turned on
whenever you must use your windshield wipers.
In addition, most
jurisdictions prohibit driving solely with parking lights, especially at dawn
or dusk. It is recommended that you check with your own state
or
provincial highway authority for applicable lighting regulations.
118

Downloaded from www.Manualslib.com manuals search engine P
4

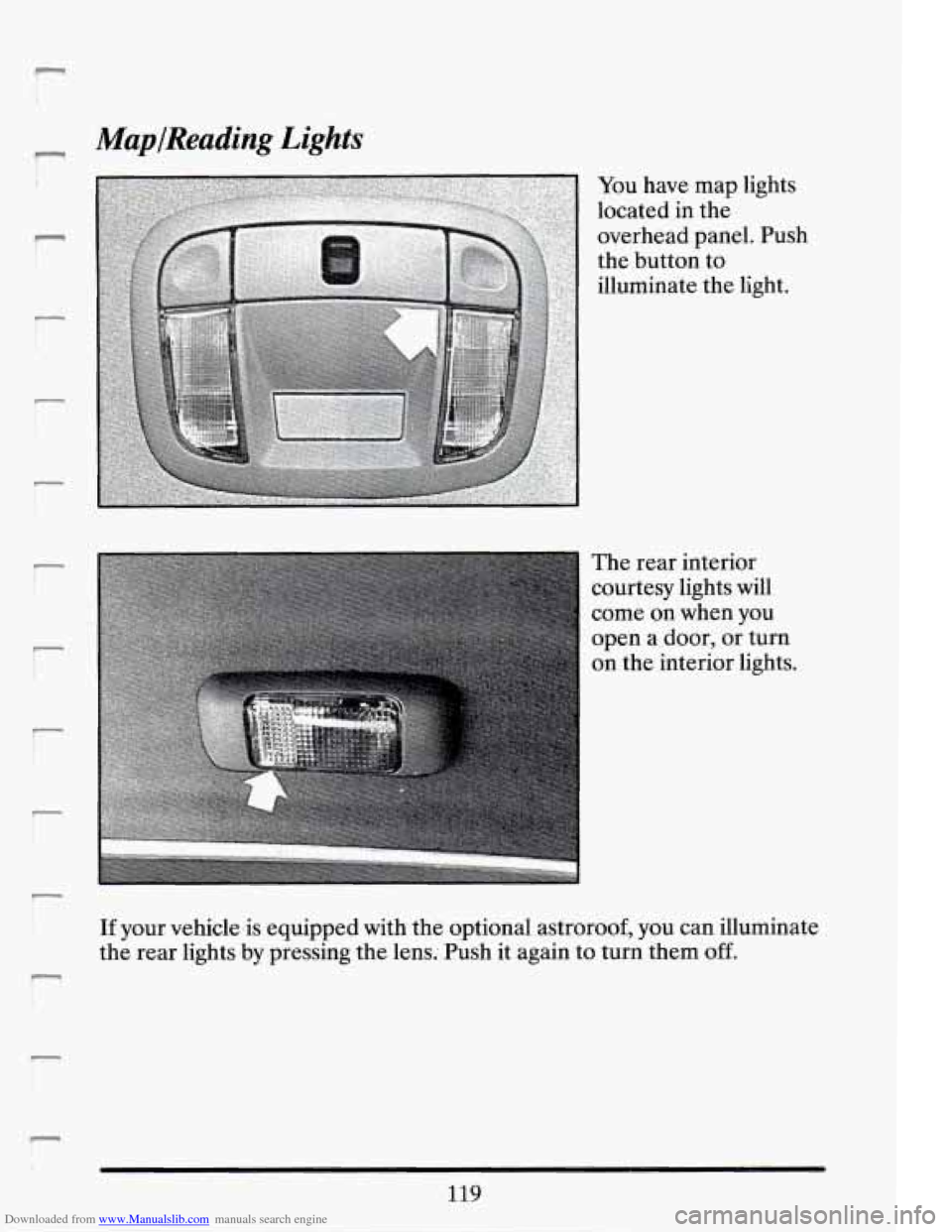

MapIReading Lights m
f-
!- i
You have map lights
located in the
overhead.pane1. Push
the button to illuminate the light.
The rear interior
courtesy lights will
come on when you
open a door, or turn
on the interior lights.
If your vehicle.is equipped with the optional astrormf, you can illuminate
the rear lights by-pressing the lens; Push it again to turn them
off.
119
I
P

Downloaded from www.Manualslib.com manuals search engine Rear Taillamp Monitor
The rear taillamp monitor is located at the top center over the back glass.
You
will see it as you are looking through your inside rearview mirror.
Two red indicators will illuminate to show that your taillights and brake
lights are working.

Downloaded from www.Manualslib.com manuals search engine MIRRORS
Automatic Inside And Outside Rearview Mirrors
Your Cadillac has an
inside automatic
electrochromic rearview mirror
This mirror automatically changes to reduce glare from headlights behind
you.
A photocell on the back of the mirror senses when it is becoming
dark outside. Another photocell built into the mirror surface senses the
headlights behind you.
The mirror will darken gradually to reduce glare. This change may take a
few seconds.
OnlOff Switch
121

Downloaded from www.Manualslib.com manuals search engine Reverse Gear Day Mode
The reverse mode is another important feature of the automatic mirror.
When the shift lever is placed in
“R” ‘(Reverse), the mirror changes to the
daytime mode for a bright image in the mirror as you back up.
Cleaning Photocells
Use a cotton swab and glass cleaner to clean the front and rear photocells
that make the mirror work.
Optional Driver Outside Electrochromic Rearview
Mirror
This mirror automatically dims to minimize glare for maximum rear
visibility.
It operates in conjunction with the inside rearview mirror. As
glare increases the mirror darkens accordingly. When the glare subsides
the mirror returns to its clear daytime state.
122
7
L .-L

Downloaded from www.Manualslib.com manuals search engine 1
r i
r
-
I
7
Front Visor and Auxiliary Sunshade System
To block out glare, swing down the visor. You can also remove them from
the center mount and swing them
to the side, while the auxiliary sunshade
remains to block glare from the front.
To use one, pull the
front shade from the
headliner and position
it to your preference.

Downloaded from www.Manualslib.com manuals search engine Front Seat Vanity Mirrors
To use one, turn the
sunshade down. Then
lift the cover up to see
the mirror.
Illuminated Front Seat Vanity Mirrors
To use the optional
lighted vanity mirrors,
turn the sunshade
down. Then lift the
cover up to see the
mirror. Move the
switch up or down to
either brighten or
dim
the light.
124
a
e

Downloaded from www.Manualslib.com manuals search engine r
r
1
r"
t
The control on the driver's door armrest operates both outside rearview
mirrors. Move the center switch to the left to select the driver side mirror,
or to the right to select the passenger side mirror. Then press the control
pad to adjust each mirror
so that you can just see the side of your vehicle.
To lock the controls leave the selector switch in the middle position.
When
you operate the rear window defogger, it also warms both outside
mirrors to help clear them of fog or ice.
125

Downloaded from www.Manualslib.com manuals search engine COlVVEX OUTSIDE MIRROR
Your right side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s seat.
1 A CAUTION:
ff you aren’t used to a convex mirror, you can hit another vehicle.
A convex mirror c811 make things (like other vehicles) Iook
farther away than they realIy are. If you cut too sharply into the
right lane,
you could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before changing lanes.
I
ASTROROOF - EXPKESS OPEN
If you have this option, the switch is here:
The astroroof includes a sliding glass panel and a sliding sunshade. The
control switch
only works with the ignition on or in Retained Accessory
Power
(RAP) mode.
126

Downloaded from www.Manualslib.com manuals search engine The Express Open feature allows you to open the Astroroof
automatically without holding the switch.
To Open: Press the switch rearward to open the glass panel and sunshade.
The sunshade can also be opened by hand. If you want to stop the roof in
a partially open position, press the switch in either direction to stop it.
Press the switch again to open it fully.
To Close: Press and hold the switch forward to close the glass panel. The
sunshade can only be closed by hand.
To Vent: Press the switch forward when the glass panel is closed. Open the
sunshade by hand. To close the vent press the switch rearward.
ASHTMYS AND LIGHTERS
r
~ To access the front
ashtray pull
the drawer
out.
To clean the ashtray, lift it out by pulling on the snuffer.
If the ashtray will not come out, try this:
Reach under the drawer and gently push up
on the ashtray bowl and
remove
it.
127
