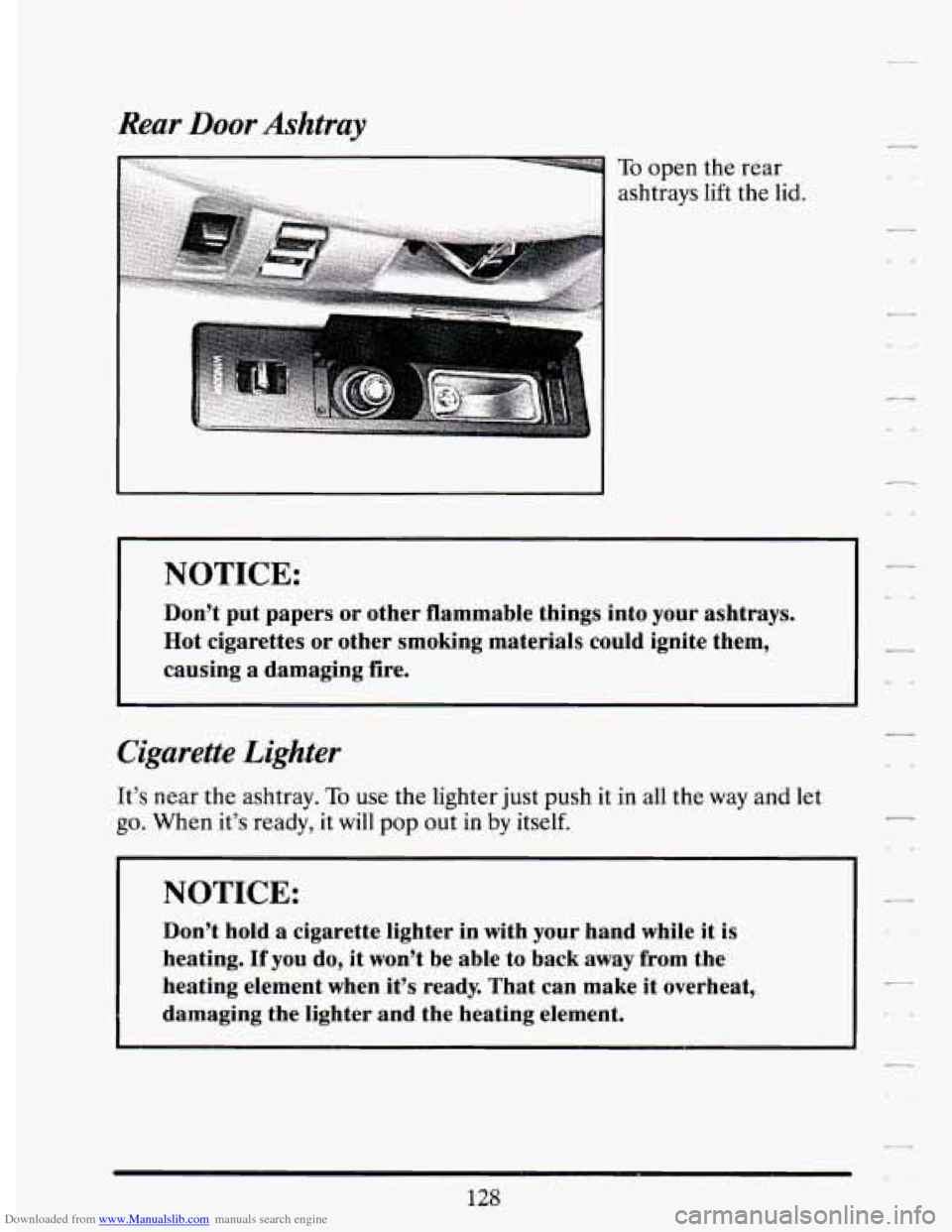

Page 141 of 399

Downloaded from www.Manualslib.com manuals search engine NOTICE:
Don’t put papers or other flammable things into your ashtrays.
Hot cigarettes or other smoking materials could ignite them,
causing
a damaging fire.
Cigarette Lighter
It’s near the ashtray. To use the lighter just push it in all the way and let
go. When it’s ready, it will pop out in by itself.
NOTICE:
Don’t hold a cigarette lighter in with your hand while it is
heating.
If you do, it won’t be able to back away from the
heating element when it’s ready. That can make it overheat,
damaging the lighter and the heating element.
128
-
U

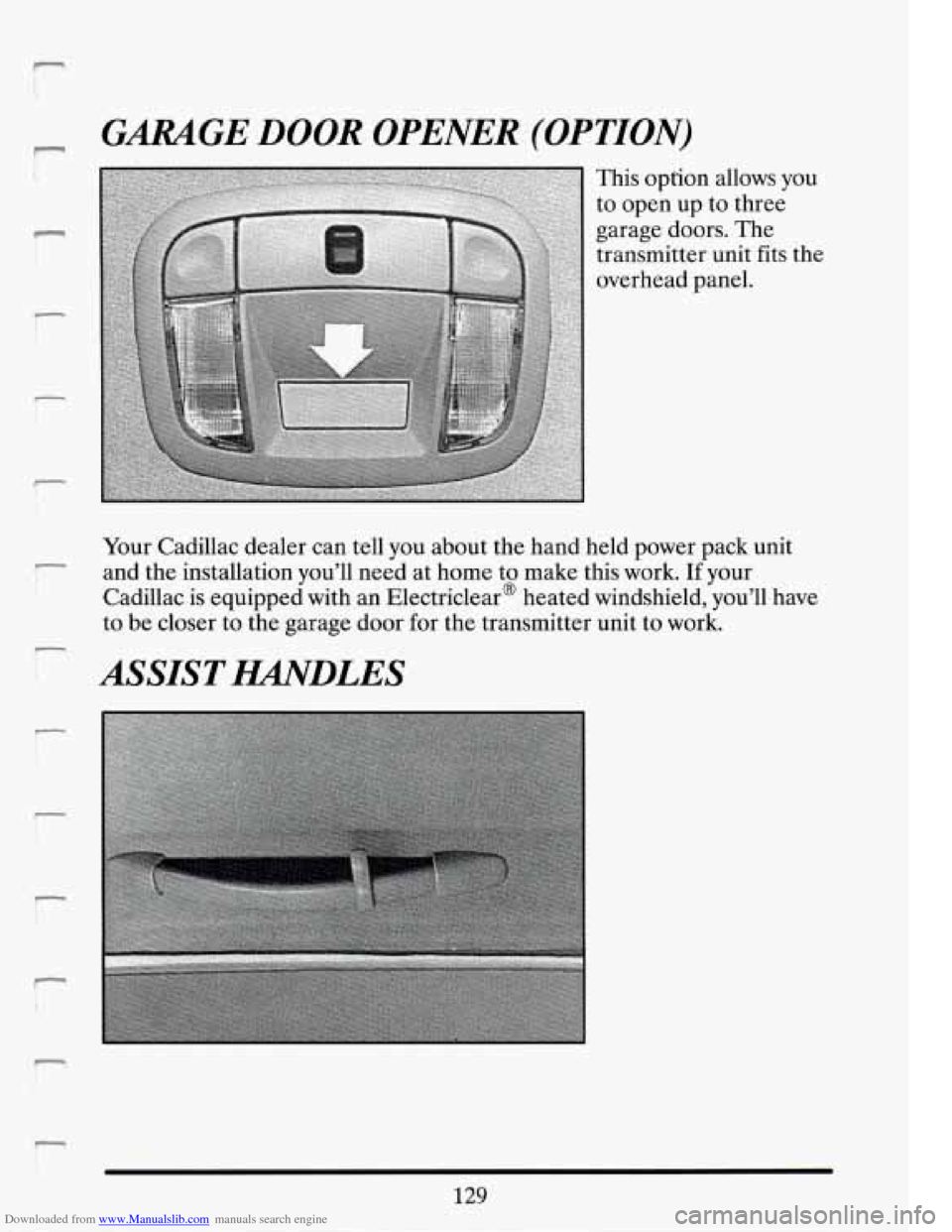

Page 142 of 399

Downloaded from www.Manualslib.com manuals search engine r
n
r
!-- I I
GARAGE DOOR OPENER (OPTION)
This option allows you
to open up
to three
garage doors. The
transmitter unit fits the
overhead panel.
Your Cadillac dealer can tell you about the hand held power pack unit
and the installation you’ll need at home to make this work. If your
Cadillac
is equipped with an Electriclear@ heated windshield, you’ll have
to be closer to the garage door for the transmitter unit to work.
ASSIST E4NDLES
129
Page 143 of 399

Downloaded from www.Manualslib.com manuals search engine lour Cadillac- is equipped with handles over each passenger door to assist
someone when getting out of the vehicle. There
is also a coat hook on
each of the rear-handles.
FLOOR IMATS
Your Cadillac is equipped with rubber-backed front and rear floor mats,
keep them clean by vacuuming and using a spot cleaner, if necessary.
Do
not machine wash.
THE INSTRUMENT PANEL: YOUR
INFOR2M14TION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac
is running. You’ll know how fast you’re. going, how much fuel
you’re using, and many of the other things you’ll need to know to drive
safely and economically.
Digital Cluster
€3
f3
0
0
130
Page 144 of 399

Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (km/h). Your odometer shows
how far your
vehicle has been driven, in either miles (used in the
U.S.) or kilometers
(used in Canada).
English Metric Button
This button is located on the Driver Information Center (DIC). You can
go back and forth from English (miles) to metric (kilometers) by pushing
this button.
The same button also makes other readings (like temperature and fuel)
go between English and Metric.
Trip Odometer Button
This button is located on the Driver Information Center (DIC). You can
tell
how far you’ve gone since you last set it back to zero. To reset, push
and hold the button until it zeros.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles (1609 km).
If you have a Canadian vehicle the trip odometer
will return
to zero after 1999.9 km (1242 miles).
131
Page 145 of 399

Downloaded from www.Manualslib.com manuals search engine Odometer
You may wonder what happens if a car has to have a new odometer
installed. The new one will read the correct mileage. This is because the
computer stores the mileage in memory.
WMING LIGHTS
This section describes the warning lights that are on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something is wrong before it becomes
serious enough to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you or others from injury.
Warning lights
go on when there may be or is a problem with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition key just to
let you know they’re working. If you are familiar with this section, you
should not be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
the manual’s advice. Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Your vehicle may also have a driver information system that works along
with the warning lights. See “Driver Information System” in the Index.
Brake System Warning Light
Your Cadillac’s
hydraulic brake system
is divided into
two
parts. If one part isn’t
working, the other part
can still work and stop
you. For good braking,
though, you need both
parts working
well.
r
L-l
This light should come on as you start the vehicle. If it doesn’t come on
then, have it fixed so it will be ready to warn you if there’s a problem.
Page 146 of 399

Downloaded from www.Manualslib.com manuals search engine If the warning light comes on, there could be a brake problem. Have your
brake system inspected right away.
If the light comes on while you are driving, pull off the road and stop carefully.
You may notice that the pedal is harder to push. Or, the pedal may go closer
to
the floor. It may take longer to stop. If the light is still on, have the vehicle
towed for service. (See “Towing Your Cadillac” in the Index.)
A CAUTIEON
Your brake system may not be working properly if the brake
system warning li’ght is on. Driving with the brake system
warning light
on can lead to an accident. If the light-is still on
after you’ve pulled off the road and stopped carefully, have the
vehicle
towed for service.
The brake system warning light will also come on when you set your
parking brake, and it
will stay on if your parking brake doesn’t release
fully.
If it stays on after your parking brake is fully released, it means you
have a brake problem.
Anti-Lock Brake System Warning Light
ANTI-
LOCK (@)
With anti-lock,this
light will come on
when you start your
engine and may stay
on for several
seconds. That’s
normal.
If the light
doesn’t come on, have
it fixed
so it will be
ready to warn you if
there is a problem.
133
Page 147 of 399

Downloaded from www.Manualslib.com manuals search engine If the light stays on, turn the ignition off. Or, if the light comes on when
you’re driving, stop as
soon as possible and turn the ignition off. Then
start the engine again to reset the system. If the light still stays on, or
comes
on again while you’re driving, your Cadillac needs service. If the
regular brake system warning light isn’t on,
you still have brakes, but you
don’t have anti-lock brakes. If the regular brake system warning light is
also on, you don’t have anti-lock brakes and there’s a problem with your
regular brakes. See “Brake System Warning Light” earlier
in this part.
The anti-lock brake system warning light may also come on when you are
driving with a compact spare tire. If this happens, the light means you
won’t have anti-lock until you replace the compact spare with a full-size
tire.
If the warning light stays on after you replace the compact spare with
a full-size tire, or if it comes on again when you’re driving, your Cadillac
needs service.
Engine Temperature Warning Light (Canadian Only)
This light tells you that
your engine has
overheated. You should
stop the car and idle the
engine as soon as
possible. A warning
chime should also sound
if this light comes on. As
a check, the light should
come on for a few
seconds when
you start
your engine.
HOT COOLANT CAN BURN YOU BADLY!
In “Problems on the Road,” this manual shows what to do. See “Engine
Overheating” in the Index.
134
Page 148 of 399

Downloaded from www.Manualslib.com manuals search engine Engine Oil Light (Canadian Only)
This light tells you if
there could be a
problem
with your
engine oil pressure.
The light goes
on when you turn your key to “Run” or “Start.” It goes off
once you start your engine. That’s just a check to be sure the light works.
If it doesn’t, be sure to have it fixed so it will be there to warn you if
something goes wrong.
When the light comes on and stays on, it means oil isn’t going through
your engine properly. You could be low on oil,
or you might have some
other oil problem.
NOTICE:
Damage to your engine from neglected oil problems can De
costly
and is not covered by your warranty.
135
Page 149 of 399

Downloaded from www.Manualslib.com manuals search engine Malfinction Indicator Lamp
(Service Engine Soon)
A computer monitors operation of your fuel, ignition and emission
control systems. This light should come on when the ignition is on, but
the engine is not running,
as a check to show you it is working. If it does
not come on at all, have it fixed right away.
If it stays on, or it comes on
while you are driving, the computer is indicating that you have
a problem
You should take your vehicle in for service soon.
NOTICE:
If you keep driving your vehicle with this light on, after a \
while
the emission controls won’t work as well, your fuel economy
won’t be as good and your engine may not run
as smoothly. This
7
r
Ld
could lead to costly repairs not covered by your warranty.
136
Page 150 of 399

Downloaded from www.Manualslib.com manuals search engine Battery Charge Light (Canadian Only)
1
When you turn the key
to “Run” or “START”,
this light will come on
briefly,
to show that
your alternator and
battery charging
systems are working.
If a light stays on, you need service, and you should take your Cadillac to
the dealer at once. To save your battery until you get there, turn off all
accessories.
Fuel Gage
Your fuel gage shows about how much fuel is in your tank. It works only
when the ignition is in the
“RUN” position.
Digital Gage’
If the fuel level is within approximately one gallon (3.9 liters) of being full
the letter “F” is shown.
