Anti-Lockout Feature
Your vehicle is equipped with this feature. If you leave the key in the
ignition whether
in the Accessory, Lock, or Off position with the driver's
door open,
you can not lock your vehicle using the power locks. If you close
the door you can lock
it using the Remote Keyless Entry System. It is always
recommended that you remove
your ignition key when locking your vehicle.
When the engine is running the Anti-Lockout feature is disabled.
Illuminated Entry System
Your illuminated entry system turns on all the courtesy lights when a door
is opened or if you push the Remote Keyless Entry button. When the
door is closed, the courtesy lights
will go out.
REMOTE KEYLESS ENTRY SYSTEM
With this feature you can turn on your interior lights, lock and unlock
your doors, or unlock your
trunk from up to 15 feet (4.5 mm) using the
key chain transmitter supplied with your vehicle.
Your Remote Keyless Entry System
is intended to be used as a
supplementary vehicle entry device. It is not intended to replace, but
rather should be used in conjunction
with a door lock key. It operates on
a radio frequency subject to Federal Communications Commission
(FCC) Rules.
This device complies
with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference to this system occur, try this:
Check
to determine if battery replacement is necessary. See the
instructions on battery replacement.
0 Check the distance. You may be too far from your vehicle. This
product has a maximum range.
0 Check the location. Other vehicles or objects may be blocking the
signal.
See your Cadillac dealer or a qualified technician for service.
-.
L
.-
.:
Y
r-
-
7
. . .a
-
'72

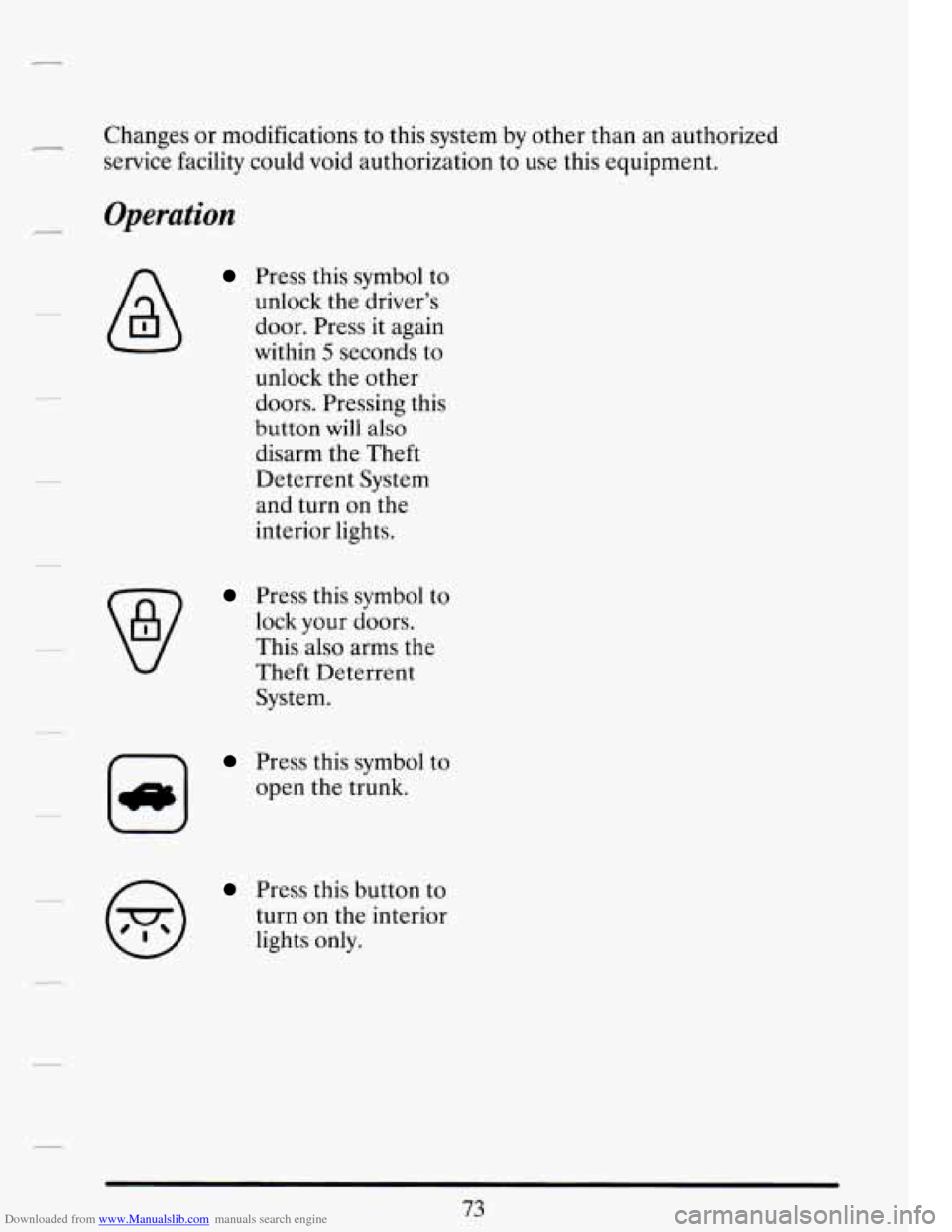

Downloaded from www.Manualslib.com manuals search engine Changes or modifications to this system by other than an authorized
service facility could void authorization to use this equipment.
Operation
w
Press this symbol to
unlock the driver’s
door. Press it again
within
5 seconds to
unlock the other
doors. Pressing this
button will also
disarm the Theft
Deterrent System
and turn on the
interior lights.
Press this symbol to
lock your
doors.
This also arms the
Theft Deterrent System.
Press this symbol to
open the trunk.
Press this button to
turn on the interior
lights
only.
73

Downloaded from www.Manualslib.com manuals search engine When not using the net, hook the net to the two tabs securing it to the sill
plate.
The net is not for larger, heavier loads store such loads in the trunk as far
forward as
you can.
- .-
REMOTE TRUNK RELEASE
You’ll find the button
here, in the Headlight
Control Panel. Push
the button
to release
the trunk lid.
__ The shift lever must in “P” (Park) with the ignition in the “Run” position
or in Retained Accessory Power mode.
79

Downloaded from www.Manualslib.com manuals search engine Parking at Night
Park in a lighted spot, close all windows and lock your vehicle. Remember
to keep your valuables out of sight. Put them
in a storage area, or take
them with you.
Parking Lots
If you park in a lot where someone will be watching your vehicle, it’s best -
to lock it up and take your keys. But what if you have to leave your k,
ignition key? What if you have to leave something valuable in your
vehicle?
Put your valuables in a storage area, like your trunk or glove box.
Lock the glove box.
Push the Trunk Security Override switch in the glove box.
0 Do not leave the Remote Keyless Entry key fob, take it with you.
0 Lock all the doors except the driver’s.
0 Then take the door key with you.
THEFT DETERRENT (OPTION)
If your Cadillac has this
option,
it has a Theft
Deterrent Alarm
System. With this
system, the
“SECURITY” light
will flash as you open
the door (if your
ignition is off).
82

Downloaded from www.Manualslib.com manuals search engine This light reminds you to arm the theft deterrent system. Here’s how to
do it:
1. Open the door.
2. Lock the door with the power door lock switch or Keyless Entry
System. The “SECURITY” light should come
on and stay on.
3. Close all doors. The “SECURITY” light should go off.
If a door
is opened without the key or Keyless Entry System, the alarm
will go off. It
will also go off if the trunk lock is damaged. Your vehicle’s
lights will flash and the horn
will sound for 3 minutes, then will go off to
save battery power.
Remember, the theft deterrent system won’t arm
if you lock the doors
with a key or manual door lock. It arms only
if you use a power door lock
switch
or Keyless Entry System.
Here’s how to avoid setting
off the alarm by accident:
__ If you don’t want to arm the theft deterrent system, the vehicle should
be locked with the door
key after the doors are closed.
Always unlock a door with a key, or use the Keyless Entry System.
Unlocking a door any other way
will set off the alarm.
If you set off the alarm by accident, unlock any door with your key. You
can also turn
off the alarm by using the Keyless Entry System. The alarm
won’t stop
if you try to unlock a door any other way.
How to Test The Alarm
From outside the vehicle, roll down your window and lock the vehicle
using the power door lock or the Keyless
Entry System and close the
door.
door. The horn will sound and your headlights will flash.
0 Reach in and unlock the door using the manual lock, and open the
If the alarm does not sound when
it should, check to see if the horn
works. The horn fuse may be blown.
To replace the fuse, see “Fuses and
Circuit Breakers”
in the Index.
To reduce the possibility of theft, always arm the theft deterrent system
when leaving your vehicle.
83

Downloaded from www.Manualslib.com manuals search engine PASS-KEY’II
Your vehicle is equipped with the PASS-Key’II (Personalized
Automotive Security System) theft deterrent system. PASS-Key% is a
passive theft deterrent system. This means you don’t have to do anything
different to arm or disarm the system. It works when you insert or remove
the key from the ignition. PASS-Key’II uses a resistor pellet in the
ignition key that matches a decoder in your vehicle.
When the PASS-Key% system senses that someone is using the wrong
key, it shuts down the vehicle’s starter and fuel systems. For about three
minutes, the starter won’t work and fuel won’t go to the engine.
If
someone tries to start your vehicle again or uses another key during this
time, the vehicle
will not start. This discourages someone from randomly
trying different keys with different resistor pellets
in an attempt to make a
match.
The ignition key must be clean and dry before it’s inserted in the ignition
or the engine may not start.
If the engine does not start and the -
STARTING DISABLED DUE TO THEFT SYSTEM REMOVE L1
IGNITION KEY messgge is displayed the key may be dirty or wet. Turn
the ignition
off.
Clean and dry the key. Wait about three minutes and try again. The
SECURITY light
will remain on during this time. If the starter still won’t
work, and the key appears to be clean and dry, wait about three minutes
and try the other ignition key. At this time, you may also want to check
the fuses (see “Fuses and Circuit Breakers” in the Index). If the starter
won’t work with the other key, your vehicle needs service.
If your vehicle
does start, the first ignition key may be faulty. See your Cadillac dealer or
a locksmith who can service the PASS-K@II.
If you accidentally use a key that has a damaged or missing resistor pellet,
the starter won’t work, you don’t have to wait three minutes before trying
one
of the other ignition keys.
See your Cadillac dealer
or a locksmith who can service the PASS-Key@II
to have
a new key made.

Downloaded from www.Manualslib.com manuals search engine To set the parking brake:
Hold the regular brake pedal down with your right foot. Push down the
parking brake pedal with your left foot. If the ignition is on, the brake
system warning light
will come on.
When you move out
of
“P” (Park) or “N”
(Neutral), if your
engine is running, your
parking brake should
go
off. If it doesn’t, you
have a parking brake
problem and should
have it fixed. In the
meantime,
you can still
release your parking
brake. Just pull on the
manual release lever,
as shown.

Downloaded from www.Manualslib.com manuals search engine To tilt the wheel, hold
the steering wheel and
pull the lever. Move
the steering wheel to
a
comfortable level, then
release the lever to
lock the wheel in
place.
TURN SIGNA/MULTIFUNCTION LEVER
The lever on the left side of the steering column includes your:
Turn Signal and Lane Change Indicator
0 Headlight High-Low Beam
.-
104

Downloaded from www.Manualslib.com manuals search engine To signal a lane change, just raise or lower the lever until the green arrow
starts to flash. Hold it there until you complete your lane change. The
lever will return by itself when
you release it.
If for some reason your turn signal is left on, the Driver Information
Center
will display “TURN SIGNAL ON” (after driving about a mile) to
remind you to turn
it off.
As you signal a turn or a lane change, if the arrows don’t flash but just
stay on,
a signal bulb may be burned out and other drivers won’t see your
turn signal.
If
a bulb is burned out, replace it to help avoid an accident. If the green
arrows don’t
go on at all when you signal a turn, check the fuse (see
“Fuses”
in the Index) and for burned-out bulbs.
Headlight High-Low Beam
I
To change the
headlights from
low
beam to high or high to
low, pull the turn signal
lever all the way toward
you. Then release it.
When the high beams
are on, this blue light
on the instrument
panel also will be
on.
Flash-To-Pass Feature
This lets you use your high beam headlights to signal a driver in front of
you that you want to pass. It works even if your headlights are
off.
To use it, pull the multifunction lever toward you. When you do:
If vour headlights are
off Your high beam headlights will turn on. They’ll
stay on as long as you hold the lever there. Release the lever to turn them
off.
106

Downloaded from www.Manualslib.com manuals search engine If your headlights are on, but on low beam: The system works normally.
Just pull the lever. Your headlights will shift to high beam and stay there.
To return to low beam, just pull the lever toward you.
If your headlights are on? and on high beam: Your headlights will switch
to
low beam. To get back to high beam, pull the lever toward you.
Windshield Wipers
WIPER To control the wipers, turn the band on the multifuction lever.
MIST: Turn the band away from you and then release it for a single wipe
cycle. For more cycles,
hold the band on MIST longer.
LO or HI: Turn the band toward you to either LO (low speed) or to
HI (high speed), depending on the wiper speed you want.
DELAY: With this you can set the wiper speed for a long or short delay
between wipes. Move the band
to ON for long delays and the closer you
get to LO the shorter the delay.
OFF: To turn the wipers off, turn the band to OFF
107
