light CADILLAC DEVILLE 1994 7.G Owner's Manual

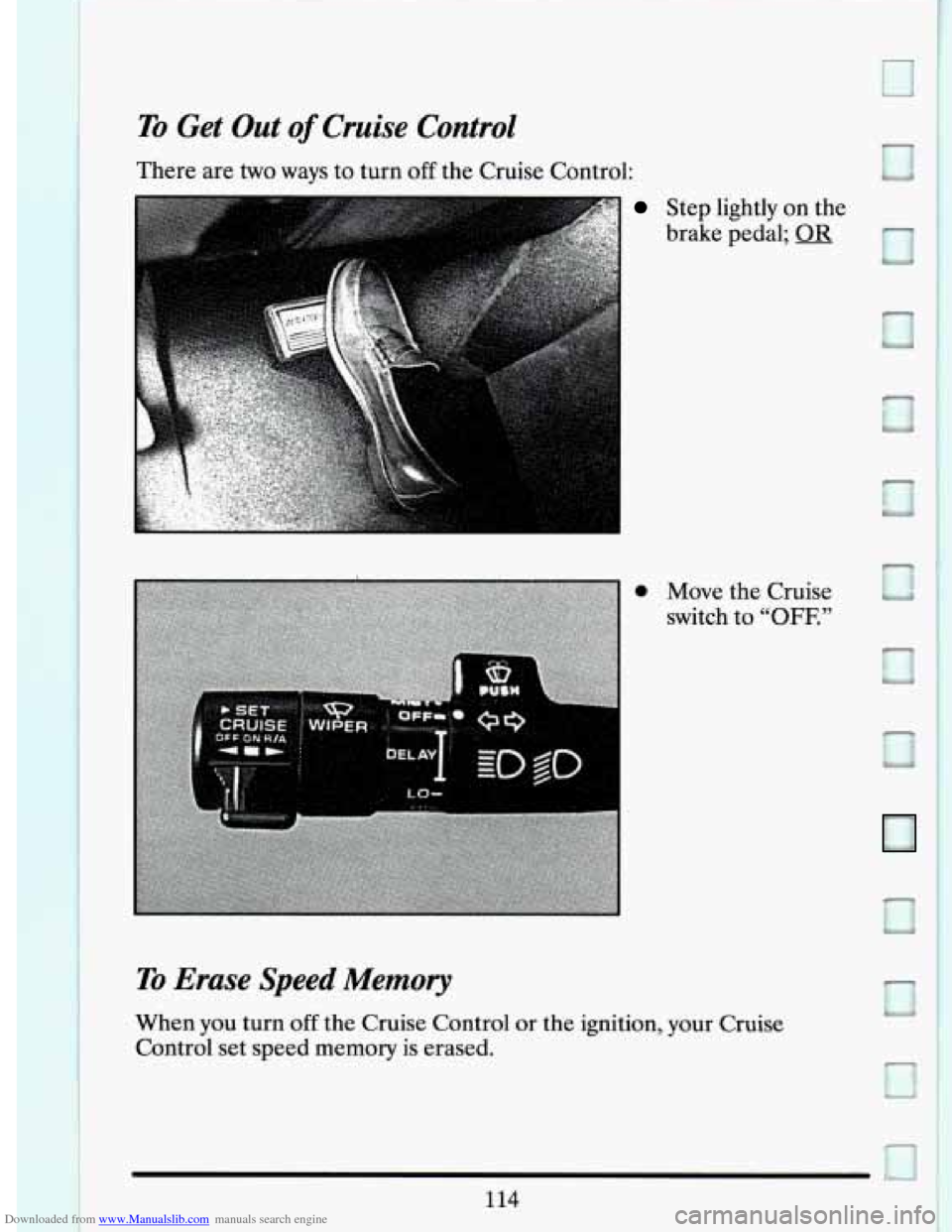

Downloaded from www.Manualslib.com manuals search engine To Get Out of Cruise Control
There are two ways to turn off the Cruise Control:
Step lightly on the
brake pedal;
OR
0 Move the Cruise
switch
to "OFF"
To Erase Speed Memory
When you turn off the Cruise Control or the ignition, your Cruise
Control set speed memory is erased.
114
!

Downloaded from www.Manualslib.com manuals search engine LIGHTS
You’ll find the control on the left side of the instrument panel.
It controls these light systems:
Headlights
Taillights
0 Parking Lights
0 Instrument Panel Lights
License Plate Lights
0 Interior Courtesy Lights
. . .. I . ..< . , i ., . ,
Here’s how to
manually work your
light system.
Pull the switch out to the first stop to turn on your parking and
taillights, side marker lights and instrument panel lights.
0 Pull the switch out all the way to turn on the headlights.
You can brighten or dim your instrument cluster by rotating the
0 Push the switch all the way in to turn them off.
headlight switch.

Downloaded from www.Manualslib.com manuals search engine Lights On Reminder I
L If YOU open the door while leaving the lights on, you will hear a warning
tone.
Interior Lights
Turn the headlight switch past HI to turn on the interior lights.
Twilight Sentinel
n I
LA I
The control is next to the headlight switch. It switches your lights on and
off by sensing how dark it is outside. To operate it, leave the light switch
off and move the control to any position but off. r
If you move the control all the way to MAX, your lights will remain on for
90 seconds after you turn your engine off. If you move the control almost
-
all the way in the other direction, so it is just on, the lights will go off
quickly when you turn off your engine. You can change this delay time
from only a few seconds to
90 seconds.
u
~'
m
u 8,
-I
1
116

Downloaded from www.Manualslib.com manuals search engine - Light Sensor
Cornering Lights
The light sensor for
the twilight sentinel is
located
in the center of
the front defogger
grille. If
you cover the
sensor, it will read
“dark” and your lights
will come on.
The cornering lights come
on when you signal a turn when the headlights
or parking lights are on. This will provide more light for cornering.
Daytime Running Lights (Canada Only)
The Canadian Federal Government has decided that “Daytime Running
Lights”
(DRL) are a useful feature, in that DRL can make your vehicle
more visible to pedestrians and other drivers during daylight hours. DRL
are required on new vehicles sold in Canada.
Your DRL work with a light sensor on top
of the instrument panel. Don’t
cover it up.
117

Downloaded from www.Manualslib.com manuals search engine The low beam headlights will come on at reduced brightness in daylight
0
0
0
A
when:
The ignition is on
The headlight switch is off, and
The transaxle is not in
“P” (Park).
.ts
,t
dusk,
if the Twilight Sentinel feature is turned on, the exterior ligh
will come on automatically and the low beams
will change to full
brightness. At dawn, the exterior lights will go out and the low beams will
..
change to the reduced brightness of DRL (if the headlight switch is off).
Of course, you may still turn on the headlights any time you need to.
To idle your vehicle with the DRL
off, shift the transaxle into “P” (Park).
The DRL will stay off until you shift out
of “P” (Park).
Operation of Lights
Although your vehicle’s lighting system (headlights, parking lights, fog
lamps, side marker lights and taillights) meet all applicable federal
lighting requirements, certain states and provinces may apply their own
lighting regulations that may require special attention before you operate
-
these lights.
For example, some jurisdictions may require that you operate your. lower
beam lights with fog lamps at all times, or that headlights be turned on
whenever you must use your windshield wipers.
In addition, most
jurisdictions prohibit driving solely with parking lights, especially at dawn
or dusk. It is recommended that you check with your own state
or
provincial highway authority for applicable lighting regulations.
118

Downloaded from www.Manualslib.com manuals search engine P
4
MapIReading Lights m
f-
!- i
You have map lights
located in the
overhead.pane1. Push
the button to illuminate the light.
The rear interior
courtesy lights will
come on when you
open a door, or turn
on the interior lights.
If your vehicle.is equipped with the optional astrormf, you can illuminate
the rear lights by-pressing the lens; Push it again to turn them
off.
119
I
P

Downloaded from www.Manualslib.com manuals search engine Rear Taillamp Monitor
The rear taillamp monitor is located at the top center over the back glass.
You
will see it as you are looking through your inside rearview mirror.
Two red indicators will illuminate to show that your taillights and brake
lights are working.

Downloaded from www.Manualslib.com manuals search engine MIRRORS
Automatic Inside And Outside Rearview Mirrors
Your Cadillac has an
inside automatic
electrochromic rearview mirror
This mirror automatically changes to reduce glare from headlights behind
you.
A photocell on the back of the mirror senses when it is becoming
dark outside. Another photocell built into the mirror surface senses the
headlights behind you.
The mirror will darken gradually to reduce glare. This change may take a
few seconds.
OnlOff Switch
121

Downloaded from www.Manualslib.com manuals search engine Front Seat Vanity Mirrors
To use one, turn the
sunshade down. Then
lift the cover up to see
the mirror.
Illuminated Front Seat Vanity Mirrors
To use the optional
lighted vanity mirrors,
turn the sunshade
down. Then lift the
cover up to see the
mirror. Move the
switch up or down to
either brighten or
dim
the light.
124
a
e

Downloaded from www.Manualslib.com manuals search engine The Express Open feature allows you to open the Astroroof
automatically without holding the switch.
To Open: Press the switch rearward to open the glass panel and sunshade.
The sunshade can also be opened by hand. If you want to stop the roof in
a partially open position, press the switch in either direction to stop it.
Press the switch again to open it fully.
To Close: Press and hold the switch forward to close the glass panel. The
sunshade can only be closed by hand.
To Vent: Press the switch forward when the glass panel is closed. Open the
sunshade by hand. To close the vent press the switch rearward.
ASHTMYS AND LIGHTERS
r
~ To access the front
ashtray pull
the drawer
out.
To clean the ashtray, lift it out by pulling on the snuffer.
If the ashtray will not come out, try this:
Reach under the drawer and gently push up
on the ashtray bowl and
remove
it.
127
