CADILLAC DEVILLE 1994 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine EXhlAUST SYSTEM
Type ............................... Single with Crossover Pipe
Muffler
.................................. One-Reverse Flow
Resonator
............................................ None
Exhaust Pipe
.................................. .Stainless Steel
Intermediate Pipe
............................. ,- Stainless Steel
Tail Pipe
..................................... Stainless Steel
ELECTHCA SYSTEM
Voltage ................................................ 12
Generator ......................................... 140Amp
Ground
........................................... Negative
AIR CONRITIONING SYSTEM
Refrigerant-R134a ............................ .2.0 lbs. (.91 kg)
Not all air conditioning refrigerants are the same.
If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used. If you’re not sure, ask your Cadillac dealership.
FLUID CAPACITIES
Transaxle (4T60E) .............................. 20 pts. (9.5 L)
Engine Oil ................................... 5.0 qts. (4.7 L)
With Filter Change ............................ 5.5 qts. (5.2 L)
Engine Cooling System ......................... 11 qts. (10.5 L)
Fuel Tank .................................. 20 gallons (76 L)
Power Steering .............................. 1.3 quarts (1.2 L)
Windshield Washer Reservoir .................. 4.2 quarts (4.1 L)
TIGHTEN TORQUE
Spark Plugs ............................... .20 Nm (15 lbs. ft.)
Oil Pan Drain Plug. ......................... 30N.m (22 lbs. ft.)
328
tl
r_
.c-
FC

Downloaded from www.Manualslib.com manuals search engine NOW MNTENNCE REPLACEMENT PARTS
cc
c-
Air Cleaner Element ......................... AC Type A1096C
................................................. 25096932
Batte
............................................... 78A-72
................................................. 25121801
Engine Oil Filter
............................. AC Type PF-58
................................................. 25014377
PCV Valve
................................ AC Type CV-774C
................................................. 06487779
Spark Plugs
.................................. AC Type 41-902
.................................................. 5614235
Serpentine Drive Belt
............................... 3538853
Surge Tank Cap
.............................. AC Type RC 33
.................................................. 6410665
Thermostat
........................................ 3528974
Lower Radiator Hose
............................... 3521237
TransFilter
........................................ 8651909
TransPanGasket
................................... 8676250
Fuel Filter Element .......................... AC Type GF-624
Upper Radiator Hose
............................... 3521235
VEHICLE DIMENSIONS
Shipping Weight .......................... 3687 lbs. (1672.2 kg)
Wheel Base
................................ 111 in. (2819 mm)
Length .................................. .204.1 in. (5183 mm)
Height
................................... .54.5 in. (1384 mm)
Width .................................... -74.2 in. (1884 mm)
Front Track
............................... .60.9 in. (1546 mm)
Rear Track
............................... .60.9 in. (1546 mm)

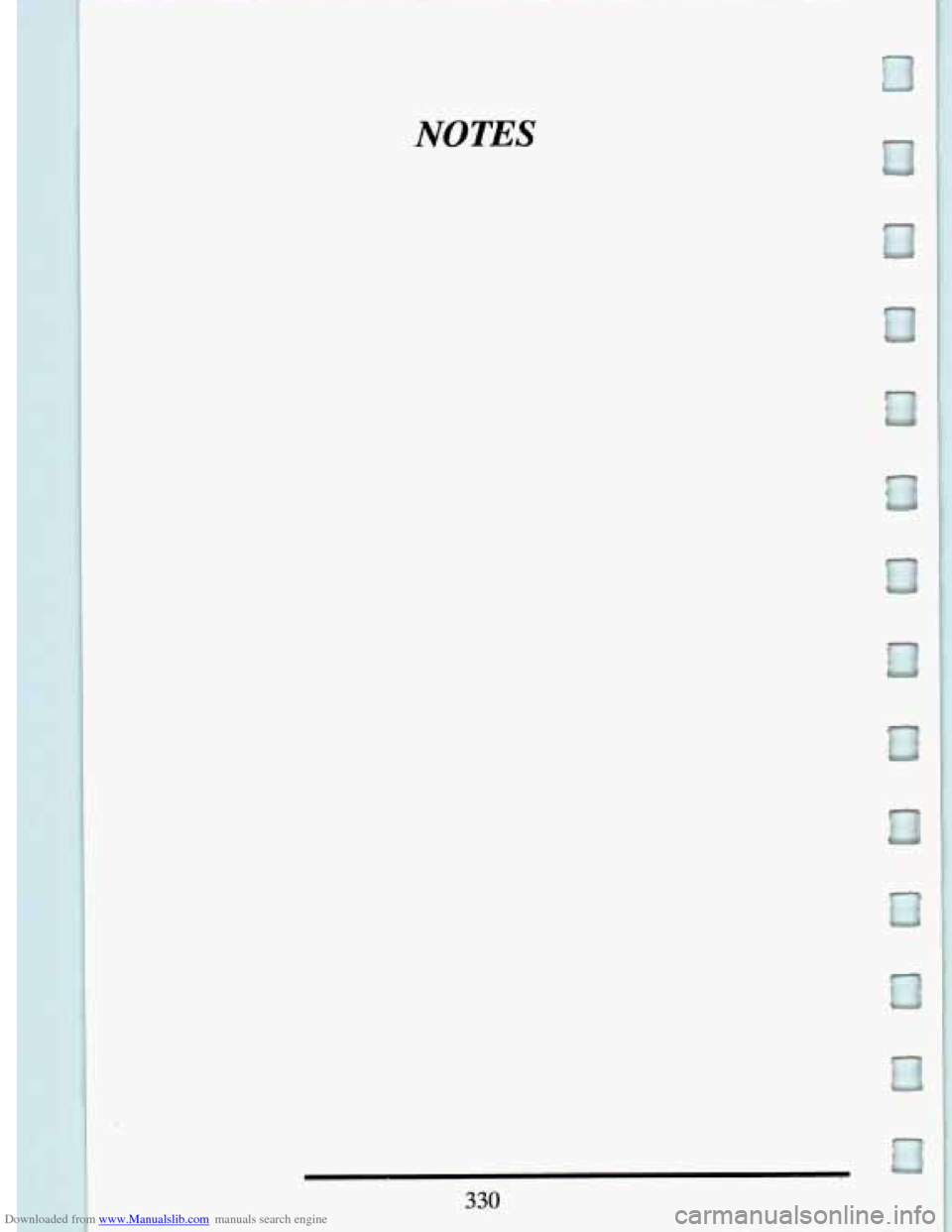

Downloaded from www.Manualslib.com manuals search engine NOTES
330
P
R 1

Downloaded from www.Manualslib.com manuals search engine I fl

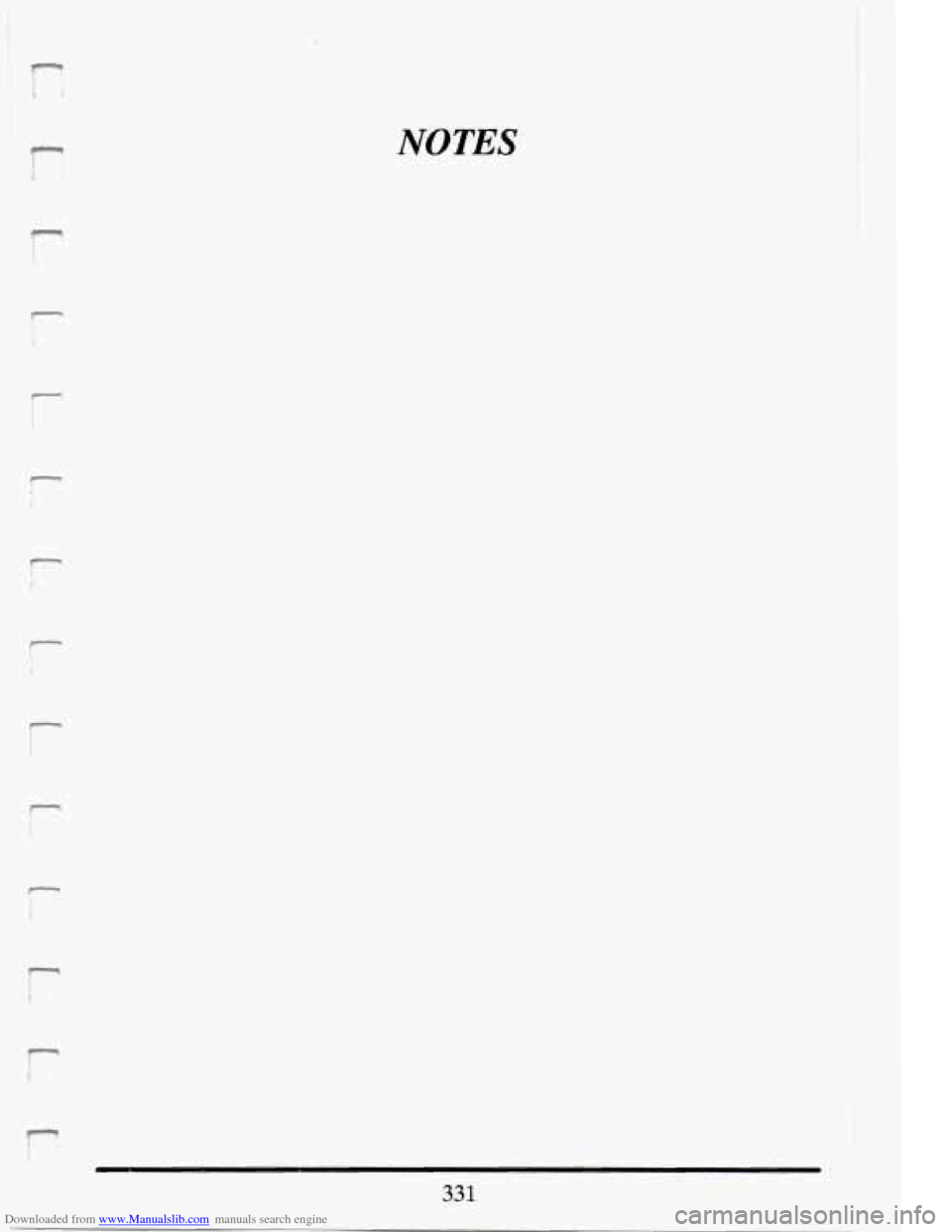

NOTES
f- I
r I
!
7 j
331

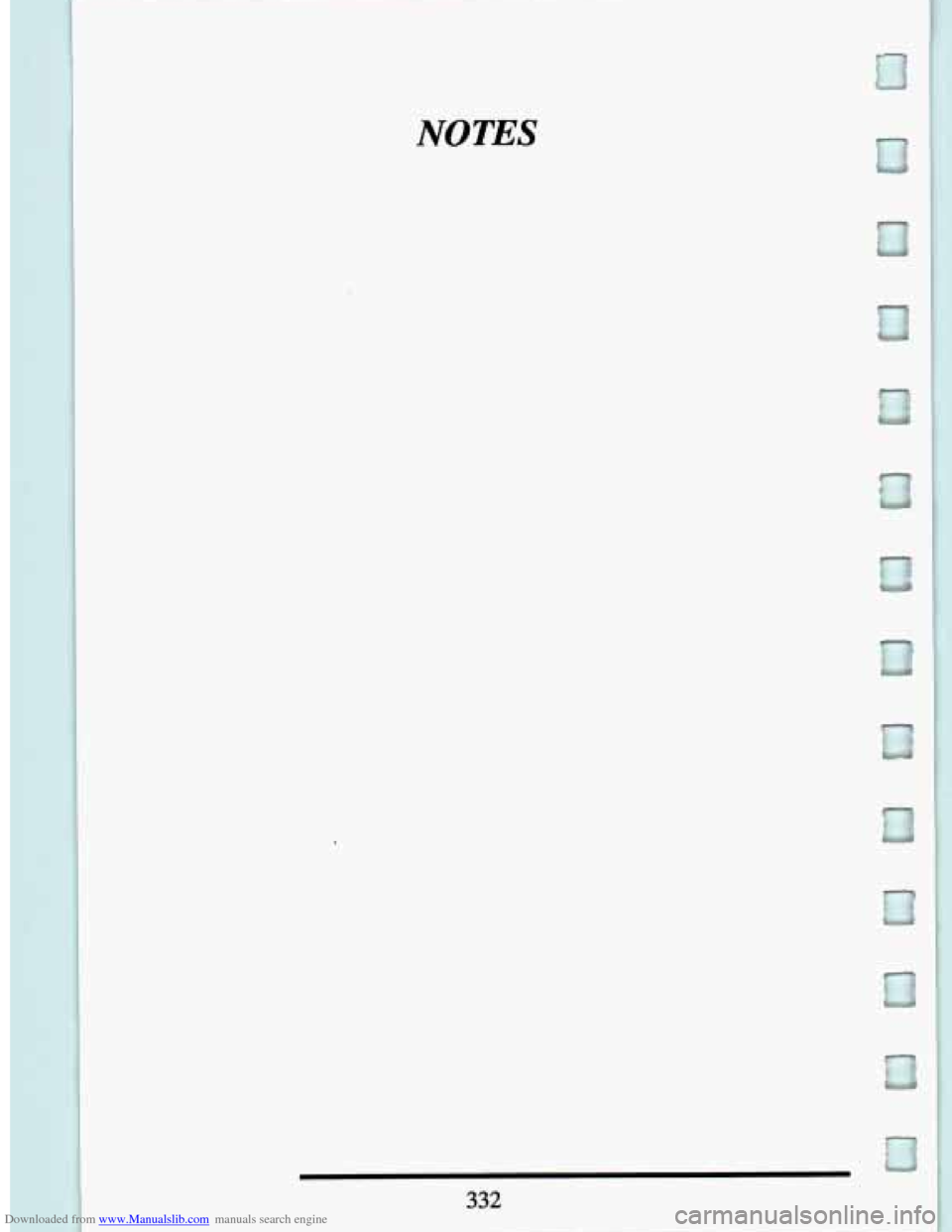

Downloaded from www.Manualslib.com manuals search engine NOTES
332

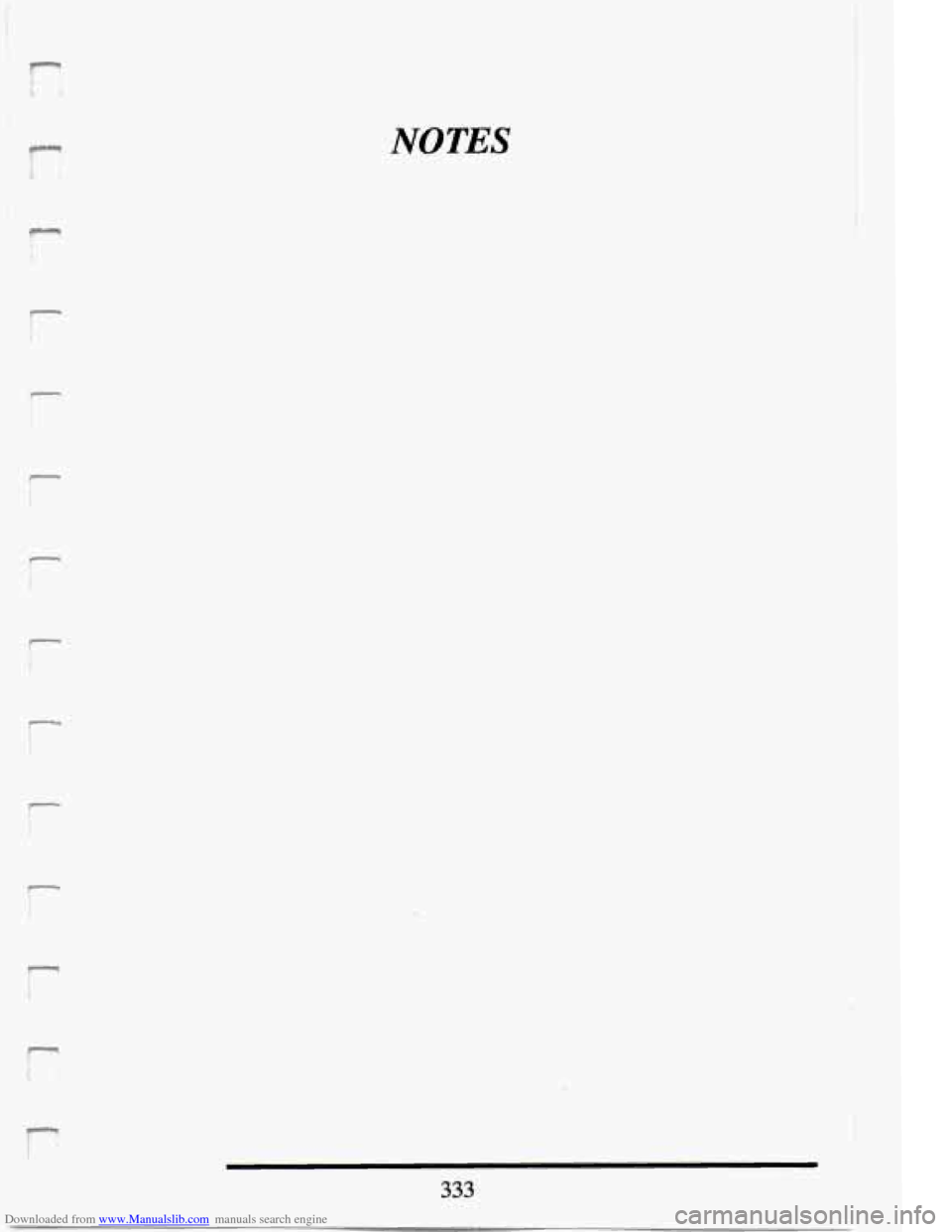

Downloaded from www.Manualslib.com manuals search engine NOTES
r
333

Downloaded from www.Manualslib.com manuals search engine I'

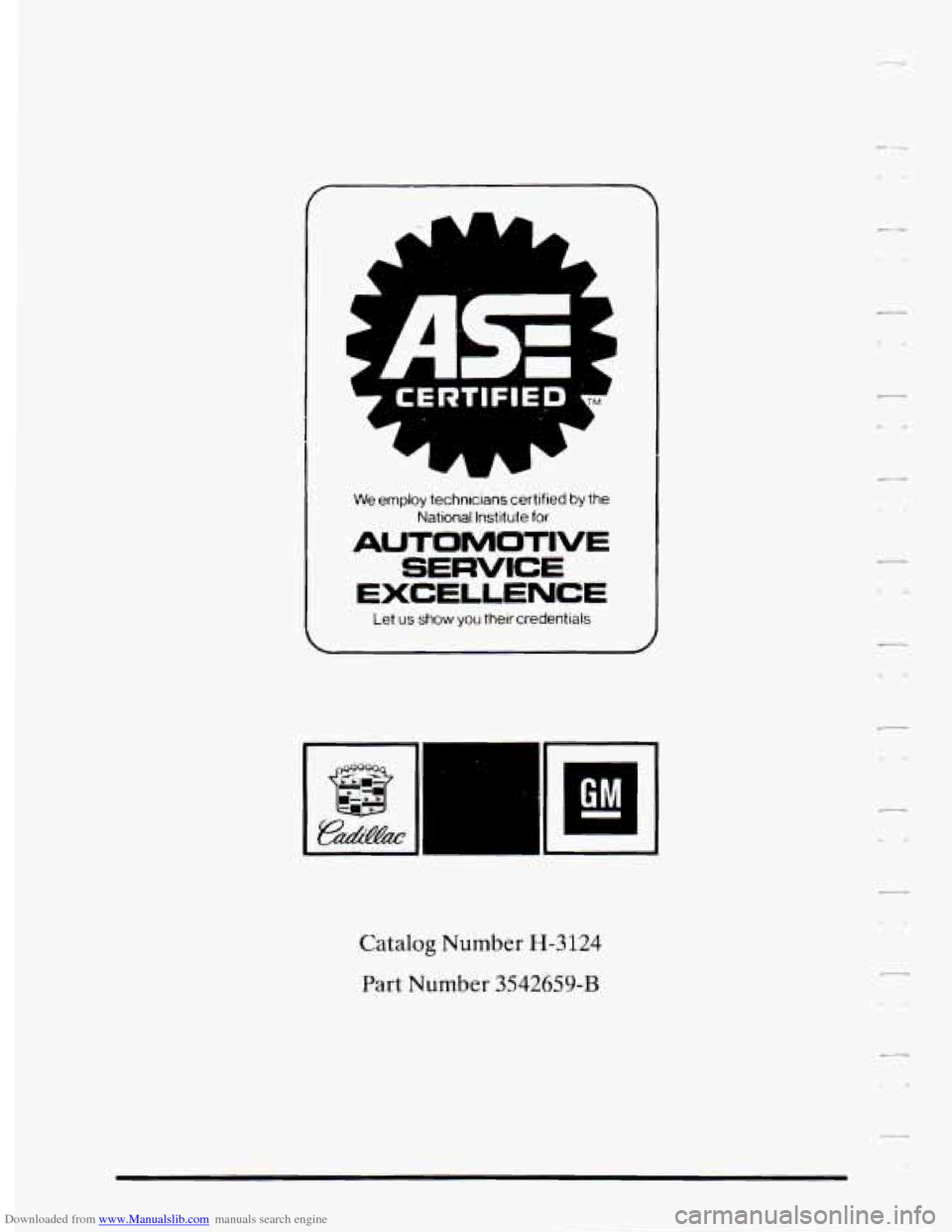

We employ technicians certified by the
National lnstltute for
AUTOMOTIVE
SERVICE
EXCELLENCE
Let us show you their credentials
Catalog Number H-31.24
Part Number 3542659-B

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine a
- I
E

Downloaded from www.Manualslib.com manuals search engine TOLL-FREE HOTLINE
Roadside Service represents the spirit of luxury leadership at Cadillac
Motor Car Division. We hope the need never arises, but
if it does,
Roadside Service
is there for you!! Roadside Service covers you on the
road,
far from home, all day and night, weekends and holidays.
THERE ARE
NO MEMBERSHIP OR ENROLLMENT CHARGES.
Any Cadillac is eligible under this program.
- ROADSIDE SERWCE A VAZLABILITY -
TYPE
OF ASSISTANCE
Phone Advisor
Dealer Technician
Towing
Battery Jump Start
Lockout Assistance
Fuel Delivery
DAILY INCLUDING
HOLIDAYS
24 Hours
8 a.m. - 12 midnight
24 hours
Cadillac Roadside Service
is just one of your Cadillac Owner
Privilegessm that leads to peace
of mind.
