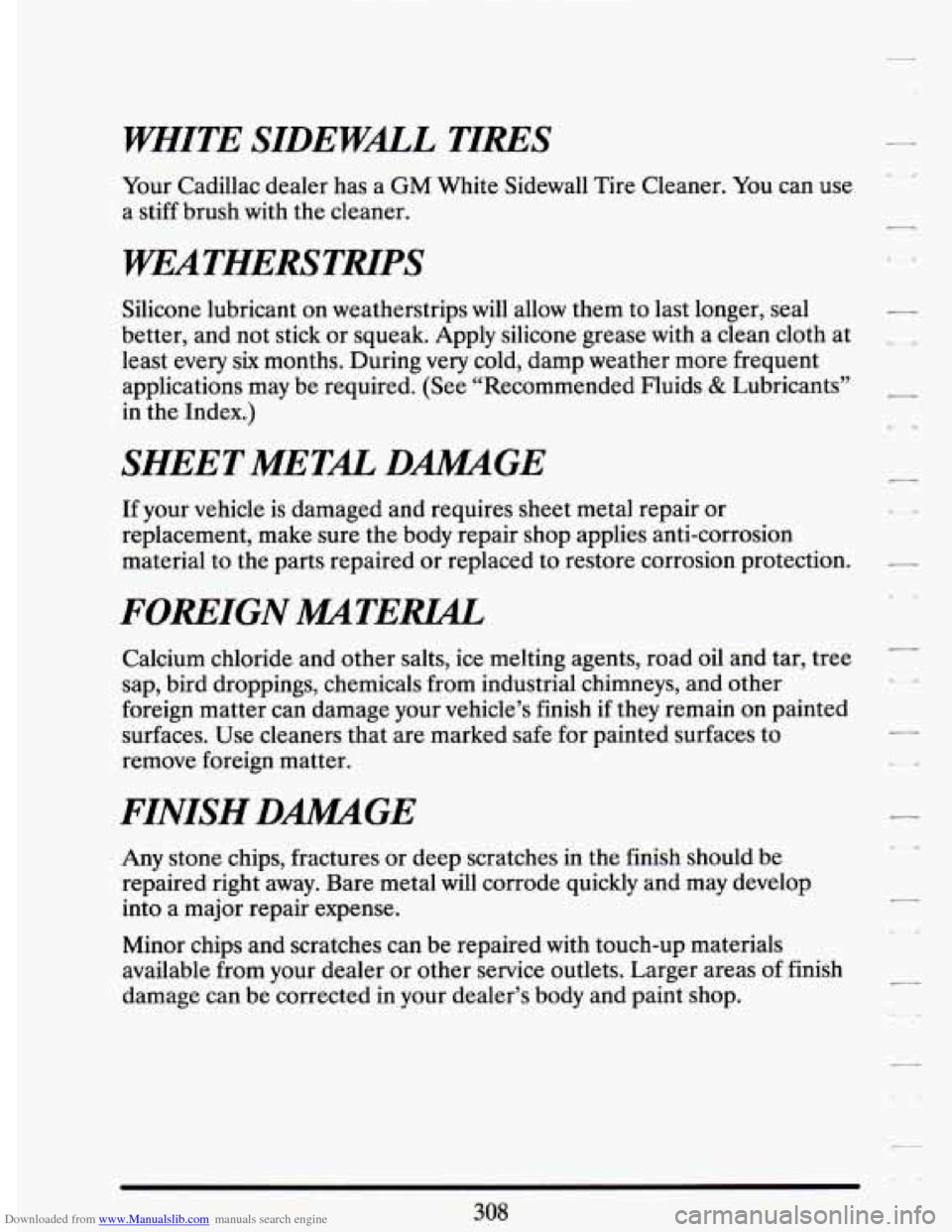

Your Cadillac dealer has a GM White Sidewall Tire Cleaner. You can use
a stiff brush with the cleaner.
WEATHERSTRlpS
Silicone lubricant on weatherstrips will allow them to last longer, seal
better, and not stick or squeak. Apply silicone grease with a clean cloth at
least
every six months. During very cold, damp weather more frequent
applications may be required. (See “Recommended Fluids
& Lubricants”
in the Index.)
SHEETMETAL DMGE
If your vehicle is damaged and requires sheet metal repair or
replacement, make sure the body repair shop applies anti-corrosion
material to the parts repaired or replaced to restore corrosion protection.
FOREIGNIMATERbU
Calcium chloride and other salts, ice melting agents, road oil and tar, tree
sap, bird droppings, chemicals from industrial cbimneys, and other
foreign matter can damage your vehicle’s finish
if they remain on painted
surfaces. Use cleaners that are marked safe for painted surfaces to
remove foreign matter.
FINISH DMGE
Any stone chips, fractures or deep scratches in the finish should be
repaired right away. Bare metal will corrode quickly and may develop
into a major repair expense.
308
Minor chips and scratches can be repaired with touch-up materials
available from your dealer or other service outlets. Larger areas of finish
damage can be corrected in your dealer’s body and paint shop.

Downloaded from www.Manualslib.com manuals search engine 7 UNDERBODYMNTEN~CE

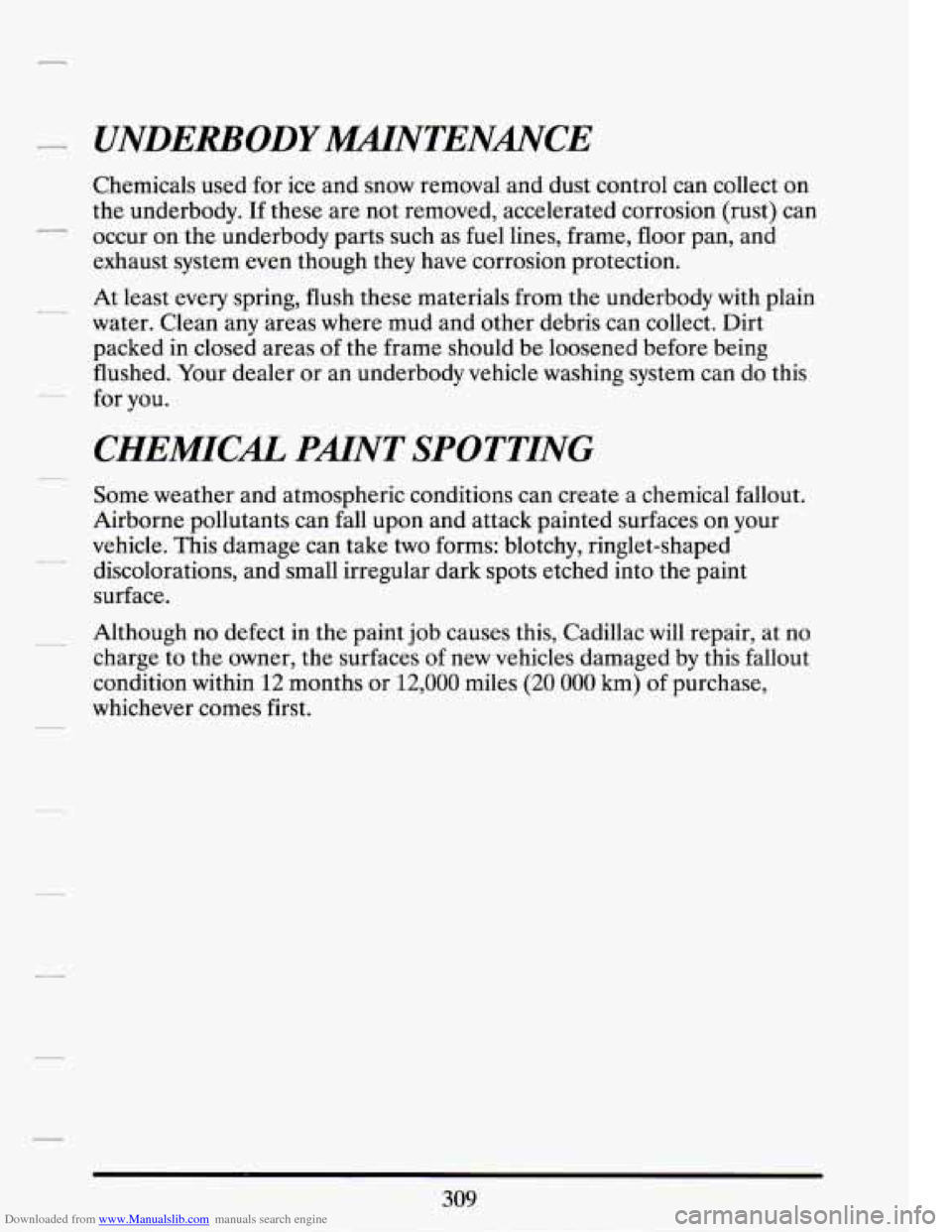

Chemicals used for ice and snow removal and dust control can collect on
the underbody. If these are not removed, accelerated corrosion (rust) can
occur on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system even though they have corrosion protection.
At least
every spring, flush these materials from the underbody with plain
water. Clean any areas where mud and other debris can collect. Dirt
packed in closed areas of the frame should be loosened before being
flushed. Your dealer or an underbody vehicle washing system can
do this
for you.
I
CHEMICAL PAINT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
vehicle. This damage can take two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the paint
surface.
__.
Although no defect in the paint job causes this, Cadillac will repair, at no
charge to the owner, the surfaces of new vehicles damaged by this fallout
condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever comes first.
309

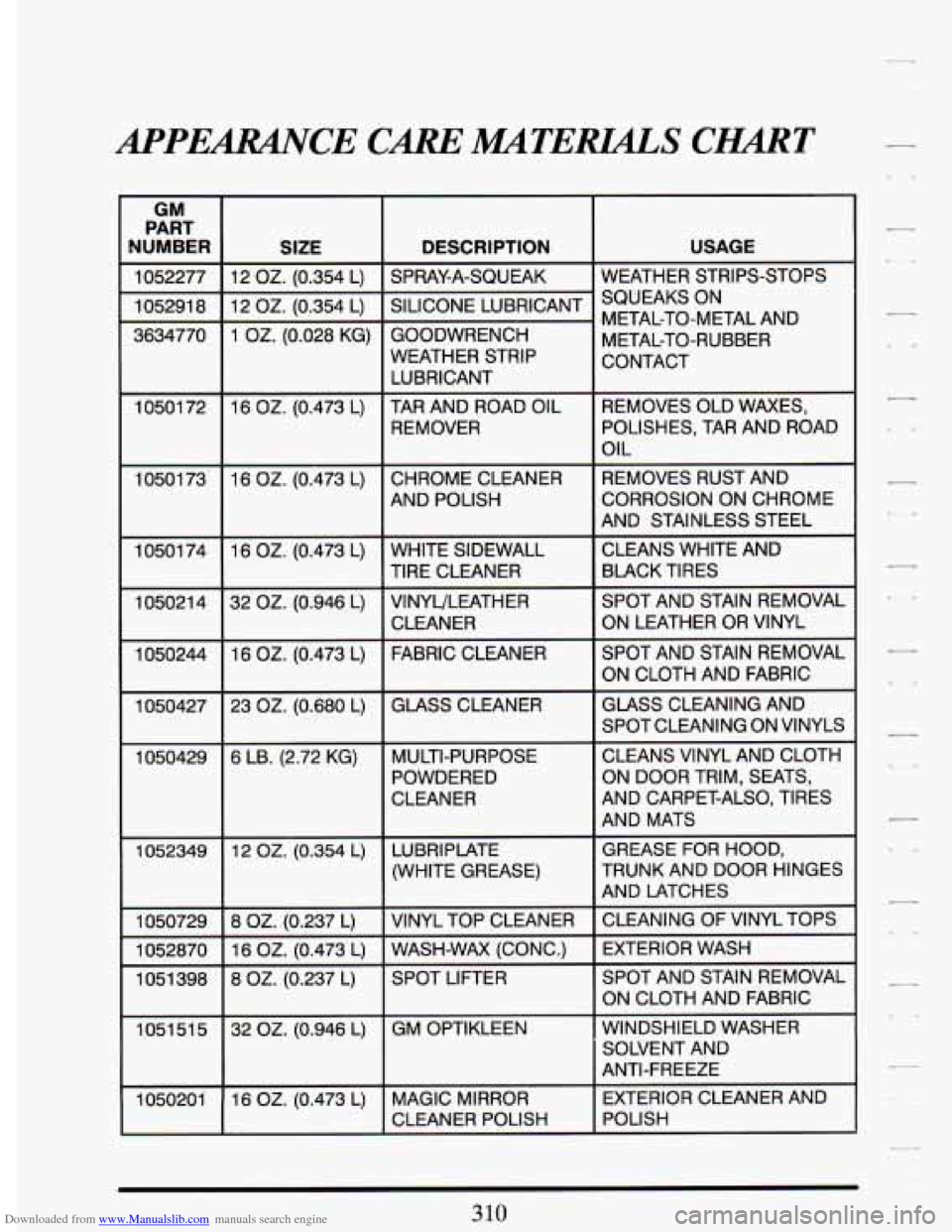

Downloaded from www.Manualslib.com manuals search engine APEMCE CARElMtlTERLALS CHART
SIZE
1052277 12 OZ. (0.354 L)
105291 8 12 OZ. (0.354 L)
3634770 1 OZ. (0.028 KG)
10501 72 16 OZ. (0.473 L)
10501 73 16 OZ. (0.473 L)
10501 74 16 OZ. (0.473 L)
1050214 32 OZ. (0.946 L)
1050429 6 LB. (2.72 KG)
1052349 12 OZ. (0.354 L)
1050729 8 OZ. (0.237 L)
1052870 16 02. (0.473 L)
1051 398
8 OZ. (0.237 L)
DESCRIPTION. USAGE
SPRAY-A-SQUEAK WEATHER STRIPS-STOPS
SILICONE LUBRICANT
I
GOODWRENCH
WEATHER STRIP
LUBRICANT SQUEAKS ON
.METAL-TO-METAL AND
METAL-TO-RUBBER
CONTACT
TAR AND ROAD OIL REMOVES OLD WAXES,
REMOVER POLISHES, TAR AND ROAD OIL
CHROME CLEANER REMOVES RUST AND
AND POLISH CORROSION ON CHROME AND STAINLESS STEEL
WHITE SIDEWALL CLEANS WHITE AND
TIRE CLEANER BLACK TIRES
I
VINYULEATHER
CLEANER
FABRIC CLEANER
GLASS CLEANER MULTI-PURPOSE
POWDERED
CLEANER SPOT AND STAIN REMOVAL
ON LEATHER OR VINYL
SPOT AND STAIN REMOVAL
ON CLOTH AND FABRIC
~ GLASS CLEANING AND
~ SPOTCLEANING ON VINYLS
I
ON DOOR TRIM, SEATS,
AND CARPETALSO, TIRES
AND MATS
LUBRIPLATE (WHITE GREASE) GREASE
FOR HOOD,
TRUNK AND DOOR HINGES
AND LATCHES
VINYL TOP CLEANER
I CLEANING OF VINYL TOPS
WASH-WAX (CONC.) I EXTERIOR WASH
SPOT LIFTER SPOT AND STAIN REMOVAL
ON
CLOTH AND FABRIC
I
GM OPTIKLEEN WINDSHIELD WASHER
SOLVENT AND
ANTI-FREEZE
CLEANER POLISH POLISH
310

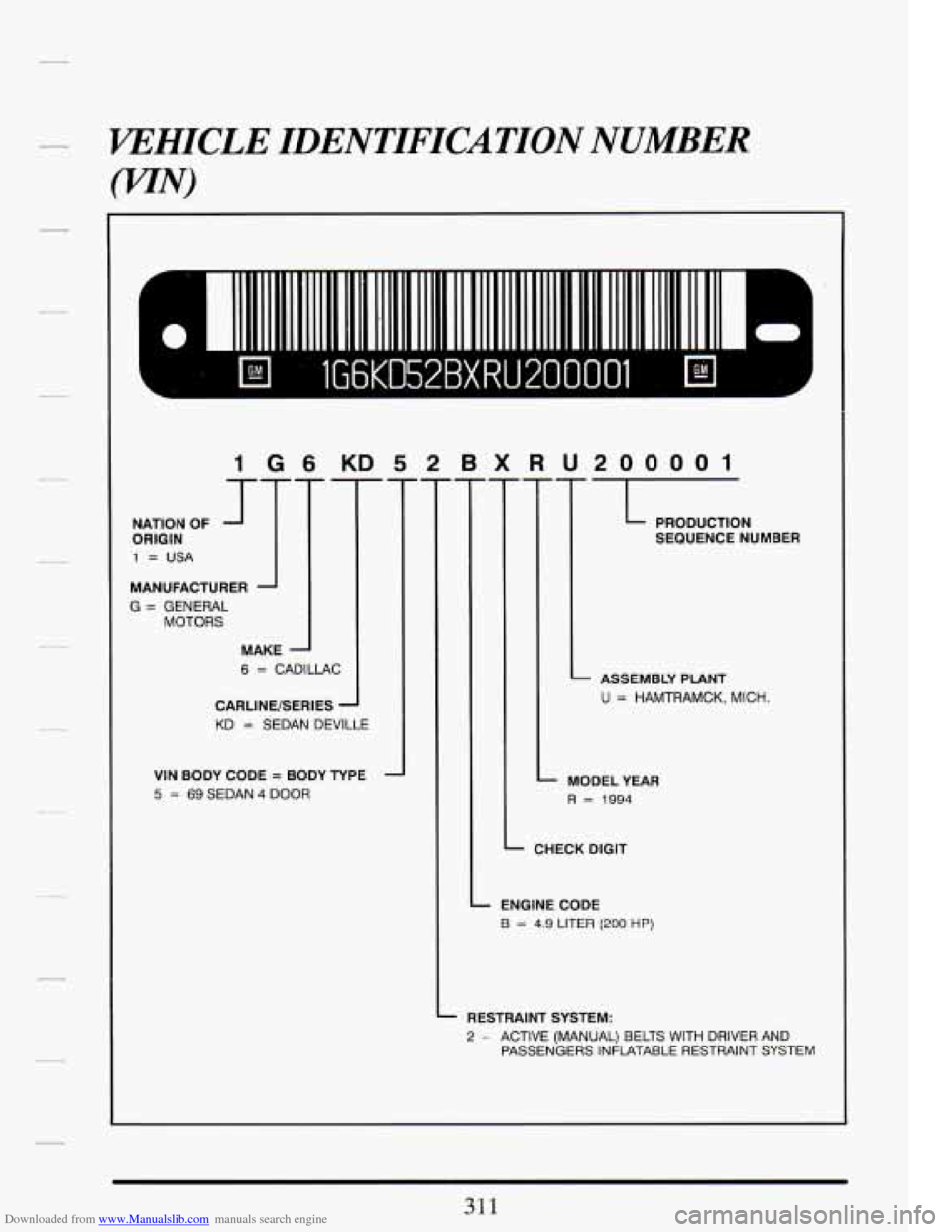

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION NUMBER
(VI.)
El - lG6KD52BXRU200001 IG"I
1 G6 KD 5 2 BX R U200001
1 = USA
MANUFACTURER
G = GENERAL
MOTORS
MAKE
6 = CADILIAC
CARLINE/SERIES -I
KD I= SEDAN DEVILLE
VIN BODY CODE = BODY TYPE
5 = 69SEDAN4DOOR
.-
-I PRODUCTION
SEQUENCE NUMBER
- ASSEMBLY PLANT
U = HAMTRAMCK, MICH.
- MODEL YEAR
R = 1994
- CHECK DIGIT
- ENGINE CODE
B = 4.9 LITER (200 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM

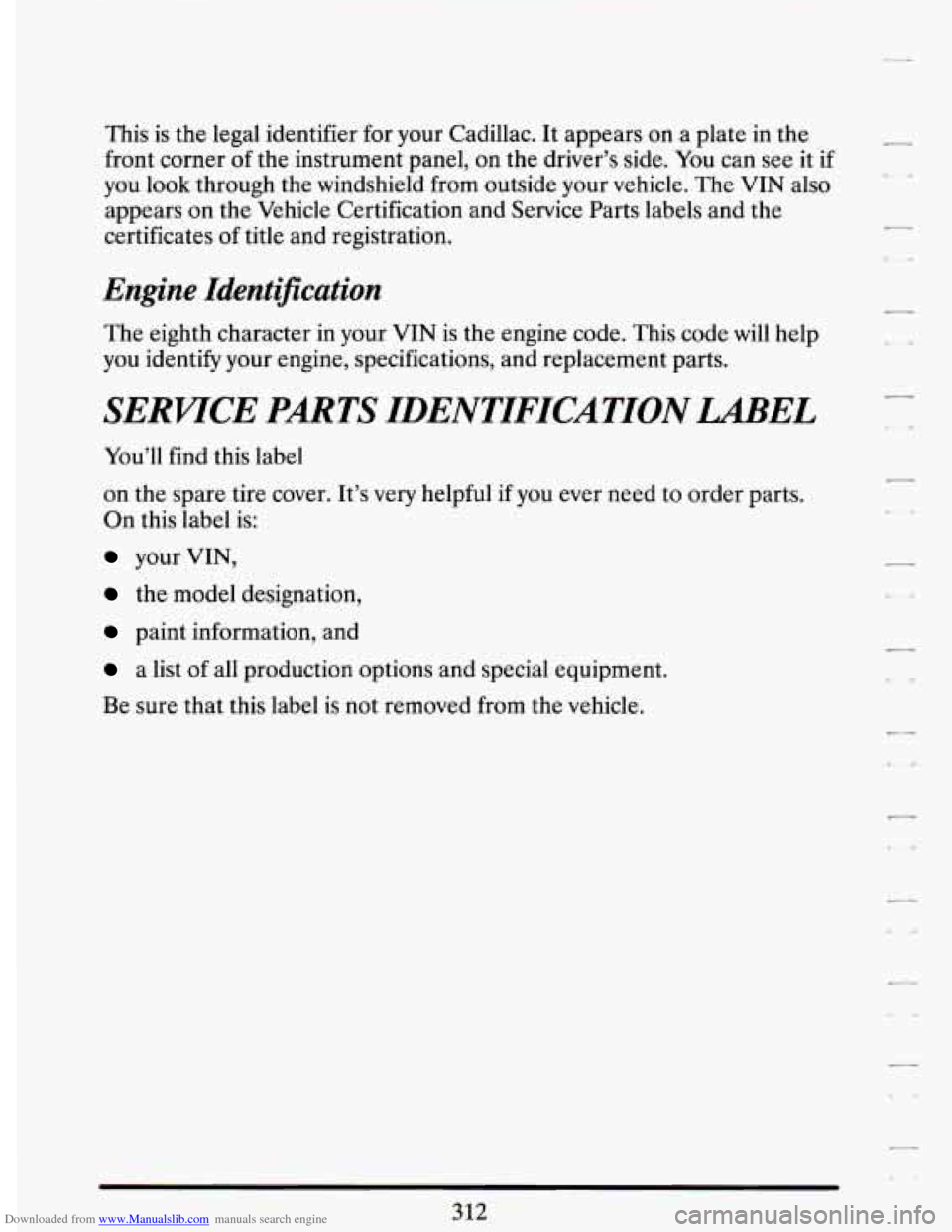

Downloaded from www.Manualslib.com manuals search engine This is the legal identifier for your Cadillac. It appears on a plate in the
front corner of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates
of title and registration.
-
Engine Identification
The eighth character in your VIN is the engine code. This code will help
you identify your engine, specifications, and replacement parts.
SERVTCE PARTS IDENTIFICATION LABEL
You’ll find this label
on the spare tire cover. It’s very helpful if you ever need to order parts.
On this label
is:
your VIN,
the model designation,
paint information, and
a list of all production options and special equipment.
Be sure that this label is not removed from the vehicle.
312

Downloaded from www.Manualslib.com manuals search engine ADD-ON ELECTRICAL EQUIPMENT
NOTICE:
Don’t add anything electrical to your Cadillac unless you check
with your dealer first. Some electrical equipment can damage
your vehicle and the damage wouldn’t be covered by your
warranty. Some add-on electrical equipment can keep other
components from working
as they should.
Your vehicle has an air bag system. Before attempting to add anything
electrical to your Cadillac,
see “Servicing Your Air Bag-Equipped
Cadillac”
in the Index.
Retained Accessory Power
When you stop your Cadillac and turn the key to Off, you can use these
accessories for
10 more minutes:
Radio
Power Windows
Astroroof
Windshield Wipers
If you open a door, everything will
go off. And, after 10 minutes
everything will go off, also.
If you want power for another 10 minutes, just turn the key to Run and
then back to Off.
313

Downloaded from www.Manualslib.com manuals search engine FUSES AND CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination
of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one
of the same value. Select a feature that you can get along
without that is the same value you need
-- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.
7
L
There is a fuse removal tool and some spare mini fuses in the glove box
door, just lift the cover
up.
Engine Compartment Fuse Block
To gain
cover. access,
lift the
Mmi FuseslRelay Center
The maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
314

Downloaded from www.Manualslib.com manuals search engine r I
r i
r‘ I
!- I
r
? ! i
!- i
I
r‘ L
DlSTR SIR PCM (IGN) INJ INJ IGN 1
]mmmmmmri
~mnmmmml
PCM (BAT) RTD BATT A/C COMP HDLPS STOP LP TURN/HAZ
DRL
L HDLP LO
R HDLP LO L HDLP HI R HDLP HI IGN 3 COOL FAN TRANS
I FUSE CENTER IDENTIFICATION
ENGINE COMPARTMENT FUSE BLOCK
DISTR 20A TURN/HAZ 20A
SIR 20A - IGNITION CONTROL MODULE - HAZARD FLASHER
- DIAGNOSTIC/ENERGY RESERVE
- DUAL POLE ARMING SENSOR - DAYTIME RUNNING LIGHTS (CANADA)
- TURN FLASHER RELAY - TURN FLASHER MODULE
MODULE (DERM) DRL 10A (CANADA)
PCM IGN) 10A DRL 10A (CANADA)
- PASS-Key@ DECODER MODULE HTD W/S 1OA
INJ 1OA - HEATED WINDSHIELD CONTROL MODULE
INJ 1OA - LEFT REAR STRUT
IGN 1 10A
- P6WERTRAIN CONTROL MODULE (PCM) - LEFT AND RIGHT LO BEAM HEADLAMP
- 1,4,6, AND 7 FUEL INJECTORS LR STRUT 1OA
- 2,3,5, AND 8 FUEL INJECTORS RR STRUT 10A
- A/C REFRIGERANT PRESSURE SWITCH - TRANSAXLE RANGE SWITCH - STOP/BTSI/CRUISE BRAKE SWITCH - INSTRUMENT PANEL CLUSTER - KEYLESS ENTRY MODULE - DIAGNOSTIC/ENERGY RESERVE MODULE
- RIGHT REAR STRUT LF STRUT 1OA
RF STRUT 1OA
L HDLP LO 1OA
R HDLP LO 10A
L HDLP HI 1OA
R HDLP HI 1OA
IGN 3 10A
- LEFT FRONT STRUT
- RIGHT FRONT STRUT
- LEFT LO BEAM HEADLAMP
- RIGHT LO BEAM HEADLAMP
- LEFT HI BEAM HEADLAMP
- RIGHT HI BEAM HEADLAMP
- REAR DEFOGGER RELAY - ELECTRONIC LEVEL CONTROL (ELC) - HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER - CRUISE CONTROL
LFR2RING
LIGHTS
-
- TURN/HAZARD SWITCH ASSY - CHIME MODULE - HEADLIGHT SWITCH - TWILIGHT SENTINEUDRL MODULE
- FUELPUMP - OIL PRESSURE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
FUEL PUMP 20A
PCM BAT) 10A
RTD (BAT) 20A
A/C COMP 1OA
- POWERTRAIN CONTROL MODULE (PCM)
HDLPS 30A
- P6WERTRAIN CONTROL MODULE pCM) COOLING FAN 1OA - ROAD SENSING SUSPENSION (RSS) MODULE - EXTENDED TRAVEL BRAKE SWITCH
- A/C COMPRESSOR CLUTCH - COOLING FAN RELAYS 1,2, AND 3.
- HEADLIGHT DIMMER SWITCH - HEADLIGHT RELAY “D” (ENGINE COMP MICRO - OVERSPEED ALERT MODULE (EXPORT)
- DRL HEADLIGHT RELAY “E (WITH DAYTIME - POWER STEERING PRESSURE SWITCH - EXHAUST GAS RECIRCULATION (EGR) VALVE
- POWERS C13 - TRANSAXLE SHIFT SOLENOIDS A & B - EVAPORATIVE EMISSION CONTROL SOLENOID
- STOP/BTSI/CRUISE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
- STOPLIGHT SWITCH CAPACITOR - TORQUE CONVERTER CLUTCH SOLENOID - TCC BRAKE SWITCH
- FRONT AND REAR HEATED OXYGEN SENSOR TRANS/ECS 1 OA
RELAY CENTER)
RUNNING LIGHTS)
STOP LP 20A
315

Downloaded from www.Manualslib.com manuals search engine I 60A I
I I 30A
E "
I 60A I
60A
LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP) (STRG 1-2)
- RETAINED ACCESSORY POWER (RADIO/WIPERS)
- STARTER
- TRUNK COMF FUSES B11 AND 813
FUSE 2 (60 AMP) (BODY)
- ENGINE COMF! B11
- ROAD SENSING SUSPENSION
- FOG LIGHTS
- TRUNK COMF! FUSE C1, C3, C5, C7, C9, AND
c11
- TRUNK COMI? FUSE C13 (EXPORT)
- REAR FOG LIGHT (EXPORT)
CIRCUIT BREAKER 3 (30 AMP) (SEAT)
- LEFT AND RIGHT POWER SEAT SWITCHES
- LEFT AND RIGHT LUMBAR RELAYS
- POWER DOOR LOCKS
- KEYLESS ENTRY MODULE
- HORNS
- FUEL DOOR RELEASE SWITCH
- TRUNK RELEASE SWITCH
FUSE 4 (30 AMP) (IPC)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
'- RAPALLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASS-Key@ DECODER MODULE - THEFT DETERRENT
FUSE 5 (SO AMP) (HVAC) - LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER - LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP) (STRG 3)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMF! FUSES Dl, D3, D5
- TRUNK COMI? FUSES A1 , A3, A5, A7, A9
RH MAXI8 FUSE BLOCK
CIRCUIT BREAKER 1 (30 AMP) (DAB)
- RETAINED ACCESSORY POWER (RAP)
(SUNROOF/POWER WINDOWS)
FUSE 2 (30 AMP) (RADIO)
- DELCO-BOSEB SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
FUSE 3 (50 AMP) (COOL)
FUSE
4 (40 AMP) HVAC BLOWER (BLOWER)
- COOLING FANS
- HVAC POWER MOTOR
- A/C COMPRESSOR
FUSE 5 (50 AMP) ABS (BRAKES)
FUSE
6 (50 AMP) (LAMPS)
- BRAKE PRESSURE MODULATOR VALVE
- TURN FLASHER MODULE
- HAZARD FLASHER
- STOP/BTSI/CRUISE BRAKE SWITCH
- PARKING LIGHTS
- DAY TIME RUNNING LIGHTS (CANADA)
- ENGINE COME FUSES 61, B3 AND B5
- TRUNK COMF! FUSES Dl 1, Dl3
316

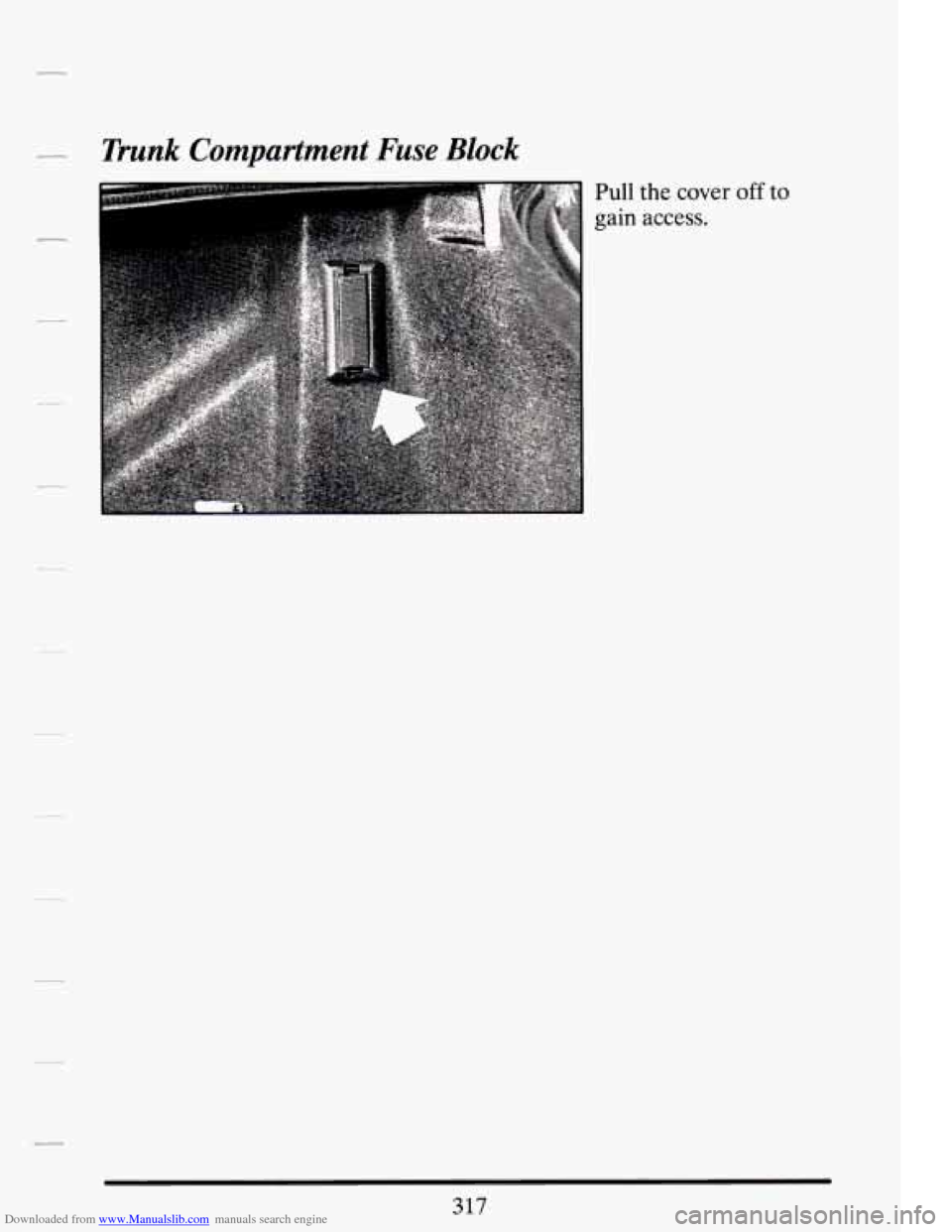

Downloaded from www.Manualslib.com manuals search engine Trunk Compartment Fuse Block
Pull the cover off to
gain access.
317
