There are several ways to lock and unlock your vehicle:
From the outside:
your door
key.
Use
If your vehicle has a theft deterrent system and it is armed, unlock the
doors only- with the key or Keyless Entry System. This will avoid setting
off the alarm.
From the inside:
To
lock the door, slide the
lock lever down to
manually lock the
door.
To unlock the door,
slide the lock lever up.
69

Downloaded from www.Manualslib.com manuals search engine .-.
Anti-Lockout Feature
Your vehicle is equipped with this feature. If you leave the key in the
ignition whether
in the Accessory, Lock, or Off position with the driver's
door open,
you can not lock your vehicle using the power locks. If you close
the door you can lock
it using the Remote Keyless Entry System. It is always
recommended that you remove
your ignition key when locking your vehicle.
When the engine is running the Anti-Lockout feature is disabled.
Illuminated Entry System
Your illuminated entry system turns on all the courtesy lights when a door
is opened or if you push the Remote Keyless Entry button. When the
door is closed, the courtesy lights
will go out.
REMOTE KEYLESS ENTRY SYSTEM
With this feature you can turn on your interior lights, lock and unlock
your doors, or unlock your
trunk from up to 15 feet (4.5 mm) using the
key chain transmitter supplied with your vehicle.
Your Remote Keyless Entry System
is intended to be used as a
supplementary vehicle entry device. It is not intended to replace, but
rather should be used in conjunction
with a door lock key. It operates on
a radio frequency subject to Federal Communications Commission
(FCC) Rules.
This device complies
with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Should interference to this system occur, try this:
Check
to determine if battery replacement is necessary. See the
instructions on battery replacement.
0 Check the distance. You may be too far from your vehicle. This
product has a maximum range.
0 Check the location. Other vehicles or objects may be blocking the
signal.
See your Cadillac dealer or a qualified technician for service.
-.
L
.-
.:
Y
r-
-
7
. . .a
-
'72

Downloaded from www.Manualslib.com manuals search engine The glove box is directly in front of the front passenger seat. To unlock
the door, insert the round key into the lock cylinder and turn it to the left.
To lock the door, turn the key to the right and remove the key. The key
may be removed in the locked or unlocked position.
Trunk Security Override
Inside the glove box ik an override switch that is useful if you want to
leave valuables in the trunk when using a commercial parking lot.
Push the button to disable the Remote Trunk Release button. Then lock
your glove box with the door
key. If you have your door key with you, this
will help keep someone from getting into your trunk. Push the button
again to make the power trunk release button usable.
You can still use your Remote Keyless Entry transmitter to open the
trunk even
if the override button is pushed in.

Downloaded from www.Manualslib.com manuals search engine Parking at Night
Park in a lighted spot, close all windows and lock your vehicle. Remember
to keep your valuables out of sight. Put them
in a storage area, or take
them with you.
Parking Lots
If you park in a lot where someone will be watching your vehicle, it’s best -
to lock it up and take your keys. But what if you have to leave your k,
ignition key? What if you have to leave something valuable in your
vehicle?
Put your valuables in a storage area, like your trunk or glove box.
Lock the glove box.
Push the Trunk Security Override switch in the glove box.
0 Do not leave the Remote Keyless Entry key fob, take it with you.
0 Lock all the doors except the driver’s.
0 Then take the door key with you.
THEFT DETERRENT (OPTION)
If your Cadillac has this
option,
it has a Theft
Deterrent Alarm
System. With this
system, the
“SECURITY” light
will flash as you open
the door (if your
ignition is off).
82

Downloaded from www.Manualslib.com manuals search engine This light reminds you to arm the theft deterrent system. Here’s how to
do it:

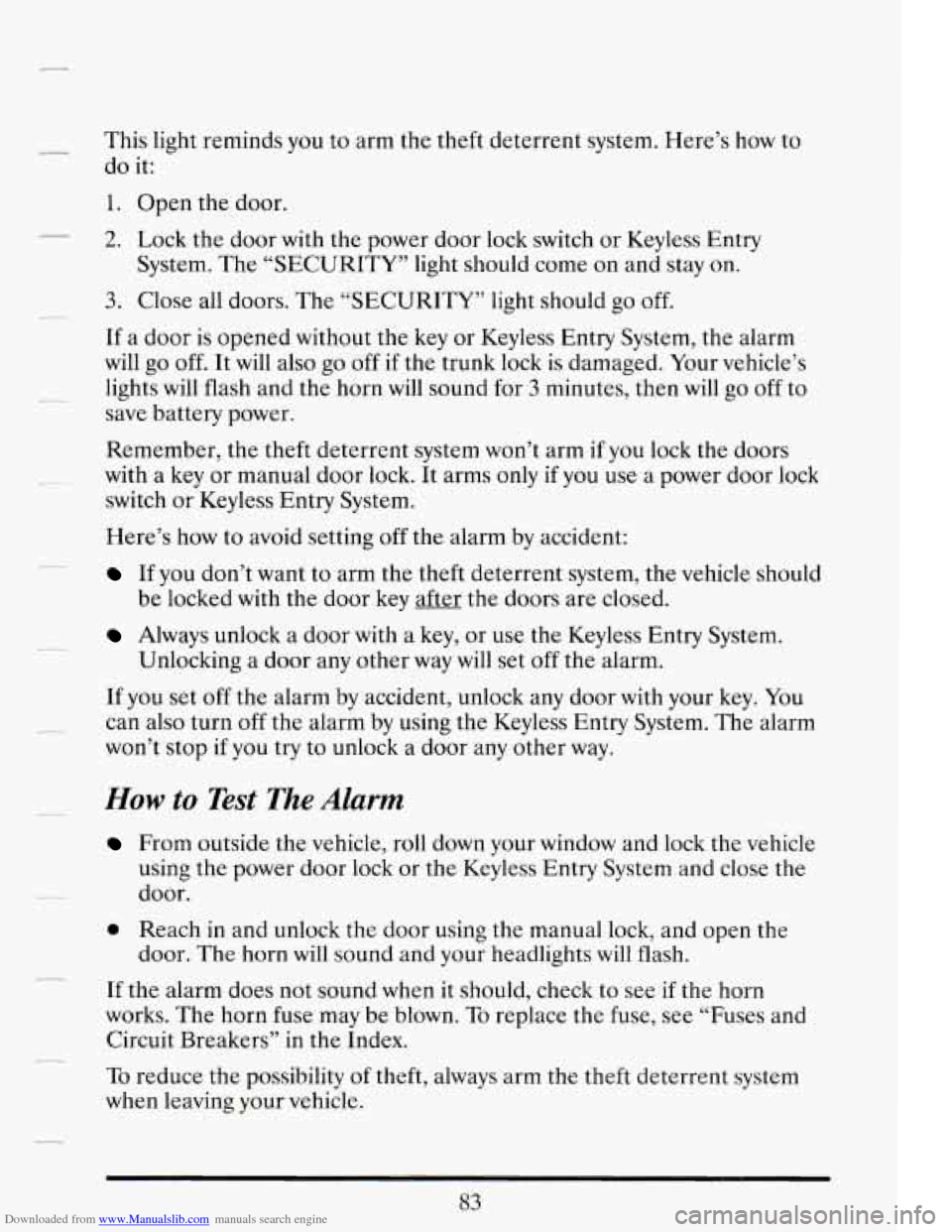

1. Open the door.
2. Lock the door with the power door lock switch or Keyless Entry
System. The “SECURITY” light should come
on and stay on.
3. Close all doors. The “SECURITY” light should go off.
If a door
is opened without the key or Keyless Entry System, the alarm
will go off. It
will also go off if the trunk lock is damaged. Your vehicle’s
lights will flash and the horn
will sound for 3 minutes, then will go off to
save battery power.
Remember, the theft deterrent system won’t arm
if you lock the doors
with a key or manual door lock. It arms only
if you use a power door lock
switch
or Keyless Entry System.
Here’s how to avoid setting
off the alarm by accident:
__ If you don’t want to arm the theft deterrent system, the vehicle should
be locked with the door
key after the doors are closed.
Always unlock a door with a key, or use the Keyless Entry System.
Unlocking a door any other way
will set off the alarm.
If you set off the alarm by accident, unlock any door with your key. You
can also turn
off the alarm by using the Keyless Entry System. The alarm
won’t stop
if you try to unlock a door any other way.
How to Test The Alarm
From outside the vehicle, roll down your window and lock the vehicle
using the power door lock or the Keyless
Entry System and close the
door.
door. The horn will sound and your headlights will flash.
0 Reach in and unlock the door using the manual lock, and open the
If the alarm does not sound when
it should, check to see if the horn
works. The horn fuse may be blown.
To replace the fuse, see “Fuses and
Circuit Breakers”
in the Index.
To reduce the possibility of theft, always arm the theft deterrent system
when leaving your vehicle.
83

Downloaded from www.Manualslib.com manuals search engine r I
r i
r‘ I
!- I
r
? ! i
!- i
I
r‘ L
DlSTR SIR PCM (IGN) INJ INJ IGN 1
]mmmmmmri
~mnmmmml
PCM (BAT) RTD BATT A/C COMP HDLPS STOP LP TURN/HAZ
DRL
L HDLP LO
R HDLP LO L HDLP HI R HDLP HI IGN 3 COOL FAN TRANS
I FUSE CENTER IDENTIFICATION
ENGINE COMPARTMENT FUSE BLOCK
DISTR 20A TURN/HAZ 20A
SIR 20A - IGNITION CONTROL MODULE - HAZARD FLASHER
- DIAGNOSTIC/ENERGY RESERVE
- DUAL POLE ARMING SENSOR - DAYTIME RUNNING LIGHTS (CANADA)
- TURN FLASHER RELAY - TURN FLASHER MODULE
MODULE (DERM) DRL 10A (CANADA)
PCM IGN) 10A DRL 10A (CANADA)
- PASS-Key@ DECODER MODULE HTD W/S 1OA
INJ 1OA - HEATED WINDSHIELD CONTROL MODULE
INJ 1OA - LEFT REAR STRUT
IGN 1 10A
- P6WERTRAIN CONTROL MODULE (PCM) - LEFT AND RIGHT LO BEAM HEADLAMP
- 1,4,6, AND 7 FUEL INJECTORS LR STRUT 1OA
- 2,3,5, AND 8 FUEL INJECTORS RR STRUT 10A
- A/C REFRIGERANT PRESSURE SWITCH - TRANSAXLE RANGE SWITCH - STOP/BTSI/CRUISE BRAKE SWITCH - INSTRUMENT PANEL CLUSTER - KEYLESS ENTRY MODULE - DIAGNOSTIC/ENERGY RESERVE MODULE
- RIGHT REAR STRUT LF STRUT 1OA
RF STRUT 1OA
L HDLP LO 1OA
R HDLP LO 10A
L HDLP HI 1OA
R HDLP HI 1OA
IGN 3 10A
- LEFT FRONT STRUT
- RIGHT FRONT STRUT
- LEFT LO BEAM HEADLAMP
- RIGHT LO BEAM HEADLAMP
- LEFT HI BEAM HEADLAMP
- RIGHT HI BEAM HEADLAMP
- REAR DEFOGGER RELAY - ELECTRONIC LEVEL CONTROL (ELC) - HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER - CRUISE CONTROL
LFR2RING
LIGHTS
-
- TURN/HAZARD SWITCH ASSY - CHIME MODULE - HEADLIGHT SWITCH - TWILIGHT SENTINEUDRL MODULE
- FUELPUMP - OIL PRESSURE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
FUEL PUMP 20A
PCM BAT) 10A
RTD (BAT) 20A
A/C COMP 1OA
- POWERTRAIN CONTROL MODULE (PCM)
HDLPS 30A
- P6WERTRAIN CONTROL MODULE pCM) COOLING FAN 1OA - ROAD SENSING SUSPENSION (RSS) MODULE - EXTENDED TRAVEL BRAKE SWITCH
- A/C COMPRESSOR CLUTCH - COOLING FAN RELAYS 1,2, AND 3.
- HEADLIGHT DIMMER SWITCH - HEADLIGHT RELAY “D” (ENGINE COMP MICRO - OVERSPEED ALERT MODULE (EXPORT)
- DRL HEADLIGHT RELAY “E (WITH DAYTIME - POWER STEERING PRESSURE SWITCH - EXHAUST GAS RECIRCULATION (EGR) VALVE
- POWERS C13 - TRANSAXLE SHIFT SOLENOIDS A & B - EVAPORATIVE EMISSION CONTROL SOLENOID
- STOP/BTSI/CRUISE SWITCH - POWERTRAIN CONTROL MODULE (PCM)
- STOPLIGHT SWITCH CAPACITOR - TORQUE CONVERTER CLUTCH SOLENOID - TCC BRAKE SWITCH
- FRONT AND REAR HEATED OXYGEN SENSOR TRANS/ECS 1 OA
RELAY CENTER)
RUNNING LIGHTS)
STOP LP 20A
315

Downloaded from www.Manualslib.com manuals search engine I 60A I
I I 30A
E "
I 60A I
60A
LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP) (STRG 1-2)
- RETAINED ACCESSORY POWER (RADIO/WIPERS)
- STARTER
- TRUNK COMF FUSES B11 AND 813
FUSE 2 (60 AMP) (BODY)
- ENGINE COMF! B11
- ROAD SENSING SUSPENSION
- FOG LIGHTS
- TRUNK COMF! FUSE C1, C3, C5, C7, C9, AND
c11
- TRUNK COMI? FUSE C13 (EXPORT)
- REAR FOG LIGHT (EXPORT)
CIRCUIT BREAKER 3 (30 AMP) (SEAT)
- LEFT AND RIGHT POWER SEAT SWITCHES
- LEFT AND RIGHT LUMBAR RELAYS
- POWER DOOR LOCKS
- KEYLESS ENTRY MODULE
- HORNS
- FUEL DOOR RELEASE SWITCH
- TRUNK RELEASE SWITCH
FUSE 4 (30 AMP) (IPC)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL
'- RAPALLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASS-Key@ DECODER MODULE - THEFT DETERRENT
FUSE 5 (SO AMP) (HVAC) - LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER - LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP) (STRG 3)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMF! FUSES Dl, D3, D5
- TRUNK COMI? FUSES A1 , A3, A5, A7, A9
RH MAXI8 FUSE BLOCK
CIRCUIT BREAKER 1 (30 AMP) (DAB)
- RETAINED ACCESSORY POWER (RAP)
(SUNROOF/POWER WINDOWS)
FUSE 2 (30 AMP) (RADIO)
- DELCO-BOSEB SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
FUSE 3 (50 AMP) (COOL)
FUSE
4 (40 AMP) HVAC BLOWER (BLOWER)
- COOLING FANS
- HVAC POWER MOTOR
- A/C COMPRESSOR
FUSE 5 (50 AMP) ABS (BRAKES)
FUSE
6 (50 AMP) (LAMPS)
- BRAKE PRESSURE MODULATOR VALVE
- TURN FLASHER MODULE
- HAZARD FLASHER
- STOP/BTSI/CRUISE BRAKE SWITCH
- PARKING LIGHTS
- DAY TIME RUNNING LIGHTS (CANADA)
- ENGINE COME FUSES 61, B3 AND B5
- TRUNK COMF! FUSES Dl 1, Dl3
316

Downloaded from www.Manualslib.com manuals search engine IGN 1 HDLP WASH IPC (IGN) RTD
~~l~~~mm
WIPER RAD (IGN) R DEFOG HTD MlRR IPC (BATT) THEFT HVAC/DABIE
CIGAR BODY
2 BODY 1 READ LP
L PRK LP
R PRK LP RAD (BAT) TRUNK PLD R HTD SEAT L HTD SEAT
DEVILLE TRUNK COMPARTMENT FUSE BLOCK
CRANK (10 AMP)
- DlAGNOSTlClENERGY RESERVE
- TRANSAXLE RANGE SWITCH (NSSS)
- RAP/ILLUMINATED ENTRY MODULE
MODULE (DERM)
ION 1 (10 AMP) - TRUNWFUEL DOOR RELEASE INHIBIT RELAY "E" - FUEL LEVER SENSOR - ELECTROCHROMIC MIRROR - RAP/ILLUMINATED ENTRY MODULE - THEFT DETERRENT MODULE - KEYLESS ENTRY MODULE - TURN FLASHER RELAY "F TRUNK COMP.
HDLP WASH (30 AMP) EXPORT ONLY
IPC
(ION) (10 AMP) - INSTRUMENT PANEL CLUSTER RTD SUSP (10 AMP)
- ENGINE COMP MICRO REL4Y CENTER
ABS (IO AMP) - ELECTRONIC BRAKE AND TRACTION CONTROL MODULE
(EBTCM)
WIPER (30 AMP) - WIPERMASHER SWITCH RAD (IGN) (10 AMP)
R DEFOG (30 AMP) - REAR DEFOGGER HTD MlRR (10 AMP) - LTAND RT OUTSIDE MIRROR DEFOGGERS IPC (BATr) (10 AMP)
THEFT
(10 AMP) - PASS-Key@ DECODER MODULE - THEFT DETERRENT RELAY "D" (TRUNK COMP.
- THEFT DETERRENT MODULE HVAC/DABIE (10 AMP) - HEATER AND A/C PROGRAMMER
RADIO (30 AMP) - ACTIVE AUDIO AMPLIFIER TRAILER (20 AMP)
ANT
I10 AMP)
MICRO RELAY CENTER
- NOT EQUIPPED
- SPEED SENSITIVE SUSPENSION
RSS DAMPER RELAY "F"
- REMOTE RADIO RECEIVER
- INSTRUMENT PANEL CLUSTER
RELAY CENTER)
- RAP/ILLUMINATED ENTRY MODULE
- NOT EQUIPPED
CIGAR (20 AMP) - LT AND RT REAR CIGARETTE LIGHTERS - FRONT CIGARETTE LIGHTER - CHIME MODULE BODY 2 (10 AMP) - POWER MIRROR SWITCH - RAPRELAY - LOCK-OUT INHIBIT RELAY "A" (TRUNK COMP 1 MICRO
- COURTESY LIGHTS RELAY "C" (TRUNK COME 2 MICRO
RELAY CENTER)
RELAY CENTER)
- RAP RELAY "E (TRUNK COMP. 2 MICRO
RELAY CENTER) - KEYLESS ENTRY MODULE - TRUNKLAMP
- FRONT DOOR LOCK SWITCHES BODY 1 (10 AMP)
- FRONT DOOR COURTESY LAMP - GLOVE BOX LAMP - HEADLIGHT SWITCH READ LP (10 AMP) - LTAND AT FRONT HEADER LAMP - GARAGE DOOR OPENER - LT AND RT REAR HEADER LAMPS L PRK LP (10 AMP) - LT REAR TAlUSTOPrURN LAMPS
- FRONT AND REAR LEFT SIDE MARKER LAMPS - RT REAR MARKER LAMP - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER R PRK LP (10 AMP) - RADIO CONTROL HEAD - RT TAIUSTOP TURN LAMPS - RT FRONT AND REAR SIDE MARKER LAMPS - RT FRONT PARK AND TURN LAMPS - ENGINE COME LAMP - LICENSE PLATE LAMPS RAD (BAT) (10 AMP) - RADIO TRUNK PLD (20 AMP) - TRUNK LID PULL DOWN MOTOR ELC (30 AMP) - ELECTRONIC LEVEL CONTROL (ELC) R HTD SEAT (10 AMP) - PASSENGERS HEATED SEAT
- LT FRONT PARWURN LAMPS
L HTD SEAT (10 AMP) - ANTENNA MOTOR - DRIVER'S HEATED SEAT
318
,

Downloaded from www.Manualslib.com manuals search engine I
Ice. If You’re Stuck In ............................... 247
Identification Label. Service Parts
..................... 312
Identification Number. Vehicle
....................... 311
IdlingYourEngine
.................................. 98
If
A Tire Goes Flat ................................. 236
Ignition Key Positions
................................ 86
Illuminated Entry System
............................. 72
Indicator. Bulbs For Turn Signal
...................... 319
Indicators. Warning.
On Instrument Panel .............. 132
Infant Restraint ..................................... 47
Inflatable Restraint Light
............................. 33
Inflation. Tire Pressure
.............................. 292
Information Center. Driver
.......................... 140
Information System On Instrument Panel .............. 140
Inspection. Tire .................................... 294
Instrument Panel
................................... 130
Instrument Panel Warning Lights
..................... 132
Interior Cleaning
................................... 301
Interior Lights ..................................... 116
Introduction
.............. See Front of Owner Info . Manual
J
Jacking And Removing Flat Tire ...................... 237
Jump Starting
...................................... 217
Keys
.............................................. 66
Key Positions. Ignition
............................... 86
Keyless Entry. Remote
............................... 72
Keys.
Ignition
....................................... 86
Kilometer Indicator
................................ 131
L
Label. Fluid Usage ................................. 258
Lamp Housings
.................................... 281
Lane Change Indicator
.............................. 105
LapBelt ........................................... 40
Larger Children and Safety Belts ....................... 60
Leaking. Of Exhaust Into Your Car .................... 100
Leather. Cleaning .................................. 302
Leaving Your Vehicle
................................ 71
Lap-Shoulder
Belt
................................... 19
.
.
w
.
.
.
.
.
.
.. -d
.
.
.
.
8

Downloaded from www.Manualslib.com manuals search engine .
.
.
.
.
.
.
.
.
.
Pedal Travel. Brake ................................. 279
Perception Time. In Braking
......................... 181
Polishing and Waxing ............................... 307
Possible Damage to Your Cadillac. Notices About
......... 2
Possible Injury
To People. Cautions About ................ 1
Power
Antenna. Cleaning The
........................... 175
DoorLocks
...................................... 68
Seat Controls ..................................... 6
Seatback Recliner ................................. 8
Steering ........................................ 273
Steering Fluid
................................... 273
Windows
....................................... 102
Pregnancy. Use Of Safety Belts During ................. 39
Problems On The Road
............................. 214
Product Serv
. Publications ............ See Owner Assistance
Proper Safety Belt Usage. For Adults
................... 18
Protection Plan ..................... See Owner Assistance
Pull Down System. Trunk
............................. 80
“R” (Reverse) Gear Position .......................... 92
Racing. Shifting When Your Engine Is
.................. 92
Radiator Overheating
............................... 225
Radio. Two.Way. Adding
A ...................... 158. 313
Radio Systems
..................................... 157
Rain. Driving In
.................................... 193
Reaction Time. In Braking
........................... 181
Reading Lights ..................................... 119
Rear Ashtray
...................................... 128
Rear Door Security Lock ............................. 70
Rear Window Defogger
............................. 155
Reclining Seat ....................................... 7
Recommended Fluids
& Lubricants ........ See Maint . Book
Recovery. Off Road ................................. 187
Recreational Vehicle. Towing
A ....................... 207
Remote Fuel Door
................................. 254
Remote Trunk Release
............................... 79
Remote Keyless
Entry ................................ 72
Replacement Fasteners
.............................. 248
Replacing Brake System Parts
........................ 279
Replacing Safety Belts
............................... 64
Replacing Tires
.................................... 296
Replacing Wheels
.................................. 298
Reporting Safety Defects
to Canadian Gov’t
................. See Owner Assistance
.
11
