Downloaded from www.Manualslib.com manuals search engine Hood Release
- - ~ __
Pull the lever inside the vehicle
to open the hood. It
is located on the lower left
side of the instrument panel.
Then go
to the front of the vehicle and find the
secondary hood release lever which
is located under the
front edge of the grille. Lift up
on the release lever as
you raise the hood.
6-8

Downloaded from www.Manualslib.com manuals search engine When you open the hood, you'll see:
A. Battery
B. Coolant Fill Location
C. Power Steering Fluid D. Oil
Fill Location
E. Engine Oil Dipstick Location
E Brake Master Cylinder
G. Transaxle DipstickPill
H. Air Cleaner
I. Windshield Washer Fluid
Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close
it firmly.

Downloaded from www.Manualslib.com manuals search engine Underhood Lamp
Turn the parking lamps on to operate the underhood
lamp. The underhood lamp will come on when the
hood is opened.
Engine Oil
~MIUM UNLEADED W- -
-
FUEL ONLY DJ a ML
HHrnHHMH
.................... .... .............. ” : : :: - -- ..... ..... I.. ......... ::.a iiii .......... : : : ........... ..... ........... ...................................................
If you have the Driver Information Center (DIC), a
CHECK OIL LEVEL message will appear when the
engine oil is approximately
1 quart (1 L) low. If the
message is displayed, check the dipstick level and add
oil as needed. It’s
a good idea to check your
engine oil every time you
get fuel. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
.. .......... The engine oil dipstick is
located behind the radiator on the driver’s side
of the
engine. The black handle
says ENGINE
OIL on it.
Turn
off the engine and give the oil a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the actual level.
6-10

Downloaded from www.Manualslib.com manuals search engine Checking Engine Oil
111 out the dipstick and clean it with a paper towel or
cloth, then push it back in all the way. Remove it again,
keeping the tip down, and check the level.
When to Add Oil
If the oil is at or below the ADD line, then you’ll
need to add at least one quart of oil. But you must use
the right kind. This part explains what kind of oil to use.
For crankcase capacity, see “Capacities and
Specifications”
in the Index.
I NOTICE:
Don’t add too much oil. If your engine has so
much oil that the oil level gets above the upper
mark that shows the proper operating range,
your engine could be damaged.
The oil fill cap is located
behind the radiator on the
passenger’s side of the
engine. Turn the cap
counterclockwise to
remove it.
Be sure to fill it enough to put the level somewhere in
the proper operating range. Push the dipstick all the way
back in when you’re through.
6-11

Downloaded from www.Manualslib.com manuals search engine What Kind of Oil to Use
Oils recommended for your vehicle can be identified
by looking for the “Starburst”
symbol. This symbol
indicates that the oil has been certified by the American
Petroleum Institute (API).
Do not use any oil which
does not
carry this Starburst symbol.
If you change your own
oil, be sure you use oil
that has the Starburst
symbol on the front of the
oil container.
If you have
your oil changed for you,
be sure the oil put into
your engine is American
Petroleum InstitGte certified
for gasoline engines.
You should also use the proper viscosity oil for your
vehicle, as shown in the following chart:
RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS
FOR B€ST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
SAE VISCOSITY GRADE OIL FOR
THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
COLD
WEATHER
LoOK
FOR THIS
SYMBOL
DO NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
6-12

Downloaded from www.Manualslib.com manuals search engine As shown in the chart, SAE 1OW-30 is best for your
vehicle. However, you can use SAE 5W-30
if it’s
going to be colder than
60 OF ( 16 O C) before your
next oil change. When it’s very cold, you should use
SAE 5W-30. These numbers on an oil container show its
viscosity, or thickness.
Do not use other viscosity oils,
such as
SAE 20W-50.
NOTICE:
Use only engine oil with the American Petroleum
Institute Certified For Gasoline Engines
(‘Starburst” symbol. Failure to use the
recommended oil can result in engine damage not
covered by your warranty.
I I
GM Goodwrench@ oil meets all the requirements for
your vehicle.
If you are in an area where the temperature falls below
-20°F (-29”C), consider using either an SAE 5W-30
synthetic oil or an SAE OW-30 oil. Both will provide
easier cold starting and better protection for your engine
at extremely low temperatures.
Engine Oil Additives
Don’t add anything to your oil. Your Cadillac dealer is
ready to advise if
you think something should be added.
When to Change Engine Oil
Your Cadillac has an Oil Life Indicator. This feature
will
let you know when to change your oil and
filter
-- usually between 3,000 miles (5 000 km) and
7,500 miles (12 500 km) since your last oil change.
Under severe conditions, the indicator may come
on
before 3,000 miles (5 000 km). Never drive your vehicle
more than
7,500 miles (12 500 km) or 12 months
(whichever occurs first) without an oil change.
The system won’t detect dust in the oil.
So, if you
drive
in a dusty area, be sure to change your oil
every 3,000 miles
(5 000 km) or sooner if the
CHANGE
ENGINE OIL message comes on.
Remember to reset the Oil Life Indicator when the
oil has been changed. For more information, see
“Oil Life Indicator” in the Index.
6-13

Downloaded from www.Manualslib.com manuals search engine How to Reset the Oil Life Indicator
After the oil has been changed, display the OIL LIFE
LEFT message by pressing the INFORMATION (INFO)
button. Then press and hold the RESET (INFO RESET)
button until the display shows
“100.” This resets the
oil life index. The message will remain
off until the
next oil change
is needed. The percentage of oil life
remaining may be checked at any time by pressing
the
INFORMATION (INFO) button several times
until the
OIL LIFE LEFT message appears. For more
information on the Oil Life feature, see “Oil Life
Indicator” in the Index.
What to Do with Used Oil
Did you know that used engine oil contains certain
elements that may be unhealthy for your skin and could
even cause cancer? Don’t let used oil stay
on your skin
for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly throw
away clothing or rags containing used engine oil. (See
the manufacturer’s warnings about the use and disposal
of oil products.)
Used oil can be a real threat to the environment. If you
change your own oil, be sure to drain all free-flowing oil
from the filter before disposal. Don’t ever dispose of oil
by putting it in the trash, pouring
it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used oil. If
you have a problem properly disposing
of your used oil,
ask your dealer,
a service station or a local recycling
center for help.
6-14

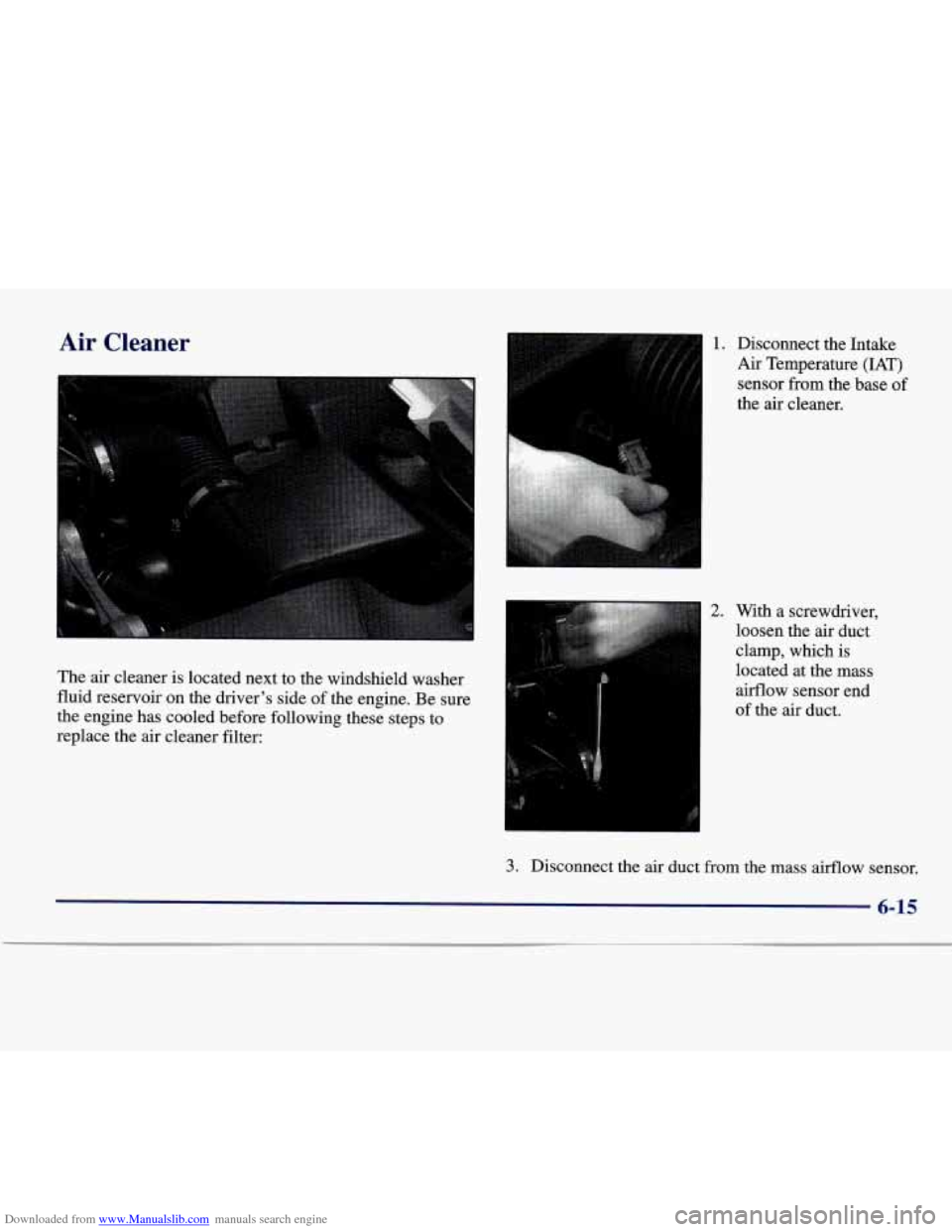

Downloaded from www.Manualslib.com manuals search engine Air Cleaner
I
The air cleaner is located next to the windshield washer
fluid reservoir on the driver's side of the engine. Be sure
the engine has cooled before following these steps to
replace the air cleaner filter:
1. Disconnect the Intake
Air Temperature (IAT)
sensor from the base of
the air cleaner.
2. With a screwdnv&i,
loosen the air duct
clamp, which is
located at the mass airflow sensor end
of the air duct.
3. Disconnect the air duct from the mass axflow sensor.
6-15

Downloaded from www.Manualslib.com manuals search engine 4. Unhook both air cleaner cover latches. One latch is
located near the radiator hose (not shown) and the
other latch
is located next to the IAT sensor.
5. Pivot the air cleaner and air duct assembly toward
the front
of the vehicle. Remove the cover.
6. Take out the air cleaner filter and remove any loose debris that may be found laying in the air
cleaner base.
7. Install a new air filter element. See “Normal
Maintenance Replacement Parts” in the Index.
6-16

Downloaded from www.Manualslib.com manuals search engine Follow these steps to reinstall the air cleaner assembly:
1. Slide the air cleaner lid into the slots in the front
edge of the air cleaner base.
2. Pivot the air cleaner cover and the air duct assembly
downward. Make sure that both latches are secure
and fully engaged.
3. Reinstall the clean air duct over the mass airflow
sensor. Make sure that the duct is secure around the
entire outer edge of the sensor.
4. Tighten the air duct clamp.
5. Reconnect the IAT sensor.
Refer to the Maintenance Schedule to determine when to
replace the
air filter.
See “Scheduled Maintenance Services” in the
Maintenance Schedule booklet.
Operating the engine with the air cleaner off can
cause you or others
to be burned. The air cleaner
not only cleans the
air, it stops flames if the
engine backfires.
If it isn’t there, and the engine
backfires, you could be burned. Don’t drive with
it off, and be careful working on the engine with
the
air cleaner off.
NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which will damage it. Always
have the
air cleaner in place when you’re driving.
6-17
