clock CADILLAC DEVILLE 1997 7.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Trunk Storage System (Option)
ACCESSPANEL
RETAINER
TRUNK STORAGE UNIT
SPARE TIRE COVER
SPARE TIRE
If equipped, the optional trunk storage system can be
used to organize many different items inside the trunk.
To install the storage system:
1. Full the carpeting from the floor of the trunk. Turn
the retainer (center dial) on the compact spare tire
cover counterclockwise to remove it.
2. Place the trunk storage system on the center of the
trunk floor (the cut out portion
of the storage system
should be facing the rear
of the vehicle).
3. Open the storage system by pulling up on the handle
located in the carpeted area. This allows the unit to
snap into place. Fold the divider walls open.
4. Remove the rectangular access panel from the floor
of the storage system. The access panel should
unsnap by hand.
5. Center the storage system access hole over the area
where the spare tire is secured by the retainer.
Position the storage system as needed and then secure it with the retainer.
6. Replace the access panel.
7. Attach the removable net to the slots located on the
side and front of the divider walls.
Once in place, the storage system can be moved forward
or rearward for convenience and easy accessing of
stored items.
2-14

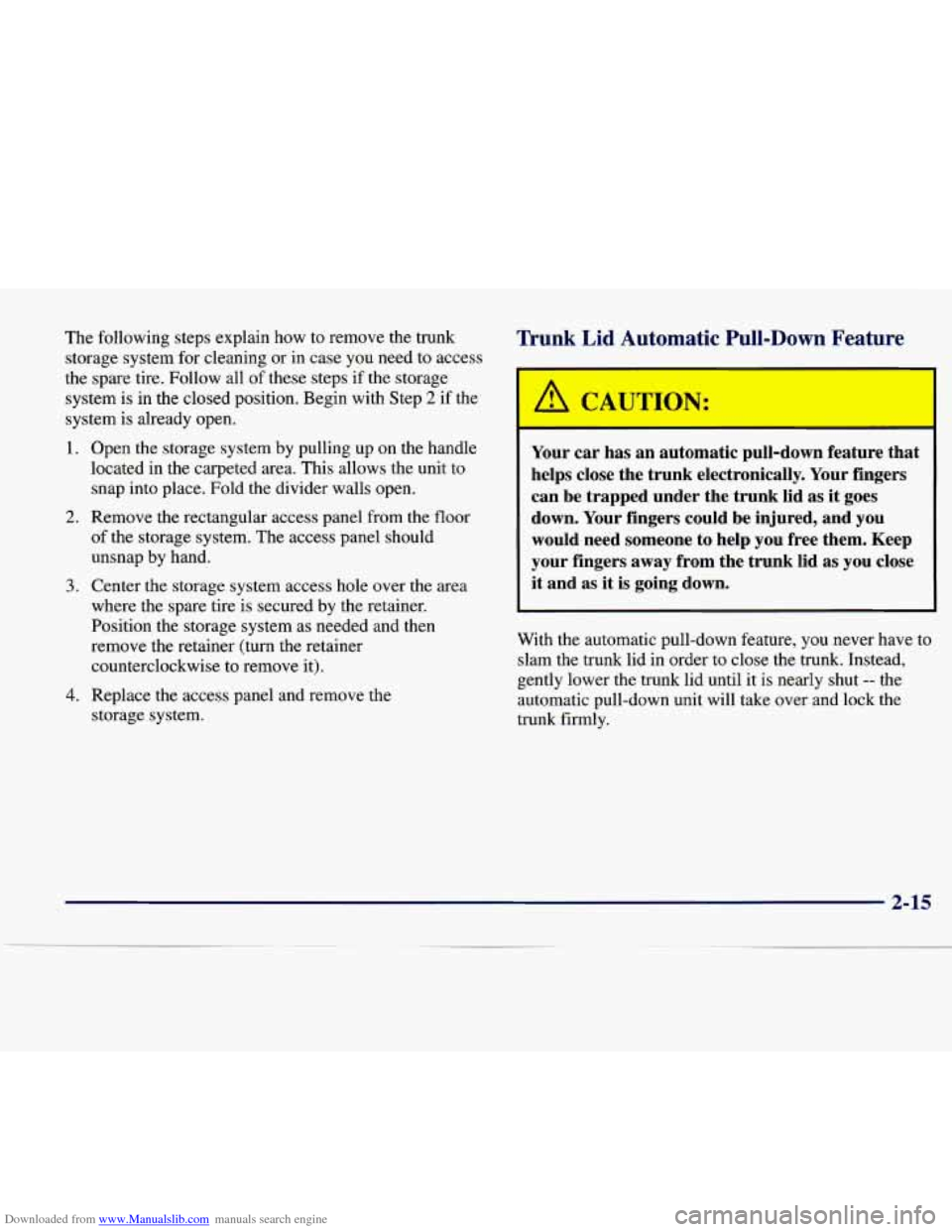

Downloaded from www.Manualslib.com manuals search engine The following steps explain how to remove the trunk
storage system for cleaning or in case you need to access
the spare tire. Follow
all of these steps if the storage
system
is in the closed position. Begin with Step 2 if the
system is already open.
1. Open the storage system by pulling up on the handle
located in the carpeted area. This allows the unit to
snap into place.
Fold the divider walls open.
2. Remove the rectangular access panel from the floor
of the storage system. The access panel should
unsnap by hand.
3. Center the storage system access hole over the area
where the spare tire
is secured by the retainer.
Position the storage system as needed and then
remove the retainer (turn the retainer
counterclockwise to remove it).
4. Replace the access panel and remove the
storage system.
Trunk Lid Automatic Pull-Down Feature
' A CAUTION:
Your car has an automatic pull-down feature that
helps close the trunk electronically. Your fingers can be trapped under the trunk lid as it goes
down. Your fingers could be injured, and you
would need someone
to help you free them. Keep
your fingers away from the trunk lid as you close
it and as it is going down.
With the automatic pull-down feature, you never have to
slam the trunk lid in order to close the trunk. Instead,
gently lower the trunk lid until
it is nearly shut -- the
automatic pull-down unit will take over and lock the
trunk firmly.
2-15

Downloaded from www.Manualslib.com manuals search engine Driver’s Outside Auto-Dimming Rearview
Mirror
(If Equipped)
Only the driver’s side outside mirror will adjust for
the glare of headlamps behind you. This feature is
controlled
by the on and off settings on the
electrochromic mirror. See “Electrochromic
Daymight Rearview Mirror” earlier in this section.
Convex Outside Mirror
Your passenger’s side mirror is convex. A convex
mirror’s surface
is curved so you can see more from the
driver’s seat.
:ON:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If
you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Glove Box
The glove box is located in front of the passenger’s seat.
To lock the glove box door, insert the oval key into the
lock cylinder and turn it clockwise. Turn the key
counterclockwise to unlock the door.
Map Pocket
The maphtorage pockets are located on each front door as
well as on the passenger’s and driver’s front seatbacks.
Front Storage Armrest
(DeVille and DeVille d’Elegance Only)
The front storage area comes with a coinholder, a
storage compartment for CDs or tapes and a dual
cupholder that unfolds for use.
2-59
._

Downloaded from www.Manualslib.com manuals search engine MPG AVG (Reset): Press the INFO button to display
the MPG AVG (Average Fuel Economy), then press and
hold the INFO RESET button until
0.0 MPG AVG
is displayed.
GAL FUEL USED (Reset): Press the INFO button to
display the GAL FUEL USED on the DIC, then press
and hold the
INFO RESET button until 0.0 GAL FUEL
USED
is displayed.
AVG MPH (Reset): Press the INFO button to display
the AVG
MPH (Average Speed), then press and hold the
INFO RESET button until
0.0 AVG MPH is displayed.
OK LIFE LEFT (Reset): Press the INFO button to
display the OIL LIFE LEFT, then press and hold the
INFO RESET button until 100% OIL LIFE LEFT is
displayed. (This only needs to be reset after you have
had the oil changed.)
TRIP RESET By using this button, you can tell how
far you’ve gone since you last set the TRIP RESET back
to zero. To reset, press and hold the button until zeros
appear. If your vehicle is domestic, the trip odometer
will return to zero after
999.9 miles (1 609 km). If your
vehicle is Canadian, the trip odometer will return to zero
after
1 999.9 km (1,242 miles).
INFO: Pressing this button repeatedly will display the
RANGE, MPG AVG, MPG INST, GAL FUEL USED,
MPH, AVG
MPH, BATTERY VOLTS, COOLANT
TEMP and OIL LIFE LEFT.
TIMER: This feature is like a stopwatch, in that you
can clock the time it takes to get from one point
to another.
To operate,
press the TIMER button until TIMER OFF
0O:OO:OO is displayed on the DIC. Each of the fields for
the hours, minutes and seconds are two numeric digits.
Once TIMER OFF
0O:OO:OO is displayed, press the
TIMER button to start the timing feature. Press the
TIMER button again to stop it.
If you will be starting
and stopping your Cadillac, during
a trip for instance,
the TIMER feature will automatically
start timing where
it left off when you last stopped. To reset it, press and
hold the INFO RESET button until the display reads
TIMER
0O:OO:OO. Press the INFO button to exit from
the TIMER function.
ENGMET You can change the display from English
(miles) to metric (kilometers) by pressing this button.
The same button also changes other readings (like
temperature, fuel and odometer).

Downloaded from www.Manualslib.com manuals search engine /.*--
Section 3 Comfort Controls and Audio System-
In this section, you’ll find out how to operate the comfort control and audio systems offered with your Cadillac. Be
sure to read about the particular systems supplied with your vehicle.
3-2 3-2
3-6
3-6
3-10
3-1 1
3-1 1
3-13
3-13
3- 14
3- 14
3- 14
3-15 Comfort
Controls
Digital Cluster Climate Control Panel
(If Equipped)
Electronic Solar Sensor
Analog Cluster Climate Control Panel
(If Equipped)
Air Conditioning
Heating Ventilation System
Defogging and Defrosting
Rear Window Defogger
HVAC Steering Wheel Controls
Climate Control Personalization
(If Equipped)
Audio Systems Setting the Clock 3-15
3-18
3 -22
3 -26
3-29
3-29 3-30
3-30
3-30 3-3 1
3-32
3-32 AM-FM
Stereo with Cassette Tape Player and
Optional Compact Disc Player
Active Audio AM-FM Stereo with Cassette
Tape and Compact Disc Player (If Equipped)
Active Audio AM-FM Stereo with Cassette
Tape and Compact Disc Player with Digital
Signal Processing (If Equipped)
Trunk Mounted CD Changer (If Equipped)
Radio Personalization (If Equipped)
Theft-Deterrent Feature Audio Steering Wheel Controls
Understanding Radio Reception
Tips About Your Audio System
Care of Your Cassette Tape Player
Care of Your Compact Discs
Power Antenna Mast Care
3-1

Downloaded from www.Manualslib.com manuals search engine Driver’s Side Temperature Button
The red and blue temperature buttons adjust the air
temperature coming through the system. Press the blue
button for a cooler setting or the red button for a
warmer setting.
Passenger’s Side Temperature Knob
With this feature, the right front passenger can control
the temperature of air for hisher own zone. The
passenger can select a four degree warmer or cooler
temperature from the driver’s setting.
To turn the system on, press the knob on the passenger’s
side armrest. Rotate the knob clockwise to increase the
temperature and turn counterclockwise to decrease the
temperature. Press the knob again
to turn the system off.
Outside Temperature Display
The outside temperature is always displayed when your
vehicle is running. You can change it from Fahrenheit to
Celsius by pressing
the ENG/MET (Englishlmetric)
button on the Driver Information Center (DIC).
The outside temperature sensor is located near the front
grille. The sensor can be affected by road or engine heat
during idling, slow driving
or when the engine is first
started after a short trip. In order to ensure proper
automatic climate control operation, the outside air temperature
display may not update as quickly as
expected. This is
to allow the air surrounding the outside
temperature sensor
to be as close to the actual outside
conditions as possible. This is determined by how much
time has elapsed since the vehicle has been turned
off
and by vehicle speed.
Mode Controls
The AUTOBCON button automatically controls the
direction of air delivery for air conditioning and non-air
conditioning modes.
Automatic Operation
When the system is set for automatic operation, sensors
will control the air delivery mode. Air will come from
the floor, middle or windshield outlets. The fan speed
will vary as the system maintains the selected
temperature setting.
Be careful not to put anything over the solar sensor
located in the middle of the instrument panel near the
windshield. This sensor is used by the automatic system
to regulate temperature.

Downloaded from www.Manualslib.com manuals search engine Driver’s Side Temperature Knob
The TEMP/AUTO knob adjusts the air temperature coming
through the system.
Turn the TEMP/AUTO knob clockwise
to increase the temperature and counterclockwise to
decrease the temperature. Press the
TEMWAUTO knob to
put the system
in the automatic mode.
Passenger’s Side Temperature Button
With this feature, the right front passenger can control
the temperature of air for hisher own zone. The
passenger can select a four degree warmer or cooler
temperature from the driver’s setting.
To turn the system on, press the PASS/TEMP button
located below the radio. Press the up arrow to increase
the temperature and press the down arrow to decrease
the climate setting. Pressing the OFF button will turn
off
the dual-zone function.
Outside Temperature Display
The outside temperature is always displayed when your
vehicle is running. You can change it from Fahrenheit to
Celsius by pressing the ENGMET (Englishlmetric) on
the Driver Information Center (DIC).
The outside temperature sensor is located near the front
grille. The sensor can be affected by road or engine heat
during idling, slow driving or when the engine is first started after a short trip. In order
to ensure proper
automatic climate control operation, the outside air
temperature display may not update as quickly as
expected. This is to allow the air surrounding the outside
temperature sensor to be as close to the actual outside
conditions
as possible. This is determined by how much
time has elapsed since the vehicle has been turned off
and by vehicle speed.
Mode Button
Press this button to deliver air through the floor, middle
or windshield outlets. The system will stay in the
selected mode until the MODE button is pushed again.
Press the up
or down arrow to cycle through the
available modes.
Automatic Operation
When the system is set for automatic operation, sensors
will control the air delivery mode. Air will come from
the floor, middle or windshield outlets. The fan speed
will vary as the system maintains the selected
temperature setting.
Be careful not to put anything over the solar sensor
located in the middle of the instrument panel near the
windshield. This sensor is used by the automatic system
to regulate temperature.

Downloaded from www.Manualslib.com manuals search engine Setting the Clo L
Press and hold HR or MN until the time display begins
to change. Release the button as you get close to the
correct time. The time may be set anytime the clock is
displayed. There is a two-second delay before the clock
goes into time-set mode.
AM-FM Stereo with Cassette Tape Player
and Optional Compact Disc Player
Playing the Radio
PWRNOL:
Press this knob lightly to release it from its
stored position. The system will turn on. Press the knob
again
to turn the system off. To increase volume, turn
the knob clockwise. Turn it counterclockwise to
decrease volume. The volume level will appear on
the display.
DSPL: Press this button to display the station
being played.
Finding a Station
BAND:
Press this button to select AM, FM1 or FM2
and preset stations.
SEEK-TUNE: Press and release this button to seek to
the next higher or lower radio station. Pressing and
holding this button
until a chime sounds puts the radio
in
a tune mode. In this mode, higher or lower radio
stations
are advanced to in small increments until the
SEEK-TUNE button is released (larger increments if
held longer). Tuning stops when you release this button.
If you press and hold the SEEK-TUNE button again
within five seconds
of being in the tune mode, tuning
will continue. Waiting longer than five seconds places
the radio back in the seek mode.
For information
on the compact disc player, see “Trunk
Mounted
CD Changer” later in this section.
3-15

Downloaded from www.Manualslib.com manuals search engine SCAN: Press this button and SCAN will appear on the
display. Use
SCAN to listen to stations for a few
seconds. The radio will go to a station, stop for a few
seconds, then go on to the next station. Press this button
again to stop scanning.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press BAND to select AM, FMl or FM2.
3. Tune in the desired station.
4. Press and hold one of the six numbered buttons until
you hear a chime. The sound will mute. When it
returns, release the button. Whenever you press that
numbered button, the station you set will return.
5. Repeat the steps for each pushbutton.
PRESET SCAN: Press and hold SCAN for two to three
seconds
until PRESET SCAN appears on the display to
listen to each
of your preset stations for a few seconds
(factory presets which have not been reprogrammed with
your stations will
be ignored). The radio will go to the frrst
preset station stored on your pushbuttons, stop for a few seconds, then go on to the next preset station. Press
SCAN
again to stop scanning. If a preset station has weak
reception, the radio will not stop at the preset station.
Setting the Tone
BASS:
Press this knob lightly so it extends. Turn the
knob clockwise to increase and counterclockwise to
decrease bass.
TREB: Press this knob lightly so it extends. Turn the
knob clockwise to increase and counterclockwise to
decrease treble.
If a station is weak or noisy, you may
want to decrease the treble.
Push these knobs back into their stored positions when
you’re not using them.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Turn the
knob clockwise to adjust sound to the’right speakers and
counterclockwise for the left speakers. The middle
position balances the sound between the speakers.
FADE: Press this knob lightly so it extends. Turn the
knob clockwise to adjust the sound to the front speakers
and counterclockwise for the rear speakers. The middle
position balances the sound between the speakers.
Push these knobs back into their stored positions when you’re not using them.

Downloaded from www.Manualslib.com manuals search engine Playing a Cassette Tape
With the radio on, insert a cassette tape. The tape will
begin playing as soon as it is inserted.
While the tape is playing, use the VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
Other controls may have different functions when a tape
is inserted. The display will show TAPE with an arrow
to indicate which side of the tape
is playing. PLAY will
appear on the display temporarily when a tape is
playing. The display will then revert back to showing
the time.
If an error occurs while trying to play a cassette tape, it
could be that:
The cassette tape is tight and the cassette player
cannot turn the hubs
of the tape. Hold the cassette
tape with the open end down and try turning the right
hub counterclockwise with a pencil. Flip the tape
over and repeat. If the hubs do not turn easily, your
cassette tape may be damaged and should not be
used in the player. Try a new tape to be sure your
player is working properly.
The cassette tape is broken. (Check to see if your
tape is broken. Try a new tape.)
REV: Press the left arrow to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play while the tape reverses and
REV will appear on the
display. You may use your station pushbuttons to tune to
another radio station while in
REV mode.
FF: Press the right arrow to fast forward to another part
of the tape. Press it again to return to playing speed. The
radio will play while the tape advances and FF will
appear on the display. You may use your station
pushbuttons
to tune to another radio station while in
FF mode.
SEEK-TUNE: Press the right arrow to seek to the next
selection on the tape. Press the left arrow to search for
the previous selection
on the tape (REP will appear on
the display). Your tape must have at least three seconds
of silence between each selection for SEEK-TUNE to
work. The sound will
mute while seeking.
SCAN: Press this button. SCAN FF will appear on the
display until the next selection is found and then SCAN
PLAY will appear on the display. Use SCAN to listen to
selections for a few seconds. The tape will go to
a
selection, stop for a few seconds, then go on to the next
selection. Press this button again to stop scanning.
SIDE: Press this button to change the side of the tape
that is playing. (PLAY shows on the display.)
3-17
