Page 41 of 480
Do not have a seatback reclined if the vehicle ismoving.
Center Seat
The vehicle may have a front center seat. This seat canbe converted to a storage area by lowering theseatback. SeeCenter Flex Storage Unit on page 3-56.
2-9
Page 42 of 480
Rear Seats
Heated Seats
Your vehicle may have heated rear seats.
To operate the rear heated seats, the ignition mustbe on.
The buttons are located onthe rear doors.
I(Heated Seatback):Press to turn on the heated
seatback.
J(Heated Seat and Seatback):Press to turn on the
heated seat and seatback.
Press a button to turn on the desired feature. A light onthat button will display to show which feature is on.
Each feature has three temperature settings indicatedby three lights next to the buttons. The highestsetting shows three lights, two is medium and one isthe lowest.
When you press a button, the feature will turn on at thehighest setting. Each time you press the button, thefeature will go down one temperature setting.
To turn the feature off, keep pressing the button untilthe display lights turn off.
2-10
Page 43 of 480
Rear Seat Pass-Through Door
Your vehicle has a pass-through door that providesaccess to the trunk from the rear seats. See “Rear SeatPass-Through Door” underTrunk on page 3-12.
Power Lumbar
Your vehicle may be equipped with four-way lumbarsupport, without the massage feature, for the outboardrear seat positions.
The rear lumbar supportcontrols are located on therear doors in front of theheated seat buttons.
To turn on the lumbar support feature, press the front ofthe control to increase support or rearward to decreasesupport. The lumbar control can also be moved upand down to adjust the location of the support.
2-11
Page 44 of 480
Safety Belts
Safety Belts: They Are for Everyone
This section of the manual describes how to usesafety belts properly. It also describes some things notto do with safety belts.
{WARNING:
Do not let anyone ride where a safety belt cannot
be worn properly. In a crash, if you or your
passenger(s) are not wearing safety belts, the
injuries can be much worse. You can hit things
inside the vehicle harder or be ejected from the
vehicle. You and your passenger(s) can be
seriously injured or killed. In the same crash, you
might not be, if you are buckled up. Always fasten
your safety belt, and check that your passenger(s)
are restrained properly too.
{WARNING:
It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not
equipped with seats and safety belts. Be sure
everyone in your vehicle is in a seat and using a
safety belt properly.
This vehicle has indicators as a reminder to buckle thesafety belts. SeeSafety Belt Reminders on page 4-49for additional information.
2-12
Page 45 of 480
In most states and in all Canadian provinces, the lawrequires wearing safety belts. Here is why:
You never know if you will be in a crash. If you do havea crash, you do not know if it will be a serious one.
A few crashes are mild, and some crashes can be soserious that even buckled up, a person would notsurvive. But most crashes are in between. In many ofthem, people who buckle up can survive and sometimeswalk away. Without safety belts, they could havebeen badly hurt or killed.
After more than 40 years of safety belts in vehicles, thefacts are clear. In most crashes buckling up doesmatter... a lot!
Why Safety Belts Work
When you ride in or on anything, you go as fast asit goes.

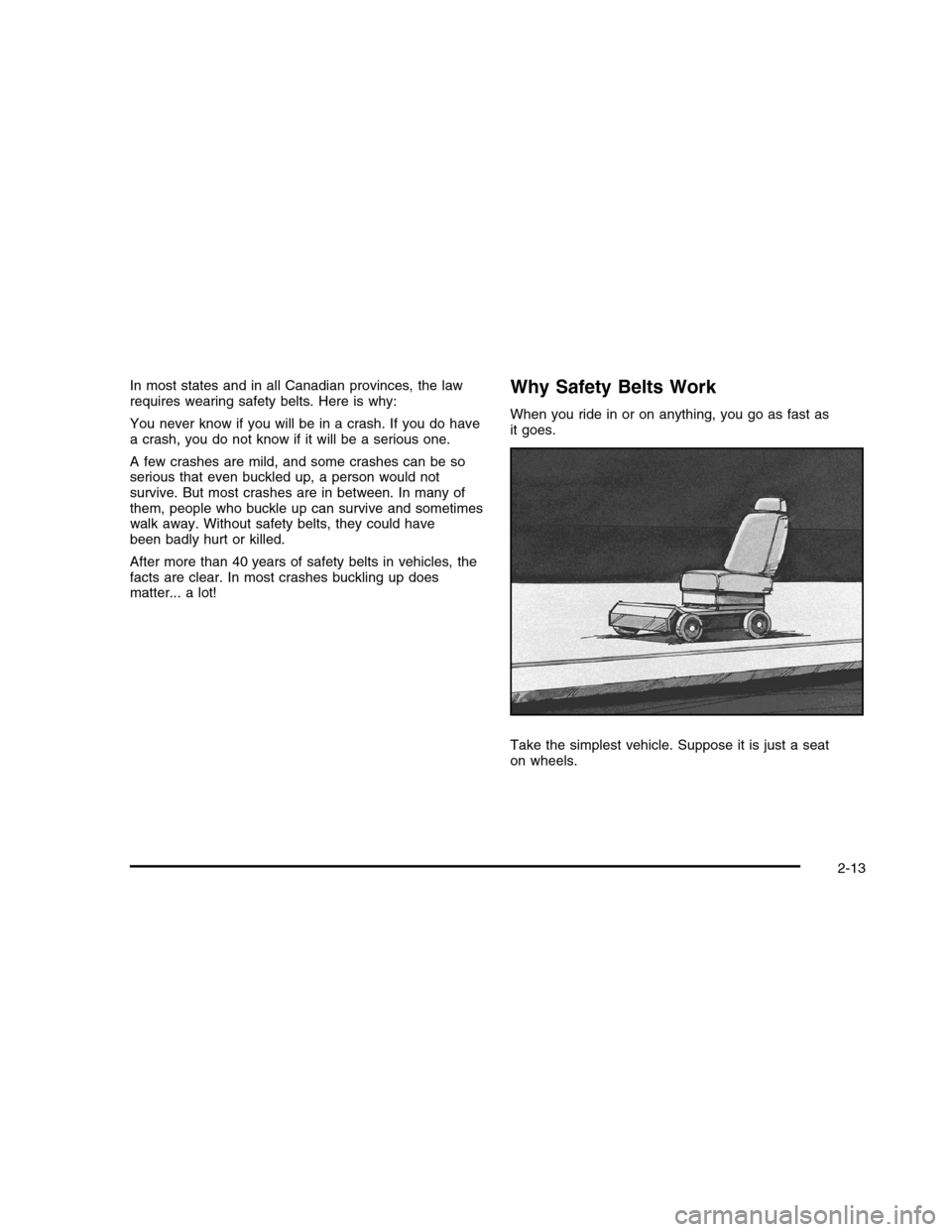

Take the simplest vehicle. Suppose it is just a seaton wheels.
2-13
Page 46 of 480

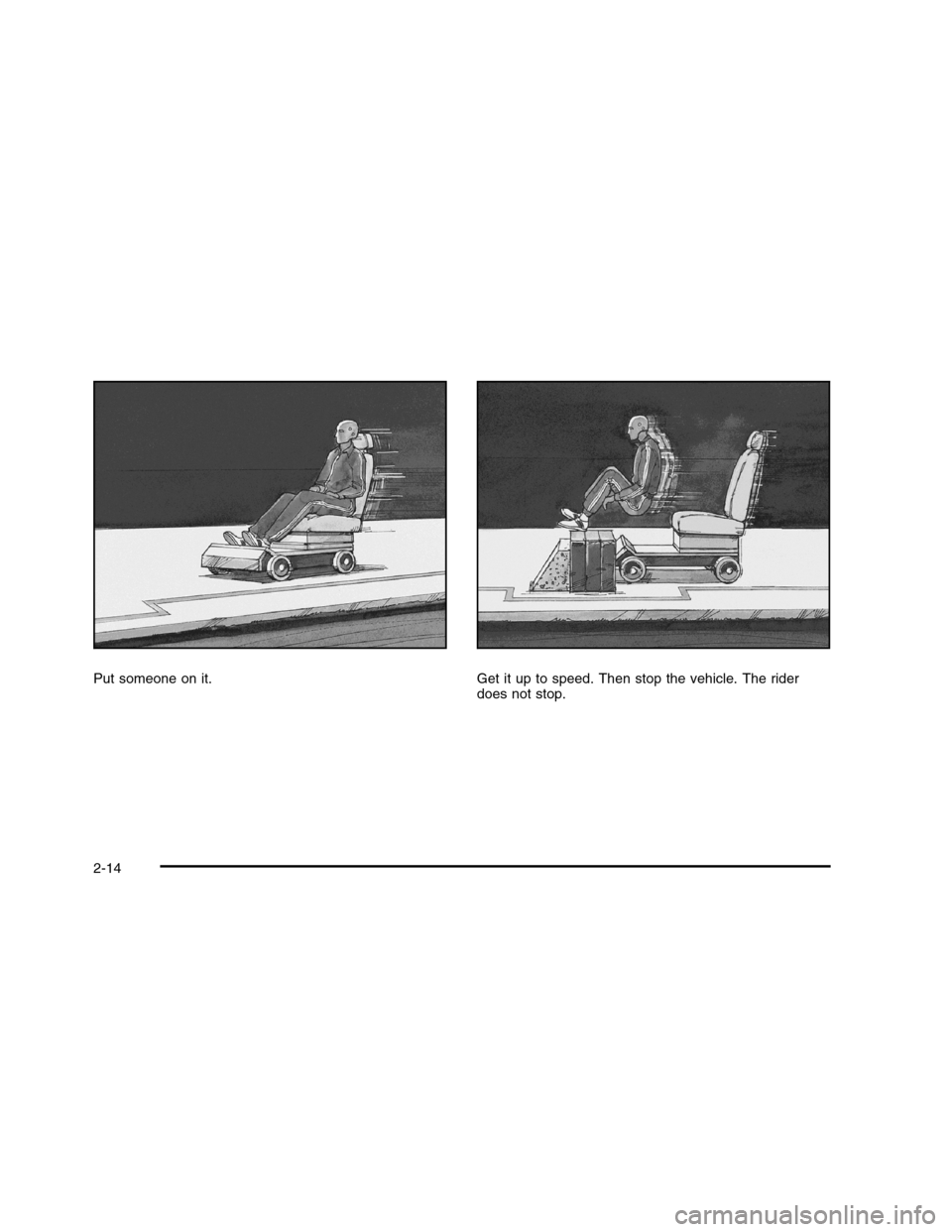

Put someone on it.Get it up to speed. Then stop the vehicle. The riderdoes not stop.
2-14
Page 47 of 480

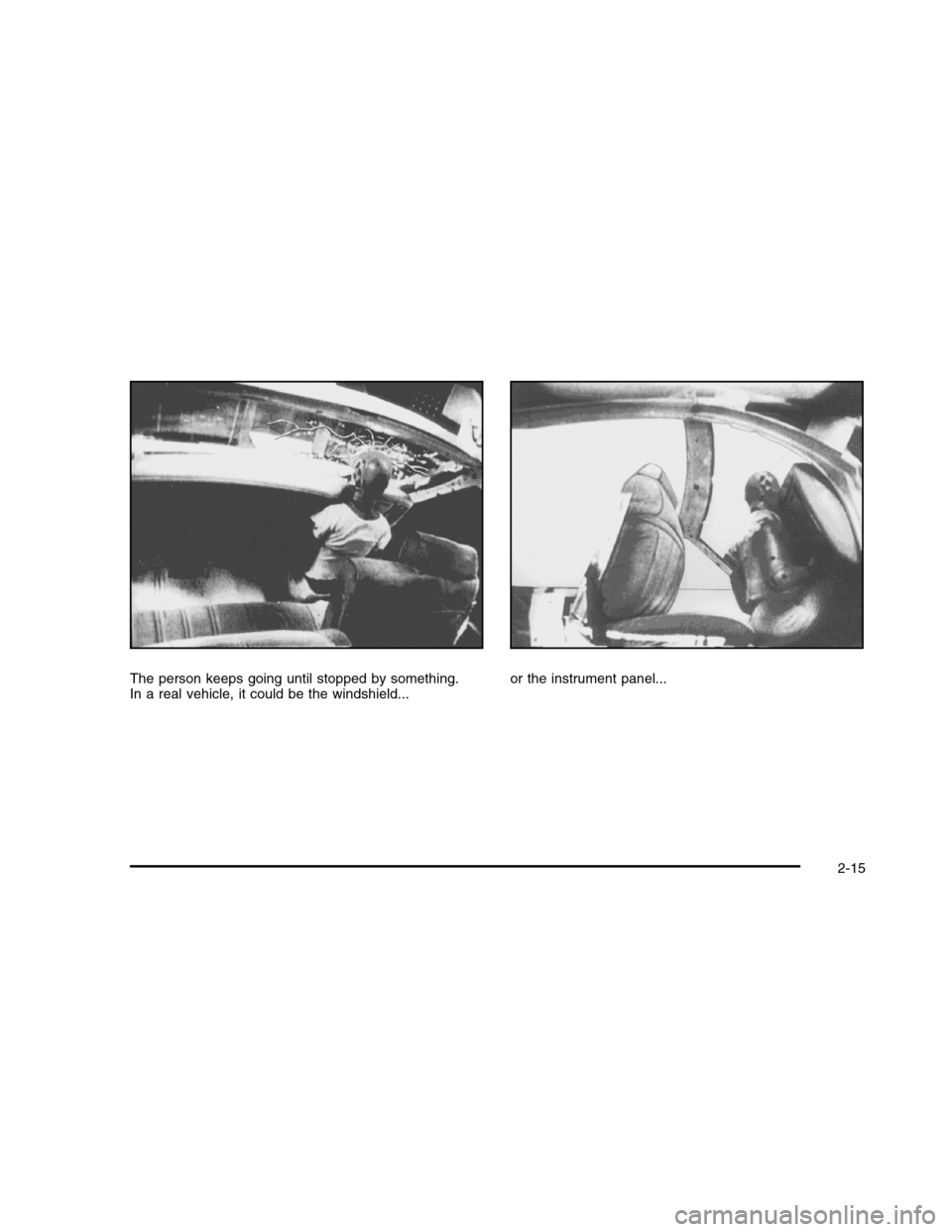

The person keeps going until stopped by something.In a real vehicle, it could be the windshield...or the instrument panel...
2-15
Page 48 of 480
or the safety belts!
With safety belts, you slow down as the vehicle does.You get more time to stop. You stop over more distance,and your strongest bones take the forces. That is whysafety belts make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after a crash ifI am wearing a safety belt?
A:Youcouldbe — whether you are wearing a safety
belt or not. But your chance of being conscious
during and after an accident, so youcanunbuckle
and get out, ismuchgreater if you are belted.
And you can unbuckle a safety belt, even if you are
upside down.
Q:If my vehicle has airbags, why should I have towear safety belts?
A:Airbags are supplemental systems only; so they
workwithsafety belts — not instead of them.
Whether or not an airbag is provided, all occupants
still have to buckle up to get the most protection.
That is true not only in frontal collisions, but
especially in side and other collisions.
2-16
Page 49 of 480
Q:If I am a good driver, and I never drive far fromhome, why should I wear safety belts?
A:You may be an excellent driver, but if you are in a
crash — even one that is not your fault — you and
your passenger(s) can be hurt. Being a good
driver does not protect you from things beyond your
control, such as bad drivers.
Most accidents occur within 25 miles (40 km) of
home. And the greatest number of serious injuries
and deaths occur at speeds of less than 40 mph
(65 km/h).
Safety belts are for everyone.
How to Wear Safety Belts Properly
This section is only for people of adult size.
Be aware that there are special things to know aboutsafety belts and children. And there are differentrules for smaller children and infants. If a child will beriding in the vehicle, seeOlder Children on page 2-33orInfants and Young Children on page 2-37. Followthose rules for everyone’s protection.
It is very important for all occupants to buckle up.Statistics show that unbelted people are hurt more oftenin crashes than those who are wearing safety belts.
Occupants who are not buckled up can be thrown out ofthe vehicle in a crash. And they can strike others inthe vehicle who are wearing safety belts.
First, before you or your passenger(s) wear a safetybelt, there is important information you should know.
2-17
Page 50 of 480
Sit up straight and always keep your feet on the floor infront of you. The lap part of the belt should be wornlow and snug on the hips, just touching the thighs.
In a crash, this applies force to the strong pelvic bonesand you would be less likely to slide under the lapbelt. If you slid under it, the belt would apply force onyour abdomen. This could cause serious or evenfatal injuries. The shoulder belt should go over theshoulder and across the chest. These parts of the bodyare best able to take belt restraining forces.
The shoulder belt locks if there is a sudden stop orcrash.
2-18
