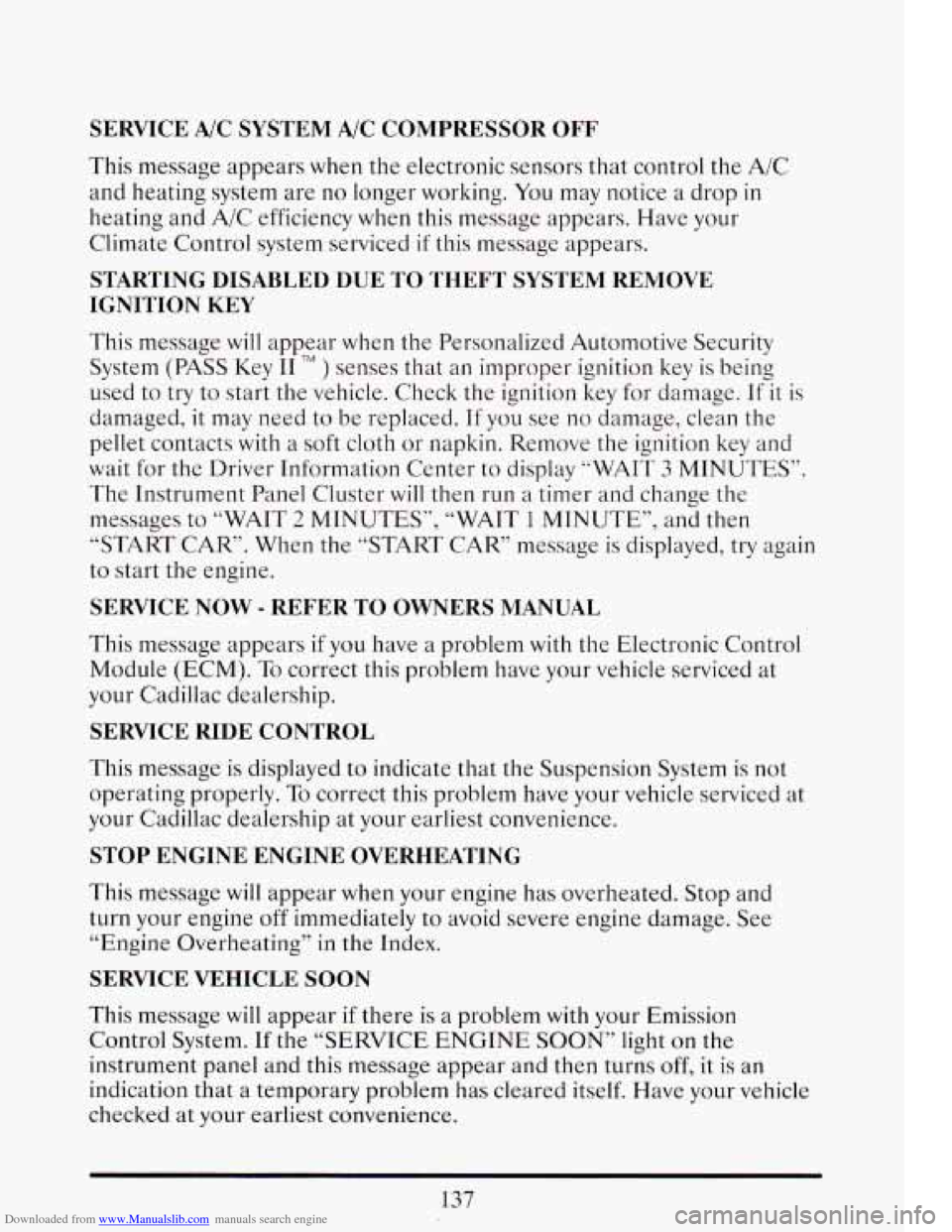

Downloaded from www.Manualslib.com manuals search engine SERVICE A/C SYSTEM A/C COMPRESSdR OFF
This message appears when the electronic sensors that control the A/C
and heating system are no longer working.
You mav notice a drop in
heating and A/C efficiency when this message appkars. Have your
Climate Control system serviced
if this message appears.
STARTING DISABLED DUE TO THEFT SYSTEM REMOVE
IGNITION
KEY
This message will appear when the Personalized Automotive Security
System (PASS Key
I1 rM ) senses that an improper ignition key is being
used to try to start the vehicle. Check the ignition key
for damage. If it is
damaged, it may need to be replaced. If you see no damage, clean the
pellet contacts
with a soft cloth or napkin. Remove the ignition key and
wait for the Driver Information Center to display “WAIT
3 MINUTES”.
The Instrument Panel Cluster
will then run a timer and change the
messages to “WAIT 2 MINUTES”, “WAIT 1 MINUTE”, and then
“START CAR”. When the “START CAR” message
is displayed, try again
to start the engine.
SERVICE NOW - REFER TO OWNERS MANUAL
This message appears if you have a problem with the Electronic Control
Module (ECM).
To correct this problem have your vehicle serviced at
your Cadillac dealership.
SERVICE RIDE CONTROL
This message is displayed to indicate that the Suspension System is not
operating properly. To correct this problem have
your vehicle serviced at
your Cadillac dealership at your earliest convenience.
STOP ENGINE ENGINE OVERHEATING
This message will appear when your engine has overheated. Stop and
turn your engine
off immediately to avoid severe engine damage. See
“Engine Overheating” in the Index.
SERVICE VEHICLE SOON
This message will appear if there is a problem with your Emission
Control System.
If the “SERVICE ENGINE SOON” light on the
instrument panel and this message appear and then turns off, it
is an
indication that
a temporary problem has cleared itself. Have your vehicle
checked
at your earliest convenience.
137

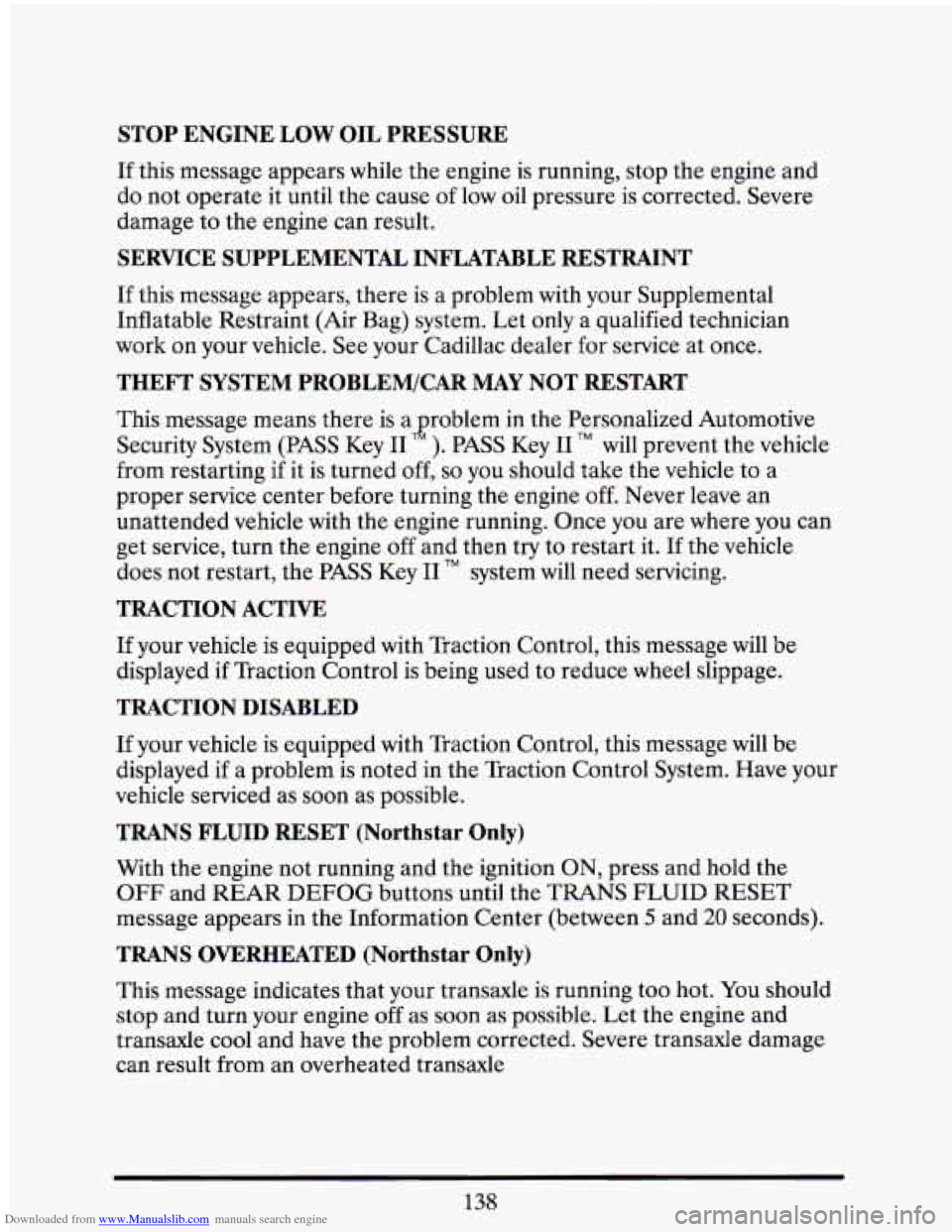

Downloaded from www.Manualslib.com manuals search engine STOP ENGINE LOW OIL PRESSURE
If this message appears while the engine is running, stop the engine and
do not operate it until the cause of low oil pressure is corrected. Severe
damage to the engine can result.
SERVICE SUPPLEMENTAL INFLATABLE RESTRAINT
If this message appears, there is a problem with your Supplemental
Inflatable Restraint (Air Bag) system. Let only a qualified technician
work on your vehicle. See your Cadillac dealer for service at once.
THEFT SYSTEM PROBLEM/CAR MAY NOT RESTART
This message means there is atroblem in the Personalized Automotive
Security System (PASS Key
I1 ). PASS Key I1 TM will prevent the vehicle
from restarting if it is turned off,
so you should take the vehicle to a
proper service center before turning the engine off. Never leave an
unattended vehicle with the engine running. Once you are where you can
get service, turn the engine
off and then try to restart it. If the vehicle
does not restart, the PASS Key
I1 TM system will need servicing.
TRACTION ACTIVE
If your vehicle is equipped with Traction Control, this message will be
displayed if Traction Control is being used to reduce wheel slippage.
TRACTION DISABLED
If your vehicle is equipped with Traction Control, this message will be
displayed if
a problem is noted in the Traction Control System. Have your
vehicle serviced as soon as possible.
TRANS FLUID RESET (Northstar Only)
With the engine not running and the ignition ON, press and hold the
OFF and REAR DEFOG buttons until the TRANS FLUID RESET
message appears in the Information Center (between 5 and 20 seconds).
TRANS OVERHEATED (Northstar Only)
This message indicates that your transaxle is running too hot. You should
stop and turn your engine
off as soon as possible. Let the engine and
transaxle cool and have the problem corrected. Severe transaxle damage
can result from an overheated transaxle
138

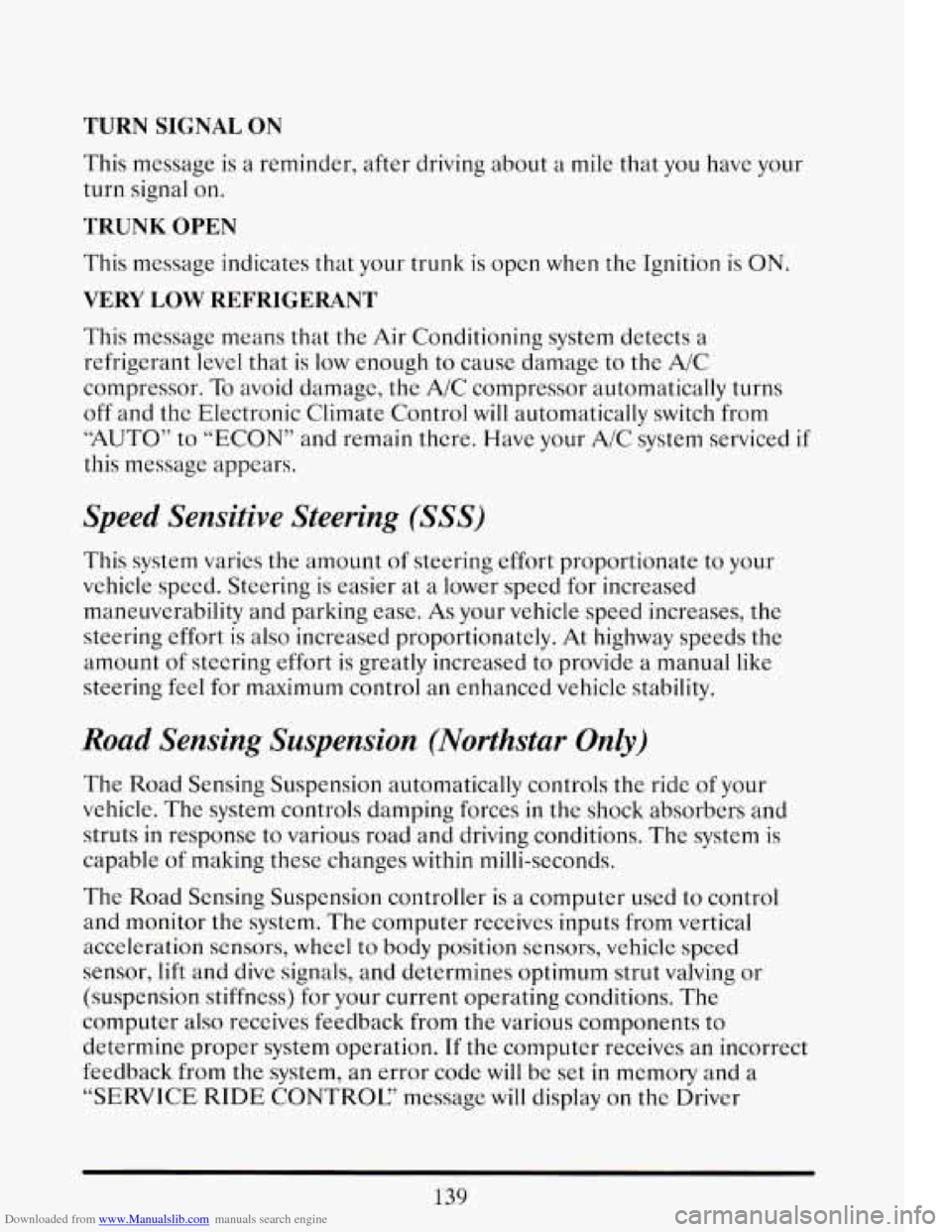

Downloaded from www.Manualslib.com manuals search engine TURN SIGNAL ON
This message is a reminder, after driving about a mile that you have your
turn
signal on.
TRUNK OPEN
This message indicates that your trunk is opcn when the Ignition is ON.
VERY LOW REFRIGERANT
This message means that the Air Conditioning system detects a
refrigerant level that is low enough to cause damage to the A/C
compressor.
To avoid damage, the A/C compressor automatically turns
off and the Electronic Climate Control will automatically switch from
“AUTO” to “ECON” and remain there. Have your
A/C system serviced if
this message appears.
Speed Sensitive Steering (SSS)
This system varies the amount of steering effort proportionate to your
vehicle speed. Steering is easier at
a lower speed for increased
maneuverability and parking ease.
As your vehicle speed increases, the
steering effort
is also increased proportionately. At highway speeds the
amount
of steering effort is greatly increased to provide a manual like
steering feel for maximum control
an enhanced vehicle stability.
Road Sensing Suspension (Northstar Only)
The Road Sensing Suspension automatically controls the ride of your
vehicle.
The system controls damping forces in the shock absorbers and
struts in response to various road and driving conditions. The system is
capable
of making these changes within milli-seconds.
The
Road Sensing Suspension controller is a computer used to control
and monitor the system. The computer receives inputs from vertical
acceleration sensors, wheel
to body position sensors, vehicle speed
sensor, lift and dive signals, and determines optimum strut valving or
(suspension stiffness) for your current operating conditions.
The
computer also receives feedback from the various components to
determine proper system operation. If the computer receives an incorrect
feedback from the system, an error code will be
set in memory and a
“SERVICE RIDE CONTROC’ message will display on the Driver
139

Downloaded from www.Manualslib.com manuals search engine Information Center. If this message should appear, have your vehicle
serviced at your Cadillac dealer at your earliest convenience.

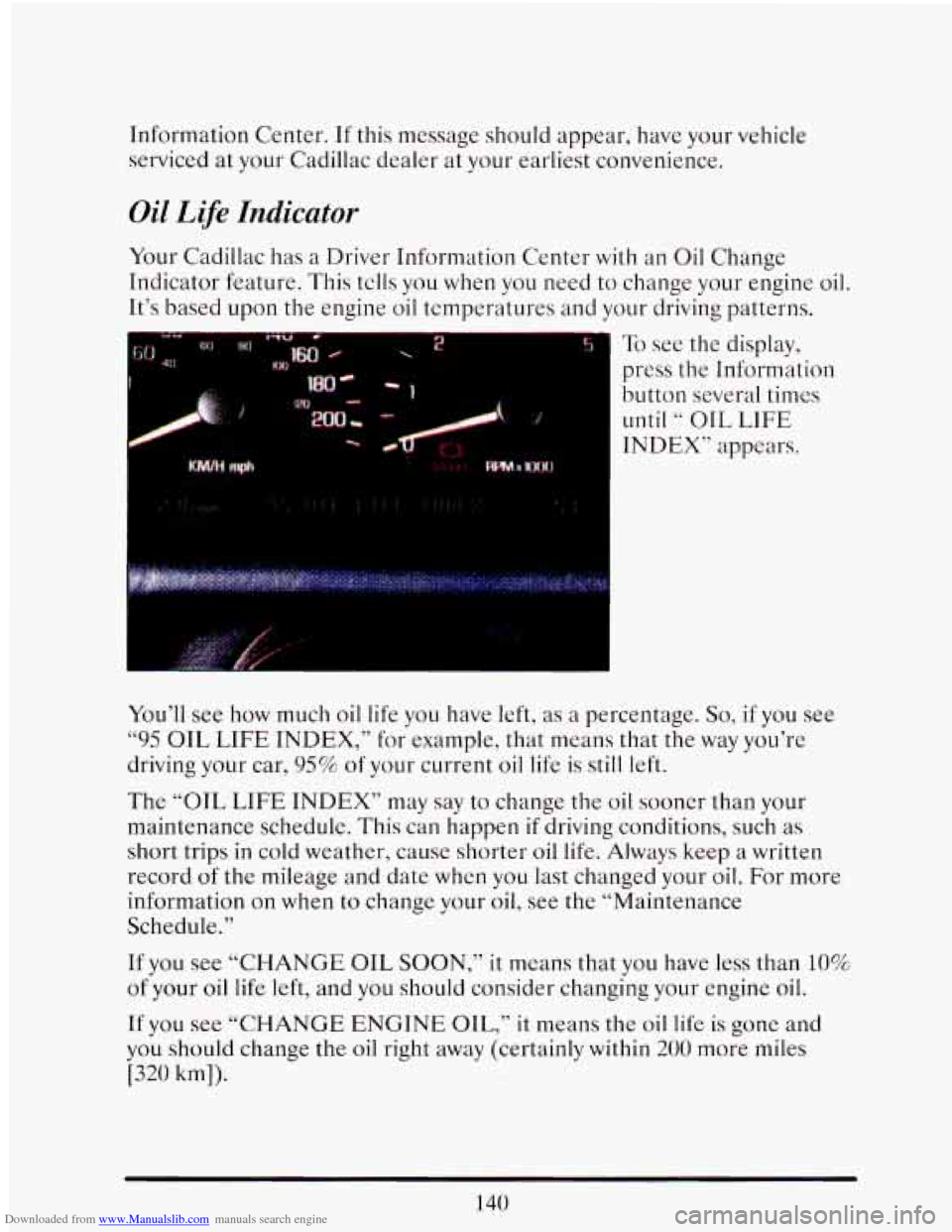

Oil Life Indicator
Your Cadillac has a Driver Information Cente.r with an Oil Change
Indicator feature. This tclls you when
you need to change your engine oil.
It’s based upon the engine oil temperatures and your driving patterns.
. ...
I To see the display,
press
the Information
button several times
until “ OTL LIFE
INDEX” appears.
You’ll see how much oil life you have left,
as a percentage. So, if you see
“95 OIL LIFE INDEX,” for example, that means that the way you’re
driving your car,
95% of your current oil life is still left.
The
“OIL LIFE INDEX” may say to change the oil sooner than your
maintenance schedule. This can happen
if driving conditions, such as
short trips
in cold weather, cause shorter oil life. Always keep a written
record
of the mileage and date when you last changed your oil. For more
information on when to change your
oil, see the “Maintenance
Schedule.”
If you see
“CHANGE OIL SOON,” it means that you have less than 10%.
of your oil life left, and you should consider changing your engine oil.
If you see
“CHANGE ENGINE OIL,” it means the oil life is gone and
you should change the oil right away (certainly within
200 more miles
[320 km]).
140

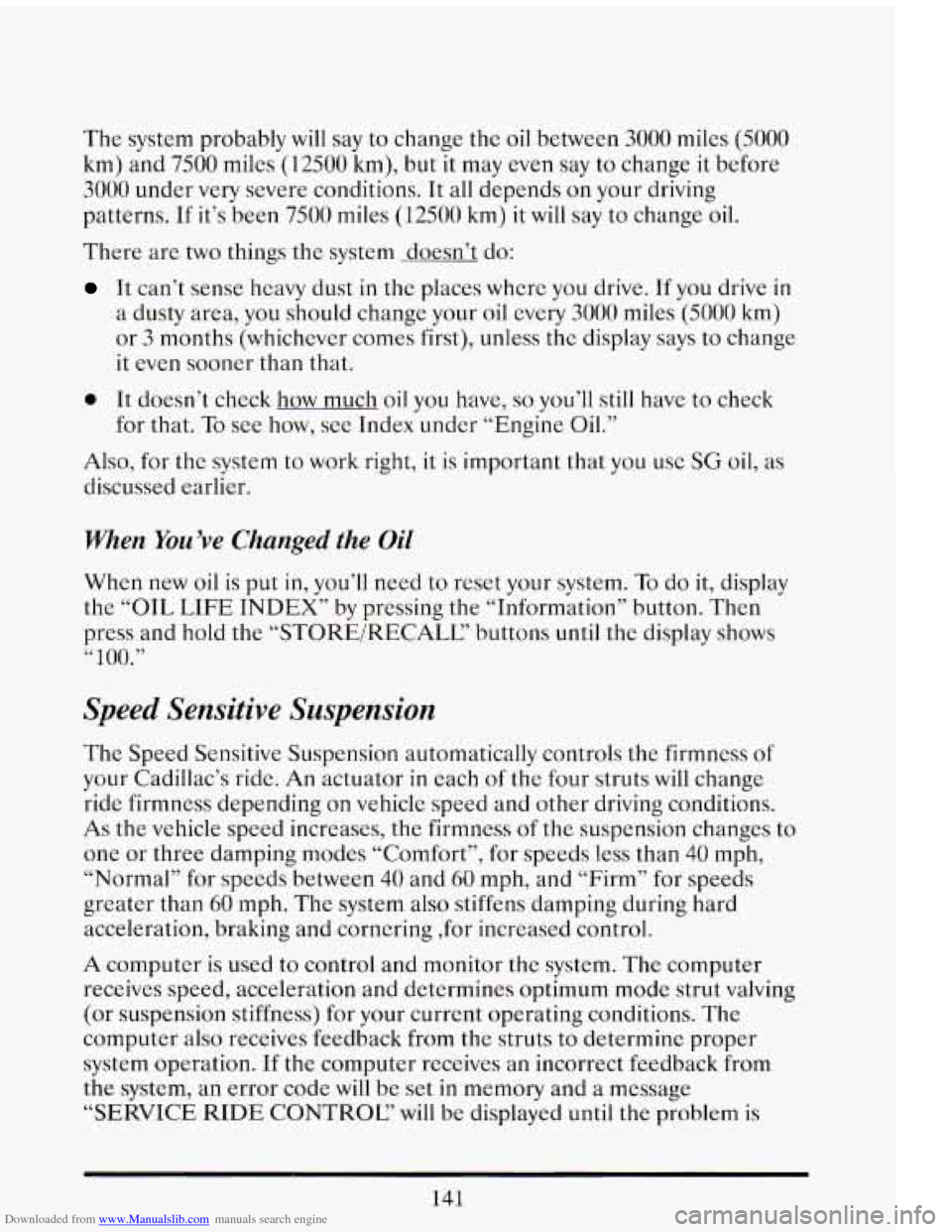

Downloaded from www.Manualslib.com manuals search engine The system probably will say to change the oil between 3000 miles (5000
km) and 7500 miles (12500
km), but it may even say to change it before
3000 under
very severe conditions. It all depends on your driving
patterns. If it’s been 7500 miles
(12500 km) it will say to change oil.
There are two things the system doesn’t do:
It can’t sense heavy dust in the places whcre you drive. If you drive in
a dusty area, you should change your oil every 3000 miles (5000 krn)
or
3 months (whichever comes first), unless thc display says to change
it even sooner than that.
0 It doesn’t check how much oil you have, so you’ll still have to check
Also, for the system
to work right, it is important that you use SG oil, as
discussed earlier.
for that.
To see
how, see Index under “Engine Oil.”
When You’ve Changed the Oil
When new oil is put in, you‘ll need to reset your system. To do it, display
the
“OIL LIFE INDEX” by pressing the “Information” button. Then
press and hold the “STORE/RECALL? buttons
until the display shows
6‘ 100. 77
Speed Sensitive Suspension
The Speed Sensitive Suspension automatically controls the firmness of
your Cadillads ride. An actuator in each of the four struts will change
ride firmness depending
on vehicle speed and other driving conditions.
As
the vehicle speed increases, the firmness of the suspension changes to
one or three damping modes “Comfort”, for speeds !ess than 40 mph,
“Normal” for speeds between
40 and 60 rnph, and “Firm” for speeds
greater than 60 mph.
The system also stiffens damping during hard
acceleration, braking and cornering ,for increased control,
A computer is used to control and monitor the system. The computer
receives speed, acceleration and determines optimum mode strut valving
(or suspension stiffness) for your current operating conditions. The
computer also receives feedback from the struts to determine proper
system operation.
If the computer receives an incorrect feedback from
the system, an error code will
be set in memory and a message
“SERVICE RIDE CONTROL? will be displayed until the problem is
141

Downloaded from www.Manualslib.com manuals search engine corrected. If this message should appear, have your vehicle serviced at
your Cadillac dealer at your earliest convenience.

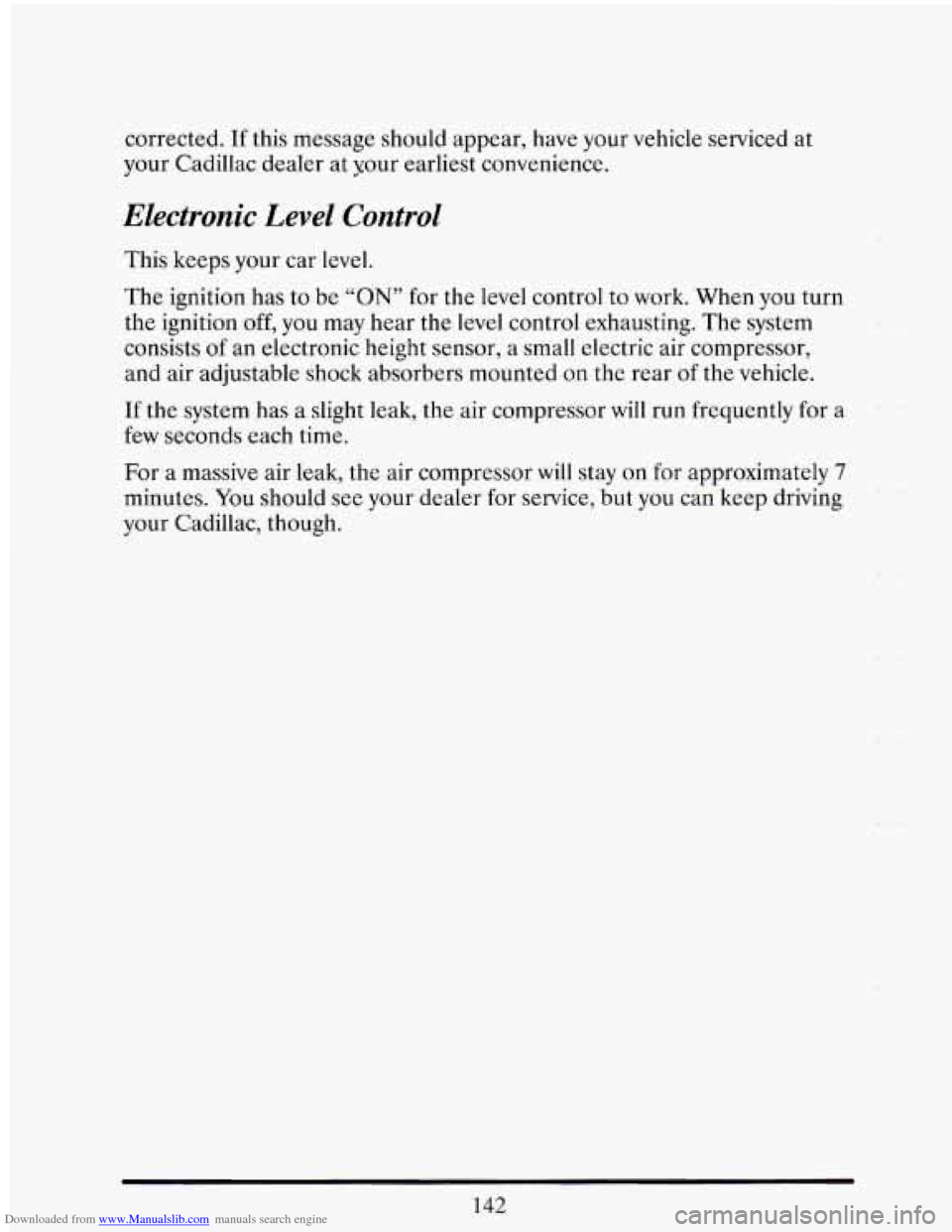

Electronic Level Control
This keeps your car level.
The ignition has to be
“ON” for the level control to work. When you turn
the ignition off, you may hear the level control exhausting. The system
consists of an electronic height sensor,
a small electric air compressor,
and air adjustable shock absorbers mounted
on the rear of the vehicle.
If the system has a slight leak, the air compressor will run frequently for a
few seconds each time.
For a massive air leak, the air compressor
will stay on for approximately 7
minutes. You should see your dealer for service, but you can keep driving
your Cadillac, though.
142

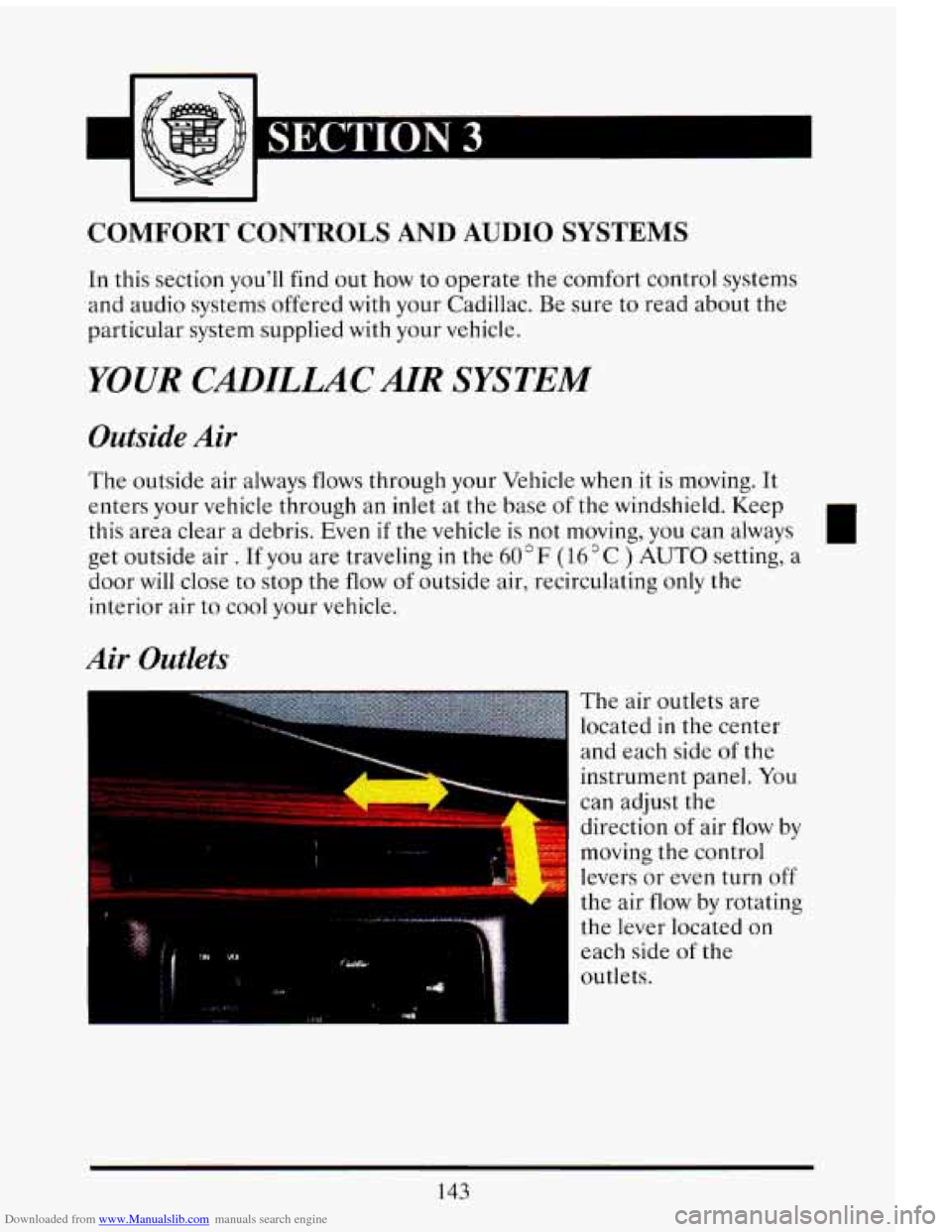

Downloaded from www.Manualslib.com manuals search engine COMFORT CONTROLS AND AUDIO SYSTEMS
In this section you’ll find out how to operate the comfort control systems
and audio systems offered with your Cadillac. Be sure to read about the
particular system supplied with your vehicle.
YOUR CADILLAC AIR SYSTEM
Outside Air
The outside air always tlows through your Vehicle when it is moving. It
enters your vehicle through an
inlet at the base of the windshield. Keep
this area clear a debris.
Even if the vehicle is not moving, you can always
get outside air
. If you are traveling in the 603 F ( 1b3C ) AUTO setting, a
door will close
to stop the flow of outside air, recirculating only the
interior air to
cool your vehicle.
Air Outlets
The air outlets are
located
in the center
and each side
of the
instrument panel.
You
can adjust the
direction
of air flow by
moving the control
levers or even turn
off
1 the air flow by rotating
the lever located on
each side
of the
outlets.
143

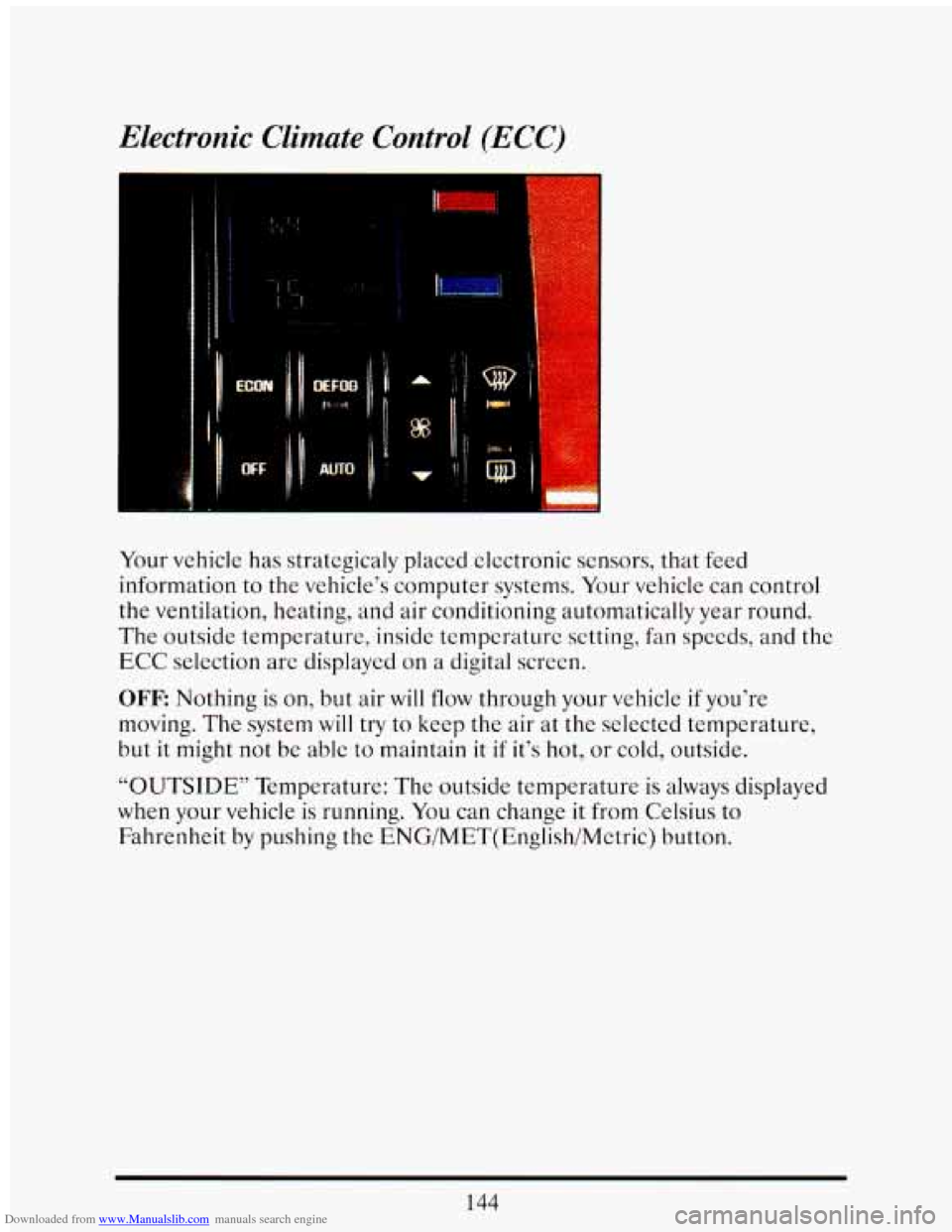

Downloaded from www.Manualslib.com manuals search engine Electronic Climate Control (ECC)
Your vehicle has strategicaly placed clectronic sensors, that feed
information to the vehicle’s computer systems. Your vehicle can control
the ventilation, heating, and air conditioning automatically year round.
The outside temperature, inside temperature setting, fan speeds, and the
ECC selection are displayed on a digital screen.
OFF: Nothing is on, but air will flow through your vehicle if you’re
moving. The system
will try to keep the air at the selected temperature,
but it
might not be able to maintain it if it’s hot, or cold, outside.
“OUTSIDE’’ Temperature: The outside temperature is always displayed
when your vehicle is running. You can change
it from Celsius to
Fahrenheit by pushing the ENG/MET(English/Metric) button.
144

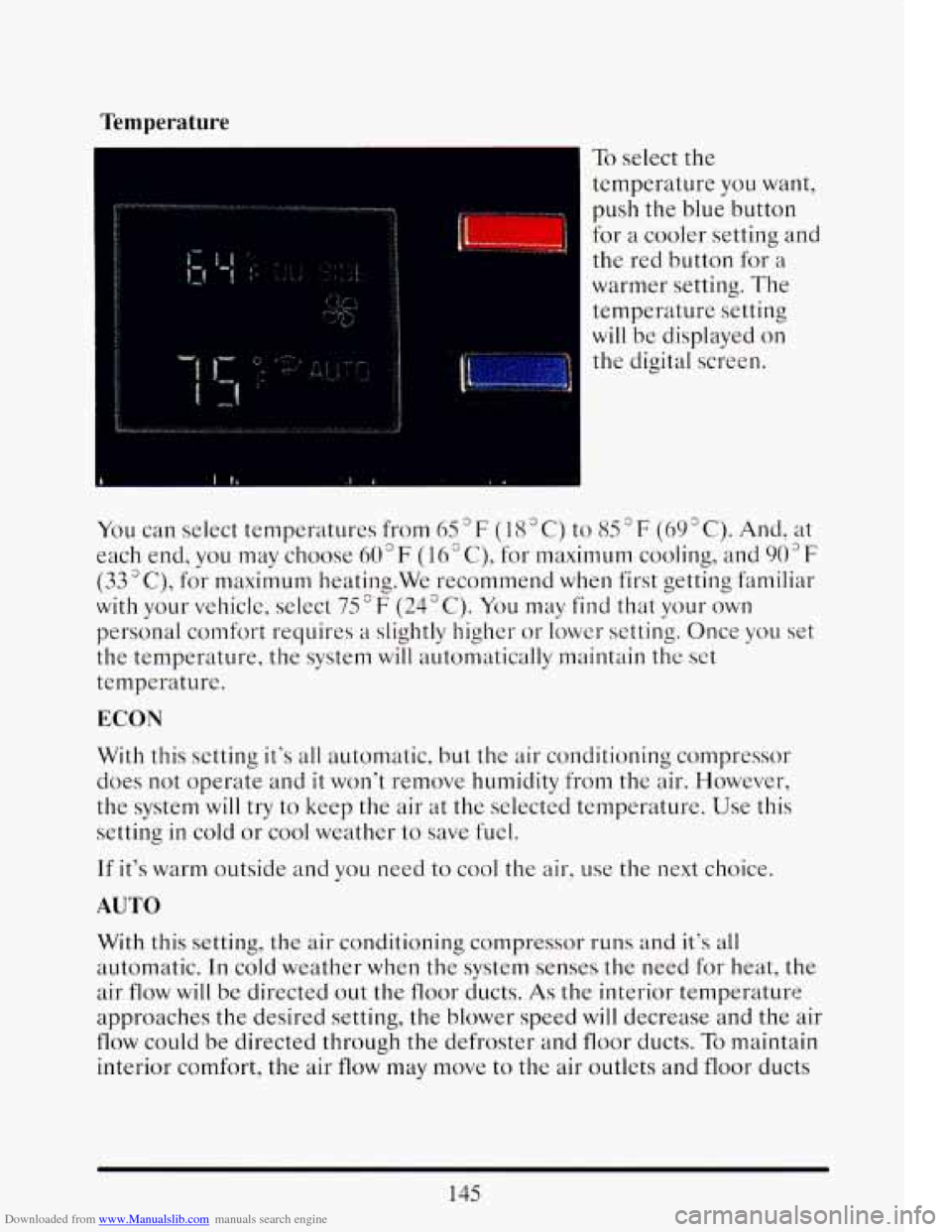

Downloaded from www.Manualslib.com manuals search engine Temperature
To select the
temperature
you want,
push
the blue button
for a cooler setting and
the red button for a
warmer setting.
The
temperature setting
will be displayed
on
the digital screen.
I
You can select temperatures from 65 F ( 18 " C) to 85 F (69 " C). And, at
each end,
you may choose 60°F (16" C), for maximum cooling, and 903F
(33"C), for maximum heating.We recommend when first getting familiar
with your vehicle, select
75°F (24°C). You may find that your own
personal comfort requires a slightly higher or lower setting. Once you set
the temperature, the system will automatically maintain the set
temperature.
ECON
With this setting it's all automatic, but the air conditioningcorupressor
does not operate and
it won't remove humidity from the alr. However,
the system will try
to keep the air at the selected temperature. Use this
setting
in cold or cool weather to save fuel.
If it's warm outside and you need to cool the air, use the next choice.
AUTO
With this setting, the air conditioning compressor runs and it's all
automatic. In cold weather when the system senses the need for heat, the
air
flow will be directed out the floor ducts. As the interior temperature
approaches
the desired setting, the blower speed will decrease and the air
flow could be directed through the defroster and floor ducts. To maintain
interior comfort, the air
flow may move to the air outlets and floor ducts
145

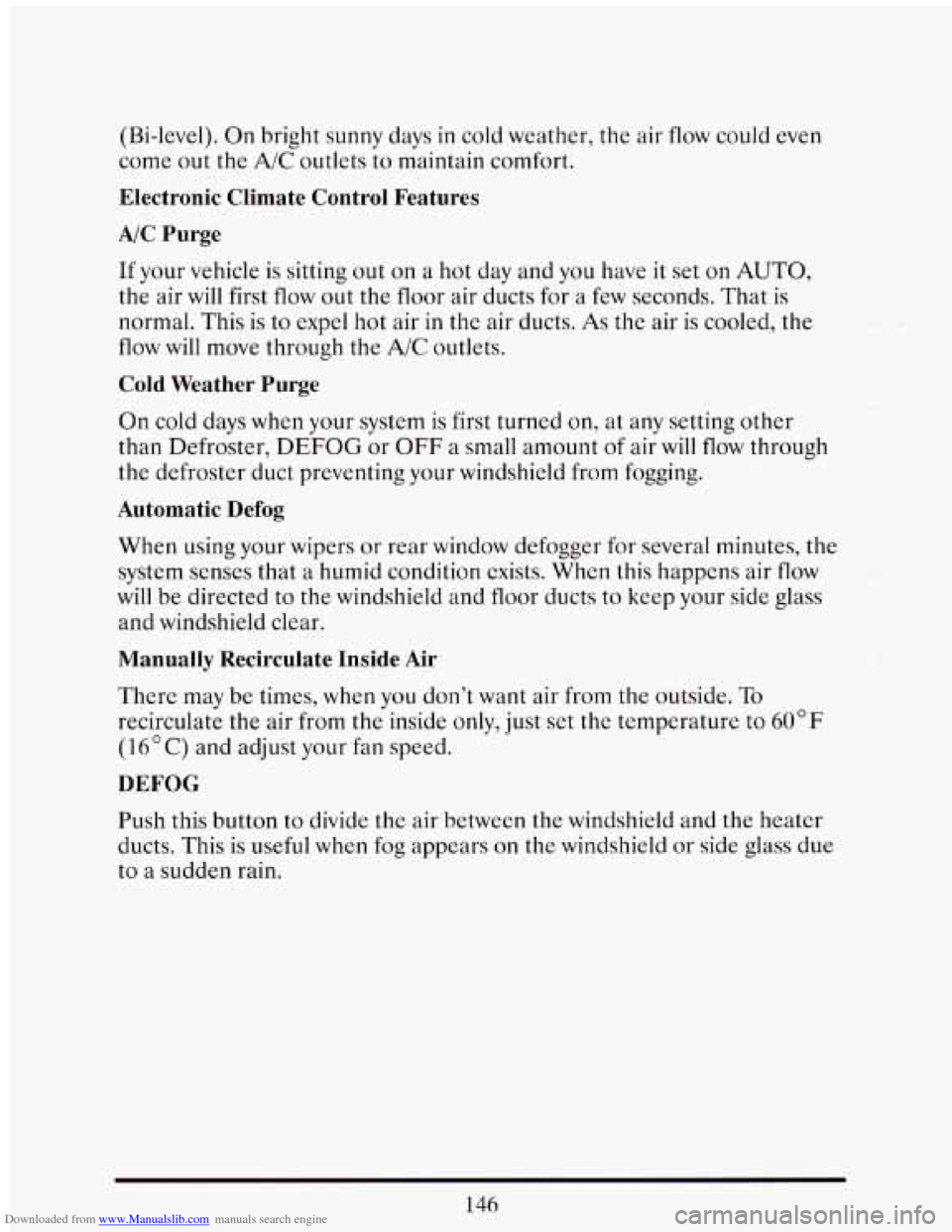

Downloaded from www.Manualslib.com manuals search engine (Bi-level). On bright sunny days in cold weather, the air flow could even
come out the A/C outlets
to maintain comfort.
Electronic Climate Control Features
A/C Purge
If your vehicle is sitting out on a hot day and you have it set on AUTO,
the air will first flow out the floor air ducts for a few seconds. That is
normal. This is to expel hot air in the air ducts. As the air is cooled, the
flow will move through the A/C outlets.
Cold Weather Purge
On cold days when your system is first turned on, at any setting other
than Defroster, DEFOG
or OFF a small amount of air will flow through
the defroster duct preventing your windshield from fogging.
Automatic Defog
When using your wipers or rear window defogger for several minutes, the
system senses that
a humid condition exists. When this happens air flow
will be directed to the windshield and floor ducts to keep your side glass
and windshield clear.
Manually Recirculate Inside Air
There may be times, when you don't want air from the outside. To
recirculate the air from the inside only, just set the temperature to 60°F
(16OC) and adjust your fan speed.
DEFOG
Push this button to divide the air between the Windshield and the heater
ducts. This is useful
when fog appears on the windshield or side glass due
to a sudden
rain.
146
