CADILLAC ELDORADO 1993 10.G Owners Manual

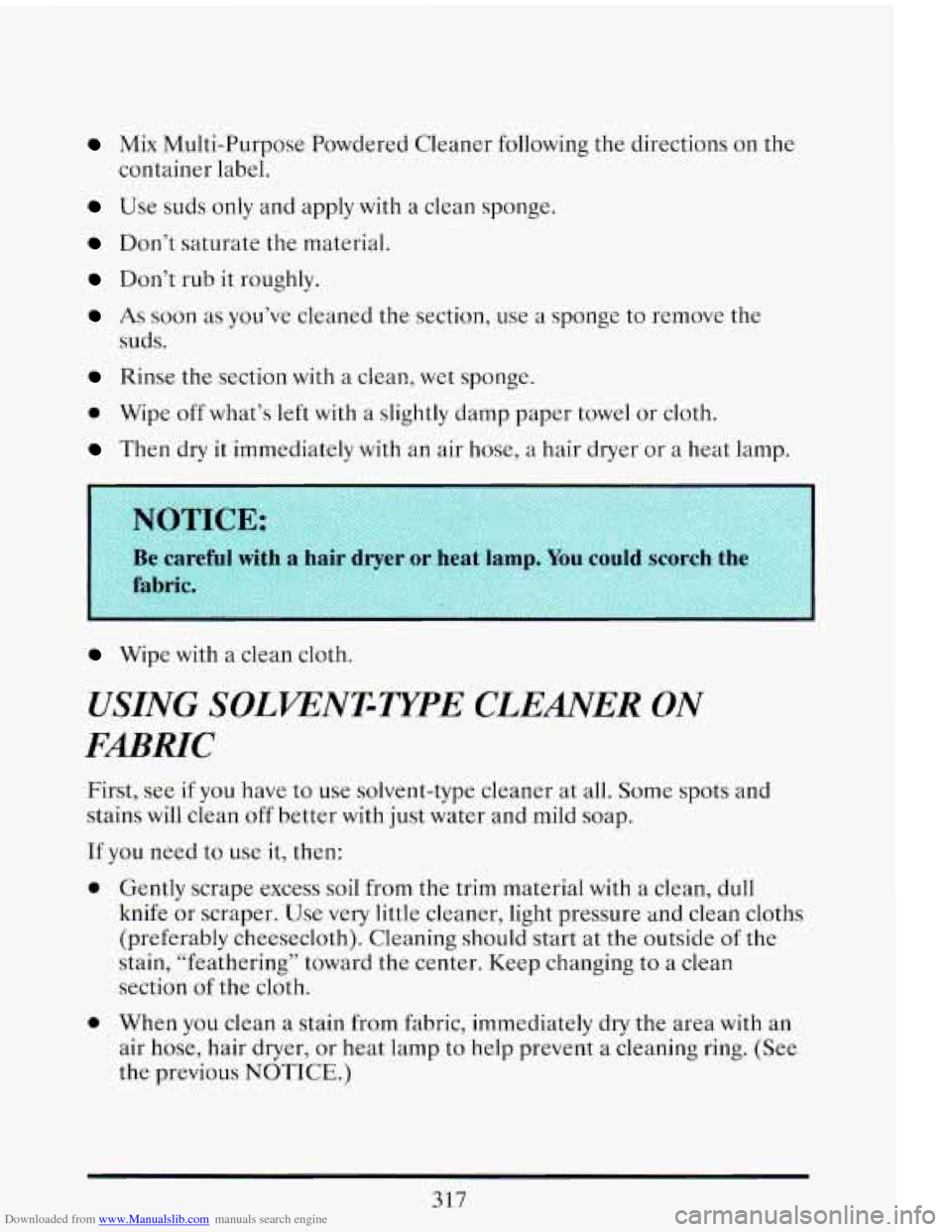

Downloaded from www.Manualslib.com manuals search engine Mix Multi-Purpose Powdered Cleaner following the directions on the
container label.
Use suds only and apply with a clean sponge.
Don’t saturate the material.
Don’t rub it roughly.
As soon as you’ve cleaned the section, use a sponge to remove the
Rinse the section with a clean, wet sponge.
0 Wipe off what’s left with a slightly damp paper towel or cloth.
Then dry it immediately with an air hose, a hair dryer or a heat lamp.
suds.
Wipe
with a clean cloth.
USING SOLVENT-TYPE CLEANER ON
FMRIC
First, see if you have to use solvent-type cleaner at all. Some spots and
stains will clean
off better with just water and mild soap.
If you need to use it, then:
0 Gently scrape excess soil from the trim material with a clean, dull
knife
or scraper. Use very little cleaner, light pressure and clean cloths
(preferably cheesecloth). Cleaning should start
at the outside of the
stain, “feathering” toward the center. Keep changing to
a clean
section
of the cloth.
0 When you clean a stain from fabric, immediately dry the area with an
air hose, hair dryer, or heat lamp
to help prevent a cleaning ring. (See
the previous
NOTICE.)
317

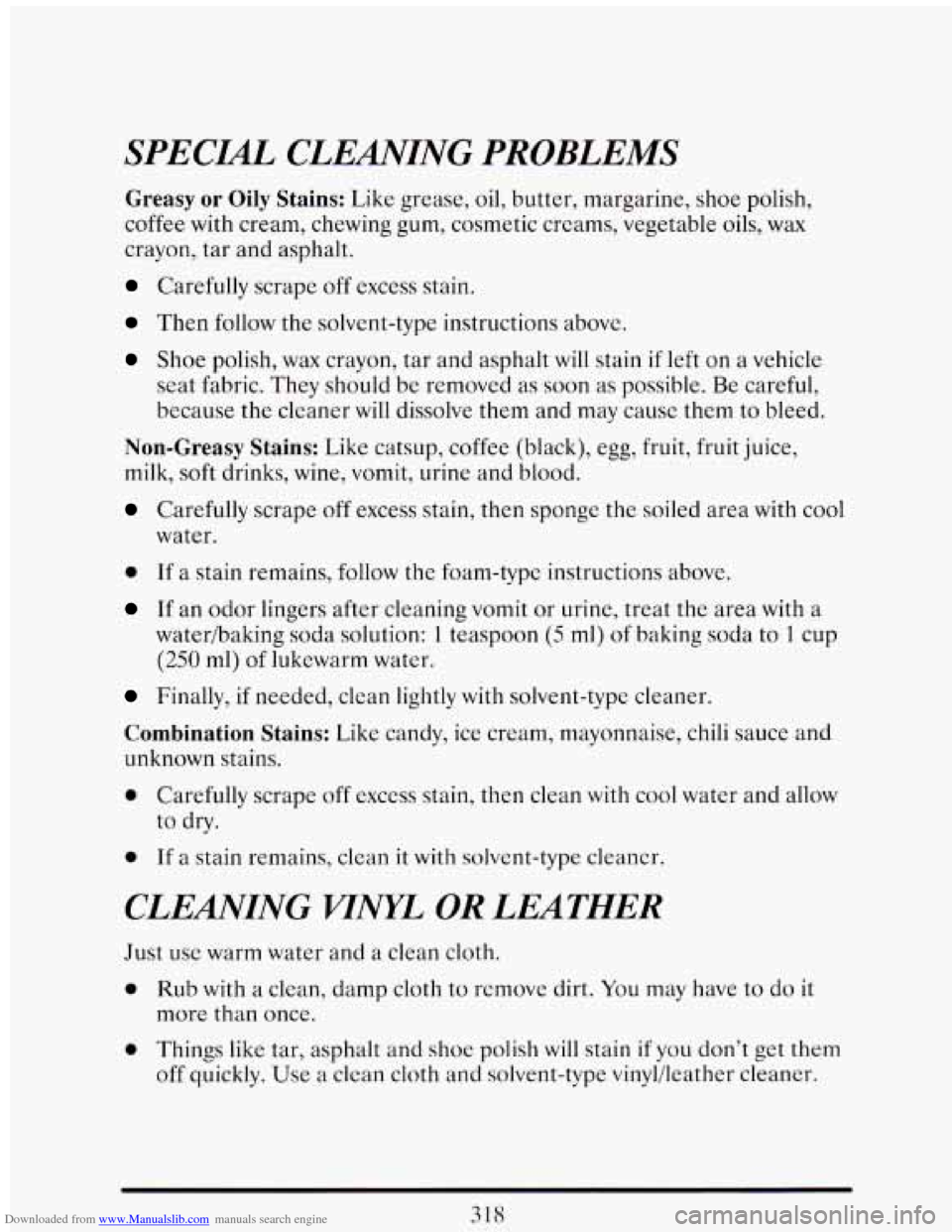

Downloaded from www.Manualslib.com manuals search engine SPECIL CLEANIIING PROBLEMS
Greasy or Oily Stains: Like grease, oil, butter, margarine, shoe polish,
coffee with cream, chewing gum, cosmetic creams, vegetable oils,
wax
crayon, tar and asphalt.
Carefully scrape off excess stain.
Then follow the solvent-type instructions c~ b ove.
Shoe polish, wax crayon, tar and asphalt will stain if left on a vehicle
seat fabric. They should be removed as soon as possible. Be careful,
because
the cleaner will dissolve them and may cause them to bleed.
Non-Greasy Stains: Like catsup, coffee (black), egg, fruit, fruit juice,
milk, soft drinks, wine, vomit, urine and blood.
Carefully scrape off excess stain, then sponge the soiled area with cool
water.
0 If a stain remains, follow the foam-type instructions above.
If an odor lingers after cleaning vomit or urine, treat the area with a
waterbaking
soda solution: 1 teaspoon (5 ml) of baking soda to 1 cup
(250 ml) of lukewarm water.
Finally, if needed, clean lightly with solvent-type cleaner.
Combination Stains: Like candy, ice cream, mayonnaise, chili sauce and
unknown stains.
0 Carefully scrape off excess stain, then clean with cool water and allow
to
dry.
0 If a stain remains, clean it with solvent-type cleaner.
CLEANING WML OR LEATHER
Just use warm water and a clean cloth.
0 Rub with a clean, damp cloth to remove dirt. You may have to do it
0 Things like tar, asphalt and shoe polish will stain if you don’t get them
off quickly. Use
a clean cloth and solvent-type vinyl/leather cleaner.
more than once.
318

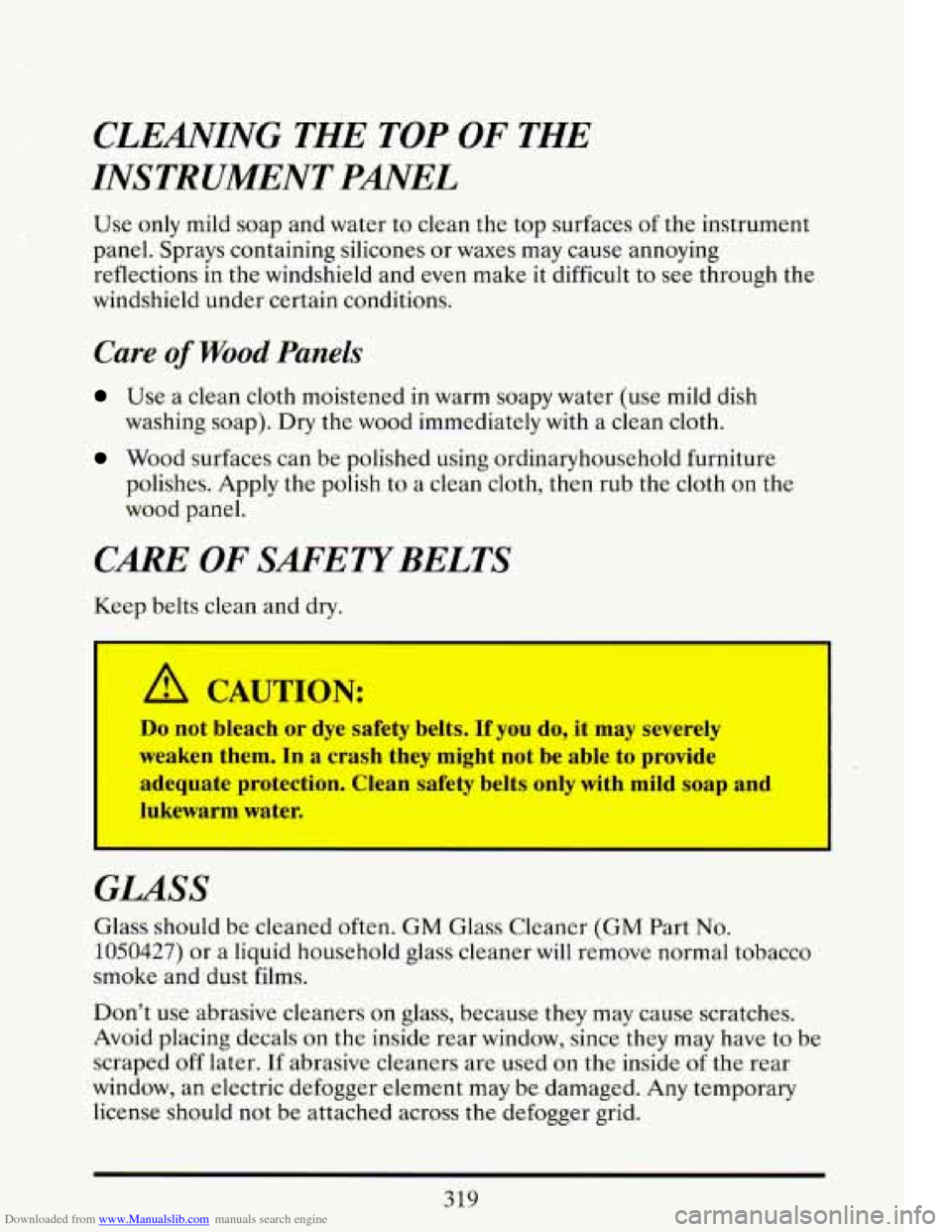

Downloaded from www.Manualslib.com manuals search engine CLEANING THE TOP OF THE
INSTRUMENT
PANEL
Use only mild soap and water to clean the top surfaces of the instrument
panel. Sprays containing silicones or waxes may cause annoying
reflections
in the windshield and even make it difficult to see through the
windshield under certain conditions.
Care of Wood Panels
Use a clean cloth moistened in warm soapy water (use mild dish
washing soap).
Dry the wood immediately with a clean cloth.
Wood surfaces can be polished using ordinaryhousehold furniture
polishes. Apply the polish to a clean cloth, then rub the cloth
on the
wood panel.
CARE OF SAFETYBELTS
Keep belts clean and dry.
A CAUTION:
Do not bleach or dye safety belts. If you do, it may severely
weaken them.
In a crash they might not be able to provide
adequate protection. Clean safety belts only with mild soap and
luE varm water.
GLASS
Glass should be cleaned often. GM Glass Cleaner (GM Part No.
1050427) or a liquid household glass cleaner will remove normal tobacco
smoke and dust films.
Don’t use abrasive cleaners on glass, because they may cause scratches.
Avoid placing decals
on the inside rear window, since they may have to be
scraped
off later. If abrasive cleaners are used on the inside of the rear
window, an electric defogger element may be damaged. Any temporary
license should not be attached across
the defogger grid.
319

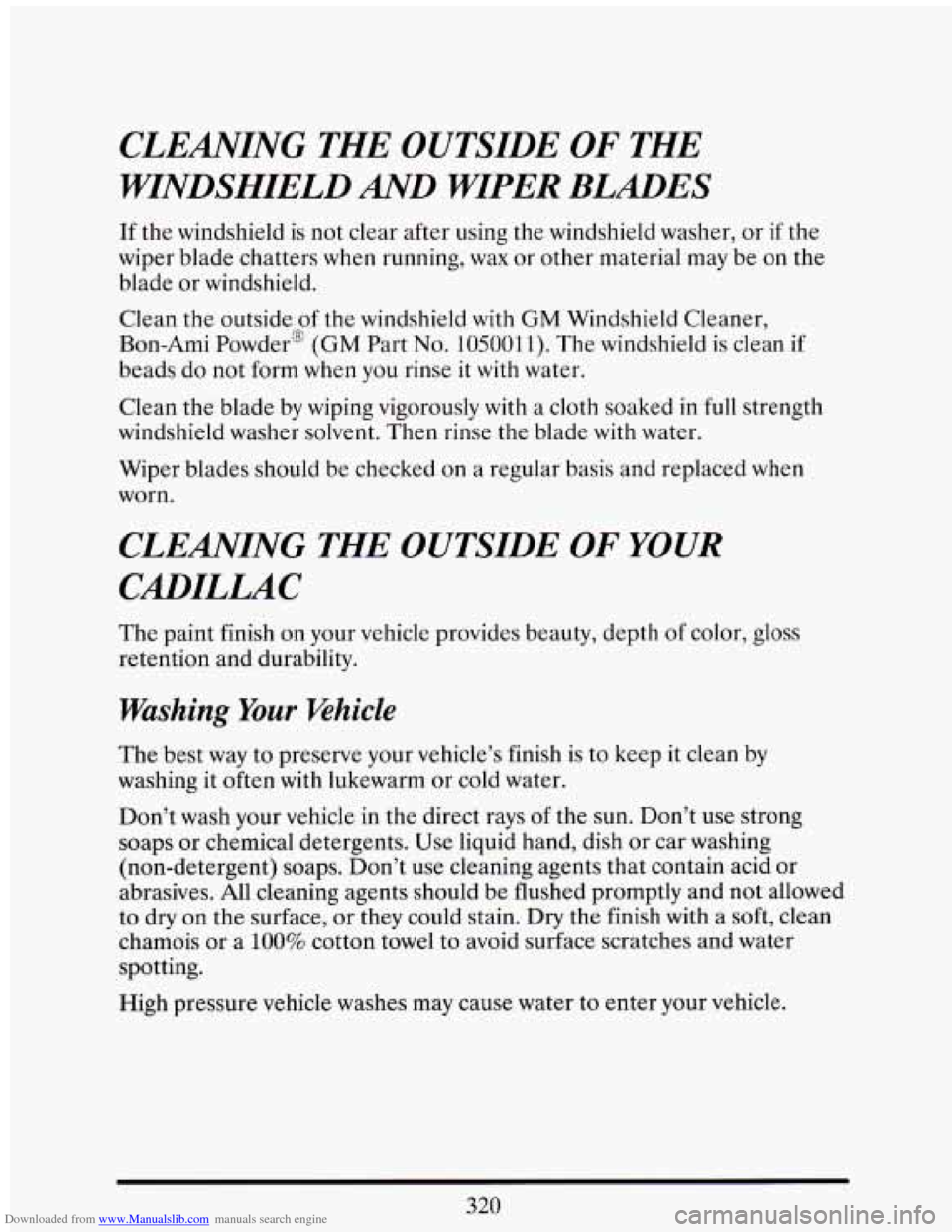

Downloaded from www.Manualslib.com manuals search engine CLEANING THE OUTSIDE OF THE
WINDSHIELD
AND WIPER BLADES
If the windshield is not clear after using the windshield washer, or if the
wiper blade chatters when running, wax or other material may be on the
blade
or windshield.
Clean the outside
of the windshield with GM Windshield Cleaner,
Bon-Ami Powder@
(GM Part No. 105001 I). The windshield is clean if
beads do not form when you rinse it with water.
Clean the blade by wiping vigorously with
a cloth soaked in full strength
windshield washer solvent.
Then rinse the blade with water.
Wiper blades should be checked
on a regular basis and replaced when
worn.
CLEANING THE OUTSIDE OF YOUR
CADILLAC
The paint finish on your vehicle provides beauty, depth of color, gloss
retention and durability.
Washing Your Hhicle
The best way to preserve your vehicle’s finish is to keep it clean by
washing it often with lukewarm or cold water.
Don’t wash your vehicle
in the direct rays of the sun. Don’t use strong
soaps or chemical detergents. Use liquid hand, dish or car washing
(non-detergent) soaps. Don’t use cleaning agents that contain acid or
abrasives.
All cleaning agents should be flushed promptly and not allowed
to dry
on the surface, or they could stain. Dry the finish with a soft, clean
chamois or a
100% cotton towel to avoid surface scratches and water
spotting.
High pressure vehicle washes may cause water to enter your vehicle.
320

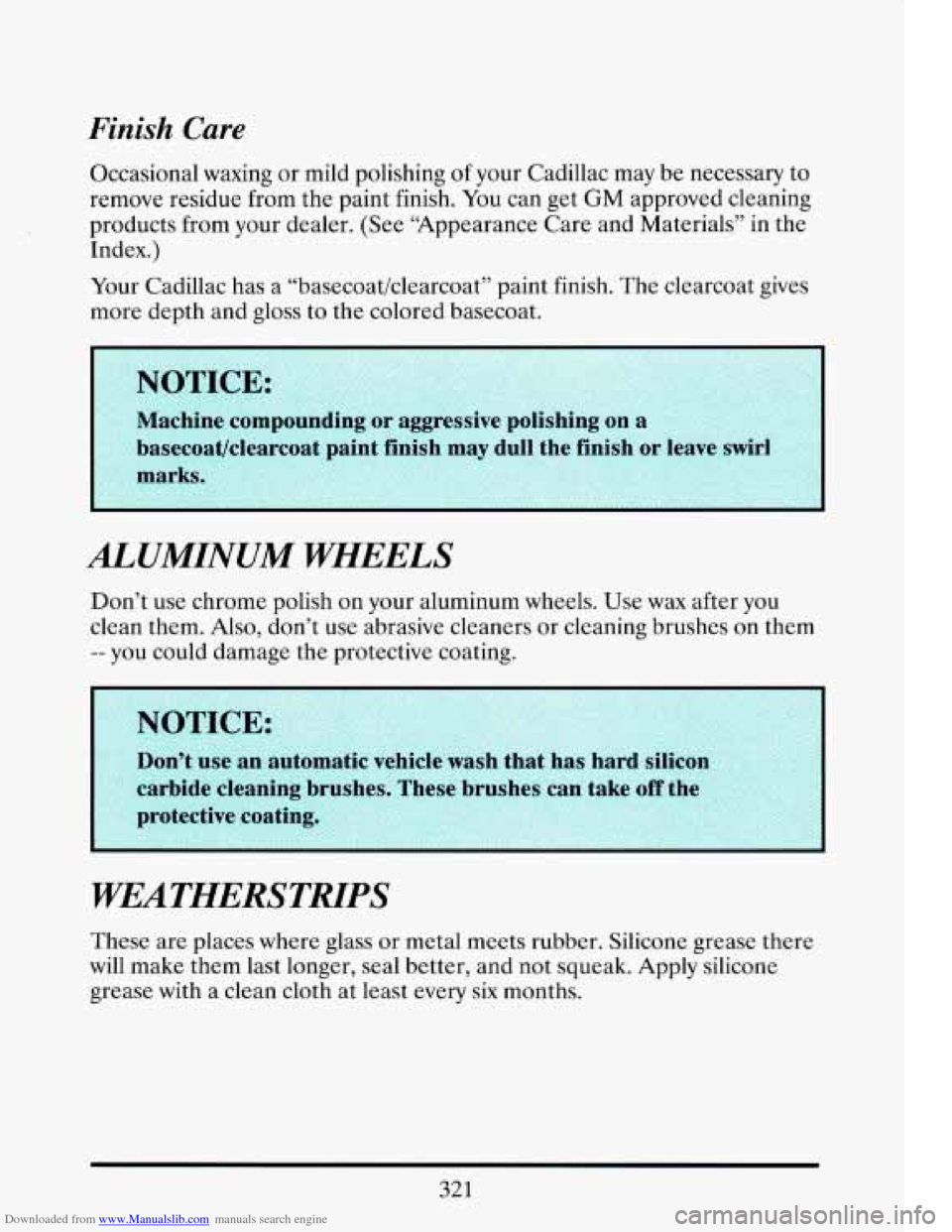

Downloaded from www.Manualslib.com manuals search engine Finish Care
Occasional waxing or mild polishing of your Cadillac may be necessary to
remove residue from the paint finish. You can get
GM approved cleaning
products from your dealer. (See “Appearance Care and Materia\
ls” in the Index.)
Your Cadillac has a “basecoatlclearcoat” paint finish. The clearcoat gives
more depth and gloss to the colored basecoat.
I
1. -achine compounding or aggressive poli
ALUMINUM WmELS
Don’t use chrome polish on your aluminum wheels. Use wax after you
clean them. Also, don’t use abrasive cleaners or cleaning brushes on them
-- you could damage the protective coating.
WEATHERSTRIPS
‘These are places where glass or metal meets rubber. Silicone grease there
will make them last longer, seal better, and not squeak. Apply silicone
grease with a clean cloth at least every six months.
321

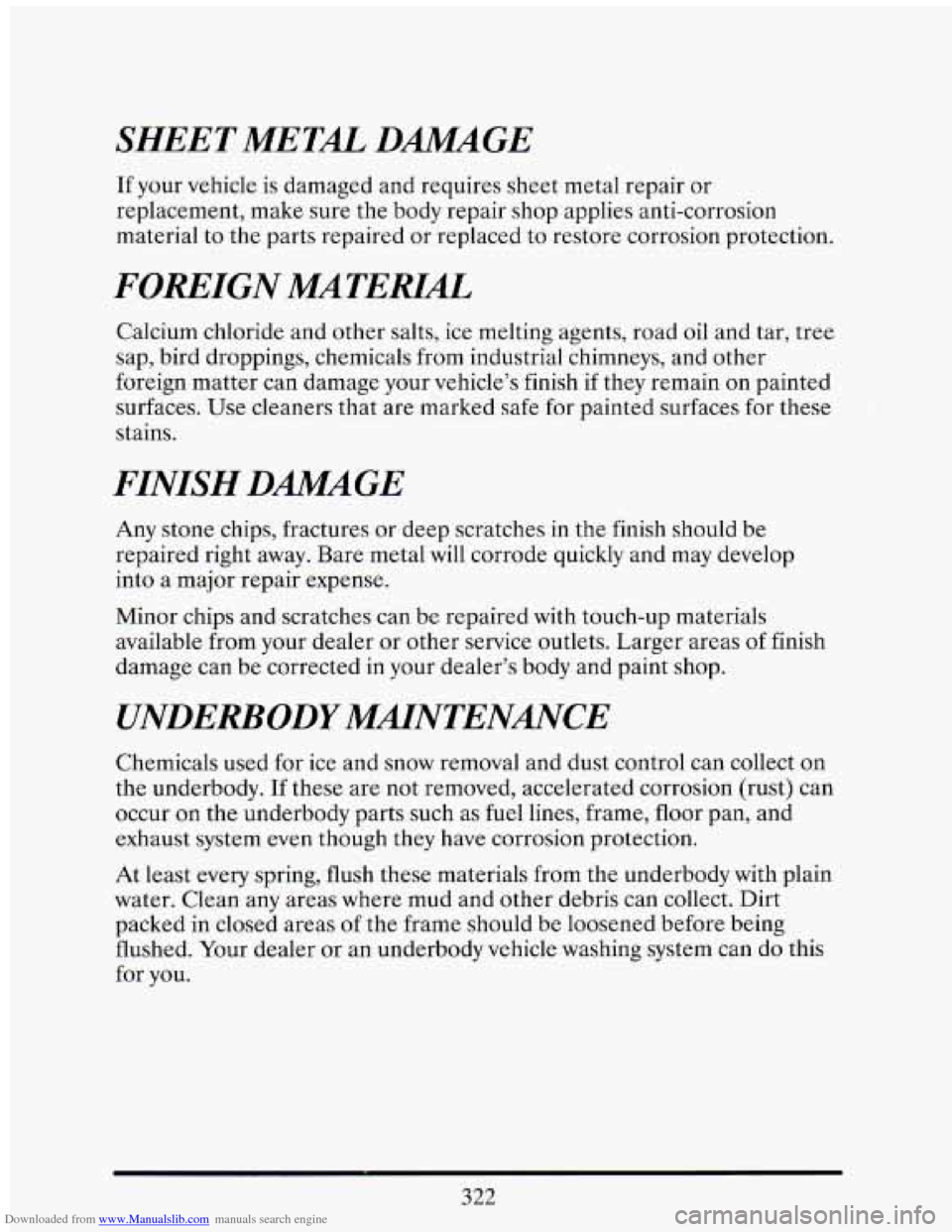

Downloaded from www.Manualslib.com manuals search engine SHEETMETL DAIMAGE
If your vehicle is damaged and requires sheet metal repair or
replacement, make sure the body repair shop applies anti-corrosion
material
to the parts repaired or replaced to restore corrosion protection. \
FOREIGNMATERIAL
Calcium chloride and other salts, ice melting agents, road oil and tar, tree
sap, bird droppings, chemicals from industrial chimneys, and other
foreign matter can damage your vehicle’s finish
if they remain on painted
surfaces. Use cleaners that are marked safe for painted surfaces for these
stains.
FINISH DAiUAGE
Any stone chips, fractures or deep scratches in the finish should be
repaired right away. Bare metal will corrode quickly and may develop
into a major repair expense.
Minor chips and scratches can be repaired with touch-up materials
available from your dealer or other service outlets. Larger areas
of finish
damage can be corrected in your dealer’s body and paint shop.
UNDERBODYMMNTENANCE
Chemicals used for ice and snow removal and dust control can collect on
the underbody.
If these are not removed, accelerated corrosion (rust) can
occur on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system even though they have corrosion protection.
At least
every spring, flush these materials from the underbody with plain
water. Clean any areas where mud and other debris can collect. Dirt
packed in closed areas
of the frame should be loosened before being
flushed. Your dealer or an underbody vehicle washing system can do this
for
you.
322

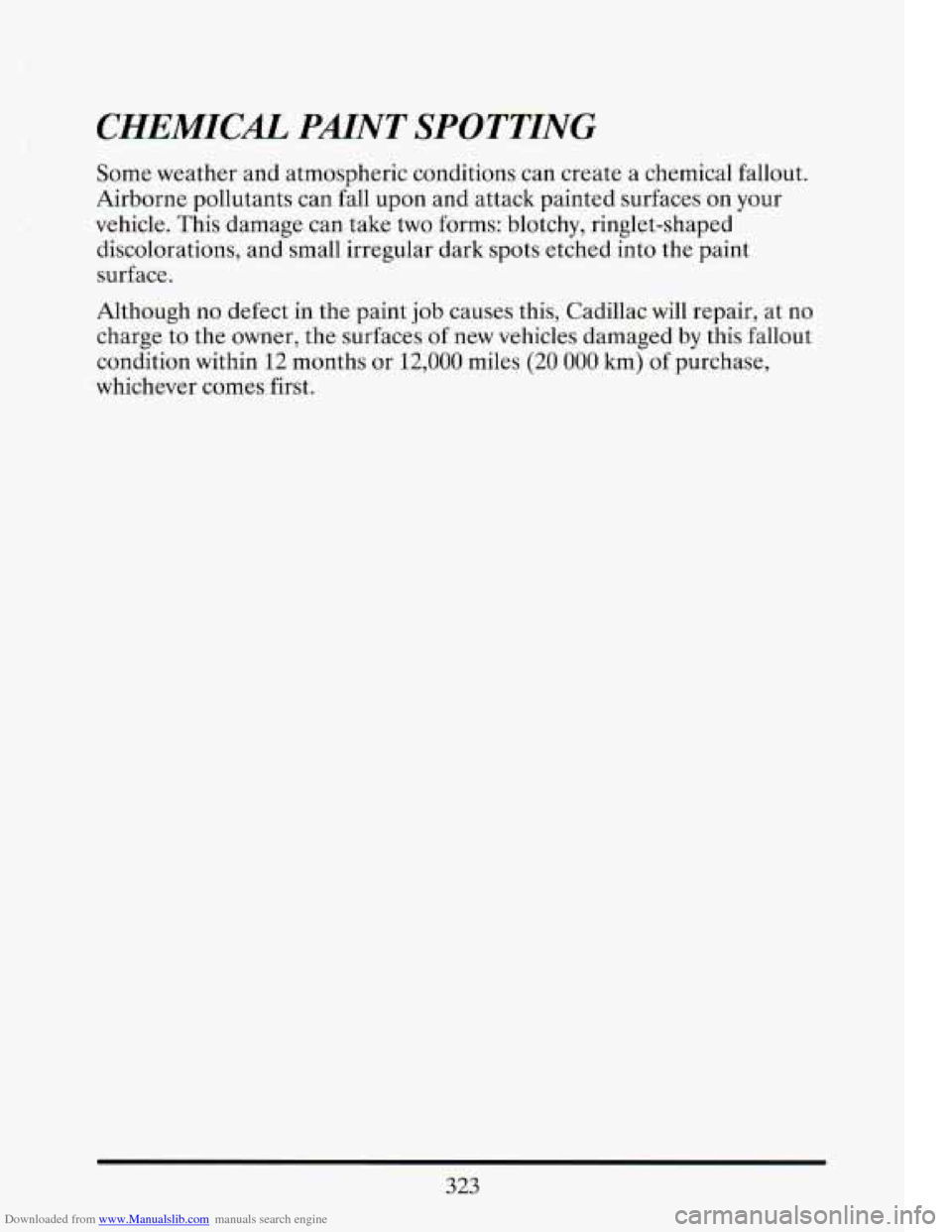

Downloaded from www.Manualslib.com manuals search engine CHEMICAL PMNT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
vehicle. This damage can take
two forms: blotchy, ringlet-shaped
discolorations, and small irregular dark spots etched into the \
paint surface.
Although no defect in the paint job causes this, Cadillac will repair, at no
charge to the owner, the surfaces
of new vehicles damaged by this fallout
condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever
comes first.
323

Downloaded from www.Manualslib.com manuals search engine GM PART
NUMBER
SIZE I DESCRIPTION USAGE
1051516 WINDSHIELD WASHING SYSTEM
AND GAS LINE 32 OZ. (0.946 L) WASHER SOLVENT AND GAS
105001 7 POWER STEERING
WEATHER STRIPS-STOPS SQUEAKS ON METAL-TO-METAL AND
METAL-TO-RUBBER CONTACT
1052277
I 1050172 I
16 OZ. (0.473 L) I TAR AND ROAD OIL REMOVER
I
REMOVES OLD WAXES, POLISHES,
TAR AND ROAD OIL
I
CHROME CLEANER AND
POLISH ' REMOVES RUST AND CORROSION
ON CHROME AND STAINLESS
STEEL
CLEANS WHITE AND BLACK TIRES
WHITE SIDEWALL TIRE
SPOT AND STAIN REMOVAL ON
LEATHER
OR VINYL
SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
I 1050427 I I GLASS CLEANER I 23 OZ. (0.680 L) GLASS CLEANING AND SPOT
CLEANING ON VINYLS
I
1050429 6 LB. (2.72 KG)
I
MULTI-PURPOSE POWDERED
CLEANER CLEANS VINYL AND CLOTH
ON
DOOR TRIM, SEATS, AND
CARPET-ALSO. TIRES AND MATS
1052349 12 Of. (0.354 L) LUBRICATE (WHITE GREASE)
1050729 8 OZ. (0.237 L) VINYL TOP CLEANER
1052870
16 OZ. (0.473 L)
WASH-WAX (CONC.) GREASE FOR HOOD, TRUNK
AND
DOOR HINGES AND LATCHES
CLEANING
OF VINYL TOPS
EXTERIOR WASH
SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
WINDSHIELD WASHER SOLVENT AND ANTI-FREEZE
1051 398 8 OZ. (0.237 L) SPOT LIFTER
1051515 32 OZ. (0.946 L) GM OPTIKLEEN
EXTERIOR CLEANER AND POLISH
16 OZ. (0.473 L) MAGIC MIRROR CLEANER
POLISH
32 OZ. (0.946 L) DEXRONQ IIE I 9985286 AUTOMATIC TRANSMISSION
SEE YOUR DEALER
FOR SPECIFIC
USAGE 1 1052367 I SUPPLEMENT (E.0.S.I I 16 OZ. (0.473 L) GM
ENGINE OIL I
YEAR ROUND COOLANT AND
ANTI-FREEZE 1 GAL. (3.785 L) PERMANENT TYPE
ANTI-FREEZE COOLANT
16 OZ. (0.473 L) DELCO-SUPREME II BRAKE
1052753
REAR AXLE
REAR AXLE
BRAKE FLUID
I I I FLUID 1
324

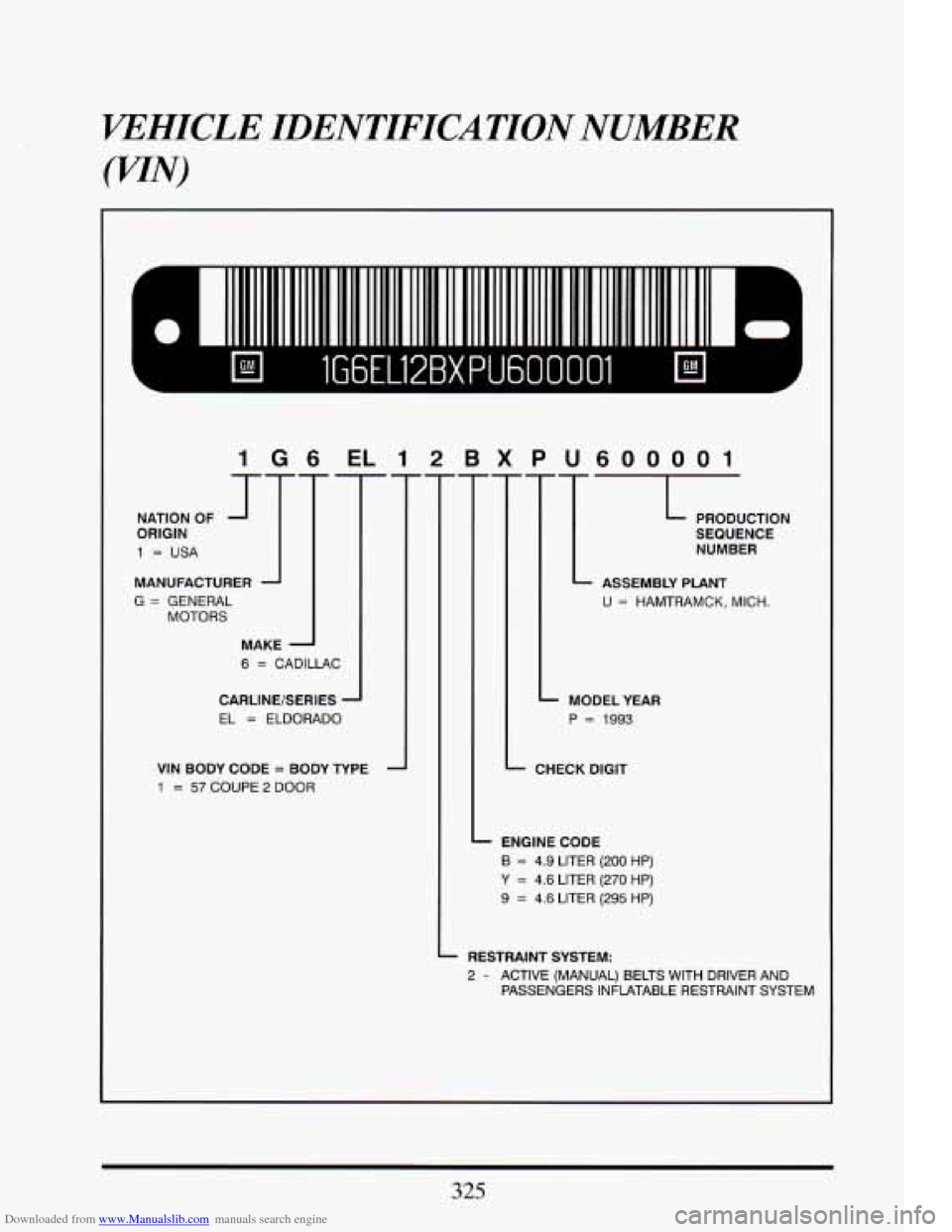

Downloaded from www.Manualslib.com manuals search engine VEHICLE IDENTIFICATION NUMBER
ll11111 I1111111111 I I II II 1111 I
Im"l lG6EL12BXPU600001 A
1 G 6 EL 12 BX P U600001
NATION OF ORIGIN
1 = USA
MANUFACTURER
G = GENERAL MOTORS
MAKE -
6 = CADILIA
CARLINEEERIE!
EL = ELDORADO
VIN BODY CODE = BODY TYPE
1 = 57 COUPE 2 DOOR
T1 PRODUCTION
SEQUENCE NUMBER
ASSEMBLY PLANT
U = HAMTRAMCK, MICH.
MODEL YEAR
P = 1993
- CHECK DIGIT
- ENGINE CODE
B = 4.9 LITER (200 HP)
Y = 4.6 LITER (270 HP)
9 = 4.6 LITER (295 HP)
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH DRIVER AND
PASSENGERS INFLATABLE RESTRAINT SYSTEM
325

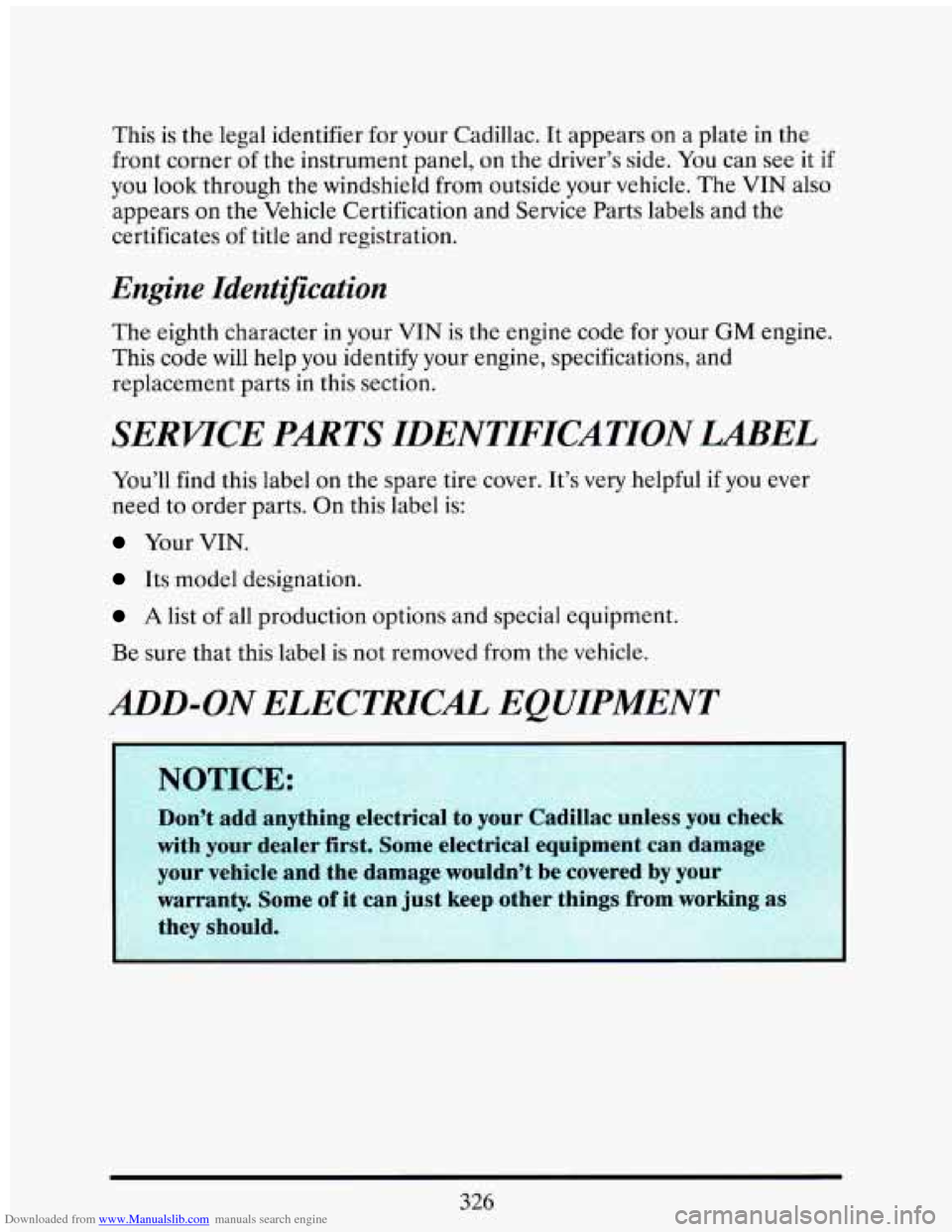

Downloaded from www.Manualslib.com manuals search engine This is the legal identifier for your Cadillac. It appears on a plate in the
front corner of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates of title and registration.
Engine Identificution
The eighth character in your VIN is the engine code for your GM engine.
This code will help you identify your engine, specifications, and
replacement parts in this section.
SERWCE PARTS IDENTIFICATION LABEL
You’ll find this label on the spare tire cover. It’s very helpful if you ever
need to order parts. On
this label is:
Your VIN.
Its model designation.
A list of all production options and special equipment.
Be sure that this label is not removed from the vehicle.
ADD-ON ELECTRICAL EQUIPMENT
-
NOT1
Don’t add ythlllg electrical to your Cadillac unless you chec’-
with
your aealer first. Some electrical equipment can damage
your vehicle and the damage wouldn’t be covered by your
warranty. Some of it can just keep other things from working as
they should.
326
