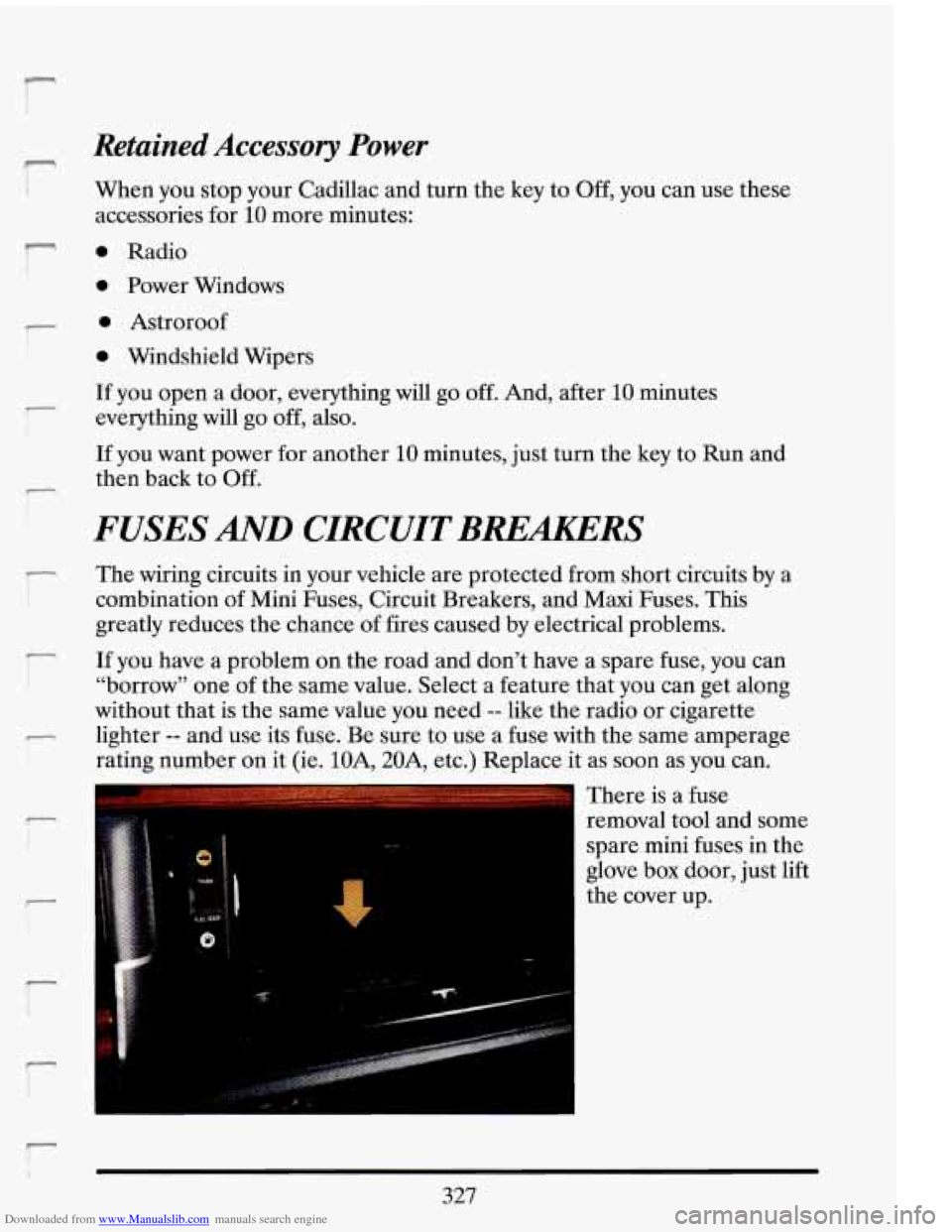

Retained Accessory Power
When you stop your Cadillac and turn the key to Off, you can use these
accessories for
10 more minutes:
0 Radio
0 Power Windows
0 Astroroof
0 Windshield Wipers
If you open a door, everything will go off. And, after
10 minutes
everything will go off, also.
If you want power for another
10 minutes, just turn the key to Run and
then back to Off.
FUSES AND CIRCUIT BREDRS
The wiring circuits in your vehicle are protected from short circuits by a
combination of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance
of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one of the same value. Select a feature that you can get along
without that is the same value you need
-- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.) Replace it as soon as you can.
1
There is a fuse
removal tool and some
spare mini fuses in the
glove box door, just lift
the cover up.
327

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block
I

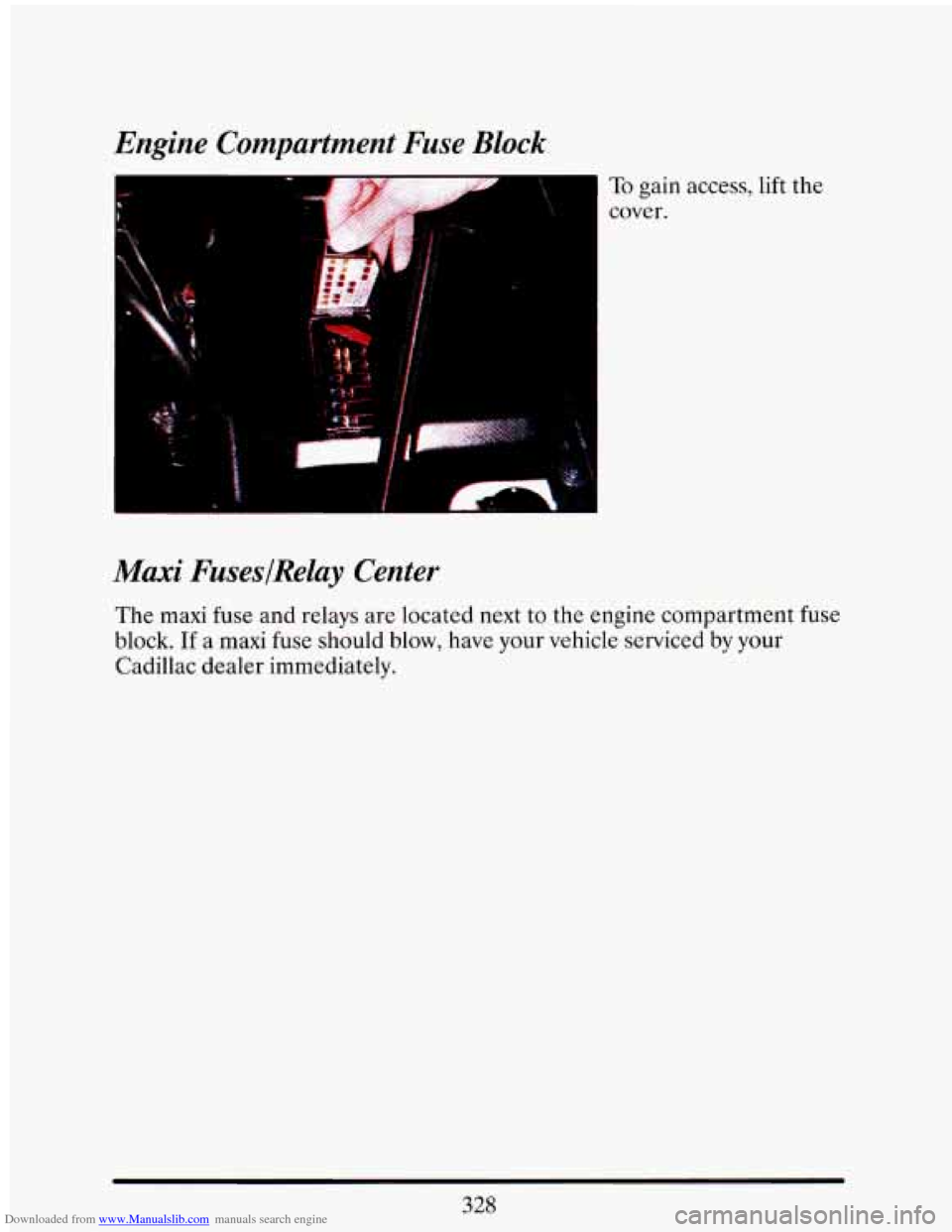

To gain access, lift the
cover.
Maxi FuseslRelay Center
The maxi fuse and relays are located next to the engine compartment fuse
block.
If a maxi fuse should blow, have your vehicle serviced by your
Cadillac dealer immediately.
328

Downloaded from www.Manualslib.com manuals search engine 1nrVc-I
SENSE
I I
BIII mc 1 m DRL
SUSPENSION RTD (BAT)
L HDLP LO
R HDLP LO L HDLP HI R HDLP HI
-1
COOL FAN TRANS/ECS
FUSE CENTER IDENTIFICATION I
ENGINE COMPARTMENT FUSE BLOCK
COIL 20A - 4.9L DISTRIBUTOR - 4.6L IGNITION CONTROL MODULE SIR 20A - DIAGNOSTIC ENERGY RESERVE MODULE
- ARMING SENSOR
- POWERTRAIN CONTROL MODULE (PCM) (DERM) SIR (AIR BAG)
PCM (IGN) 10A - PASSKeyB DECODER MODULE
INJ 10A
INJ 10A
IGN 10A
- FUEL INJECTORS 1,4,6,7
- FUEL INJECTORS 2,3,5,8
- A/C COMPRESSOR - ELECTROCHROMIC MIRROR - INSTRUMENT PANEL CLUSTER - DIAGNOSTIC ENERGY RESERVE MODULE
- KEYLESS ENTRY MODULE - CORNERING LIGHTS - CHIME MODULE - TWILIGHT SENTINEVDRL MODULE - BACKUP LIGHTS - BRAKE TRANSMISSION SHIFT INTERLOCK (DERM)
SIR (AIR BAG)
FUEL 20A
- FUELPUMP - POWERTRAIN CONTROL MODULE
PCM (BAT) 10A
A/C 1OA
HTD
W/S 10A
STOP LP 20A
TURN/HAZ 20A
- POWERTRAIN CONTROL MODULE (PCM)
- A/C COMPRESSOR
- HEATED WINDSHIELD
- STOP LIGHTS
- HAZARD LIGHTS - TURN SIGNAL LIGHTS DRL
1OA (CANADA)
DRL 1OA (CANADA)
SUSPENSION 10A
- DAYTIME RUNNING LIGHTS
- DAYTIME RUNNING LIGHTS
- ROAD SENSING SUSPENSION
- SPEED SENSITIVE SUSPENSION (4.9L)
- ROAD SENSING SUSPENSION (NORTHSTAR)
RTD (BAT) 20A
L HDLP LO 1 OA (EXPORT)
R HDLP LO 1OA (EXPORT)
L HDLP HI 10A (EXPORT)
R HDLP HI (EXPORT)
IGN
3 10A
- LEFT HEADLAMP LOW BEAM
- RT HEADLAMP LOW BEAM
- LEFT HEADLAMP HIGH BEAM
- RIGHT HEADLAMP HIGH BEAM
- HEATED WINDSHIELD - HEATER AND A/C PROGRAMMER - ELECT. LEVEL CONTROL (ELC) - DEFOGGER RELAY “D”
- CRUISE CONTROL - POWERTRAIN CONTROL MODULE
- COOLING FANS - POWERTRAIN CONTROL MODULE (4.6L) - FRONT AND REAR HEATED OXYGEN
COOLING
FAN 10A
SENSOR (4.6L)
TRANS/ECS
1 OA
SOLENOID - EXHAUST GAS RECIRCULATION (EGR)
- POWERTRAIN CONTROL MODULE (PCM) - AUTOMATIC TRANSAXLE - EVAPORATIVE EMISSION CONTROL
SOLENOID
- OVERSPEED ALERT MODULE (EXPORT) - POWER STEERING PRESSURE SWITCH
329

Downloaded from www.Manualslib.com manuals search engine 5

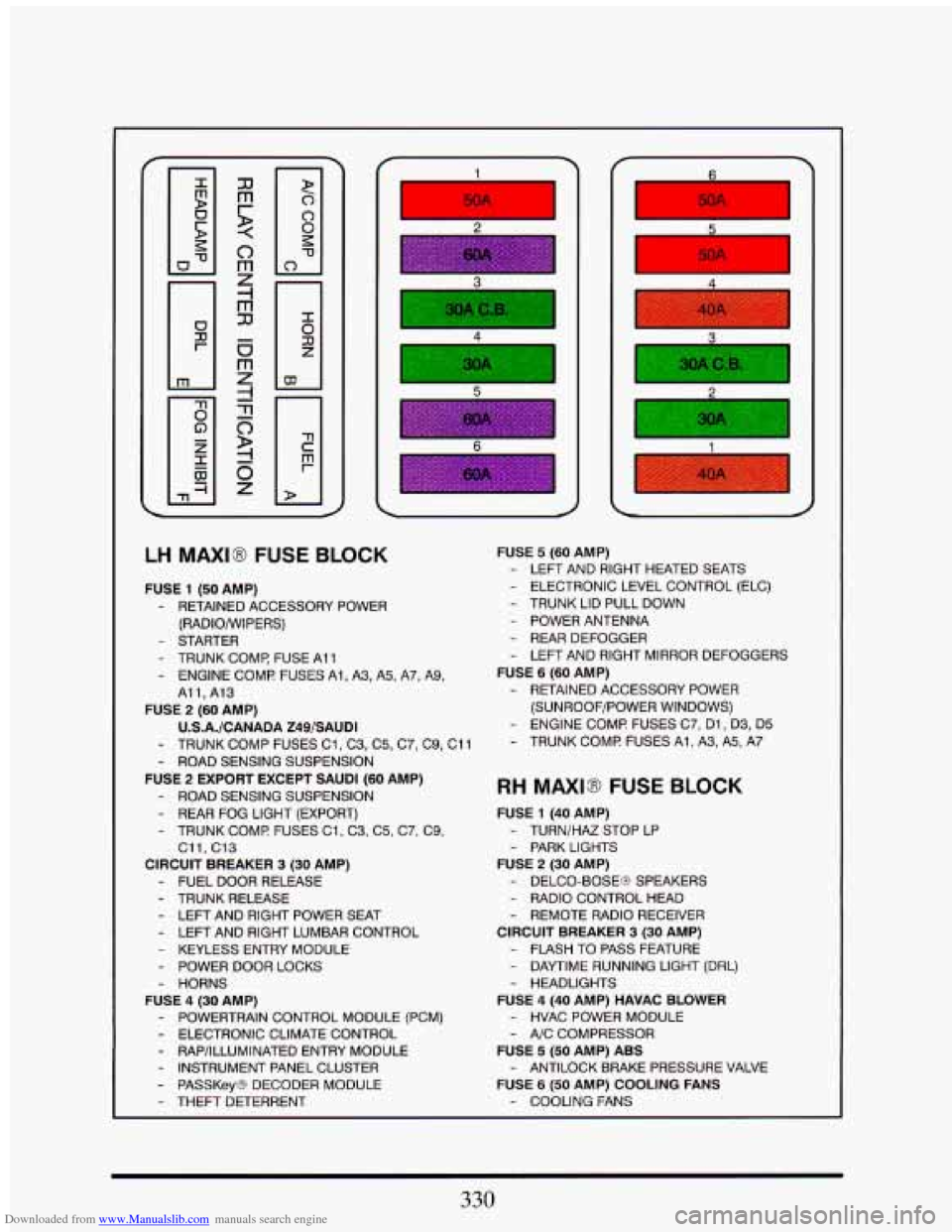

LH MAXI8 FUSE BLOCK
FUSE 1 (50 AMP)
- RETAINED ACCESSORY POWER
(RADIO/WIPERS)
- STARTER
- TRUNK COMR FUSE Ai 1
- ENGINE COMF! FUSES Ai, A3, A5, A7, A9,
All,A13
FUSE 2 (60 AMP)
U.S.A./CANADA Z49/SAUDI
- TRUNK COMP FUSES C1, C3, C5, C7, C9, Cil
- ROAD SENSING SUSPENSION
FUSE 2 EXPORT EXCEPT SAUDI (60 AMP)
- ROAD SENSING SUSPENSION
- REAR FOG LIGHT (EXPORT)
- TRUNK COMP FUSES C1, C3, C5, C7, C9,
C11, C13
CIRCUIT BREAKER 3 (30 AMP)
- FUEL DOOR RELEASE
- TRUNK RELEASE
- LEFT AND RIGHT POWER SEAT
- LEFT AND RIGHT LUMBAR CONTROL
- KEYLESS ENTRY MODULE
- POWER DOOR LOCKS
- HORNS
FUSE 4 (30 AMP)
- POWERTRAIN CONTROL MODULE (PCM)
- ELECTRONIC CLIMATE CONTROL - RAP/ILLUMINATED ENTRY MODULE
- INSTRUMENT PANEL CLUSTER
- PASSKeyB DECODER MODULE
- THEFT DETERRENT
I 50A I m 5
FUSE 5 (60 AMP)
- LEFT AND RIGHT HEATED SEATS
- ELECTRONIC LEVEL CONTROL (ELC)
- TRUNK LID PULL DOWN
- POWER ANTENNA
- REAR DEFOGGER
- LEFT AND RIGHT MIRROR DEFOGGERS
FUSE 6 (60 AMP)
- RETAINED ACCESSORY POWER
(SUNROOF/POWER WINDOWS)
- ENGINE COMF! FUSES C7, Dl, D3, D5
- TRUNK COMF! FUSES Al, A3, A5, A7
RH MAXIB FUSE BLOCK
FUSE 1 (40 AMP)
- TURN/HAZ STOP LP - PARK LIGHTS
FUSE 2 (30 AMP)
- DELCO-BOSEG SPEAKERS
- RADIO CONTROL HEAD
- REMOTE RADIO RECEIVER
CIRCUIT BREAKER 3 (30 AMP)
- FLASH TO PASS FEATURE
- DAYTIME RUNNING LIGHT (DRL)
- HEADLIGHTS
FUSE 4 (40 AMP) HAVAC BLOWER
- HVAC POWER MODULE
- AJC COMPRESSOR
FUSE 5 (50 AMP) ABS
FUSE
6 (50 AMP) COOLING FANS
- ANTILOCK BRAKE PRESSURE VALVE
- COOLING FANS
330

Downloaded from www.Manualslib.com manuals search engine Rear Compartment Fuse Block
Pull
gain
the cover
access. off to
33 1

Downloaded from www.Manualslib.com manuals search engine L
WIPER RAD (IGN) R DEFOG HTD MlRR IPC IBATT) THEFT ,
1-1 BI BI
REAR FOG FOG LP CNSL FAN CIGAR
-
L PRK LP R PRK LP RAD (BAT)
7' .I m m
TRUNK COMPARTMENT FUSE BLOCK
CRANK 10A - RAPhLLUMINATED ENTRY MODULE - DIAGNOSTIC ENERGY RESERVE MODULE
(DERM)
- STARTER
- CATALYTIC CONVERTER ALARM MODULE
ION 1 10A
(EXPORTI
- FUEL-LEVEL SENSOR - ELECTROCHROMIC MIRROR - THEFT DETERRENT MODULE - KEYLESS ENTRY MODULE - TURN SIGNAL LIGHTS - RAP/ILLUMINATED ENTRY MODULE
HDLP WASH 30A (EXPORT)
IPC (IGN) 10A
CNSL
SW 10A
- HEADLIGHT WASHER MODULE
- INSTRUMENT PANEL CLUSTER
- REAR BLOWER MOTOR - CONSOLE SWITCH
ABS 1OA - ELECTRONIC BRAKE CONTROL MODULE (4.9L) - ELECTRONIC BRAKE AND TRACTION CONTROL
MODULE (NORTHSTAR)
WIPER 30A
RAD (IGN) 1OA
R DEFOG 30A
HTD MlRR 10A
IPC (BATT) 1 OA
- INSTRUMENT PANEL CLUSTER
THEFT 10A
- PASS-Key@ DECODER MODULE - THEFT DETERRENT RELAY
HVACIDABIE 10A
- HEATER AND A/C PROGRAMMER
REAR FOG 10A (EXPORT)
FOG LP 1OA (4.6L)
CNSL FAN 1OA
- REAR BLOWER MOTOR
- WIPERhVASHER SWITCH
- REMOTE RADIO RECEIVER
- REAR DEFOGGER
- RIGHT AND LEFT POWER MIRROR-DEFOGGER
- THEFT DETERRENT MODULE
- RAP/ILLUMINATED ENTRY MODULE
- REAR FOG LIGHTS
- FOG LIGHTS
- REAR CIGAR LIGHTERS-SEVILLE ONLY
- CHIME MODULE
CIGAR
20A - FRONT CIGAR LIGHTER
BODY 2 10A
- POWER MIRROR SWITCH - RETAINED ACCESSORY POWER
- CONSOLE SWITCH - PANEL LIGHTS INHIBIT (EXPORT) - COURTESY LIGHTS - KEYLESS ENTRY MODULE
BODY
1 10A - POWER DOOR LOCKS - DOOR LOCK CYLINDER ILLUMINATION
- TRUNK LIGHT
- GLOVE BOX LIGHT - FOOTWELL LIGHTS - TWILIGHT SENTINEUDRL MODULE - HEADLIGHT SWITCH
READ LP 10A
- LEFT AND RIGHT VANITY MIRRORS - GARAGEDOOROPENER - FRONT AND REAR HEADER LIGHTS
L PRK LP 1OA - RADIO DIMMING - HEADLIGHT SWITCH - INSTRUMENT PANEL CLUSTER
- LEFT MARKER LIGHT
R PRK LP 10A
- LEFT TAIL/STOP/TURN LIGHTS
- LEFT PARWTURN LIGHT
- RIGHT MARKER LIGHTS - LICENSE LIGHTS - RIGHT PARWURN LIGHT - ENGINE COMPARTMENT LIGHT - RIGHT TAlL/STOP/TURN LIGHTS
RAD (BAT)
1 OA - REMOTE RADIO RECEIVER - RADIO CONTROL HEAD
ANTDRUNK 20A
- TRUNK PULL DOWN
ELC 20A
R HTD SEAT 10A
L HTD SEAT 10A - DRIVERS HEATED SEAT
- POWER ANTENNA
- ELECTRONIC LEVEL CONTROL
- PASSENGERS HEATED SEAT
332

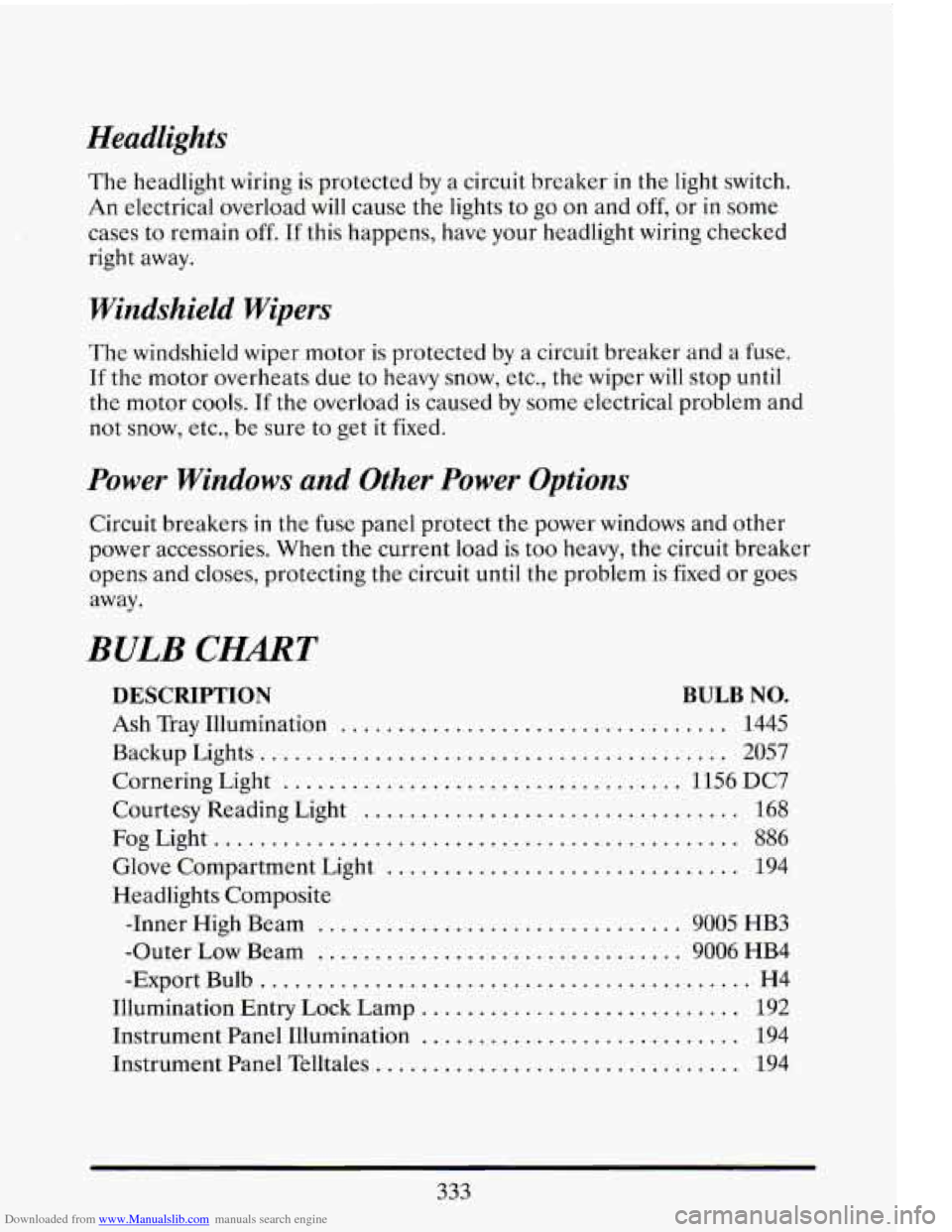

Downloaded from www.Manualslib.com manuals search engine Headlights
The headlight wiring is protected by a circuit breaker in the light switch.
An electrical overload will cause the lights to go on and off, or in some
cases to remain
off. If this happens, have your headlight wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse.
If the motor overheats due to heavy snow, etc., the wiper will stop until
the motor cools. If the overload
is caused by some electrical problem and
not snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load
is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem is fixed or goes
away.
BULB CHMT
DESCRIPTION BULB NO.
Ash Tray Illumination .................................. 1445
Backup Lights.
........................................ 2057
Courtesy Reading Light
................................. 168
FogLight .............................................. 886
Glove Compartment Light ............................... 194
Headlights Composite -Inner High Beam
................................ 9005 HB3
-Outer
Low Beam ................................ 9006 HB4
-ExportBulb........................................... H4
Illumination Entry
Lock Lamp ............................ 192
Instrument Panel Illumination
............................ 194
Instrument
Panel Telltales ................................ 194
Cornering Light
................................... 1156
DC7
333

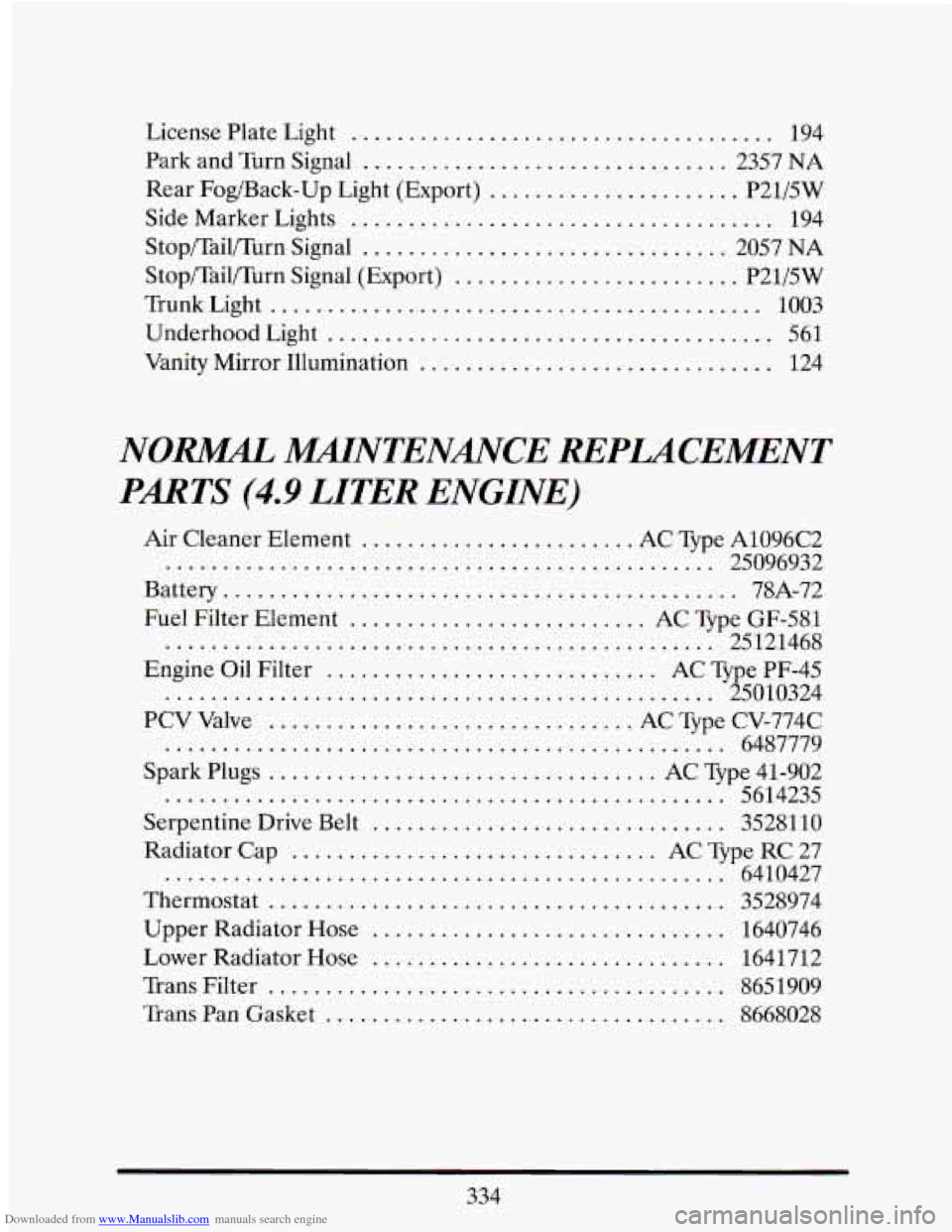

Downloaded from www.Manualslib.com manuals search engine License Plate Light ..................................... 194
Park and Turn Signal
................................ 2357 NA
Rear Fog/Back-Up Light (Export)
...................... P21/5W
Side Marker Lights
..................................... 194
Stop/Tail/Turn Signal
................................ 2057 NA
Stop/Tail/Turn Signal (Export)
......................... P21/5 W
Trunk Light ........................................... 1003
Vanity Mirror Illumination
............................... 124
Underhood
Light
....................................... 561
NOR2MAL MUNTENmCE REPLACEMENT
PMTS
(4.9 LITER ENGINE)
Air Cleaner Element ........................ AC Type A1096C2
................................................ 25096932
Battery
............................................. 78A-72
Fuel Filter Element
.......................... AC Type GF-581
................................................ 25121468
Engine Oil Filter
............................. AC Type PF-45
................................................ 25010324
PCV Valve
................................ AC Type CV-774C
................................................. 6487779
Spark Plugs
.................................. AC Type 41-902
................................................. 5614235
Serpentine Drive Belt
............................... 3528110
Radiator Cap
................................ AC Type RC 27
................................................. 6410427
Thermostat
........................................ 3528974
Upper Radiator Hose
............................... 1640746
Lower Radiator Hose
............................... 1641712
TransFilter
........................................ 865 1909
TransPanGasket
................................... 8668028
334

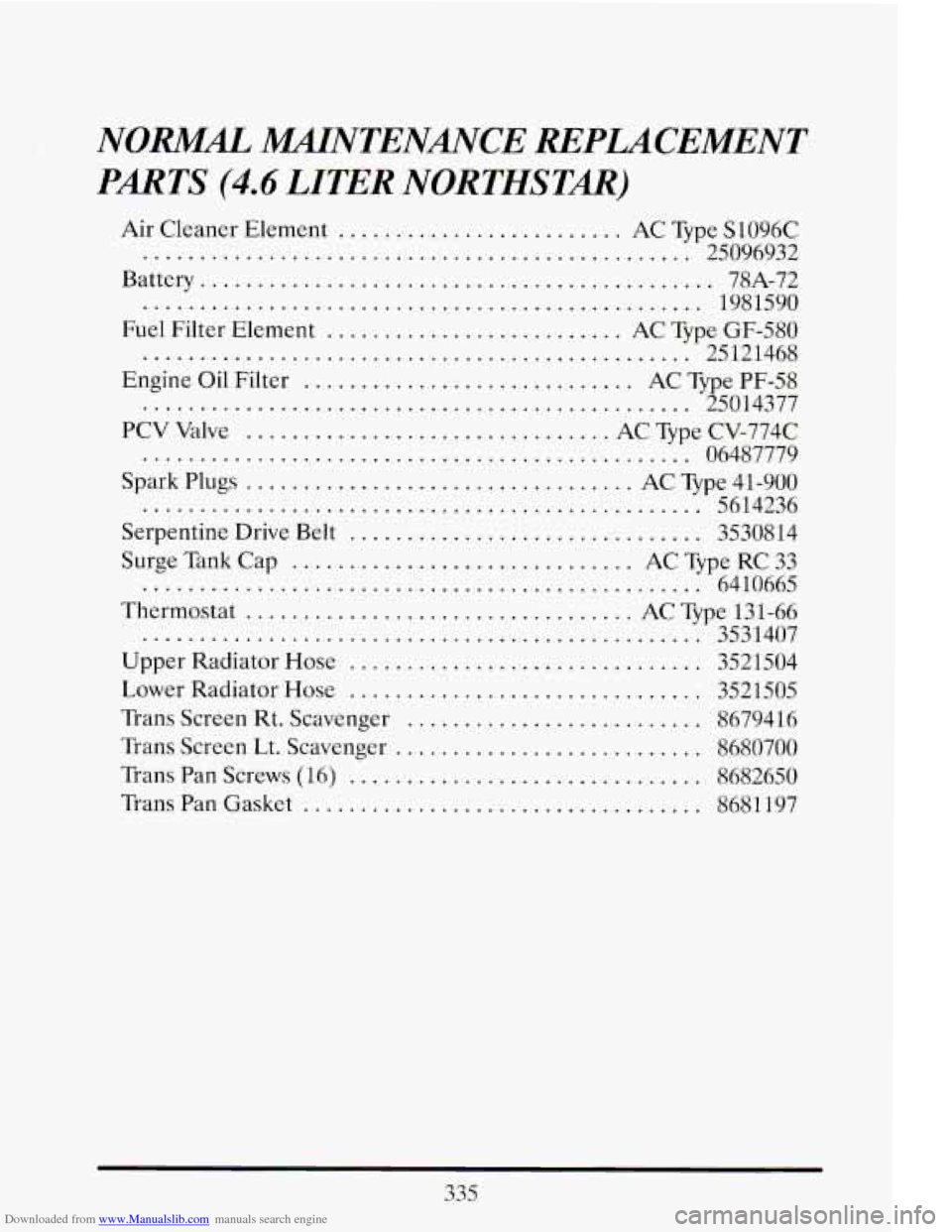

Downloaded from www.Manualslib.com manuals search engine NORMAL 2MAINTENANCE REPLACEMENT
PARTS
(4.6 LITER NORTHSTAR)
Air Cleaner Element ......................... AC Type Sl096C
................................................ 25096932
Battery
............................................. 78A-72
................................................. 1981590
Fuel Filter Element .......................... AC Type GF-580
................................................ 25121468
Engine Oil Filter
............................. AC Type PF-58
................................................ 25014377
PCV Valve ................................. AC Type CV-774C
................................................ 06487779
Spark Plugs
.................................. AC Type 41-900
Serpentine Drive
Belt ............................... 3530814
Surge Tank Cap
.............................. AC Type RC 33
................................................. 6410665
Thermostat
.................................. AC Type 131-66
................................................. 3531407
Upper Radiator Hose
............................... 3521504
Lower Radiator
Hose ............................... 3521505
Trans Screen Rt
. Scavenger .......................... 8679416
Trans Screen Lt
. Scavenger ........................... 8680700
Trans
Pan Screws (16) ............................... 8682650
TransPanGasket
................................... 8681197
................................................. 5614236
335

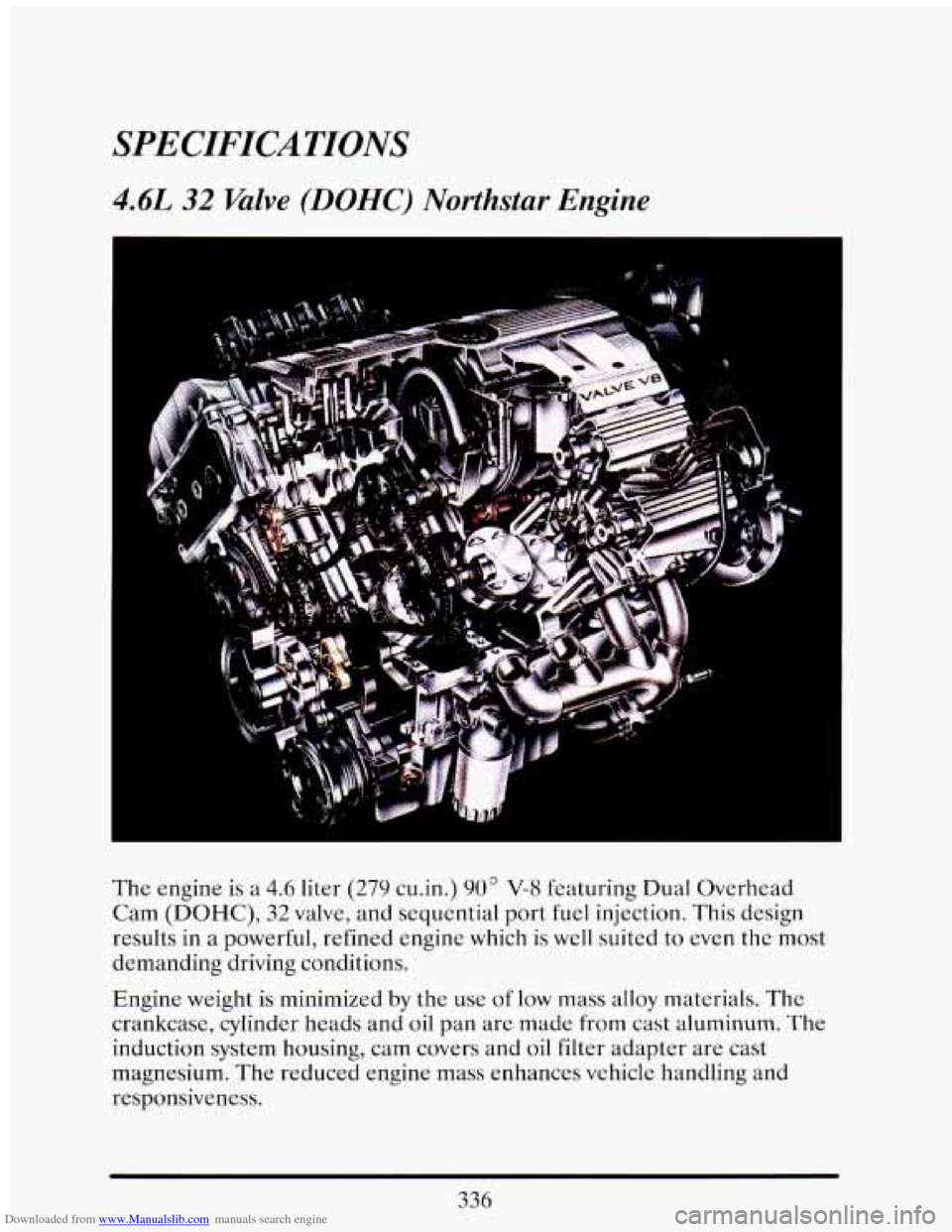

Downloaded from www.Manualslib.com manuals search engine SPECIFICATIONS
4.6L 32 Valve (DOHC) Northstar Engine
The engine is a 4.6 liter (27Y cu.in.) 903 V-8 featuring Dual Overhead
Cam (DOHC), 32 valve, and sequential port fuel injection. This design
results in
a powerful, refined engine which is well suited to even the most
demanding driving conditions.
Engine weight is minimized by the use
of low mass alloy materials. The
crankcase, cylinder heads and oil pan are made from cast aluminum. The
induction system housing, cam covers
and oil filter adapter are cast
magnesium. The reduced engine mass enhances vehicle handling and
responsiveness.
336
