CADILLAC ELDORADO 1994 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine P
h .4
r

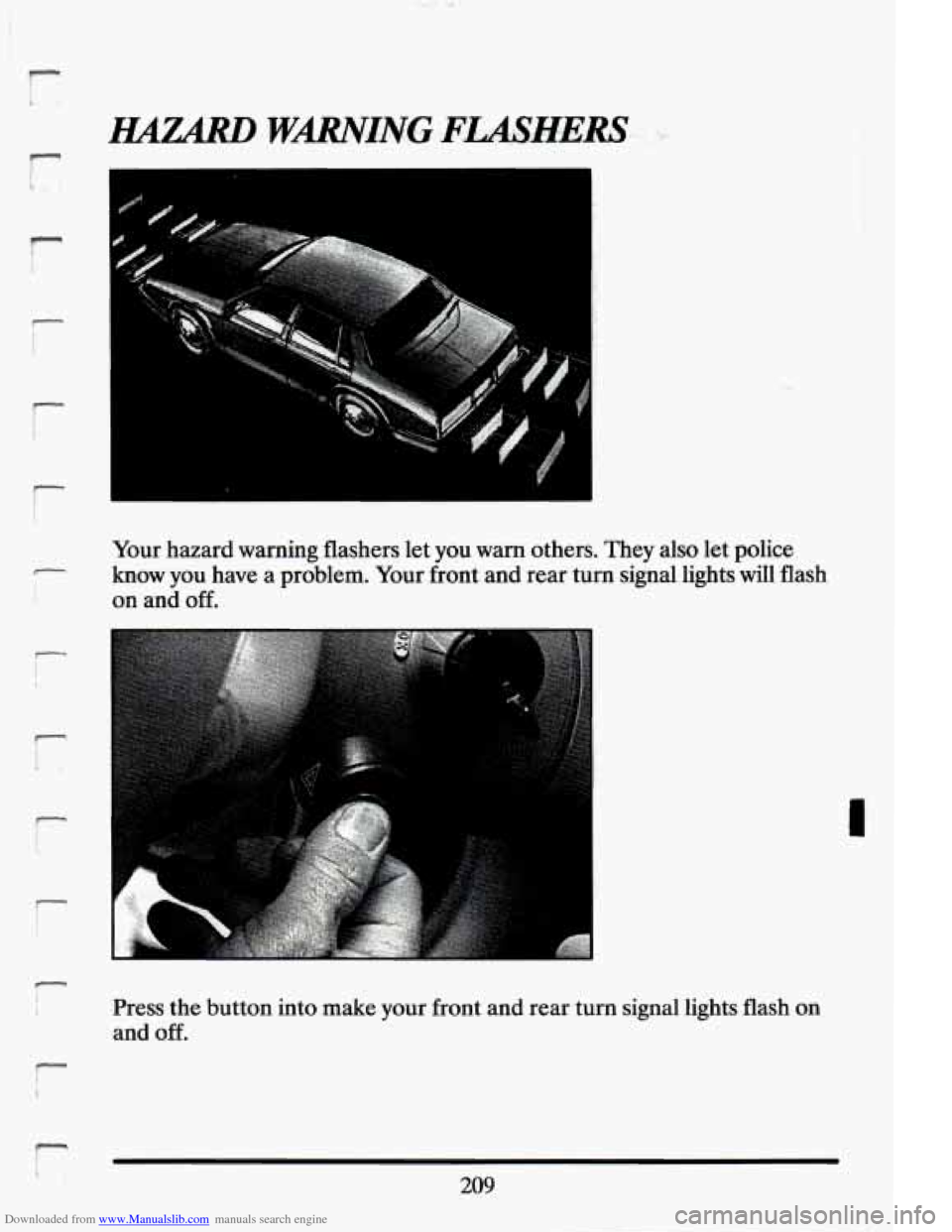

Your hazard warning flashers let you warn others. They also let police
know you have a problem. Your front and rear turn signal lights will f\
lash
on and off.
t T
Press the button into make your front and rear turn signal lights flash on
and
off.
209

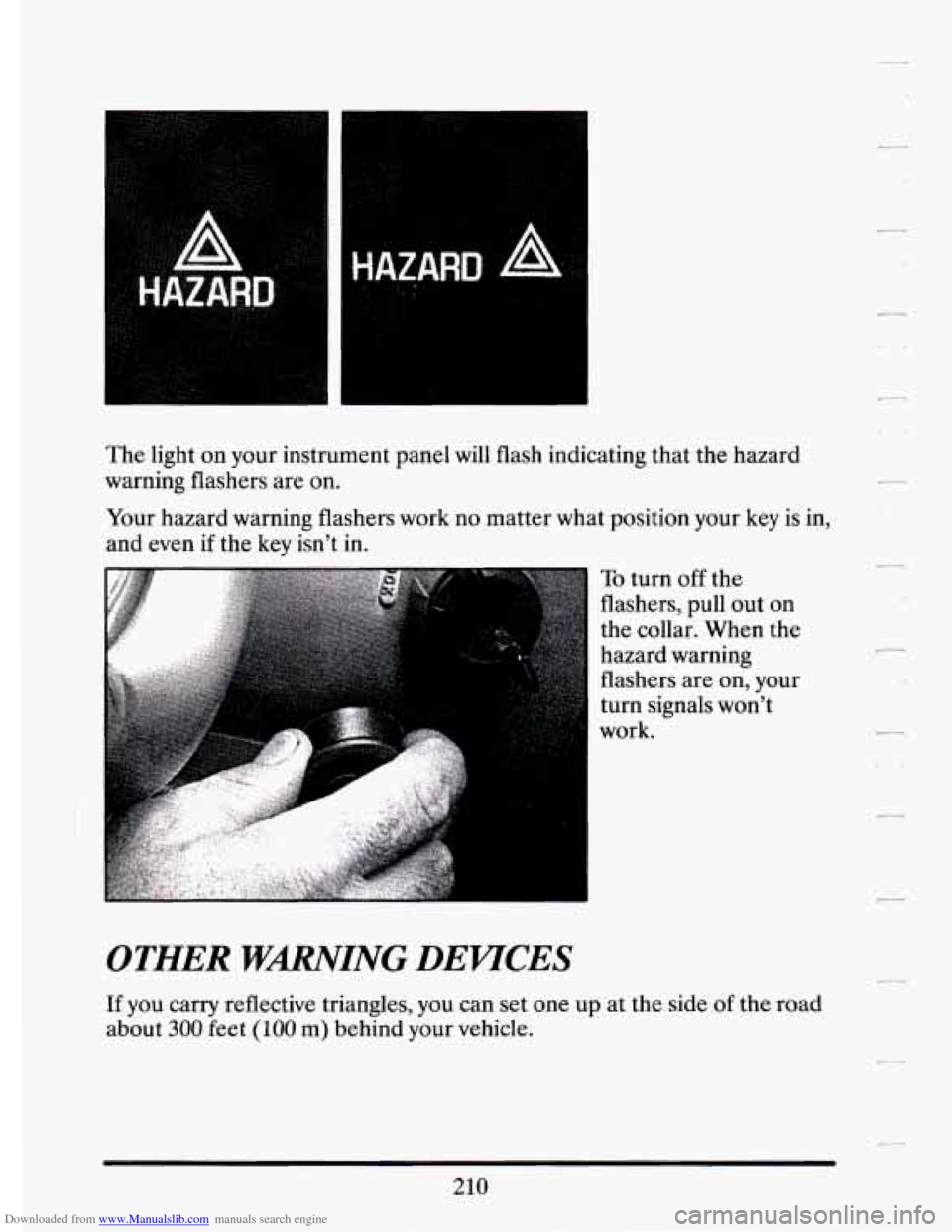

Downloaded from www.Manualslib.com manuals search engine The light on your instrument panel will flash indicating that the hazard
warning flashers
are on.
Your hazard warning flashers work no matter what position your
key is in,
and even
if the key isn’t in.
OTHER WMING DEWCES
To turn off the
flashers, pull out on
the collar. When the
hazard warning
flashers
are on, your
turn signals won’t
work.
If you carry reflective triangles, you can set one up at the side of the road
about 300 feet (100 m) behind your vehicle.
210

Downloaded from www.Manualslib.com manuals search engine F
r- !.
f
f-
n I 1
f- i

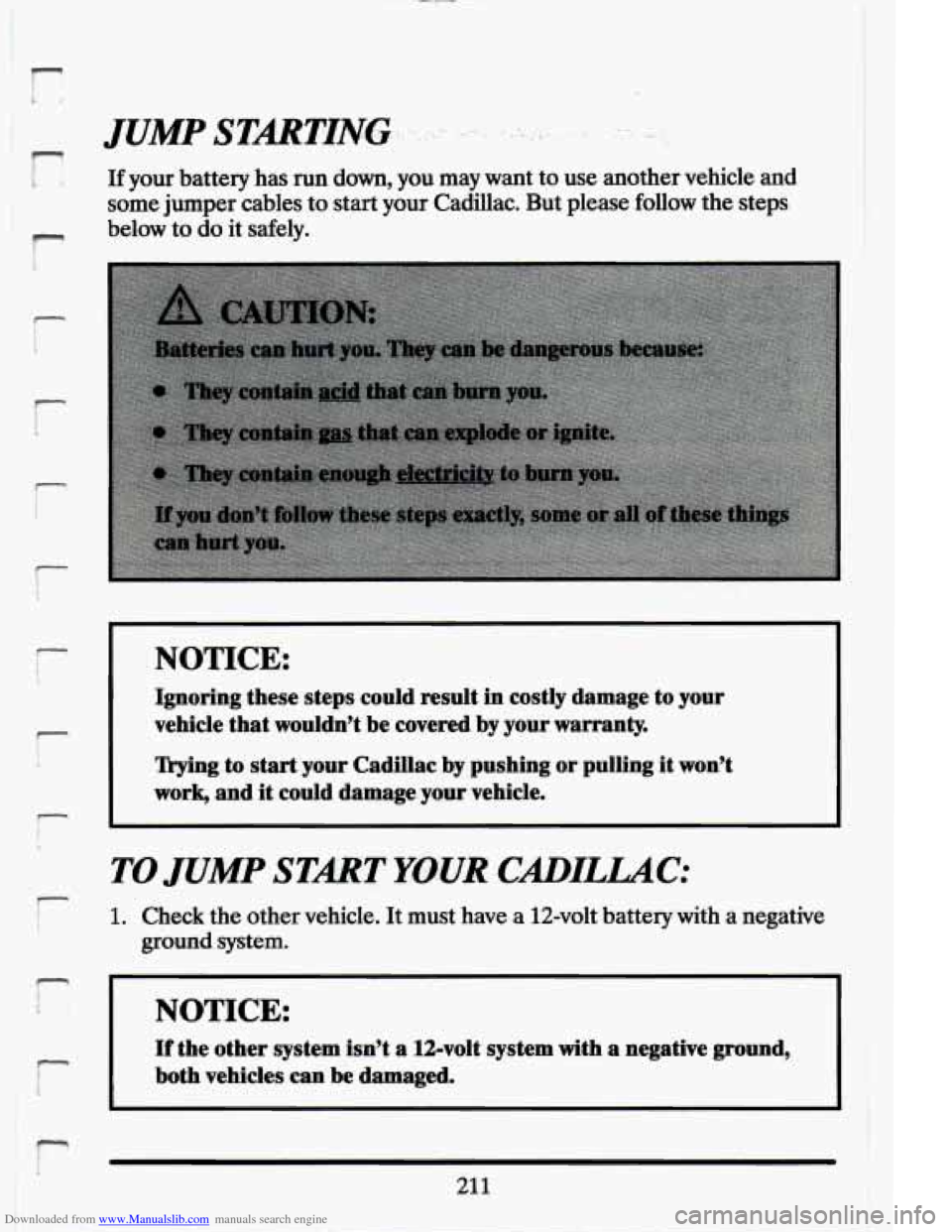

If your battery has run down, you may want to use another vehicle and
some jumper cables to start your Cadillac. But please follow the steps
below to do it safely.
NOTICE:
Ignoring these steps could result in costly damage to your
vehicle that wouldn’t be covered by
your warranty.
nying to start your Cadillac
by pushing or pulling it won’t
work, and it could damage your vehicle.
TO JUMP START YOUR CADILLAC:
1. Check the other vehicle. It must have a 12-volt battery with a negative
ground system.
NOTICE:
I
If the other system isn’t a 12-volt system with a negative ground,
both vehicles can be damaged.
I
211

Downloaded from www.Manualslib.com manuals search engine 2. Get the vehicles close enough so the jumper cables can reach, but be
sure the vehicles aren’t touching each other.
If they are, it could cause
a ground connection you don’t want. You wouldn’t be able to start
your Cadillac, and the bad grounding could damage the electrical
systems.
3. Turn off the ignition on both vehicles. Turn off all lights that aren’t
needed, and radios. This will avoid sparks and help save both
batteries. And
it could save your radio!
I NOTICE:
I
If you leave your radio on, it could be badly damaged. The
repairs wouldn’t be covered by your warranty.
4. Open the hoods and locate the batteries.
Find the positive
(+) and negative (-) terminals on each battery.
212

Downloaded from www.Manualslib.com manuals search engine r
f-
r
r
.I
I h.

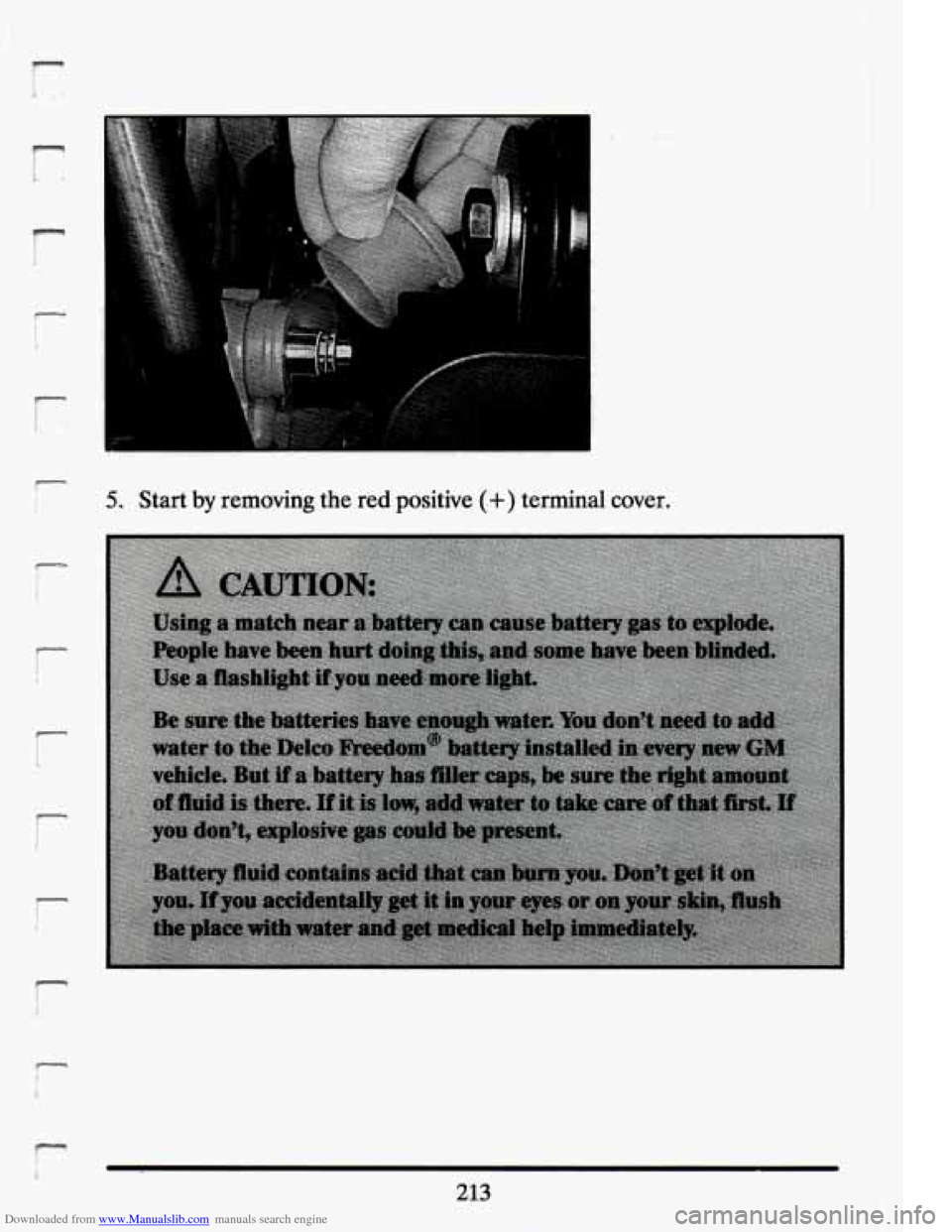

5. Start by removing the red positive (+) terminal cover.
I
2.13

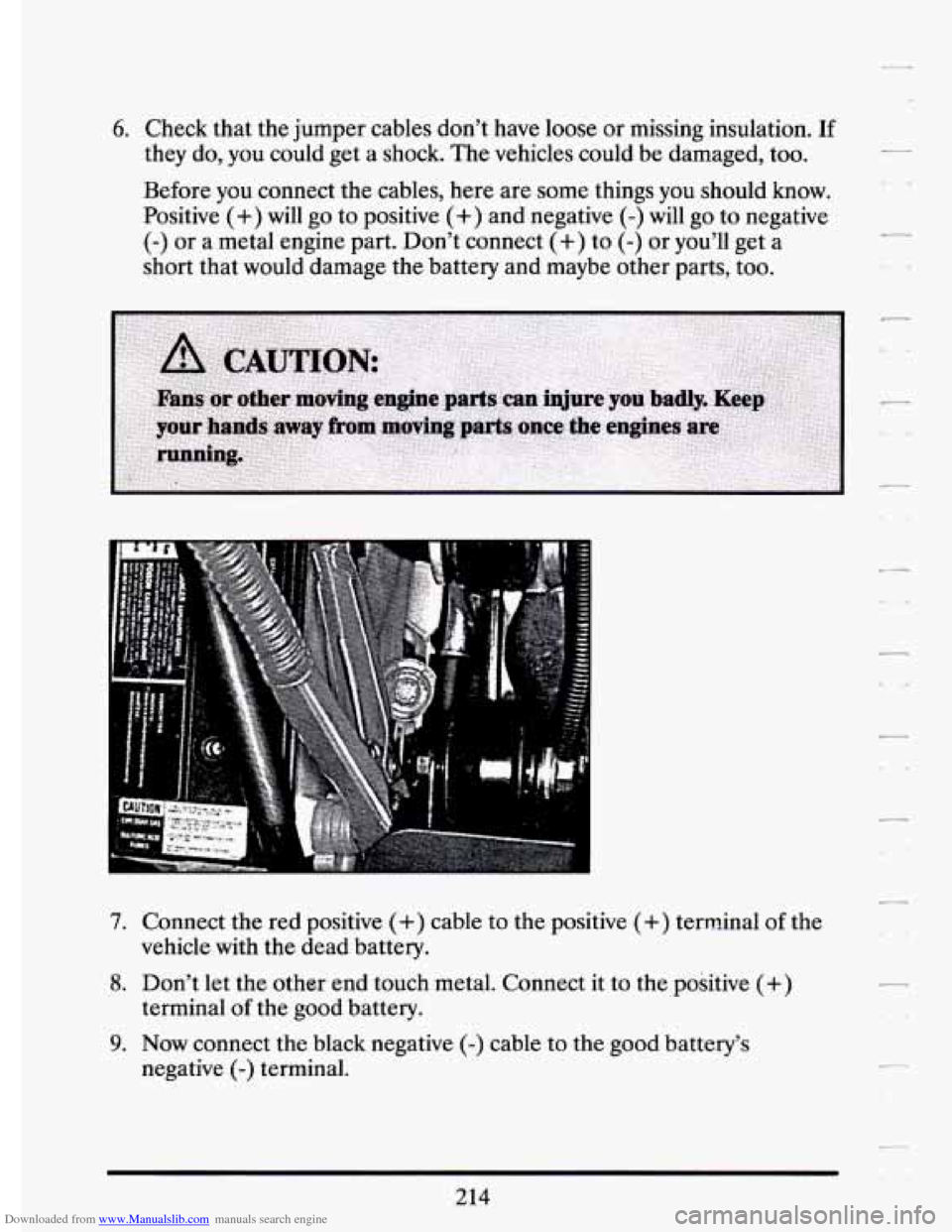

Downloaded from www.Manualslib.com manuals search engine 6. Check that the jumper cables don’t have loose or missing insulation. If
they do, you could get a shock. The vehicles could be damaged, too.
Before you connect the cables, here are some things you should know.
Positive
(+) will go to positive (+) and negative (-) will go to negative
(-) or a metal engine part. Don’t connect (+) to (-) or you’ll get a
short that would damage the battery and maybe other parts, too.
-
C.
7. Connect the red positive (+) cable to the positive (+) terminal of the
8. Don’t let the other end touch metal. Connect it to the positive (+)
vehicle with the dead battery.
terminal
of the good battery.
9. Now connect the black negative (-) cable to the good battery’s
negative
(-) terminal.
214

Downloaded from www.Manualslib.com manuals search engine r
r.
r
r
r I. _I
r.
r

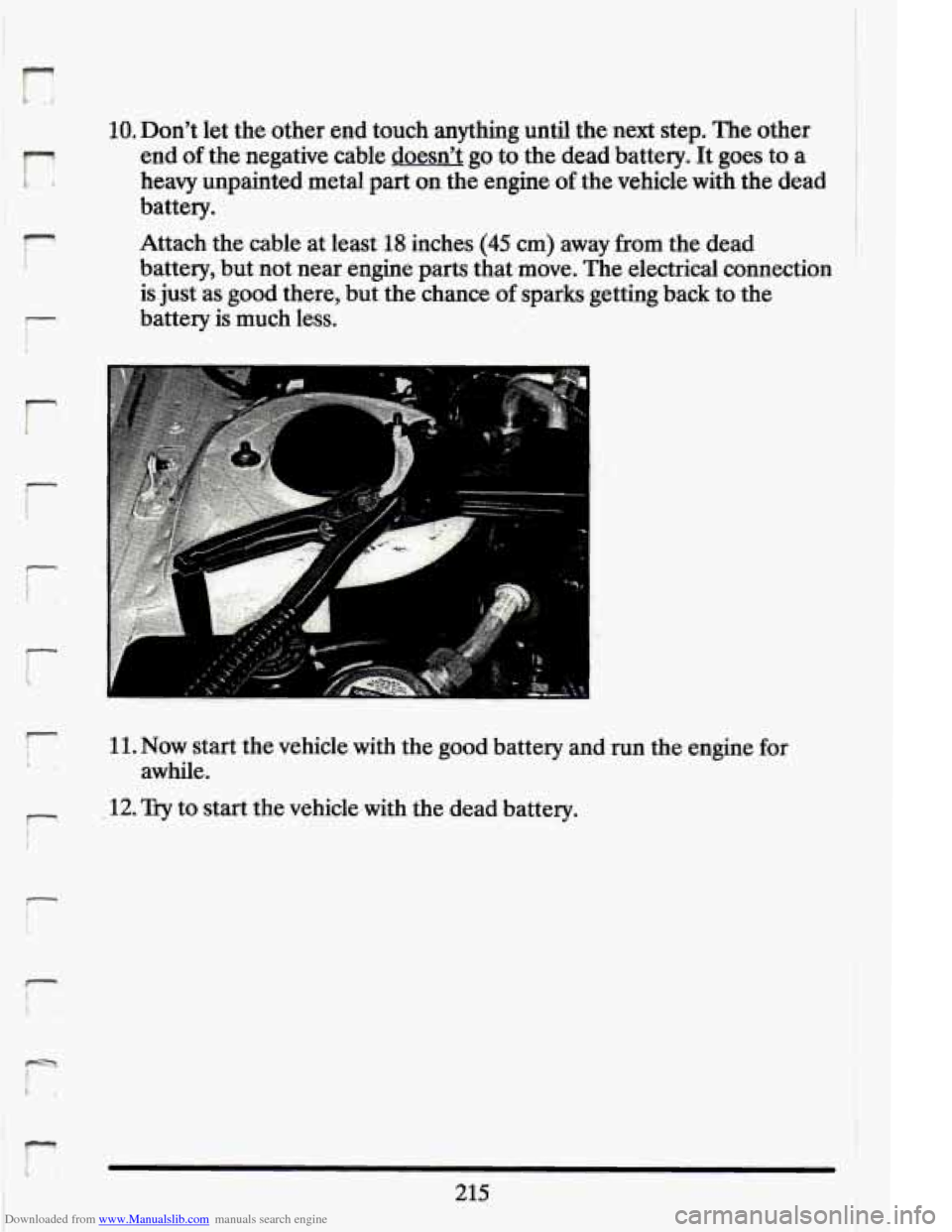

10. Don’t let the other .end touch anything until the next step. The other
end
of thenegative, cable doesn’t go to the .dead.battery. It goes to a
heavy unpainted metalpart on the engine
of .the vehicle with the dead
battery.
Attach the cable at least
18 inches (45 cm) away from the dead
battery, but not near engine.parts that-move. The electrical connection
isjust -as good there,-but the chance
of sparks getting back to the
battery is much less.
11. Now start the vehicle with the good battery and run the engine for
.12. Try to start the vehicle with the dead battery.
awhile.

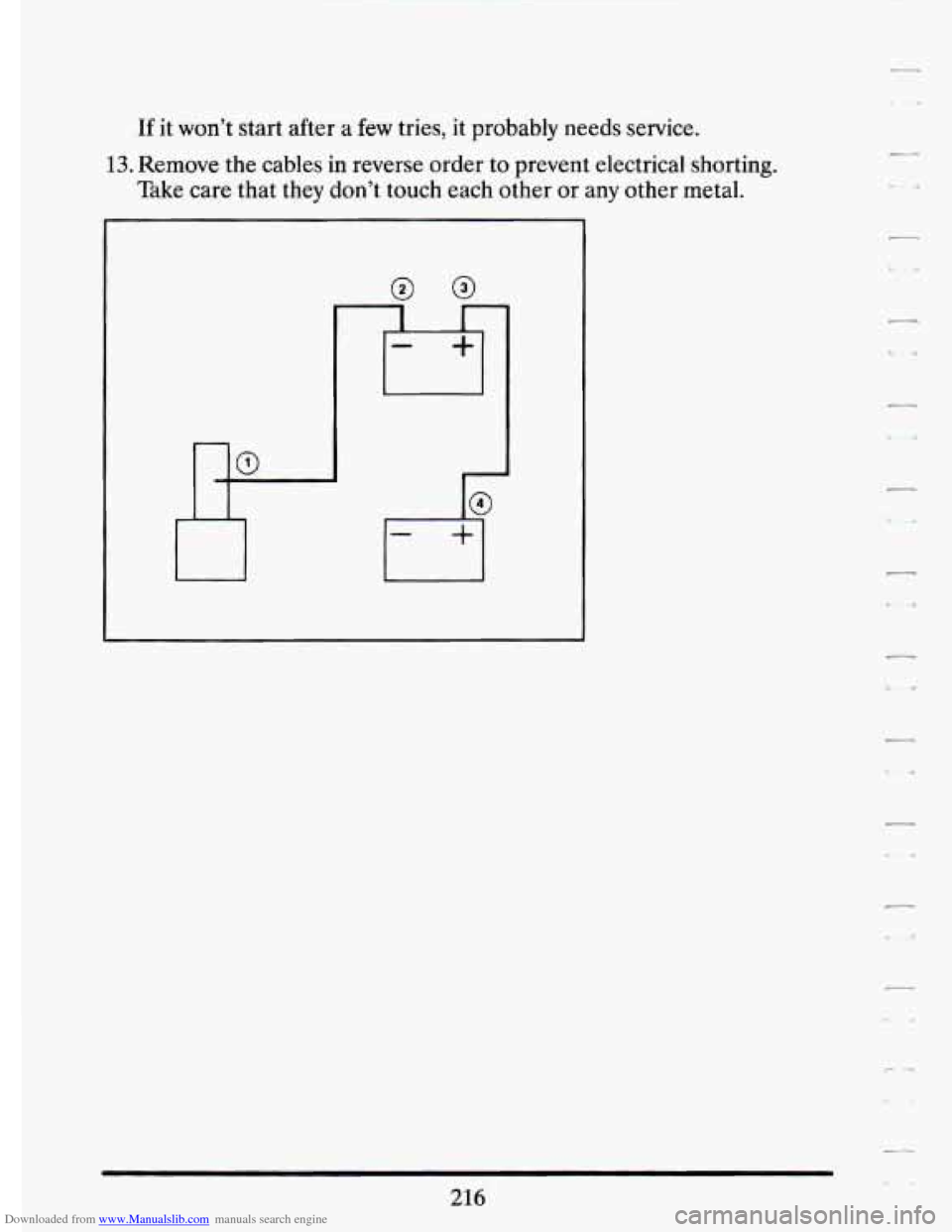

Downloaded from www.Manualslib.com manuals search engine If it won’t start after a few tries, it probably needs service.
13. Remove the cables in reverse order to prevent electrical shorting.
Take care that they don’t touch each other
or any other metal.
216
-.
c_
L

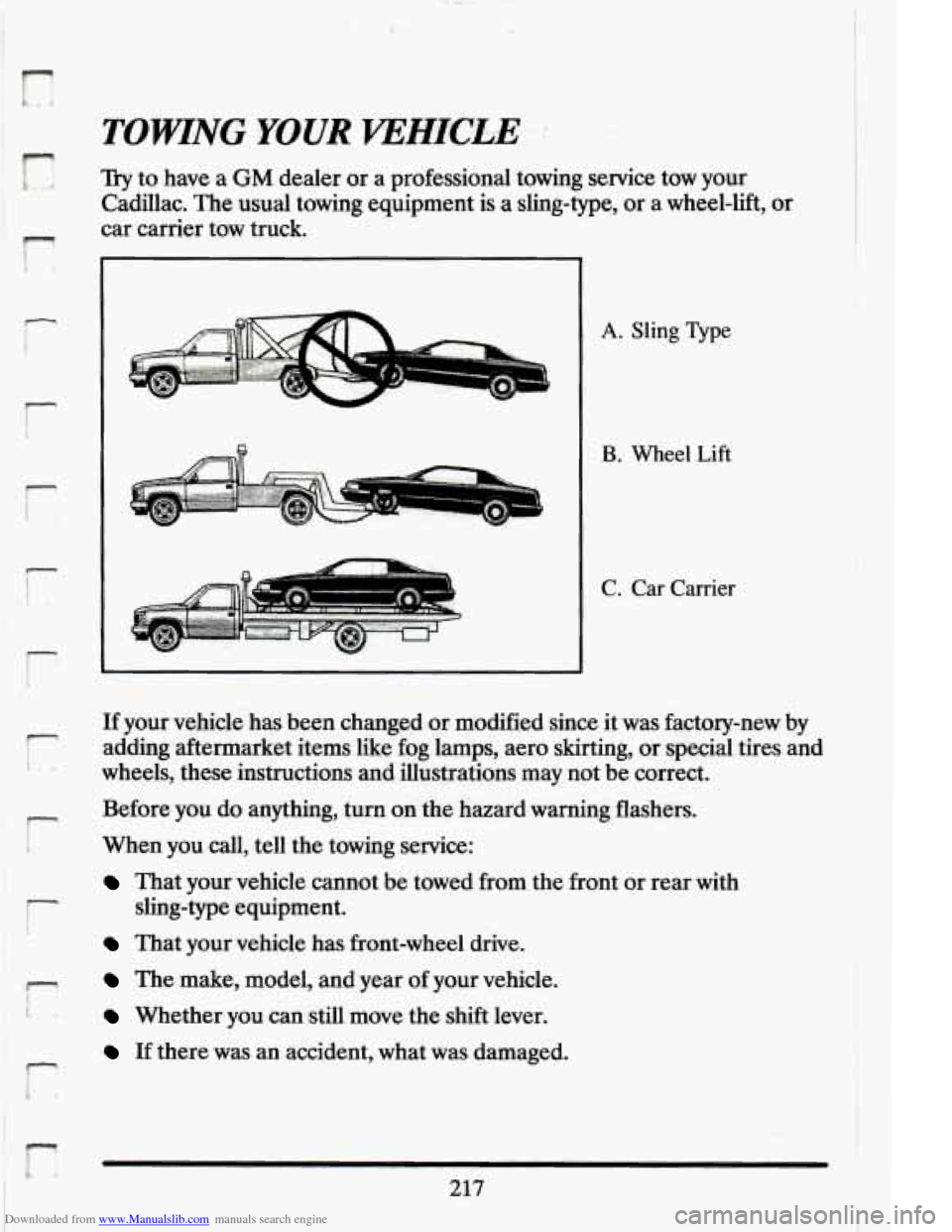

Downloaded from www.Manualslib.com manuals search engine TOWING YOUR VEHICLE
r, Try to have a GM dealer or a professional towing service tow your
Cadillac. The usual towing equipment is a sling-type, or a wheel-lift, or
car carrier tow truck.
r
r
V
I n
t
ir
I 'r:
F-
i
17
r
A. Sling Type
B. Wheel Lift
C. Car Carrier
If your vehicle has been changed or modified since it was factory-new by
adding aftermarket items like fog lamps, aero skirting, or special tires and
wheels, these instructions and illustrations may not be correct.
Before you do anything, turn on the hazard warning flashers.
When you call, tell the towing service:
That your vehicle cannot be towed from the front or rear with
That your vehicle has front-wheel drive.
The make, model, and year of your vehicle.
Whether you can still move the shift lever.
If there was an accident, what was damaged.
sling-type
equipment.
217

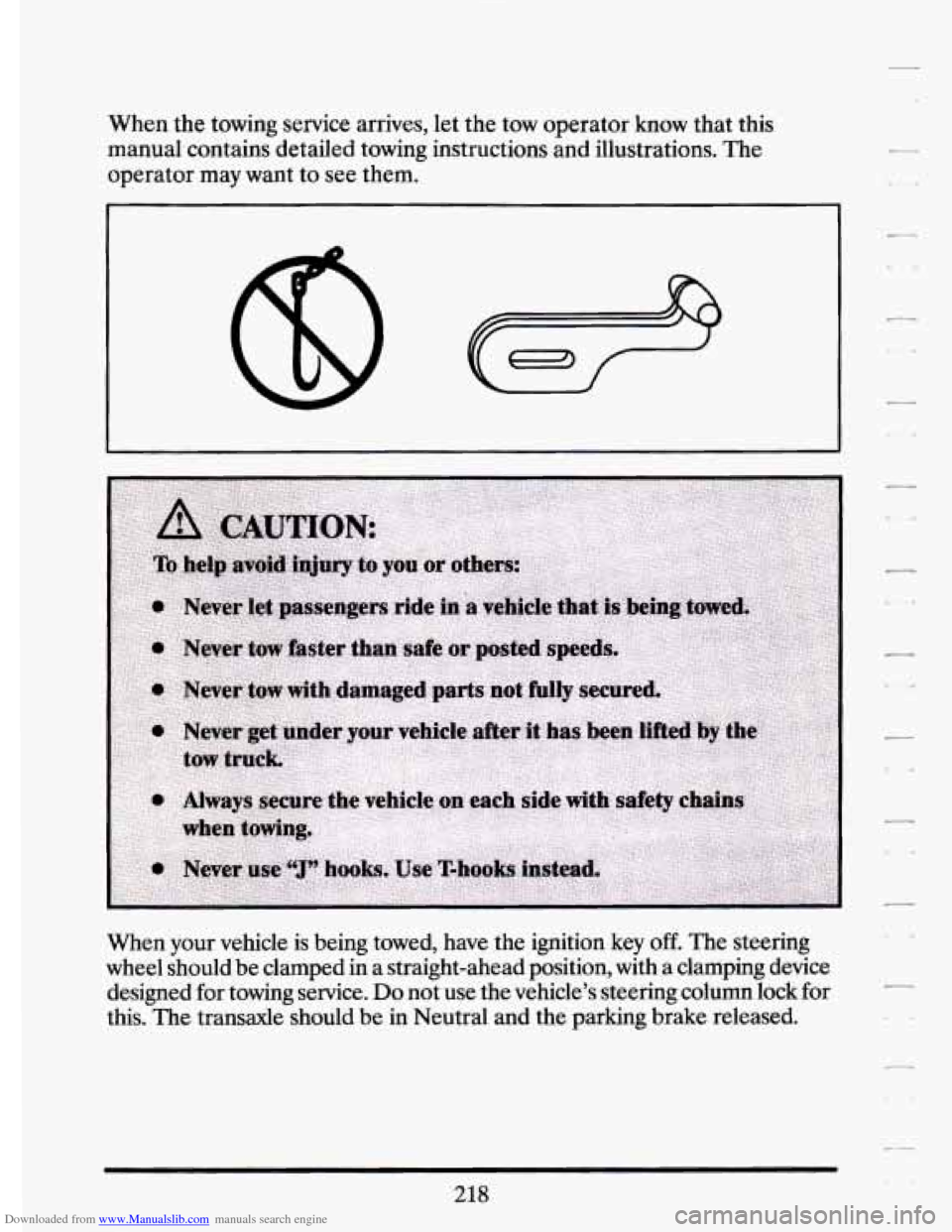

Downloaded from www.Manualslib.com manuals search engine When the towing service arrives, let the tow operator know that this
manual-contains detailed towing instructions and illustrations. The
operator may want to see them.
When your vehicle
is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with
a clamping device
designed for towing service.
Do not use the vehicle’s steering column lock for
this. The transaxle should be in Neutral and the parking brake relea\
sed.
