Downloaded from www.Manualslib.com manuals search engine When to Add Oil
If the oil is at or below the ADD line, then you’ll need to add some oil.
But you must use the right kind. This part explains what kind of oil to use.
For crankcase capacity, see “Capacities and Specifications” in the Index.
NOTICE:
Don’t add too much oil. If your engine has so much oil that the
oil level gets above the upper mark that shows the proper
operating range, your engine could be damaged.
To remove, turn the
oil fill cap
counterclockwise.
Just
fill it enough to put the level somewhere in the propcr operating
rangc. Push
the dipstick all the way back in when you’re through.
6-12

Downloaded from www.Manualslib.com manuals search engine

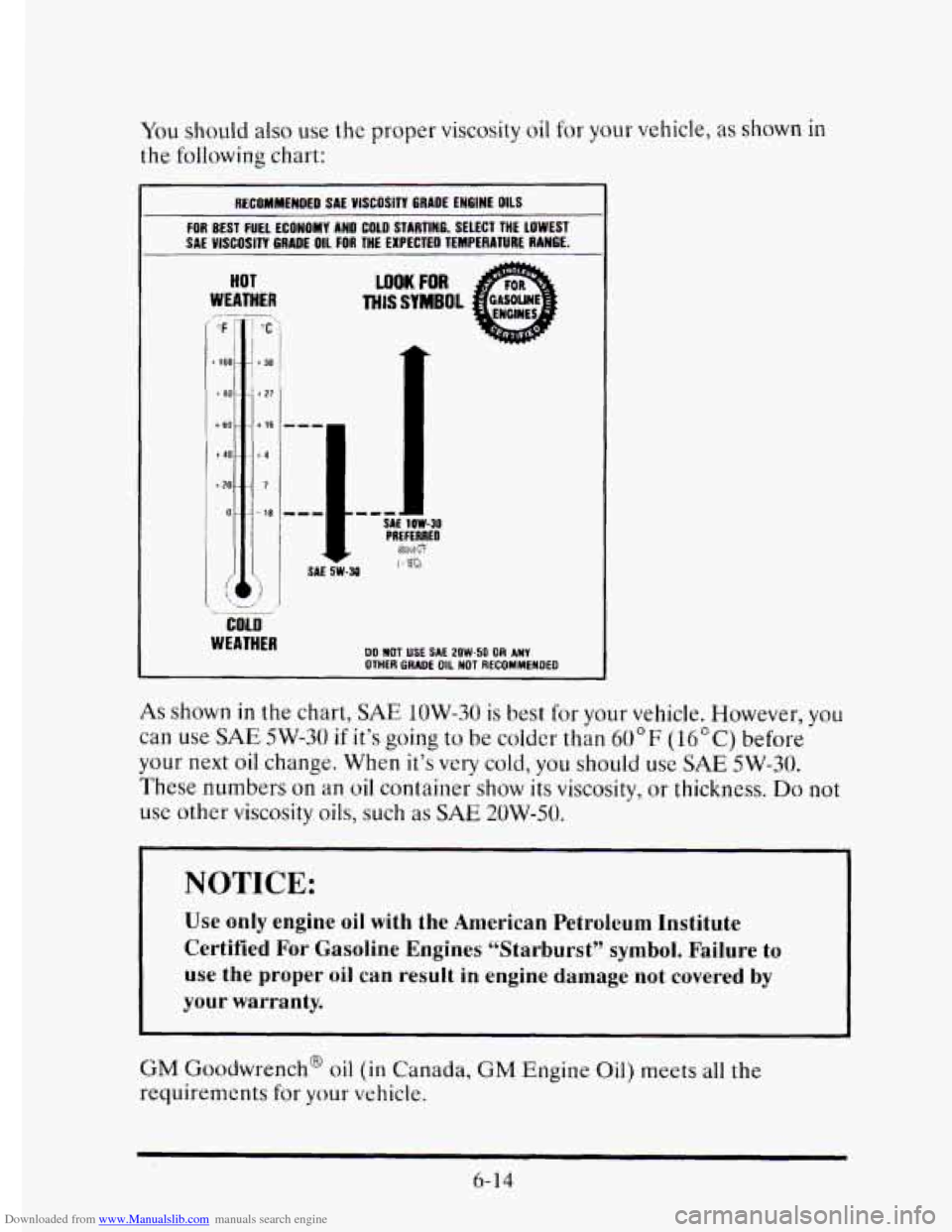

Downloaded from www.Manualslib.com manuals search engine You should also use the proper viscosity oil for your vehicle, as shown in
the following chart:
I RECOMMENDED SAE YISCOSITY GRADE ENGINE OILS I
SAE VISCOSITV GRADE OIL FOR IHE EXPECTED TEMPERAlURE
RANGE. 1
FOR BEST FUEL ECONOMY AND COLD STARTING. SELECT THE LOWEST
DO NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDEO
As shown in the chart, SAE 1OW-30 is best
for your vehicle. However, you
can use
SAE SW-30 if it's going to be colder than 60°F (16OC) before
your next
oil change. When it's very cold, you should use SAE SW-30.
These numbers on an oil container show its viscosity, or thickness. Do not
use other viscosity oils, such as SM 20W-SO.
~~~~~~ ~ ~~~~ ~~ ~ ~ ~~~
~
NOTICE:
Use only engine oil with the American Petroleum Institute
Certified For Gasoline Engines "Starburst"
symbol. Failure to
use the proper oil can result in engine damage not covered by
your warranty.
6-14
GM Goodwrench@ oil (in Canada, GM Engine Oil) meets all the
requirements
for your vehicle.

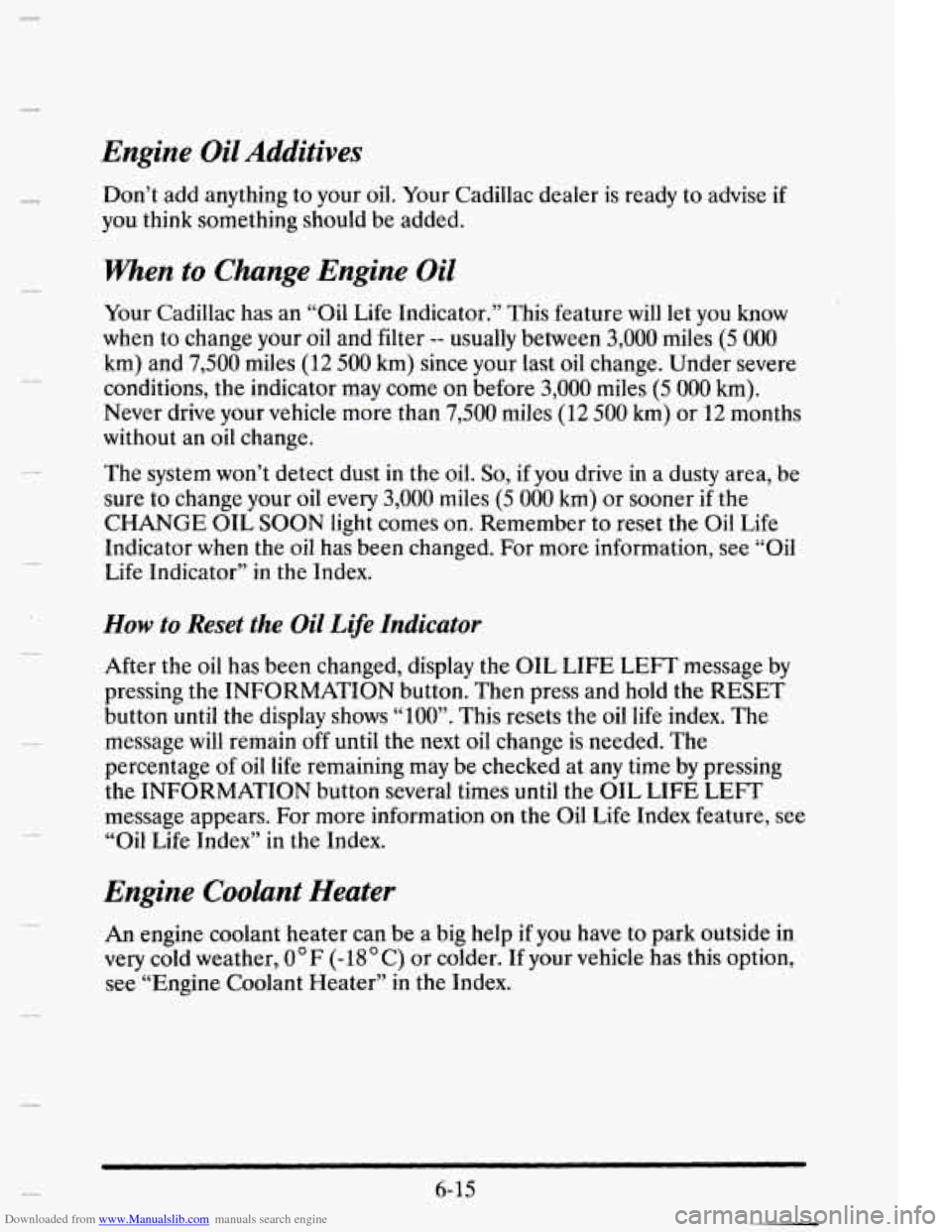

Downloaded from www.Manualslib.com manuals search engine Engine Oil Additives
c
Don’t add anything to your oil. Your Cadillac dealer is ready to advise if
you think something should be added.
When to Change Engine Oil
Your Cadillac has an “Oil Life Indicator.” This feature will let you know
when to change your oil and filter
-- usually between 3,000 miles (5 000
km) and 7,500 miles (12 500 km) since your last oil change. Under severe
conditions, the indicator may come
on before 3,000 miles (5 000 km).
Never drive your vehicle more
than 7,500 miles (12 500 km) or 12 months
without an oil change.
The system won’t detect dust in the oil.
So, if you drive in a dusty area, be
sure to change your oil every
3,000 miles (5 000 km) or sooner if the
CHANGE OIL
SOON light comes on. Remember to reset the Oil Life
Indicator when the
oil has been changed. For more information, see “Oil
Life Indicator” in the Index.
How to Reset the Oil Life Indicator
After the oil has been changed, display the OIL LIFE LEFT message by
pressing the INFORMATION button. Then press and hold the
RESET
button until the display shows “loo”. This resets the oil life index. The
message will remain off until the next
oil change is needed. The
percentage
of oil life remaining may be checked at any time by pressing
the INFORMATION button several times until the OIL LIFE LEFT
message appears. For more information on the
Oil Life Index feature, see
“Oil Life Index” in the Index.
Engine Coolant Heater
An engine coolant heater can be a big help if you have to park outside in
very cold weather, 0°F (-18OC) or colder. If your vehicle has this option,
see “Engine Coolant Heater” in the Index.
6- 15

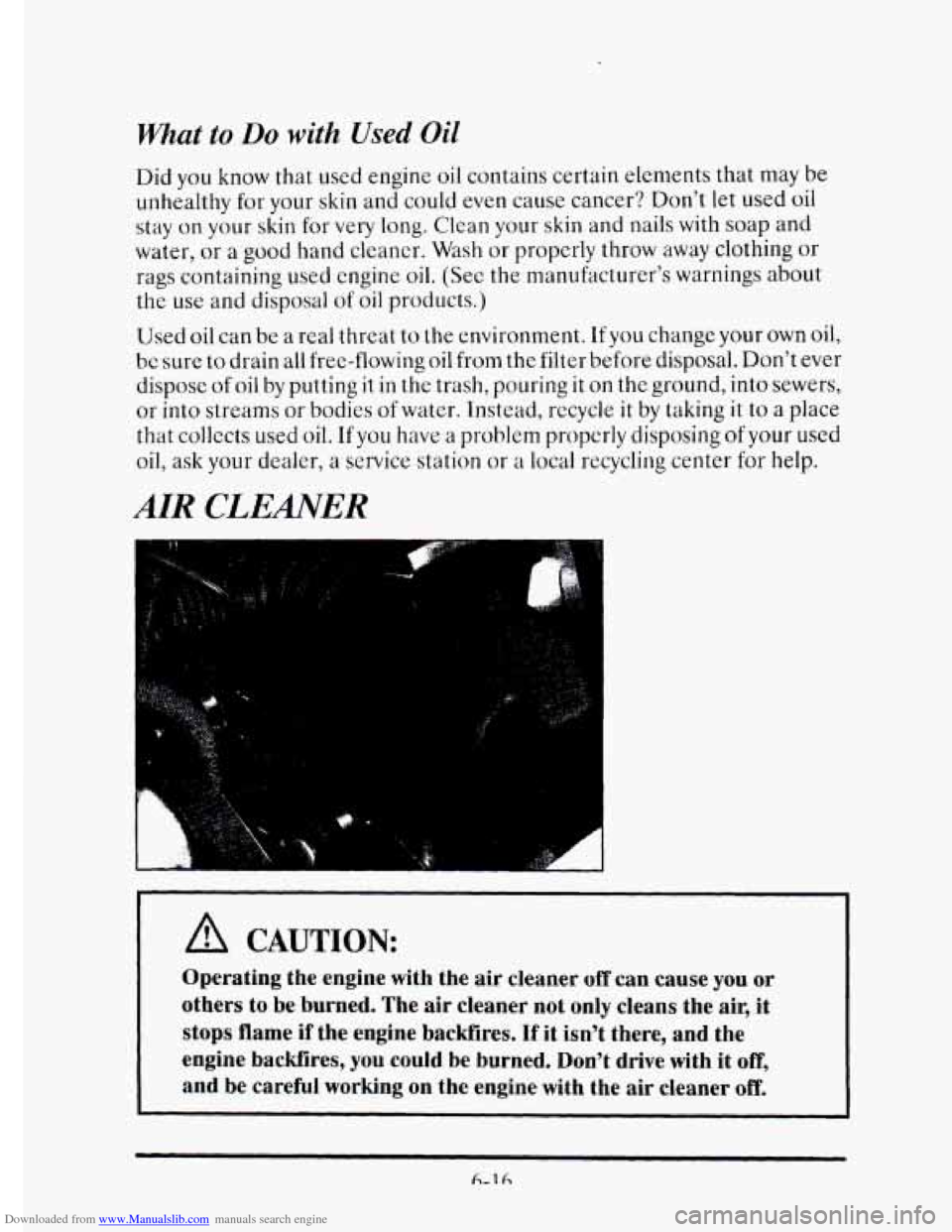

Downloaded from www.Manualslib.com manuals search engine What to Do with Used Oil
Did you know that used engine oil contains certain elements that may be
unhealthy for your
skin and could even cause cancer? Don't let used oil
stay
on your skin for very long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash
or properly throw away clothing or
rags containing used cngine
oil. (See the manufacturer's warnings about
the use and disposal of oil products.)
Used
oil can be a real threat to the environment. If you change your own oil,
be sure to drain all free-flowing oil from the filter before disposal. Don't ever
dispose
of oil by putting it in the trash, pouring it on the ground, into sewers,
or into streams or bodies
of water. Instead, recycle it by taking it to a place
that collects
used oil. If you have a problem properly disposing of your used
oil, ask your dealer, a service station or a local recycling center for help.
AIR CLEANER
11
A CAUTION:
Operating the engine with the air cleaner off can cause you or
others
to be burned. The air cleaner not only cleans the air, it
stops flame if the engine backfires. If it isn't there, and the
engine backfires, you could be burned. Don't drive with it off,
and be careful working on the engine with the air cleaner off.

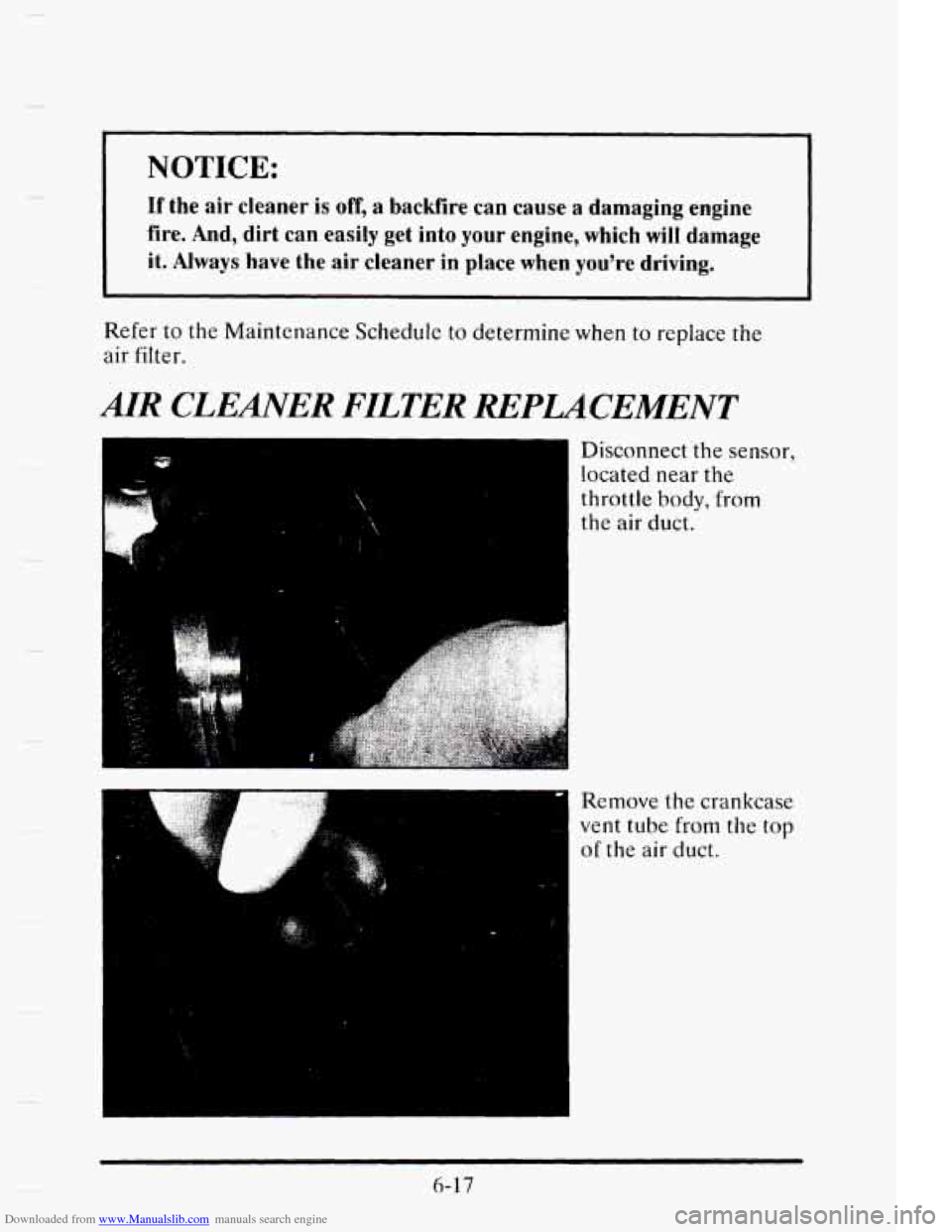

Downloaded from www.Manualslib.com manuals search engine NOTICE:
If the air cleaner is off, a backfire can cause a damaging engine
fire. And, dirt can easily get into your engine, which
will damage
it. Always have the air cleaner in place when you’re driving.
Refer to the Maintenance Schedule to determine when to replace the
air filter.
AIR CLEANER FILTER REPUCEMENT
I Disconnect the sensor,
located near the
throttle
body, from
the air duct. i
Remove the crankcase
vent tube from the top
of the air duct.
L ... I
1
6-17

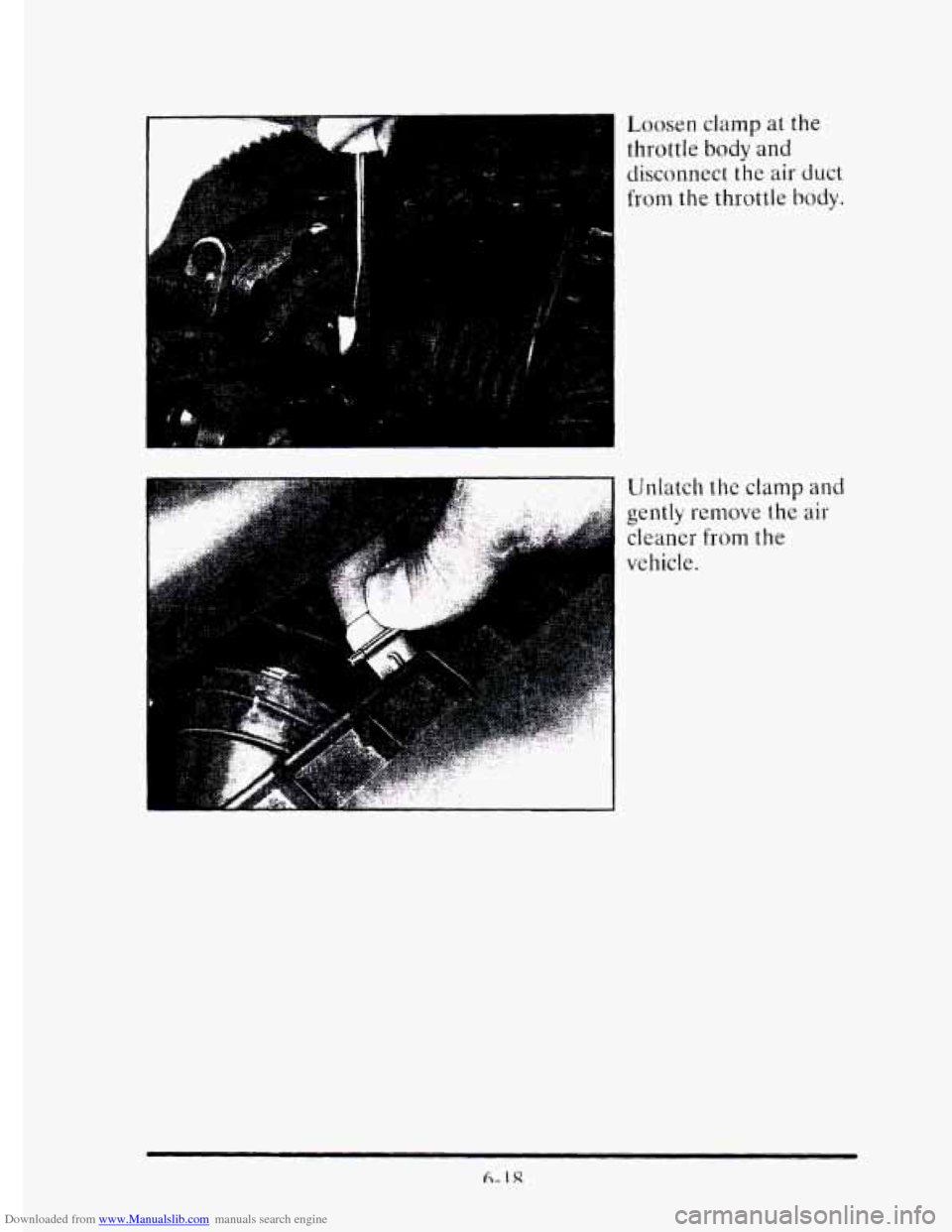

Downloaded from www.Manualslib.com manuals search engine Loosen clamp at the
throttle body
and
disconnect the air duct
from the throttle body.
Unlatch the clamp and
gently remove the
air
cleaner from the
vehicle.

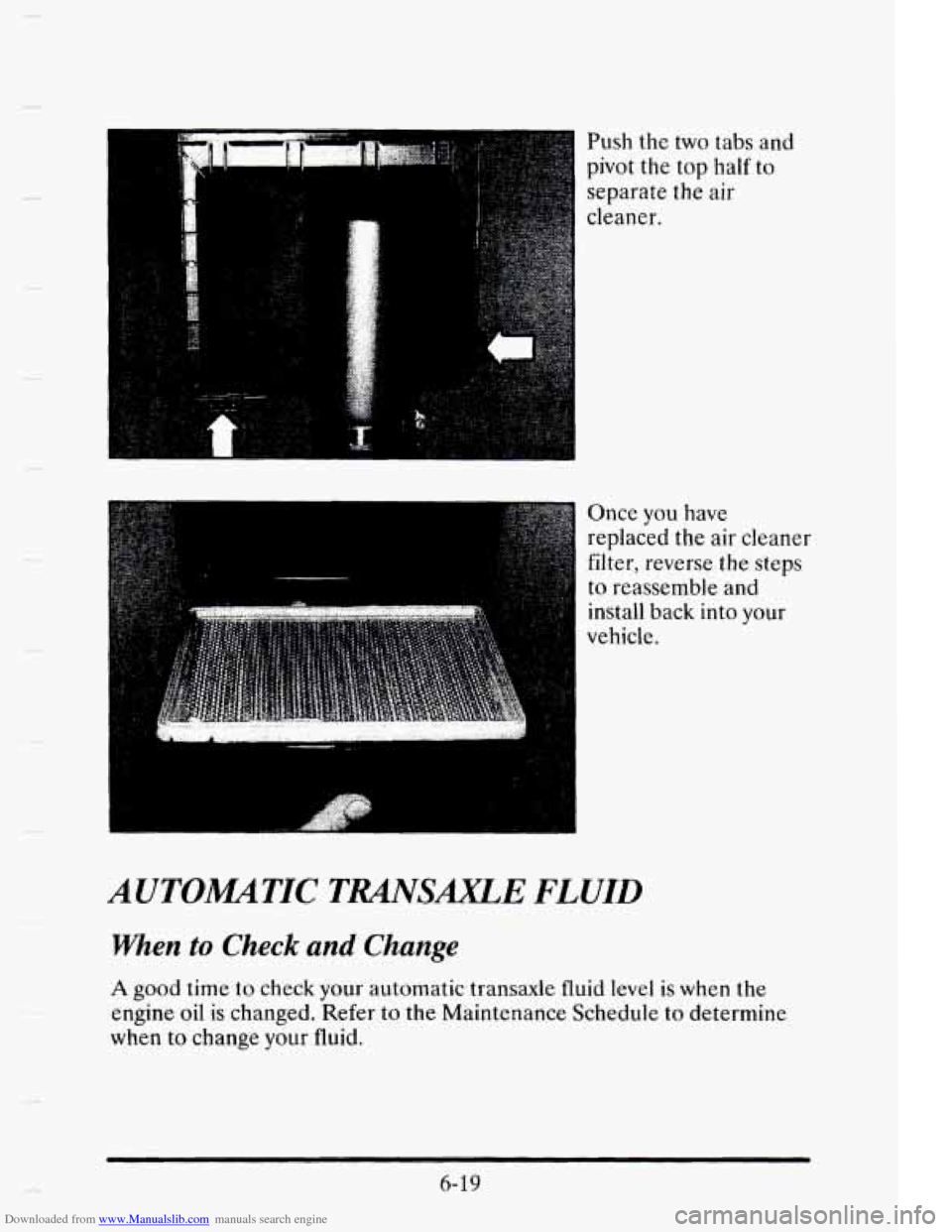

Downloaded from www.Manualslib.com manuals search engine Push the two tabs and
' pivot the top half to
~ separate the air
cleaner.
Once you have
replaced the air cleaner
filter, reverse the steps
to reassemble
and
install back into your
vehicle.
AUTOMTIC TMSAXLE FLUID
When to Check and Change
A good time to check your automatic transaxle fluid level is when the
engine oil
is changed. Refer to the Maintenance Schedule to determine
when to change your fluid.
6-19

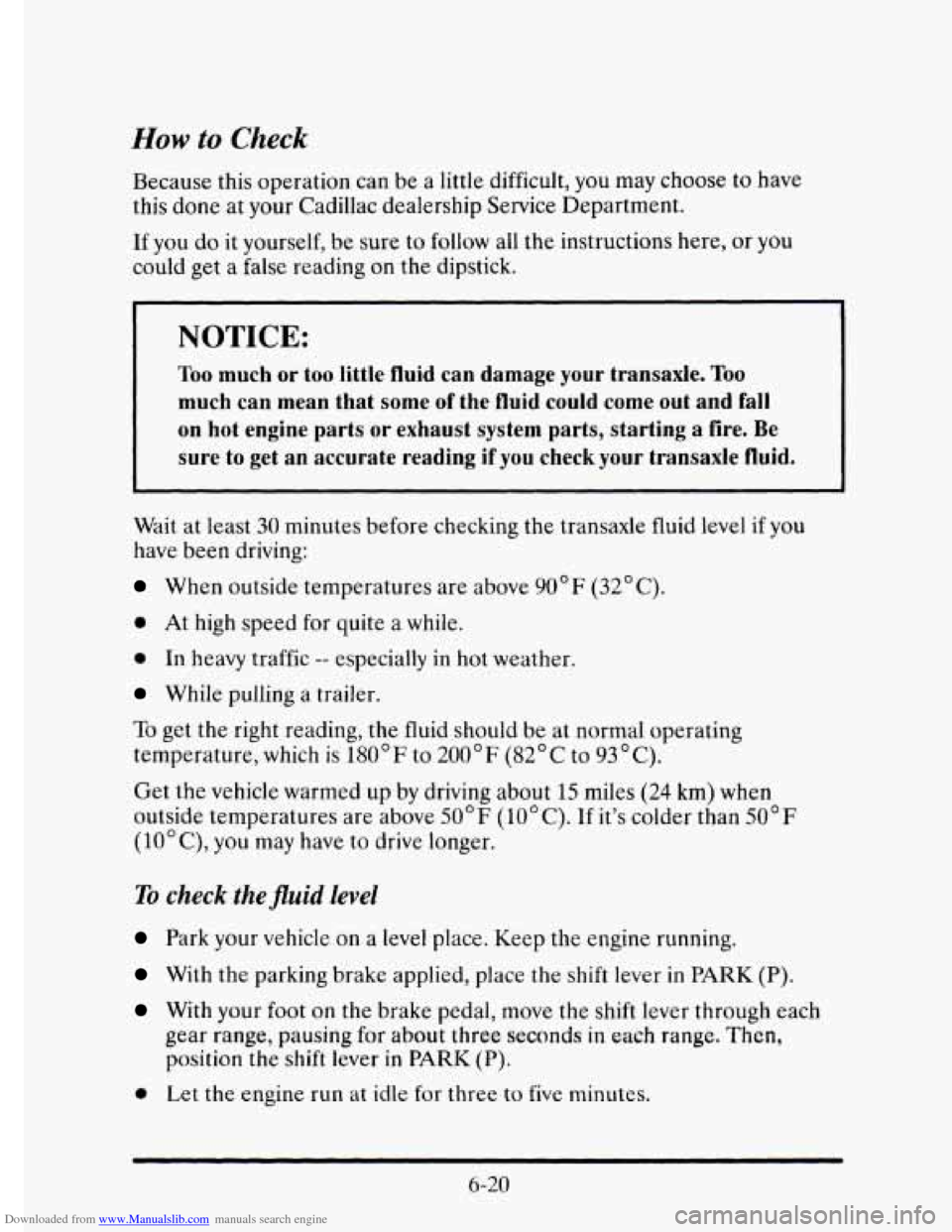

Downloaded from www.Manualslib.com manuals search engine How to Check
Because this operation can be a little difficult, you may choose to have
this done at your Cadillac dealership Service Department.
If you do it yourself, be sure to follow all the instructions here, or you
could get a false reading on the dipstick.
NOTICE:
Too much or too little fluid can damage your transaxle. Too
much can mean that some of the fluid could come out and fall
on hot engine parts or exhaust system parts, starting a fire. Be
sure to get an accurate reading if you check your transaxle fluid.
Wait at least 30 minutes before checking the transaxle fluid level if you
have been driving:
When outside temperatures are above 90°F (32'C).
0 At high speed for quite a while.
0 In heavy traffic -- especially in hot weather.
While pulling a trailer.
To get the right reading, the fluid should be at normal operating
temperature, which is
180°F to 200°F (82OC to 93°C).
Get the vehicle warmed up by driving about 15 miles (24 km) when
outside temperatures are above
50°F ( 10°C). If it's colder than 50°F
(lO"C), you may have to drive longer.
To check the fluid level
Park your vehicle on a level place. Keep the engine running.
With the parking brake applied, place the shift lever in PARK (P).
With your foot on the brake pedal, move the shift lever through each
gear range,
pausing €or about three seconds in each range. Then,
position the shift lever in PARK (P).
0 Let the engine run at idle for three to five minutes.
6-20

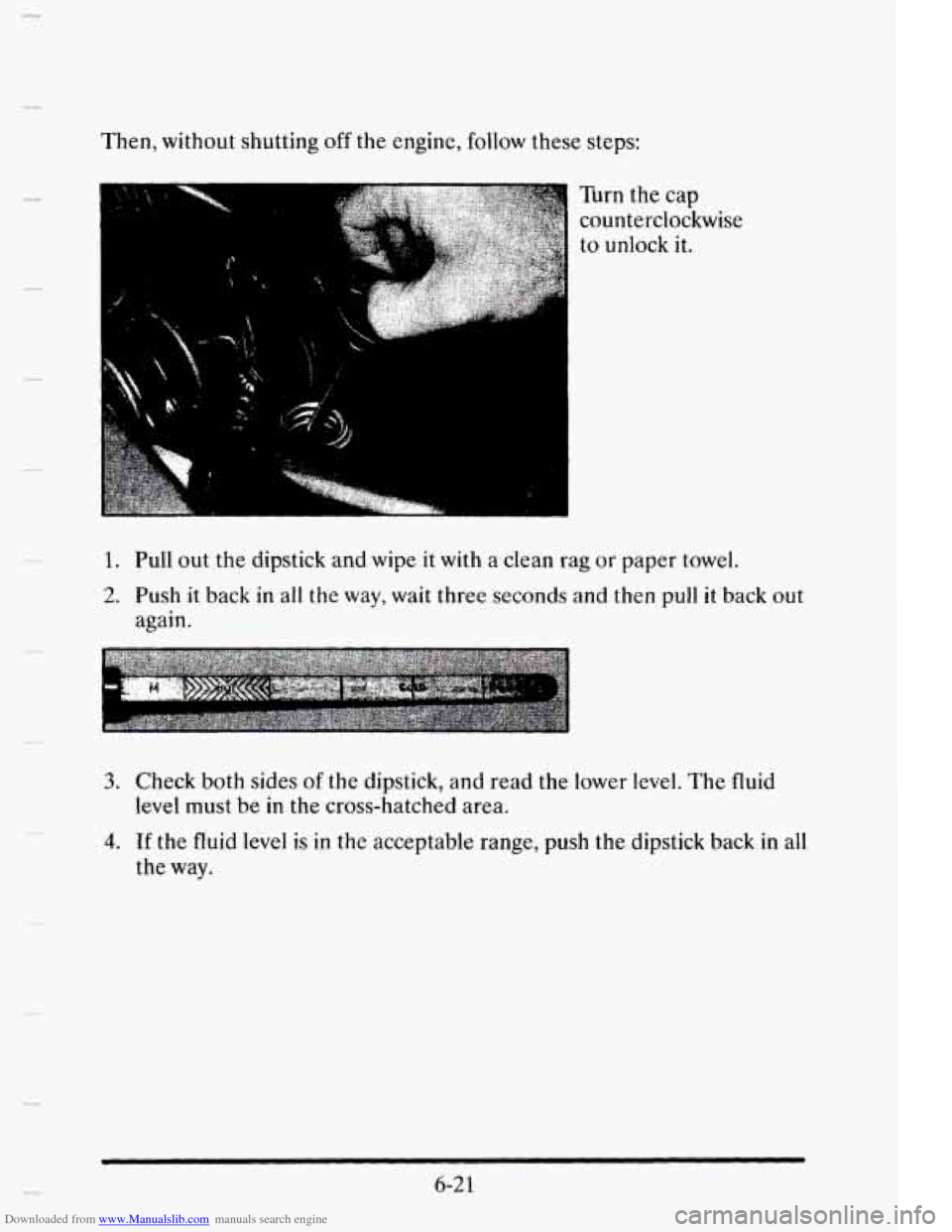

Downloaded from www.Manualslib.com manuals search engine Then, without shutting off the engine, follow these steps:
.*.
Turn the cap
counterclockwise
to unlock it.
1. Pull out the dipstick and wipe it with a clean rag or paper towel.
2. Push it back in all the way, wait three seconds and then pull it back out
again
.
3. Check both sides of the dipstick, and read the lower level. The fluid
4. If the fluid level is in the acceptable range, push the dipstick back in all
level must be in the cross-hatched area.
the way.
6-2 1
