CADILLAC ELDORADO 1995 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Doing Your Own Service Work
If you want to do some of your own service work, you’ll want to get the
proper Cadillac Service Manual.
It tells you much more about how to
service
your Cadillac than this manual can. To order the proper service
manual, see “Service Publications”
in the Index.
Your vehicle has an
air bag system. Before attempting to do your own
service work, see “Servicing Your Air Bag-Equipped Cadillad’ in the
Index.
You should keep a record
with all parts receipts and list the mileage and
the date of any service work you perform. See “Maintenance Record” in
the Index.
A CAUTION:
You can be injured if you try to do service work on a vehicle
without
knowing enough about it.
Be sure you have sufficient knowledge, experience, and the
proper replacement parts and tools before
you attempt any
vehicle maintenance
task.
Be sure to use the proper nuts, bolts and other fasteners.
“English” and “metric” fasteners can
be easily confused. If
you use the wrong fasteners, parts can later break or fall OR.
You could be hurt.
NOTICE:
If you try to do your own service work without knowing enough
about it, your vehicle could be damaged.

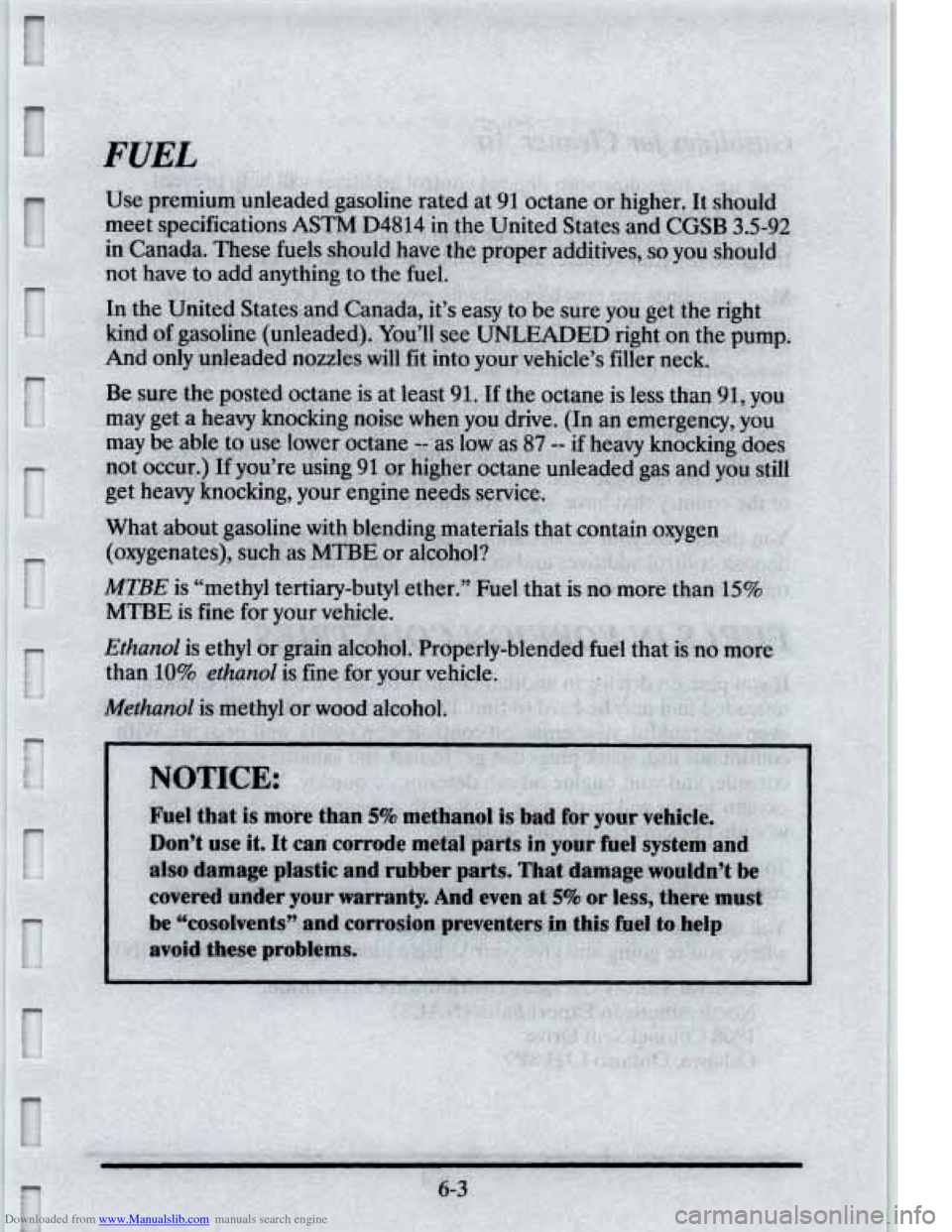

Downloaded from www.Manualslib.com manuals search engine uel that is more than 5% methanol is bad f& your vehick ’w‘.’
n’t use it. It can corrode metal parts in your fuel system and’
damage plastic and rubber parts. That damage wouldn’t
- I..
vered under your warranty, And even at 5% or less, there must .-
“cosolvents” and corrosion preventers in this fuel to help;?, ’., .
id these problems.;.>.:.. i. - ..:.=:,;.;:, ,: .: ” . . , ... 1 .. ... .. r,. .d . . :i;: . ..; . . ,..,. : .d ,

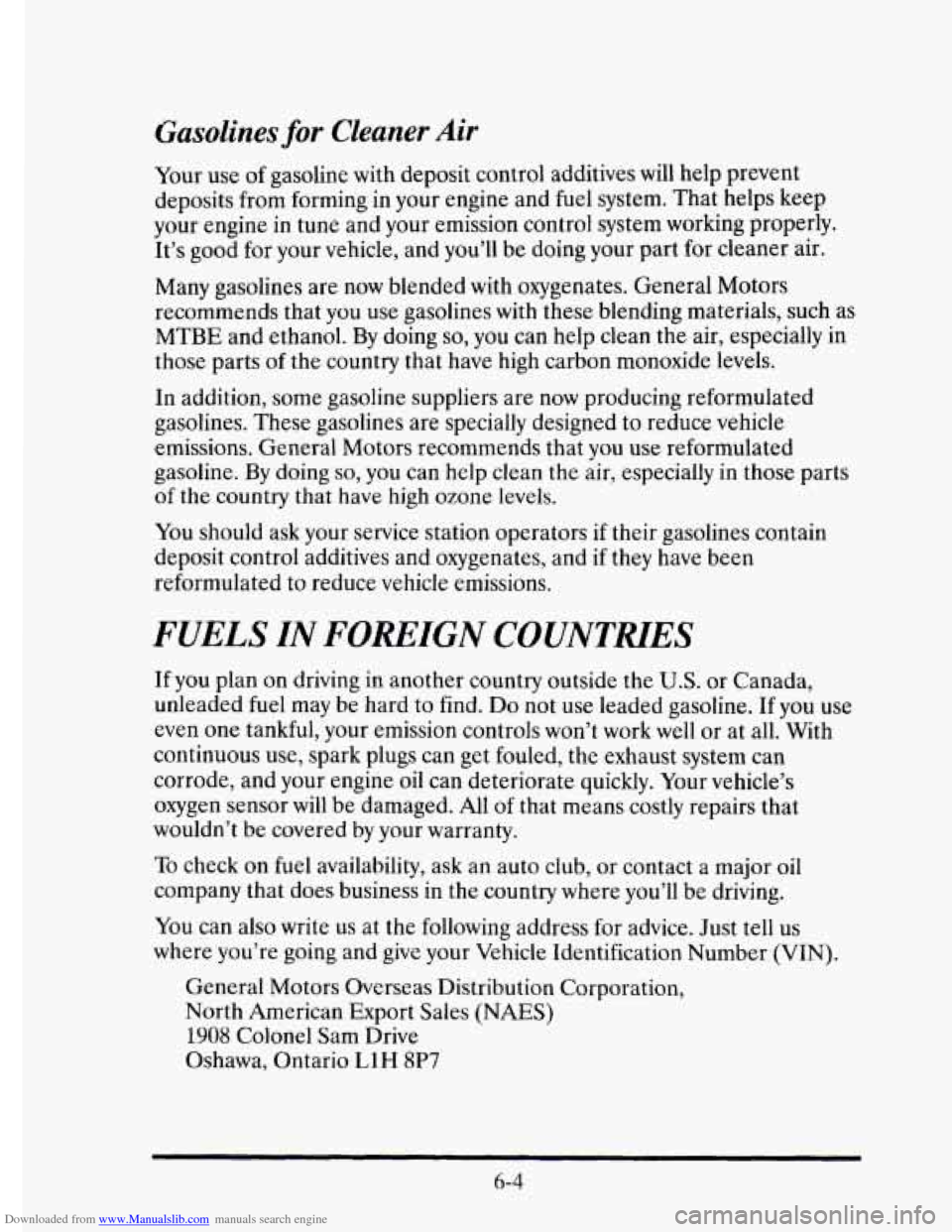

Downloaded from www.Manualslib.com manuals search engine Gasolines for Cleaner Air
Your use of gasoline with deposit control additives will help prevent
deposits from forming
in your engine and fuel system. That helps keep
your engine in tune and your emission control system working properly.
It’s good for your vehicle, and you’ll be doing your part for cleaner air.
Many gasolines are now blended with oxygenates. General Motors
recommends that you use gasolines with these blending materials, such as
MTBE and ethanol. By doing so, you can help clean the air, especially in
those parts
of the country that have high carbon monoxide levels.
In addition, some gasoline suppliers are now producing reformulated
gasolines. These gasolines are specially designed to reduce vehicle
emissions. General Motors recommends that
you use reformulated
gasoline. By doing
so, you can help clean the air, especially in those parts
of the country that have high ozone levels.
You should ask your service station operators if their gasolines contain
deposit control additives and oxygenates, and if they have been
reformulated to reduce vehicle emissions.
FUELS IN FOmIGN COUNTMES
If you plan on driving in another country outside the U.S. or Canada,
unleaded fuel may be hard to find. Do not use leaded gasoline. If you use
even one tankful,
your emission controls won’t work well or at all. With
continuous use, spark plugs can get fouled, the exhaust system can
corrode, and your engine oil can deteriorate quickly. Your vehicle’s
oxygen sensor
will be damaged. All of that means costly repairs that
wouldn’t be covered
by your warranty.
To check on fuel availability, ask an auto club, or contact a major oil
company that does business in the country where you’ll be driving.
You can also write us at the following address for advice. Just tell
us
where you’re going and give your Vehicle Identification Number (VIN).
6-4
General Motors Overseas Distribution Corporation,
North American Export Sales
(NAES)
1908 Colonel Sam Drive
Oshawa, Ontario
L1H 8P7

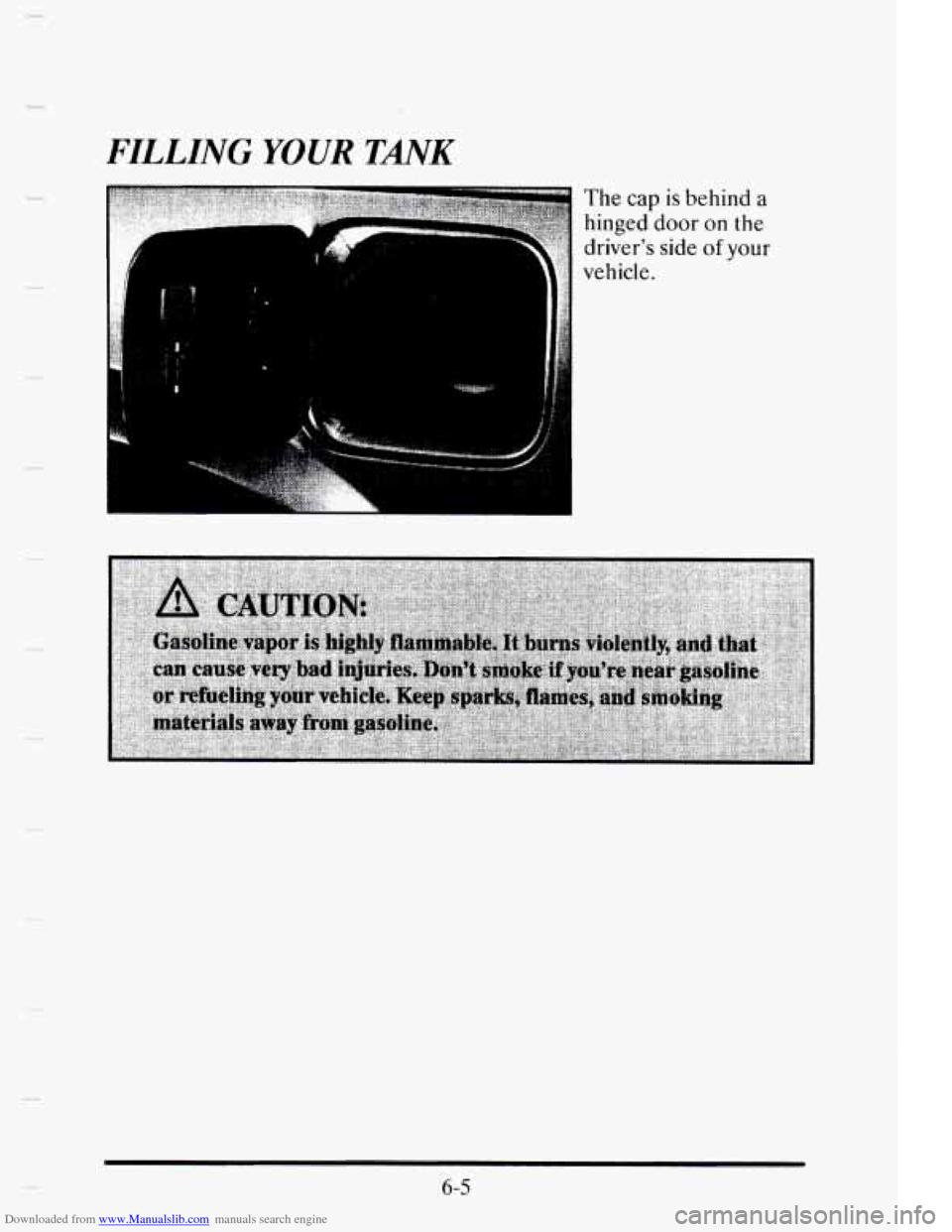

Downloaded from www.Manualslib.com manuals search engine FILLING YOUR TANK
The cap is behind a
hinged door on the
driver's side
of your
6-5

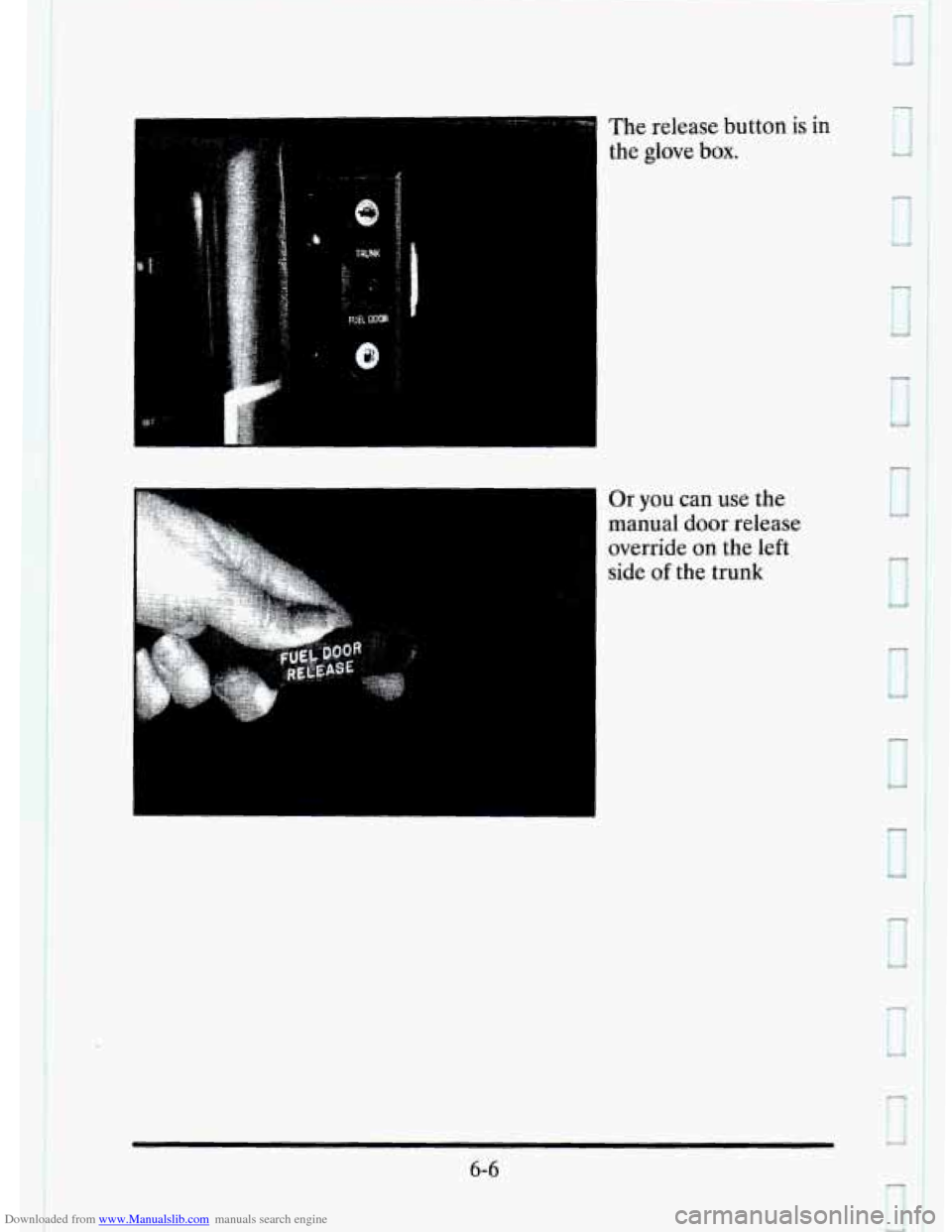

Downloaded from www.Manualslib.com manuals search engine The release button is in
the glove
box.
Or you can use the
manual door release
override on the left
side
of the trunk
6-6
Jl
J
3
J
1

Downloaded from www.Manualslib.com manuals search engine c-
t’

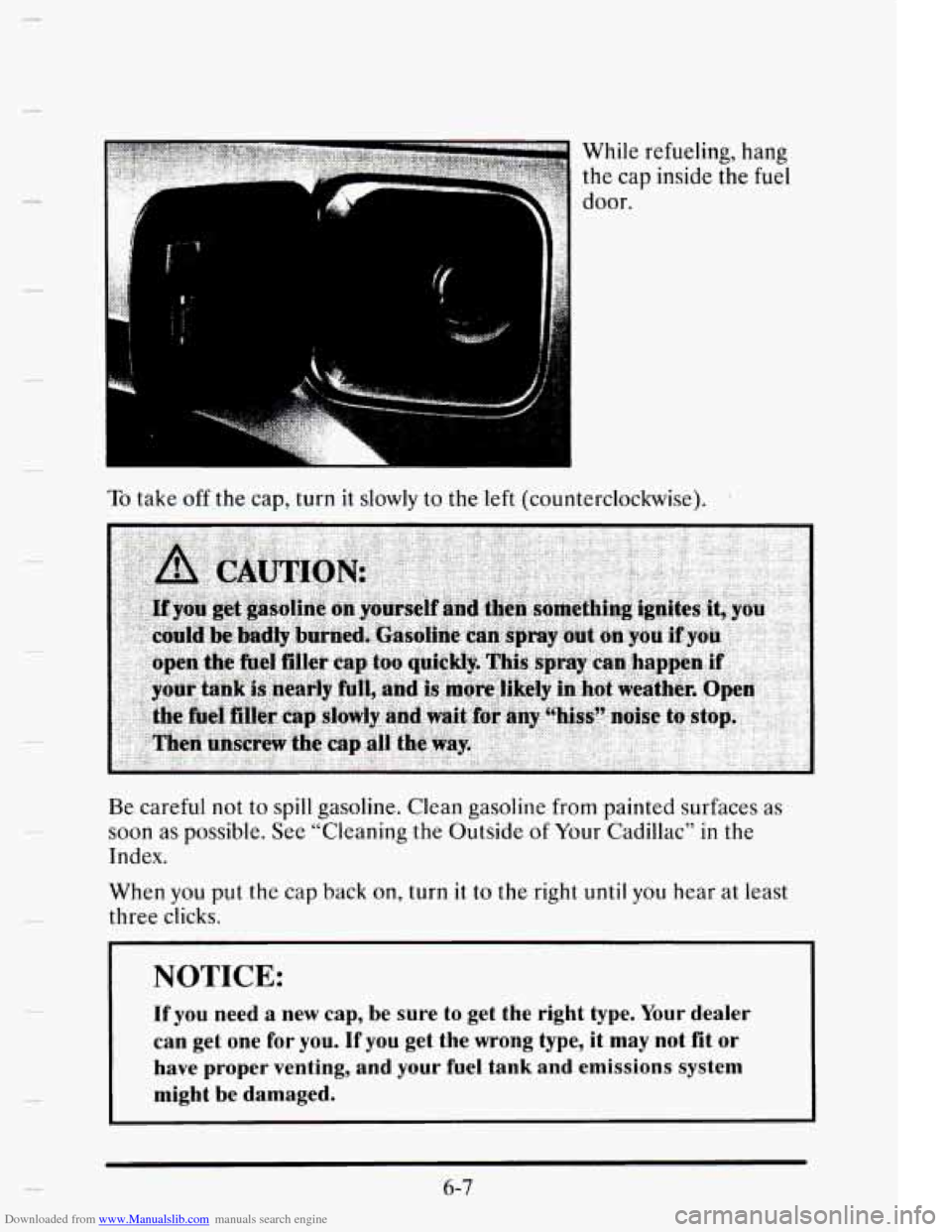

While refueling, hang
the cap inside the fuel
door.
To take off the cap, turn it slowly to the left (counterclockwise).
Be careful not to spill gasoline. Clean gasoline from painted surfaces as
soon as possible. See “Cleaning the Outside of Your Cadillac” in the
Index.
When
you put the cap back on, turn it to the right until you hear at least
three clicks.
I NOTICE:
If you need a new cap, be sure to get the right type. Your dealer
can get one
for you. If you get the wrong type, it may not fit or
have proper venting, and your fuel tank and emissions system
might be damaged.
6-7

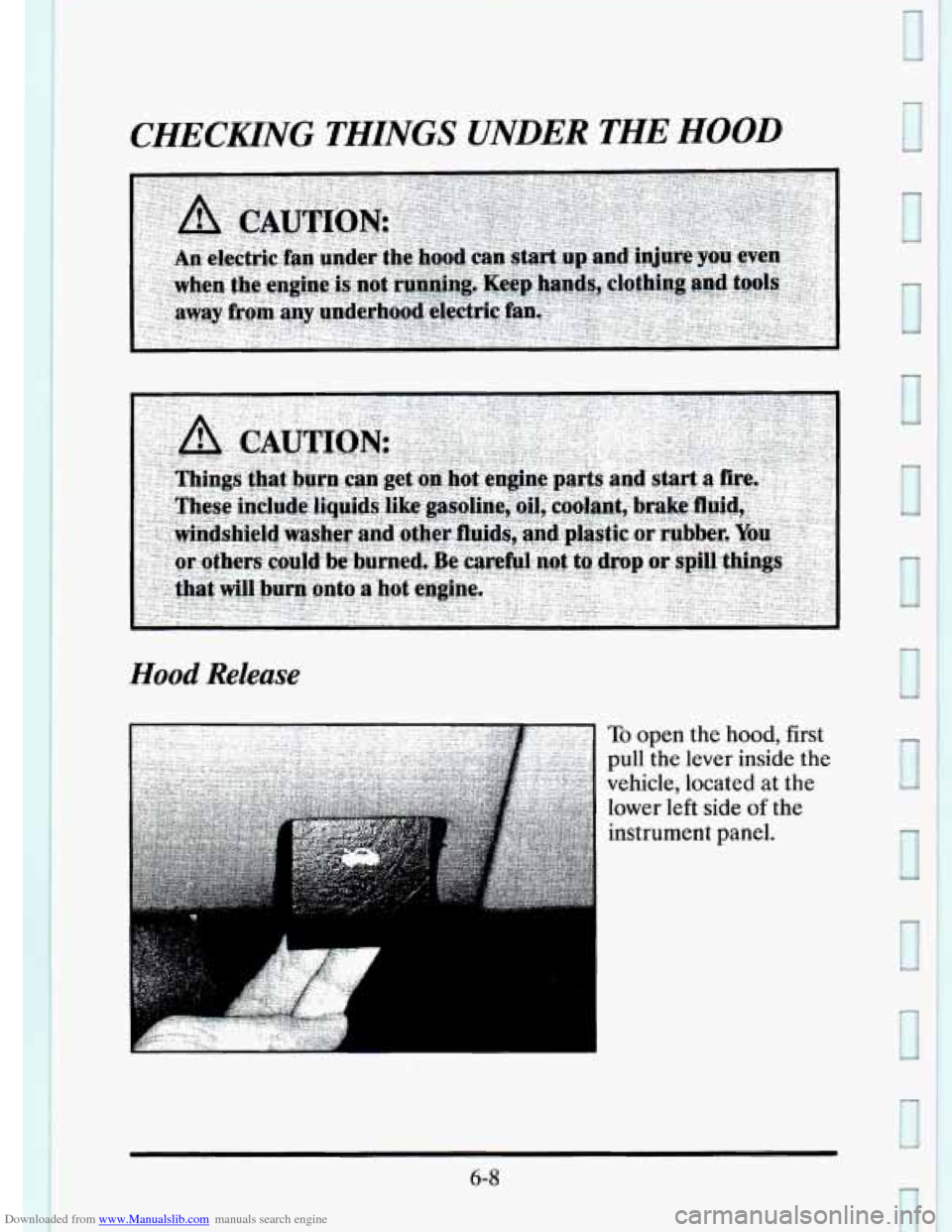

Downloaded from www.Manualslib.com manuals search engine CHECKING THINGS UNDER THE HOOD
Hood Release
To open the hood, first
pull the lever inside the
vehicle, located at the
lower
left side of the
instrument panel.
6-8
3

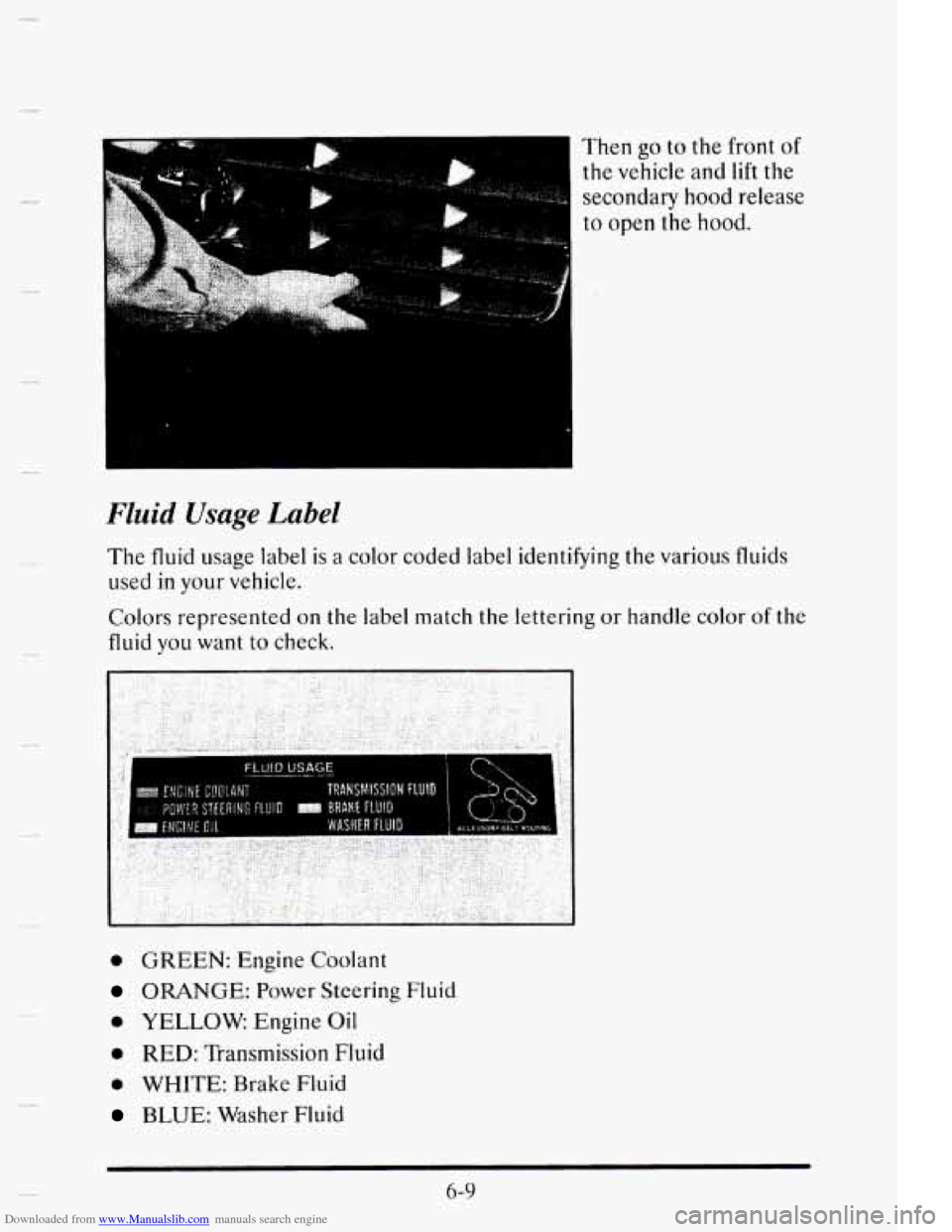

Downloaded from www.Manualslib.com manuals search engine Fluid Usage Label
LI
Then go to the front of
the vehicle and lift the
secondary hood release
to open the hood.
The fluid usage label is a color coded label identifying the various fluids
used in your vehicle.
Colors represented on the label match the lettering or handle color
of the
fluid you want
to check.
0 GREEN: Engine Coolant
ORANGE: Power Steering Fluid
0 YELLOW: Engine Oil
0 RED: Transmission Fluid
0 WHITE: Brake Fluid
BLUE: Washer Fluid
6-9

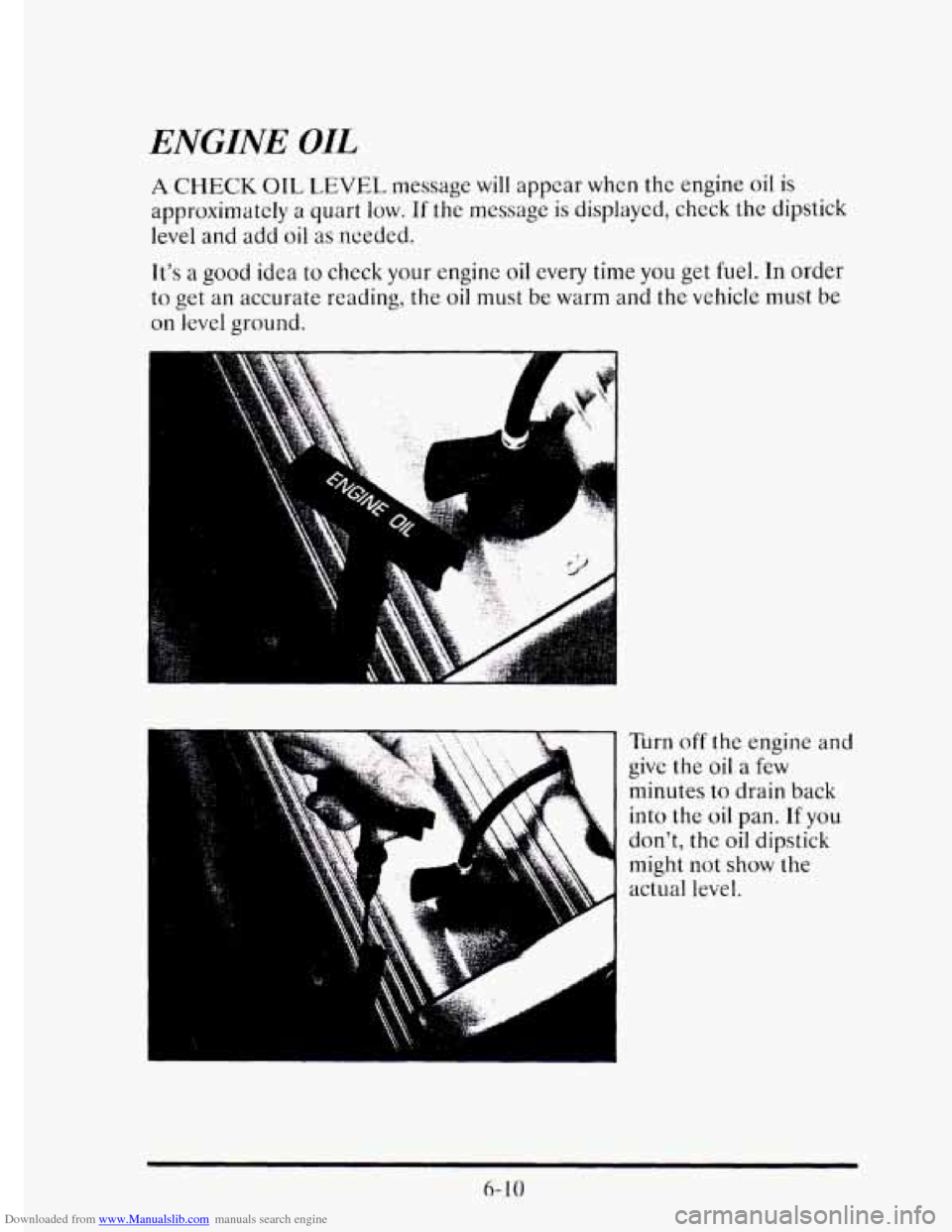

Downloaded from www.Manualslib.com manuals search engine ENGINE OIL
A CHECK OIL LEVEL message will appear whcn the engine oil is
approximately a quart low. If the message is displayed, check the dipstick
level
and add oil as needed.
It's
a good idea to check your engine oil every time you get fuel. In order
to get
an accurate reading, the oil must be warm and the vehicle must be
on level ground.
Turn off the engine and
give the oil a few
minutes to drain back
into the
oil pan. If you
don't, the oil dipstick
might not
show the
actual level.
6- 10

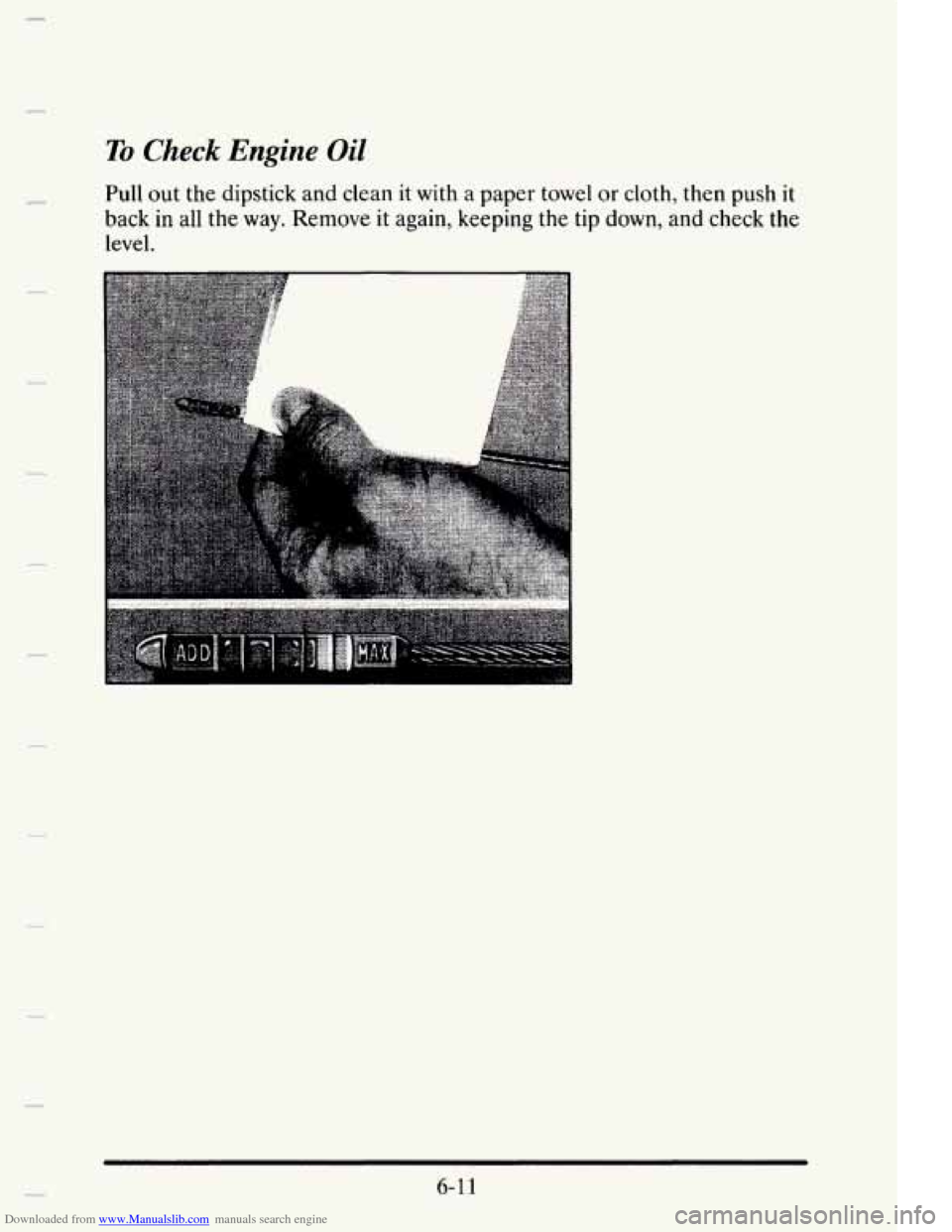

Downloaded from www.Manualslib.com manuals search engine To Check Engine Oil
Pull out the dipstick and clean it with a paper towel or cloth, then push it
back
in all the way. Remove it again, keeping the tip down, and check the
level.
6-1 1
