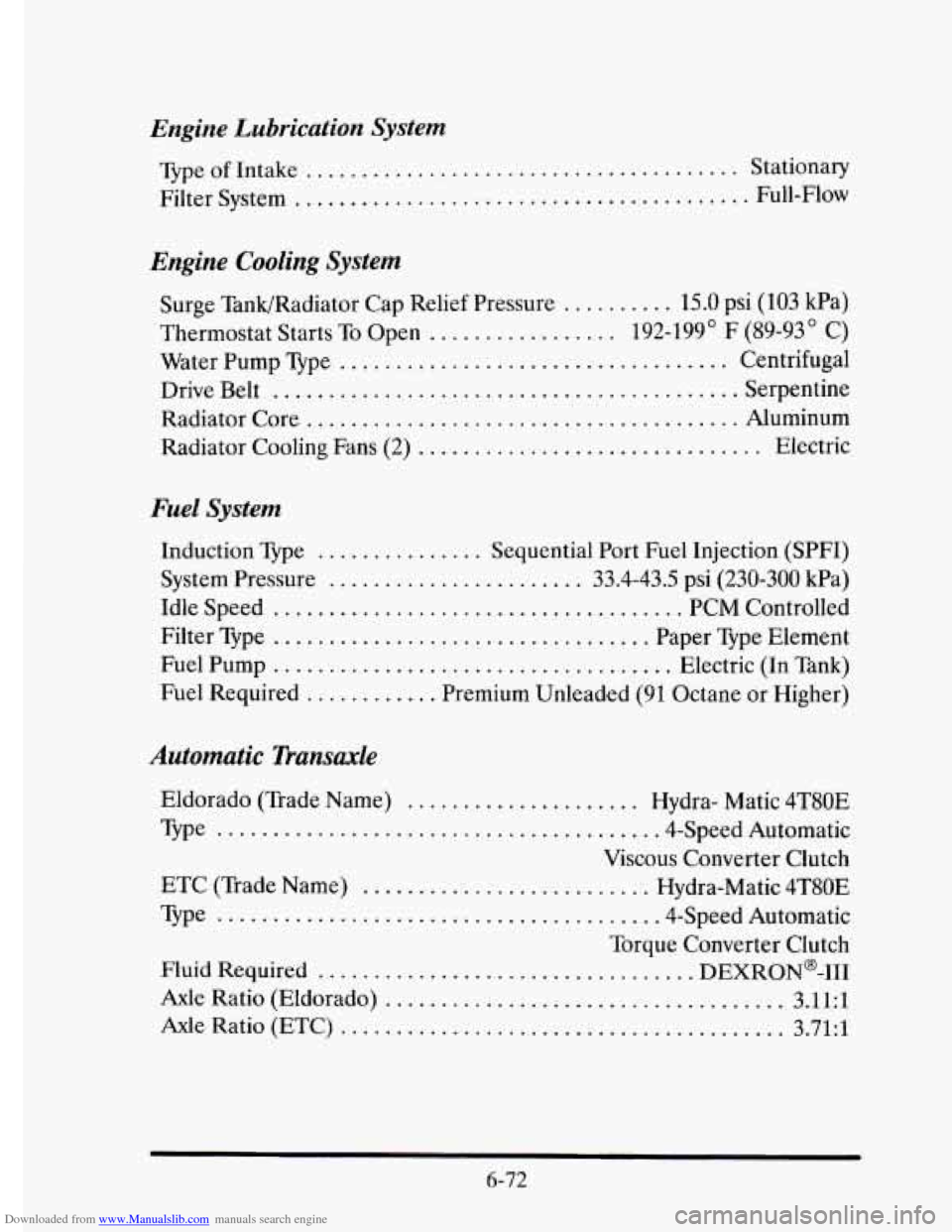

CADILLAC ELDORADO 1995 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine Engine Lubrication System
Type of Intake ....................................... Stationary
Filter System
......................................... Full-Flow
Engine Cooling System
Surge Tank/Radiator Cap Relief Pressure .......... 15.0 psi (103 kPa)
Thermostat Starts To Open
................. 192-199' F (89-93' C)
Water Pump Type
................................... Centrifugal
Drive Belt
.......................................... Serpentine
Radiator Core
....................................... Aluminum
Radiator Cooling Fans (2) ............................... Electric
Fuel System
Induction Type ............... Sequential Port Fuel Injection (SPFI)
System Pressure
....................... 33.4-43.5 psi (230-300 kPa)
Idle Speed
..................................... PCM Controlled
Filter Type
.................................. Paper Type Element
Fuel Pump .................................... Electric (In Tank)
Fuel Required
............ Premium Unleaded (91 Octane or Higher)
Automatic Transaxle
Eldorado (Trade Name) ..................... Hydra- Matic 4T80E
Type ....................................... .4-Speed Automatic
Viscous Converter Clutch
ETC (Trade Name)
.......................... Hydra-Matic 4T8OE
Type
....................................... .4-Speed Automatic
Torque Converter Clutch
Fluid Required .................................. DEXRON@-I11
Axle Ratio (Eldorado) .................................... 3.11:1
Axle Ratio (ETC) ........................................ 3.71:l
6-72

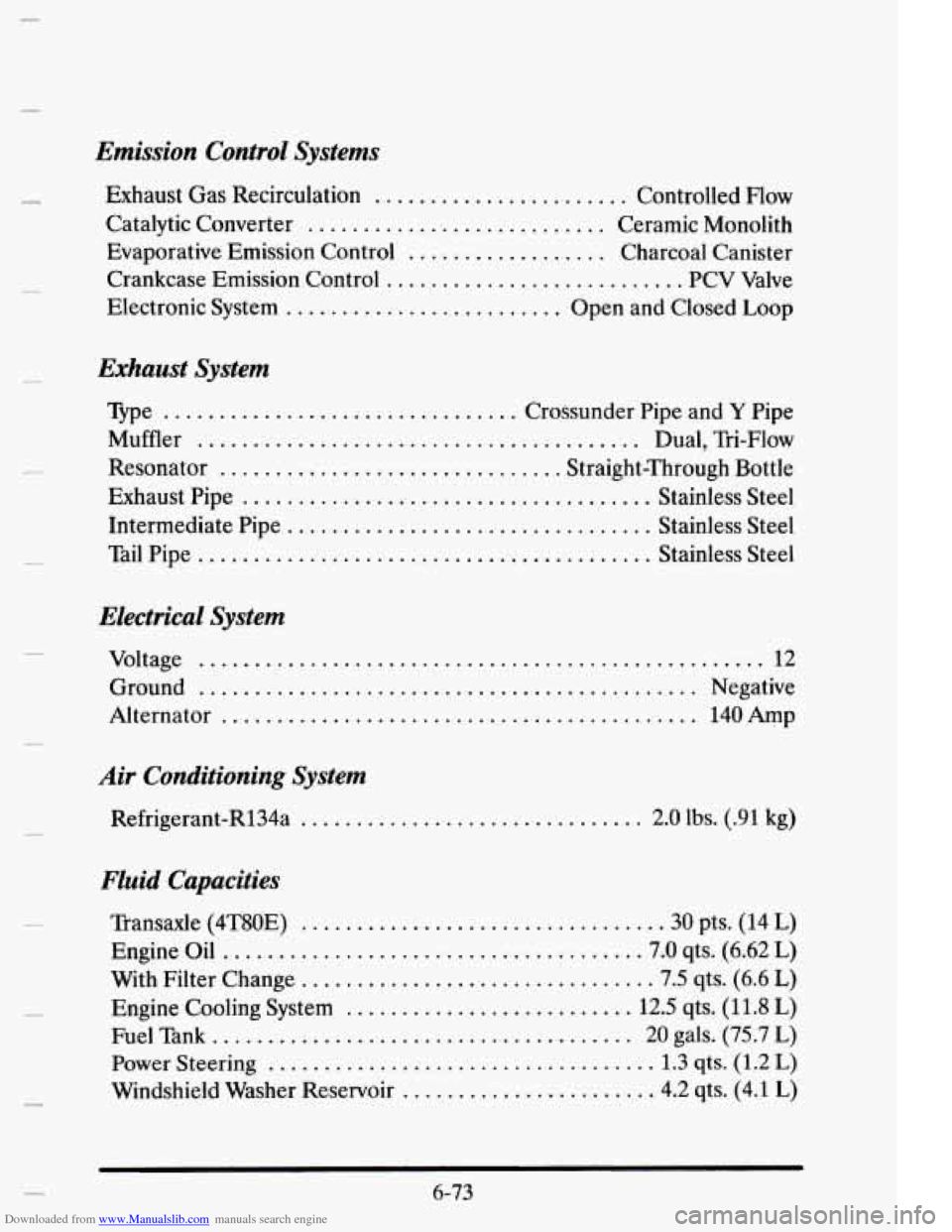

Downloaded from www.Manualslib.com manuals search engine Emission Control Systems
Exhaust Gas Recirculation ....................... Controlled Flow
Catalytic Converter
........................... Ceramic Monolith
Evaporative Emission Control
.................. Charcoal Canister
Crankcase Emission Control
........................... PCV Valve
Electronic System
......................... Open and Closed Loop
Exhaust System
Type ................................ Crossunder Pipe and Y Pipe
Muffler
........................................ Dual, Tri-Flow
Resonator
............................... Straight-Through Bottle
Exhaust Pipe
..................................... Stainless Steel
Intermediate Pipe
................................. Stainless Steel
Tail Pipe
......................................... Stainless Steel
Electrical System
Voltage ................................................... 12
Alternator
........................................... 140Amp
Ground
............................................. Negative
Air
Conditioning System
Refrigerant-R134a ............................... 2.0 lbs. (.91 kg)
Fluid Capacities
Transaxle (4T80E) ................................ .30 pts. (14 L)
Engine Oil ...................................... 7.0 qts. (6.62 L)
With Filter Change ................................ 7.5 qts. (6.6 L)
Engine Cooling System .......................... 12.5 qts. (1 1.8 L)
Fuel Tank ...................................... 20 gals. (75.7 L)
Power Steering ................................... 1.3 qts. (1.2 L)
Windshield Washer Reservoir ....................... 4.2 qts. (4.1 L)
6-73

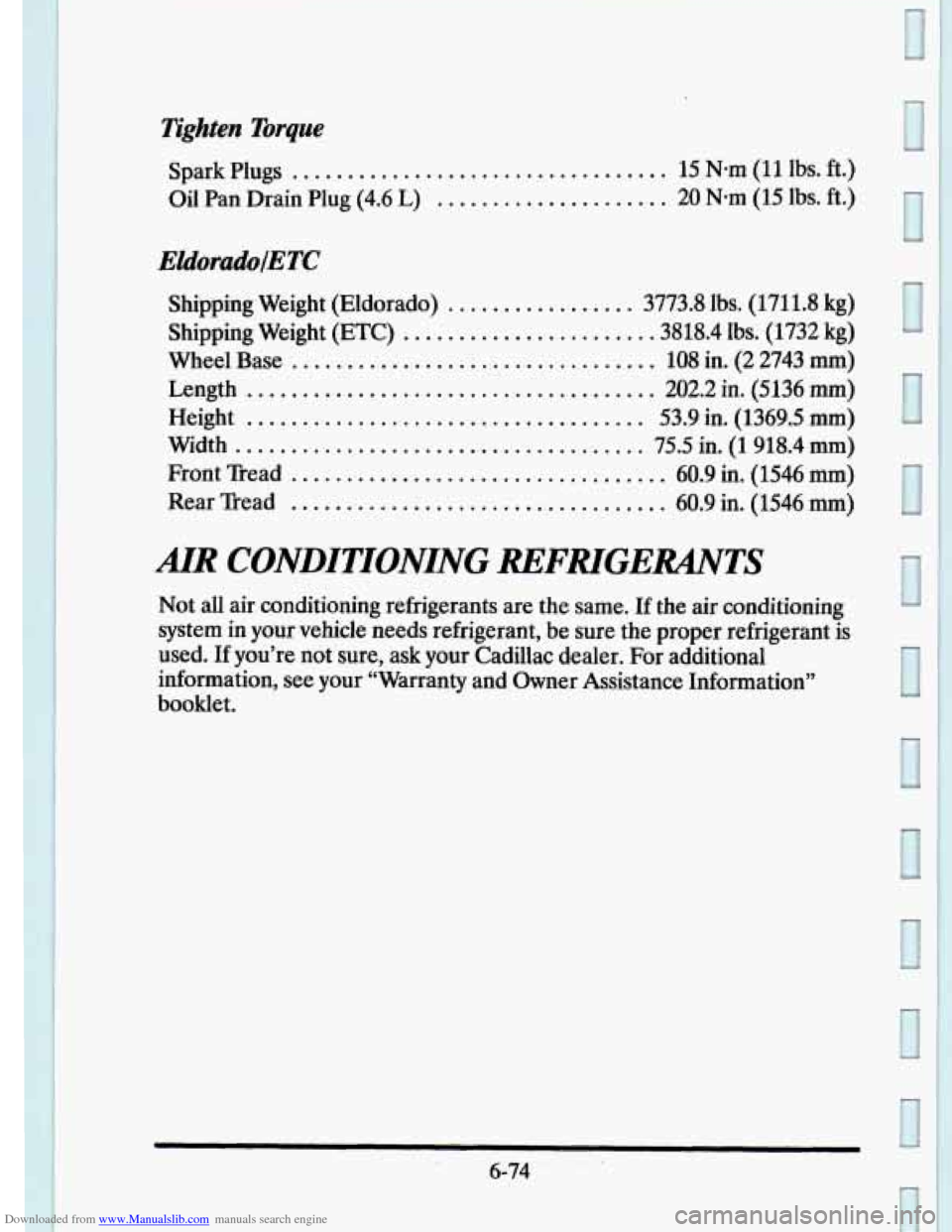

Downloaded from www.Manualslib.com manuals search engine Tighten Torque
Spark Plugs .................................. 15 N-m (11 lbs. ft.)
Oil Pan Drain Plug
(4.6 L) ..................... 20 N-m (15 lbs. ft.)
EldbrcadolETC
Shipping Weight (Eldorado) ................. 3773.8 lbs. (1711.8 kg)
Shipping Weight (ETC)
...................... .3818.4 lbs. (1732 kg)
Wheel Base
................................. 108 in. (2 2743 mm)
Length ..................................... 202.2 in. (5136 mm)
Height .................................... 53.9 in. (1369.5 mm)
Width ..................................... 75.5 in. (1 918.4 mm)
Front Tread .................................. 60’.9 in. (1546 mm)
Rear Tread .................................. 60.9 in. (1546 mm)
AIR CONDITIONING mFNGEWTS
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used.
If you’re not sure, ask your Cadillac dealer. For additional
information, see your “Warranty and Owner Assistance Informati\
on”
booklet.
6-74
I

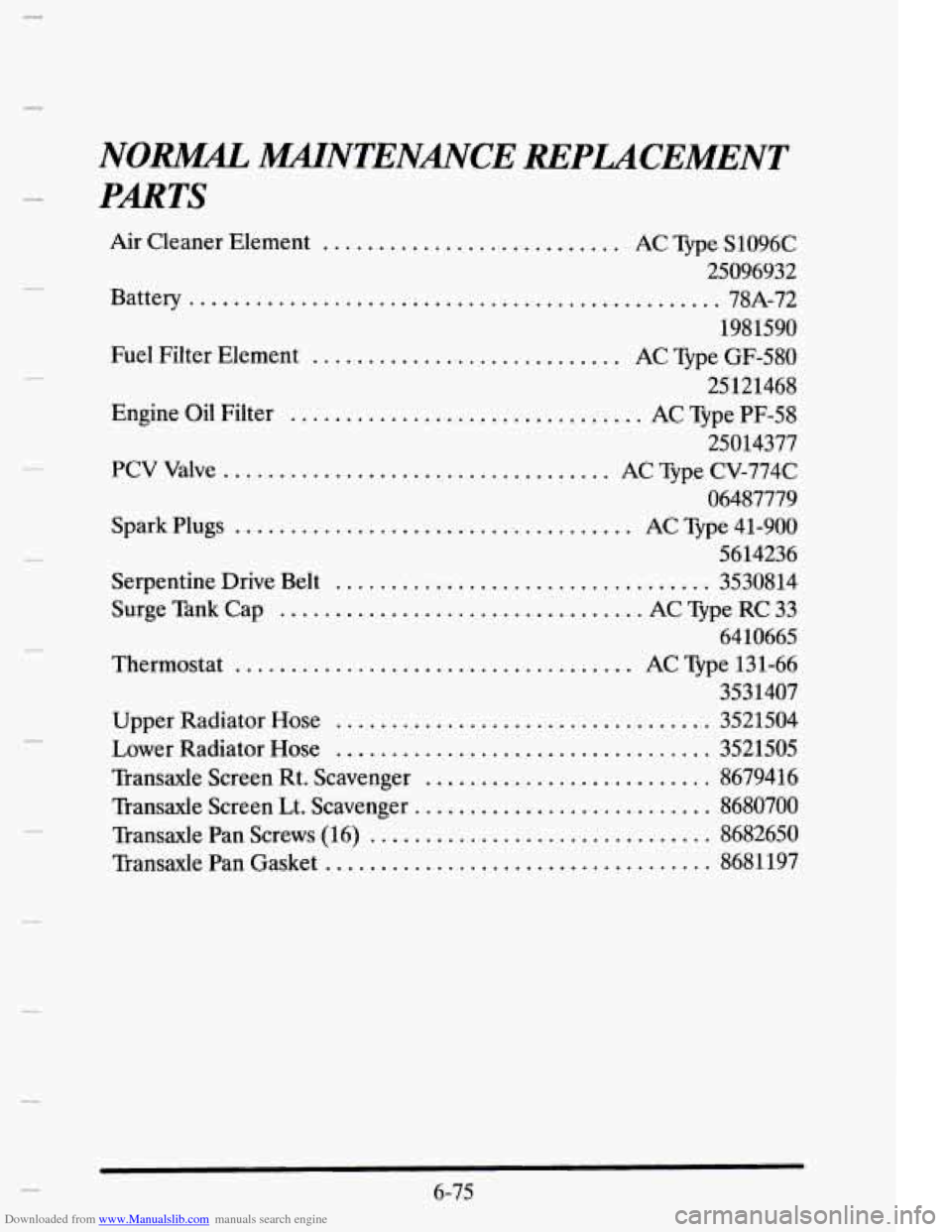

Downloaded from www.Manualslib.com manuals search engine NOW WNTENNrE REPLACEMENT
PARTS
Air Cleaner Element ........................... AC Type S1096C
25096932
Battery
................................................ 78A-72
1981590
Fuel Filter Element ............................ AC Type GF-580
25121468
Engine Oil Filter
................................ AC Type PF-58
25014377
PCV Valve
................................... AC Type CV-774C
06487779
Spark Plugs
.................................... AC Type 41-900
5614236
Serpentine Drive Belt
.................................. 3530814
6410665
3531407
Upper Radiator Hose
.................................. 3521504
Lower Radiator Hose
.................................. 3521505
Transaxle Screen Rt. Scavenger
.......................... 8679416
Transaxle Screen Lt. Scavenger
........................... 8680700
Transaxle Pan Screws (16)
............................... 8682650
Transaxle Pan Gasket
................................... 8681197
Surge
Tmnk Cap
................................. AC Type RC 33
Thermostat
.................................... AC Type 131-66
6-75

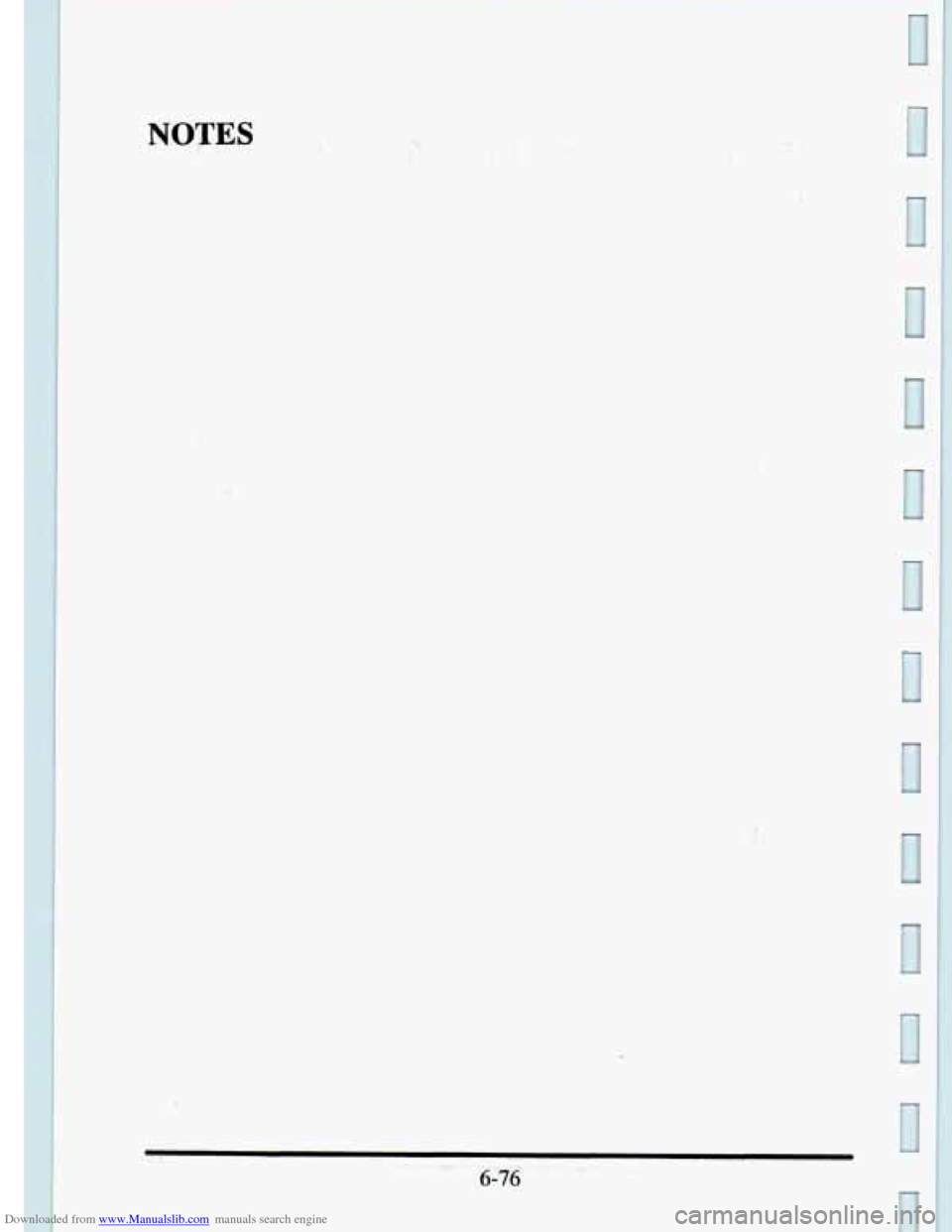

Downloaded from www.Manualslib.com manuals search engine NOTES
I. ' ._ ' ..
.. ..
j' , .: 1 I
6-76

Downloaded from www.Manualslib.com manuals search engine

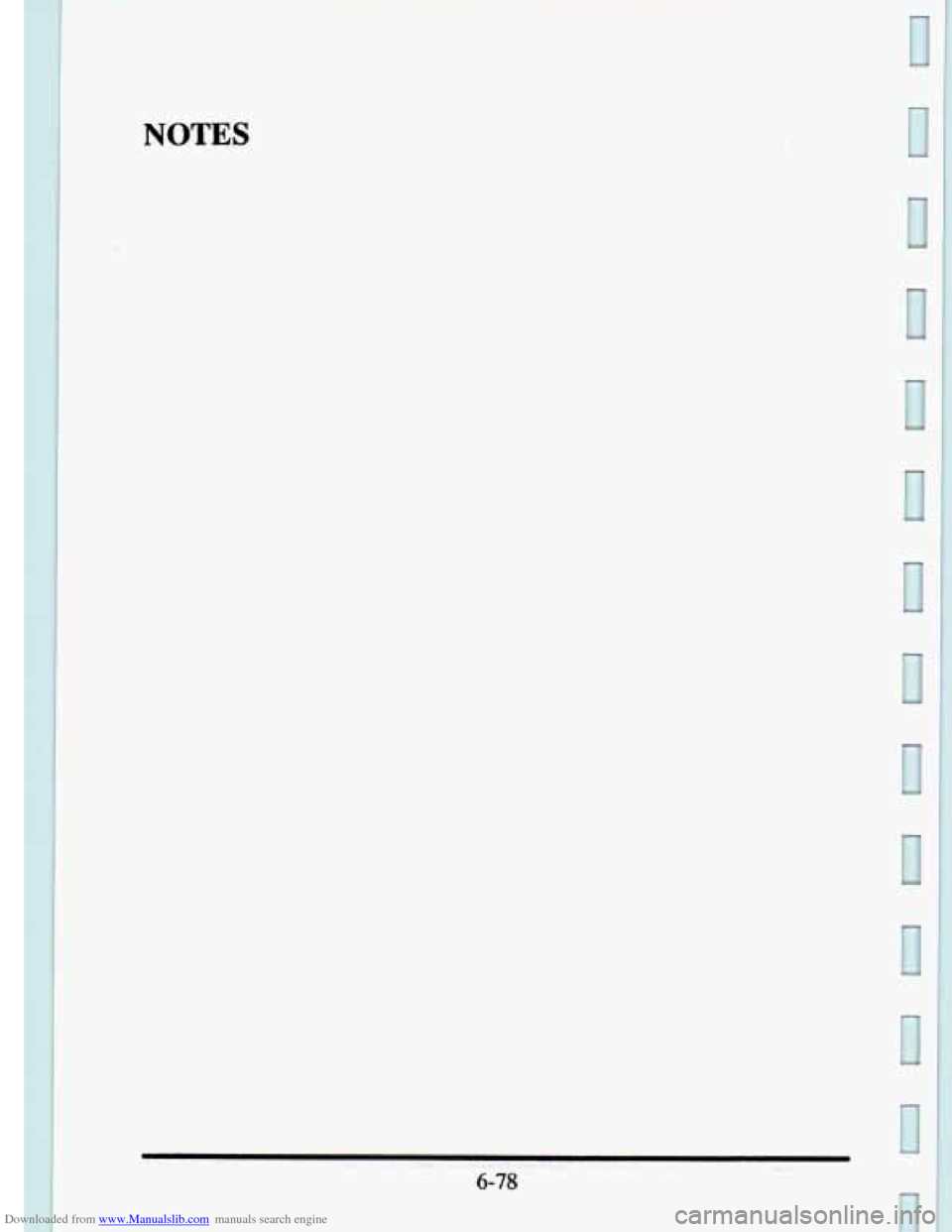

Downloaded from www.Manualslib.com manuals search engine NOTES
