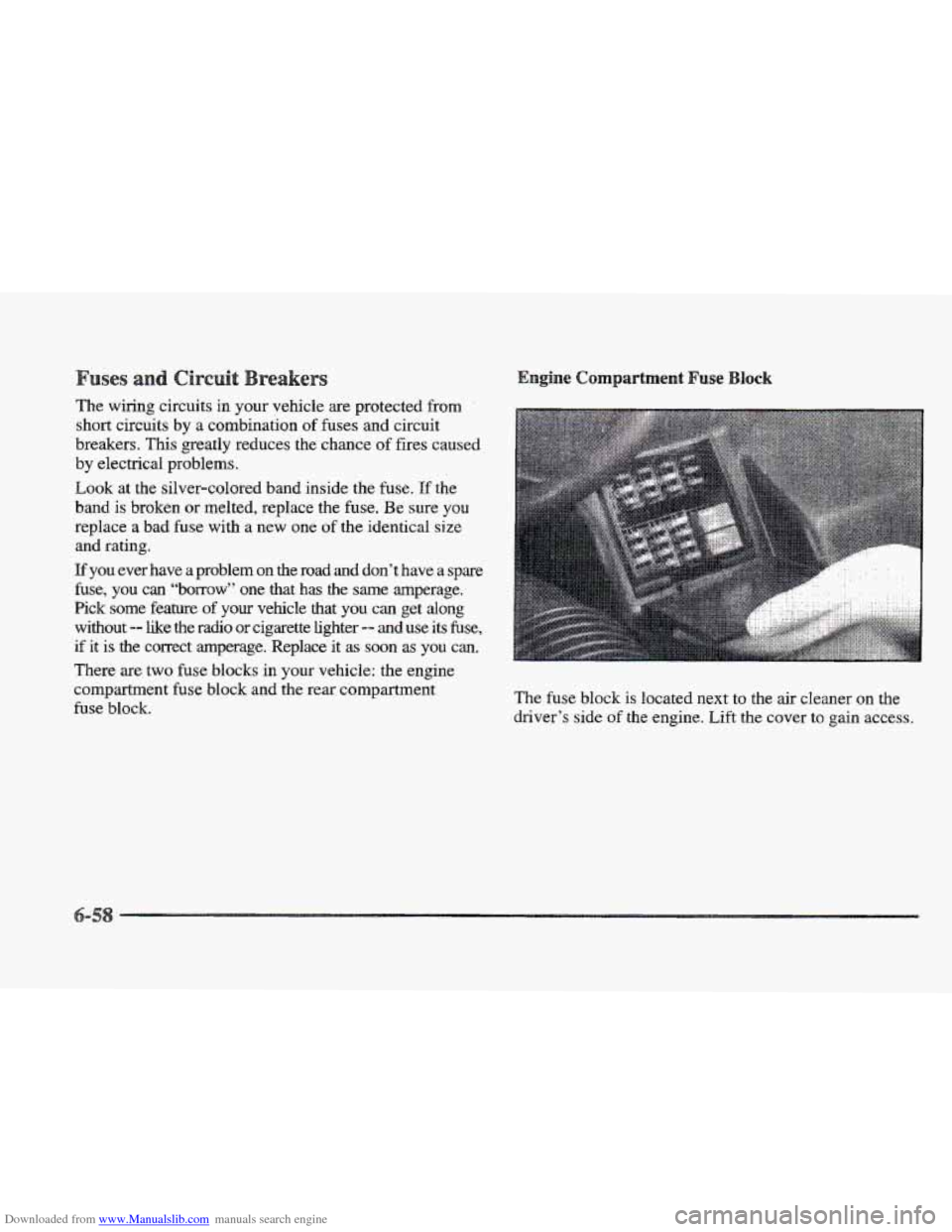

The wiring circuits in your vehicle are protected from ’
short circuits by a combination of fuses and circuit
breakers.
This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace
a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don’t have a spare
fuse,
you can “borrow” one that has the same amperage.
Pick some feature of
your vehicle that you can get along
without -- like the radio OF cigarette lighter -- and use its fuse,
if it is the correct amperage. Replace it as soon as you can.
There
are two fuse blocks in your vehicle: the engine
compartment fuse block and the rear compartment
hse block. The fuse
block is located next to the air cleaner on the
driver’s side of the engine. Lift the cover
to gain access.
Page 322 of 361
Downloaded from www.Manualslib.com manuals search engine (irilIunn]

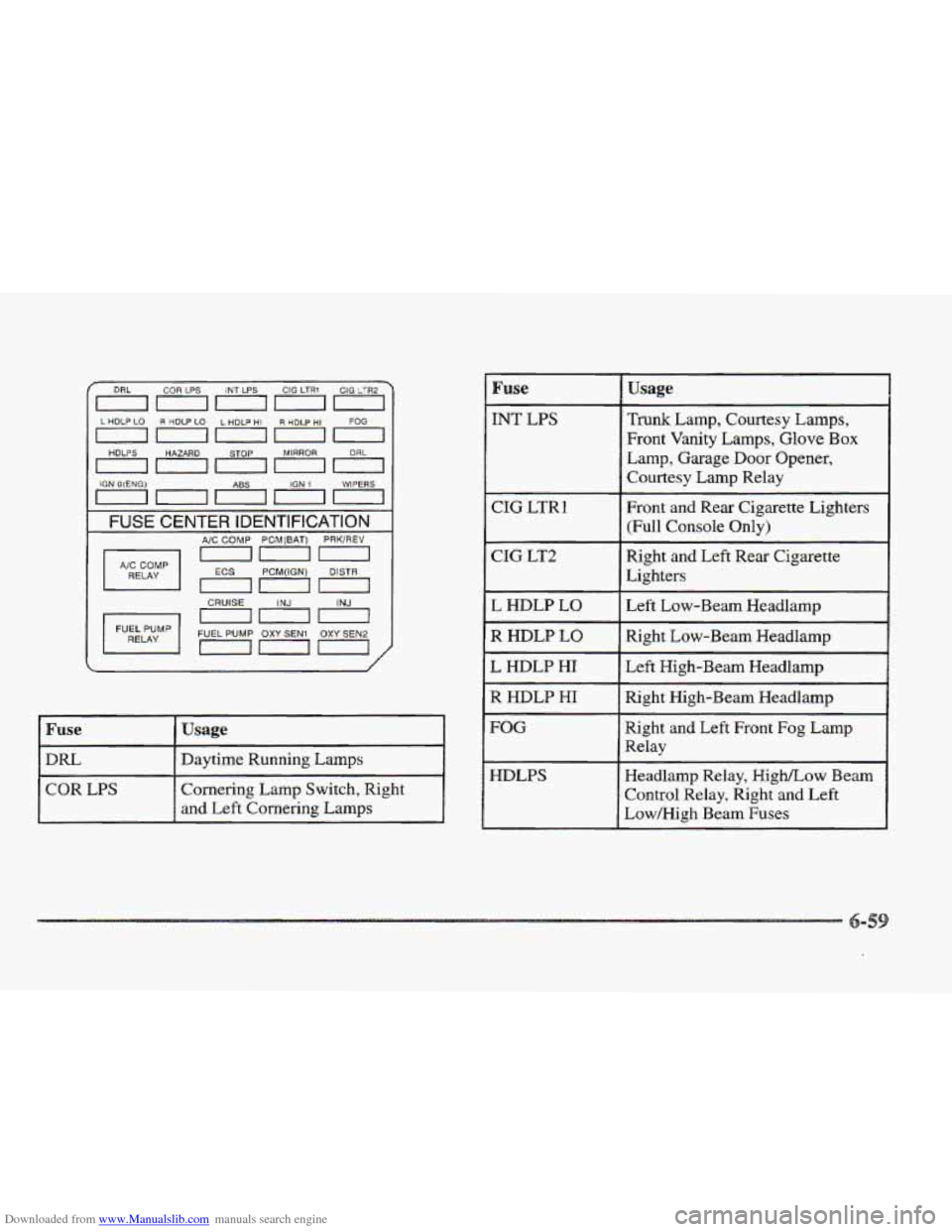

COR LPS INT LPS CIG LTR1 CIG LTRP
Innnnnl
L HDLP LO R HDLP LO L HDLP HI R HDLP HI
I , HDLPS I I HAZARD I I STOP I I MIRROR I I DRL , I
I , IGN O(ENG) , I , I ABS I I IGN 1 I I WIPERS , I
FUSE CENTER IDENTIFICATION
000
A/C COMP PCM(BAT) PRK/REV
A/C COMP
I I Daytime Running Lamps I
I CQRLPS
Cornering Lamp Switch, Right
and Left Cornering
Lamps I
Fuse
INT LPS
CIG LTR1
CIG La2
L HDLP LO
W HDLP LO
L HDLP HI
R HDLP HI
FOG
mLPs
Usage
Trunk Lamp, Courtesy Lamps,
Front Vanity Lamps, Glove Box
Lamp, Garage Door Opener,
Courtesy
Lamp Relay
Front and Rear Cigarette Lighters
(Full Console Only)
Right and Left Rear Cigarette
Lighters
Left Low-Beam Meadlamp
Right Low-Beam Weadlamp
Left High-Beam Headlamp
Right High-Beam Headlamp
Right and Left Front
Fog Lamp
Relay
Meadlamp Relay, High/Low Beam
Control Relay, Right and Left
Low/High Beam
Fuses
Page 323 of 361

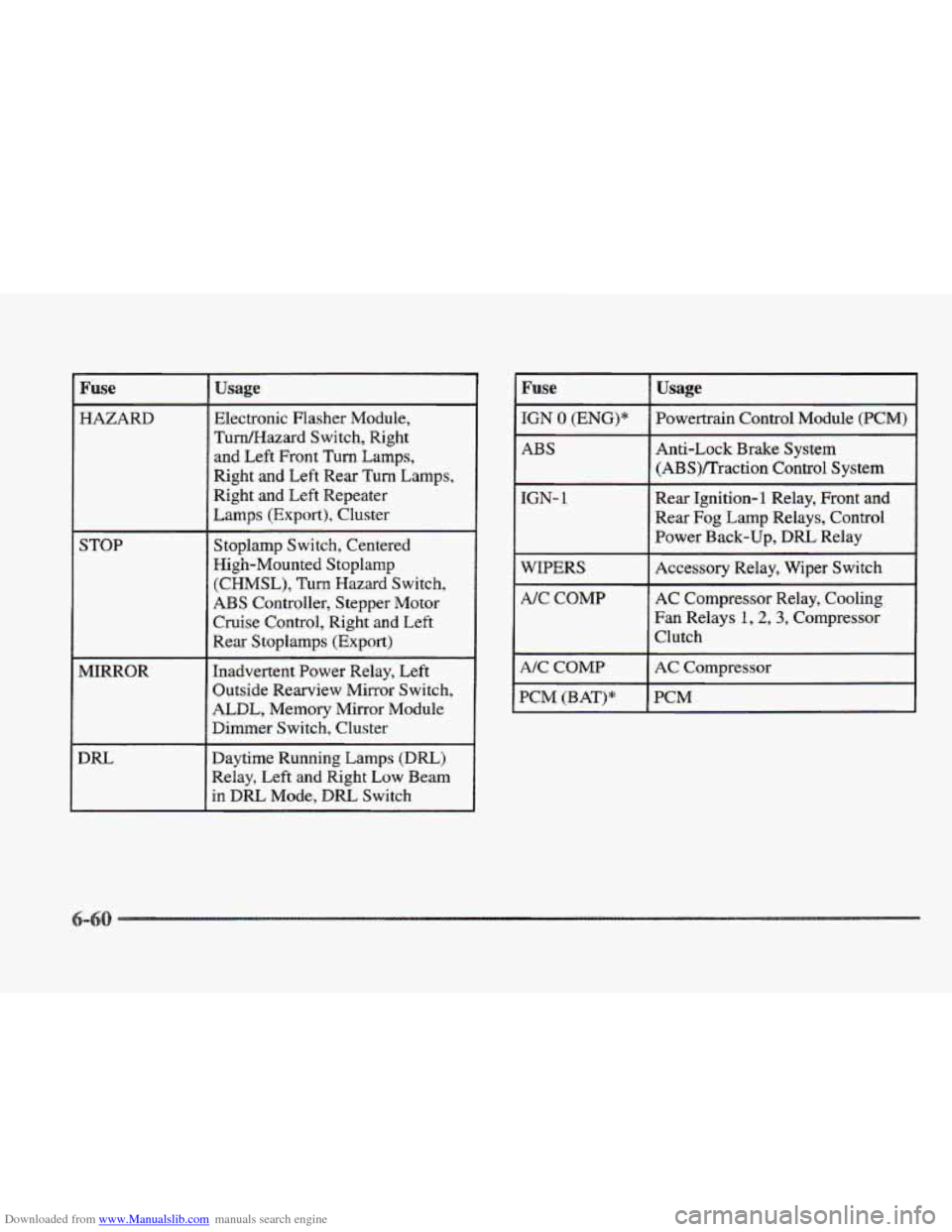

Downloaded from www.Manualslib.com manuals search engine Fuse
HAZARD
STOP
MIRROR
DIU
Usage
Electronic Flasher Module,
TumEIazard Switch, Right
and Left Front Turn Lamps,
Right
and Left Rear Turn Lamps,
Right and Left Repeater
Lamps
(Export), Cluster
Stoplarnp Switch, Centered
High-Mounted Stoplanlp
(CHMSL),
Turn Hazard Switch,
ABS Controller, Stepper Motor
Cruise Control, Right and Left
Rear Stoplamps (Export)
Inadvertent Power Relay, Left
Outside Rearview Mirror Switch,
ALDL, Memory Mirror Module
Dimmer Switch, Cluster
Daytime Running Lamps
(Dm)
Relay, Left and Right Low Beam
in
DRL Mode, DIU Switch
IGN 0 (ENG)*
ABS
IGN- 1
WIPERS
A/C COMP
A/C COMP
PCM (BAT)*
Usage
Powertrain Control Module (PCM)
Anti-Lock
Brake System
(ABS)/Traction Control System
Rear Ignition-1 Relay, Front
and
Rear Fog Lamp Relays, Control
Power Back-up,
DRL Relay
Accessory Relay, Wiper Switch
AC Compressor Relay, Cooling
Fan Relays 1,2, 3, Compressor
Clutch
AC Compressor
BCM
Page 324 of 361

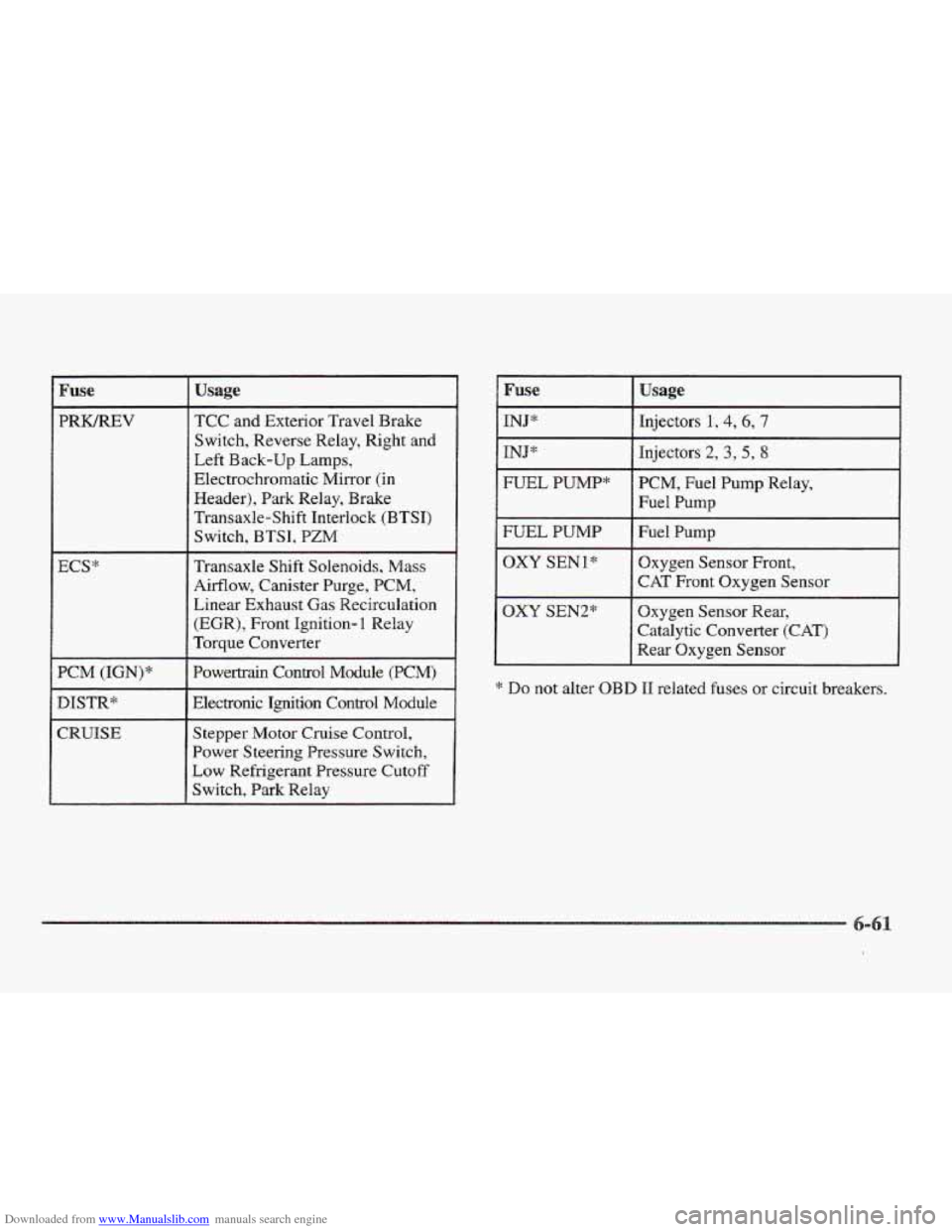

Downloaded from www.Manualslib.com manuals search engine Fuse
PRWREV
ECS*
PCM
(IGN)*
CRUISE
Usage
TCC and Exterior Travel Brake
Switch, Reverse Relay, Right
and
Left Back-up Lamps,
Electrochromatic Mirror
(in
Header), Park Relay, Brake
Transaxle-Shift Interlock
(BTSI)
Switch, BTSI, PZM
Transaxle Shift Solenoids, Mass
Airflow, Canister Purge, PCM,
Linear Exhaust Gas Recirculation
(EGW), Front Ignition- 1 Relay
Torque Converter
Powertrain Control Module (PCM)
Electronic Ignition Control Module
Stepper Motor Cruise Control,
Power Steering Pressure Switch,
Low Refrigerant Pressure Cutoff
Switch,
Park Relay
* Do not alter OBD II related fuses or circuit breakers.
Page 325 of 361

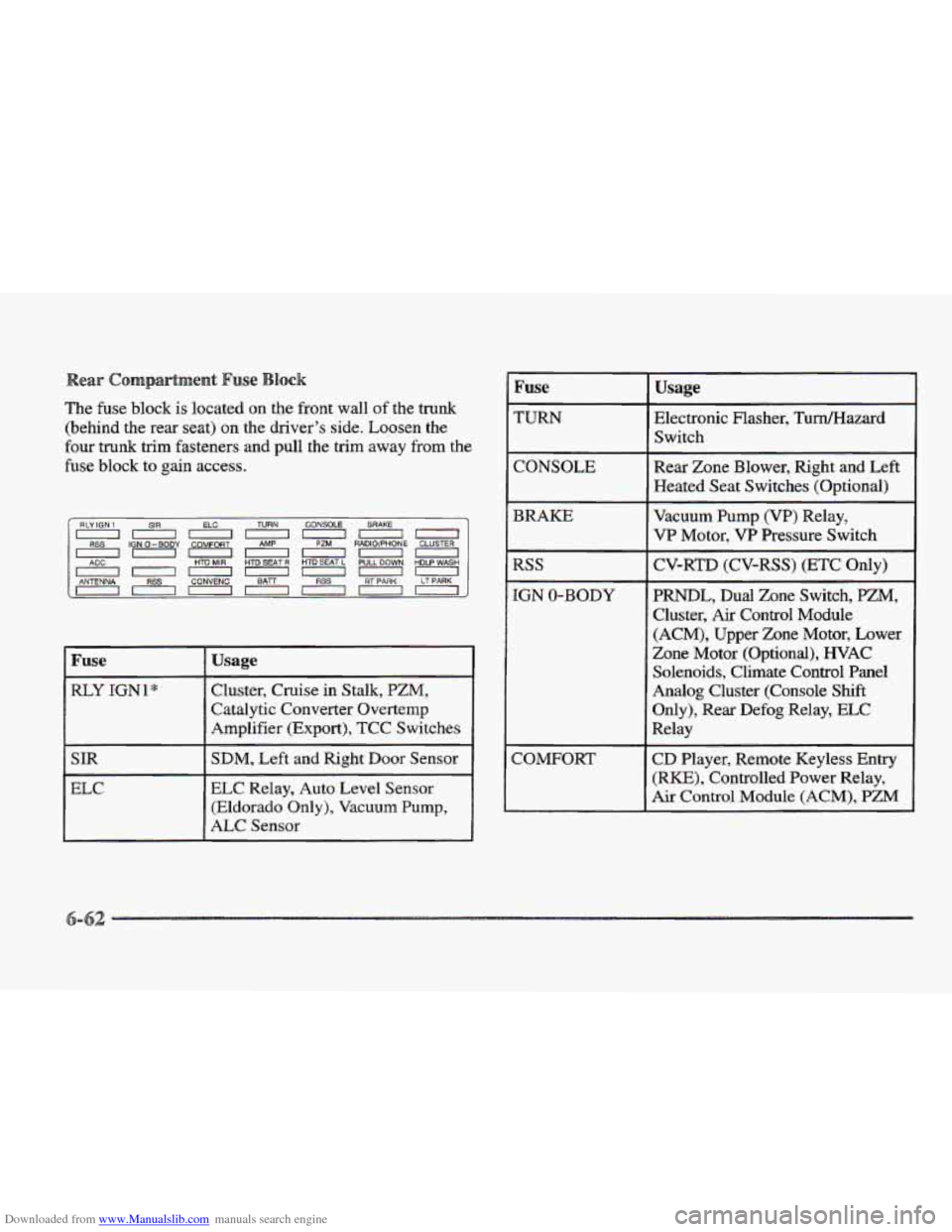

Downloaded from www.Manualslib.com manuals search engine The fuse block is located on the front wall of the trunk
(behind
the rear seat) on the driver’s side. Lqosen the
four trunk trim fasteners and pull the trim away from the
fuse block to gain access.
RLY IGN 1 SIR . ELC,. TURN 1 CONSOLE I-1 BRAKE uuuu--- , ASS , IGN I 0 -BODY , I COMFORT , , AMP , , PZM I , , , , RADIO/PHONE CLUSTER
HTD MIR HTD SEAT R HTD SEAT L PULL DOWN HDLP WASH ACC-----r-
Cluster, Cruise in Stalk, PZM,
Catalytic Converter Overtemp
Amplifier
(Export), TCC Switches
E- I SDM, Left and Ftight Door Sensor I
lELc
ELC Relay, Auto Level Sensor
(Eldorado Only), Vacuum Pump,
AEC Sensor
Fuse
TURN
CONSOLE
BRAKE
RSS
IGN 0-BODY
COMFORT
Usage
Electronic Flasher, Turn/Hazard Switch
Rear Zone Blower, Right
and Left
Heated Seat Switches (Optional)
Vacuum Pump (VP) Relay,
VP Motor, VP Pressure Switch
CV-RTD (CV-RSS)
(ETC Only)
PRNDL, Dual Zone Switch, PZM,
Cluster, Air Control Module
(ACM), Upper Zone Motor, Lower
Zone Motor
(Optional), WAC
Solenoids, Climate Control Panel
Analog Cluster (Console
Shift
Only), Rear Defog Relay, ELC
Relay
CD Player, Remote Keyless Entry
(RKE), Controlled Power Relay,
Air Control Module (ACM), PZM
Page 326 of 361

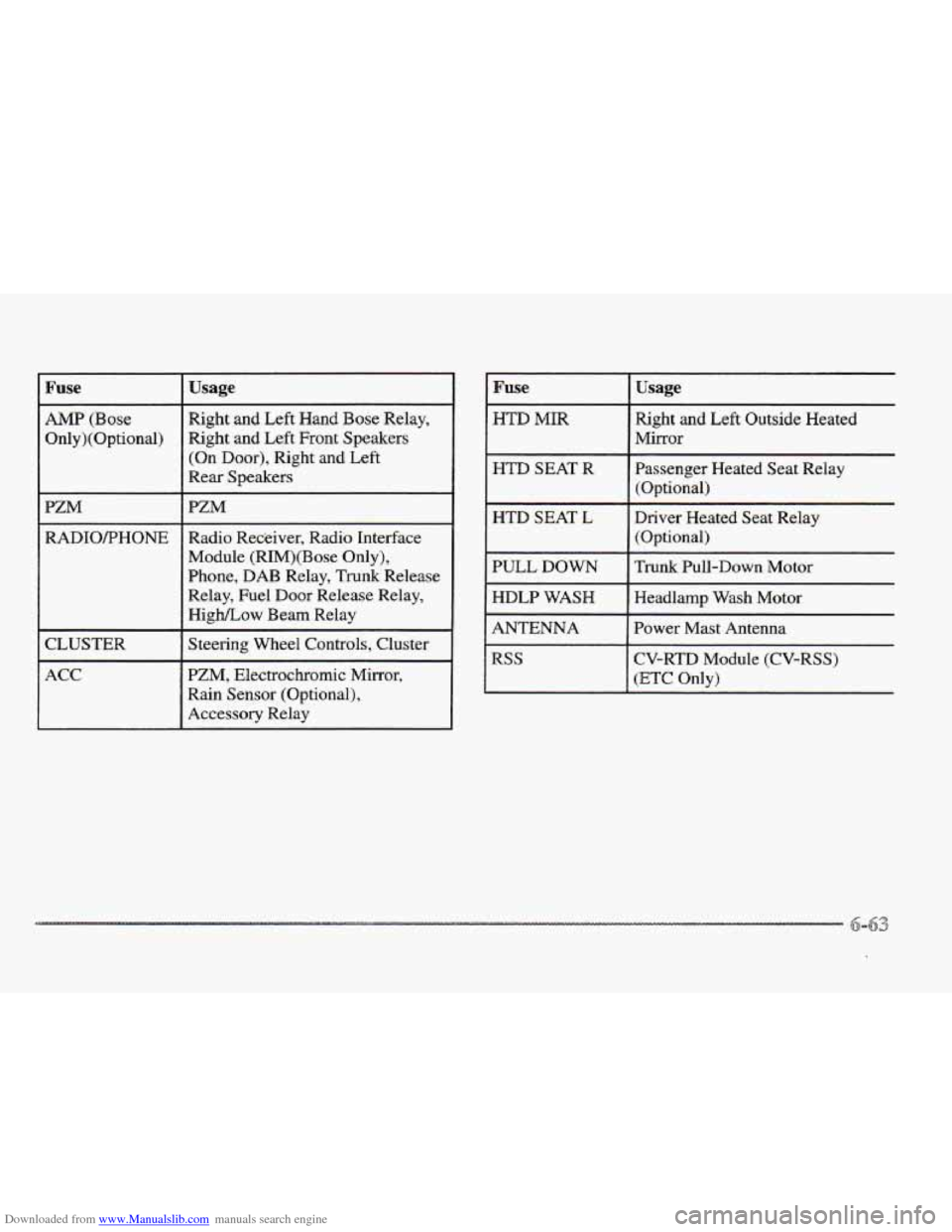

Downloaded from www.Manualslib.com manuals search engine Fuse
AMP (Bose
Only)(Qptional)
PZM
RADIOPHONE
CLUSTER
ACC
Usage
Wight and Left Hand Bose Relay,
Right and Left Front Speakers
(Qn
Door), Right and Left
Rear
Speakers
PZM
Radio Receiver, Radio Interface
Module
(FtM)(Bose Only),
Phone, DAB Relay,
Trunk Release
Relay, Fuel
Door Release Relay,
HighLow Beam Relay
Steering Wheel Controls, Cluster
PZM, Electrochromic Mirror,
Rain Sensor (Optional),
Accessory Relay
1 Fuse
I
I
HTD SEAT R
PULL DOWN
Usage
fight and Left Outside Heated
Mirror
Passenger Heated Seat Relay
(Optional)
Driver Heated Seat Relay
(Optional)
Trunk Pull-Down Motor
Headlamp Wash Motor
Power Mast Antenna
CV-RTD Module
(CV-RSS)
(ETC Only)
Page 327 of 361
Downloaded from www.Manualslib.com manuals search engine Fuse
CONVENC
BATT
RSS
Usage
Trunk Release Relay, Trunk
Release Solenoid, Fuel Door
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock
Relay, Left Front
Door Motors,
PZM, Door Unlock Relay
Driver and Passenger Seat Lumbar
Switch (Optional), Driver and
Passenger Seat Belt Comfort
Solenoid,
Memory Seat Module
CV-RTD (CV-RSS)(ETC Only)
Fuse
RT PA K
LT PARK
Usage
Headlarnp Switches, Rear Fog
Lamp Relay, Right and Left
Rear
Fog Lamps (Export), Right
Turn/Stop/Tad Lamps, Right Front
and Rear Sidemarker Lamps, Rear
Park Lamps, Park Position Lamp
(Export)
Left Front and Rear Sidemarker
Lamps, Front Parking,
Park
Position Lamp (Export) Lamps,
Left Front and Rear Sidemarker
Lamps, Right and Left Parking
Lamps, Left TudStoplTail
Lamps, Right and Left License
Plate Lamps
* Do not alter OBD I1 related fuses or circuit breakers.
Page 328 of 361

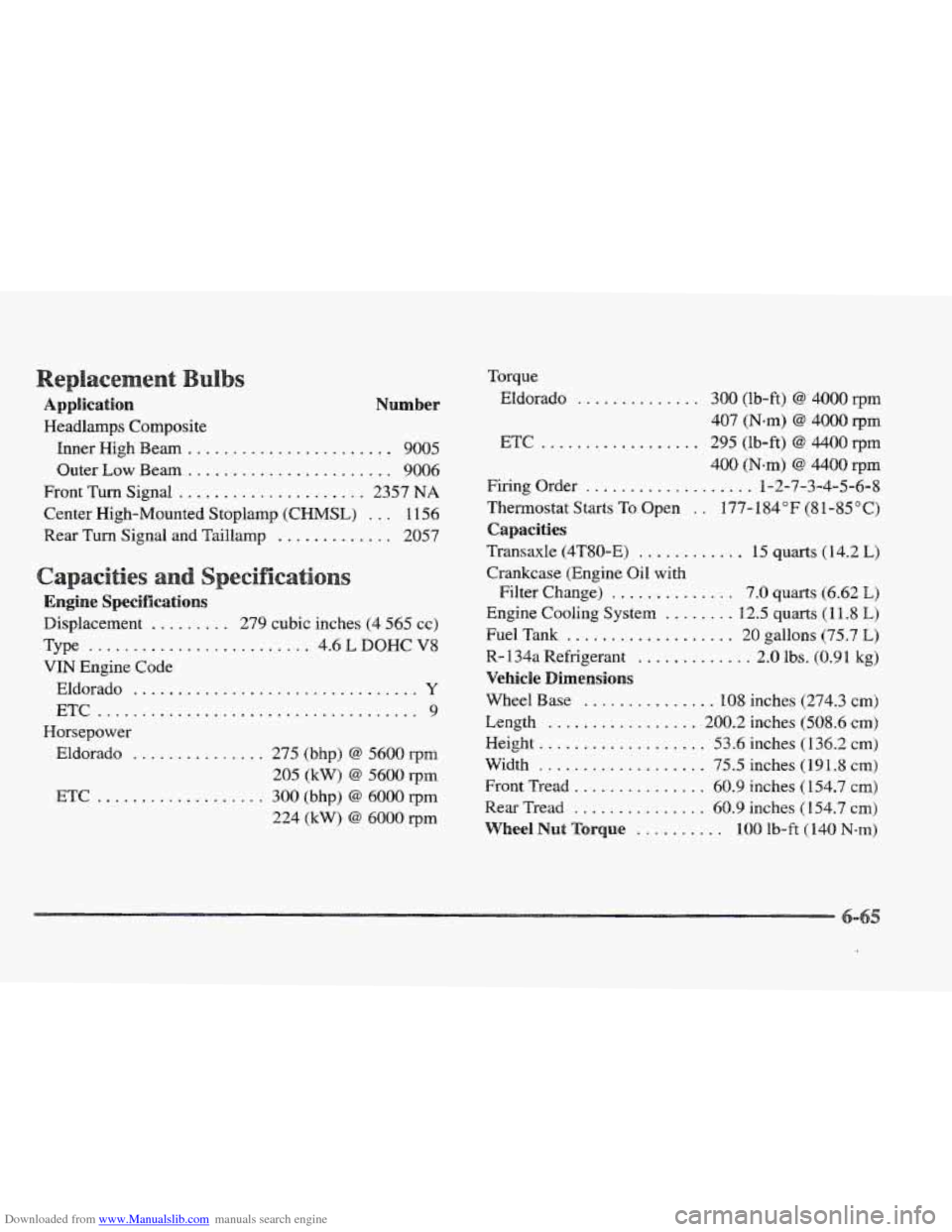

Downloaded from www.Manualslib.com manuals search engine Number
ce
Application
Headlamps Composite
Inner High Beam ....................... 9005
Outer
Low Beam ....................... 9006
Front Turn Signal ..................... 2357 NA
Rear Turn Signal and Taillamp ............. 2057
Center High-Mounted Stoplamp
(CHMSL) ... I156
s
Engine Specifications
Type ......................... 4.4 L DOHC V8
VIN Engine Code
Eldorado
................................ Y
ETC .................................... 9
Displacement ......... 279 cubic inches (4 565 cc)
Horsepower Eldorado
............... 275 (bhp) @ 5600 rprn
ET&: ................... 300 (bhp) @ 6000 rpm
205 (kW) @ 5600 rpm
224 (kW) @ 6000 rpm
Torque
Eldorado
. ......... 300 (Ib-ft) @ 4000 VIII
ETC .................. 295 (Ib-ft) @ 4400 rpm
Firing Order ................... 1-2-7-3-4-5-6-8
407
(N-m)
@ 4000 rpm
400 (Nem) @ 4400 rpm
Thermostat Starts To Open . . 177484°F (8I-85"C)
Capacities
Crankcase (Engine Oil with
Transaxle
(4T8O-E)
............ 15 quarts ( 14.2 L)
Filter Change) .............. 7.0 quarts (6.62 L)
Engine Cooling System ........ 12.5 quarts ( 1 1.8 Lj
Fuel Tank ................... 20 gallons (75.7 L)
R- 134a Refrigerant ............. 2.0 lbs. (0.91 kg)
Wheel Base ............... 108 inches (274.3 cm)
Length
................. 200.2 inches (508.6 cm)
Height..
................. 53.6 inches (136.2 cm)
Width
................... 75.5 inches (191.8 cm)
Front Tread
............... 60.9 inches (154.7 cm)
Rear Tread ............... 60.9 inches ( 154.7 cm)
Wheel Nut Torque .......... 100 Ib-ft ( 140 N-m)
Page 329 of 361

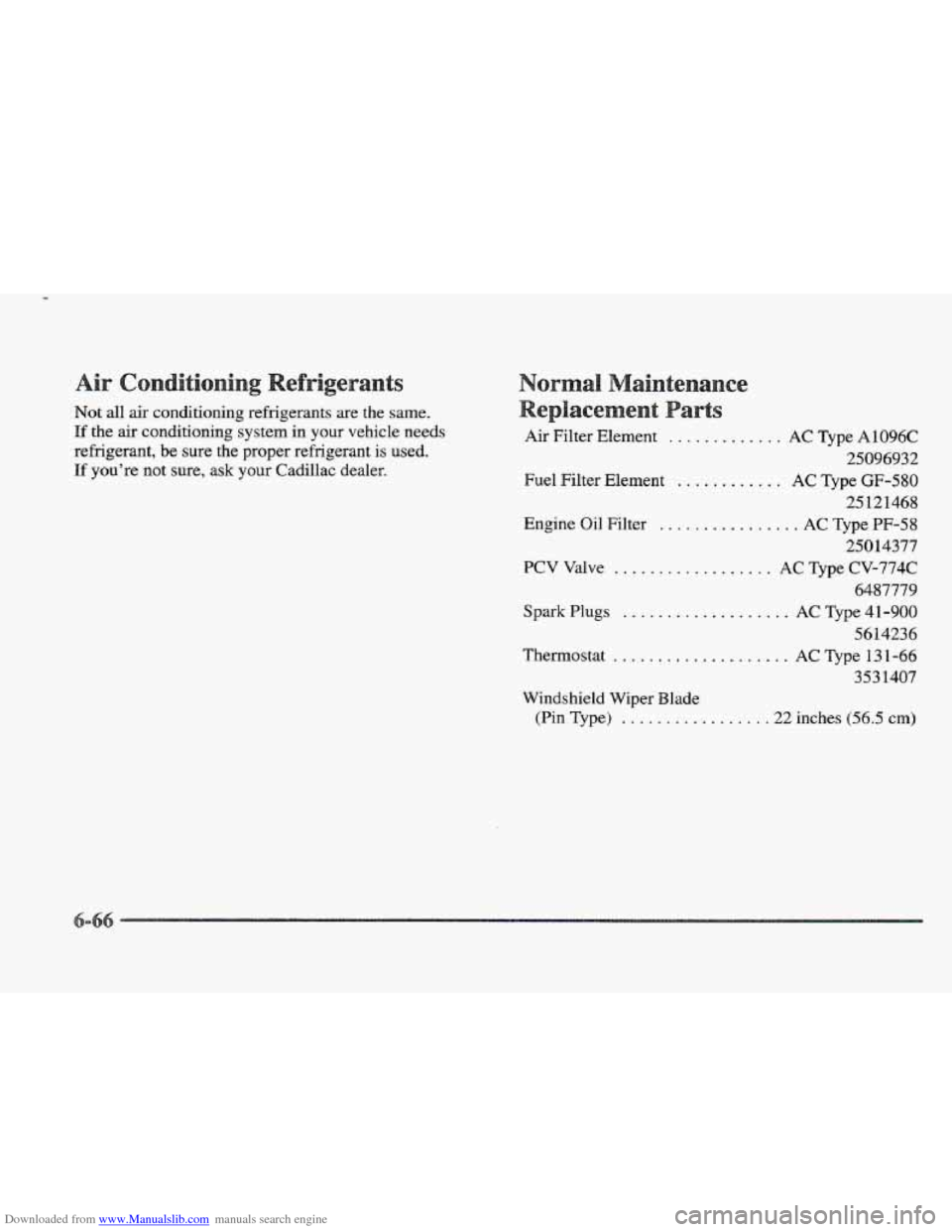

Downloaded from www.Manualslib.com manuals search engine s
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure
the proper refrigerant is used.
If you’re not sure, ask your Cadillac dealer. Air Filter Element
............. AC
Type A1096C
25096932
Fuel Filter
Element ............ AC Type GF-580
25121468
Engine Oil Filter
................ AC Type BF-58
25014377
PCV Valve .................. AC Type CV-774C
6487779
Spark Plugs
................... AC Type 41-900
5614236
Thermostat
.................... AC Type 13 1-66
3531407
Windshield Wiper Blade (Pin Type)
................ .22 inches (56.5 cm)
Page 330 of 361

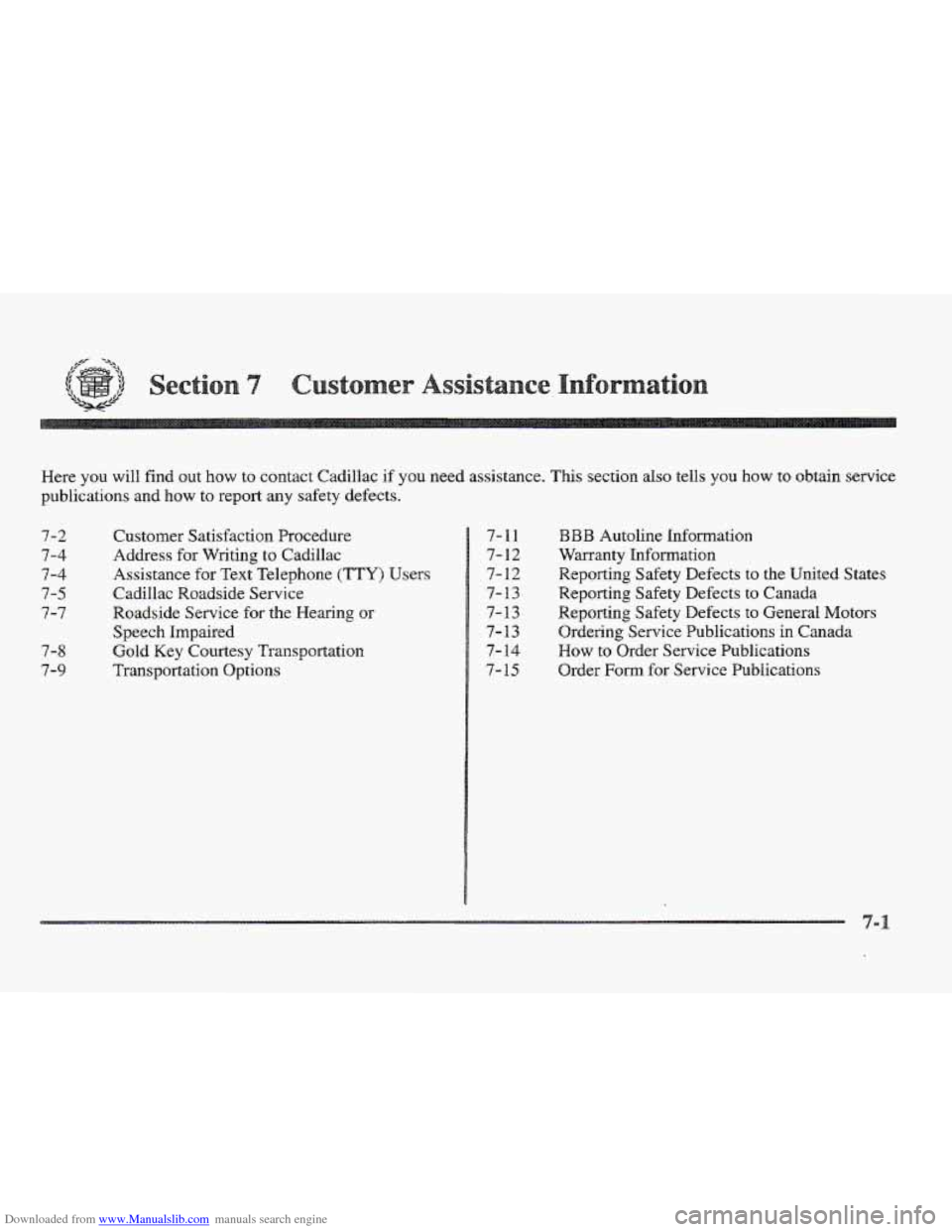

Downloaded from www.Manualslib.com manuals search engine Mere YOU will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service
