Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the rear wall of the trunk on the
passenger's side. It's very helpful if you ever need to
order parts. On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.

6-58
Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Headlamp Wiring
The headlamp wiring has an individual fuse which is
powered by a MaxiFuse
. An electrical overload will
cause the lamps to go on and off, or in some cases to
remain off. If this happens, have the headlamp wiring
checked right away.
Windshield Wiper Fuses
The windshield wiper motor is powered by a
MaxiFuse
. If the motor overheats due to heavy snow,
etc., the wipers will stop until the motor cools. If the
overload is caused by some electrical problem, be sure
to have it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.

6-59 MaxiFuse

/Relay Center
The MaxiFuses and relays are located next to the engine
compartment fuse block on the driver's side of the
engine. To access the compartment fuse block, remove
the shroud cover. If a MaxiFuse should blow, have your
vehicle serviced by your dealer immediately.
MaxiFuse
(8
-Way) Usage
BODY 1 Road Sensing Suspension (RSS)
Fuse (ETC Only), Convenience
Fuse, BATT Fuse, Antenna Fuse,
Passenger and Driver Seat Belt
Comfort Solenoids, Trunk and
Fuel Door Release Solenoids and
Relays, Door Lock/Unlock Relays,
Damper Relay (ETC Only),
Parking Lamp Relay, Right and
Left Park Fuse
BODY 2 Defog Relay, Pull
-Down Fuse,
Right and Left Heated Seat Fuses,
Electronic Level Control (ELC)
Relay, Heated Mirror Fuse,
Heated Backlite Fuse,
ELC Circuit Breaker

6-60
MaxiFuse
(8
-Way) Usage
BODY 3 Controlled Power Relay,
Controlled Power Back
-Up Relay,
Cluster Fuse, Passenger Zone
Module (PZM) Fuse, Radio Fuse,
RAP Relay, Trunk and Fuel Door
Release Relay, High
-Beam Relay,
Comfort Fuse, AMP Fuse
(Optional), Right and Left Bose
Relay (Optional)
INADVERT Inadvertent Power Relay, Interior
Lamps Fuse, Cigarette Lighter
-1
Fuse, Courtesy Lamp Relay
LAMPS Headlamps Fuse/Relay, High/Low
Beam Control Relay, Fog Lamp
Fuse, DRL Fuse, Hazard Fuse,
Mirror Fuse, Inadvertent Power
Relay, Right and Left High
-Beam
Fuse, Right and Left Low
-Beam
Fuse, Stoplamp Fuse, Fog Lamp
Relay, DRL RelayMaxiFuse
(8
-Way) Usage
IGN 1 Rear Ignition
-1 Relay, Wiper
Fuse, Relay Ignition
-1 Fuse,
Supplemental Inflatable Restraint
(SIR) Fuse, Accessory Relay
WINDOWS Retained Accessory
Power (RAP) Relay
SEATS Horn Relay, Driver and Passenger
Lumbar In/Out Relays,
Driver and Passenger Lumbar
Up/Down Relays

6-61
MaxiFuse
(6
-Way) Usage
BATT 3 Steering Column Ignition Switch
BATT 2 Steering Column Ignition Switch
IGN 1 Front Ignition
-1 Relay, Oxygen
Sensor 1 and 2 Fuse, Fuel Fuse,
Cruise Fuse, Fuel Pump Relay
BATT 1 Starter Relay and Solenoid,
Park/Reverse Fuse, Park Relay,
Powertrain Control Module
(PCM) Fuse, AC Compressor Fuse
and Relay, Fan Relays,
Reverse Relay
BRAKES Anti
-Lock Brake System (ABS)
Brake Modulator
COOL FNS Cooling Fan Relays 1 and 3Power
Distribution
BlockUsage
DRL Daytime Running Lamps (DRL)
HI/LO BEAM High and Low
-Beam Headlamps
HORN Horn
FOG LPS Fog Lamps
ACCESSORY Accessories
HEAD LPS Headlamps
Relays
INADVERT POWER RELAY
IGN 1 RELAY
STARTER RELAY

6-62 Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of fires caused
by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
If you ever have a problem on the road and don't have a
spare fuse, you can ªborrowº one that has the same
amperage. Pick some feature of your vehicle that you
can get along without
-- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as you can.
There are two fuse blocks in your vehicle: the
underhood fuse block and the rear compartment

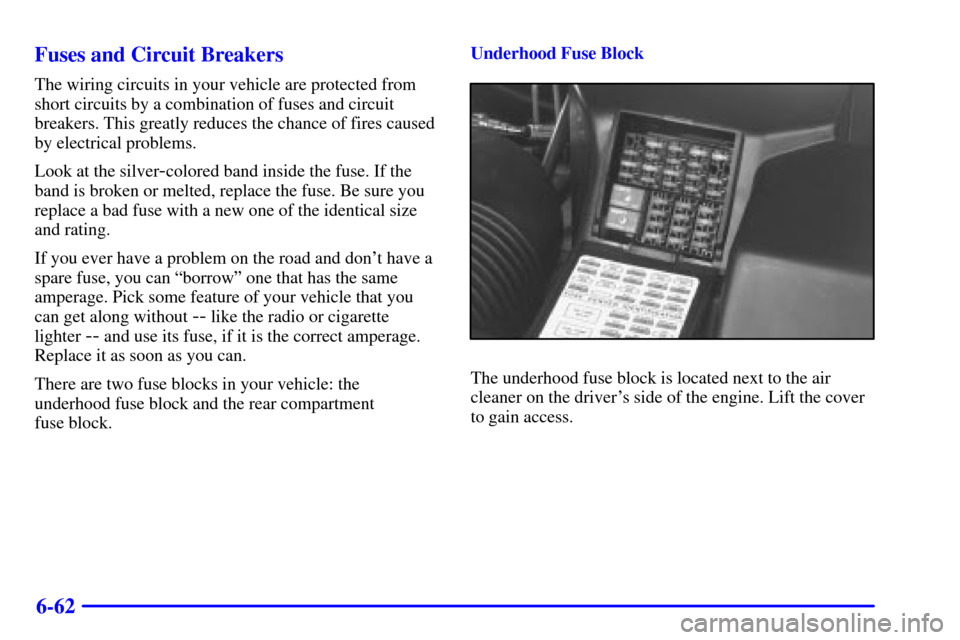

fuse block.Underhood Fuse Block
The underhood fuse block is located next to the air
cleaner on the driver's side of the engine. Lift the cover
to gain access.

6-63
Fuse Usage
CNR LPS Cornering Lamp Switch, Right
and Left Cornering Lamps
INT LPS Trunk Lamp, Courtesy Lamps,
Front Vanity Lamps, Glove Box
Lamp, Garage Door Opener,
Courtesy Lamp Relay
CIG LTR1 Front and Rear Cigarette LightersFuse Usage
L HDLP LO Left Low
-Beam Headlamp
R HDLP LO Right Low
-Beam Headlamp
L HDLP HI Left High
-Beam Headlamp
R HDLP HI Right High
-Beam Headlamp
FOG Fog Lamp Relay, Right and Left
Fog Lamps, Headlamp Switch
HDLPS Headlamp Relay, High/Low
-Beam
Control Relay, Right and Left
Low/High
-Beam Fuses
HAZARD Electronic Flasher Module,
Turn/Hazard Switch, Right and
Left Front Turn Lamps, Right and
Left Rear Turn Lamps, Cluster
STOP Stoplamp Switch, Centered
High
-Mounted Stoplamp
(CHMSL), Turn Hazard Switch,
ABS Controller, Stepper Motor
Cruise Control
MIRROR Inadvertent Power Relay, Left
Outside Rearview Mirror Switch,
ALDL, Memory Mirror Module,
Dimmer Switch, Cluster

6-64
Fuse Usage
DRL Daytime Running Lamp (DRL)
Relay, Left and Right Low Beam
in DRL Mode
IGN 0 (ENG) Powertrain Control
Module (PCM)
CRANK Powertrain Control
Module (PCM)
ABS Anti
-Lock Brake System
(ABS)/Traction Control System
IGN
-1 Rear Ignition-1 Relay, Front Fog
Lamp Relay, Controlled Power
Backup Relay, DRL Relay,
Canister Vent Solenoid
WIPERS Accessory Relay, Wiper Switch
A/C COMP AC Compressor Relay,
Cooling Fan Relays 1, 2, 3,
Compressor Clutch
PCM (BAT) PCM
PARK/REV Reverse Relay, Right and Left
Back
-Up Lamps, Electrochromic
Mirror (in Header), Park Relay,
Brake Transaxle
-Shift
Interlock (BTSI) SwitchFuse Usage
ECS Transaxle Shift Solenoids, Air
Meter, Canister Purge, PCM, Front
Ignition
-1 Relay
PCM (IGN) Powertrain Control
Module (PCM)
DIS Odd and Even Coil Packs
CRUISE Stepper Motor Cruise Control,
Low Refrigerant Pressure Cutoff
Switch, Park Relay
INJ Injectors 1, 4, 6, 7
INJ Injectors 2, 3, 5, 8
FUEL PUMP Fuel Pump Relay, Fuel Pump
OXY SEN1 Oxygen Sensor Front
OXY SEN2 Catalytic Converter (CAT)
Rear Oxygen Sensor,
Starter Enable Relay
Relays
A/C COMP
RELAY
FUEL PUMP
RELAY

6-65
Rear Compartment Fuse Block
The fuse block is located on the front wall of the trunk
(behind the rear seat) on the driver's side. Loosen the
four trunk trim fasteners and pull the trim away from the
fuse block to gain access.
Fuse Usage
RLY IGN1 Cluster, Cruise in Stalk, Passenger
Zone Module (PZM), Torque
Converter Clutch (TCC) Switch
SIR Sensing and Diagnostic
Module (SDM)
ELC Electronic Level Control (ELC)
Relay, ELC Height Sensor
TURN Electronic Flasher,
Turn/Hazard SwitchFuse Usage
CONSOLE Rear Zone Blower, Right and Left
Heated Seat Switches (Optional)
RSS Road Sensing Suspension (RSS)
Module (ETC Only)
IGN 0
-BODY PRNDL, PZM, Cluster, Air
Control Module (ACM), Upper
Zone Motor, Lower Zone Motor
(Optional), HVAC Solenoids,
Climate Control Panel, Rear
Defog Relay, ELC Relay
COMFORT CD Player, Remote Keyless Entry
(RKE), Controlled Power Relay,
Air Control Module (ACM), PZM
AMP (Optional) Right and Left Bose Relay,
Right and Left Front Speakers
(On Door), Right and
Left Rear Speakers
PZM Passenger Zone Module (PZM)

6-66
Fuse Usage
RADIO/PHONE Radio Receiver, Radio Interface
Module (RIM) (Optional), Phone,
RAP Relay, Trunk Release Relay,
Fuel Door Release Relay,
High/Low
-Beam Relay
CLUSTER Steering Wheel Controls, Cluster
ACC PZM, Electrochromic Mirror,
Rain Sensor (Optional),
Accessory Relay
HTD MIR Right and Left Outside
Heated Mirror
HTD SEAT R Passenger Heated Seat
Relay (Optional)
HTD SEAT L Driver Heated Seat
Relay (Optional)
PULL DOWN Trunk Pull
-Down Motor
ANTENNA Power Mast Antenna
RSS Damper Relay (ETC Only)Fuse Usage
CONVENC Trunk Release Relay, Trunk
Release Solenoid, Fuel Door
Release Relay, Fuel Filler Door
Release Solenoid, Door Lock
Relay, Left and Right Door
Motors, PZM, Door Unlock Relay
BATT Driver and Passenger Seat Lumbar
Switch (Optional), Driver and
Passenger Seat Belt Comfort
Solenoid, Memory Seat
Module (Optional)
RSS Road Sensing Suspension (RSS)
Module (ETC Only)
RT PARK Headlamp Switch, Right Front
Parking Lamp, Right Front and
Rear Sidemarker Lamps,
Right Turn/Stop/Tail Lamps
LT PARK Left Front and Rear Sidemarker
Lamps, Left Front Parking Lamp,
Left Turn/Stop/Tail Lamps,
Right and Left License Lamps,
Underhood Lamp
