CADILLAC ELDORADO 2001 10.G Repair Manual

1-49
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system
earlier in this section.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-8 Remote Keyless Entry System
2
-12 Trunk
2
-14 Theft
2
-15 Theft-Deterrent System
2
-17 PASS-Key
II
2
-18 New Vehicle ªBreak-Inº
2
-19 Ignition Positions
2
-20 Starting Your Engine
2
-21 Engine Coolant Heater (If Equipped)
2
-23 Automatic Transaxle Operation
2
-26 Parking Brake
2
-28 Shifting Into PARK (P)
2
-30 Shifting Out of PARK (P)2
-31 Parking Over Things That Burn
2
-31 Engine Exhaust
2
-32 Running Your Engine While You're Parked
2
-33 Tilt Wheel
2
-33 Turn Signal/Multifunction Lever
2
-41 Exterior Lamps
2
-46 Interior Lamps
2
-47 Mirrors
2
-51 Storage Compartments
2
-53 Sun Visors
2
-54 OnStar
System (If Equipped)
2
-57 Sunroof (Option)
2
-58 HomeLink
Transmitter (Option)
2
-62 The Instrument Panel -- Your
Information System
2
-66 Warning Lights, Gages and Indicators
2
-76 Driver Information Center (DIC)

2-2

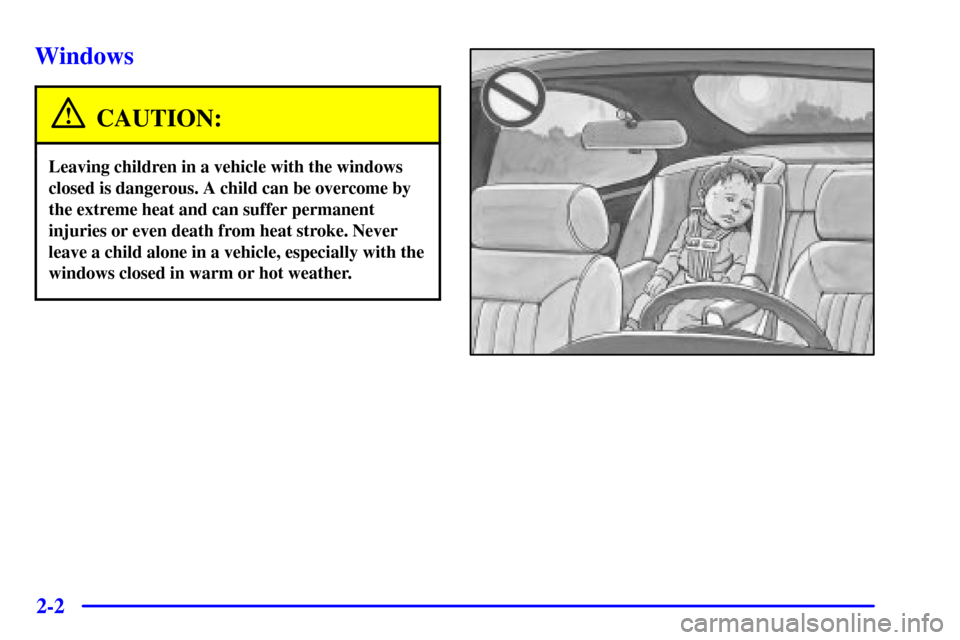

Windows
CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome by
the extreme heat and can suffer permanent
injuries or even death from heat stroke. Never
leave a child alone in a vehicle, especially with the
windows closed in warm or hot weather.

2-3 Power Windows
The controls are located
near each window. Press the
control forward to raise the
window and press rearward
to lower the window.
Your vehicle has Retained Accessory Power (RAP).
When you stop your vehicle and turn the ignition
key to OFF, you can still use your power windows.
See ªRetained Accessory Powerº in the Index for
more information.Express
-Down Window
This feature is present on the driver's power window.
Pressing the control rearward into the second position
then releasing it will lower the window completely.
If you want to stop the window as it is lowering,
press the control forward.
The first position on the power window control operates
the driver's power window in the non
-express mode.

2-4

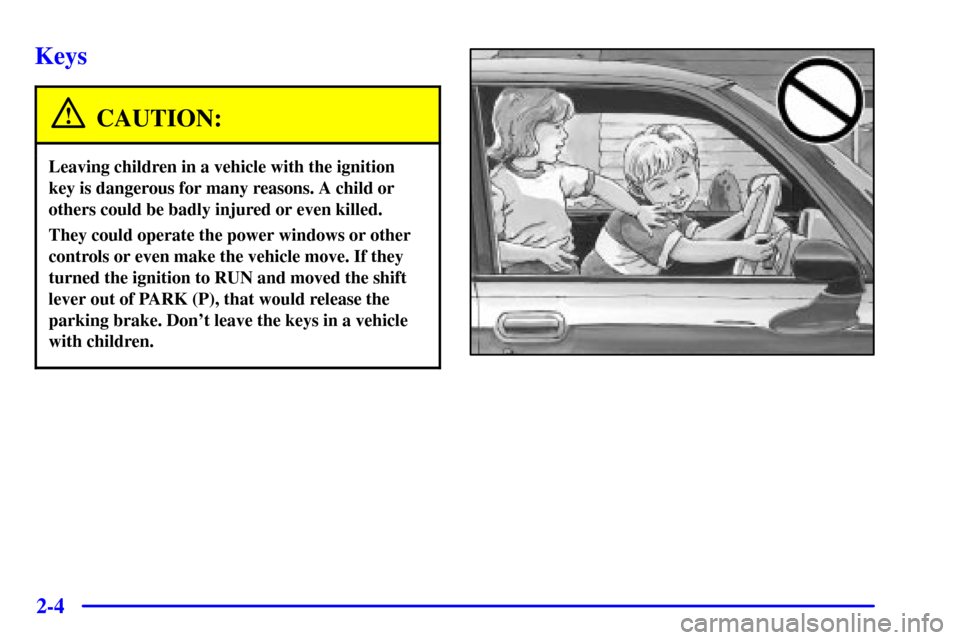

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. If they
turned the ignition to RUN and moved the shift
lever out of PARK (P), that would release the
parking brake. Don't leave the keys in a vehicle
with children.

2-5
Ignition Key Door/Locks Key
The square key is for the ignition only. It has a
resistor pellet which is part of the vehicle's
PASS
-Key
II system.
The oval key is for the doors and all other locks.When a new vehicle is delivered, the dealer removes the
plug from the door key. The plug has a code on it that
tells the dealer or a qualified locksmith how to make
extra keys. The ignition key has a bar code tag attached
to it rather than a knock out plug. Your dealer or
qualified locksmith can make extra ignition keys by
reading the bar code tag.
There are 15 alternative ignition PASS
-Key
II blanks
to help discourage theft. Keep the bar code tag and the
door key plugs in a safe place. If you lose your keys,
you will be able to have new ones made using the plug
or bar code tag.
NOTICE:
Your vehicle has a number of new features that
can help prevent theft. You can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside and you may have to
damage your vehicle to get in. Be sure you
have extra keys.

2-6
Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use either the door key or the remote
keyless entry transmitter.
If your vehicle is equipped with the theft
-deterrent
system, you must unlock the doors with the key or
remote keyless entry transmitter to avoid setting off
the alarm.

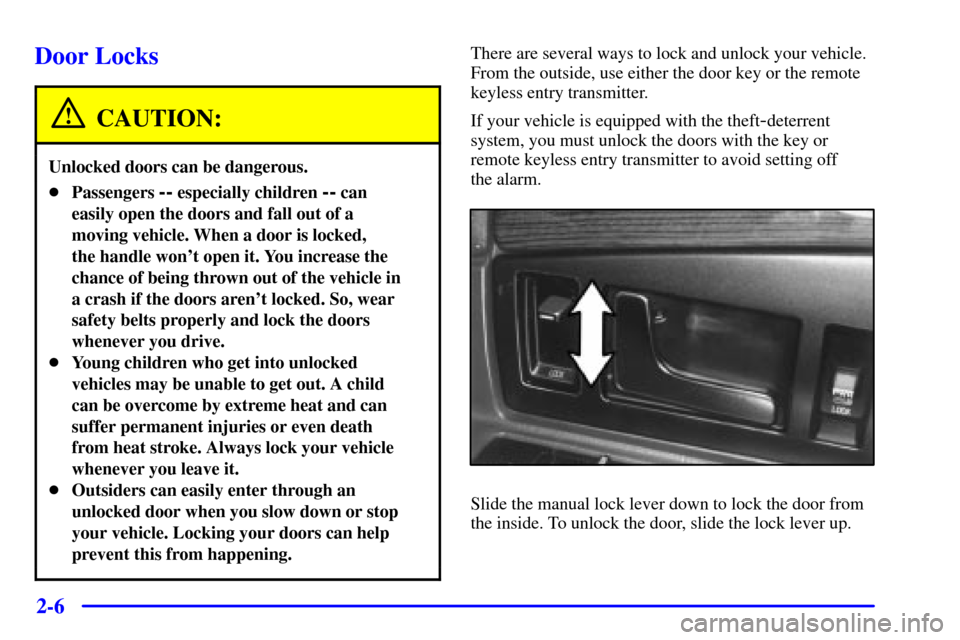

Slide the manual lock lever down to lock the door from
the inside. To unlock the door, slide the lock lever up.

2-7 Central Door Unlocking System
Your vehicle will have this feature if it is equipped with
the theft
-deterrent system. When unlocking either door,
you can also unlock the other door by holding the key in
the turned position for a few seconds or by quickly
turning the door key twice in the lock cylinder.
Power Door Locks
Press the power door lock switch to lock or unlock both
doors at once.
Automatic Door Locks
Your vehicle is programmed to lock both doors when
the ignition is on and the shift lever is moved out of
PARK (P). The doors will unlock every time you stop
the vehicle and move the shift lever back into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual or power
door lock. When the door is closed again, it will not lock
automatically. Use the manual or power door lock to
lock the door again. If you need to lock the doors before
shifting out of PARK (P), use the manual or power
door lock.
Programmable Automatic Door Locks
(If Equipped)
With the ignition in RUN, the door locks can be
programmed through prompts displayed by the Driver
Information Center (DIC). These prompts allow the
driver to choose various lock settings. For programming
information, see ªMemory and Personalization
Featuresº in the Index.

2-8 Anti-Lockout Feature
Leaving your key in any ignition position with either
door open will disable the use of the power door lock
switches as well as the lock button on the remote keyless
entry transmitter. If you close the doors, you can lock
them using the remote keyless entry transmitter. It is
always recommended that you remove your ignition key
when locking your vehicle.
The anti
-lockout feature can be overridden by holding
the driver's power door lock switch for three seconds
or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry System
With this feature, you can lock and unlock the doors,
unlock the trunk, open the fuel door and turn on your
vehicle's interior lamps from about 10 feet (3 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.

2-9
Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
The average range of this system is about 10 feet (3 m).
At times you may notice a decrease in range. This is
normal for any remote keyless entry transmitter. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or a
qualified technician for service.Operation
When you press
this button to unlock
the driver's door, the
parking lamps on your
vehicle will blink twice.
(You can program your
vehicle so the parking
lamps will not flash.
For more information,
see ªLock/Unlock
Confirmationº in
the Index.
Pressing it again within five seconds will unlock the
other doors. Pressing this button will also disarm the
theft
-deterrent system (if equipped) and turn on the
interior lamps at night.
When you press this button to lock the doors, the
parking lamps will blink once. (You can program your
vehicle so the parking lamps will not flash. For more
information, see ªLock/Unlock Confirmationº in
the Index.) This also arms the theft
-deterrent system
(if equipped).
