1-4 Memory Seat and Mirrors (If Equipped)
If your vehicle has this
feature, the controls are
located on the driver's
door armrest.
These buttons are used to program and recall memory
settings for the driver's seating and outside rearview mirror
positions. Use the following steps to program each button:
1. Adjust the driver's seat (including lumbar adjustments)
and both outside mirrors to a comfortable position.
2. Press the SET button.
3. Within five seconds, press button 1. A single beep
will sound through the driver's side front speaker to
let you know that the position has been stored.A second mirror and seating position may be
programmed by repeating the above steps and pressing
button 2 instead of button 1. Each time button 1 or 2 is
pressed and released while the vehicle is in PARK (P),
the memory position will be recalled. Each time a
memory button is pressed, a single beep will sound.
You can also recall a seat and mirror position if your
vehicle is not in PARK (P). Press and hold either
the 1 or 2 button until seat and mirror movement is
complete. Releasing the buttons will stop adjustment.
If you use the button with the unlock symbol on the
remote keyless entry transmitter to enter the vehicle, the
preset driver's seat and mirror positions will be recalled.
The numbers on the back of the transmitters, 1 or 2,
correspond to the numbers on the driver's armrest.
If the remote keyless entry transmitter was not used to
enter the vehicle, the last used seat and mirror positions
will be recalled when a key is inserted in the ignition
and is turned to RUN. The vehicle must be previously
programmed to turn this feature on. See ªMemory and
Personalization Featuresº in the Index.

1-5
To stop recall movement of the memory feature at
any time, press one of the power seat controls or
memory buttons.
The EXIT button can be programmed to allow easy exit
for up to two drivers. Adjust the seat to a comfortable
ªexitº position and then press the SET button followed
by the EXIT button. While your vehicle is in PARK (P),
briefly press the EXIT button to recall your programmed
exit position.
Further programming for automatic seat and mirror
movement can be done using the Driver Information
Center (DIC). You can select or not select the following:

Automatic seat and mirror movement when the
vehicle is unlocked with the remote keyless entry
transmitter, or

automatic seat and mirror movement when a key
is placed in the ignition.
For programming information, see ªMemory and
Personalization Featuresº in the Index.Heated Front Seat (Option)
The switch for the heated
front seat is located in the
center console.
Move the switch to LO or HI to turn on the heating
elements in the seat. The LO setting warms the
seatback and cushion until the seat approximates body
temperature. The HI setting heats the seat to a slightly
higher temperature.
A light in the switch is on when the system is in use.
The heated seats can only be used when the ignition
is turned on.
To turn the heated front seat off, move the switch to
the center position.

1-22
The best way to protect the fetus is to protect
the mother. When a safety belt is worn properly,
it's more likely that the fetus won't be hurt in a crash.
For pregnant women, as for anyone, the key to making
safety belts effective is wearing them properly.
Right Front Passenger Position
To learn how to wear the right front passenger's safety belt
properly, see ªDriver Positionº earlier in this section.
The right front passenger's safety belt works the same
way as the driver's safety belt
-- except for one thing.
If you ever pull the lap portion of the belt out all the
way, you will engage the child restraint locking feature.
If this happens, just let the belt go back all the way and
start again.
Supplemental Inflatable Restraint
(SIR) System
This part explains the Supplemental Inflatable Restraint
(SIR) system or air bag system.
Your vehicle has air bags
-- one air bag for the driver
and another air bag for the right front passenger.
Frontal air bags are designed to help reduce the risk of
injury from the force of an inflating air bag. But these
air bags must inflate very quickly to do their job and
comply with federal regulations.Here are the most important things to know about the
air bag system:
CAUTION:
You can be severely injured or killed in a crash
if you aren't wearing your safety belt
-- even if
you have air bags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being ejected
from it. Air bags are designed to work with
safety belts, but don't replace them. Air bags
are designed to work only in moderate to severe
crashes where the front of your vehicle hits
something. They aren't designed to inflate at
all in rollover, rear or low
-speed frontal
crashes, or in many side crashes. And, for
some unrestrained occupants, air bags may
provide less protection in frontal crashes than
more forceful air bags have provided in the past.
Everyone in your vehicle should wear a safety
belt properly
-- whether or not there's an air bag
for that person.

1-27

Air bags are designed to inflate only once. After they
inflate, you'll need some new parts for your air bag
system. If you don't get them, the air bag system
won't be there to help protect you in another crash.
A new system will include air bag modules and
possibly other parts. The service manual for your
vehicle covers the need to replace other parts.

Your vehicle is equipped with a crash sensing and
diagnostic module, which records information about
the air bag system. The module records information
about the readiness of the system, when the system
commands air bag inflation and driver's safety belt
usage at deployment. The module also records speed,
engine rpm, brake and throttle data.

Let only qualified technicians work on your
air bag system. Improper service can mean that
your air bag system won't work properly. See your
dealer for service.
NOTICE:
If you damage the covering for the driver's air
bag, it may not work properly. You may have to
replace the air bag module. Do not open or break
the air bag covering.
Servicing Your Air Bag-Equipped Vehicle
Air bags affect how your vehicle should be serviced.
There are parts of the air bag system in several places
around your vehicle. You don't want the system to
inflate while someone is working on your vehicle.
Your dealer and the service manual have information
about servicing your vehicle and the air bag system.
To purchase a service manual, see ªService and Owner
Publicationsº in the Index.
CAUTION:
For up to 10 seconds after the ignition key is
turned off and the battery is disconnected,
an air bag can still inflate during improper
service. You can be injured if you are close to an
air bag when it inflates. Avoid yellow connectors.
They are probably part of the air bag system.
Be sure to follow proper service procedures,
and make sure the person performing work for
you is qualified to do so.
The air bag system does not need regular maintenance.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-8 Remote Keyless Entry System
2
-12 Trunk
2
-15 Theft
2
-16 Theft-Deterrent System
2
-18 PASS-Key
II
2
-19 New Vehicle ªBreak-Inº
2
-19 Ignition Positions
2
-21 Starting Your Engine
2
-22 Engine Coolant Heater (If Equipped)
2
-24 Automatic Transaxle Operation
2
-27 Parking Brake
2
-29 Shifting Into PARK (P)
2
-31 Shifting Out of PARK (P)
2
-31 Parking Over Things That Burn2
-32 Engine Exhaust
2
-32 Running Your Engine While You're Parked
2
-33 Tilt Wheel
2
-34 Turn Signal/Multifunction Lever
2
-42 Exterior Lamps
2
-46 Interior Lamps
2
-48 Mirrors
2
-51 Storage Compartments
2
-53 Sun Visors
2
-54 OnStar
System (If Equipped)
2
-57 Sunroof (Option)
2
-58 HomeLink
Transmitter (Option)
2
-62 The Instrument Panel -- Your
Information System
2
-66 Warning Lights, Gages and Indicators
2
-78 Driver Information Center (DIC)

2-4

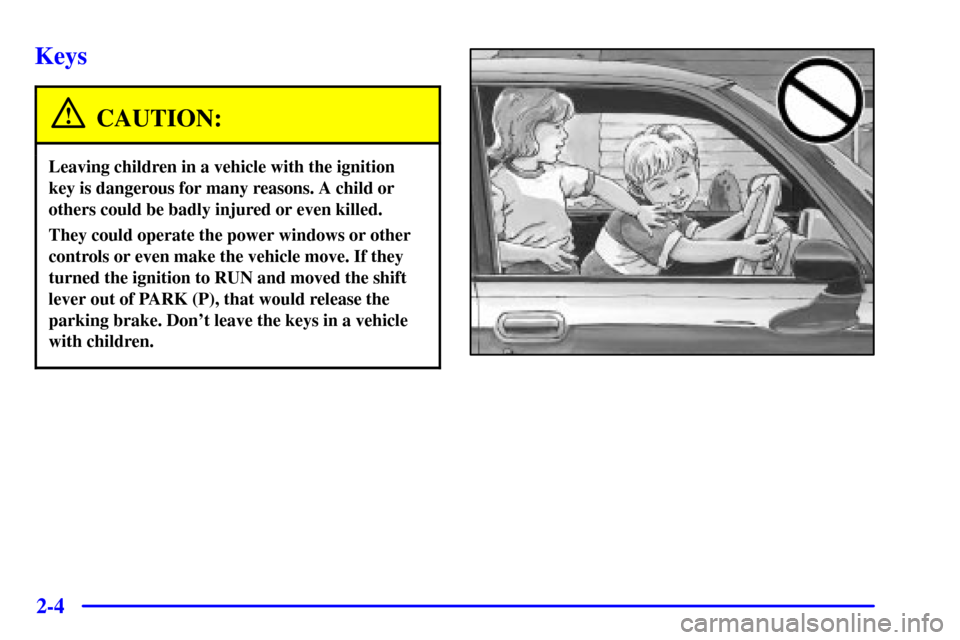

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or other
controls or even make the vehicle move. If they
turned the ignition to RUN and moved the shift
lever out of PARK (P), that would release the
parking brake. Don't leave the keys in a vehicle
with children.

2-5

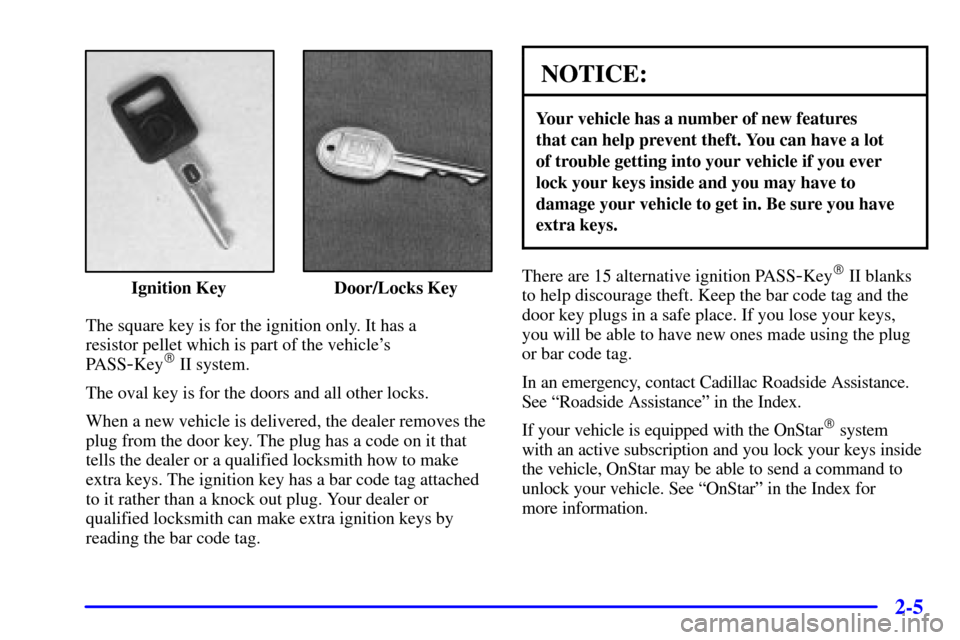

Ignition Key Door/Locks Key
The square key is for the ignition only. It has a
resistor pellet which is part of the vehicle's
PASS
-Key
II system.
The oval key is for the doors and all other locks.
When a new vehicle is delivered, the dealer removes the
plug from the door key. The plug has a code on it that
tells the dealer or a qualified locksmith how to make
extra keys. The ignition key has a bar code tag attached
to it rather than a knock out plug. Your dealer or
qualified locksmith can make extra ignition keys by
reading the bar code tag.
NOTICE:
Your vehicle has a number of new features
that can help prevent theft. You can have a lot
of trouble getting into your vehicle if you ever
lock your keys inside and you may have to
damage your vehicle to get in. Be sure you have
extra keys.
There are 15 alternative ignition PASS-Key
II blanks
to help discourage theft. Keep the bar code tag and the
door key plugs in a safe place. If you lose your keys,
you will be able to have new ones made using the plug
or bar code tag.
In an emergency, contact Cadillac Roadside Assistance.
See ªRoadside Assistanceº in the Index.
If your vehicle is equipped with the OnStar

system
with an active subscription and you lock your keys inside
the vehicle, OnStar may be able to send a command to
unlock your vehicle. See ªOnStarº in the Index for
more information.

2-6

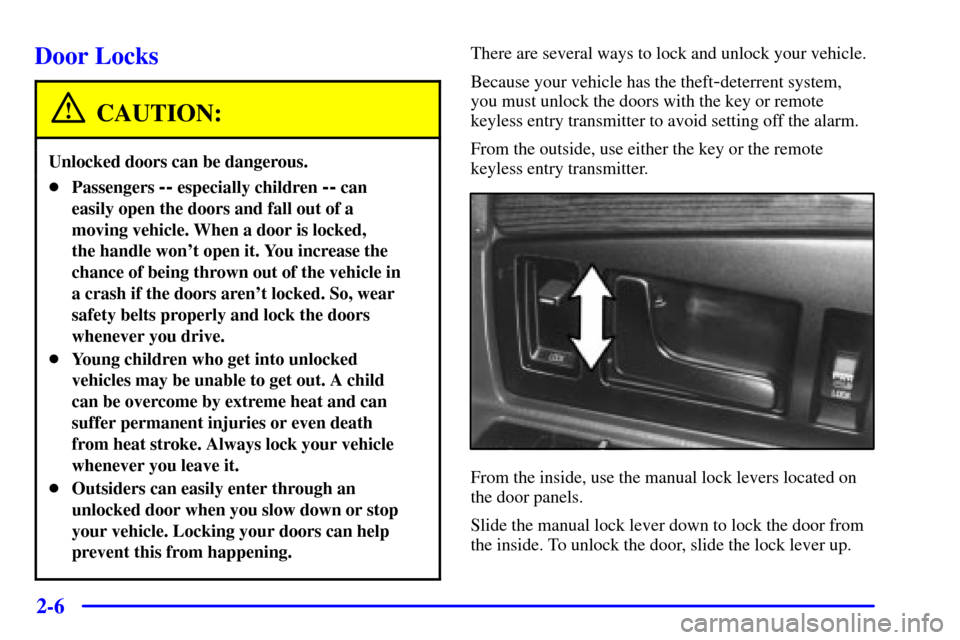

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle in
a crash if the doors aren't locked. So, wear
safety belts properly and lock the doors
whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
Because your vehicle has the theft
-deterrent system,
you must unlock the doors with the key or remote
keyless entry transmitter to avoid setting off the alarm.
From the outside, use either the key or the remote
keyless entry transmitter.
From the inside, use the manual lock levers located on
the door panels.
Slide the manual lock lever down to lock the door from
the inside. To unlock the door, slide the lock lever up.

2-7 Central Door Unlocking System
Your vehicle will have this feature if it is equipped with
the theft
-deterrent system. When unlocking either door,
you can also unlock the other door by holding the key
in the turned position for a few seconds or by quickly
turning the door key twice in the lock cylinder.
Power Door Locks
Press the power door lock switch down to lock or
upward to unlock both doors at once.
Automatic Door Locks
Your vehicle is programmed to lock both doors when
the ignition is on and the shift lever is moved out of
PARK (P). The doors will unlock every time you stop
the vehicle and move the shift lever back into PARK (P).
If someone needs to get out while your vehicle is not in
PARK (P), have that person use the manual or power
door lock. When the door is closed again, it will not
lock automatically. Use the manual or power door lock
to lock the door again. If you need to lock the doors
before shifting out of PARK (P), use the manual or
power door lock.
Programmable Automatic Door Locks
(If Equipped)
With the ignition in RUN, the door locks can be
programmed through prompts displayed by the
Driver Information Center (DIC). These prompts
allow the driver to choose various lock settings.
For programming information, see ªMemory and
Personalization Featuresº in the Index.

2-8 Anti-Lockout Feature
Leaving your key in any ignition position with either
door open will disable the use of the power door lock
switches as well as the lock button on the remote keyless
entry transmitter. If you close the doors, you can lock
them using the remote keyless entry transmitter. It is
always recommended that you remove your ignition key
when locking your vehicle.
The anti
-lockout feature can be overridden by
holding the driver's power door lock switch for
three seconds or longer.
Leaving Your Vehicle
If you are leaving the vehicle, open the door, set the
locks from the inside, get out and close the door.
Remote Keyless Entry System
With this feature, you can lock and unlock the doors,
unlock the trunk, open the fuel door and turn on your
vehicle's interior lamps from about 10 feet (3 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
