CADILLAC ESCALADE 1999 1.G Repair Manual

yellowblue
1-55

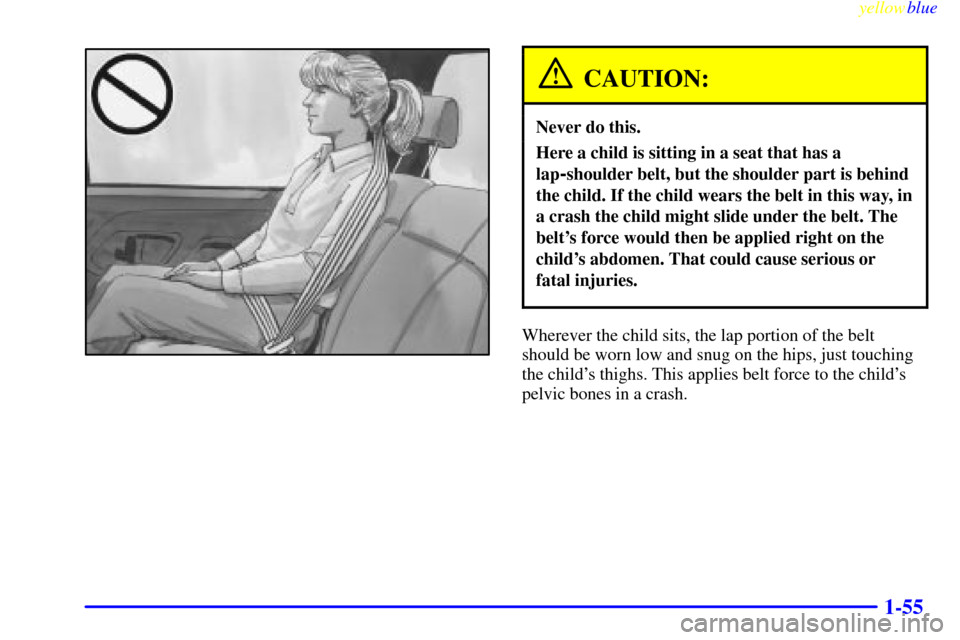

CAUTION:
Never do this.
Here a child is sitting in a seat that has a
lap
-shoulder belt, but the shoulder part is behind
the child. If the child wears the belt in this way, in
a crash the child might slide under the belt. The
belt's force would then be applied right on the
child's abdomen. That could cause serious or
fatal injuries.
Wherever the child sits, the lap portion of the belt
should be worn low and snug on the hips, just touching
the child's thighs. This applies belt force to the child's
pelvic bones in a crash.

yellowblue
1-56
Safety Belt Extender
If the vehicle's safety belt will fasten around you, you
should use it.
But if a safety belt isn't long enough to fasten, your
dealer will order you an extender. It's free. When you go
in to order it, take the heaviest coat you will wear, so the
extender will be long enough for you. The extender will
be just for you, and just for the seat in your vehicle that
you choose. Don't let someone else use it, and use it
only for the seat it is made to fit. To wear it, just attach it
to the regular safety belt.
Checking Your Restraint Systems
Now and then, make sure the safety belt reminder light
and all your belts, buckles, latch plates, retractors and
anchorages are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from
doing its job, have it repaired.
Torn or frayed safety belts may not protect you in a
crash. They can rip apart under impact forces. If a belt is
torn or frayed, get a new one right away.
Also look for any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Replacing Restraint System Parts
After a Crash
If you've had a crash, do you need new belts?
After a very minor collision, nothing may be necessary.
But if the belts were stretched, as they would be if worn
during a more severe crash, then you need new belts.
If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have safety belt
or seat parts repaired or replaced. New parts and repairs
may be necessary even if the belt wasn't being used at
the time of the collision.
If an air bag inflates, you'll need to replace air bag
system parts. See the part on the air bag system earlier in
this section.

yellowblue
1-57
-NOTES

yellowblue
1-58
-NOTES

2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-6 Keyless Entry System
2
-11 Rear Doors
2
-12 Theft
2
-13 Theft-Deterrent System
2
-16 Feature Customization
2
-21 Passlock

2-21 New Vehicle ªBreak-Inº
2
-22 Ignition Positions
2
-23 Starting Your Engine
2
-25 Engine Coolant Heater (If Equipped)
2
-26 Automatic Transmission Operation
2
-29 Four-Wheel Drive
2
-33 Parking Brake
2
-34 Shifting Into PARK (P)
2
-36 Shifting Out of PARK (P)
2
-37 Parking Over Things That Burn2
-38 Engine Exhaust
2
-38 Running Your Engine While You're Parked
2
-39 Locking Rear Axle
2
-39 Windows
2
-41 Tilt Wheel
2
-41 Multifunction Lever
2
-47 Exterior Lamps
2
-50 Interior Lamps
2
-52 Mirrors
2
-56 Storage Compartments
2
-62 Ashtrays and Cigarette Lighter
2
-64 Universal Transmitter
2
-67 OnStar
System (If Equipped)
2
-68 The Instrument Panel - Your
Information System
2
-70 Instrument Panel Cluster
2
-72 Warning Lights, Gages and Indicators

yellowblue
2-2

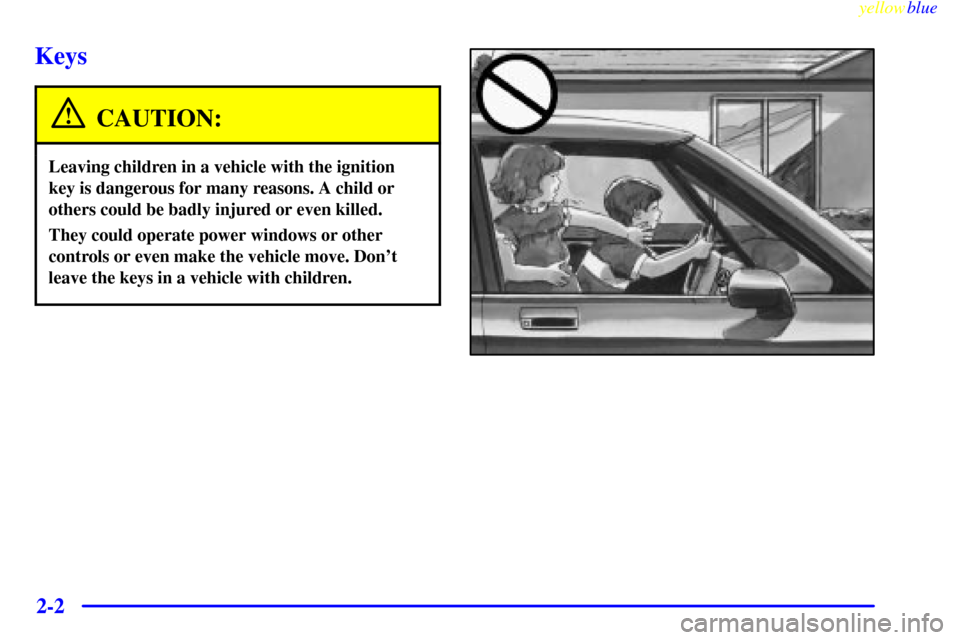

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate power windows or other
controls or even make the vehicle move. Don't
leave the keys in a vehicle with children.

yellowblue
2-3

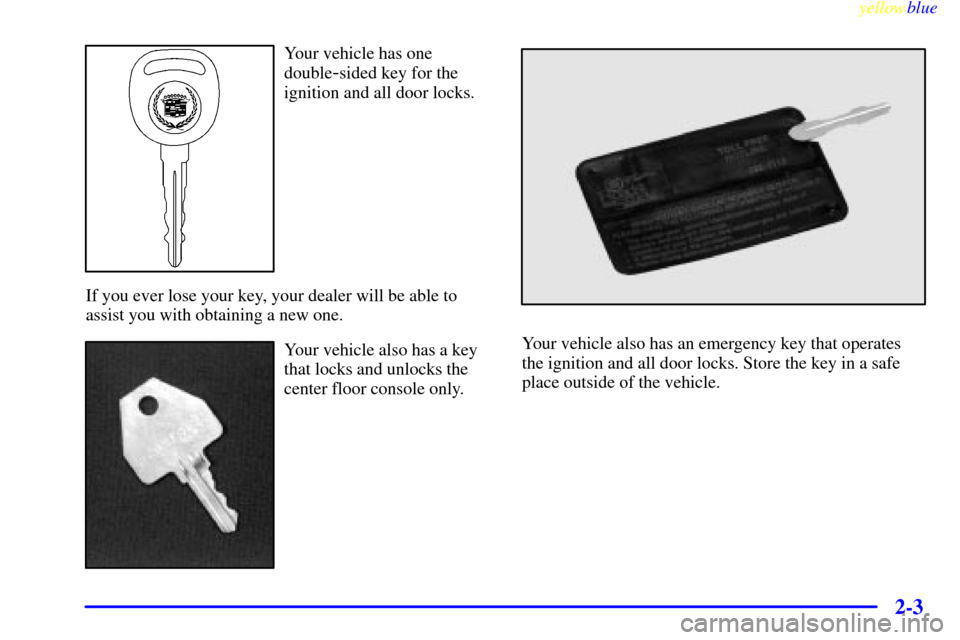

Your vehicle has one
double
-sided key for the
ignition and all door locks.
If you ever lose your key, your dealer will be able to
assist you with obtaining a new one.
Your vehicle also has a key
that locks and unlocks the
center floor console only.Your vehicle also has an emergency key that operates
the ignition and all door locks. Store the key in a safe
place outside of the vehicle.

yellowblue
2-4

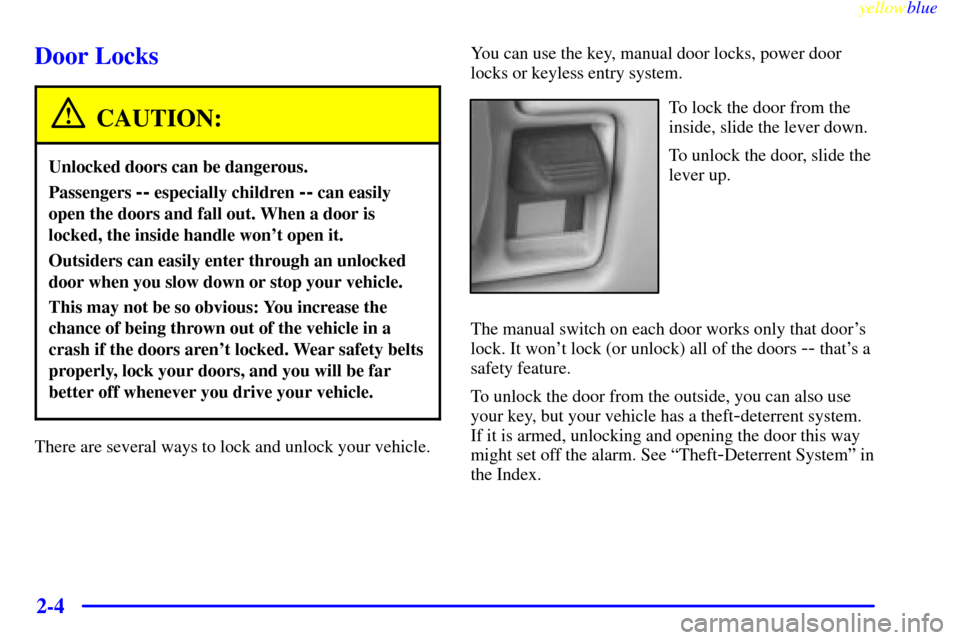

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.You can use the key, manual door locks, power door
locks or keyless entry system.
To lock the door from the
inside, slide the lever down.
To unlock the door, slide the
lever up.
The manual switch on each door works only that door's
lock. It won't lock (or unlock) all of the doors
-- that's a
safety feature.
To unlock the door from the outside, you can also use
your key, but your vehicle has a theft
-deterrent system.
If it is armed, unlocking and opening the door this way
might set off the alarm. See ªTheft
-Deterrent Systemº in
the Index.

yellowblue
2-5 Power Door Locks
Press the side of the power
door lock switch marked
LOCK on either front door
to lock all the doors at once.
Press the ribbed side of the switch to unlock all the
doors at once. The power door locks will operate at
any time.
Operating the power locks may affect the theft
-deterrent
system. See ªTheft
-Deterrent Systemº in the Index.
On the passenger side of the
rear panel door or tailgate,
there is a power lock switch
which can be used to lock or
unlock all of the doors.
On vehicles with panel doors, if the power lock switch is
pressed with the panel doors open, all of the doors will
lock three seconds after the panel doors are closed. If the
panel doors are closed, the vehicle doors will lock when
a power door lock switch is pressed. The theft
-deterrent
system will not re
-arm after the panel doors are closed
unless the power lock switch is pressed first.

yellowblue
2-6 Rear Door Security Locks
With this feature, you can
lock the rear side doors so
they can't be opened from
the inside by passengers.
Move the button up to engage the security feature. Move the
button down to return the door locks to normal operation.
Lockout Prevention
This feature protects you from locking your key in the
vehicle, by stopping the power door locks from locking
when the key is in the ignition in OFF and a door is open.
If the power door lock switch is pressed when a door is open
and the key is in the ignition, none of the doors will lock.
See ªFeature Customizationº in the Index for further
information on turning this feature on and off.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door. For information on how to set the door
locks, see ªTheft
-Deterrent Systemº and ªFeature
Customizationº in the Index.
Keyless Entry System
You can lock and unlock your doors, tailgate or panel
doors from about 3 feet (1 m) up to 30 feet (9 m) away
using the remote keyless entry transmitter supplied with
your vehicle.
Your keyless entry system operates on a radio frequency
subject to Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation of the device.
