service indicator CADILLAC ESCALADE 1999 1.G Owners Manual

yellowblue
2-31
NEUTRAL: Shift the vehicle's transfer case to
NEUTRAL only when towing your vehicle. See
ªRecreational Vehicle Towingº or ªTowing Your
Vehicleº in the Index for more information.
Indicator lights in the switches show which setting you
are in. The indicator lights will come on briefly when
you turn on the ignition and one will stay on. If the
lights do not come on, you should take your vehicle to
your dealer for service. An indicator light will flash
while shifting the transfer case. It will remain
illuminated when the shift is complete. If for some
reason the transfer case cannot make a requested shift, it
will return to the last chosen setting.
If the SERVICE 4WD light stays on, you should take
your vehicle to your dealer for service. See ªService
4WDº in the Index for further information.
Shifting to 4HI or AUTO 4WD
Press and release the 4HI or AUTO 4WD switch. This
can be done at any speed, and the indicator light will
flash while shifting. It will remain illuminated when the
shift is completed.
Shifting to 2HI
Press and release the 2HI switch. This can be done at
any speed.Shifting to 4LO
To shift to 4LO, the vehicle's engine must be running and
the vehicle must be stopped or moving less than 3 mph
(4.8 km/h) with the transmission in NEUTRAL (N). The
preferred method for shifting into 4LO is to have your
vehicle moving 1 to 2 mph (1.6 to 3.2 km/h). Press and
release the 4LO switch. You must wait for the 4LO
indicator light to stop flashing and remain illuminated
before shifting your transmission into gear.
If the 4LO switch is pressed when your vehicle is in
gear and/or moving, the 4LO indicator light will flash
for 30 seconds and not complete the shift unless your
vehicle is moving less than 3 mph (4.8 km/h) and the
transmission is in NEUTRAL (N). After 30 seconds the
transfer case will return to the setting last chosen.
Shifting Out of 4LO
To shift from 4LO to 4HI, AUTO 4WD or 2HI your
vehicle must be stopped or moving less than 3 mph
(4.8 km/h) with the transmission in NEUTRAL (N) and
the engine running. The preferred method for shifting
out of 4LO is to have your vehicle moving 1 to 2 mph
(1.6 to 3.2 km/h). Press and release the 4HI, AUTO
4WD or 2HI switch. You must wait for the 4HI, AUTO
4WD or 2HI indicator light to stop flashing and remain
illuminated before shifting your transmission into gear.

yellowblue
2-76 Engine Coolant Temperature Gage
This gage shows the engine
coolant temperature.
It also provides an indicator of how hard your vehicle is
working. During a majority of the operation, the gage
will read 210
F (100
C) or less. If you are pulling a
load or going up hills, it is normal for the temperature to
fluctuate and approach the 260
F (160
C) mark. If the
gage reaches the 260
F (160
C) mark, it indicates that
the cooling system is working beyond its capacity.
The ªProblems on the Road,º section of this manual
shows what to do. See ªEngine Overheatingº in
the Index.
Malfunction Indicator Lamp
(Service Engine Soon Light)
Your vehicle is equipped
with a computer which
monitors operation of the
fuel, ignition and emission
control systems.
This system is called OBD II (On
-Board
Diagnostics
-Second Generation) and is intended to
assure that emissions are at acceptable levels for the life
of the vehicle, helping to produce a cleaner
environment. The SERVICE ENGINE SOON light
comes on to indicate that there is a problem and service
is required. Malfunctions often will be indicated by the
system before any problem is apparent. This may
prevent more serious damage to your vehicle. This
system is also designed to assist your service technician
in correctly diagnosing any malfunction.

yellowblue
2-81 Daytime Running Lamps (DRL)
Indicator Light
This light will turn on
whenever the DRL are on.
When it begins to get dark, the DRL indicator light will
turn off and your automatic headlamps will turn on.
Check Gages Light
This light will come on
briefly when you are
starting the engine.If the light comes on and stays on while you are driving,
it could indicate a problem with your vehicle. It could be
a problem with your oil pressure, coolant temperature,
or some other problem. Check your various gages to see
if they are in the warning zones. If they are, have your
vehicle serviced right away.
Headlamp High-Beam Indicator Light
The high-beam indicator is
on whenever you use your
high
-beam headlamps. For
more details about high
beams, see ªHeadlamp
High/Low
-Beam Changerº
in the Index.

yellowblue
3-22
When using a scrubbing action, non-abrasive cleaning
cassette, it is normal for the cassette to eject because
your unit is equipped with a cut tape detection feature
and a cleaning cassette may appear as a broken tape. To
prevent the cleaning cassette from being ejected, use the
following steps.
1. Turn the ignition to RUN or ACCESSORY.
2. Turn the radio off.
3. Press and hold the TAPE AUX button for five
seconds. The tape symbol on the display will flash
for two seconds.
4. Insert the scrubbing action cleaning cassette.
5. Eject the cleaning cassette after the manufacturer's
recommended cleaning time.
When the cleaning cassette has been ejected, the cut tape
detection feature is active again.
You may also choose a non
-scrubbing action, wet-type
cleaner which uses a cassette with a fabric belt to clean
the tape head. This type of cleaning cassette will not
eject on its own. A non
-scrubbing action cleaner may
not clean as thoroughly as the scrubbing type cleaner.
The use of a non
-scrubbing action, dry-type cleaning
cassette is not recommended.After you clean the player, press and hold EJECT for
five seconds to reset the CLN indicator. The radio will
display
--- to show the indicator was reset.
Cassettes are subject to wear and the sound quality may
degrade over time. Always make sure the cassette tape
is in good condition before you have your tape
player serviced.
Care of Your Compact Discs
Handle discs carefully. Store them in their original cases
or other protective cases and away from direct sunlight
and dust. If the surface of a disc is soiled, dampen a
clean, soft cloth in a mild, neutral detergent solution and
clean it, wiping from the center to the edge.
Be sure never to touch the signal surface when handling
discs. Pick up discs by grasping the outer edges or the
edge of the hole and the outer edge.
Fixed Mast Antenna
The fixed mast antenna can withstand most car washes
without being damaged. If the mast should ever become
slightly bent, you can straighten it out by hand. If the
mast is badly bent, as it might be by vandals, you should
replace it.
Check every once in a while to be sure the mast is still
tightened to the cowl.

yellowblue
6-4
If your vehicle is certified to meet California Emission
Standards (indicated on the underhood emission control
label), it is designed to operate on fuels that meet
California specifications. If such fuels are not available
in states adopting California emissions standards, your
vehicle will operate satisfactorily on fuels meeting
federal specifications, but emission control system
performance may be affected. The malfunction indicator
lamp on your instrument panel may turn on and/or your
vehicle may fail a smog
-check test. (See ªMalfunction
Indicator Lampº in the Index.) If this occurs, return to
your authorized Cadillac dealer for diagnosis to
determine the cause of failure. In the event it is
determined that the cause of the condition is the type of
fuels used, repairs may not be covered by your warranty.
Some gasolines that are not reformulated for low
emissions may contain an octane
-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask your service station operator whether or not
the fuel contains MMT. General Motors does not
recommend the use of such gasolines. If fuels containing
MMT are used, spark plug life may be reduced and your
emission control system performance may be affected.
The malfunction indicator lamp on your instrument
panel may turn on. If this occurs, return to your
authorized Cadillac dealer for service.To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent deposits from forming in your engine and fuel
system, allowing your emission control system to
function properly. Therefore, you should not have to add
anything to the fuel. In addition, gasolines containing
oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available in your area to
contribute to clean air. General Motors recommends that
you use these gasolines, particularly if they comply with
the specifications described earlier.
NOTICE:
Your vehicle was not designed for fuel that
contains methanol. Don't use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn't
be covered under your warranty.

yellowblue
6-15
Engine Air Cleaner/Filter
The engine air cleaner
assembly has an indicator
that lets you know when
the engine air cleaner/filter
is dirty and needs to
be serviced.
The indicator is located on the air intake tube between
the engine air cleaner and the engine. See ªOwner
Checks and Servicesº in the Maintenance Schedule
booklet to determine when to check the indicator.
If the area inside the clear section of the indicator is
green, no engine air cleaner/filter service is required.
When the area inside the indicator is orange and
CHANGE AIR FILTER appears, the filter should
be replaced.
Your engine air cleaner/filter is located between the
battery and coolant recovery tank.
To remove the engine air cleaner/filter:
1. Unhook the retainer clips and remove the cover.

yellowblue

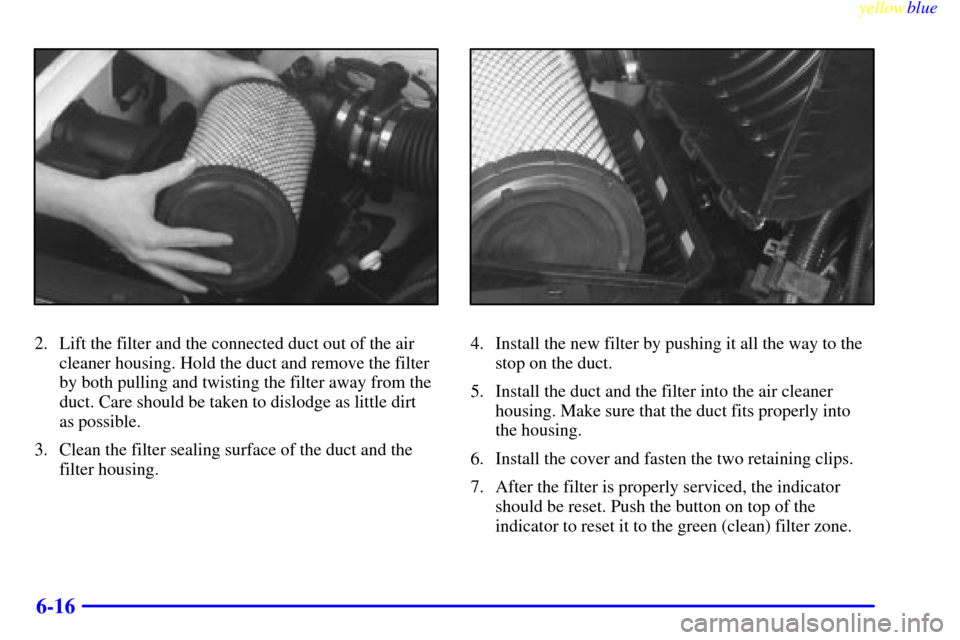

6-16
2. Lift the filter and the connected duct out of the air
cleaner housing. Hold the duct and remove the filter
by both pulling and twisting the filter away from the
duct. Care should be taken to dislodge as little dirt
as possible.
3. Clean the filter sealing surface of the duct and the
filter housing.4. Install the new filter by pushing it all the way to the
stop on the duct.
5. Install the duct and the filter into the air cleaner
housing. Make sure that the duct fits properly into
the housing.
6. Install the cover and fasten the two retaining clips.
7. After the filter is properly serviced, the indicator
should be reset. Push the button on top of the
indicator to reset it to the green (clean) filter zone.

yellowblue

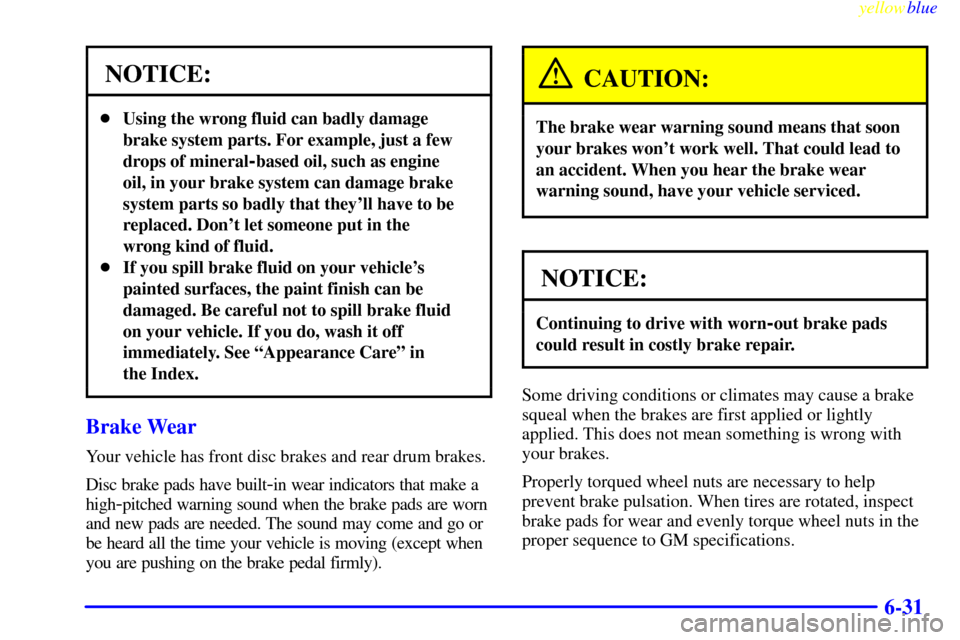

6-31
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so badly that they'll have to be
replaced. Don't let someone put in the
wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.
Brake Wear
Your vehicle has front disc brakes and rear drum brakes.
Disc brake pads have built
-in wear indicators that make a
high
-pitched warning sound when the brake pads are worn
and new pads are needed. The sound may come and go or
be heard all the time your vehicle is moving (except when
you are pushing on the brake pedal firmly).
CAUTION:
The brake wear warning sound means that soon
your brakes won't work well. That could lead to
an accident. When you hear the brake wear
warning sound, have your vehicle serviced.
NOTICE:
Continuing to drive with worn-out brake pads
could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are first applied or lightly
applied. This does not mean something is wrong with
your brakes.
Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly torque wheel nuts in the
proper sequence to GM specifications.

yellowblue
6-42
When It's Time for New Tires
One way to tell when it's
time for new tires is to
check the treadwear
indicators, which will
appear when your tires have
only 1/16 inch (1.6 mm) or
less of tread remaining.
You need a new tire if any of the following statements
are true:

You can see the indicators at three or more places
around the tire.

You can see cord or fabric showing through the
tire's rubber.

The tread or sidewall is cracked, cut or snagged deep
enough to show cord or fabric.
The tire has a bump, bulge or split.

The tire has a puncture, cut or other damage that
can't be repaired well because of the size or location
of the damage.
Buying New Tires
To find out what kind and size of tires you need, look at
the Certification/Tire label.
The tires installed on your vehicle when it was new had
a Tire Performance Criteria Specification (TPC Spec)
number on each tire's sidewall. When you get new tires,
get ones with that same TPC Spec number. That way
your vehicle will continue to have tires that are designed
to give proper endurance, handling, speed rating,
traction, ride and other things during normal service on
your vehicle. If your tires have an all
-season tread
design, the TPC number will be followed by an ªMSº
(for mud and snow).
If you ever replace your tires with those not having a
TPC Spec number, make sure they are the same size,
load range, speed rating and construction type (bias,
bias
-belted or radial) as your original tires.

yellowblue
8-6
Hood
Checking Things Under 6-8 . . . . . . . . . . . . . . . . . . . . . . . . .
Release 6-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 2-41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydroplaning 4-30 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Positions 2-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inflation, Tire 6-39 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside Rearview Mirror 2-52 . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Panel 2-68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brightness Control 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning 6-49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cluster 2-70 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Block 6-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior Lamps 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jack, Tire 5-20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump Starting 5-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyless Entry System 2-6 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keys 2-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labels
Certification/Tire 4-41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Parts Identification 6-55 . . . . . . . . . . . . . . . . . . . . .
Tire-Loading Information 4-41 . . . . . . . . . . . . . . . . . . . . . .
Vehicle Identification Number 6-55 . . . . . . . . . . . . . . . . . . . Lamps 2
-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic 2-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning Exterior 6-51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delay 2-49 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dome 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Exterior 2-47 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fog 2-49, 6-36, 6-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior 2-50 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-48 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle 2-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leaving Your Vehicle with the Engine Running 2-35 . . . . . . .
Lighter 2-62 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights
Air Bag Readiness 1
-25, 2-73 . . . . . . . . . . . . . . . . . . . . . . .
Anti-Lock Brake System Warning 2-75, 4-7 . . . . . . . . . . . .
Brake System Warning 2-74 . . . . . . . . . . . . . . . . . . . . . . . . .
Charging Warning System 2-73 . . . . . . . . . . . . . . . . . . . . . .
Check Gages 2-81 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Daytime Running Lamps Indicator 2-81 . . . . . . . . . . . . . . .
Headlamp High-Beam Indicator 2-81 . . . . . . . . . . . . . . . . .
Safety Belt Reminder 1-9, 2-72 . . . . . . . . . . . . . . . . . . . . . .
Security 2-80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Engine Soon 2-76 . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Four-Wheel Drive 2-80 . . . . . . . . . . . . . . . . . . . . . .
Turn Signal and Lane Change Indicator 2-82 . . . . . . . . . . .
Loading Your Vehicle 4-41 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Your Vehicle for Off-Road Driving 4-14 . . . . . . . . . .
Lockout Prevention 2-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
