Mode Knob - Manual Operation
The right knob on the control panel allows you to
choose the direction of air delivery.
You can choose to set the climate control system
operations yourself, or let the system work for you
by placing the system in AUTO mode. See ªMode
Knob
- Automatic Operationº earlier in this section.
(Vent): This setting directs most of the air through
the instrument panel outlets and a small amount through
the floor outlets.
(Bi-level): This setting delivers air through
the floor outlets as well as the instrument
panel outlets.
(Floor): This setting directs most of the warmed
air through the floor outlets and some air through the
windshield defroster outlets.
(Blend): This setting divides airflow equally
between the floor outlets and the windshield defroster
outlets. The air conditioning compressor may run to
dehumidify the air to prevent window fogging.
(Defrost): This setting directs most air through
the windshield defroster outlets and some through the
floor outlets. The air conditioning compressor may run
to dehumidify the air to prevent window fogging. When
using the defrost mode with auto fan speed selected, the
fan speed may be higher than normal.
(Outside air): Press this button, located under
the fan knob, to use outside air. Using outside air will
limit stale air odors and help to prevent excessively
humid interior air (from wet boots or clothing or
maximum passenger loads) from being redirected onto
windows.
Pressing the outside air button will cancel the
recirculation button and AUTO mode of the airflow.
Pressing outside air will return the system to auto mode.
(Recirculation): Press this button to limit the
amount of outside air entering the vehicle to a very
small amount. This will be helpful to limit odors
entering the vehicle and will assist in reaching comfort
in very hot temperature conditions. Pressing
recirculation will cause the system to recirculate interior
air continuously and may cause the vehicle windows
to fog if the passenger compartment floor is
excessively wet.

3-5
Pressing the recirculation button will cancel outside air
operation. To return to normal system operation and to
prevent stale passenger compartment air, be sure to
return to the outside air position.
Recirculation will not be available in floor, blend or
defrost modes. This helps reduce window fogging.
If the recirculation button is pressed in theses modes,
the LED indicator for recirculation will flash three times
indicating that forced outside air is activated and
recirculation is not available.
If the air conditioning system is activated and system
demand is high in situations such as city traffic, idling,
or very hot weather, the system will automatically
switch from outside air to recirculation. The LED
indicator will not change. After the demand on the
system is not so great, the system will return to
outside air.
(A/C): Press this button to turn the air
conditioning on and off. The system will cool and
dehumidify the air inside the vehicle when the A/C light
is on. When in AUTO, the A/C is automatically engaged
when necessary.
Air conditioning will be automatically disabled when
the outside temperature drops below a level which air
conditioning is ineffective.
Rear Air Conditioning and Rear Heater
(With Sunroof)
Your vehicle has the rear air conditioning and rear heater
system combination. Controls are provided to regulate
temperature, location and speed of the airflow.
Front Control
To adjust the airflow speed, turn the fan control knob
located on the left side to the desired setting.
To regulate the airflow direction, adjust the right knob on
the control panel. Turn the knob clockwise for floor vent
airflow or counterclockwise for headliner vent airflow.
Generally, the upper vents are used for air conditioning
and the floor vents for heating. The knob can be set to
any blend setting.
To adjust the air temperature, turn the temperature knob
on the center of the control panel.
For warmer air, turn the knob clockwise toward red. For
cooler air, turn the knob counterclockwise toward blue.

3-6 Rear Air Conditioning and Heating Systems
with Electronic Climate Control System
(Without Sunroof)

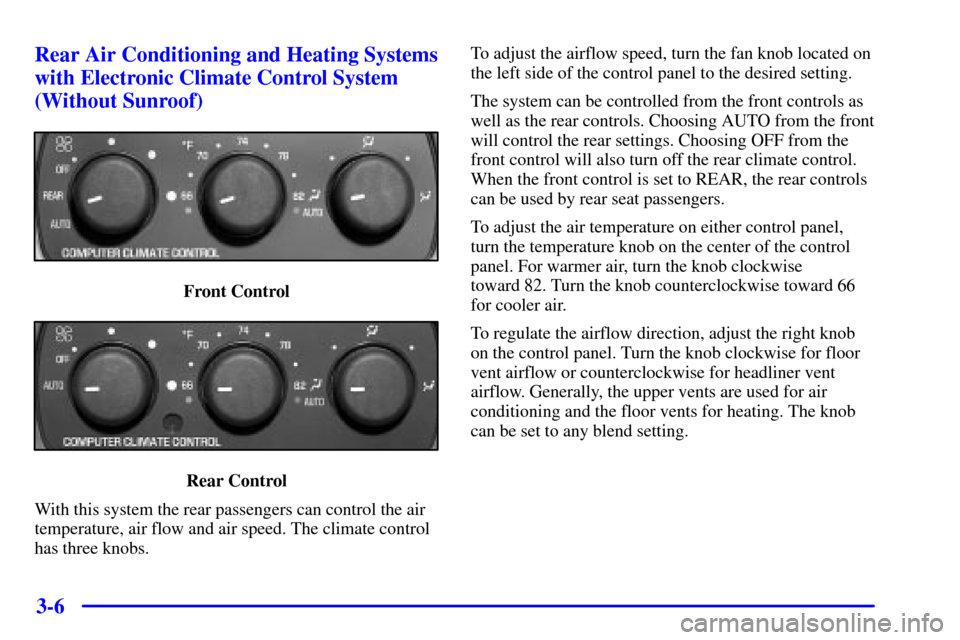

Front Control
Rear Control
With this system the rear passengers can control the air
temperature, air flow and air speed. The climate control
has three knobs.To adjust the airflow speed, turn the fan knob located on
the left side of the control panel to the desired setting.
The system can be controlled from the front controls as
well as the rear controls. Choosing AUTO from the front
will control the rear settings. Choosing OFF from the
front control will also turn off the rear climate control.
When the front control is set to REAR, the rear controls
can be used by rear seat passengers.
To adjust the air temperature on either control panel,
turn the temperature knob on the center of the control
panel. For warmer air, turn the knob clockwise
toward 82. Turn the knob counterclockwise toward 66
for cooler air.
To regulate the airflow direction, adjust the right knob
on the control panel. Turn the knob clockwise for floor
vent airflow or counterclockwise for headliner vent
airflow. Generally, the upper vents are used for air
conditioning and the floor vents for heating. The knob
can be set to any blend setting.

3-7 Air Conditioning
On hot days, open the windows long enough to let hot
air inside escape. This reduces the time it takes for your
vehicle to cool down. Then keep your windows closed
for the air conditioner to work its best.
The A/C button, below the mode knob, allows the air
coming into your vehicle to be cooled. This setting is
useful for normal cooling on hot days. When you use
A/C with the recirculation button pressed in, turn off
recirculation as soon as the vehicle reaches a
comfortable interior temperature.
Using A/C with the recirculation setting active allows
the air inside your vehicle to be recirculated. This
setting helps to maximize your air conditioner's
performance and your vehicle's fuel economy. This
setting also cools air the fastest and can be used to keep
unwanted odors and/or dust from entering the vehicle.
When using the air conditioner, turn off the recirculation
setting and use the outside air setting after the vehicle
reaches a comfortable interior temperature. When the
right knob on the control panel is between floor and
defrost, the recirculation feature will not function to
reduce window fogging.Passenger Compartment Air Filter
Your vehicle is equipped with a passenger compartment
air filter, which filters outside air entering the vehicle.
For information on replacing the filter see ªPassenger
Compartment Air Filterº in the Index.
Heating
The heater works best if you keep your windows closed
while using it. On cold days, use the floor setting with
the temperature knob in the red area.
On cold days, approximately 32
F (
-0
C) or lower,
you may experience differences in how the transmission
shifts until the engine is warm. This feature
automatically reduces the time it takes for the engine to
reach normal operating temperature and shortens the
time it takes the heater to reach full output.
If you use the engine coolant heater before starting your
engine in cold weather, 20
F (
-8
C) or lower, the
heating system will produce warmer air faster to heat the
passenger compartment.
The use of an engine coolant heater also reduces the
time it takes for the engine to reach normal operating
temperature. For more information, see ªEngine Coolant
Heaterº in the Index.

3-8 Defogging and Defrosting
On cool, humid days, use defog to keep the windshield
and side windows clear. Use defrost to remove fog or ice
from the windshield in extremely humid or cold
conditions. Use defrost with the temperature knob
toward the red area and the fan control turned all the
way to the right.
Rear Window Defogger
Do not remove the rear window with the rear defogger
on. You may see a discharge spark coming from
the latch area if you remove the window with the
defroster on.
The lines running across the rear window are the rear
window defogger lines. The lines warm the glass.
To turn on the rear
window defogger, press
this button located below
the mode knob.The rear window defogger will only work if the ignition
is in RUN. For best results, clear the window of as much
snow or ice as possible first.
The defogger will shut itself off after several minutes.
If you need additional warming time, press the button
again. You can turn the defogger off at any time by
pressing the button.
If your vehicle is equipped with heated outside mirrors,
the rear window defogger button will also activate the
heated outside mirrors.
Do not attach a temporary vehicle license, tape or decals
across the defogger grid on the rear window.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.

3-9 Ventilation System
For mild outside temperatures when little heating or
cooling is needed, use outside air to direct outside air
through your vehicle. Air will flow through the
instrument panel outlets.
Your vehicle's ventilation system supplies outside air to
the inside of your vehicle when it is moving. With the
side windows closed, air will flow into the front air
inlet grilles, through the vehicle, and out of the air
exhaust valves.
Outside air will also enter the vehicle when the heater or
the air conditioning fan is running, unless you have the
recirculation button pressed in. For more information on
the recirculation button, see ªAir Conditioningº earlier
in this section.
Your vehicle has air
outlets in the center and
on the sides of the
instrument panel.
You can move the outlets from side
-to-side or up and
down to direct the flow of air. The driver's and
passenger's side outlets have shut
-off thumbwheels.
Turn the thumbwheels to the left to shut off air flow or
to the right to allow air flow. When you close an outlet,
it will increase the flow of air coming out of any outlets
that are open. The center outlet does not completely shut
off airflow.
Your vehicle also has outlets located on the headliner for
the rear seat passengers.
To use these vents, press on the individual slats to
open the vent. Turn the entire vent in the direction you
want to direct airflow. Push the slats to close them and
block airflow.

3-10
Ventilation Tips

Keep the hood and front air inlet free of ice, snow or
any other obstruction (such as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.

When you enter a vehicle in cold weather, turn the
fan knob all the way to the right for a few moments
before driving. This helps clear the intake ducts of
snow and moisture, and reduces the chance of
fogging the inside of your windows.

Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.

The use of non
-GM approved hood air deflectors
may adversely affect the performance of the heating
and air conditioning system.
Audio Systems
Your audio system has been designed to operate easily
and give years of listening pleasure. You will get the
most enjoyment out of it if you acquaint yourself with it
first. Find out what your audio system can do and how
to operate all its controls, to be sure you're getting the
most out of the advanced engineering that went into it.
Your vehicle has a feature called Retained Accessory
Power (RAP). With RAP, you can play your audio
system even after the ignition is off. See ªRetained
Accessory Power (RAP)º in the Index.

3-11 AM-FM Stereo with Cassette Tape
Player (Bose

)
Included with the AM-FM Stereo with Cassette Tape
Player is a six disc CD changer. It is equipped with
ten Bose

high performance speakers, an Acoustimass

bass module and a seven channel Bose amplifier.
Please see your dealer for details.Playing the Radio
PWR VOL: Press this knob to turn the system on
and off. To increase volume, turn the knob clockwise.
Turn it counterclockwise to decrease volume. The knob
is capable of being turned continuously.
SCV: Your system has a feature called
Speed
-Compensated Volume (SCV). With SCV, your
audio system adjusts automatically to make up for road
and wind noise as you drive. Set the volume at the
desired level. Turn the control ring behind the upper
knob clockwise to adjust the SCV. Then, as you drive,
SCV automatically increases the volume, as necessary,
to overcome noise at any particular speed. The volume
level should always sound the same to you as you drive.
If you don't want to use SCV, turn the control all the
way down. Each notch on the control ring allows for
more volume compensation at faster vehicle speeds.
REAR DSPL: When the main radio is turned on, press
this button to turn on the rear seat audio display on the
main radio. Press it again to turn the rear seat audio
display off.
PR: Press this button to turn rear seat audio on or off.
The light to the right of the button will illuminate to
indicate that rear seat audio is on.

3-12
Finding a Station
AM FM: Press this button to switch between AM, FM1
and FM2. The display will show your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations. Push the knob back into its stored
position when you're not using it.
SEEK : To seek, press the right arrow to tune
to the next station and the left arrow to tune to the
previous station and stay there. The sound will mute
while seeking.
To scan, press and hold SEEK for two seconds until
SCAN appears on the display. Scan allows you to
listen to stations for a few seconds. The receiver will
continue to scan and momentarily stop at each station
until you press the button again. The sound will mute
while scanning.
P. SCAN: The preset scan button lets you scan through
your favorite stations stored on your pushbuttons.
Select either the AM, FM1 or FM2 mode and then press
P. SCAN. It will scan through each station stored on
your pushbuttons and stop for a few seconds before
continuing to scan through all of the pushbuttons.Press P. SCAN again or one of the pushbuttons to stop
scanning and listen to a specific preset station. P. SCAN
will light up on the display while in this mode. If one of
the stations stored on a pushbutton is too weak for the
location you are in, the radio display will show the
channel number (P1 through P6) for several seconds
before advancing to the next preset station.
Setting Preset Stations
The six numbered pushbuttons let you return to your
favorite stations. You can set up to 18 stations
(six AM, six FM1 and six FM2) by performing the
following steps:
1. Turn the radio on.
2. Press AM FM to select the band.
3. Tune in the desired station.
4. Press and hold one of the six pushbuttons. The sound
will mute. When it returns, release the pushbutton.
Whenever you press that numbered pushbutton, the
station you set will return.
5. Repeat the steps for each pushbutton.

3-13
Setting the Tone
BASS: Press lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase
bass and counterclockwise to decrease bass.
TREB: Press lightly on this knob to release it from its
stored position. Turn the knob clockwise to increase
treble and counterclockwise to decrease treble. If a
station is weak or noisy, you may want to decrease
the treble.
Push these knobs back into their stored positions when
you're not using them.
Adjusting the Speakers
FADE: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust the
sound to the front speakers and counterclockwise for the
rear speakers. The middle position balances the sound
between the speakers.
BAL: Press lightly on this knob to release it from its
stored position. Turn the control clockwise to adjust
sound to the right speakers and counterclockwise to
adjust sound to the left speakers. The middle position
balances the sound between the speakers.
Push these knobs back into their stored positions when
you're not using them.Playing a Cassette Tape
Your tape player is built to work best with tapes that are
up to 30 to 45 minutes long on each side. Tapes longer
than that are so thin they may not work well in
this player.
To load a cassette tape with the ignition off, press
EJECT. Then, insert the cassette tape. If the ignition is
on but the radio is off, the tape will begin playing.
Once the tape is playing, use the volume, balance, fade,
bass and treble controls just as you do for the radio. The
tape symbol and a direction arrow will be on the display
whenever a tape is being played. Anytime a tape is
inserted, the top side is selected for play first.
The player automatically senses if the cassette tape is
metal or CrO
2 and adjusts for best playback sound.
1 PREV: Press this button or the SEEK left arrow to
search for the previous selection. A minimum
three
-second blank gap is required for the player to stop
at the beginning of the selection. The tape direction
arrow will blink during the SEEK operation.
2 PROG: Press this button to switch from one side of
the tape to the other.
