fuse CADILLAC ESCALADE 2021 User Guide

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
388 VEHICLE CARE
FusesUsage
11 Long range radar/ Front short range
radar
12 –
13 Washer front
14 Washer rear
15 Rec 2
16 Power sounder
17 Spare
19 DC/AC inverter
20 IECR 2
21 –
22 IECL 2
24 EBCM
25 REC 1
26 Camera wash
27 Horn
28 Right headlamp
29 Left headlamp
30 ELM 3 Fuses
Usage
31 ELM 1
32 –
33 Not R/C
34 –
37 OBD body
38 MISC body
39 Upfitter
40 MISC IP
41 Trailer parking lamps
42 Right tail lamp
44 Trailer tow
45 Secondary axle motor
46 ECM ignition
47 OBD engine
48 –
49 TCM
50 A/C clutch
51 TCCM Fuses
Usage
52 Front wiper
53 –
54 Left tail lamp
55 Trailer back up lamp
56 SADS
57 Spare
58 Starter motor
60 AFM 1
61 ALC main
62 ICCM/CVS/DEF
63 Trailer brake
65 AUX UEC
66 Cool fan motor LT
67 AFM 2
68 ALC motor
69 Starter pinion
71 Cool fan motor lower
72 Cool fan motor right/lower

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
VEHICLE CARE 389
FusesUsage
73 Left trailer stop turn lamp
74 TIM 2
75 DEFC
76 ELEC RNG BDS
78 ECM
79 –
80 Cabin cool pump 17W
81 Right trailer stop turn lamp
82 TIM 1
83 FTZM
84 Trailer battery
85 Engine
86 ECM
87 Injector B even
88 02 B sensor
89 02 A sensor
90 Injector A odd
91 ECM throttle control Fuses
Usage
92 Cool fan clutch AERO shutter
Relays Usage
5 –
18 DC/AC inverter
23 –
35 Park lamp
36 Run/Crank
43 Secondary axle motor
59 A/C clutch
64 Starter motor
70 Starter pinion
77 PowertrainInstrument Panel Fuse
Block
The right instrument panel fuse block
access door is on the passenger side
edge of the instrument panel.
Pull off the cover to access the fuse
block.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
390 VEHICLE CARE
There are relays on the back of the
fuse block. To access, press the tabs
and remove the fuse block.The vehicle may not be equipped with
all of the fuses, relays, and features
shown. Fuses Usage
F1 Right door
F2 Left door
F3 UGDO/OHC/camera
F4 BCM 2
F5 Displays
F6 Front blower
F8 Left door panel
F10 Tilt/column lock
F11 USB/DLC
F12 CGM/onstar
F14 Right door panel
F17 Steering wheel control
F18 AVM 1
F19 –
F20 –
F21 –
F22 Heated wheel
F23 –
F24 –
F25 SEO/UPFITTER

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21

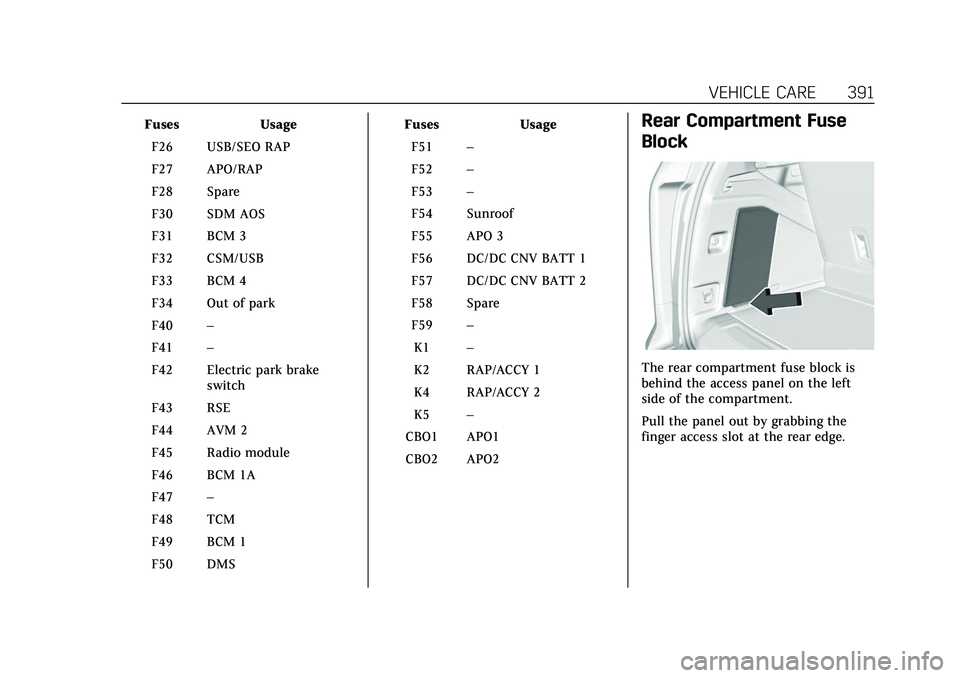

VEHICLE CARE 391
FusesUsage
F26 USB/SEO RAP
F27 APO/RAP
F28 Spare
F30 SDM AOS
F31 BCM 3
F32 CSM/USB
F33 BCM 4
F34 Out of park
F40 –
F41 –
F42 Electric park brake switch
F43 RSE
F44 AVM 2
F45 Radio module
F46 BCM 1A
F47 –
F48 TCM
F49 BCM 1
F50 DMS Fuses
Usage
F51 –
F52 –
F53 –
F54 Sunroof
F55 APO 3
F56 DC/DC CNV BATT 1
F57 DC/DC CNV BATT 2
F58 Spare
F59 –
K1 –
K2 RAP/ACCY 1
K4 RAP/ACCY 2
K5 –
CBO1 APO1
CBO2 APO2Rear Compartment Fuse
Block
The rear compartment fuse block is
behind the access panel on the left
side of the compartment.
Pull the panel out by grabbing the
finger access slot at the rear edge.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
392 VEHICLE CARE
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
F01 RFA
F02 WCM
F03 Heated seat module row 1 (Battery 1)
F04 MSM driver
F05 –
F06 –
F07 Amp aux 2
F08 –
F09 SEO UPFTR 2
F10 Motor seatbelt passenger
F11 Power folding seat row 2
F12 GBS
F13 –
F14 –
F15 Heated seat module row 1 (Battery 2)
F16 RH CINCH latch Fuses Usage
F17 Memory seat module passenger
F18 Rear wiper
F19 Motor seatbelt driver
F20 Rear defogger
F21 –
F22 Rear HVAC display control
F23 EOCM
F24 Amp aux 3
F25 OBS DET
F26 RDCM
F27 Amp aux 1
F28 VPM
F29 –
F30 –
F31 Amp
F32 –
F33 ICCM
F34 Heated seat module row 2

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13690472) - 2021 - CRC - 8/10/21
VEHICLE CARE 393
FusesUsage
F35 HFCR
F36 ELM
F37 –
F38 Power slide console
F39 –
F40 –
F41 –
F42 –
F43 UPA
F44 –
F45 AFL AHL
F46 Rear HVAC blower motor
F47 LH CINCH latch
F48 Power seat recline module
F49 Lift glass
F50 Driver power seat
F51 Power liftgate module
F52 Passenger power seat Relays
Usage
K53 –
K54 –
K55 L/GLASS
Wheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See the
warranty manual for information
regarding the tire warranty and
where to get service. For
additional information refer to the
tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a result
of too much flexing. There
(Continued)
Warning (Continued) could be a blowout and a
serious crash. See Vehicle
Load Limits 0240.
.Underinflated tires pose the
same danger as overloaded
tires. The resulting crash
could cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure should
be checked when the tires
are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden impact
— such as when hitting a
pothole. Keep tires at the
recommended pressure.
.Worn or old tires can cause a
crash. If the tread is badly
worn, replace them.
(Continued)
