VEHICLE CARE 393
{Warning
Installation or use of fuses that do
not meet GM’s original fuse
specifications is dangerous. The
fuses could fail, and result in a fire.
You or others could be injured or
killed, and the vehicle could be
damaged.
See Accessories and Modifications
0 369 and
General Information 0369.
To check or replace a blown fuse, see
Electrical System Overload 0390.
Engine Compartment Fuse
Block
If the vehicle has a diesel engine, see
the Duramax diesel supplement.
The engine compartment fuse block is
in the engine compartment, on the
driver side of the vehicle.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.
Lift the cover to access the fuse block.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.
A fuse puller is available in the left
instrument panel fuse block.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
VEHICLE CARE 395
FusesUsage
1 –
2 –
3 –
4 –
6 ELM 7 –Exterior
Lighting Module 7
7 ELM 4 –Exterior
Lighting Module 4
8 –
9 ELM 5 –Exterior
Lighting Module 5
10 ELM 6 –Exterior
Lighting Module 6
11 LRR/FRT SRR –
Long Range Radar/
Front Short Range
Radar
12 –
13 Washer Front
14 Washer Rear
15 REC 2 –Rear
Electrical Center 2 Fuses
Usage
16 Power Sounder
17 EBCM –Electronic
Brake Control
Module Battery 1
19 DC/AC Inverter
20 IECR 2 –Instrument
Electrical Center
Right 2
21 –
22 IECL 1 –Instrument
Electrical Center
Left 1
24 Fuel Heater
25 REC 1 –Rear
Electrical Center 1
26 Camera Wash
27 Horn
28 Headlamp RT –
Right
29 Headlamp LT –Left
30 ELM 3 –Exterior
Lighting Module 3 Fuses
Usage
31 ELM 1 –Exterior
Lighting Module 1
32 –
33 Not R/C
34 –
37 MISC Body Ignition 1
38 MISC Body Ignition 2
39 Upfitter
40 MISC Instrument Panel (IP)
41 Trailer Parking Lamps
42 Right Taillamp
44 Trailer Tow
45 Secondary Axle Motor
46 Engine Control Module (ECM)
Ignition
47 OBD Engine

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
396 VEHICLE CARE
FusesUsage
48 –
49 Transmission Auxiliary Oil Pump
50 A/C Clutch
51 TCCM –Transfer
Case Control Module
52 Front Wiper
53 –
54 Left Taillamps
55 Trailer Back-up Lamp
56 SADS –Semi Active
Damping System
57 Spare
58 Starter Motor
60 Powertrain Sensor 2
61 Automatic Lamp Control (ALC) Main Fuses
Usage
62 ICCM/CVS/DEF –
Integrated Chassis
Control Module/
Canister Vent
Solenoid/Diesel
Exhaust Fluid
63 Trailer Brake
65 –
66 Left Cool Fan Motor
67 AFM 2 –Active Fuel
Management 2
68 Automatic Lamp Control (ALC) Motor
69 Starter Pinion
71 Cool Fan Motor Lower
72 Right Cool Fan Motor/Lower
73 Left Trailer Stop Turn Lamp
74 TIM 2 –Trailer
Interface Module 2 Fuses
Usage
75 DEFC –Diesel
Exhaust Fluid
Controller
76 Electric Power Running Boards
78 ECM –Engine
Control Module
79 Cabin Cool Pump 17W
80 Powertrain Sensor 1
81 Right Trailer Stop Turn Lamp
82 TIM 1 –Trailer
Interface Module 1
83 FTZM –Fuel Tank
Zone Module
84 Trailer Battery
85 Auxiliary Water Pump
86 ECM –Engine
Control Module
87 Injector B Even
88 02 B Sensor

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
VEHICLE CARE 397
FusesUsage
89 02 A Sensor
90 Injector A Odd
91 Engine Control Module (ECM)
Throttle Control
92 Cool Fan Clutch AERO Shutter
Relays Usage
5 –
18 DC/AC Inverter
23 Fuel Heater
35 Trailer Park Lamp
36 Run/Crank
43 Secondary Axle Motor
59 A/C Clutch
64 Starter Motor
70 Starter Pinion
77 PowertrainInstrument Panel Fuse
Block
The right instrument panel fuse block
access door is on the passenger side
edge of the instrument panel.
Pull off the cover to access the fuse
block. A fuse puller is available on the
right instrument panel end cap.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
398 VEHICLE CARE
There are relays on the back of the
fuse block. To access, press the tabs
and remove the fuse block.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.Fuses Usage
F1 Right Door
F2 Left Door
F3 Universal Garage Door Opener (UGDO)/OnStar
Hands-free Calling
(OHC)/Camera
F4 BCM 2 –Body Control
Module 2
F5 Displays
F6 Front Blower
F8 Left Door Panel
F10 Tilt/Column Lock
F11 DLC/ICM –Data Link
Connector/Column
Lock/Integrated Center
Stack
F12 Central Gateway Module (CGM)/Onstar

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
VEHICLE CARE 399

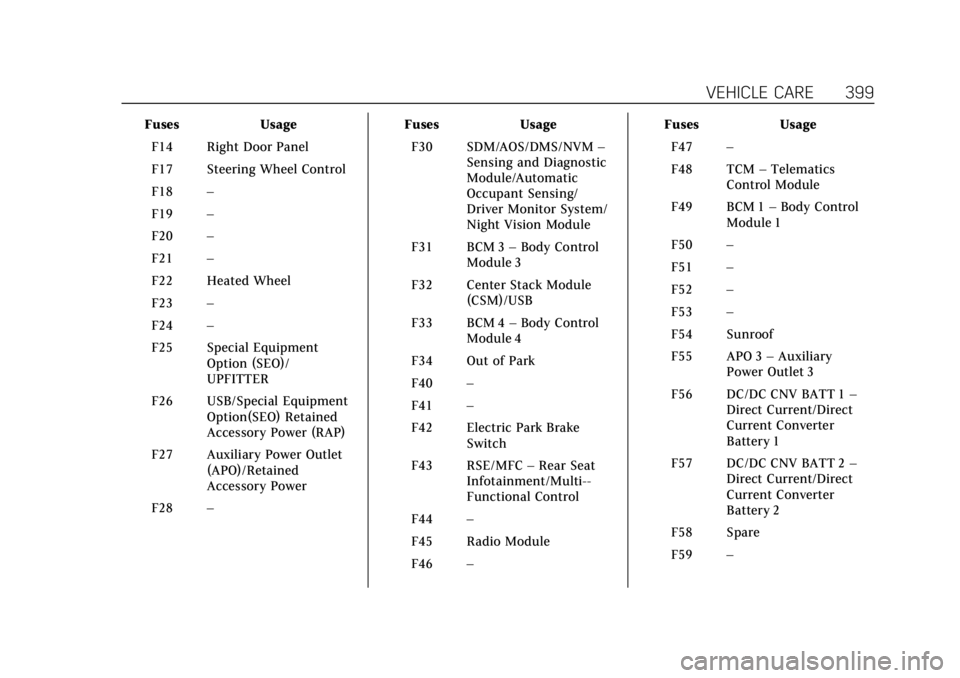

FusesUsage
F14 Right Door Panel
F17 Steering Wheel Control
F18 –
F19 –
F20 –
F21 –
F22 Heated Wheel
F23 –
F24 –
F25 Special Equipment Option (SEO)/
UPFITTER
F26 USB/Special Equipment Option(SEO) Retained
Accessory Power (RAP)
F27 Auxiliary Power Outlet (APO)/Retained
Accessory Power
F28 – Fuses
Usage
F30 SDM/AOS/DMS/NVM –
Sensing and Diagnostic
Module/Automatic
Occupant Sensing/
Driver Monitor System/
Night Vision Module
F31 BCM 3 –Body Control
Module 3
F32 Center Stack Module (CSM)/USB
F33 BCM 4 –Body Control
Module 4
F34 Out of Park
F40 –
F41 –
F42 Electric Park Brake Switch
F43 RSE/MFC –Rear Seat
Infotainment/Multi--
Functional Control
F44 –
F45 Radio Module
F46 – Fuses
Usage
F47 –
F48 TCM –Telematics
Control Module
F49 BCM 1 –Body Control
Module 1
F50 –
F51 –
F52 –
F53 –
F54 Sunroof
F55 APO 3 –Auxiliary
Power Outlet 3
F56 DC/DC CNV BATT 1 –
Direct Current/Direct
Current Converter
Battery 1
F57 DC/DC CNV BATT 2 –
Direct Current/Direct
Current Converter
Battery 2
F58 Spare
F59 –

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
400 VEHICLE CARE
Circuit
Breakers Usage
CBO1 APO 1 –Auxiliary
Power Outlet 1
CBO2 APO 2 –Auxiliary
Power Outlet 2
Relays Usage K1 –
K2 RAP/ACCY 1 –Retain
Accessory Power/
Accessory 1
K4 RAP/ACCY 2 –Retain
Accessory Power/
Accessory 2
K5 –Rear Compartment Fuse
Block
The rear compartment fuse block is
behind the access panel on the left
side of the compartment.
Pull the panel out by grabbing the
finger access slot at the rear edge.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
VEHICLE CARE 401
FusesUsage
F01 RFA –Remote
Function Actuator
F02 WCM –Wireless
Charging Module
F03 Heated Seat Module Row 1 (Battery 1)
F04 Memory Seat Module (MSM) Driver
F05 –
F06 –
F07 Amp Aux 2 –Amplifier
Auxiliary 2
F08 –
F09 SEO UPFTR 2 –Special
Equipment Upfitter 2
F10 Motor Seatbelt Passenger
F11 Power Folding Seat Row 2
F12 GBS –Glass Breakage
Sensor
F13 –
F14 – Fuses
Usage
F15 Heated Seat Module Row 1 (Battery 2)
F16 RH CINCH Latch –
Right Hand Cinch
Latch
F17 Memory Seat Module Passenger
F18 Rear Wiper
F19 Motor Seatbelt Driver
F20 Rear Defogger
F21 –
F22 Rear HVAC Display Control
F23 EOCM –External
Object Calculation
Module
F24 Amp Aux 3 –Amplifier
Auxiliary 3
F25 OBS DET –Obstacle
Detection
F26 RDCM –Rear Drive
Control Module Fuses
Usage
F27 Amp Aux 1 –Amplifier
Auxiliary 1
F28 VPM –Video
Processing Module
F29 –
F30 –
F31 Amp –Amplifier
F32 –
F33 ICCM –Integrated
Chassis Control Module
F34 Heated Seat Module Row 2
F35 HFCR –Hands Free
Closure Release
F36 ELM –Exterior
Lighting Module
F37 –
F38 Power Slide Console
F39 –
F40 –
F41 –
F42 –

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
402 VEHICLE CARE
FusesUsage
F43 UPA –Universal Park
Assist
F44 –
F45 AFL AHL –Adaptive
Forward Lighting/
Automatic Headlamp
Leveling
F46 Rear HVAC Blower Motor
F47 LH CINCH Latch –Left
Hand Cinch Latch
F48 Power Seat Recline Module
F49 Lift Glass
F50 Driver Power Seat
F51 Power Liftgate Module
F52 Passenger Power Seat
Relays Usage
K53 –
K54 –
K55 L/GLASSWheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See the
warranty manual for information
regarding the tire warranty and
where to get service. For
additional information refer to the
tire manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a result
of too much flexing. There
could be a blowout and a
serious crash. See Vehicle
Load Limits 0241.
.Underinflated tires pose the
same danger as overloaded
tires. The resulting crash
(Continued)
Warning (Continued)
could cause serious injury.
Check all tires frequently to
maintain the recommended
pressure. Tire pressure should
be checked when the tires
are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden
impact —such as when
hitting a pothole. Keep tires
at the recommended pressure.
.Worn or old tires can cause a
crash. If the tread is badly
worn, replace them.
.Replace any tires that have
been damaged by impacts
with potholes, curbs, etc.
.Improperly repaired tires can
cause a crash. Only your
dealer or an authorized tire
(Continued)

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21
INDEX 497
DiagnosticsConnected Services . . . . . . . . . . . . . . . 493
Distracted Driving . . . . . . . . . . . . . . . . . . 231
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . 157
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . 133
Delayed Locking . . . . . . . . . . . . . . . . . . . 18
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . 17
Drive Belt Routing, Engine . . . . . . . . . 470
Driver Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Driver Assistance Systems . . . . . . . . . 302
Driver Information Center (DIC) . . . . . . . . . . . . . . . . . . . . . . . 133
Driver Mode Control . . . . . . . . . . . . . . . . 267
Driver Mode Control Light . . . . . . . . . 129
Driving
Assistance Systems . . . . . . . . . . . . . . . 319
Better Fuel Economy . . . . . . . . . . . . . 231
Characteristics andTowing Tips . . . . . . . . . . . . . . . . . . . . . 336
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Hill and Mountain Roads . . . . . . . . 239
If the Vehicle is Stuck . . . . . . . . . . . . 241
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Loss of Control . . . . . . . . . . . . . . . . . . . . 234
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . 235 Driving (cont'd)
Off-Road Recovery . . . . . . . . . . . . . . . . 234
Vehicle Load Limits . . . . . . . . . . . . . . 241
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 238
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . 221
Dynamic Fuel Management . . . . . . . . 251
E
Electric Brake Boost . . . . . . . . . . . . . . . . 262
Electric Parking Brake . . . . . . . . . . . . . . 262
Electric Parking Brake Light . . . . . . . 125
Electrical Equipment, Add-On . . . . . 367
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 393
Fuses and Circuit Breakers . . . . . . . 392
Instrument Panel Fuse Block . . . . 397
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 486
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 377
Check Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 123 Engine (cont'd)
Compartment Overview . . . . . . . . . . 372
Coolant Temperature Gauge . . . . . 118
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . . . . . 129
Cooling System . . . . . . . . . . . . . . . . . . . 378
Drive Belt Routing . . . . . . . . . . . . . . . . 470
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Oil Life System . . . . . . . . . . . . . . . . . . . . 375
Oil Pressure Gauge . . . . . . . . . . . . . . . . 117
Oil Pressure Light . . . . . . . . . . . . . . . . . 131
Overheating . . . . . . . . . . . . . . . . . . . . . . . 381
Power Messages . . . . . . . . . . . . . . . . . . 139
Running While Parked . . . . . . . . . . . 252
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Engine Air Filter Life System . . . . . . 377
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 157
Equipment, Towing . . . . . . . . . . . . . . . . . 344
Event Data Recorders . . . . . . . . . . . . . . 483
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 158
Extended Parking . . . . . . . . . . . . . . . . . . . 251
Extender, Seat Belt . . . . . . . . . . . . . . . . . . 65
Exterior Lamp Controls . . . . . . . . . . . . 150
Exterior Lamps Off Reminder . . . . . . 153
Exterior Lighting Battery Saver . . . . 159
