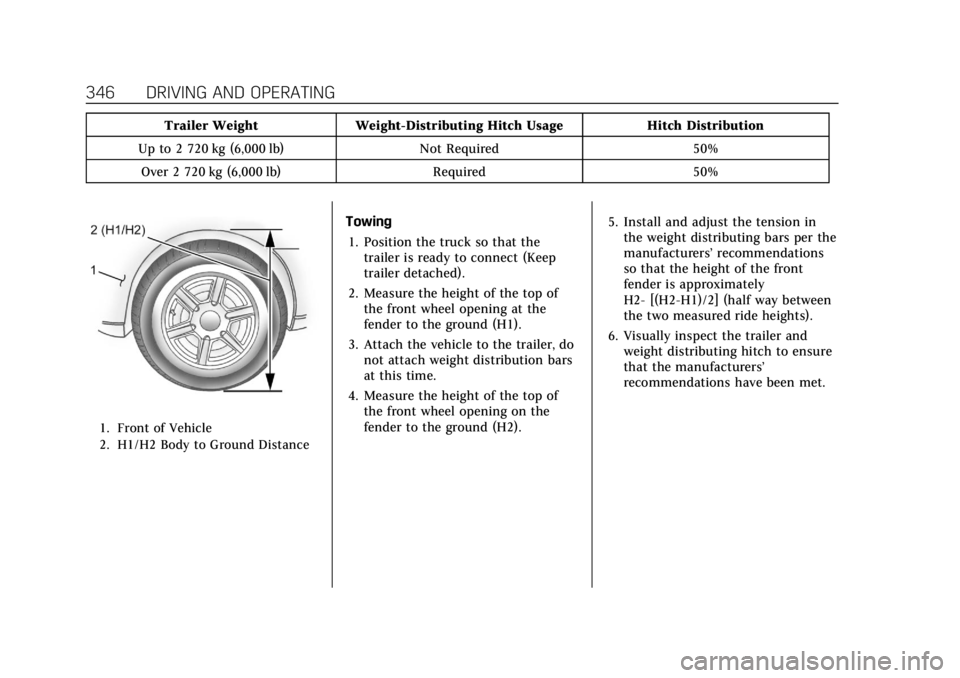

346 DRIVING AND OPERATING
Trailer WeightWeight-Distributing Hitch Usage Hitch Distribution
Up to 2 720 kg (6,000 lb) Not Required50%
Over 2 720 kg (6,000 lb) Required50%
1. Front of Vehicle
2. H1/H2 Body to Ground Distance
Towing
1. Position the truck so that the trailer is ready to connect (Keep
trailer detached).
2. Measure the height of the top of the front wheel opening at the
fender to the ground (H1).
3. Attach the vehicle to the trailer, do not attach weight distribution bars
at this time.
4. Measure the height of the top of the front wheel opening on the
fender to the ground (H2). 5. Install and adjust the tension in
the weight distributing bars per the
manufacturers’ recommendations
so that the height of the front
fender is approximately
H2- [(H2-H1)/2] (half way between
the two measured ride heights).
6. Visually inspect the trailer and weight distributing hitch to ensure
that the manufacturers’
recommendations have been met.

Cadillac Escalade Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15567102) - 2022 - CRC - 11/17/21

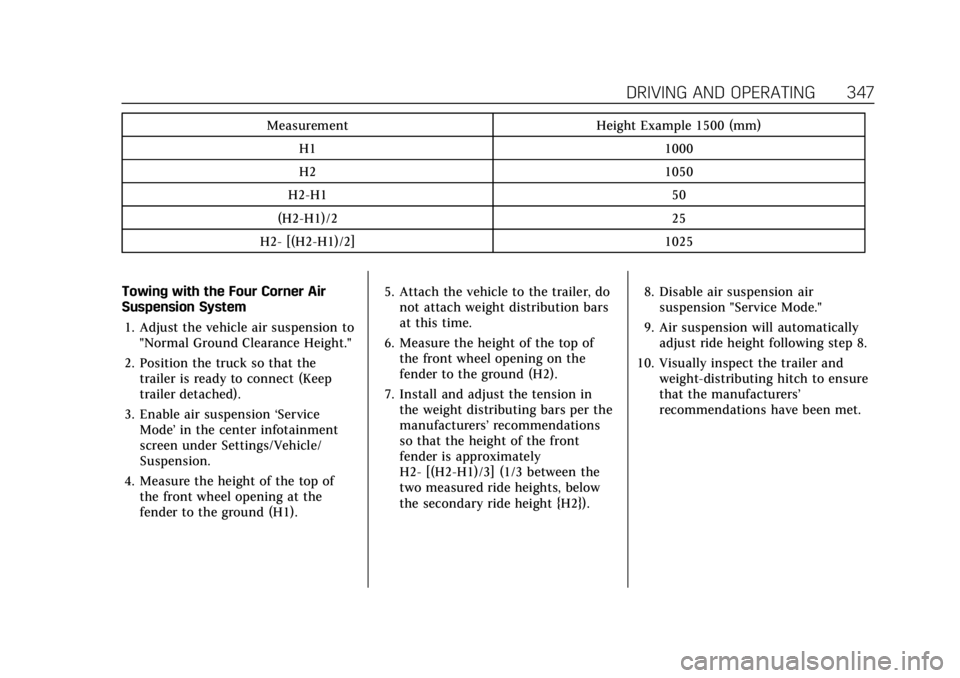

DRIVING AND OPERATING 347
MeasurementHeight Example 1500 (mm)
H1 1000
H2 1050
H2-H1 50
(H2-H1)/2 25
H2- [(H2-H1)/2] 1025
Towing with the Four Corner Air
Suspension System 1. Adjust the vehicle air suspension to "Normal Ground Clearance Height."
2. Position the truck so that the trailer is ready to connect (Keep
trailer detached).
3. Enable air suspension ‘Service
Mode’ in the center infotainment
screen under Settings/Vehicle/
Suspension.
4. Measure the height of the top of the front wheel opening at the
fender to the ground (H1). 5. Attach the vehicle to the trailer, do
not attach weight distribution bars
at this time.
6. Measure the height of the top of the front wheel opening on the
fender to the ground (H2).
7. Install and adjust the tension in the weight distributing bars per the
manufacturers’ recommendations
so that the height of the front
fender is approximately
H2- [(H2-H1)/3] (1/3 between the
two measured ride heights, below
the secondary ride height {H2}). 8. Disable air suspension air
suspension "Service Mode."
9. Air suspension will automatically adjust ride height following step 8.
10. Visually inspect the trailer and weight-distributing hitch to ensure
that the manufacturers’
recommendations have been met.
