Curb View Assist
If your vehicle has the memory package, the
outside mirrors are able to perform the curb view
assist mirror function. This feature may be
useful in allowing the driver to view the curb when
parallel parking. This feature will cause the
passenger’s and/or driver’s mirror to tilt to a
preselected position when the vehicle is in
REVERSE (R).
The passenger’s and/or driver’s mirror will return
to its original position when the vehicle is
shifted out of REVERSE (R), or the ignition is
turned off or to LOCK.
This feature can be turned on or off through the
Driver Information Center (DIC). SeeDriver
Information Center (DIC) on page 245.
Heated Mirrors
The button to turn the heated mirrors on or off is
located on the climate control panel. Press
this button to warm the driver’s and passenger’s
outside rearview mirrors to help clear them of
ice, snow, and condensation.See “Rear Window Defogger” underDual
Automatic Climate Control System on page 220
for more information.
Convex Mirror
{CAUTION:
A convex mirror can make things (like
other vehicles) look farther away than
they really are. If you cut too sharply into
the right lane, you could hit a vehicle on
your right. Check your inside mirror or
glance over your shoulder before
changing lanes.
The passenger’s side mirror may have convex
glass. A convex mirror’s surface is curved so more
can be seen from the driver’s seat.
Your vehicle may also have a turn signal indicator
on the mirror. An arrow on the mirror will ash
in the direction of the turn or lane change.
164

Instrument Panel Overview........................ 192
Hazard Warning Flashers.......................... 194
Other Warning Devices............................. 194
Horn.......................................................... 194
Tilt Wheel.................................................. 195
Heated Steering Wheel............................. 195
Turn Signal/Multifunction Lever.................. 196
Turn and Lane-Change Signals................. 196
Headlamp High/Low-Beam Changer.......... 197
Windshield Wipers..................................... 198
Rainsense™ II Wipers............................... 199
Windshield Washer.................................... 200
Rear Window Wiper/Washer...................... 201
Cruise Control........................................... 202
Exterior Lamps.......................................... 205
Headlamps on Reminder........................... 210
Daytime Running Lamps (DRL)................. 210
Automatic Headlamp System..................... 211
Fog Lamps................................................ 212
Instrument Panel Brightness...................... 212
Dome Lamps............................................. 212
Dome Lamp Override................................ 213
Entry Lighting............................................ 213
Exit Lighting.............................................. 213
Reading Lamps......................................... 213Battery Run-Down Protection..................... 213
Ultrasonic Rear Parking Assist (URPA)...... 214
Accessory Power Outlet(s)........................ 218
Ashtray(s) and Cigarette Lighter................ 219
Analog Clock............................................. 219
Climate Controls......................................... 220
Dual Automatic Climate Control System.... 220
Outlet Adjustment...................................... 225
Rear Air Conditioning and Heating
System and Electronic Climate
Controls................................................. 226
Warning Lights, Gages, and Indicators..... 228
Instrument Panel Cluster........................... 229
Speedometer and Odometer...................... 230
Trip Odometer........................................... 230
Tachometer............................................... 230
Safety Belt Reminder Light........................ 231
Passenger Safety Belt Reminder Light....... 231
Airbag Readiness Light............................. 232
Passenger Airbag Status Indicator............. 233
Charging System Light.............................. 235
Brake System Warning Light..................... 235
Anti-Lock Brake System Warning Light...... 237
StabiliTrak
®Indicator Light......................... 237
Section 3 Instrument Panel
189

A. Air Outlets. SeeOutlet Adjustment on
page 225.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 196.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 229.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 194.
E. Shift Lever and Range Selection Mode. See
Automatic Transmission Operation on
page 144.
F. Tow/Haul Selector Button. SeeTow/Haul Mode
on page 150.
G. Driver Information Center Controls. SeeDriver
Information Center (DIC) on page 245.
H. Analog Clock. SeeAnalog Clock on page 219.
I. Audio System. SeeAudio System(s) on
page 270.
J. StabiliTrak
®Button. SeeStabiliTrak®System
on page 330. Rear Park Aid Disable Button.
SeeUltrasonic Rear Parking Assist (URPA) on
page 214.K. Tilt Wheel Lever. SeeTilt Wheel on page 195.
L. Exterior Lamps Control. SeeExterior Lamps
on page 205.
M. Dome Lamp Override Button. SeeDome Lamp
Override on page 213.
N. Cruise Control Buttons. SeeAudio Steering
Wheel Controls on page 317.
O. Horn. SeeHorn on page 194.
P. Audio Steering Wheel Controls. SeeAudio
Steering Wheel Controls on page 317.
Q. Dual Automatic Climate Controls. SeeDual
Automatic Climate Control System on
page 220.
R. Pedal Adjust Button. SeeAdjustable Throttle
and Brake Pedal on page 142. Heated
Windshield Washer Fluid Button. See
Windshield Washer on page 200. Power
Running Boards Disable Button (If Equipped).
SeePower Running Boards on page 132.
S. Glove Box. SeeGlove Box on page 178.
193

Windshield Washer
{CAUTION:
In freezing weather, do not use your
washer until the windshield is warmed.
Otherwise the washer uid can form ice
on the windshield, blocking your vision.
L(Washer Fluid):There is a paddle marked
with the windshield washer symbol at the top of the
multifunction lever. To spray washer uid on the
windshield, push the paddle. The wipers will
clear the window and then either stop or return to
your preset speed.
Heated Windshield Washer
The heated windshield washer uid system may
be used to help clear ice, snow, tree sap, or bugs
from your windshield.The button is located in
the switchbank under
the climate controls.
Push the heated washer uid button while the
ignition is turned on to activate the heated
windshield washer uid system. The indicator light
will ash. This activation will initiate four heated
wash/wipe cycles. The rst heated wash/wipe
cycle may take up to 40 seconds to occur,
depending on outside temperature. After the rst
wash/wipe cycle, it may take up to 20 seconds
for each of the remaining cycles to begin.
Press the button again to turn off the heated
windshield washer uid system or it will
automatically turn off after four wash/wipe cycles
have been completed.
When the heated windshield washer uid system
is activated under certain outside temperature
conditions, steam may ow out of the washer
nozzles for a short period of time before washer
uid is sprayed. This is a normal condition.
200

Climate Controls
Dual Automatic Climate Control
System
With this system, you can control the heating,
cooling, and ventilation in your vehicle. Your
vehicle also has a ow-through ventilation system
described later in this section.
You can select different climate control settings for
the driver and passengers.
Driver’s Side Temperature Knob
The driver’s side knob is used to adjust the
temperature of the air coming through the system
on the driver’s side. The temperature can be
adjusted even if the system is turned off. This is
possible since outside air will always ow through
the system as the vehicle is moving forward
unless it is set to recirculation mode. See
“Recirculation” later in this section.
Turn the knob counterclockwise or clockwise to
lower or increase the cabin temperature. The
display will show the temperature setting
decreasing or increasing.
Passenger’s Side Temperature Knob
The passenger’s side knob can be used to change
the temperature of the air coming through the
system on the passenger’s side of the vehicle. The
temperature can be adjusted even if the system
is turned off. This is possible since outside air will
always ow through the system as the vehicle
is moving forward unless it is set to recirculation
mode. See “Recirculation” later in this section.
Climate Control with Cooled and Heated Seats
shown
220

Be careful not to cover the sensor located on the
top of the instrument panel near the windshield.
This sensor regulates air temperature based
on sun load and also turns on your headlamps.
To avoid blowing cold air in cold weather, the
system will delay turning on the fan until warm air
is available. The length of delay depends on
the engine coolant temperature. Pressing the fan
switch will override this delay and change the
fan to a selected speed.
O(Off):Press the driver’s side temperature knob
to turn off the climate control system. Outside air
will still enter the vehicle, and will be directed to the
oor. This direction can be changed by pressing the
mode button. The temperature can also be adjusted
using either temperature knob. Press the up or
down arrows on the fan switch, the defrost button,
the AUTO button, driver’s side temperature knob, or
the air conditioning button to turn the system on
when it is off.
Manual Operation
You may manually adjust the air delivery mode or
fan speed.
y9 z(Fan):The switch with the fan symbol
allows you to manually adjust the fan speed.
Press the up arrow to increase fan speed and the
down arrow to decrease fan speed.
Pressing this button when the system is off will
turn the system on.
Pressing either arrow while using automatic
operation will place the fan in manual operation.
The fan setting will display and the AUTO light will
turn off. The air delivery will remain in automatic
operation.
N(Mode):Press this button to manually change
the direction of the airow in your vehicle.
Repeatedly press the button until the desired
mode appears on the display.
When the system is turned off, the display will go
blank after displaying the current status of the
system.
222

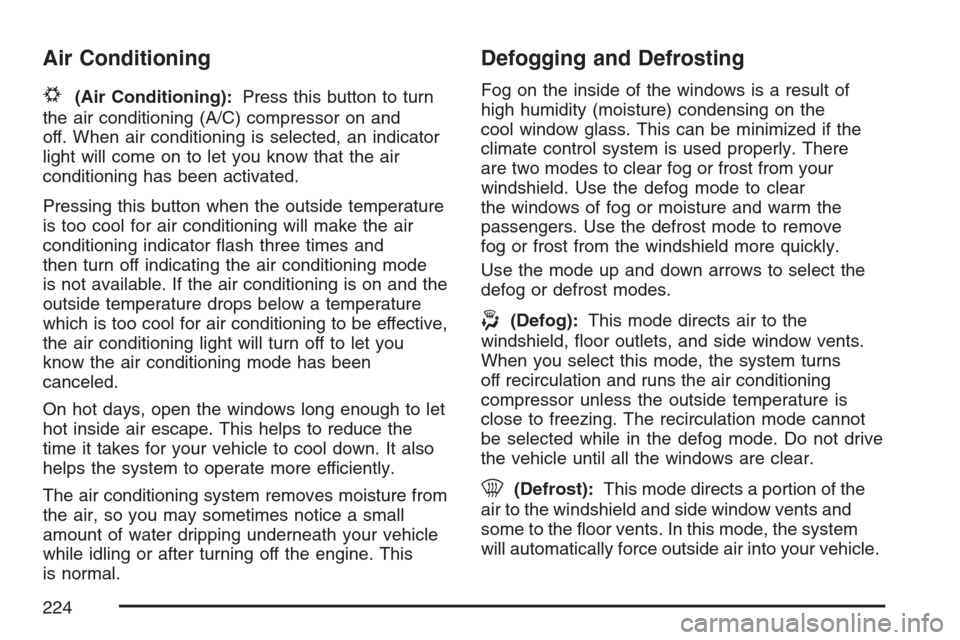

Air Conditioning
#
(Air Conditioning):Press this button to turn
the air conditioning (A/C) compressor on and
off. When air conditioning is selected, an indicator
light will come on to let you know that the air
conditioning has been activated.
Pressing this button when the outside temperature
is too cool for air conditioning will make the air
conditioning indicator ash three times and
then turn off indicating the air conditioning mode
is not available. If the air conditioning is on and the
outside temperature drops below a temperature
which is too cool for air conditioning to be effective,
the air conditioning light will turn off to let you
know the air conditioning mode has been
canceled.
On hot days, open the windows long enough to let
hot inside air escape. This helps to reduce the
time it takes for your vehicle to cool down. It also
helps the system to operate more efficiently.
The air conditioning system removes moisture from
the air, so you may sometimes notice a small
amount of water dripping underneath your vehicle
while idling or after turning off the engine. This
is normal.
Defogging and Defrosting
Fog on the inside of the windows is a result of
high humidity (moisture) condensing on the
cool window glass. This can be minimized if the
climate control system is used properly. There
are two modes to clear fog or frost from your
windshield. Use the defog mode to clear
the windows of fog or moisture and warm the
passengers. Use the defrost mode to remove
fog or frost from the windshield more quickly.
Use the mode up and down arrows to select the
defog or defrost modes.
-(Defog):This mode directs air to the
windshield, oor outlets, and side window vents.
When you select this mode, the system turns
off recirculation and runs the air conditioning
compressor unless the outside temperature is
close to freezing. The recirculation mode cannot
be selected while in the defog mode. Do not drive
the vehicle until all the windows are clear.
0(Defrost):This mode directs a portion of the
air to the windshield and side window vents and
some to the oor vents. In this mode, the system
will automatically force outside air into your vehicle.
224

Rear Air Conditioning and Heating
System and Electronic Climate
Controls
The rear heat and air conditioning controls are
part of the rear seat audio controls located in the
center console. The system can be controlled
from the front controls as well as the rear controls.
To turn the system on, press the AUX button on
the front climate control system, an indicator will be
lit. Pressing the AUX button the rst time will
turn the rear system on in a mimic mode. In this
mode, the airow in the rear will be approximately
the same direction, temperature, and fan speed
as the front. Pressing the AUX button again
will turn the rear system and the indicator off.
If the rear controls are adjusted, the system will
enter a rear independent mode. Airow in the rear
will then be directed according to the settings of
rear controls. The rear system can be turned off
by pressing the AUX button on the front climate
control system and the indicator will turn off.
If the indicator in the front AUX button is off, the
rear system is off.
Rear Climate Controls with Rear Seat Audio Controls
226

Automatic Operation
N(Mode):Press the mode button until the
AUTO setting is selected to control the inside
temperature, the air delivery, and the fan speed.
AUTO will illuminate in the display when automatic
operation is active.
+/−(Increase/Decrease Temperature):Press the
+or−buttons to increase or decrease the cabin
temperature. The rear control temperature
display will show the temperature setting
decreasing or increasing.
The display will only indicate climate control
functions when the system is in rear
independent mode.
Manual Operation
y9 z(Fan):The fan buttons on the rear
seat audio control panel allows you to manually
adjust the fan speed. To decrease airow,
press the button with the fan and down arrow
symbol. Pressing the fan up button when
the system is off will turn the system on. The air
delivery mode will remain under automatic control.
To turn the rear system off, keep pressing the
button with the fan and down arrow symbol.
+/−(Increase/Decrease Temperature):These
buttons select the temperature of the air owing into
the passenger area. Press the + button for warmer
air and press the−button for cooler air.
N(Mode):Press the mode button to manually
change the direction of the airow in your vehicle.
Repeatedly press the button until the desired
mode appears on the display. Multiple presses will
cycle through the delivery selections.
227

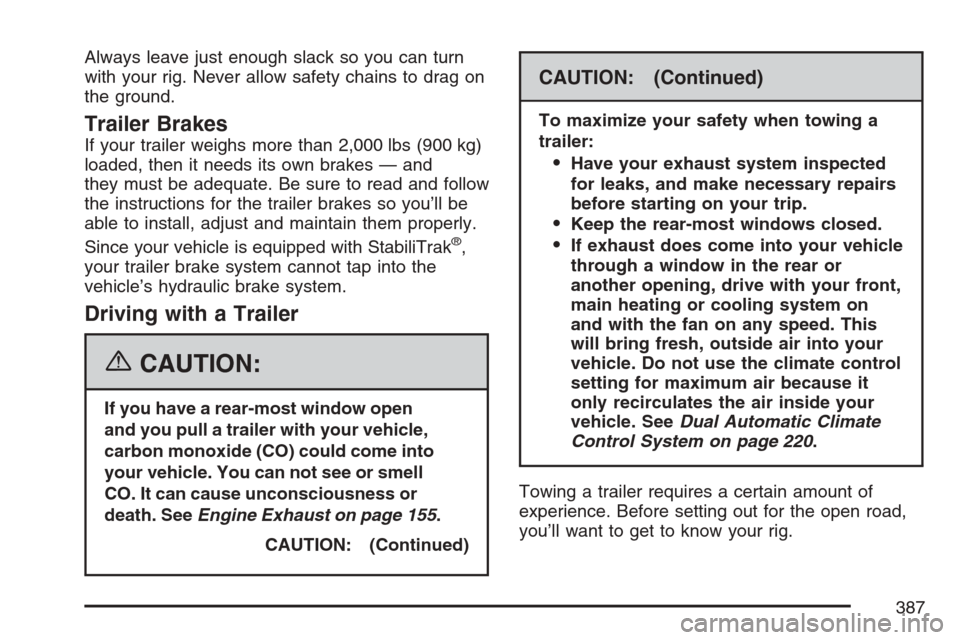

Always leave just enough slack so you can turn
with your rig. Never allow safety chains to drag on
the ground.
Trailer Brakes
If your trailer weighs more than 2,000 lbs (900 kg)
loaded, then it needs its own brakes — and
they must be adequate. Be sure to read and follow
the instructions for the trailer brakes so you’ll be
able to install, adjust and maintain them properly.
Since your vehicle is equipped with StabiliTrak
®,
your trailer brake system cannot tap into the
vehicle’s hydraulic brake system.
Driving with a Trailer
{CAUTION:
If you have a rear-most window open
and you pull a trailer with your vehicle,
carbon monoxide (CO) could come into
your vehicle. You can not see or smell
CO. It can cause unconsciousness or
death. SeeEngine Exhaust on page 155.
CAUTION: (Continued)
CAUTION: (Continued)
To maximize your safety when towing a
trailer:
Have your exhaust system inspected
for leaks, and make necessary repairs
before starting on your trip.
Keep the rear-most windows closed.
If exhaust does come into your vehicle
through a window in the rear or
another opening, drive with your front,
main heating or cooling system on
and with the fan on any speed. This
will bring fresh, outside air into your
vehicle. Do not use the climate control
setting for maximum air because it
only recirculates the air inside your
vehicle. SeeDual Automatic Climate
Control System on page 220.
Towing a trailer requires a certain amount of
experience. Before setting out for the open road,
you’ll want to get to know your rig.
387
