remote start CADILLAC ESCALADE ESV 2008 Owner's Manual

5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative ( − ) will go to a heavy,
unpainted metal engine part or to a remote
negative ( − ) terminal if the vehicle has one.
Do not connect positive (+) to negative ( − )oryou
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative ( − ) cable to the negative ( − ) terminal on
the dead battery because this can cause sparks.
6. Connect the red
positive (+) cable to the
positive (+) terminal
of the vehicle with the
dead battery. Use
a remote positive (+)
terminal if the
vehicle has one. 7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.
8. Now connect the black negative ( − ) cable to the
negative ( − ) terminal of the good battery. Use a
remote negative ( − ) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative ( − ) cable
does not go to the dead battery. It goes to a
heavy, unpainted metal engine part or to the remote
negative ( − ) terminal on the vehicle with the dead
battery.
9. Connect the other end of the negative ( − ) cable to
the remote negative ( − ) terminal, on the vehicle with
the dead battery.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably
needs service.
5-43

TPMS Sensor Matching Process Each TPMS sensor has a unique identication code.
Any time you rotate your vehicle’s tires or replace one or
more of the TPMS sensors, the identication codes
will need to be matched to the new tire/wheel position.
The sensors are matched to the tire/wheel positions
in the following order: driver side front tire, passenger
side front tire, passenger side rear tire, and driver
side rear tire using a TPMS diagnostic tool. See your
dealer/retailer for service.
The TPMS sensors can also be matched to each
tire/wheel position by increasing or decreasing the tire’s
air pressure. If increasing the tire’s air pressure, do
not exceed the maximum ination pressure indicated on
the tire’s sidewall.
To decrease air-pressure out of a tire you can use the
pointed end of the valve cap, a pencil-style air pressure
gage, or a key.
You have two minutes to match the rst tire/wheel
position, and ve minutes overall to match all four
tire/wheel positions. If it takes longer than two minutes,
to match the rst tire and wheel, or more than
ve minutes to match all four tire and wheel positions
the matching process stops and you need to start over. The TPMS sensor matching process is outlined below:
1. Set the parking brake.
2. Turn the ignition switch to ON/RUN with the
engine off.
3. Press the Remote Keyless Entry (RKE) transmitter’s
LOCK and UNLOCK buttons at the same time for
approximately ve seconds. The horn sounds twice
to signal the receiver is in relearn mode and TIRE
LEARNING ACTIVE message displays on the
DIC screen.
4. Start with the driver side front tire.
5. Remove the valve cap from the valve cap stem.
Activate the TPMS sensor by increasing or
decreasing the tire’s air pressure for ve seconds,
or until a horn chirp sounds. The horn chirp,
which may take up to 30 seconds to sound,
conrms that the sensor identication code has
been matched to this tire and wheel position.
5-68

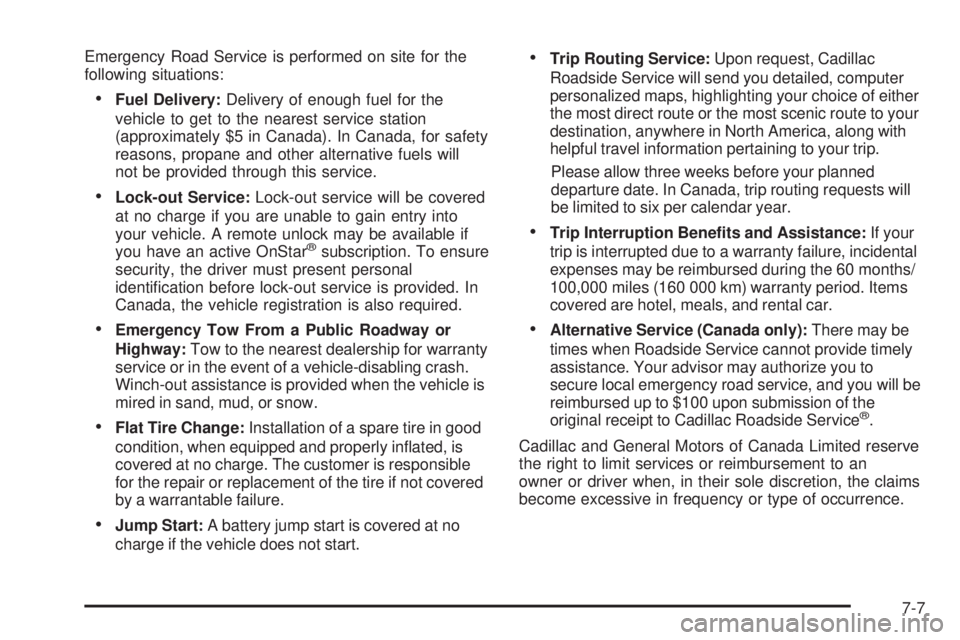

Emergency Road Service is performed on site for the
following situations:
Fuel Delivery: Delivery of enough fuel for the
vehicle to get to the nearest service station
(approximately $5 in Canada). In Canada, for safety
reasons, propane and other alternative fuels will
not be provided through this service.
Lock-out Service: Lock-out service will be covered
at no charge if you are unable to gain entry into
your vehicle. A remote unlock may be available if
you have an active OnStar ®
subscription. To ensure
security, the driver must present personal
identication before lock-out service is provided. In
Canada, the vehicle registration is also required.
Emergency Tow From a Public Roadway or
Highway: Tow to the nearest dealership for warranty
service or in the event of a vehicle-disabling crash.
Winch-out assistance is provided when the vehicle is
mired in sand, mud, or snow.
Flat Tire Change: Installation of a spare tire in good
condition, when equipped and properly inated, is
covered at no charge. The customer is responsible
for the repair or replacement of the tire if not covered
by a warrantable failure.
Jump Start: A battery jump start is covered at no
charge if the vehicle does not start. Trip Routing Service: Upon request, Cadillac
Roadside Service will send you detailed, computer
personalized maps, highlighting your choice of either
the most direct route or the most scenic route to your
destination, anywhere in North America, along with
helpful travel information pertaining to your trip.
Please allow three weeks before your planned
departure date. In Canada, trip routing requests will
be limited to six per calendar year.
Trip Interruption Benets and Assistance: If your
trip is interrupted due to a warranty failure, incidental
expenses may be reimbursed during the 60 months/
100,000 miles (160 000 km) warranty period. Items
covered are hotel, meals, and rental car.
Alternative Service (Canada only): There may be
times when Roadside Service cannot provide timely
assistance. Your advisor may authorize you to
secure local emergency road service, and you will be
reimbursed up to $100 upon submission of the
original receipt to Cadillac Roadside Service ®
.
Cadillac and General Motors of Canada Limited reserve
the right to limit services or reimbursement to an
owner or driver when, in their sole discretion, the claims
become excessive in frequency or type of occurrence.
7-7

GM will not access this data or share it with others
except: with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the lessee; in
response to an official request of police or similar
government office; as part of GM’s defense of litigation
through the discovery process; or, as required by
law. Data that GM collects or receives may also be used
for GM research needs or may be made available to
others for research purposes, where a need is shown
and the data is not tied to a specic vehicle or
vehicle owner.
OnStar ®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and
use. See also OnStar ®
System on page 2-50 in this
manual for more information. Navigation System If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID) RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
7-17

RRadio Frequency Identication (RFID), Privacy .... 7-17
Radios .......................................................... 3-70
Radio(s) ........................................................ 3-72
Radios
Navigation/Radio System, see Navigation
Manual ................................................... 3-95
Rear Seat Audio ........................................ 3-104
Reception ................................................. 3-108
Setting the Clock ......................................... 3-71
Theft-Deterrent .......................................... 3-106
Rainsense™ II Wipers ..................................... 3-10
Reading Lamps .............................................. 3-22
Rear Air Conditioning and Heating System and
Electronic Climate Controls ........................... 3-31
Rear Axle ...................................................... 5-46
Rear Door Security Locks ................................ 2-11
Rear Heated Seats ......................................... 1-10
Rear Seat Armrest .......................................... 2-62
Rear Seat Audio (RSA) .................................. 3-104
Rear Seat Entertainment System ....................... 3-95
Rear Side Window Antenna ............................ 3-109
Rear Storage Area .......................................... 2-62
Rear Windshield Washer/Wiper ......................... 3-12
Rearview Mirror, Automatic Dimming with
OnStar ®
, Compass and Temperature
Display ...................................................... 2-43
Reclining Seatbacks, Power ............................... 1-7 Recommended Fluids and Lubricants ................. 6-13
Recovery Hooks ............................................. 4-34
Recreational Vehicle Towing ............................. 4-42
Remote Keyless Entry (RKE) System .................. 2-4
Remote Keyless Entry (RKE) System,
Operation ..................................................... 2-4
Remote Vehicle Start ........................................ 2-7
Removing the Flat Tire and Installing the
Spare Tire .................................................. 5-85
Removing the Spare Tire and Tools ................... 5-80
Replacement Bulbs ......................................... 5-53
Replacement Parts, Maintenance ...................... 6-15
Reporting Safety Defects
Canadian Government .................................. 7-13
General Motors ........................................... 7-14
United States Government ............................ 7-13
Restraint System Check
Checking the Restraint Systems .................... 1-92
Replacing Restraint System Parts
After a Crash .......................................... 1-93
Retained Accessory Power (RAP) ...................... 2-26
Road Sensing Suspension ................................. 4-6
Roadside
Service ........................................................ 7-6
Rocking Your Vehicle to Get it Out .................... 4-34
Routing, Engine Drive Belt ............................... 6-16
Running Boards, Power ................................... 2-17
Running the Engine While Parked ..................... 2-40
10

Speedometer .................................................. 3-35
Split Bench Seat (60/40) .................................. 1-11
StabiliTrak ®
System .......................................... 4-6
StabiliTrak ®
Indicator Light ................................ 3-41
Start Vehicle, Remote ....................................... 2-7
Starting the Engine ......................................... 2-26
Steering .......................................................... 4-9
Steering Wheel Controls, Audio ....................... 3-106
Steering Wheel, Heated ..................................... 3-7
Steering Wheel, Tilt Wheel ................................. 3-6
Storage
Garment Hooks ........................................... 2-61
Storage Areas
Center Console Storage Area ........................ 2-61
Convenience Net ......................................... 2-63
Cupholder(s) ............................................... 2-60
Glove Box .................................................. 2-60
Luggage Carrier .......................................... 2-61
Rear Seat Armrest ....................................... 2-62
Rear Storage Area ....................................... 2-62
Stuck in Sand, Mud, Ice, or Snow ..................... 4-33
Sun Visors ..................................................... 2-20
Sunroof ......................................................... 2-64T Tachometer .................................................... 3-35
Theft-Deterrent, Radio .................................... 3-106
Theft-Deterrent Systems ................................... 2-20
Content Theft-Deterrent ................................ 2-21
PASS-Key ®
III+ ........................................... 2-22
PASS-Key ®
III+ Operation ............................. 2-23
Third Row Seat .............................................. 1-25
Tilt Wheel ........................................................ 3-6
Time, Setting .................................................. 3-71
Tire
Pressure Light ............................................. 3-42
Tires ............................................................. 5-56
Aluminum or Chrome-Plated Wheels,
Cleaning ............................................... 5-104
Buying New Tires ........................................ 5-72
Chains ....................................................... 5-77
Changing a Flat Tire .................................... 5-79
Cleaning ................................................... 5-105
Different Size .............................................. 5-73
High-Speed Operation .................................. 5-63
If a Tire Goes Flat ....................................... 5-78
Ination - Tire Pressure ................................ 5-62
12

VVehicle
Control ........................................................ 4-3
Damage Warnings ........................................... iv
Loading ...................................................... 4-35
Symbols ......................................................... iv
Vehicle Customization, DIC .............................. 3-61
Vehicle Data Recording and Privacy .................. 7-15
Vehicle Identication
Number (VIN) ............................................ 5-107
Service Parts Identication Label .................. 5-107
Vehicle, Remote Start ....................................... 2-7
Ventilation Adjustment ...................................... 3-31
Visors ........................................................... 2-20
WWarning Lights, Gages and Indicators ................ 3-33
Warnings
DIC Warnings and Messages ........................ 3-53
Hazard Warning Flashers ............................... 3-6
Other Warning Devices .................................. 3-6
Safety and Symbols ......................................... iii
Vehicle Damage .............................................. iv
Wheels
Alignment and Tire Balance .......................... 5-75
Different Size .............................................. 5-73
Replacement ............................................... 5-76 Where to Put the Restraint ............................... 1-60
Windows ....................................................... 2-18
Power ........................................................ 2-19
Windshield
Backglass, and Wiper Blades, Cleaning ........ 5-103
Rainsense™ II Wipers .................................. 3-10
Washer ...................................................... 3-11
Washer Fluid .............................................. 5-35
Wiper Blade Replacement ............................. 5-54
Wiper Fuses ............................................. 5-108
Wipers ......................................................... 3-9
Windshield, Rear Washer/Wiper ........................ 3-12
Winter Driving ................................................ 4-30
X XM Radio Messages ....................................... 3-94
XM™ Satellite Radio Antenna System .............. 3-109
Y Your Vehicle and the Environment ....................... 6-2
14
