CADILLAC ESCALADE ESV 2008 Owners Manual

Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-2
Rear Seats
.............................................. 1-10
Safety Belts
............................................. 1-29
Child Restraints
....................................... 1-50
Airbag System
......................................... 1-76
Restraint System Check
............................ 1-92
Features and Controls ..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
...................................... 2-10
Windows
................................................. 2-18
Theft-Deterrent Systems
............................ 2-20
Starting and Operating Your Vehicle
........... 2-24
Mirrors
.................................................... 2-41
Object Detection Systems
.......................... 2-48
OnStar ®
System
...................................... 2-50
Universal Home Remote System
................ 2-53
Storage Areas
......................................... 2-60
Sunroof
.................................................. 2-64
Instrument Panel ............................................. 3-1
Instrument Panel Overview
.......................... 3-4
Climate Controls
...................................... 3-26
Warning Lights, Gages, and Indicators
........ 3-33
Driver Information Center (DIC)
.................. 3-48
Audio System(s)
....................................... 3-70 Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
..... 4-2
Towing
................................................... 4-41
Service and Appearance Care .......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-5
Checking Things Under the Hood
............... 5-10
All-Wheel Drive
........................................ 5-45
Rear Axle
............................................... 5-46
Front Axle
............................................... 5-47
Headlamp Aiming
..................................... 5-48
Bulb Replacement
.................................... 5-51
Windshield Wiper Blade Replacement
......... 5-54
Tires
...................................................... 5-56
Appearance Care
..................................... 5-98
Vehicle Identication
............................... 5-107
Electrical System
.................................... 5-108
Capacities and Specications
................... 5-115
Maintenance Schedule ..................................... 6-1
Maintenance Schedule
................................ 6-2
Customer Assistance Information .................... 7-1
Customer Assistance and Information
........... 7-2
Reporting Safety Defects
........................... 7-13
Vehicle Data Recording and Privacy
........... 7-15
Index ................................................................ 12008 Cadillac Escalade/Escalade ESV Owner Manual
M

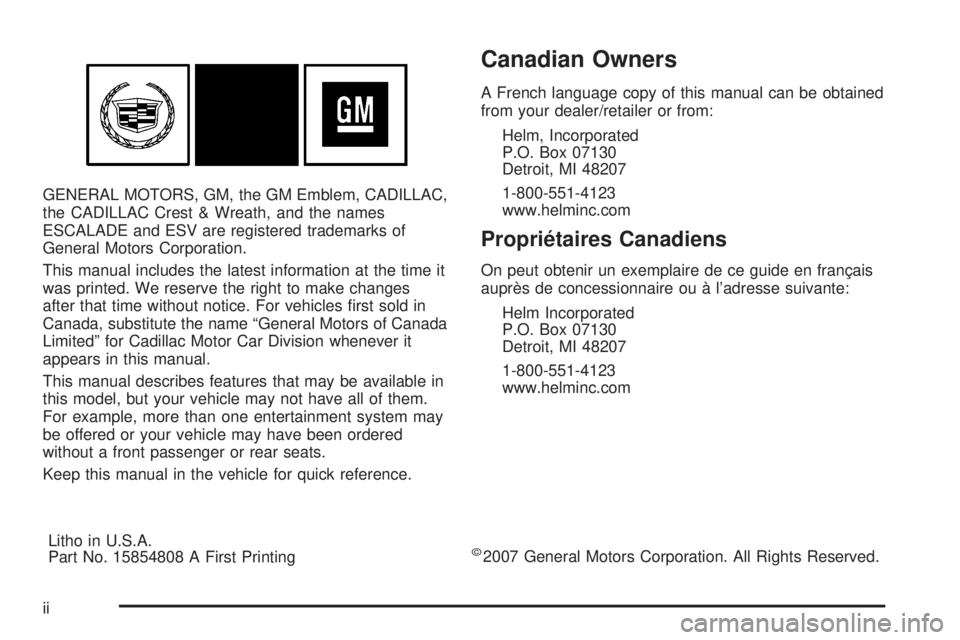

GENERAL MOTORS, GM, the GM Emblem, CADILLAC,
the CADILLAC Crest & Wreath, and the names
ESCALADE and ESV are registered trademarks of
General Motors Corporation.
This manual includes the latest information at the time it
was printed. We reserve the right to make changes
after that time without notice. For vehicles rst sold in
Canada, substitute the name “General Motors of Canada
Limited” for Cadillac Motor Car Division whenever it
appears in this manual.
This manual describes features that may be available in
this model, but your vehicle may not have all of them.
For example, more than one entertainment system may
be offered or your vehicle may have been ordered
without a front passenger or rear seats.
Keep this manual in the vehicle for quick reference. Canadian Owners A French language copy of this manual can be obtained
from your dealer/retailer or from:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Propriétaires Canadiens On peut obtenir un exemplaire de ce guide en français
auprès de concessionnaire ou à l’adresse suivante:
Helm Incorporated
P.O. Box 07130
Detroit, MI 48207
1-800-551-4123
www.helminc.com
Litho in U.S.A.
Part No. 15854808 A First Printing ©
2007 General Motors Corporation. All Rights Reserved.
ii

Using this Manual Many people read the owner manual from beginning to
end when they rst receive their new vehicle to learn
about the vehicle’s features and controls. Pictures
and words work together to explain things.
Index A good place to quickly locate information about the
vehicle is the Index in the back of the manual. It is an
alphabetical list of what is in the manual and the
page number where it can be found.
Safety Warnings and Symbols There are a number of safety cautions in this book. A
box with the word CAUTION is used to tell about things
that could hurt you or others if you were to ignore the
warning. { CAUTION: These mean there is something that could hurt
you or other people.
We tell you what the hazard is and what to do to help
avoid or reduce the hazard. Please read these cautions.
If you do not, you or others could be hurt.
A circle with a slash
through it is a safety
symbol which means “Do
Not,” “Do Not do this”
or “Do Not let this happen.”
iii

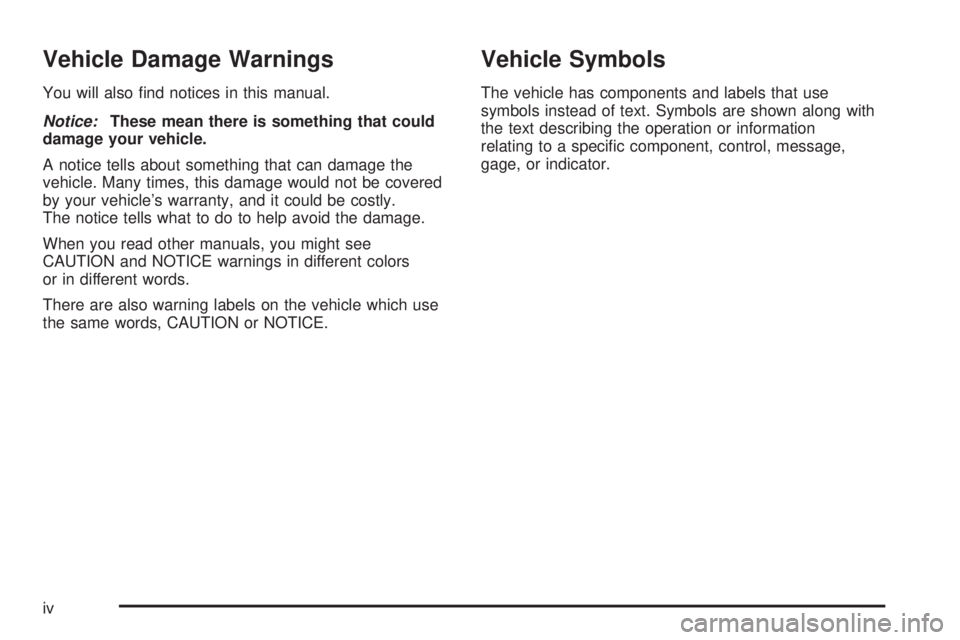

Vehicle Damage Warnings You will also nd notices in this manual.
Notice: These mean there is something that could
damage your vehicle.
A notice tells about something that can damage the
vehicle. Many times, this damage would not be covered
by your vehicle’s warranty, and it could be costly.
The notice tells what to do to help avoid the damage.
When you read other manuals, you might see
CAUTION and NOTICE warnings in different colors
or in different words.
There are also warning labels on the vehicle which use
the same words, CAUTION or NOTICE. Vehicle Symbols The vehicle has components and labels that use
symbols instead of text. Symbols are shown along with
the text describing the operation or information
relating to a specic component, control, message,
gage, or indicator.
iv

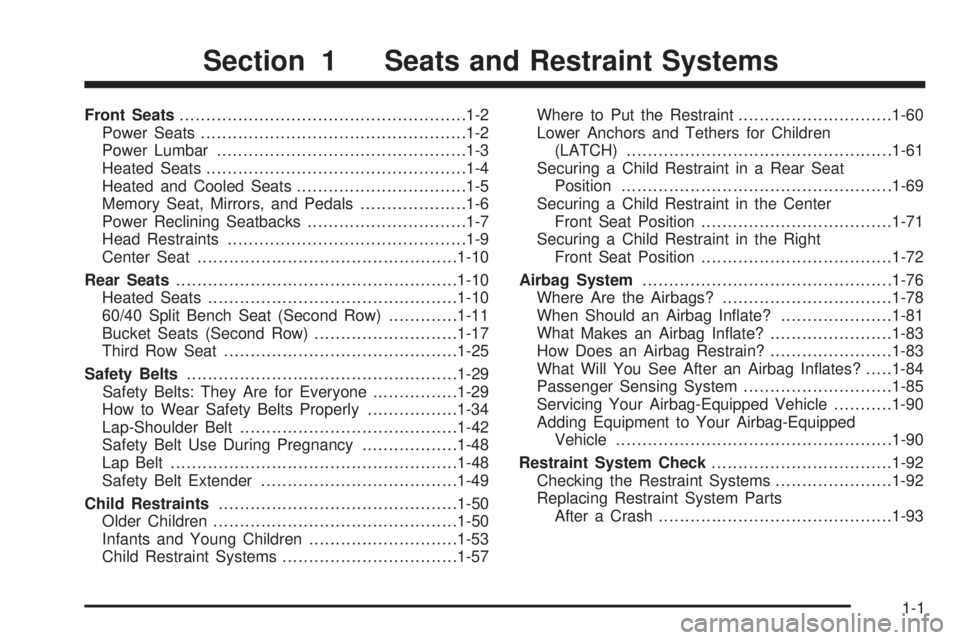

Front Seats ..................................................... .1-2
Power Seats ................................................. .1-2
Power Lumbar .............................................. .1-3
Heated Seats ................................................ .1-4
Heated and Cooled Seats ............................... .1-5
Memory Seat, Mirrors, and Pedals ................... .1-6
Power Reclining Seatbacks ............................. .1-7
Head Restraints ............................................ .1-9
Center Seat ................................................ .1-10
Rear Seats .................................................... .1-10
Heated Seats .............................................. .1-10
60/40 Split Bench Seat (Second Row) ............ .1-11
Bucket Seats (Second Row) .......................... .1-17
Third Row Seat ........................................... .1-25
Safety Belts .................................................. .1-29
Safety Belts: They Are for Everyone ............... .1-29
How to Wear Safety Belts Properly ................ .1-34
Lap-Shoulder Belt ........................................ .1-42
Safety Belt Use During Pregnancy ................. .1-48
Lap Belt ..................................................... .1-48
Safety Belt Extender .................................... .1-49
Child Restraints ............................................ .1-50
Older Children ............................................. .1-50
Infants and Young Children ........................... .1-53
Child Restraint Systems ................................ .1-57 Where to Put the Restraint ............................ .1-60
Lower Anchors and Tethers for Children
(LATCH) ................................................. .1-61
Securing a Child Restraint in a Rear Seat
Position .................................................. .1-69
Securing a Child Restraint in the Center
Front Seat Position ................................... .1-71
Securing a Child Restraint in the Right
Front Seat Position ................................... .1-72
Airbag System .............................................. .1-76
Where Are the Airbags? ............................... .1-78
When Should an Airbag Inate?
.................... .1-81
What
Makes an Airbag Inate? ...................... .1-83
How Does an Airbag Restrain? ...................... .1-83
What Will You See After an Airbag Inates? .... .1-84
Passenger Sensing System ........................... .1-85
Servicing Your Airbag-Equipped Vehicle .......... .1-90
Adding Equipment to Your Airbag-Equipped
Vehicle ................................................... .1-90
Restraint System Check ................................. .1-92
Checking the Restraint Systems ..................... .1-92
Replacing Restraint System Parts
After a Crash ........................................... .1-93Section 1 Seats and Restraint Systems
1-1

Front Seats Power Seats The power seat controls are located on the outboard
side of the front seats.
Move the seat forward or rearward by sliding the
control forward or rearward.
Raise or lower the front part of the seat cushion by
moving the front of the control up or down.
Raise or lower the rear part of the seat cushion by
moving the rear of the control up or down.
Raise or lower the entire seat by moving the entire
control up or down.
The power reclining seatback control is located behind
the power seat control on the outboard side of the
seats. See Power Reclining Seatbacks on page 1-7 .
Your vehicle has a memory function which allows seat
settings to be saved and recalled. See Memory
Seat, Mirrors, and Pedals on page 1-6 .
Driver’s Seat with Power Seat Control, Power
Recline, and Power Lumbar shown
1-2

Power Lumbar
The controls used to operate the power lumbar feature
are located on the outboard side of the seats.
To increase lumbar support, press and hold the
front of the control.
To decrease lumbar support, press and hold the
rear of the control. To raise the height of the support, press and hold
the top of the control.
To lower the height of the support, press and hold
the bottom of the control.
Let go of the control when the lower seatback reaches
the desired level of support.
Your vehicle has a memory function which allows seat
settings to be saved and recalled. See Memory
Seat, Mirrors, and Pedals on page 1-6 for more
information.
Keep in mind that as your seating position changes, as
it may during long trips, so should the position of
your lumbar support. Adjust the seat as needed.
1-3

Heated Seats If the front seats have the
heated seat feature, the
buttons used to control this
feature are located on
the climate control panel.
+ (Heated Seatback): To heat only the seatback,
press the top button with the heated seatback symbol.
This symbol will appear on the climate control display to
indicate that the feature is on. Press the button to cycle
through the temperature settings of high, medium, and
low and to turn the heated seatback off. Indicator bars
next to the symbol designate the level of heat selected:
three for high, two for medium, and one for low. z (Heated Seat and Seatback): To heat the entire
seat, press the bottom button with the heated seat and
seatback symbol.
This symbol will appear on the climate control display to
indicate that the feature is on. Press the button to cycle
through the temperature settings of high, medium, and
low and to turn the heated seat off. Indicator bars next to
the symbol designate the level of heat selected: three for
high, two for medium, and one for low.
The heated seats will be canceled ten seconds after the
ignition is turned off. If you want to use the heated
seat feature after you restart the vehicle, you will need
to press the appropriate heated seat button again.
If your vehicle has heated and cooled seats, see Heated
and Cooled Seats on page 1-5 .
1-4

Heated and Cooled Seats If the front seats have the
heated and cooled seat
feature, the buttons
used to control this feature
are located on the
climate control panel.
{ (Cooled Seat): To cool the entire seat, press the
button with the cooled seat symbol.
This symbol will appear on the climate control display to
indicate that the feature is on. Press the button to cycle
through the temperature settings of high, medium, and
low and to turn the cooled seat off. Indicator bars next
to the symbol designate the level of cooling selected:
three for high, two for medium, and one for low. + (Heated Seatback): To heat only the seatback,
press the button with the heated seatback symbol.
This symbol will appear on the climate control display to
indicate that the feature is on. Press the button to cycle
through the temperature settings of high, medium, and
low and to turn the heated seatback off. Indicator bars
next to the symbol designate the level of heat selected:
three for high, two for medium, and one for low.
z (Heated Seat and Seatback): To heat the entire
seat, press the button with the heated seat and seatback
symbol.
This symbol will appear on the climate control display to
indicate that the feature is on. Press the button to cycle
through the temperature settings of high, medium, and
low and to turn the heated seat off. Indicator bars next to
the symbol designate the level of heat selected: three for
high, two for medium, and one for low.
The heated and cooled seats will be canceled after the
ignition is turned off. If you want to use the heated
and cooled seat feature after you restart your vehicle,
you will need to press the appropriate seat button again.
1-5

Memory Seat, Mirrors, and Pedals Your vehicle has the memory package.
The controls for this feature
are located on the driver’s
door, and are used to
program and recall memory
settings for the driver’s
seat, outside mirrors, and
the adjustable throttle and
brake pedal feature, if your
vehicle has it.
To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and the
throttle and brake pedals to a comfortable position.
See Outside Power Foldaway Mirrors on page 2-45
and Adjustable Throttle and Brake Pedal on
page 2-28 for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let you
know that the position has been stored. A second seating, mirror, and throttle and brake pedal
position can be programmed by repeating the above
steps and pressing button 2.
To recall the memory positions, the vehicle must be in
PARK (P). Press and release either button 1 or button 2
corresponding to the desired driving position. The
seat, outside mirrors, and adjustable throttle and brake
pedals will move to the position previously stored.
You will hear a single beep.
If you use the remote keyless entry transmitter to enter
your vehicle and the remote recall memory feature
is on, automatic seat, mirror, and adjustable pedal
movement will occur. See “MEMORY SEAT RECALL”
under DIC Vehicle Customization on page 3-61 for more
information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, power mirror buttons, or adjustable pedal
switch.
If something has blocked the driver’s seat and/or the
adjustable pedals while recalling a memory position, the
driver’s seat and/or the adjustable pedals recall may
stop working. If this happens, remove the obstruction
and press the appropriate function control for two
seconds. Then try recalling the memory position again
by pressing the appropriate memory button. If the
memory position is still not recalling, see your dealer for
service.
1-6
