When you replace parts of the braking system — for
example, when the brake linings wear down and you
need new ones put in — be sure you get new approved
replacement parts. If you do not, the brakes might not
work properly. For example, if someone puts in brake
linings that are wrong for your vehicle,
the balance between the front and rear brakes can
change — for the worse. The braking performance you
have come to expect can change in many other ways if
someone puts in the wrong replacement brake parts.
Battery Your vehicle has a maintenance free battery. When it is
time for a new battery, see your dealer/retailer for
one that has the replacement number shown on the
original battery’s label. See Engine Compartment
Overview on page 5-12 for battery location.
Warning: Battery posts, terminals, and related
accessories contain lead and lead compounds,
chemicals known to the State of California to cause
cancer and reproductive harm. Wash hands after
handling. Vehicle Storage
{ CAUTION: Batteries have acid that can burn you and gas
that can explode. You can be badly hurt if you
are not careful. See Jump Starting on
page 5-40 for tips on working around a battery
without getting hurt.
Infrequent Usage: If you drive your vehicle infrequently,
remove the black, negative ( − ) cable from the battery.
This will help keep the battery from running down.
Extended Storage: For extended storage of your vehicle,
remove the black, negative ( − ) cable from the battery
or use a battery trickle charger. This will help maintain
the charge of the battery over an extended period
of time.
5-39

Jump Starting If your vehicle’s battery (or batteries) has run down, you
may want to use another vehicle and some jumper
cables to start your vehicle. Be sure to use the following
steps to do it safely.
{ CAUTION: Batteries can hurt you. They can be dangerous
because:
They contain acid that can burn you.
They contain gas that can explode or
ignite.
They contain enough electricity to
burn you.
If you do not follow these steps exactly, some
or all of these things can hurt you. Notice: Ignoring these steps could result in costly
damage to your vehicle that would not be covered
by your warranty.
Trying to start your vehicle by pushing or pulling it
will not work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
Notice: If the other vehicle’s system is not a 12-volt
system with a negative ground, both vehicles can
be damaged. Only use vehicles with 12-volt systems
with negative grounds to jump start your vehicle.
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles are not touching
each other. If they are, it could cause a ground
connection you do not want. You would not be able
to start your vehicle, and the bad grounding
could damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake rmly on both vehicles involved
in the jump start procedure. Put the automatic
transmission in PARK (P) or a manual transmission
in NEUTRAL before setting the parking brake.
If you have a four-wheel-drive vehicle, be sure the
transfer case is in a drive gear, not in NEUTRAL.
5-40

Notice: If you leave your radio or other accessories
on during the jump starting procedure, they could
be damaged. The repairs would not be covered
by your warranty. Always turn off your radio and
other accessories when jump starting your vehicle.
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or the accessory power outlets. Turn off
the radio and all the lamps that are not needed.
This avoids sparks and helps save both batteries.
And it could save the radio!
4. Open the hood on the other vehicle and locate the
positive (+) and negative ( − ) terminal locations on
that vehicle.
Your vehicle has a remote positive (+) jump starting
terminal and a remote negative ( − ) jump starting
terminal. You should always use these remote
terminals instead of the terminals on the battery.
If the vehicle has a remote positive (+) terminal, it is
located under a red plastic cover at the positive
battery post. To uncover the remote positive (+)
terminal, open the red plastic cover. The remote negative (-) terminal is a stud located
on the right front of the engine, where the negative
battery cable attaches.
See Engine Compartment Overview on page 5-12
for more information on the location of the remote
positive (+) and remote negative (-) terminals.
5-41

{ CAUTION: An electric fan can start up even when the
engine is not running and can injure you.
Keep hands, clothing and tools away from any
underhood electric fan.
{ CAUTION: Using a match near a battery can cause battery
gas to explode. People have been hurt doing
this, and some have been blinded. Use a
ashlight if you need more light.
Be sure the battery has enough water. You do
not need to add water to the battery installed
in your new vehicle. But if a battery has ller
caps, be sure the right amount of uid is there.
CAUTION: (Continued) CAUTION: (Continued) If it is low, add water to take care of that rst.
If you do not, explosive gas could be present.
Battery uid contains acid that can burn you.
Do not get it on you. If you accidentally get it
in your eyes or on your skin, ush the place
with water and get medical help immediately.
{ CAUTION: Fans or other moving engine parts can injure
you badly. Keep your hands away from moving
parts once the engine is running.
5-42

5. Check that the jumper cables do not have loose or
missing insulation. If they do, you could get a
shock. The vehicles could be damaged too.
Before you connect the cables, here are some
basic things you should know. Positive (+) will go to
positive (+) or to a remote positive (+) terminal if
the vehicle has one. Negative ( − ) will go to a heavy,
unpainted metal engine part or to a remote
negative ( − ) terminal if the vehicle has one.
Do not connect positive (+) to negative ( − )oryou
will get a short that would damage the battery
and maybe other parts too. And do not connect the
negative ( − ) cable to the negative ( − ) terminal on
the dead battery because this can cause sparks.
6. Connect the red
positive (+) cable to the
positive (+) terminal
of the vehicle with the
dead battery. Use
a remote positive (+)
terminal if the
vehicle has one. 7. Do not let the other end touch metal. Connect it to
the positive (+) terminal of the good battery. Use a
remote positive (+) terminal if the vehicle has one.
8. Now connect the black negative ( − ) cable to the
negative ( − ) terminal of the good battery. Use a
remote negative ( − ) terminal if the vehicle has one.
Do not let the other end touch anything until the
next step. The other end of the negative ( − ) cable
does not go to the dead battery. It goes to a
heavy, unpainted metal engine part or to the remote
negative ( − ) terminal on the vehicle with the dead
battery.
9. Connect the other end of the negative ( − ) cable to
the remote negative ( − ) terminal, on the vehicle with
the dead battery.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle that had the dead battery.
If it will not start after a few tries, it probably
needs service.
5-43

Notice: If the jumper cables are connected or
removed in the wrong order, electrical shorting may
occur and damage the vehicle. The repairs would
not be covered by your warranty. Always connect
and remove the jumper cables in the correct
order, making sure that the cables do not touch
each other or other metal.
A. Heavy, Unpainted Metal Engine Part or Remote
Negative ( − ) Terminal
B. Good Battery or Remote Positive (+) and Remote
Negative ( − ) Terminals
C. Dead Battery or Remote Positive (+) Terminal To disconnect the jumper cables from both vehicles do
the following:
1. Disconnect the black negative ( − ) cable from the
vehicle that had the bad battery.
2. Disconnect the black negative ( − ) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the other
vehicle.
5. Return the remote positive (+) terminal cover, if the
vehicle has one, to its original position.
Jumper Cable Removal
5-44

All-Wheel Drive Transfer Case If your vehicle is equipped with All-Wheel Drive, be sure
to perform the lubricant checks described in this section.
There are two additional systems that need lubrication.
When to Check Lubricant Refer to the Maintenance Schedule to determine
how often to check the lubricant. See Scheduled
Maintenance on page 6-4 .
How to Check Lubricant To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the ller plug hole,
located on the transfer case, you’ll need to add
some lubricant. Add enough lubricant to raise the level
to the bottom of the ller plug hole. Use care not to
overtighten the plug.
What to Use Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See Recommended Fluids
and Lubricants on page 6-13 .
(A) Drain Plug (B) Filler Plug
5-45

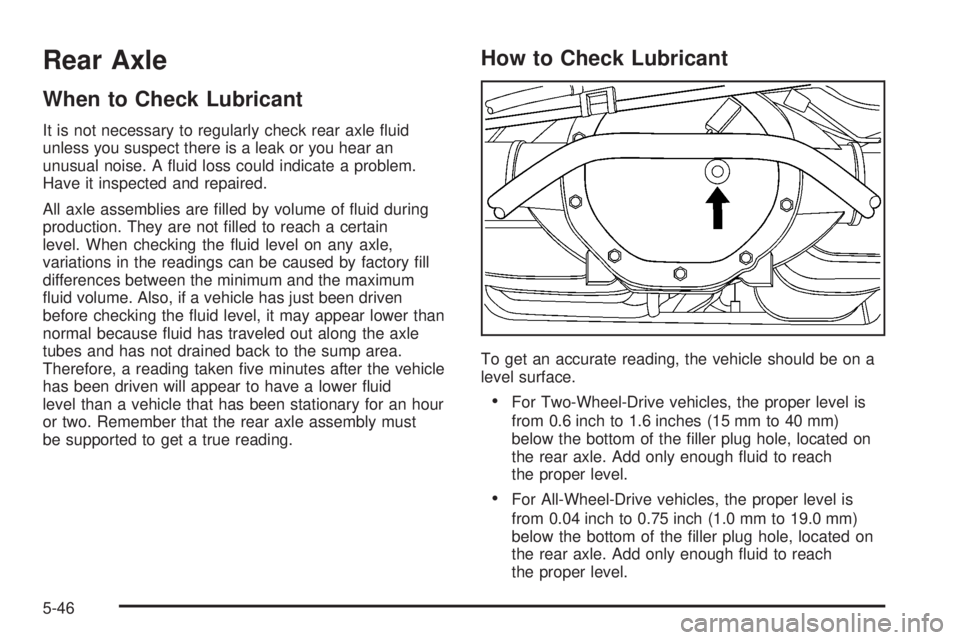

Rear Axle When to Check Lubricant It is not necessary to regularly check rear axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
All axle assemblies are lled by volume of uid during
production. They are not lled to reach a certain
level. When checking the uid level on any axle,
variations in the readings can be caused by factory ll
differences between the minimum and the maximum
uid volume. Also, if a vehicle has just been driven
before checking the uid level, it may appear lower than
normal because uid has traveled out along the axle
tubes and has not drained back to the sump area.
Therefore, a reading taken ve minutes after the vehicle
has been driven will appear to have a lower uid
level than a vehicle that has been stationary for an hour
or two. Remember that the rear axle assembly must
be supported to get a true reading. How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface.
For Two-Wheel-Drive vehicles, the proper level is
from 0.6 inch to 1.6 inches (15 mm to 40 mm)
below the bottom of the ller plug hole, located on
the rear axle. Add only enough uid to reach
the proper level.
For All-Wheel-Drive vehicles, the proper level is
from 0.04 inch to 0.75 inch (1.0 mm to 19.0 mm)
below the bottom of the ller plug hole, located on
the rear axle. Add only enough uid to reach
the proper level.
5-46

What to Use Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See Recommended Fluids
and Lubricants on page 6-13 .
Front Axle When to Check and Change Lubricant It is not necessary to regularly check front axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
How to Check Lubricant To get an accurate reading, the vehicle should be
on a level surface. A: Fill Plug
B: Drain Plug
When the differential is cold, add enough lubricant to
raise the level from 0 (0 mm) to 1/8 inch (3.2 mm)
below the ller plug hole.
When the differential is at operating temperature
(warm), add enough lubricant to raise the level to the
bottom of the ller plug hole.
What to Use Refer to the Maintenance Schedule to determine what
kind of lubricant to use. See Recommended Fluids
and Lubricants on page 6-13 .1500 Series
5-47

Headlamp Aiming The vehicle has a visual optical headlamp aiming
system. The aim of the headlamps have been preset at
the factory and should need no further adjustment.
However, if the vehicle is damaged in a crash, the aim
of the headlamps may be affected and adjustment
may be necessary.
If oncoming vehicles ash their high beams at you,
this may mean the vertical aim of your headlamps
needs to be adjusted.
It is recommended that the vehicle is taken to your
dealer/retailer for service if the headlamps need
to be adjusted. It is possible however, to re-aim the
headlamps as described. The vehicle should:
Be placed so the headlamps are 25 ft. (7.6 m) from
a light colored wall or other at surface.
Have all four tires on a level surface which is level
all the way to the wall or other at surface.
Be placed so it is perpendicular to the wall or other
at surface.
Not have any snow, ice, or mud on it.
Be fully assembled and all other work stopped while
headlamp aiming is being performed.
Be normally loaded with a full tank of fuel and one
person or 160 lbs (75 kg) sitting on the driver seat.
Have the tires properly inated.
Have the spare tire is in its proper location in the
vehicle.
5-48
