navigation system CADILLAC ESCALADE ESV 2008 Owners Manual

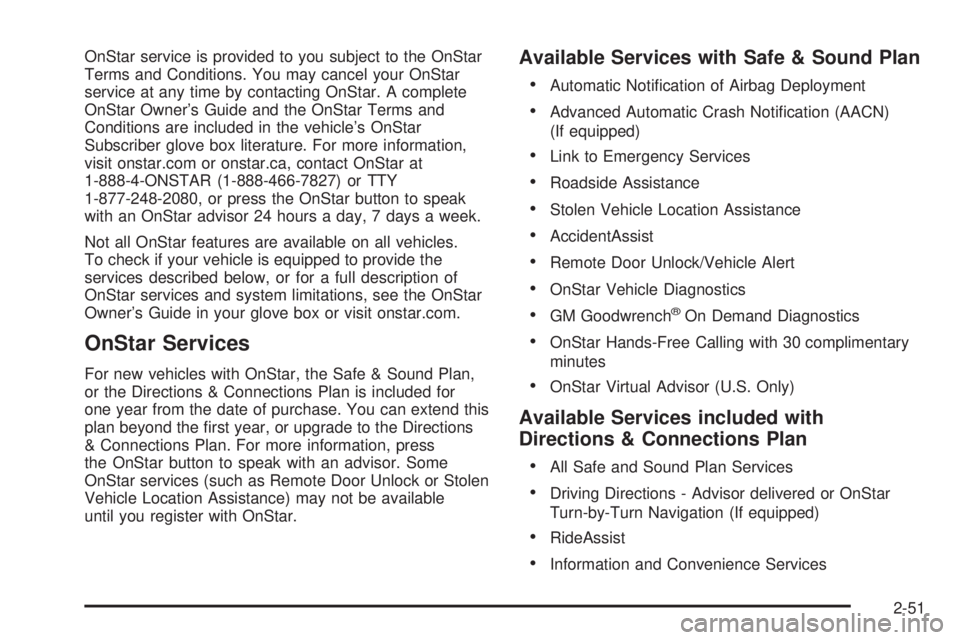

OnStar service is provided to you subject to the OnStar
Terms and Conditions. You may cancel your OnStar
service at any time by contacting OnStar. A complete
OnStar Owner’s Guide and the OnStar Terms and
Conditions are included in the vehicle’s OnStar
Subscriber glove box literature. For more information,
visit onstar.com or onstar.ca, contact OnStar at
1-888-4-ONSTAR (1-888-466-7827) or TTY
1-877-248-2080, or press the OnStar button to speak
with an OnStar advisor 24 hours a day, 7 days a week.
Not all OnStar features are available on all vehicles.
To check if your vehicle is equipped to provide the
services described below, or for a full description of
OnStar services and system limitations, see the OnStar
Owner’s Guide in your glove box or visit onstar.com.
OnStar Services For new vehicles with OnStar, the Safe & Sound Plan,
or the Directions & Connections Plan is included for
one year from the date of purchase. You can extend this
plan beyond the rst year, or upgrade to the Directions
& Connections Plan. For more information, press
the OnStar button to speak with an advisor. Some
OnStar services (such as Remote Door Unlock or Stolen
Vehicle Location Assistance) may not be available
until you register with OnStar. Available Services with Safe & Sound Plan
Automatic Notication of Airbag Deployment
Advanced Automatic Crash Notication (AACN)
(If equipped)
Link to Emergency Services
Roadside Assistance
Stolen Vehicle Location Assistance
AccidentAssist
Remote Door Unlock/Vehicle Alert
OnStar Vehicle Diagnostics
GM Goodwrench ®
On Demand Diagnostics
OnStar Hands-Free Calling with 30 complimentary
minutes
OnStar Virtual Advisor (U.S. Only)
Available Services included with
Directions & Connections Plan
All Safe and Sound Plan Services
Driving Directions - Advisor delivered or OnStar
Turn-by-Turn Navigation (If equipped)
RideAssist
Information and Convenience Services
2-51

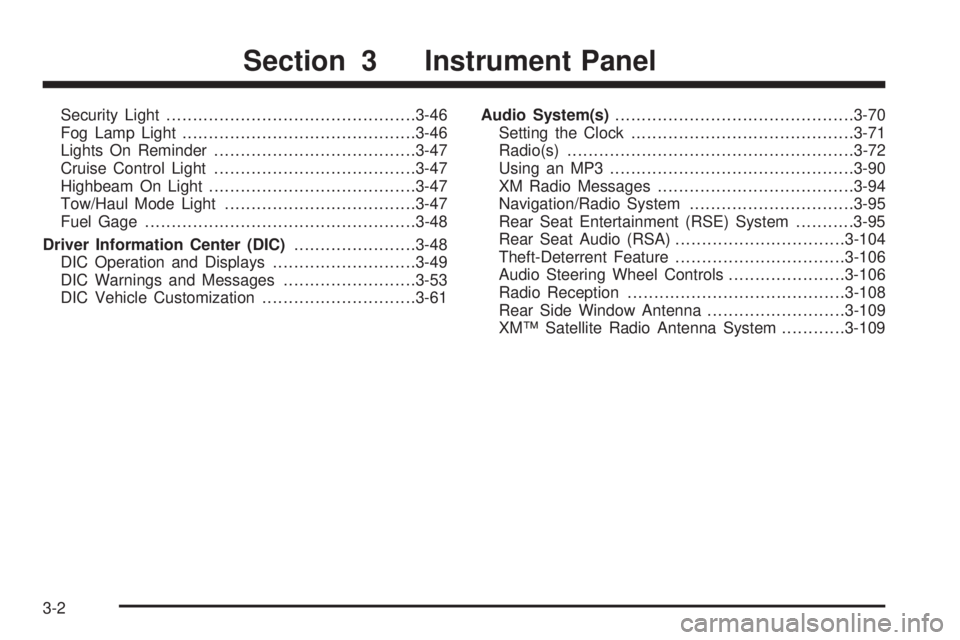

Security Light .............................................. .3-46
Fog Lamp Light ........................................... .3-46
Lights On Reminder ..................................... .3-47
Cruise Control Light ..................................... .3-47
Highbeam On Light ...................................... .3-47
Tow/Haul Mode Light ................................... .3-47
Fuel Gage .................................................. .3-48
Driver Information Center (DIC) ...................... .3-48
DIC Operation and Displays .......................... .3-49
DIC Warnings and Messages ........................ .3-53
DIC Vehicle Customization ............................ .3-61 Audio System(s) ............................................ .3-70
Setting the Clock ......................................... .3-71
Radio(s) ..................................................... .3-72
Using an MP3 ............................................. .3-90
XM Radio Messages .................................... .3-94
Navigation/Radio System .............................. .3-95
Rear Seat Entertainment (RSE) System .......... .3-95
Rear Seat Audio (RSA) ............................... .3-104
Theft-Deterrent Feature ............................... .3-106
Audio Steering Wheel Controls ..................... .3-106
Radio Reception ........................................ .3-108
Rear Side Window Antenna ......................... .3-109
XM™ Satellite Radio Antenna System ........... .3-109Section 3 Instrument Panel
3-2

Navigation/Radio System Your vehicle may have a navigation radio system.
The navigation system has built-in features intended to
minimize driver distraction. Technology alone, no
matter how advanced, can never replace your own
judgment. See the Navigation System manual for some
tips to help you reduce distractions while driving.
Rear Seat Entertainment (RSE)
System Your vehicle may have a DVD Rear Seat Entertainment
(RSE) system. The RSE system works with the
vehicle’s audio system. The DVD player is part of the
front radio. The RSE system includes a radio with a DVD
player, a video display screen, and if your vehicle has
a third row seat, it could have a second video display
screen, audio/video jacks, two wireless headphones,
and a remote control. See Radio(s) on page 3-72
for more information on the vehicle’s audio/DVD system. Driver Control of the Audio System The driver has basic control of the whole audio system.
Press and hold the
O (power) knob for more than
two seconds to turn off the radio, RSE (rear seat
entertainment), and the RSA (rear seat audio). See
Radio(s) on page 3-72 for more information.
If your vehicle has the navigation system, see the
Navigation System manual for more information.
Before You Drive The RSE is designed for rear seat passengers only.
The driver cannot safely view the video screen
while driving and should not try to do so.
In severe or extreme weather conditions the RSE
system might not work until the temperature is within
the operating range. The operating range for the
RSE system is above − 4°F ( − 20°C) or below
140°F (60°C). If the temperature of your vehicle is
outside of this range, heat or cool the vehicle until the
temperature is within the operating range of the
RSE system.
3-95

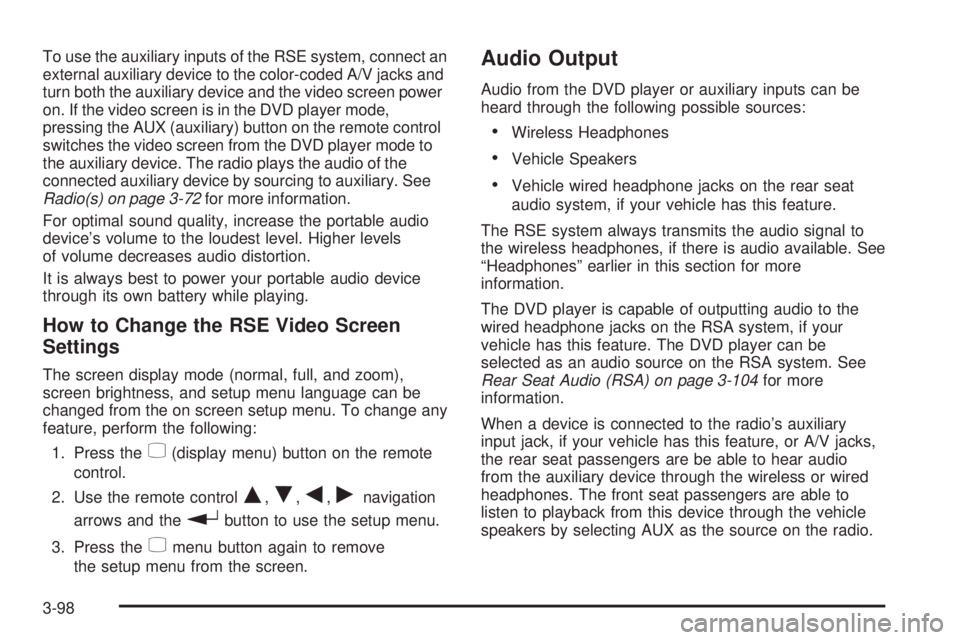

To use the auxiliary inputs of the RSE system, connect an
external auxiliary device to the color-coded A/V jacks and
turn both the auxiliary device and the video screen power
on. If the video screen is in the DVD player mode,
pressing the AUX (auxiliary) button on the remote control
switches the video screen from the DVD player mode to
the auxiliary device. The radio plays the audio of the
connected auxiliary device by sourcing to auxiliary. See
Radio(s) on page 3-72 for more information.
For optimal sound quality, increase the portable audio
device’s volume to the loudest level. Higher levels
of volume decreases audio distortion.
It is always best to power your portable audio device
through its own battery while playing.
How to Change the RSE Video Screen
Settings The screen display mode (normal, full, and zoom),
screen brightness, and setup menu language can be
changed from the on screen setup menu. To change any
feature, perform the following:
1. Press the
z (display menu) button on the remote
control.
2. Use the remote control
Q ,
R ,
q ,
r navigation
arrows and the
r button to use the setup menu.
3. Press the
z menu button again to remove
the setup menu from the screen. Audio Output Audio from the DVD player or auxiliary inputs can be
heard through the following possible sources:
Wireless Headphones
Vehicle Speakers
Vehicle wired headphone jacks on the rear seat
audio system, if your vehicle has this feature.
The RSE system always transmits the audio signal to
the wireless headphones, if there is audio available. See
“Headphones” earlier in this section for more
information.
The DVD player is capable of outputting audio to the
wired headphone jacks on the RSA system, if your
vehicle has this feature. The DVD player can be
selected as an audio source on the RSA system. See
Rear Seat Audio (RSA) on page 3-104 for more
information.
When a device is connected to the radio’s auxiliary
input jack, if your vehicle has this feature, or A/V jacks,
the rear seat passengers are be able to hear audio
from the auxiliary device through the wireless or wired
headphones. The front seat passengers are able to
listen to playback from this device through the vehicle
speakers by selecting AUX as the source on the radio.
3-98

Some audio controls can be adjusted at the steering
wheel. They include the following:
xw (Next/Previous): Press the down or up arrow to
go to the next or to the previous radio station stored
as a favorite.
When a CD/DVD is playing, press the down or up arrow
to go to the next or to the previous track or chapter.
g (Mute/Voice Recognition): Press and release this
button to silence the vehicle speakers only. The
audio of the wireless and wired headphones, if your
vehicle has these features, does not mute. Press and
release this button again, to turn the sound on.
If your vehicle has the navigation system, press and
hold this button for longer than one second to initiate
voice recognition. See “Voice Recognition” in the
Navigation System manual for more information. Press and hold this button for longer than one second
to interact with the OnStar ®
system. If your vehicle
also has the navigation system, press and hold
this button for longer than one second to initiate voice
recognition and say “OnStar” to enter OnStar ®
mode. See the OnStar ®
System on page 2-50 in this
manual for more information.
SRCE (Source): Press this button to switch between
the radio (AM, FM), XM™ (if equipped), CD, and if your
vehicle has these features, DVD, front auxiliary, and
rear auxiliary.
+
e −
e (Volume): Press the plus or minus volume
button to increase or to decrease the radio volume.
¨ (Seek): Press the seek arrow to go to the next radio
station while in AM, FM, or XM™ (if equipped). Press
the seek arrow to go to the next track or chapter
while sourced to the CD or DVD slot. Press the seek
arrow to go to the next disc while sourced to a CD
or DVD changer, if multiple discs are loaded.
3-107

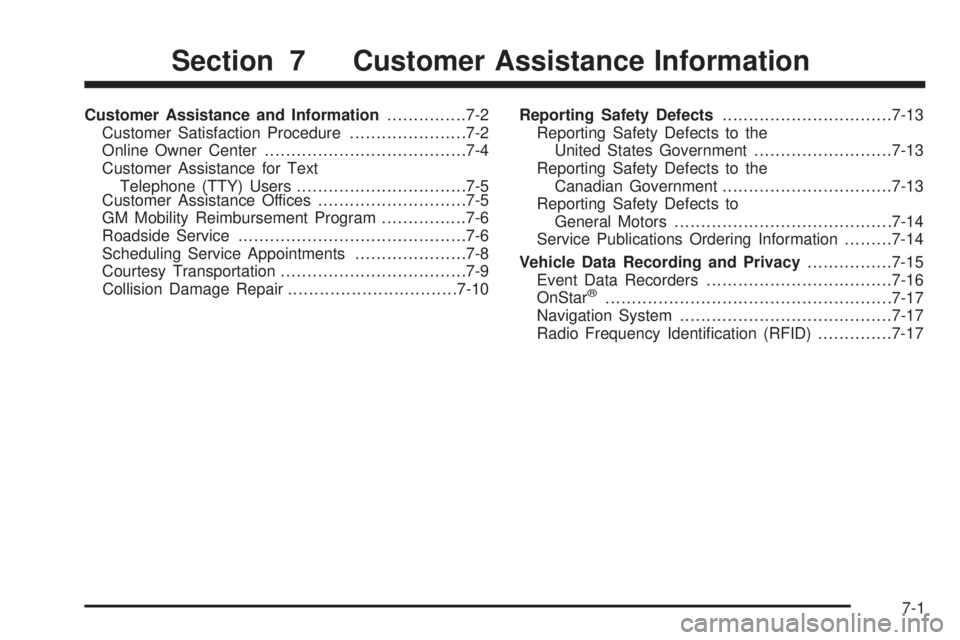

Customer Assistance and Information .............. .7-2
Customer Satisfaction Procedure ..................... .7-2
Online Owner Center ..................................... .7-4
Customer Assistance for Text
Telephone (TTY) Users ............................... .7-5
Customer Assistance Offices ........................... .7-5
GM Mobility Reimbursement Program ............... .7-6
Roadside Service .......................................... .7-6
Scheduling Service Appointments .................... .7-8
Courtesy Transportation .................................. .7-9
Collision Damage Repair ............................... .7-10 Reporting Safety Defects ............................... .7-13
Reporting Safety Defects to the
United States Government ......................... .7-13
Reporting Safety Defects to the
Canadian Government ............................... .7-13
Reporting Safety Defects to
General Motors ........................................ .7-14
Service Publications Ordering Information ........ .7-14
Vehicle Data Recording and Privacy ............... .7-15
Event Data Recorders .................................. .7-16
OnStar ®
..................................................... .7-17
Navigation System ....................................... .7-17
Radio Frequency Identication (RFID) ............. .7-17Section 7 Customer Assistance Information
7-1

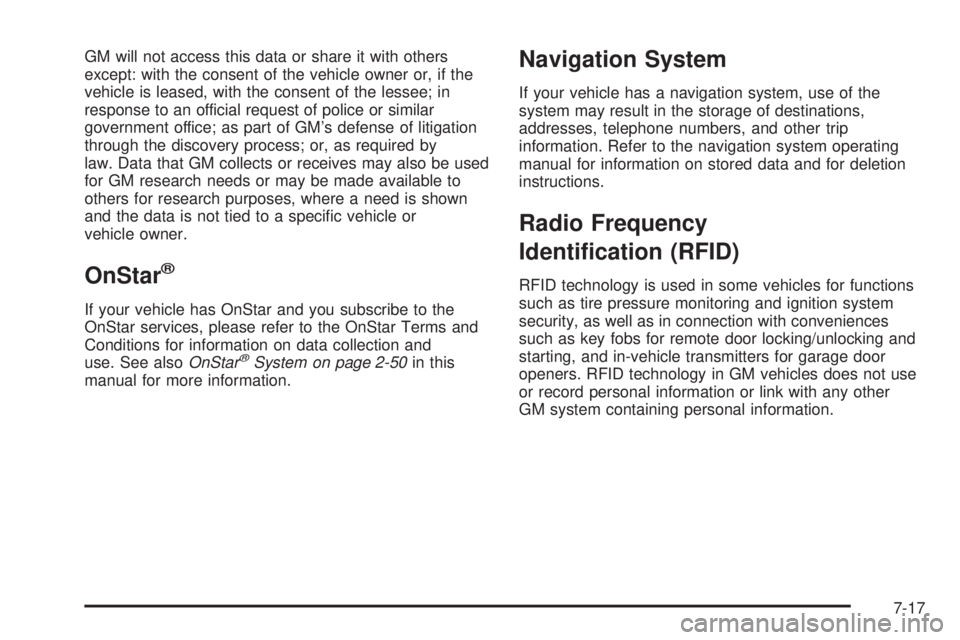

GM will not access this data or share it with others
except: with the consent of the vehicle owner or, if the
vehicle is leased, with the consent of the lessee; in
response to an official request of police or similar
government office; as part of GM’s defense of litigation
through the discovery process; or, as required by
law. Data that GM collects or receives may also be used
for GM research needs or may be made available to
others for research purposes, where a need is shown
and the data is not tied to a specic vehicle or
vehicle owner.
OnStar ®
If your vehicle has OnStar and you subscribe to the
OnStar services, please refer to the OnStar Terms and
Conditions for information on data collection and
use. See also OnStar ®
System on page 2-50 in this
manual for more information. Navigation System If your vehicle has a navigation system, use of the
system may result in the storage of destinations,
addresses, telephone numbers, and other trip
information. Refer to the navigation system operating
manual for information on stored data and for deletion
instructions.
Radio Frequency
Identication (RFID) RFID technology is used in some vehicles for functions
such as tire pressure monitoring and ignition system
security, as well as in connection with conveniences
such as key fobs for remote door locking/unlocking and
starting, and in-vehicle transmitters for garage door
openers. RFID technology in GM vehicles does not use
or record personal information or link with any other
GM system containing personal information.
7-17

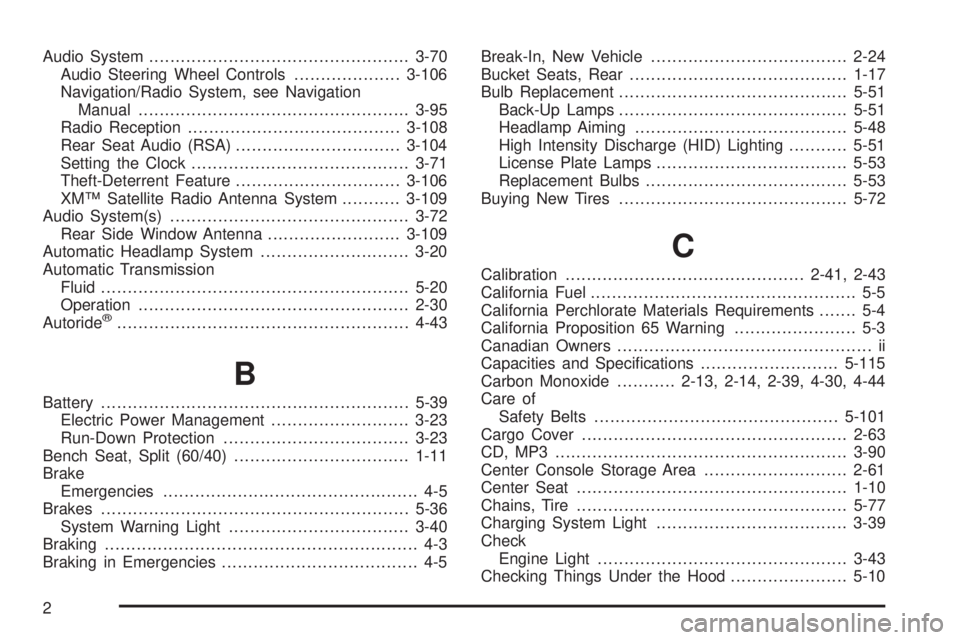

Audio System ................................................. 3-70
Audio Steering Wheel Controls .................... 3-106
Navigation/Radio System, see Navigation
Manual ................................................... 3-95
Radio Reception ........................................ 3-108
Rear Seat Audio (RSA) ............................... 3-104
Setting the Clock ......................................... 3-71
Theft-Deterrent Feature ............................... 3-106
XM™ Satellite Radio Antenna System ........... 3-109
Audio System(s) ............................................. 3-72
Rear Side Window Antenna ......................... 3-109
Automatic Headlamp System ............................ 3-20
Automatic Transmission
Fluid .......................................................... 5-20
Operation ................................................... 2-30
Autoride ®
....................................................... 4-43
BBattery .......................................................... 5-39
Electric Power Management .......................... 3-23
Run-Down Protection ................................... 3-23
Bench Seat, Split (60/40) ................................. 1-11
Brake
Emergencies ................................................ 4-5
Brakes .......................................................... 5-36
System Warning Light .................................. 3-40
Braking ........................................................... 4-3
Braking in Emergencies ..................................... 4-5 Break-In, New Vehicle ..................................... 2-24
Bucket Seats, Rear ......................................... 1-17
Bulb Replacement ........................................... 5-51
Back-Up Lamps ........................................... 5-51
Headlamp Aiming ........................................ 5-48
High Intensity Discharge (HID) Lighting ........... 5-51
License Plate Lamps .................................... 5-53
Replacement Bulbs ...................................... 5-53
Buying New Tires ........................................... 5-72
C Calibration ............................................. 2-41, 2-43
California Fuel .................................................. 5-5
California Perchlorate Materials Requirements ....... 5-4
California Proposition 65 Warning ....................... 5-3
Canadian Owners ................................................ ii
Capacities and Specications .......................... 5-115
Carbon Monoxide ........... 2-13, 2-14, 2-39, 4-30, 4-44
Care of
Safety Belts .............................................. 5-101
Cargo Cover .................................................. 2-63
CD, MP3 ....................................................... 3-90
Center Console Storage Area ........................... 2-61
Center Seat ................................................... 1-10
Chains, Tire ................................................... 5-77
Charging System Light .................................... 3-39
Check
Engine Light ............................................... 3-43
Checking Things Under the Hood ...................... 5-10
2

Loss of Control ............................................... 4-11
Luggage Carrier .............................................. 2-61
Lumbar
Power Controls ............................................. 1-3
MMaintenance Schedule
Additional Required Services ........................... 6-6
At Each Fuel Fill ........................................... 6-9
At Least Once a Month ................................ 6-10
At Least Once a Year .................................. 6-10
Introduction .................................................. 6-2
Maintenance Footnotes .................................. 6-7
Maintenance Record .................................... 6-17
Maintenance Replacement Parts .................... 6-15
Maintenance Requirements ............................. 6-2
Owner Checks and Services ........................... 6-9
Recommended Fluids and Lubricants ............. 6-13
Scheduled Maintenance ................................. 6-4
Using .......................................................... 6-2
Your Vehicle and the Environment ................... 6-2
Malfunction Indicator Light ................................ 3-43
Manual, Using .................................................... iii
Memory Seat, Mirrors, and Pedals ...................... 1-6
Message
DIC Warnings and Messages ........................ 3-53 Mirrors
Automatic Dimming Mirror with Intellibeam™,
OnStar ®
, Compass, and Temperature
Display ................................................... 2-41
Automatic Dimming Rearview with OnStar ®
,
Compass and Temperature Display ............. 2-43
Outside Power Foldaway Mirrors .................... 2-45
MP3 ............................................................. 3-90
MyGMLink.com ................................................ 7-4
N Navigation System, Privacy .............................. 7-17
Navigation/Radio System,
see Navigation Manual ................................. 3-95
New Vehicle Break-In ...................................... 2-24
O Odometer ...................................................... 3-35
Odometer, Trip ............................................... 3-35
Off-Road Driving ............................................. 4-12
Off-Road Recovery .......................................... 4-11
Oil
Engine ....................................................... 5-14
Pressure Light ............................................. 3-46
Oil, Engine Oil Life System .............................. 5-16
Older Children, Restraints ................................ 1-50
Online Owner Center ........................................ 7-4
8

OnStar, Privacy .............................................. 7-17
OnStar ®
System, see OnStar ®
Manual ............... 2-50
Operation, Universal Home Remote System ........ 2-54
Other Warning Devices ...................................... 3-6
Outlet Adjustment ............................................ 3-31
Outlets
Accessory Power ......................................... 3-24
Outside
Power Foldaway Mirrors ............................... 2-45
Overheated Engine Protection
Operating Mode .......................................... 5-28
Owner Checks and Services .............................. 6-9
Owners, Canadian ............................................... ii
PPaint, Damage .............................................. 5-105
Park Aid ........................................................ 2-48
Park Brake .................................................... 2-35
Park (P)
Shifting Into ................................................ 2-36
Shifting Out of ............................................ 2-37
Parking
Assist ........................................................ 2-48
Over Things That Burn ................................. 2-38
Passenger Airbag Status Indicator ..................... 3-37 Passenger Sensing System .............................. 1-85
Passing ......................................................... 4-11
PASS-Key ®
III+ .............................................. 2-22
PASS-Key ®
III+ Operation ................................ 2-23
Perchlorate Materials Requirements, California ...... 5-4
Power
Door Locks ................................................. 2-10
Electrical System ....................................... 5-108
Liftgate ...................................................... 2-14
Lumbar Controls ........................................... 1-3
Reclining Seatbacks ...................................... 1-7
Retained Accessory (RAP) ............................ 2-26
Running Boards .......................................... 2-17
Seat ............................................................ 1-2
Steering Fluid ............................................. 5-34
Windows .................................................... 2-19
Privacy .......................................................... 7-15
Event Data Recorders .................................. 7-16
Navigation System ....................................... 7-17
OnStar ....................................................... 7-17
Radio Frequency Identication ....................... 7-17
Programmable Automatic Door Locks ................. 2-11
9
