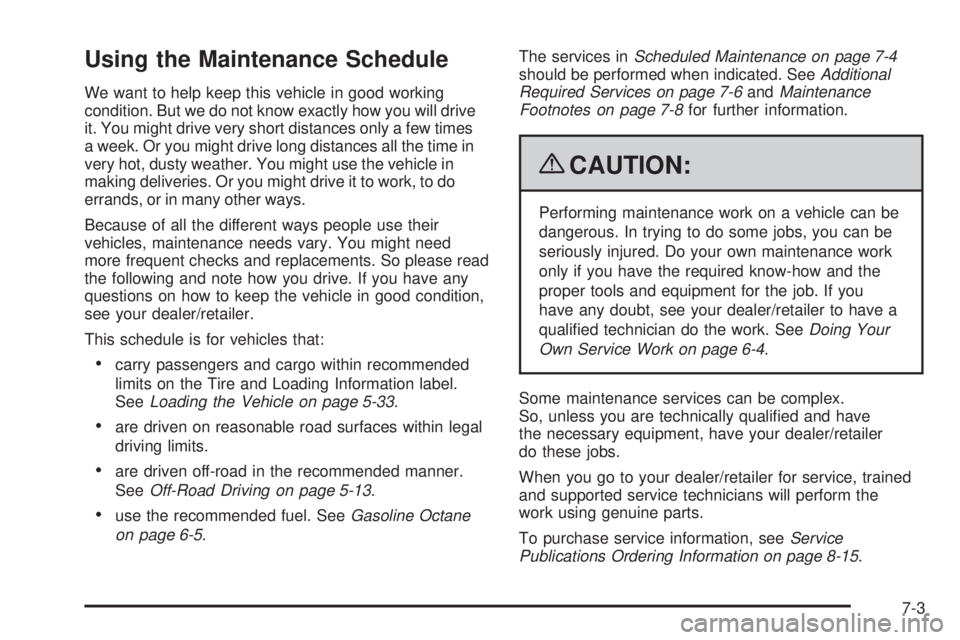

Using the Maintenance Schedule We want to help keep this vehicle in good working
condition. But we do not know exactly how you will drive
it. You might drive very short distances only a few times
a week. Or you might drive long distances all the time in
very hot, dusty weather. You might use the vehicle in
making deliveries. Or you might drive it to work, to do
errands, or in many other ways.
Because of all the different ways people use their
vehicles, maintenance needs vary. You might need
more frequent checks and replacements. So please read
the following and note how you drive. If you have any
questions on how to keep the vehicle in good condition,
see your dealer/retailer.
This schedule is for vehicles that:
carry passengers and cargo within recommended
limits on the Tire and Loading Information label.
See Loading the Vehicle on page 5-33 .
are driven on reasonable road surfaces within legal
driving limits.
are driven off-road in the recommended manner.
See Off-Road Driving on page 5-13 .
use the recommended fuel. See Gasoline Octane
on page 6-5 . The services in Scheduled Maintenance on page 7-4
should be performed when indicated. See Additional
Required Services on page 7-6 and Maintenance
Footnotes on page 7-8 for further information.
{ CAUTION: Performing maintenance work on a vehicle can be
dangerous. In trying to do some jobs, you can be
seriously injured. Do your own maintenance work
only if you have the required know-how and the
proper tools and equipment for the job. If you
have any doubt, see your dealer/retailer to have a
qualied technician do the work. See Doing Your
Own Service Work on page 6-4 .
Some maintenance services can be complex.
So, unless you are technically qualied and have
the necessary equipment, have your dealer/retailer
do these jobs.
When you go to your dealer/retailer for service, trained
and supported service technicians will perform the
work using genuine parts.
To purchase service information, see Service
Publications Ordering Information on page 8-15 .
7-3

Owner Checks and Services on page 7-10 tells what
should be checked, when to check it, and what can easily
be done to help keep the vehicle in good condition.
The proper replacement parts, uids, and lubricants to
use are listed in Recommended Fluids and Lubricants
on page 7-13 and Maintenance Replacement Parts on
page 7-15 . When the vehicle is serviced, make sure
these are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of genuine
parts from your dealer/retailer.
Scheduled Maintenance To maintain the ride, handling, and performance of this
vehicle, it is important that the rst tire rotation service
be performed when the vehicle has 5,000 to 8,000 miles
(8 000 to 13 000 km). Check tires for ination pressures
and wear. See Tires on page 6-56 . Rotate tires. See Tire
Inspection and Rotation on page 6-69 and “Tire Wear
Inspection” in At Least Once a Month on page 7-10 . When the CHANGE ENGINE OIL SOON message
displays, service is required for the vehicle. Have the
vehicle serviced as soon as possible within the next
600 miles (1 000 km). It is possible that, if driving under
the best conditions, the engine oil life system may not
indicate that vehicle service is necessary for over a year.
However, the engine oil and lter must be changed at
least once a year and at this time the system must be
reset. Your dealer/retailer has trained service technicians
who will perform this work using genuine parts and reset
the system.
If the engine oil life system is ever reset accidentally,
service your vehicle within 3,000 miles (5 000 km) since
the last service. Remember to reset the oil life system
whenever the oil is changed. See Engine Oil Life System
on page 6-18 for information on the Engine Oil Life
System and resetting the system.
7-4

When the CHANGE ENGINE OIL SOON message
appears, the following services, checks, and inspections
are required:
❑ Change engine oil and lter. See Engine Oil on
page 6-15 . Reset oil life system. See Engine
Oil Life System on page 6-18 . An Emission
Control Service.
❑ Lubricate chassis components. See footnote #.
❑ Visually check for any leaks or damage.
See footnote (j).
❑ Inspect engine air cleaner lter or change indicator
(if equipped). If necessary, replace lter. See Engine
Air Cleaner/Filter on page 6-19 . See footnote (k).
❑ Rotate tires and check ination pressures and wear.
See Tire Inspection and Rotation on page 6-69 and
“Tire Wear Inspection” in At Least Once a Month on
page 7-10 . ❑ Inspect brake system. See footnote (a).
❑ Check engine coolant and windshield washer uid
levels and add uid as needed.
❑ Perform any needed additional services.
See “Additional Required Services” in this section.
❑ Inspect suspension and steering components.
See footnote (b).
❑ Inspect engine cooling system. See footnote (c).
❑ Inspect wiper blades. See footnote (d).
❑ Inspect restraint system components.
See footnote (e).
❑ Lubricate body components. See footnote (f).
❑ Check transmission uid level and add uid as
needed.
7-5

Additional Required Services The following services should be performed at the rst maintenance service after the indicated miles (kilometers)
shown for each item.
Additional Required ServicesService and Miles (Kilometers) 25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Inspect fuel system for damage or leaks. • •••••
Inspect exhaust system for loose or
damaged components. • •••••
Vehicles without a lter restriction
indicator: Replace engine air cleaner
lter. See Engine Air Cleaner/Filter
on page 6-19 . •••
Change automatic transmission uid and
lter (severe service). See footnote (h). •••
Change automatic transmission uid
and lter (normal service). •
7-6

Additional Required Services (cont’d)Service and Miles (Kilometers) 25,000
(40 000) 50,000
(80 000) 75,000
(120 000) 100,000
(160 000) 125,000
(200 000) 150,000
(240 000)
Change transfer case uid (severe
service). See footnotes (m) and (n). •••
Change transfer case uid (normal
service). See footnote (m). •
Inspect evaporative control system.
An Emission Control Service.
See footnotes † and (g). •••
Replace spark plugs and inspect spark
plug wires. An Emission Control
Service. •
Engine cooling system service (or every
ve years, whichever occurs rst).
An Emission Control Service.
See footnote (i). •
Inspect engine accessory drive belt.
An Emission Control Service.
See footnote (l). •
7-7

Maintenance Footnotes † The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to the
completion of the vehicle’s useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the maintenance
be recorded.
# Lubricate the front suspension, steering linkage, and
parking brake cable guides. Control arm ball joints
are maintenance-free.
(a) Visually inspect brake lines and hoses for proper
hook-up, binding, leaks, cracks, chafing, etc. Inspect
disc brake pads for wear and rotors for surface
condition. Inspect other brake parts, including
calipers, parking brake, etc.
(b) Visually inspect front and rear suspension and
steering system for damaged, loose, or missing parts,
signs of wear or lack of lubrication. Inspect power
steering lines and hoses for proper hook-up, binding,
leaks, cracks, chafing, etc. Visually check constant
velocity joints, rubber boots, and axle seals for leaks. (c) Visually inspect hoses and have them replaced if
they are cracked, swollen, or deteriorated. Inspect all
pipes, fittings, and clamps; replace with genuine parts as
needed. To help ensure proper operation, a pressure test
of the cooling system and pressure cap and cleaning the
outside of the radiator and air conditioning condenser is
recommended at least once a year.
(d) Inspect wiper blades for wear, cracking, or
contamination. Clean the windshield and wiper blades,
if contaminated. Replace wiper blades that are worn
or damaged. See Windshield Wiper Blade Replacement
on page 6-54 and Windshield, Backglass, and Wiper
Blades on page 6-102 for more information.
(e) Make sure the safety belt reminder light and safety
belt assemblies are working properly. Look for any other
loose or damaged safety belt system parts. If you see
anything that might keep a safety belt system from doing
its job, have it repaired. Have any torn or frayed safety
belts replaced. Also see Checking the Restraint Systems
on page 1-95 .
7-8

(f) Lubricate all key lock cylinders, hood latch assembly,
secondary latch, pivots, spring anchor, release pawl, rear
compartment hinges, outer tailgate handle pivot points,
latch bolt, fuel door hinge, and folding seat hardware.
More frequent lubrication may be required when exposed
to a corrosive environment. Applying silicone grease on
weatherstrips with a clean cloth will make them last
longer, seal better, and not stick or squeak.
(g) Inspect system. Check all fuel and vapor lines
and hoses for proper hook-up, routing, and condition.
Check that the purge valve works properly, if equipped.
Replace as needed.
(h) Change automatic transmission fluid and filter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i) Drain, flush, and refill cooling system. This service
can be complex; you should have your dealer/retailer
perform this service. See Engine Coolant on page 6-25
for what to use. Inspect hoses. Clean radiator,
condenser, pressure cap, and filler neck. Pressure
test the cooling system and pressure cap. (j) A fluid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the fluid level checked. Add fluid if needed.
(k) If driving regularly under dusty conditions, inspect
the filter at each engine oil change.
(l) Visually inspect belt for fraying, excessive cracks, or
obvious damage. Replace belt if necessary.
(m) Check vent hose at transfer case for kinks and
proper installation. Check to be sure vent hose is
unobstructed, clear, and free of debris. During any
maintenance, if a power washer is used to clean mud
and dirt from the underbody, care should be taken to
not directly spray the transfer case output seals.
High pressure water can overcome the seals and
contaminate the transfer case fluid. Contaminated fluid
will decrease the life of the transfer case and should
be replaced.
(n) Severe Service: Change transfer case fluid if the
vehicle is mainly used for trailer towing or driven in city
traffic, wet environment, or high ambient temperatures.
7-9

Owner Checks and Services These owner checks and services should be performed
at the intervals specied to help ensure vehicle
safety, dependability, and emission control performance.
Your dealer/retailer can assist with these checks and
services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to the
vehicle, make sure they are the proper ones, as shown
in Recommended Fluids and Lubricants on page 7-13 .
At Each Fuel Fill It is important to perform these underhood checks at
each fuel fill.
Engine Oil Level Check Notice: It is important to check the engine oil
regularly and keep it at the proper level. Failure to
keep the engine oil at the proper level can cause
damage to the engine not covered by the vehicle
warranty.
Check the engine oil level and add the proper oil if
necessary. See Engine Oil on page 6-15 . Engine Coolant Level Check Check the engine coolant level and add DEX-COOL ®
coolant mixture if necessary. See Engine Coolant
on page 6-25 .
Windshield Washer Fluid Level Check Check the windshield washer uid level in the
windshield washer uid reservoir and add the proper
uid if necessary.
At Least Once a Month
Tire Ination Check Inspect the vehicle’s tires and make sure they are
inated to the correct pressures. Do not forget to check
the spare tire, if the vehicle has one. See Inflation - Tire
Pressure on page 6-62 . If the vehicle has a spare tire,
check to make sure it is stored securely. See Changing
a Flat Tire on page 6-78 .
Tire Wear Inspection Tire rotation may be required for high mileage highway
drivers prior to the Engine Oil Life System service
notication. Check the tires for wear and, if necessary,
rotate the tires. See Tire Inspection and Rotation on
page 6-69 .
7-10

At Least Once a Year Starter Switch Check
{ CAUTION: When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough
room around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. See Parking Brake on page 2-34 .
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The vehicle
should start only in P (Park) or N (Neutral). If the
vehicle starts in any other position, contact your
dealer/retailer for service. Automatic Transmission Shift Lock
Control System Check
{ CAUTION: When you are doing this inspection, the vehicle
could move suddenly. If the vehicle moves, you or
others could be injured.
1. Before starting this check, be sure there is enough
room around the vehicle. It should be parked on a
level surface.
2. Firmly apply the parking brake. See Parking Brake
on page 2-34 .
Be ready to apply the regular brake immediately if
the vehicle begins to move.
3. With the engine off, turn the ignition to ON/RUN,
but do not start the engine. Without applying the
regular brake, try to move the shift lever out
of P (Park) with normal effort. If the shift lever
moves out of P (Park), contact your dealer/retailer
for service.
7-11

Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn
the ignition to LOCK/OFF in each shift lever position.
The ignition should turn to LOCK/OFF only
when the shift lever is in P (Park).
The ignition key should come out only in
LOCK/OFF.
Contact your dealer/retailer if service is required.
Parking Brake and Automatic
Transmission P (Park) Mechanism
Check
{ CAUTION: When you are doing this check, the vehicle could
begin to move. You or others could be injured and
property could be damaged. Make sure there is
room in front of the vehicle in case it begins to roll.
Be ready to apply the regular brake at once
should the vehicle begin to move. Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake,
set the parking brake.
To check the parking brake’s holding ability: With
the engine running and transmission in N (Neutral),
slowly remove foot pressure from the regular brake
pedal. Do this until the vehicle is held by the parking
brake only.
To check the P (Park) mechanism’s holding
ability: With the engine running, shift to P (Park).
Then release the parking brake followed by the
regular brake.
Contact your dealer/retailer if service is required.
Hood and Liftgate Support Gas Strut
Service Visually inspect gas strut for signs of wear, corrosion,
cracks, loss of lubricant, or other damage. Check
the hold open ability of gas strut. If necessary,
replace with genuine parts from your dealer/retailer.
Underbody Flushing Service At least every spring, use plain water to ush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-12
