5-30 Instruments and Controls Units
Press the vehicle information button
until UNITS displays. This display
allows you to select between metric
or English units of measurement.
Once in this display, press the
set/reset button to select between
ENGLISH or METRIC units. All of
the vehicle information will then
be displayed in the unit of
measurement selected.
Tire Pressure
On vehicles with the Tire Pressure
Monitor System (TPMS), the
pressure for each tire can be
viewed in the DIC. The tire pressure
will be shown in either pounds
kilopascals (kPa) or per square
inch (psi). Press the vehicle
information button until the DIC
displays FRONT TIRES kPa (PSI)
LEFT ## RIGHT ##. Press the
vehicle information button again
until the DIC displays REAR
TIRES kPa (PSI) LEFT ##
RIGHT ##. If a low tire pressure condition
is detected by the system while
driving, a message advising you to
add air to a specific tire will appear
in the display. See Tire Pressure on
page 10 ‑ 52 and Tire Messages on
page 5 ‑ 39 for more information.
If the tire pressure display shows
dashes instead of a value, there
may be a problem with your vehicle.
If this consistently occurs, see your
dealer for service.
Battery Voltage
This display shows the current
battery voltage. If the voltage is in
the normal range, the value will
display. For example, the display
may read BATTERY VOLTAGE
13 VOLTS. If the voltage is low,
the display will show LOW. If the
voltage is high, the display will
show HIGH. Your vehicle's charging
system regulates voltage based on
the state of the battery. The battery
voltage may fluctuate when viewing
this information on the DIC. This is normal. See Charging
System Light on page 5 ‑ 18 for more
information. If there is a problem
with the battery charging system,
the DIC will display a message.
See Battery Voltage and Charging
Messages on page 5 ‑ 31 .
Oil Pressure
This display will show the oil
pressure in either pounds
kilopascals (kPa) or per square
inch (psi).
Compass Zone Setting
This display allows for setting the
compass zone. See Compass on
page 5 ‑ 6 for more information.
Compass Recalibration
This display allows for calibrating
the compass. See Compass on
page 5 ‑ 6 for more information.
Blank Display
This display shows no information.

Black plate (31,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-31
Vehicle Messages Messages displayed on the DIC
indicate the status of the vehicle
or some action may be needed to
correct a condition. Multiple
messages may appear one
after another.
The messages that do not
require immediate action can be
acknowledge and cleared by
pressing any DIC button.
The messages that require
immediate action cannot be
cleared until that action is
performed.
All messages should be taken
seriously and clearing the message
does not correct the problem.
The following are the possible
messages and some information
about them. Battery Voltage and
Charging Messages BATTERY LOW START
VEHICLE When the vehicle ’ s battery is
severely discharged, this message
will display and four chimes
will sound. Start the vehicle
immediately. If the vehicle is not
started and the battery continues
to discharge, the climate controls,
heated seats, and audio systems
will shut off and the vehicle may
require a jump start. These systems
will function again after the vehicle
is started.
SERVICE BATTERY
CHARGING SYSTEM
On some vehicles, this message
displays if there is a problem with
the battery charging system. Under
certain conditions, the charging system light may also turn on in
the instrument panel cluster.
See Charging System Light on
page 5 ‑ 18 . Driving with this problem
could drain the battery. Turn off all
unnecessary accessories. Have the
electrical system checked as soon
as possible. See your dealer.
Brake System Messages SERVICE BRAKE SYSTEM This message displays along with
the brake system warning light if
there is a problem with the brake
system. See Brake System Warning
Light on page 5 ‑ 21 . If this message
appears, stop as soon as possible
and turn off the vehicle. Restart the
vehicle and check for the message
on the DIC display. If the message
is still displayed or appears again
when you begin driving, the brake
system needs service as soon as
possible. See your dealer.

Black plate (32,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
5-32 Instruments and Controls SERVICE BRAKES SOON This message displays if there is a
problem with the brake system.
If this message appears, stop as
soon as possible and turn off the
vehicle. Restart the vehicle and
check for the message on the DIC
display. If the message is still
displayed or appears again when
you begin driving, the brake system
needs service. See your dealer.
Door Ajar Messages DRIVER DOOR OPEN This message displays and a
chime sounds if the driver door is
not fully closed and the vehicle is
shifted out of P (Park). Stop and
turn off the vehicle, check the door
for obstructions, and close the door
again. Check to see if the message
still appears on the DIC. HOOD OPEN This message displays and a
chime sounds if the hood is not
fully closed. Stop and turn off
the vehicle, check the hood for
obstructions, and close the hood
again. Check to see if the message
still appears on the DIC.
LEFT REAR DOOR OPEN This message displays and a chime
sounds if the driver side rear door is
not fully closed and the vehicle is
shifted out of P (Park). Stop and turn
off the vehicle, check the door for
obstructions, and close the door
again. Check to see if the message
still appears on the DIC.
PASSENGER DOOR OPEN
This message displays and a chime
sounds if the front passenger door
is not fully closed and the vehicle is
shifted out of P (Park). Stop and turn off the vehicle, check the door for
obstructions, and close the door
again. Check to see if the message
still appears on the DIC.
REAR ACCESS OPEN This message displays and a chime
sounds if the liftgate or liftglass is
open while the ignition is in ON/
RUN. Turn off the vehicle and check
the liftgate and liftglass. Restart the
vehicle and check for the message
on the DIC display.
RIGHT REAR DOOR OPEN This message displays and a chime
sounds if the passenger side rear
door is not fully closed and the
vehicle is shifted out of P (Park).
Stop and turn off the vehicle, check
the door for obstructions, and close
the door again. Check to see if the
message still appears on the DIC.

Black plate (33,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-33
Engine Cooling System
Messages ENGINE HOT A/C
(Air Conditioning)
TURNED OFF This message displays when the
engine coolant becomes hotter than
the normal operating temperature.
See Engine Coolant Temperature
Gauge on page 5 ‑ 14 . To avoid
added strain on a hot engine, the
air conditioning compressor
automatically turns off. When the
coolant temperature returns to
normal, the air conditioning
compressor turns back on. You
can continue to drive your vehicle.
If this message continues to appear,
have the system repaired by your
dealer as soon as possible to avoid
damage to the engine. ENGINE OVERHEATED
IDLE ENGINE Notice: If you drive the vehicle
while the engine is overheating,
severe engine damage may
occur. If an overheat warning
appears on the instrument panel
cluster and/or DIC, stop the
vehicle as soon as possible.
See Engine Overheating on
page 10 ‑ 20 for more information.
This message displays when the
engine coolant temperature is too
hot. Stop and allow the vehicle to
idle until it cools down. See Engine
Coolant Temperature Gauge on
page 5 ‑ 14 .
See Overheated Engine Protection
Operating Mode on page 10 ‑ 22 for
information on driving to a safe
place in an emergency. ENGINE OVERHEATED
STOP ENGINE Notice: If you drive the vehicle
while the engine is overheating,
severe engine damage may
occur. If an overheat warning
appears on the instrument panel
cluster and/or DIC, stop the
vehicle as soon as possible.
See Engine Overheating on
page 10 ‑ 20 for more information.
This message displays and a chime
sounds if the engine cooling system
reaches unsafe temperatures for
operation. Stop and turn off the
vehicle as soon as it is safe to do
so to avoid severe damage. This
message clears when the engine
has cooled to a safe operating
temperature.

Black plate (34,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
5-34 Instruments and Controls

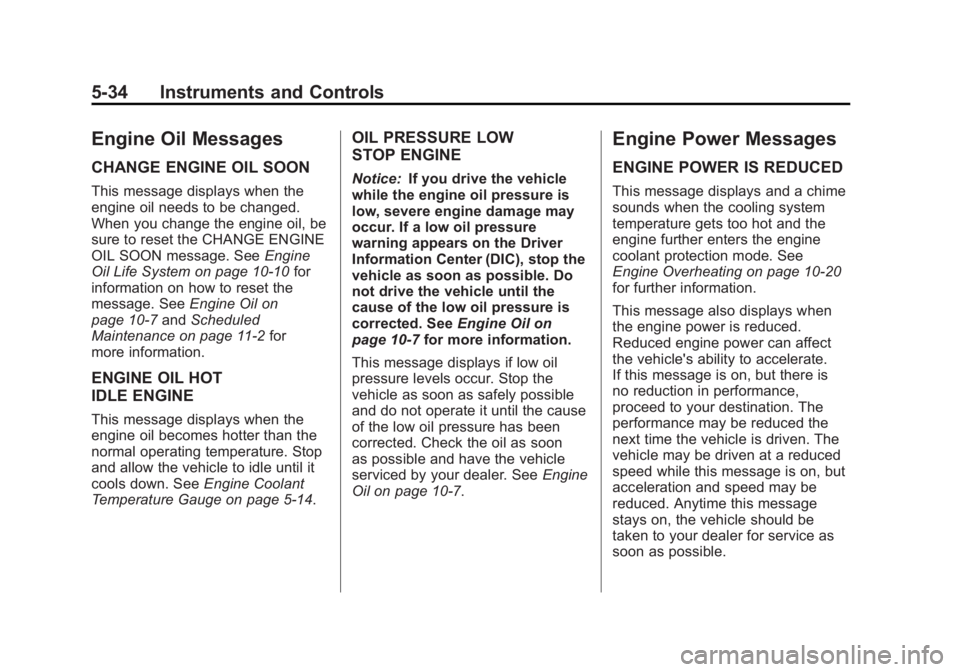

Engine Oil Messages CHANGE ENGINE OIL SOON This message displays when the
engine oil needs to be changed.
When you change the engine oil, be
sure to reset the CHANGE ENGINE
OIL SOON message. See Engine
Oil Life System on page 10 ‑ 10 for
information on how to reset the
message. See Engine Oil on
page 10 ‑ 7 and Scheduled
Maintenance on page 11 ‑ 2 for
more information.
ENGINE OIL HOT
IDLE ENGINE This message displays when the
engine oil becomes hotter than the
normal operating temperature. Stop
and allow the vehicle to idle until it
cools down. See Engine Coolant
Temperature Gauge on page 5 ‑ 14 . OIL PRESSURE LOW
STOP ENGINE Notice: If you drive the vehicle
while the engine oil pressure is
low, severe engine damage may
occur. If a low oil pressure
warning appears on the Driver
Information Center (DIC), stop the
vehicle as soon as possible. Do
not drive the vehicle until the
cause of the low oil pressure is
corrected. See Engine Oil on
page 10 ‑ 7 for more information.
This message displays if low oil
pressure levels occur. Stop the
vehicle as soon as safely possible
and do not operate it until the cause
of the low oil pressure has been
corrected. Check the oil as soon
as possible and have the vehicle
serviced by your dealer. See Engine
Oil on page 10 ‑ 7 .Engine Power Messages ENGINE POWER IS REDUCED This message displays and a chime
sounds when the cooling system
temperature gets too hot and the
engine further enters the engine
coolant protection mode. See
Engine Overheating on page 10 ‑ 20
for further information.
This message also displays when
the engine power is reduced.
Reduced engine power can affect
the vehicle's ability to accelerate.
If this message is on, but there is
no reduction in performance,
proceed to your destination. The
performance may be reduced the
next time the vehicle is driven. The
vehicle may be driven at a reduced
speed while this message is on, but
acceleration and speed may be
reduced. Anytime this message
stays on, the vehicle should be
taken to your dealer for service as
soon as possible.

Black plate (35,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-35
Fuel System Messages FUEL LEVEL LOW This message displays and a chime
sounds if the fuel level is low. Refuel
as soon as possible. See Fuel
Gauge on page 5 ‑ 13 and Fuel on
page 9 ‑ 63 for more information.
TIGHTEN GAS CAP This message may display along
with the check engine light on the
instrument panel cluster if the fuel
cap is not tightened properly. See
Malfunction Indicator Lamp on
page 5 ‑ 18 . Reinstall the fuel cap
fully. See Filling the Tank on
page 9 ‑ 68 . The diagnostic system
can determine if the fuel cap has
been left off or improperly installed.
A loose or missing fuel cap
allows fuel to evaporate into the
atmosphere. A few driving trips with
the cap properly installed should
turn this light and message off. Key and Lock Messages REPLACE BATTERY IN
REMOTE KEY This message displays if a Remote
Keyless Entry (RKE) transmitter
battery is low. The battery needs to
be replaced in the transmitter. See
“ Battery Replacement ” under
Remote Keyless Entry (RKE)
System Operation on page 2 ‑ 3 .
Lamp Messages SERVICE LEFT HEADLAMP
ASSEMBLY On some models, this message
will be displayed when the left
headlamp is out and needs to be
serviced. See “ LED Lighting ” in LED
Lighting on page 10 ‑ 36 for more
information. SERVICE RIGHT HEADLAMP
ASSEMBLY On some models, this message
will be displayed when the right
headlamp is out and needs to be
serviced. See “ LED Lighting ” in LED
Lighting on page 10 ‑ 36 for more
information.
TURN SIGNAL ON This message displays and a chime
sounds if a turn signal is left on for
1.2 km (3/4 of a mile). Move the turn
signal/multifunction lever to the off
position.

Black plate (36,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
5-36 Instruments and Controls
Object Detection System
Messages PARKING ASSIST BLOCKED
SEE OWNERS MANUAL If your vehicle has the Ultrasonic
Rear Parking Assist (URPA) system,
this message displays if there is
something interfering with the park
assist system. See Ultrasonic
Parking Assist on page 9 ‑ 54 for
more information.
PARKING ASSIST OFF After the vehicle has been started,
this message displays to remind the
driver that the Ultrasonic Rear
Parking Assist (URPA) system has
been turned off. Press the set/reset
button to acknowledge this message
and clear it from the DIC display. To
turn the URPA system back on, see
Ultrasonic Parking Assist on
page 9 ‑ 54 . SERVICE PARKING ASSIST This message displays if there is a
problem with the Ultrasonic Rear
Parking Assist (URPA) system. Do
not use this system to help you
park. See Ultrasonic Parking Assist
on page 9 ‑ 54 for more information.
See your dealer for service.
SERVICE SIDE BLIND ZONE
ALERT SYSTEM If your vehicle has the Side Blind
Zone Alert (SBZA) system and this
message displays, both SBZA
displays will remain on indicating
there is a problem with the SBZA
system. If these displays remain on
after continued driving, the system
needs service. See your dealer. See
Side Blind Zone Alert (SBZA) on
page 9 ‑ 56 for more information. SIDE BLIND ZONE ALERT
SYSTEM OFF If your vehicle has the Side Blind
Zone Alert (SBZA) system, this
message displays when the SBZA
system has been turned off. See
Side Blind Zone Alert (SBZA) on
page 9 ‑ 56 and Driver Information
Center (DIC) on page 5 ‑ 26 for more
information.
SIDE BLIND ZONE SYSTEM
UNAVAILABLE If your vehicle has the Side Blind
Zone Alert (SBZA) system, this
message displays when the SBZA
system is disabled because the
sensor is blocked and cannot
detect vehicles in your blind zone.
The sensor may be blocked by
mud, dirt, snow, ice, or slush. This
message may also display during
heavy rain or due to road spray.
It may also come on when driving in
isolated areas with no guardrails,
trees, or road signs and light traffic.
Your vehicle does not need service.

Black plate (37,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-37For cleaning instructions, see
“ Washing Your Vehicle ” in Exterior
Care on page 10 ‑ 90 . See Side Blind
Zone Alert (SBZA) on page 9 ‑ 56 for
more information.
Ride Control System
Messages SERVICE STABILITRAK If your vehicle has StabiliTrak and
this message displays, it means
there may be a problem with the
StabiliTrak system. If you see this
message, try to reset the system.
Stop; turn off the engine for at least
15 seconds; then start the engine
again. If this message still comes
on, it means there is a problem. You
should see your dealer for service.
The vehicle is safe to drive,
however, you do not have the
benefit of StabiliTrak, so reduce
your speed and drive accordingly. SERVICE SUSPENSION
SYSTEM This message displays when the
Road Sensing Suspension (RSS)
system is not operating properly.
Have your vehicle serviced by your
dealer.
SERVICE TRACTION
CONTROL If your vehicle has StabiliTrak, this
message displays when there is a
problem with the Traction Control
System (TCS). When this message
displays, the system will not limit
wheel spin. Adjust your driving
accordingly. See your dealer for
service. See StabiliTrak ®
System on
page 9 ‑ 47 for more information. STABILITRAK OFF If your vehicle has StabiliTrak, this
message displays when you turn off
StabiliTrak, or when the stability
control has been automatically
disabled. To limit wheel spin and
realize the full benefits of the
stability enhancement system, you
should normally leave StabiliTrak
on. However, you should turn
StabiliTrak off if your vehicle gets
stuck in sand, mud, ice, or snow
and you want to rock your vehicle
to attempt to free it, or if you are
driving in extreme off-road
conditions and require more wheel
spin. See If the Vehicle is Stuck on
page 9 ‑ 23 . To turn the StabiliTrak
system on or off, see StabiliTrak ®
System on page 9 ‑ 47 .

Black plate (38,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
5-38 Instruments and Controls There are several conditions that
can cause this message to appear. .
One condition is overheating,
which could occur if StabiliTrak
activates continuously for an
extended period of time. .
The message also displays if the
brake system warning light is on.
See Brake System Warning
Light on page 5 ‑ 21 ..
The message could display if
the stability system takes longer
than usual to complete its
diagnostic checks due to driving
conditions. .
The message displays if an
engine or vehicle related
problem has been detected
and the vehicle needs service.
See your dealer.
The message turns off as soon
as the conditions that caused the
message to be displayed are no
longer present. TRACTION CONTROL OFF If your vehicle has StabiliTrak, this
message displays when the Traction
Control System (TCS) is turned off.
Adjust your driving accordingly. See
StabiliTrak ®
System on page 9 ‑ 47
for more information.
Airbag System Messages SERVICE AIR BAG This message displays if there is a
problem with the airbag system.
Have your dealer inspect the
system for problems. See Airbag
Readiness Light on page 5 ‑ 16 and
Airbag System on page 3 ‑ 35 for
more information. Anti-Theft Alarm System
Messages SERVICE THEFT DETERRENT
SYSTEM This message displays when there
is a problem with the theft-deterrent
system. The vehicle may or may not
restart so you may want to take the
vehicle to your dealer before turning
off the engine. See Immobilizer
Operation on page 2 ‑ 15 for more
information.

Black plate (39,1)Cadillac Escalade/Escalade ESV Owner Manual - 2011
Instruments and Controls 5-39
Tire Messages SERVICE TIRE MONITOR
SYSTEM On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays if a part on the
TPMS is not working properly. The
tire pressure light also flashes and
then remains on during the same
ignition cycle. See Tire Pressure
Light on page 5 ‑ 23 . Several
conditions may cause this message
to appear. See Tire Pressure
Monitor Operation on page 10 ‑ 56
for more information. If the warning
comes on and stays on, there may
be a problem with the TPMS. See
your dealer. TIRE LEARNING ACTIVE On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays when the TPMS
is re-learning the tire positions on
your vehicle. The tire positions must
be re-learned after rotating the tires
or after replacing a tire or sensor.
See Tire Inspection on page 10 ‑ 58 ,
Tire Rotation on page 10 ‑ 59 , Tire
Pressure Monitor System on
page 10 ‑ 54 , and Tire Pressure on
page 10 ‑ 52 for more information.
TIRE LOW ADD AIR TO TIRE On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays when the
pressure in one or more of the
vehicle's tires needs to be checked.
This message also displays LEFT
FRT (left front), RIGHT FRT (right front), LEFT RR (left rear),
or RIGHT RR (right rear) to indicate
the location of the low tire. The low
tire pressure warning light will also
come on. See Tire Pressure Light
on page 5 ‑ 23 . You can receive more
than one tire pressure message at a
time. To read the other messages
that may have been sent at the
same time, press the set/reset
button or the trip odometer reset
stem. If a tire pressure message
appears on the DIC, stop as soon
as you can. Have the tire pressures
checked and set to those shown on
the Tire Loading Information label.
See Tires on page 10 ‑ 46 , Vehicle
Load Limits on page 9 ‑ 24 , and Tire
Pressure on page 10 ‑ 52 . The DIC
also shows the tire pressure values.
See “ DIC Operation and Displays
(With DIC Buttons) ” earlier in this
section.
