CADILLAC ESCALADE EXT 2006 2.G Owners Manual

6. Push the rear glass at against the window frame
and push each latch lever up until it locks.
You should hear a click when each latch lever locks
correctly.
Lowering the Midgate with the Rear Glass
in Place
The midgate can be lowered to allow the cargo area of
your vehicle to extend into the cab. The rear glass
can be either installed in its normal position, or it can be
removed and stored in the rear glass storage pocket.To lower the midgate, do the following:
1. Fold the rear seats. The front seats might have to
be moved forward slightly to allow the rear seats to
fold. SeeRear Seat Operation on page 1-7for
more information.
2. Standing outside of the vehicle, hold the midgate
securely so it does not fall forward. Turn the
midgate handle clockwise and pull the midgate
toward you.
Rear Glass in Normal Position
2-17

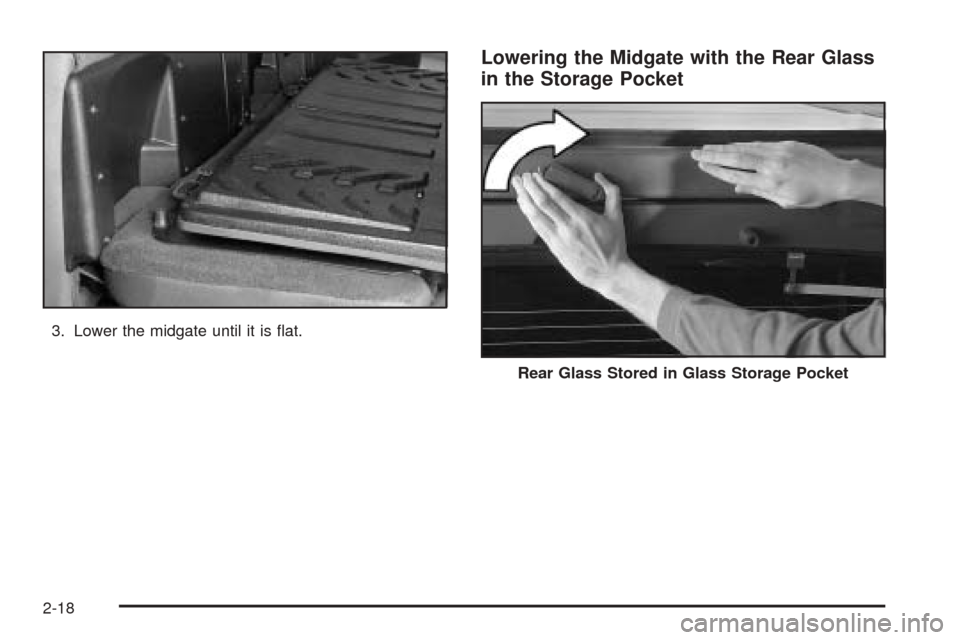

3. Lower the midgate until it is at.
Lowering the Midgate with the Rear Glass
in the Storage Pocket
Rear Glass Stored in Glass Storage Pocket
2-18

This procedure works the same as the procedure
described previously, but when you lower the midgate
with the rear glass in the stored position, you will notice
that the entire crossbar will lower with the midgate.
This is completely normal; however, since the crossbar
lowers with the midgate, it will be heavier. As you
lower the midgate be ready for the extra weight and do
not let the midgate fall as you lower it.
Raising the Midgate
To return the midgate to its normal position, raise the
midgate up with a rm swinging motion until it latches
into place securely. This will help to ensure that the
midgate closes with enough force to engage the latches.
If the rear glass is removed and you would like to put
it back, do so using the instructions given previously.
Tailgate
Use the ignition/door key to unlock/lock the tailgate.
Open the tailgate by lifting up on its handle while pulling
the tailgate toward you.
To shut the tailgate, rmly push it upward until it
latches. Push and pull on the tailgate to be sure it is
latched securely. Midgate Lowered with Crossbar Attached
2-19

Tailgate Removal
The tailgate can be removed to allow for different
loading situations. Although the tailgate can be removed
without assistance, you may want someone to assist
you with the removal to avoid possible damage to
the vehicle.
To remove the tailgate, do the following:
1. Hold the tailgate up, slightly raised.
2. Release the retaining
cable clip by lifting the
cable so it is level
with the ground and
then push the cable clip
toward the vehicle.
3. Raise the tailgate at a slight upward angle,
pull back on the tailgate at the right edge so
it releases from the block hinge and then move the
tailgate to the right to release the left edge.
Reverse the above procedure to reinstall. Make sure the
tailgate is secure.
2-20

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-21

Power Windows
The controls for the power windows are located on the
armrest on each of the side doors. The switches
operate the windows when the ignition is in RUN,
ACCESSORY or while Retained Accessory Power
(RAP) is active. SeeRetained Accessory Power (RAP)
on page 2-26.
The driver’s door also has a switch for each of the
passenger’s windows.
Press the top of the switch to lower the window.
Pull up the top of the switch to raise the window.
Express-Down Windows
The driver and front passenger windows also have an
express-down feature that allows the windows to
be lowered without holding the switch. Press down fully
on the window switch, then release, to activate the
express-down mode. This mode can be canceled at any
time by pulling up on the switch. To open the window
partway, press the switch to the rst position until
the window is at the desired position.
Window Lockout
o
(Window Lockout):Press the lockout switch to
prevent passengers from operating the power windows
from their switches. A light in the lockout switch will
come on to show that the switch has been activated.
Press the lockout switch again to return to normal
operation.
2-22

Sun Visors
Sun Visors with Slide Rod
Your vehicle may have this feature.
Pull the sun visor down to block glare. Detach the sun
visor from the center mount and slide it along the
rod from side-to-side to cover the driver or passenger
side of the front window. Swing the sun visor to the side
to cover the side window. It can be moved along the
rod from side-to-side in this position also.
Sun Visors with Fixed Rod and Pull-out
Extension
Your vehicle may have this feature.
Pull the sun visor down to block glare. Pull the sun visor
extender out for additional coverage. Detach the sun
visor from the center mount and swing it to the side to
cover the side window.
Lighted Visor Vanity Mirror
Your vehicle has lighted visor vanity mirrors on both
the driver’s and passenger’s sun visors. Pull the
sun visor down and lift the mirror cover to turn the
lamps on.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Content Theft-Deterrent
Your vehicle has a content theft-deterrent alarm system.
The security light is located
on the instrument panel
cluster. SeeSecurity Light
on page 3-42for additional
information.
To activate the theft-deterrent system, do the following:
1. Close all the doors.
2. Lock the door with the remote keyless entry
transmitter. The security light should come on
and ash.
If the lock button on the remote keyless entry
transmitter is pressed, but a door is open, you may
hear three chimes indicating delayed locking is enabled.
SeeDelayed Locking on page 2-9for additional
information. Close the door and the content
theft-deterrent system will be activated.
2-23

If a locked door is opened without using the remote
keyless entry transmitter or OnStar, if equipped with an
active subscription, the alarm will go off. Your vehicle’s
lamps will ash and the horn will sound for about
two minutes, then will turn off to save the battery power.
If this occurs, you can turn off the alarm by pressing
unlock on the remote keyless entry transmitter or
by placing the key in the ignition and turning it
to START.
If your vehicle has a Driver Information Center (DIC),
you can customize your alarm warning. SeeDIC
Vehicle Customization on page 3-57for additional
information.
The horn may chirp for 10 seconds before the alarm
goes off if the theft-deterrent system is activated using
the remote keyless entry transmitter and the driver’s
door is opened. If this occurs, you can turn off the alarm
by pressing unlock on the remote keyless entry
transmitter or by placing the key in the ignition and
turning it to START.
Here is how to avoid setting off the alarm by accident:
If you do not want to activate the theft-deterrent
system, the vehicle should be locked with the
door key after the doors are closed.
Always unlock a door with the remote keyless entry
transmitter.If you set off the alarm by accident, turn off the alarm
by pressing unlock on the remote keyless entry
transmitter or by placing the key in the ignition and
turning it to START.
Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, activate the system by
locking the doors with the remote keyless entry
transmitter.
2. Wait for the security light to go out.
3. Unlock the door with the manual door lock and
open the door. This should set off the alarm.
4. Turn off the alarm by pressing unlock on the remote
keyless entry transmitter or by placing the key in
the ignition and turning it to START.
If the alarm does not sound when it should, but the
vehicle’s headlamps ash, check to see if the horn
works. The horn fuse may be blown. To replace the
fuse, seeInstrument Panel Fuse Block on page 5-110
andUnderhood Fuse Block on page 5-113.
If the alarm does not sound or the vehicle’s headlamps
do not ash, see your dealer for service.
2-24

Passlock®
Your vehicle is equipped with the Passlock®
theft-deterrent system.
Passlock
®is a passive theft-deterrent system.
Passlock®enables fuel if the ignition lock cylinder is
turned with a valid key. If a correct key is not used or the
ignition lock cylinder is tampered with, the fuel system
is disabled and the vehicle will not start.
During normal operation, the security light will turn off
approximately ve seconds after the key is turned to RUN.
If the engine stalls and the security light ashes, wait
about 10 minutes until the light stops ashing before
trying to restart the engine. Remember to release
the key from START as soon as the engine starts.
If the engine does not start after three tries, the vehicle
needs service.
If the engine is running and the security light comes on,
you will be able to restart the engine if you turn the
engine off. However, your Passlock
®system is not
working properly and must be serviced by your dealer.
Your vehicle is not protected by Passlock
®at this time.
You may also want to check the fuse. SeeFuses and
Circuit Breakers on page 5-109. See your dealer for
service.
In an emergency, call the Roadside Assistance Center.
SeeRoadside Service on page 7-6.
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an elaborate
break-in. But it will perform better in the long run if
you follow these guidelines:
Keep your speed at 55 mph (88 km/h) or less for
the rst 500 miles (805 km).
Do not drive at any one constant speed, fast or
slow, for the rst 500 miles (805 km). Do not
make full-throttle starts. Avoid downshifting to
brake, or slow, the vehicle.
Avoid making hard stops for the rst 200 miles
(322 km) or so. During this time your new brake
linings are not yet broken in. Hard stops with new
linings can mean premature wear and earlier
replacement. Follow this breaking-in guideline
every time you get new brake linings.
Do not tow a trailer during break-in. SeeTowing
a Trailer on page 4-50for the trailer towing
capabilities of your vehicle and more
information.
Following break-in, engine speed and load can be
gradually increased.
2-25

Ignition Positions
Use the key to turn the ignition switch to four different
positions.
A (LOCK):This position locks the ignition and
transmission. It is a theft-deterrent feature. You will only
be able to remove the key when the ignition is turned
to LOCK.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break the
key. Use the correct key and turn the key only with
your hand. Make sure the key is all the way in.If it is, turn the steering wheel left and right while
you turn the key hard. If none of this works,
then your vehicle needs service.
B (ACCESSORY):This position lets you use things
like the radio and the windshield wipers when the
engine is off.
Notice:Lengthy operation of features such as the
radio in the accessory ignition position may drain
the battery and prevent your vehicle from starting.
Do not operate your vehicle in the accessory ignition
position for a long period of time.
C (RUN):This is the position for driving.
D (START):This position starts the engine.Retained Accessory Power (RAP)
The Retained Accessory Power (RAP) feature will allow
certain features on your vehicle to continue to work
for up to 10 minutes after the ignition key is turned to
LOCK or until one of the doors is opened.
2-26
