Page 11 of 580
Heated and Cooled Seats
If the front seats have
the heated and cooled
seat feature, the
buttons used to control
this feature are
located on the climate
control panel.
{(Cooled Seat):To cool the entire seat, press
the button with the cooled seat symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings of
high, medium, and low and to turn the cooled seat
off. Indicator bars next to the symbol designate the
level of cooling selected: three for high, two for
medium, and one for low.
+(Heated Seatback):To heat only the
seatback, press the button with the heated
seatback symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium, and low and to turn the
heated seatback off. Indicator bars next to the
symbol designate the level of heat selected:
three for high, two for medium, and one for low.
z(Heated Seat and Seatback):To heat
the entire seat, press the button with the heated
seat and seatback symbol.
This symbol will appear on the climate control
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium, and low and to turn the
heated seat off. Indicator bars next to the symbol
designate the level of heat selected: three for
high, two for medium, and one for low.
The heated and cooled seats will be canceled
after the ignition is turned off. If you want to use
the heated and cooled seat feature after you
restart your vehicle, you will need to press
the appropriate seat button again.
11
Page 12 of 580
Memory Seat, Mirrors, and Pedals
Your vehicle has the memory package.
The controls for this
feature are located on
the driver’s door, and are
used to program and
recall memory settings
for the driver’s seat,
outside mirrors, and the
adjustable throttle and
brake pedal feature, if
your vehicle has it.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the throttle and brake pedals to a comfortable
position.SeeOutside Power Foldaway Mirrors on
page 149andAdjustable Throttle and Brake
Pedal on page 128for more information.
Not all mirrors will have the ability to save and
recall the mirror positions.
2. Press and hold button 1 until two beeps let
you know that the position has been stored.
A second seating, mirror, and throttle and brake
pedal position can be programmed by repeating
the above steps and pressing button 2.
To recall the memory positions, the vehicle must be
in PARK (P). Press and release either button 1 or
button 2 corresponding to the desired driving
position. The seat, outside mirrors, and adjustable
throttle and brake pedals will move to the position
previously stored. You will hear a single beep.
12
Page 13 of 580
If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, mirror, and
adjustable pedal movement will occur. See
“MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 257for more information.
To stop recall movement of the memory feature
at any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
remove the obstruction and press the appropriate
function control for two seconds. Then try
recalling the memory position again by pressing
the appropriate memory button. If the memory
position is still not recalling, see your dealer
for service.Easy Exit Seat
The control for this feature is located on the
driver’s door between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can
be recalled by pressing the exit button. You will
hear a single beep. The driver’s seat will
move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat
movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization on page 257for
more information.
Further programming for the memory seat feature
can be done using the DIC. You can select the
automatic easy exit seat feature or the remote
memory seat recall feature.
For programming information, seeDIC Vehicle
Customization on page 257.
13
Page 14 of 580
Power Reclining Seatbacks
The controls for the power reclining seatback are
located on the outboard side of the front seats
behind the power seat control.
To recline the seatback, tilt the top of the
control rearward.
To bring the seatback forward, tilt the top of
the control forward.
{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
CAUTION: (Continued)
Driver’s Seat with Power Seat Control, Power
Recline, and Power Lumbar shown
14
Page 15 of 580
CAUTION: (Continued)
The shoulder belt cannot do its job. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
Your vehicle has a memory function which allows
seat settings to be saved and recalled. See
Memory Seat, Mirrors, and Pedals on page 12.
Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.
15
Page 16 of 580
Pull the head restraint
up to raise it. To lower
the head restraint,
press the release
button (A), located on
the top of the seatback,
while you push the
head restraint down.
The front seats may have head restraints that also
tilt forward and rearward.
To tilt the head restraint, grasp the top of the
restraint while pressing the button (B), located
on the inboard side of the head restraint,
and move it forward or rearward until the desired
locking position is reached. Try to move the
head restraint after the button is released to make
sure that it is locked in place.
The second row seats may have head restraints
that can be adjusted up and down, but they
do not tilt.Rear Seats
Rear Seat Operation
The rear seat is a 60/40 split bench seat that can
be folded to give you more cargo space and
access to the folding midgate. SeeMidgate
®on
page 104for more information on operation of the
folding midgate.
To fold either side of the seat do the following:
1. Push the rear seat head restraints all the
way down.
2. Pull the seat loop
located where the
seatback and seat
cushion meet. The
seat cushion will
release and allow
you to tilt it toward
the front of the
vehicle.
16
Page 17 of 580
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
3. Fold the seatback forward until it is at. You
may have to move the front seats forward
slightly to do this.
4. Repeat the procedure for the other side.
To return the seats to the normal position, push
the seatback up and fold the seat cushion down.
{CAUTION:
A safety belt that is improperly routed,
not properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that
the safety belts are properly routed and
attached, and are not twisted.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always be sure to press the
rear of the seat cushion down. This action
locks the seatback in place.
Push and pull on the seatback to make sure it is
locked. Raise the head restraint.
17
Page 18 of 580
Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use
safety belts properly. It also tells you some things
you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she
cannot wear a safety belt properly. If you
are in a crash and you are not wearing a
safety belt, your injuries can be much
worse. You can hit things inside the
vehicle or be ejected from it. You can be
seriously injured or killed. In the same
crash, you might not be, if you are
buckled up. Always fasten your safety
belt, and check that your passengers’
belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
Your vehicle has indicators to remind you and
your passengers to buckle your safety belts. See
Safety Belt Reminder Light on page 228and
Passenger Safety Belt Reminder Light on
page 228.
18
Page 19 of 580

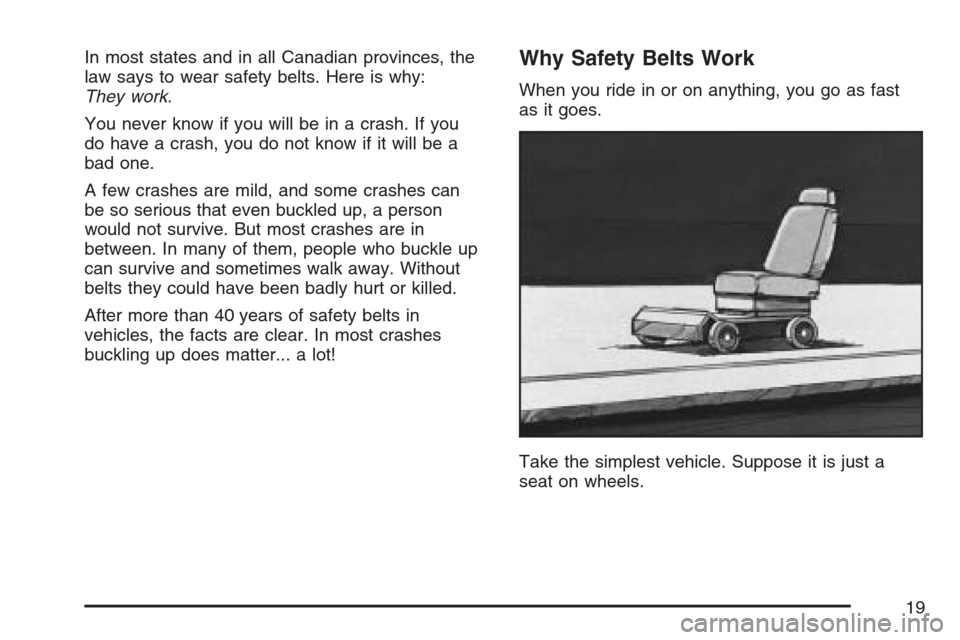

In most states and in all Canadian provinces, the
law says to wear safety belts. Here is why:
They work.
You never know if you will be in a crash. If you
do have a crash, you do not know if it will be a
bad one.
A few crashes are mild, and some crashes can
be so serious that even buckled up, a person
would not survive. But most crashes are in
between. In many of them, people who buckle up
can survive and sometimes walk away. Without
belts they could have been badly hurt or killed.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most crashes
buckling up does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it is just a
seat on wheels.
19
Page 20 of 580

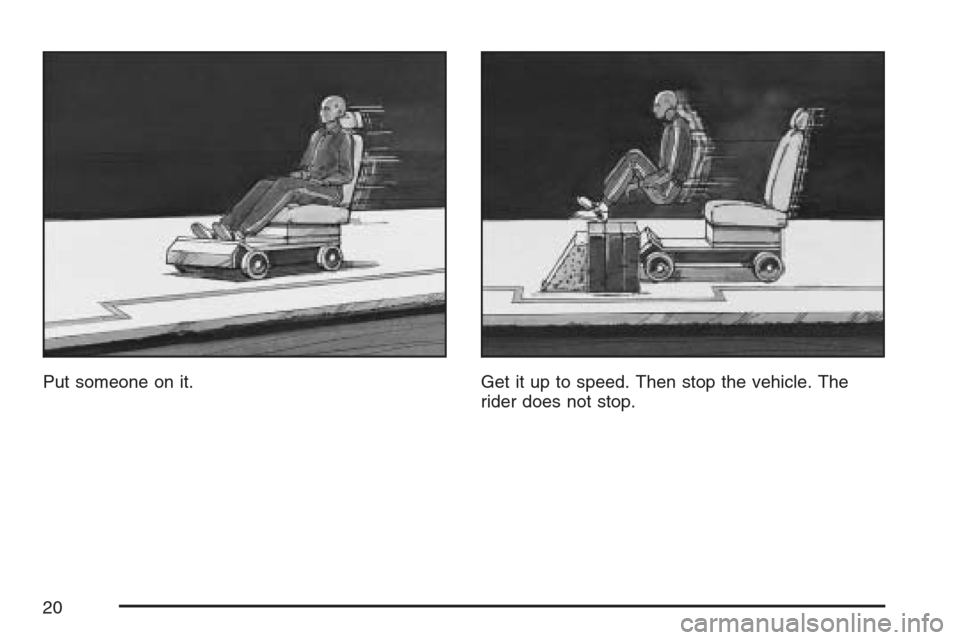

Put someone on it. Get it up to speed. Then stop the vehicle. The
rider does not stop.
