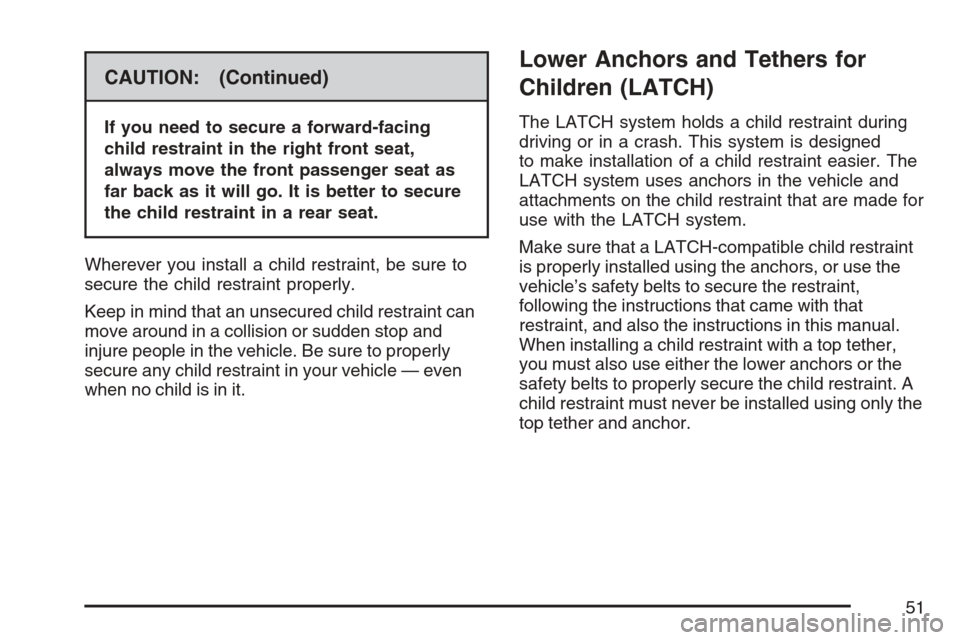

CAUTION: (Continued)
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
Wherever you install a child restraint, be sure to
secure the child restraint properly.
Keep in mind that an unsecured child restraint can
move around in a collision or sudden stop and
injure people in the vehicle. Be sure to properly
secure any child restraint in your vehicle — even
when no child is in it.
Lower Anchors and Tethers for
Children (LATCH)
The LATCH system holds a child restraint during
driving or in a crash. This system is designed
to make installation of a child restraint easier. The
LATCH system uses anchors in the vehicle and
attachments on the child restraint that are made for
use with the LATCH system.
Make sure that a LATCH-compatible child restraint
is properly installed using the anchors, or use the
vehicle’s safety belts to secure the restraint,
following the instructions that came with that
restraint, and also the instructions in this manual.
When installing a child restraint with a top tether,
you must also use either the lower anchors or the
safety belts to properly secure the child restraint. A
child restraint must never be installed using only the
top tether and anchor.
51

In order to use the LATCH system in your vehicle,
you need a child restraint that has LATCH
attachments. The child restraint manufacturer
will provide you with instructions on how to use the
child restraint and its attachments. The following
explains how to attach a child restraint with these
attachments in your vehicle.
Not all vehicle seating positions or child restraints
have lower anchors and attachments or top tether
anchors and attachments.Lower Anchors
Lower anchors (A) are metal bars built into the
vehicle. There are two lower anchors for each
LATCH seating position that will accommodate a
child restraint with lower attachments (B).
52

Top Tether Anchor
A top tether (A, C) anchors the top of the child
restraint to the vehicle. A top tether anchor is built
into the vehicle. The top tether attachment (B)
on the child restraint connects to the top tether
anchor in the vehicle in order to reduce the forward
movement and rotation of the child restraint
during driving or in a crash.Your child restraint may have a single tether (A)
or a dual tether (C). Either will have a single
attachment (B) to secure the top tether to
the anchor.
Some child restraints that have top tethers are
designed for use with or without the top tether
being attached. Others require the top tether
always to be attached. In Canada, the law
requires that forward-facing child restraints have
a top tether, and that the tether be attached.
In the United States, some child restraints also
have a top tether. Be sure to read and follow
the instructions for your child restraint.
If the child restraint does not have a top tether,
one can be obtained, in kit form, for many
child restraints. Ask the child restraint
manufacturer whether or not a kit is available.
53

Lower Anchor and Top Tether Anchor
Locations
i(Top Tether Anchor):
Seating positions with
top tether anchors.
j(Lower Anchor):
Seating positions with
two lower anchors.
The right side rear passenger and center seating
positions have exposed metal anchors located
in the crease between the seatback and the seat
cushion.The top tether anchors are located on the back of
the rear seat frame above the oor for each rear
seating position. Fold down the rear seatback(s) to
access the anchors. SeeRear Seat Operation on
page 16. Be sure to use an anchor located on the
same side of the vehicle as the seating position
where the child restraint will be placed.
Rear Seat
54

Do not secure a child restraint in the right front
passenger’s position if a national or local law
requires that the top tether be attached, or if the
instructions that come with the child restraint
say that the top tether must be attached. There is
no place to attach the top tether in this position.
Accident statistics show that children are safer
if they are restrained in the rear rather than
the front seat. SeeWhere to Put the Restraint on
page 50for additional information.
55

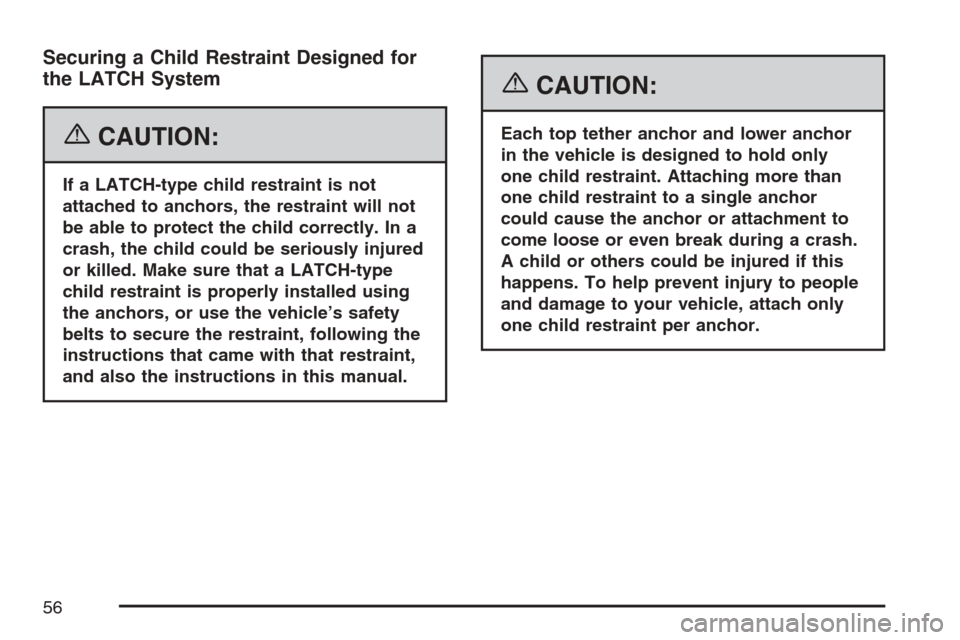

Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not
attached to anchors, the restraint will not
be able to protect the child correctly. In a
crash, the child could be seriously injured
or killed. Make sure that a LATCH-type
child restraint is properly installed using
the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with that restraint,
and also the instructions in this manual.
{CAUTION:
Each top tether anchor and lower anchor
in the vehicle is designed to hold only
one child restraint. Attaching more than
one child restraint to a single anchor
could cause the anchor or attachment to
come loose or even break during a crash.
A child or others could be injured if this
happens. To help prevent injury to people
and damage to your vehicle, attach only
one child restraint per anchor.
56

{CAUTION:
Children can be seriously injured or
strangled if a shoulder belt is wrapped
around their neck and the safety belt
continues to tighten. Secure any unused
safety belts behind the child restraint so
children cannot reach them. Pull the
shoulder belt all the way out of the
retractor to set the lock, if your vehicle has
one, after the child restraint has been
installed. Be sure to follow the instructions
of the child restraint manufacturer.
Notice:Contact between the child restraint or
the LATCH attachment parts and the vehicle’s
safety belt assembly may cause damage to
these parts. Make sure when securing unused
safety belts behind the child restraint that
there is no contact between the child restraint
or the LATCH attachment parts and the
vehicle’s safety belt assembly.Folding an empty rear seat with the safety
belts secured may cause damage to the safety
belt or the seat. When removing the child
restraint, always remember to return the safety
belts to their normal, stowed position before
folding the rear seat.
1. If the child restraint manufacturer recommends
that the top tether be attached, attach the
top tether to the top tether anchor, if there is
one. Refer to the child restraint instructions
and the following steps:
1.1. To access the top tether anchors, raise
the seat cushion by pulling up on the
strap loop at the rear of the seat
cushion and fold the seat cushion
forward. Then fold the seatback forward
until it is at. SeeRear Seat Operation
on page 16for additional information.
1.2. Place the child restraint in the vehicle,
near the seating position that you
are using.
57

1.3. Route the top tether according to your
child restraint instructions and the
following instructions:
If the position you are
using does not have a
head restraint and
you are using a
single tether, route
the tether over
the seatback.
If the position you are
using does not have a
head restraint and
you are using a
dual tether, route
the tether over the
seatback.If the position you are
using has an adjustable
head restraint and
you are using a
dual tether, route the
tether around the
head restraint.
If the position you are
using has an adjustable
head restraint and
you are using a
single tether, raise the
head restraint and
route the tether under
the head restraint and
in between the head
restraint posts.
1.4. Attach the top tether attachment to the
top tether anchor.
58

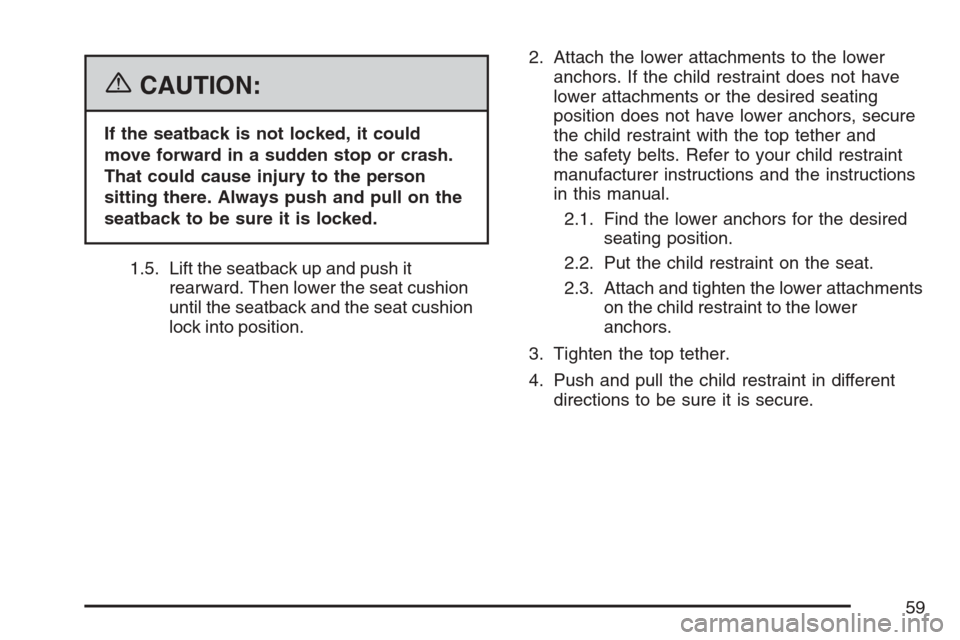

{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
1.5. Lift the seatback up and push it
rearward. Then lower the seat cushion
until the seatback and the seat cushion
lock into position.2. Attach the lower attachments to the lower
anchors. If the child restraint does not have
lower attachments or the desired seating
position does not have lower anchors, secure
the child restraint with the top tether and
the safety belts. Refer to your child restraint
manufacturer instructions and the instructions
in this manual.
2.1. Find the lower anchors for the desired
seating position.
2.2. Put the child restraint on the seat.
2.3. Attach and tighten the lower attachments
on the child restraint to the lower
anchors.
3. Tighten the top tether.
4. Push and pull the child restraint in different
directions to be sure it is secure.
59

Securing a Child Restraint in a Rear
Seat Position
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 51.
If your child restraint does not have the LATCH
system, you will be using the lap-shoulder
belt to secure the child restraint in this position. Be
sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and seeLower Anchors
and Tethers for Children (LATCH) on page 51.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.4. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
