{CAUTION:
Snow can trap exhaust gases under your
vehicle. This can cause deadly CO
(carbon monoxide) gas to get inside. CO
could overcome you and kill you. You
cannot see it or smell it, so you might not
know it is in your vehicle. Clear away
snow from around the base of your
vehicle, especially any that is blocking
your exhaust pipe. And check around
again from time to time to be sure snow
does not collect there.
Open a window just a little on the side of
the vehicle that is away from the wind.
This will help keep CO out.Run your engine only as long as you must. This
saves fuel. When you run the engine, make it go a
little faster than just idle. That is, push the
accelerator slightly. This uses less fuel for the
heat that you get and it keeps the battery charged.
You will need a well-charged battery to restart
the vehicle, and possibly for signaling later on with
your headlamps. Let the heater run for a while.
Then, shut the engine off and close the window
almost all the way to preserve the heat. Start
the engine again and repeat this only when you
feel really uncomfortable from the cold. But do it as
little as possible. Preserve the fuel as long as
you can. To help keep warm, you can get out of
the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
369

Service........................................................ 396
Accessories and Modications................... 397
California Proposition 65 Warning.............. 397
Doing Your Own Service Work.................. 398
Adding Equipment to the Outside of
Your Vehicle.......................................... 399
Fuel............................................................. 399
Gasoline Octane........................................ 399
Gasoline Specications.............................. 399
California Fuel........................................... 400
Additives................................................... 400
Fuels in Foreign Countries........................ 401
Filling the Tank......................................... 402
Filling a Portable Fuel Container............... 404
Checking Things Under the Hood.............. 404
Hood Release........................................... 405
Engine Compartment Overview.................. 406
Engine Oil................................................. 407
Engine Oil Life System.............................. 410
Engine Air Cleaner/Filter............................ 412
Automatic Transmission Fluid.................... 415
Engine Coolant.......................................... 419Coolant Surge Tank Pressure Cap............ 422
Engine Overheating................................... 422
Overheated Engine Protection
Operating Mode..................................... 425
Cooling System......................................... 426
Engine Fan Noise..................................... 431
Power Steering Fluid ................................. 431
Windshield Washer Fluid........................... 432
Brakes...................................................... 433
Battery...................................................... 437
Jump Starting............................................ 438
All-Wheel Drive........................................... 443
Rear Axle.................................................... 444
Front Axle................................................... 446
Headlamp Aiming........................................ 447
Bulb Replacement....................................... 450
High Intensity Discharge (HID) Lighting..... 450
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps.............. 450
License Plate Lamp................................... 452
Replacement Bulbs................................... 452
Section 5 Service and Appearance Care
393

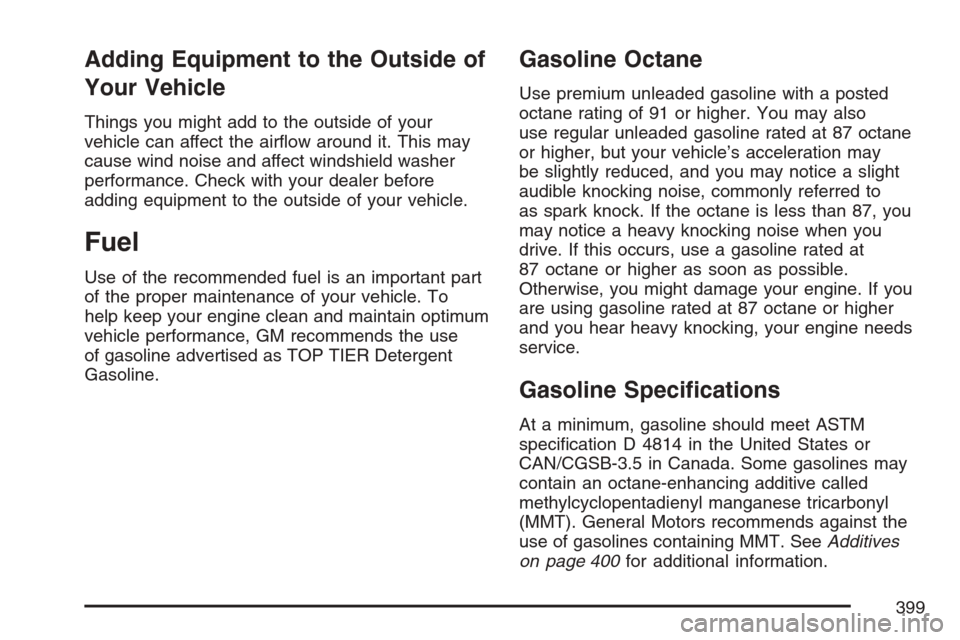

Adding Equipment to the Outside of
Your Vehicle
Things you might add to the outside of your
vehicle can affect the airow around it. This may
cause wind noise and affect windshield washer
performance. Check with your dealer before
adding equipment to the outside of your vehicle.
Fuel
Use of the recommended fuel is an important part
of the proper maintenance of your vehicle. To
help keep your engine clean and maintain optimum
vehicle performance, GM recommends the use
of gasoline advertised as TOP TIER Detergent
Gasoline.
Gasoline Octane
Use premium unleaded gasoline with a posted
octane rating of 91 or higher. You may also
use regular unleaded gasoline rated at 87 octane
or higher, but your vehicle’s acceleration may
be slightly reduced, and you may notice a slight
audible knocking noise, commonly referred to
as spark knock. If the octane is less than 87, you
may notice a heavy knocking noise when you
drive. If this occurs, use a gasoline rated at
87 octane or higher as soon as possible.
Otherwise, you might damage your engine. If you
are using gasoline rated at 87 octane or higher
and you hear heavy knocking, your engine needs
service.
Gasoline Specications
At a minimum, gasoline should meet ASTM
specication D 4814 in the United States or
CAN/CGSB-3.5 in Canada. Some gasolines may
contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT). General Motors recommends against the
use of gasolines containing MMT. SeeAdditives
on page 400for additional information.
399

Consistency of Readings
Always check the uid level at least twice using
the procedures described. Consistency (repeatable
readings) is important to maintaining proper uid
level. If uid is added, it may take 15 minutes
or longer to obtain an accurate reading because of
residual uid draining down the dipstick tube.
If inconsistent readings persist, check the
transmission breather to be sure it is clean and
not clogged. If readings are still inconsistent,
contact your dealer.
Engine Coolant
The cooling system in your vehicle is lled with
DEX-COOL®engine coolant. This coolant is
designed to remain in your vehicle for ve years or
150,000 miles (240 000 km), whichever occurs
rst, if you add only DEX-COOL
®extended
life coolant.
The following explains your cooling system and
how to add coolant when it is low. If you have
a problem with engine overheating, seeEngine
Overheating on page 422.A 50/50 mixture of clean, drinkable water and
DEX-COOL
®coolant will:
Give freezing protection down to−34°F
(−37°C).
Give boiling protection up to 265°F (129°C).
Protect against rust and corrosion.
Help keep the proper engine temperature.
Let the warning lights and gages work as they
should.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant may require changing sooner, at
the rst maintenance service after each
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would not
be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
419

So, it is not a good idea to top off your brake uid.
Adding brake uid will not correct a leak. If you
add uid when your linings are worn, then you will
have too much uid when you get new brake
linings. You should add or remove brake uid, as
necessary, only when work is done on the
brake hydraulic system.
{CAUTION:
If you have too much brake uid, it can
spill on the engine. The uid will burn if
the engine is hot enough. You or others
could be burned, and your vehicle could
be damaged. Add brake uid only when
work is done on the brake hydraulic
system. See “Checking Brake Fluid” in
this section.
When the brake uid falls to a low level, the brake
warning light will come on. SeeBrake System
Warning Light on page 232.Refer to the Maintenance Schedule to determine
when to check your brake uid. SeeScheduled
Maintenance on page 523.
Checking Brake Fluid
You can check the brake uid without taking off
the cap.
Look at the brake uid
reservoir. The uid level
should be above
MIN. If it is not, have
your brake system
checked to see if there
is a leak.
After work is done on the brake hydraulic system,
make sure the level is above the MIN but not
over the MAX mark.
434

(e)Make sure the safety belt reminder light and all
your belts, buckles, latch plates, retractors, and
anchorages are working properly. Look for
any other loose or damaged safety belt system
parts. If you see anything that might keep a safety
belt system from doing its job, have it repaired.
Have any torn or frayed safety belts replaced. Also
look for any opened or broken airbag coverings,
and have them repaired or replaced. The
airbag system does not need regular maintenance.
(f)Lubricate all key lock cylinders, hood latch
assembly, secondary latch, pivots, spring anchor,
release pawl, rear compartment hinges, outer
tailgate handle pivot points, latch bolt, fuel door
hinge, and folding seat hardware. More frequent
lubrication may be required when exposed to
a corrosive environment. Applying silicone grease
on weatherstrips with a clean cloth will make
them last longer, seal better, and not stick
or squeak.
(g)Inspect system. Check all fuel and vapor lines
and hoses for proper hook-up, routing, and
condition. Check that the purge valve works
properly, if equipped. Replace as needed.(h)Change automatic transmission uid and lter
if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.
(i)Drain, ush, and rell cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 419 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(j)A uid loss in any vehicle system could indicate
a problem. Have the system inspected and
repaired and the uid level checked. Add uid if
needed.
528

C
Calibration..........................................143, 145
California Fuel............................................. 400
California Proposition 65 Warning................ 397
Canadian Owners........................................... 3
Capacities and Specications...................... 518
Carbon Monoxide.....104, 114, 141, 366, 380
Care of
Safety Belts............................................. 500
Your CD and DVD Player........................ 318
Your CDs and DVDs................................ 318
Cargo Area, All-Weather.............................. 181
Cargo Cover Panels.................................... 168
Center Console Storage Area...................... 166
Chains, Tire................................................. 476
Charging System Light................................ 232
Check
Engine Light............................................ 236
Checking Things Under the Hood................ 404
Chemical Paint Spotting.............................. 506
Child Restraints
Child Restraint Systems............................. 45
Infants and Young Children........................ 42
Lower Anchors and Tethers for Children..... 51
Older Children........................................... 39Child Restraints (cont.)
Securing a Child Restraint in a Rear
Seat Position.......................................... 60
Securing a Child Restraint in the Right
Front Seat Position................................. 62
Where to Put the Restraint........................ 50
Chime Level Adjustment .............................. 319
Cigarette Lighter.......................................... 218
Cleaning
Aluminum or Chrome-Plated Wheels........ 504
Exterior Lamps/Lenses............................. 502
Fabric/Carpet........................................... 498
Finish Care.............................................. 502
Inside of Your Vehicle .............................. 496
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 499
Leather.................................................... 499
Speaker Covers....................................... 500
Tires........................................................ 505
Underbody Maintenance........................... 506
Washing Your Vehicle .............................. 501
Weatherstrips........................................... 501
Windshield and Wiper Blades................... 503
Wood Panels........................................... 500
567

Driver Information Center (DIC)................... 243
DIC Operation and Displays..................... 243
DIC Vehicle Customization....................... 257
DIC Warnings and Messages................... 248
Driving
At Night................................................... 355
City.......................................................... 360
Defensive................................................. 322
Drunken................................................... 323
Freeway................................................... 361
Hill and Mountain Roads.......................... 364
In Rain and on Wet Roads...................... 356
Off-Road.................................................. 339
Recovery Hooks....................................... 371
Rocking Your Vehicle to Get it Out.......... 370
Winter...................................................... 366
Dual Automatic Climate Control System....... 219
DVD
Rear Seat Entertainment System............. 302
E
Electrical System
Add-On Equipment................................... 509
Center Instrument Panel Fuse Block........ 512
Fuses and Circuit Breakers...................... 509
Instrument Panel Fuse Block................... 510Electrical System (cont.)
Power Windows and Other Power
Options................................................. 509
Underhood Fuse Block............................. 513
Windshield Wiper Fuses........................... 509
Engine
Air Cleaner/Filter...................................... 412
Battery..................................................... 437
Check and Service Engine Soon Light..... 236
Coolant.................................................... 419
Coolant Heater......................................... 128
Coolant Temperature Gage...................... 235
Drive Belt Routing.................................... 536
Engine Compartment Overview ................ 406
Exhaust................................................... 141
Fan Noise................................................ 431
Oil ........................................................... 407
Oil Life System........................................ 410
Overheated Protection Operating Mode.... 425
Overheating............................................. 422
Starting.................................................... 126
Entry/Exit Lighting....................................... 212
Event Data Recorders (EDR)...................... 555
Extender, Safety Belt..................................... 38
Exterior Cargo Lamps................................. 211
Exterior Lamps............................................ 204
569

O
Odometer.................................................... 227
Odometer, Trip............................................ 227
Off-Road Driving.......................................... 339
Off-Road Recovery...................................... 335
Oil
Engine..................................................... 407
Pressure Light.......................................... 240
Oil, Engine Oil Life System......................... 410
Older Children, Restraints............................. 39
Online Owner Center................................... 545
OnStar
®System, see OnStar®Manual........ 152
Other Warning Devices................................ 194
Outlet Adjustment........................................ 224
Outlet(s), Accessory Power.......................... 217
Outside
Power Foldaway Mirrors........................... 149
Overheated Engine Protection Operating
Mode....................................................... 425
Owner Checks and Services....................... 529
Owners, Canadian.......................................... 3
P
Paint, Damage............................................ 505
Park Aid...................................................... 213
Park (P)
Shifting Into............................................. 138
Shifting Out of......................................... 140
Parking
Assist....................................................... 213
Brake....................................................... 136
Over Things That Burn............................ 140
Passenger Airbag Status Indicator............... 230
Passenger Sensing System........................... 78
Passing....................................................... 336
PASS-Key
®III+........................................... 120
PASS-Key®III+ Operation........................... 121
Power
Accessory Outlet(s).................................. 217
Door Locks.............................................. 102
Electrical System..................................... 509
Lumbar Controls.......................................... 9
Reclining Seatbacks................................... 14
574

Restraint System Check
Checking the Restraint Systems................. 86
Replacing Restraint System Parts
After a Crash......................................... 87
Retained Accessory Power (RAP)................ 125
Right Front Passenger Position, Safety
Belts.......................................................... 31
Road Sensing Suspension........................... 329
Roadside
Service.................................................... 548
Rocking Your Vehicle to Get it Out.............. 370
Routing, Engine Drive Belt.......................... 536
Running Boards, Power............................... 114
Running the Engine While Parked............... 142
S
Safety Belt
Passenger Reminder Light....................... 228
Pretensioners............................................. 38
Reminder Light........................................ 228
Safety Belts
Care of.................................................... 500
Driver Position........................................... 23
How to Wear Safety Belts Properly............ 23Safety Belts (cont.)
Questions and Answers About
Safety Belts............................................ 22
Rear Safety Belt Comfort Guides............... 35
Rear Seat Passengers............................... 32
Right Front Passenger Position.................. 31
Safety Belt Extender.................................. 38
Safety Belt Use During Pregnancy............. 31
Safety Belts Are for Everyone.................... 18
Shoulder Belt Height Adjuster.................... 30
Safety Warnings and Symbols......................... 4
Scheduled Maintenance............................... 523
Seats
Head Restraints......................................... 15
Heated and Cooled Seats.......................... 11
Heated Seats............................................. 10
Memory, Mirrors and Pedals...................... 12
Power Lumbar............................................. 9
Power Reclining Seatbacks........................ 14
Power Seats................................................ 8
Rear Seat Operation.................................. 16
Secondary Latch System............................. 489
Securing a Child Restraint
Rear Seat Position..................................... 60
Right Front Seat Position........................... 62
576
