Using Cruise Control on Hills
How well your cruise control will work on hills
depends upon your speed, load, and the
steepness of the hills. When going up steep hills,
you may have to step on the accelerator pedal to
maintain the vehicle’s speed. When going downhill,
you may have to brake or shift to a lower gear to
keep the vehicle’s speed down. Of course, applying
the brake takes you out of cruise control. Many
drivers nd this to be too much trouble and do not
use cruise control on steep hills.
Ending Cruise Control
There are three ways to end cruise control:
Step lightly on the brake pedal.
Press the cancel button on the steering wheel.
Press the On/Off button on the steering wheel.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
the cruise control set speed memory is erased.
Exterior Lamps
The exterior lamps
control is located on
the instrument panel
to the left of the
steering wheel.
It controls the following systems:
Headlamps
Taillamps
Parking Lamps
License Plate Lamps
Instrument Panel Lights
204

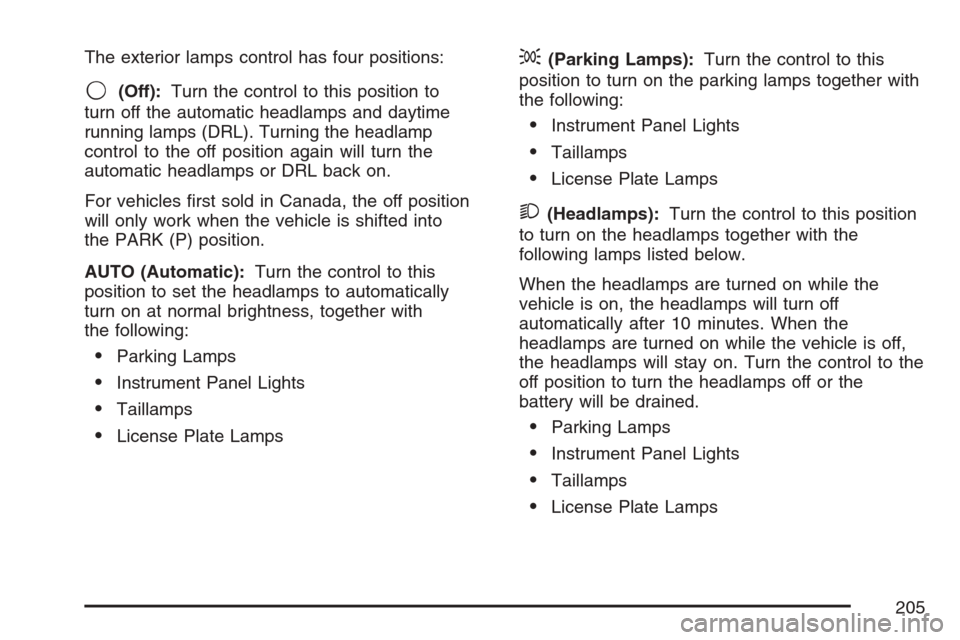

The exterior lamps control has four positions:
9(Off):Turn the control to this position to
turn off the automatic headlamps and daytime
running lamps (DRL). Turning the headlamp
control to the off position again will turn the
automatic headlamps or DRL back on.
For vehicles rst sold in Canada, the off position
will only work when the vehicle is shifted into
the PARK (P) position.
AUTO (Automatic):Turn the control to this
position to set the headlamps to automatically
turn on at normal brightness, together with
the following:
Parking Lamps
Instrument Panel Lights
Taillamps
License Plate Lamps
;(Parking Lamps):Turn the control to this
position to turn on the parking lamps together with
the following:
Instrument Panel Lights
Taillamps
License Plate Lamps
2(Headlamps):Turn the control to this position
to turn on the headlamps together with the
following lamps listed below.
When the headlamps are turned on while the
vehicle is on, the headlamps will turn off
automatically after 10 minutes. When the
headlamps are turned on while the vehicle is off,
the headlamps will stay on. Turn the control to the
off position to turn the headlamps off or the
battery will be drained.
Parking Lamps
Instrument Panel Lights
Taillamps
License Plate Lamps
205

IntellliBeam™ Intelligent High-Beam
Headlamp Control System
If your vehicle has this feature, be sure to read
this entire section before using it.
IntellliBeam™ is an enhancement to your vehicle’s
headlamp system. Using a digital light sensor
on your rearview mirror, this system will turn the
vehicle’s high-beam headlamps on and off
according to surrounding traffic conditions.
The IntellliBeam™ system will turn your high-beam
headlamps on when it is dark enough, there is
no other traffic present, and the IntellliBeam
system is enabled.
Turning On and Enabling IntellliBeam™
Press and release the IntellliBeam™ button on the
inside rear view mirror. The IntellliBeam™ indicator
on the mirror will turn on to let you know the system
has been turned on. Once the system has been
turned on, it will remain on each time the vehicle is
started. Additionally, the IntellliBeam system must
be enabled.To enable the IntellliBeam™ system, turn the
exterior lamp control to AUTO, with the turn
signal/multifunction lever in its neutral position.
The High-Beam On Light will appear on the
instrument panel cluster when the high-beams
are on. SeeHighbeam On Light on page 241.
Driving with IntellliBeam™
IntellliBeam™ will only activate your high-beams
when driving over 20 mph (32 km/h).
The high-beam headlamps will remain on, under
the automatic control of IntellliBeam™, until any
of the following situations occur:
The system detects an approaching vehicle’s
headlamps.
The system detects a preceding vehicle’s
taillamps.
The outside light is bright enough that
high-beam headlamps are not required.
The vehicle’s speed drops below
15 mph (24 km/h).
206

The headlamp stalk is moved forward to
the high-beam position. SeeHeadlamp
High/Low-Beam Changer on page 197.
When either of these conditions occur, the
IntellliBeam™ feature will be disabled and
the IntellliBeam™ light in the mirror will turn
off until the high-beam stalk is returned to
the neutral position.
If IntellliBeam™ was using low-beams prior to
this action, the IntellliBeam™ feature will be
temporarily disabled until the stalk is returned
to the neutral position.
The exterior lamp control is turned to any
setting except AUTO.
When this occurs, IntellliBeam™ will be
disabled until the control is turned back to
the AUTO position.
The IntellliBeam™ system is turned off at
the inside rearview mirror.IntellliBeam™ may not turn off the high-beams if
the system cannot detect other vehicle’s lamps
because of any of the following:
The others vehicle’s lamp(s) are missing,
damaged, obstructed from view or otherwise
undetected.
The other vehicle’s lamp(s) are covered with
dirt, snow and/or road spray.
The other vehicle’s lamp(s) cannot be detected
due to dense exhaust, smoke, fog, snow, road
spray, mist or other airborne obstructions.
Your vehicle’s windshield is dirty, cracked or
obstructed by something that blocks the
view of the IntellliBeam light sensor.
Your vehicle’s windshield is covered with ice,
dirt, haze or other obstructions.
Your vehicle is loaded such that the front end
of the vehicle points upward, causing the
IntellliBeam sensor to aim high and not detect
headlamps and taillamps.
You are driving on winding or hilly roads.
You may need to manually disable or cancel the
high-beam headlamps by turning the low-beam
headlamps on, if any of the above conditions exist.
207

Headlamps on Reminder
If a door is open, a reminder chime will sound
when your headlamps or parking lamps are
manually turned on and your key is out of the
ignition. To turn off the chime, turn the headlamp
switch to off or AUTO and then back on, or
close and re-open the door. In the AUTO mode,
the headlamps turn off once the ignition is in
LOCK or may remain on until the headlamp delay
ends (if enabled in the DIC). See “Exit Lighting”
underDIC Vehicle Customization on page 257.
Daytime Running Lamps (DRL)
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional daytime running lamps
are required on all vehicles rst sold in Canada.The DRL system will come on when the following
conditions are met:
The ignition is on.
The exterior lamps control is in AUTO.
The transmission is not in PARK (P).
The light sensor determines it is daytime.
When the DRL are on, only your DRL lamps will
be on. The taillamps, sidemarker, and other lamps
will not be on. The instrument panel will not be
lit up either.
When it begins to get dark, the automatic
headlamp system will switch from DRL to the
headlamps.
To turn off the DRL lamps, turn the exterior lamps
control to the OFF position and then release.
For vehicles rst sold in Canada, the transaxle
must be in the Park (P) position, before the DRL
lamps can be turned off.
As with any vehicle, you should turn on the
regular headlamp system when you need it.
209

Automatic Headlamp System
When it is dark enough outside and the headlamp
switch is in AUTO, your automatic headlamp
system will turn on your headlamps at the normal
brightness along with other lamps such as the
taillamps, sidemarker, parking lamps, roof marker
lamps, and the instrument panel lights. The
radio lights will also be dim.
To turn off the automatic headlamp system, turn
the exterior lamps switch to the off position
and then release. For vehicles rst sold in Canada,
the transaxle must be in the Park (P) position,
before the automatic headlamp system can
be turned off.
Your vehicle has a light sensor located on the
top of the instrument panel. Be sure it is not
covered, or the system will be on whenever the
ignition is on.
The system may also turn on your headlamps
when driving through a parking garage, heavy
overcast weather, or a tunnel. This is normal.There is a delay in the transition between the
daytime and nighttime operation of the Daytime
Running Lamps (DRL) and the automatic headlamp
systems so that driving under bridges or bright
overhead street lights does not affect the system.
The DRL and automatic headlamp system will only
be affected when the light sensor sees a change in
lighting lasting longer than the delay.
If you start your vehicle in a dark garage, the
automatic headlamp system will come on
immediately. Once you leave the garage, it will
take approximately one minute for the automatic
headlamp system to change to DRL if it is
light outside. During that delay, your instrument
panel cluster may not be as bright as usual. Make
sure your instrument panel brightness control is
in the full bright position. SeeInstrument
Panel Brightness on page 211.
210

Fog Lamps
If your vehicle has fog lamps you can use them
for better vision in foggy or misty conditions. Your
parking lamps and/or low-beam headlamps
must be on for your fog lamps to work.
The fog lamp button is located on the left side of
your instrument panel.
-(Fog Lamps):Press the button to turn the fog
lamps on. An indicator light will come on in the
instrument panel cluster to let you know that
the fog lamps are on. Press the button again to
turn them off.
Remember, fog lamps alone will not give off as
much light as your headlamps. Never use your fog
lamps in the dark without turning on the headlamps.
The fog lamps will go off whenever your
high-beam headlamps come on. When the high
beams go off, the fog lamps will come on again.
The fog lamps will be cancelled after the ignition is
turned off. If you still want to use the fog lamps
after you restart the vehicle, you will need to press
the fog lamp button again.Some localities have laws that require the
headlamps to be on along with the fog lamps.
Exterior Cargo Lamps
You can use the cargo lamp if you need more
light in the cargo area of your vehicle or in
the top-box storage units. Some vehicles will only
have a cargo lamp in the driver side top box.
The cargo lamps come on by turning on the
interior dome lamps.
Instrument Panel Brightness
The knob for this feature is located next to the
exterior lamps control.
D(Instrument Panel Lights):Turn the knob
clockwise or counterclockwise to brighten or dim
the instrument panel lights and the radio
display. This will only work if the headlamps or
parking lamps are on.
To turn on the dome lamps, with the vehicle doors
closed, turn the knob all the way to the right.
211

Be careful not to cover the sensor located on the
top of the instrument panel near the windshield.
This sensor regulates air temperature based
on sun load and also turns on your headlamps.
To avoid blowing cold air in cold weather, the
system will delay turning on the fan until warm air
is available. The length of delay depends on
the engine coolant temperature. Pressing the fan
switch will override this delay and change the
fan to a selected speed.
O(Off):Press the driver’s side temperature
knob to turn off the climate control system.
Outside air will still enter the vehicle, and will
be directed to the oor. This direction can
be changed by pressing the mode button. The
temperature can also be adjusted using either
temperature knob. Press the up or down arrows
on the fan switch, the defrost button, the
AUTO button, driver’s side temperature knob,
or the air conditioning button to turn the system on
when it is off.
Manual Operation
You may manually adjust the air delivery mode or
fan speed.
y9 z(Fan):The switch with the fan symbol
allows you to manually adjust the fan speed.
Press the up arrow to increase fan speed and the
down arrow to decrease fan speed.
Pressing this button when the system is off will
turn the system on.
Pressing either arrow while using automatic
operation will place the fan in manual operation.
The fan setting will display and the AUTO light will
turn off. The air delivery will remain in automatic
operation.
N(Mode):Press this button to manually change
the direction of the airow in your vehicle.
Repeatedly press the button until the desired
mode appears on the display.
When the system is turned off, the display will go
blank after displaying the current status of the
system.
221

Fog Lamp Light
The fog lamps light will
come on when the fog
lamps are in use.
The light will go out when the fog lamps are
turned off. SeeFog Lamps on page 211for
more information.
Lights On Reminder
This light comes on
whenever the parking
lamps are on.
SeeExterior Lamps on page 204for more
information.
Cruise Control Light
This light comes on
whenever you set your
cruise control.
The light will go out when the cruise control is
turned off. SeeCruise Control on page 201for
more information.
Highbeam On Light
This light will come on
when the high-beam
headlamps are in use.
SeeHeadlamp High/Low-Beam Changer on
page 197.
241

What is beyond the hill? Is there a cliff, an
embankment, a drop-off, a fence? Get out
and walk the hill if you do not know. It is the
smart way to nd out.
Is the hill simply too rough? Steep hills often
have ruts, gullies, troughs, and exposed
rocks because they are more susceptible to
the effects of erosion.
Driving Uphill
Once you decide you can safely drive up the hill,
you need to take some special steps.
Use a low gear and get a rm grip on the
steering wheel.
Get a smooth start up the hill and try to
maintain your speed. Do not use more power
than you need, because you do not want
the wheels to start spinning or sliding.
Try to drive straight up the hill if at all possible.
If the path twists and turns, you might want to
nd another route.
{CAUTION:
Turning or driving across steep hills can
be dangerous. You could lose traction,
slide sideways, and possibly roll over.
You could be seriously injured or killed.
When driving up hills, always try to go
straight up.
Ease up on your speed as you approach the
top of the hill.
Attach a ag to the vehicle to make you more
visible to approaching traffic on trails or hills.
Sound the horn as you approach the top of the
hill to let opposing traffic know you are there.
Use the headlamps even during the day. They
make you more visible to oncoming traffic.
346
