Black plate (34,1)Cadillac Escalade EXT Owner Manual - 2011
10-34 Vehicle Care
Park Brake and P (Park)
Mechanism Check
{WARNING
When you are doing this check,
the vehicle could begin to move.
You or others could be injured
and property could be damaged.
Make sure there is room in front
of the vehicle in case it begins to
roll. Be ready to apply the regular
brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the
vehicle facing downhill. Keeping
your foot on the regular brake, set
the parking brake.
.To check the parking brake's
holding ability: With the engine
running and the transmission in
N (Neutral), slowly remove foot
pressure from the regular brake
pedal. Do this until the vehicle is
held by the parking brake only.
.To check the P (Park)
mechanism's holding ability:
With the engine running, shift
to P (Park). Then release the
parking brake followed by the
regular brake.
Contact your dealer if service is
required.
Wiper Blade Replacement
Windshield wiper blades should be
inspected for wear or cracking.
See Scheduled Maintenance on
page 11‑2.
Replacement blades come in
different types and are removed in
different ways.
To replace the wiper blade
assembly:
1. Pull the windshield wiper arm connector away from the
windshield.
2. Squeeze the grooved areas on
each side of the blade, and
rotate the blade assembly away
from the arm connector.

Black plate (1,1)Cadillac Escalade EXT Owner Manual - 2011
Service and Maintenance 11-1
Service and
Maintenance
General Information
General Information . . . . . . . . . . 11-1
Scheduled Maintenance
Scheduled Maintenance . . . . . 11-2
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . 11-7
Maintenance Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . 11-9
Maintenance Records
Maintenance Records . . . . . . 11-10
General Information
Notice: Maintenance
intervals, checks, inspections,
recommended fluids, and
lubricants are necessary to keep
this vehicle in good working
condition. Damage caused by
failure to follow scheduled
maintenance might not be
covered by the vehicle warranty.
As the vehicle owner, you are
responsible for the scheduled
maintenance in this section. We
recommend having your dealer
perform these services. Proper
vehicle maintenance helps to
keep the vehicle in good working
condition, improves fuel economy,
and reduces vehicle emissions for
better air quality. Because of all the different ways
people use vehicles, maintenance
needs vary. The vehicle might need
more frequent checks and services.
Please read the information under
Scheduled Maintenance. To keep
the vehicle in good condition, see
your dealer.
The maintenance schedule is for
vehicles that:
.Carry passengers and cargo
within recommended limits on
the Tire and Loading Information
label. See
Vehicle Load Limits
on page 9‑23.
.Are driven on reasonable road
surfaces within legal driving
limits.

Black plate (2,1)Cadillac Escalade EXT Owner Manual - 2011
11-2 Service and Maintenance
.Are driven off-road in the
recommended manner. See
Off-Road Driving on page 9‑7.
.Use the recommended fuel.
SeeRecommended Fuel on
page 9‑58.
{WARNING
Performing maintenance work can
be dangerous. Some jobs can
cause serious injury. Perform
maintenance work only if you
have the required know-how and
the proper tools and equipment.
If in doubt, see your dealer to
have a qualified technician do
the work. See Doing Your Own
Service Work on page 10‑4. At your dealer, you can be certain
that you will receive the highest
level of service available. Your
dealer has specially trained
service technicians, uses genuine
replacement parts, as well as,
up‐to‐date tools and equipment
to ensure fast and accurate
diagnostics.
The proper replacement parts,
fluids, and lubricants to use are
listed in
Recommended Fluids and
Lubricants on page 11‑7 and
Maintenance Replacement Parts on
page 11‑9. We recommend the use
of genuine parts from your dealer.
Rotation of New Tires
To maintain ride, handling, and
performance of the vehicle, it is
important that the first rotation
service for new tires be performed.
Tires should be rotated every
12 000 km/7,500 miles. See Tire
Rotation on page 10‑61.
Scheduled
Maintenance
When the Change Engine Oil
Soon Message Displays
Change engine oil and filter. See
Engine Oil on page 10‑8. An
Emission Control Service.
When the CHANGE ENGINE OIL
SOON message displays, service
is required for the vehicle as
soon as possible, within the next
1 000 km/600 miles. If driving under
the best conditions, the engine oil
life system might not indicate the
need for vehicle service for more
than a year. The engine oil and filter
must be changed at least once a
year and the oil life system must
be reset. Your dealer has trained
service technicians who will perform
this work and reset the system.

Black plate (10,1)Cadillac Escalade EXT Owner Manual - 2011
11-10 Service and Maintenance
Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Maintenance Record
DateOdometer
Reading Serviced By Maintenance Stamp Services Performed

Black plate (7,1)Cadillac Escalade EXT Owner Manual - 2011
Customer Information 13-7
Online Owner Center
Cadillac Owner Center (U.S.)—
www.cadillacownercenter.com
Information and services
customized for your specific
vehicle —all in one convenient
place.
.Digital owner manual, warranty
information, and more
.Store online service and
maintenance records
.Cadillac dealer locator for
service nationwide
.Exclusive privileges and offers
.Recall notices for your specific
vehicle
.OnStar and GM Cardmember
Services Earnings summaries Other Helpful Links:
Cadillac
—www.cadillac.com
Cadillac Merchandise —
www.cadillaccollection.com
Help Center —www.cadillac.com/
pages/mds/helpcenter/faq.do
.FAQ (Frequently Asked
Questions)
.Contact Us
My GM Canada —www.gm.ca
My GM Canada is a
password-protected section of
www.gm.ca where you can save
information on GM vehicles, get
personalized offers, and use handy
tools and forms with greater ease. Here are a few of the valuable
tools and services you will have
access to:
.My Showroom: Find and save
information on vehicles and
current offers in your area.
.My Dealers: Save details such
as address and phone number
for each of your preferred GM
dealers.
.My Driveway: Access quick
links to parts and service
estimates, check trade-in
values, or schedule a service
appointment by adding the
vehicles you own to your
driveway profile.
.My Preferences: Manage your
profile and use tools and forms
with greater ease.
To sign up, visit the My GM.ca
section within www.gm.ca.

Black plate (11,1)Cadillac Escalade EXT Owner Manual - 2011
Customer Information 13-11

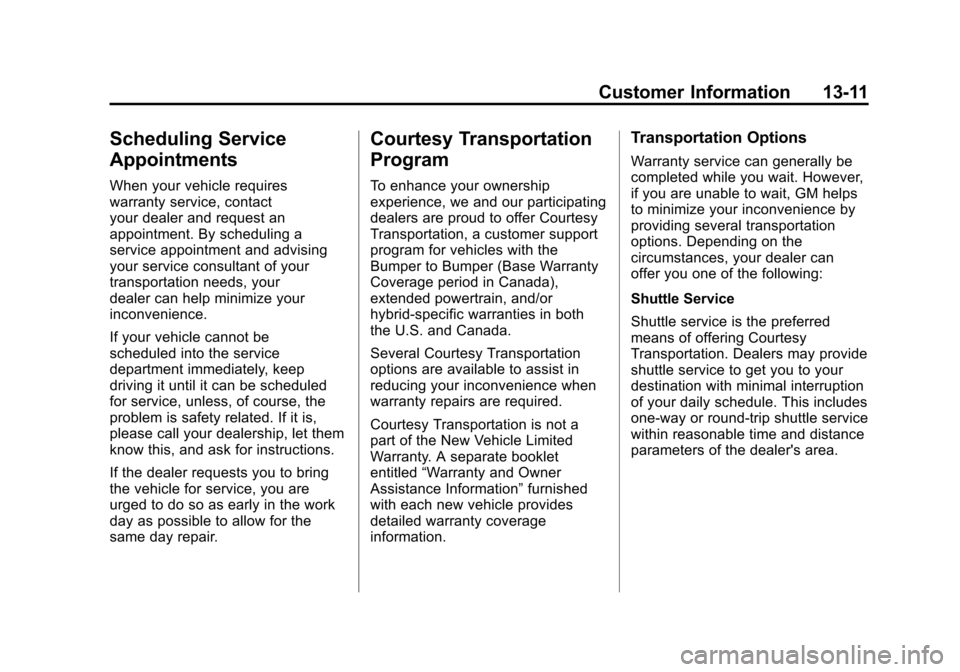

Scheduling Service
Appointments
When your vehicle requires
warranty service, contact
your dealer and request an
appointment. By scheduling a
service appointment and advising
your service consultant of your
transportation needs, your
dealer can help minimize your
inconvenience.
If your vehicle cannot be
scheduled into the service
department immediately, keep
driving it until it can be scheduled
for service, unless, of course, the
problem is safety related. If it is,
please call your dealership, let them
know this, and ask for instructions.
If the dealer requests you to bring
the vehicle for service, you are
urged to do so as early in the work
day as possible to allow for the
same day repair.
Courtesy Transportation
Program
To enhance your ownership
experience, we and our participating
dealers are proud to offer Courtesy
Transportation, a customer support
program for vehicles with the
Bumper to Bumper (Base Warranty
Coverage period in Canada),
extended powertrain, and/or
hybrid‐specific warranties in both
the U.S. and Canada.
Several Courtesy Transportation
options are available to assist in
reducing your inconvenience when
warranty repairs are required.
Courtesy Transportation is not a
part of the New Vehicle Limited
Warranty. A separate booklet
entitled“Warranty and Owner
Assistance Information” furnished
with each new vehicle provides
detailed warranty coverage
information.
Transportation Options
Warranty service can generally be
completed while you wait. However,
if you are unable to wait, GM helps
to minimize your inconvenience by
providing several transportation
options. Depending on the
circumstances, your dealer can
offer you one of the following:
Shuttle Service
Shuttle service is the preferred
means of offering Courtesy
Transportation. Dealers may provide
shuttle service to get you to your
destination with minimal interruption
of your daily schedule. This includes
one‐way or round‐trip shuttle service
within reasonable time and distance
parameters of the dealer's area.

Black plate (16,1)Cadillac Escalade EXT Owner Manual - 2011
13-16 Customer Information
Owner Information
Owner publications are written
specifically for owners and intended
to provide basic operational
information about the vehicle.
The Owner Manual includes the
Maintenance Schedule for all
models.
In-Portfolio: Includes a Portfolio,
Owner Manual, and Warranty
Booklet.
RETAIL SELL PRICE:
$35.00 (U.S.) plus handling and
shipping fees
Without Portfolio: Owner
Manual only.
RETAIL SELL PRICE:
$25.00 (U.S.) plus handling and
shipping fees
Current and Past Models
Technical Service Bulletins and
Manuals are available for current
and past model GM vehicles.
ORDER TOLL FREE:
1-800-551-4123 Monday - Friday
8:00 AM - 6:00 PM Eastern Time
For Credit Card Orders Only
(VISA-MasterCard-Discover), visit
Helm, Inc. at: www.helminc.com
Or you can write to:
Helm, Incorporated
P.O. Box 07130
Detroit, MI 48207
Prices are subject to change
without notice and without incurring
obligation. Allow ample time for
delivery.
Note to Canadian Customers: All
listed prices are quoted in U.S.
funds. Canadian residents are to
make checks payable in U.S. funds.
Reporting Safety
Defects
Reporting Safety Defects
to the United States
Government
If you believe that your vehicle
has a defect which could cause
a crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
General Motors.
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds
that a safety defect exists in a
group of vehicles, it may order
a recall and remedy campaign.
However, NHTSA cannot
become involved in individual
problems between you, your
dealer, or General Motors.

Black plate (10,1)Cadillac Escalade EXT Owner Manual - 2011
i-10 INDEX
RestraintsWhere to Put . . . . . . . . . . . . . . . . . 3-46
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . 9-34
Ride Control Systems Messages . . . . . . . . . . . . . . . . . . . . 5-32
Roadside Service . . . . . . . 13-8, 13-10
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . 2-25
Roof Rack System . . . . . . . . . . . . . 4-12
Rotation, Tires . . . . . . . . . . . . . . . . 10-61
Routing, Engine Drive Belt . . . . . 12-3
Running the Vehicle While Parked . . . . . . . . . . . . . . . . . . . . . . . 9-38
S
Safety Belts . . . . . . . . . . . . . . . . . . . 3-10Care . . . . . . . . . . . . . . . . . . . . . . . . . . 3-24
Extender . . . . . . . . . . . . . . . . . . . . . . 3-23
How to Wear Safety Belts
Properly . . . . . . . . . . . . . . . . . . . . . 3-13
Lap-Shoulder Belt . . . . . . . . . . . . 3-19
Reminders . . . . . . . . . . . . . . . . . . . . 5-12
Replacing After a Crash . . . . . . 3-24
Use During Pregnancy . . . . . . . . 3-23 Safety Defects Reporting
Canadian Government . . . . . . 13-17
General Motors . . . . . . . . . . . . . 13-17
U.S. Government . . . . . . . . . . . 13-16
Safety Locks . . . . . . . . . . . . . . . . . . . . 2-8
Safety System Check . . . . . . . . . . 3-24
Satellite Radio . . . . . . . . . . . . . . . . . 7-15
Scheduled Maintenance . . . . . . . 11-2
Scheduling Appointments . . . . . 13-11
Seats Head Restraints . . . . . . . . . . . . . . . 3-2
Heated and Ventilated Front . . . 3-7
Lumbar Adjustment, Front . . . . . 3-5
Power Adjustment, Front . . . . . . 3-3
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Reclining Seatbacks . . . . . . . . . . . 3-6
Secondary Latch System . . . . . 10-82
Securing Child Restraints . . . . . . . . . . . . . . 3-54, 3-56
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . 5-21
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 2-16 Service
Accessories and
Modifications . . . . . . . . . . . . . . . . 10-3
Doing Your Own Work . . . . . . . . 10-4
Engine Soon Light . . . . . . . . . . . . 5-15
Maintenance Records . . . . . . .11-10
Maintenance, General Information . . . . . . . . . . . . . . . . . . 11-1
Parts Identification Label . . . . . 12-1
Publications Ordering Information . . . . . . . . . . . . . . . . 13-15
Scheduling Appointments . . . .13-11
Servicing the Airbag-Equipped Vehicle . . . . . 3-37
Shift Lock Control Function Check, Automatic
Transmission . . . . . . . . . . . . . . . . 10-33
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 9-35
Out of Park . . . . . . . . . . . . . . . . . . . 9-36
Sidemarker
Bulb Replacement . . . . . . . . . . 10-38
Signals, Turn and Lane-Change . . . . . . . . . . . . . . . . . 6-7
Specifications and
Capacities . . . . . . . . . . . . . . . . . . . . 12-2
