Technical Data 12-1
Technical Data Vehicle Data Capacities and
Specifications . . . . . . . . . . . . . . 12-2
Engine Drive Belt Routing . . . 12-3

Black plate (2,1)Cadillac Escalade Hybrid - 2011
12-2 Technical Data

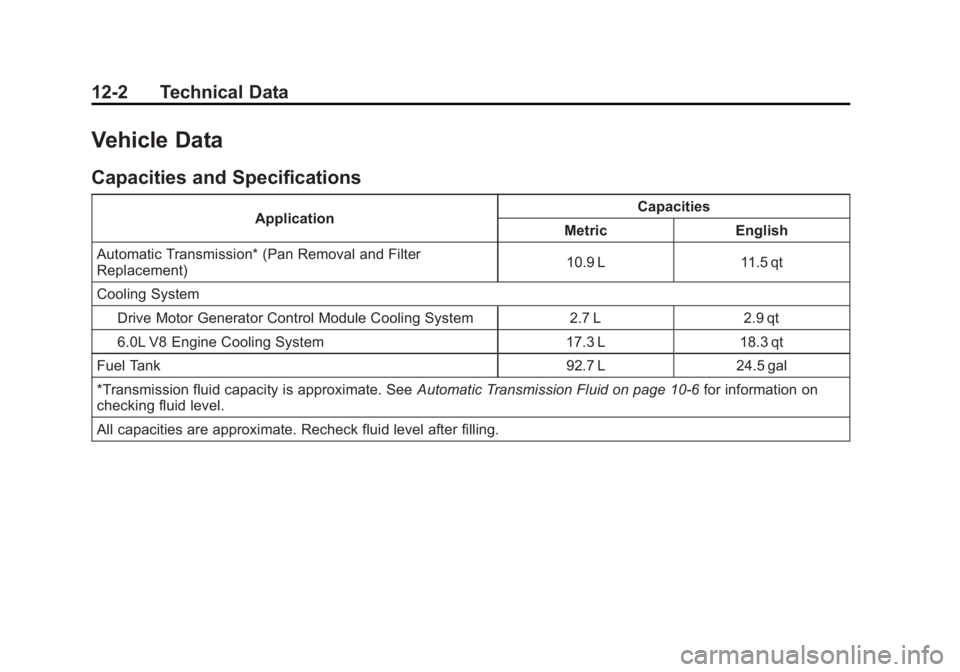

Vehicle Data Capacities and Specifications Application Capacities
Metric English
Automatic Transmission* (Pan Removal and Filter
Replacement) 10.9 L 11.5 qt
Cooling System
Drive Motor Generator Control Module Cooling System 2.7 L 2.9 qt
6.0L V8 Engine Cooling System 17.3 L 18.3 qt
Fuel Tank 92.7 L 24.5 gal
*Transmission fluid capacity is approximate. See Automatic Transmission Fluid on page 10 ‑ 6 for information on
checking fluid level.
All capacities are approximate. Recheck fluid level after filling.

Black plate (3,1)Cadillac Escalade Hybrid - 2011

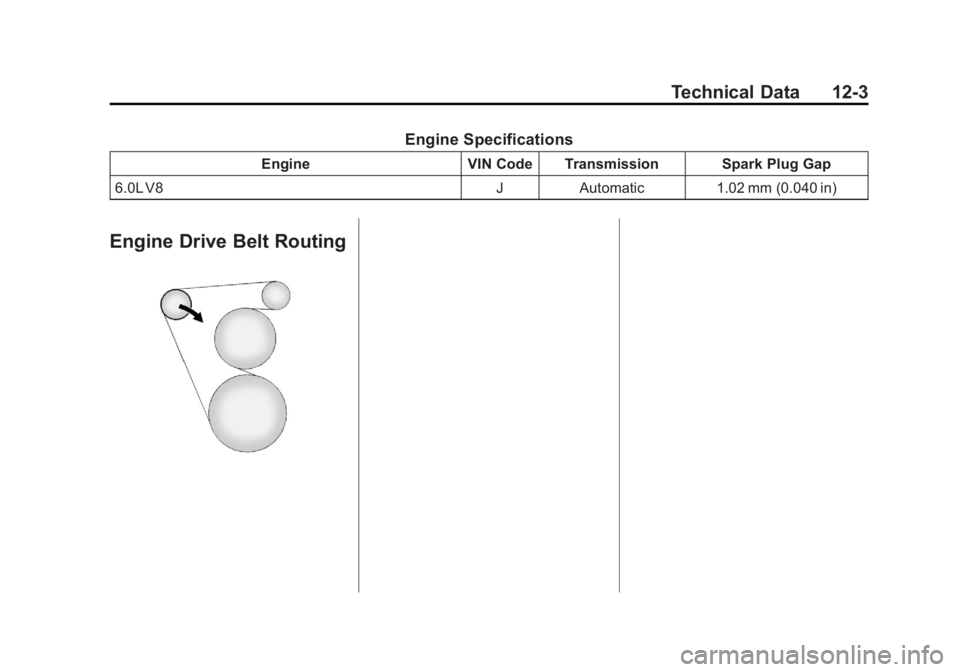

Technical Data 12-3Engine SpecificationsEngine VIN Code Transmission Spark Plug Gap
6.0L V8 J Automatic 1.02 mm (0.040 in)
Engine Drive Belt Routing

Black plate (4,1)Cadillac Escalade Hybrid - 2011
12-4 Technical Data
2 NOTES
