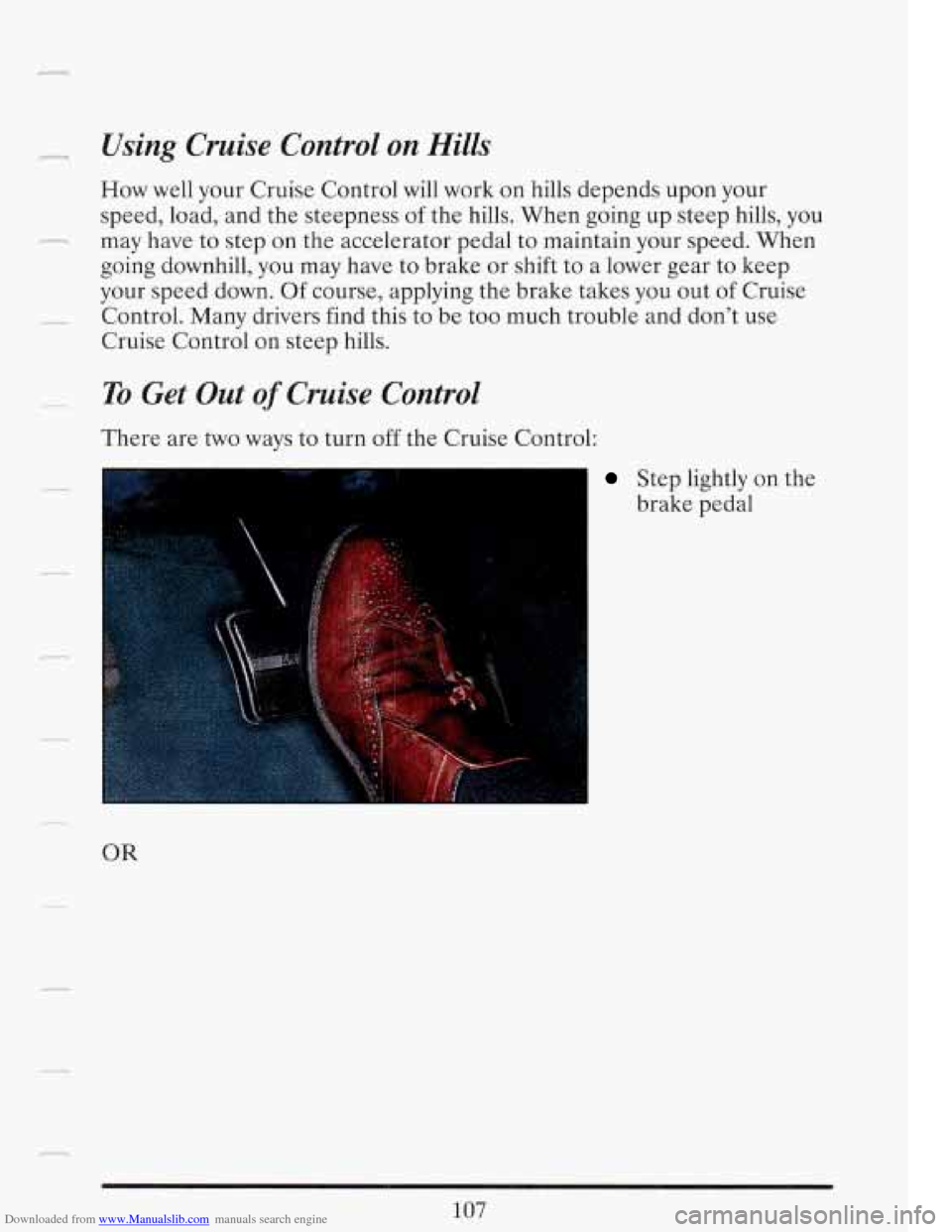

Using Cruise Control on Hills
How well your Cruise Control will work on hills depends upon your
speed, load, and the steepness of the hills. When going up steep hills, you
may have to step on the accelerator pedal to maintain your speed. When
going downhill, you may have to brake or shift to a lower gear to keep
your speed down. Of course, applying the brake takes you out of Cruise
Control. Many drivers find this to be too much trouble and don't use
Cruise Control on steep hills.
To Get Out of Cruise Control
There are two ways to turn off the Cruise Control:
OR
i
Step lightly on the
brake pedal

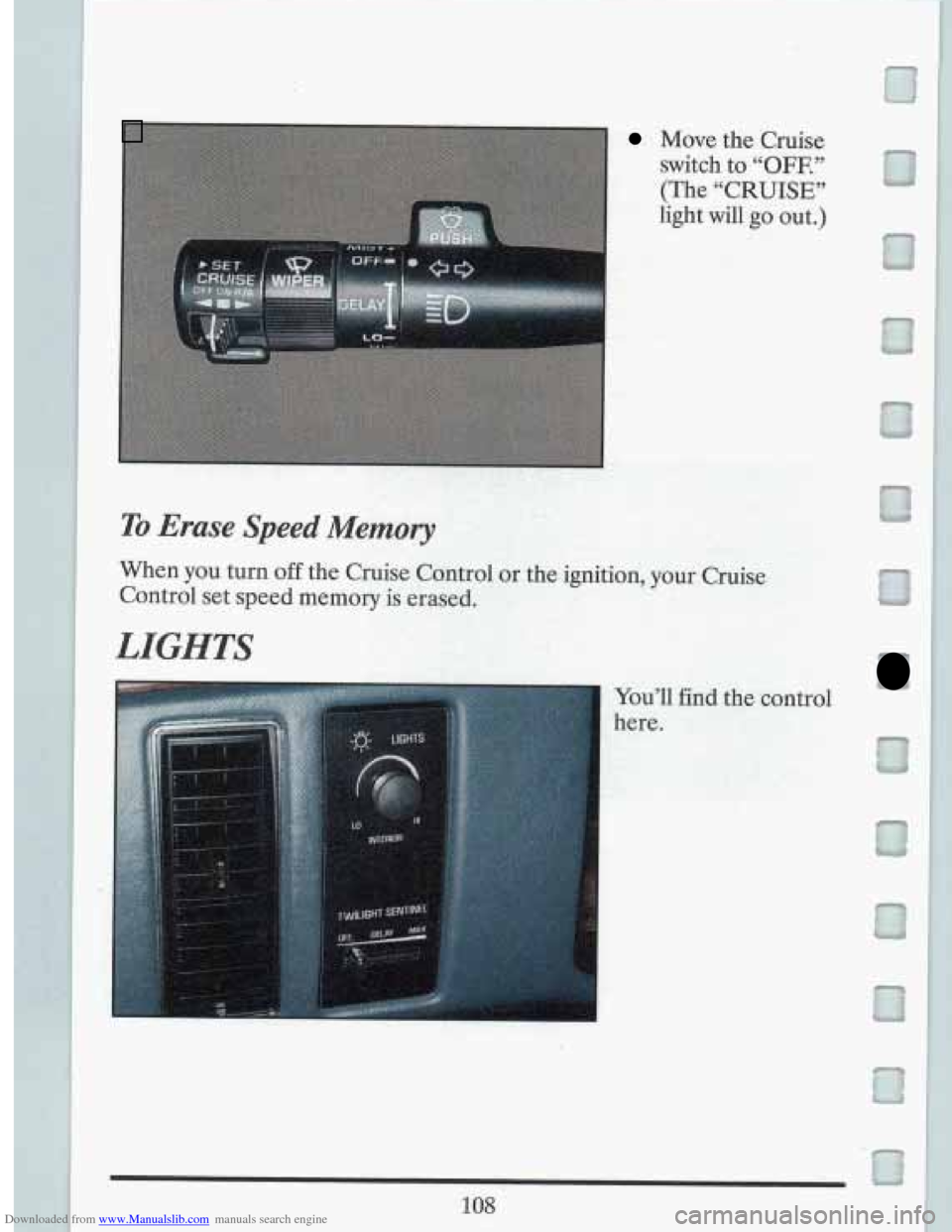

Downloaded from www.Manualslib.com manuals search engine Move the Cruise
switch to
“OFF.”
(The “CRUISE”
light
will go out.)
~ ~. ..
-:
To Erase Speed Memory
When you turn off the Cruise Control or the igni
Control set speed memory is erased.
LIGHTS
I
tion, your Cruise
You’ll find the control
here.

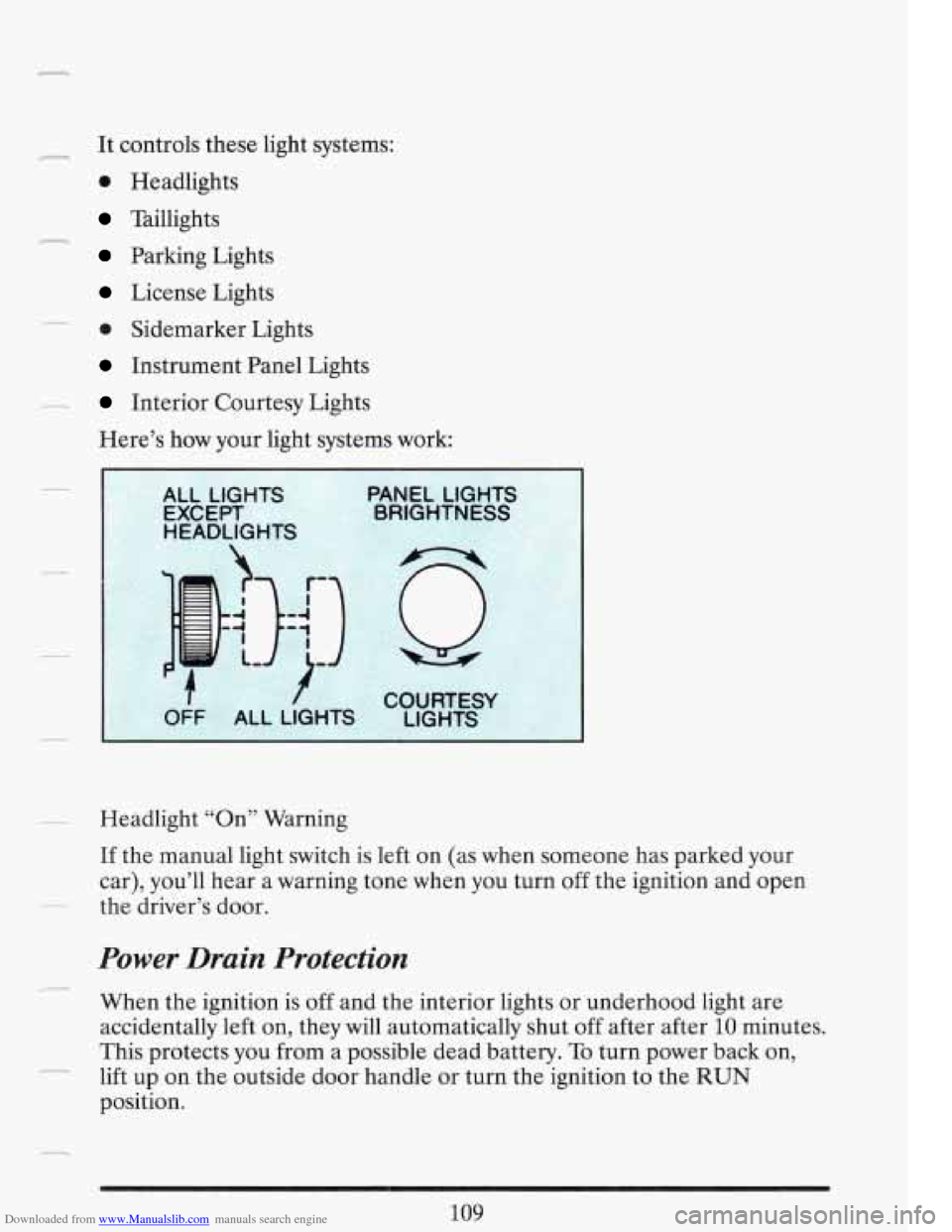

Downloaded from www.Manualslib.com manuals search engine .:- It controls these light systems:
e Headlights
Taillights
Parking Lights
License Lights
0 Sidemarker Lights
Instrument Panel Lights
g_
~
- Interior Courtesy Lights
Here’s how your light systems work:
Headlight “On” Warning
If the manual light switch is left on (as when someone has parked your
car), you’ll hear a warning tone when you turn
off the ignition and open
the driver’s door. -
Power Drain Protection
*-
When the ignition is off and the interior lights or underhood light are
accidentally left on, they will automatically shut off after after
10 minutes.
This protects you from a possible dead battery. To turn power back on,
lift up on the outside door handle or turn the ignition to the
RUN
position.
-

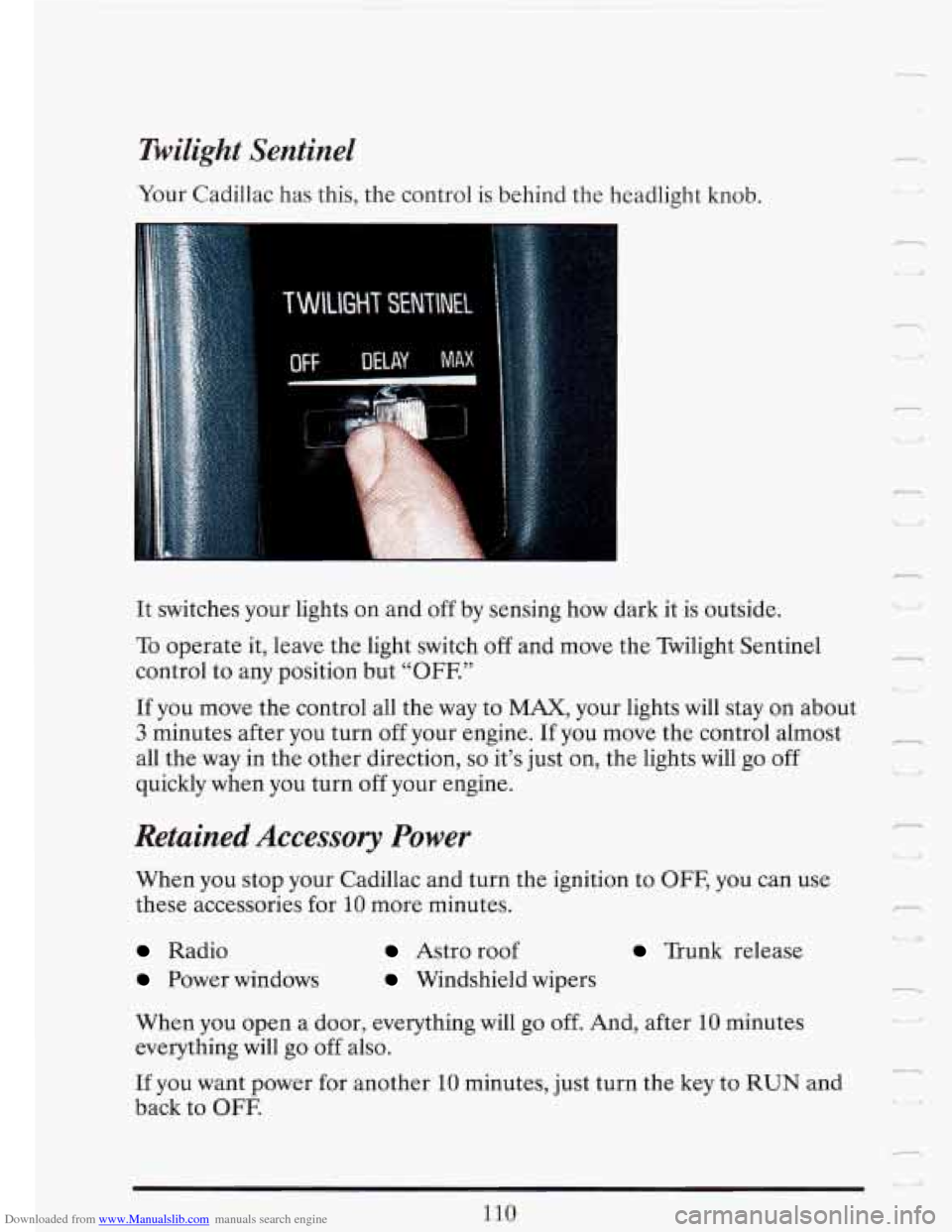

Downloaded from www.Manualslib.com manuals search engine Twilight Sentinel
Your Cadillac has this, the control is behind the headlight knob.
1
It switches your lights on and off by sensing how dark it is outside.
‘1
-.
r 1
U
To operate it, leave the light switch off and move the Twilight Sentinel
control to any position but
“OFE”
-
I
If you move the control all the way to MAX, your lights will stay on about
3 minutes after you turn off your engine. If you move the control almost
all the way in the other direction,
so it’s just on, the lights will go off
quickly when you turn off your engine.
Retained Accessory Power
When you stop your Cadillac and turn the ignition to OFF, you can use
these accessories for
10 more minutes.
Radio
Power windows
Astro roof
Windshield wipers
Trunk release
When
you open a door, everything will go off. And, after 10 minutes
everything will go
off also.
If
you want power for another 10 minutes, just turn the key to RUN and
back to
OFF.
-1

Downloaded from www.Manualslib.com manuals search engine .-

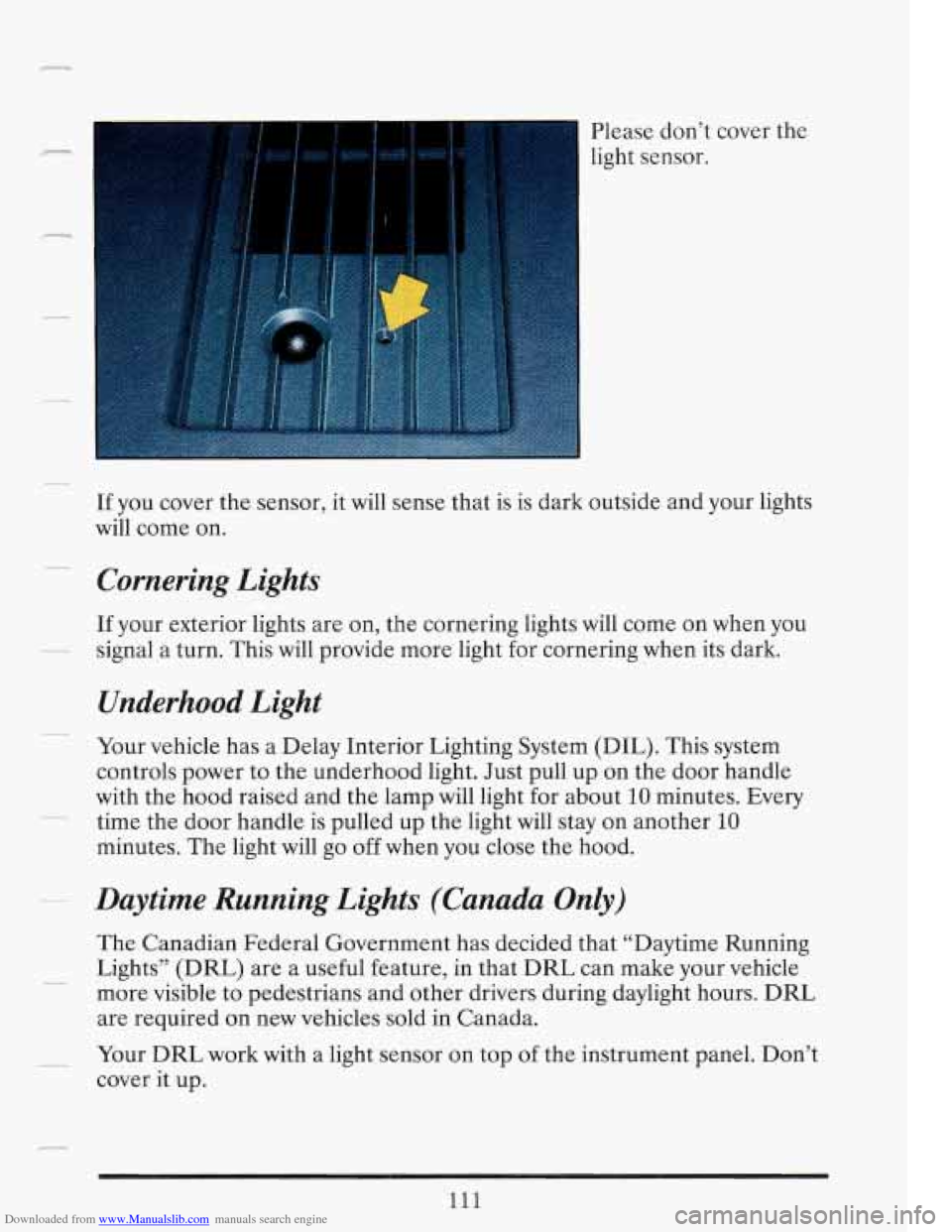

Please don’t cover the
light sensor.
If you cover the sensor, it will sense that is is dark outside and your lights
will come on.
__
Cornering Lights
If your exterior lights are on, the cornering lights will come on when you
-- signal a turn. This will provide more light for cornering when its dark.
Underhood Light
~
Your vehicle has a Delay Interior Lighting System (DIL). This system
controls power to the underhood light. Just pull up on the door handle
with the hood raised and the lamp will light for about
10 minutes. Every
minutes. The light will go off when you close the hood.
__ time the door handle is pulled up the light will stay on another 10
Daytime Running Lights (Canada Only)
The Canadian Federal Government has decided that “Daytime Running
Lights” (DRL) are
a useful feature, in that DRL can make your vehicle
more visible to pedestrians and other drivers during daylight hours. DRL
are required on new vehicles sold in Canada. -
__ Your DRL work with a light sensor on top of the instrument panel. Don’t
cover it up.
111

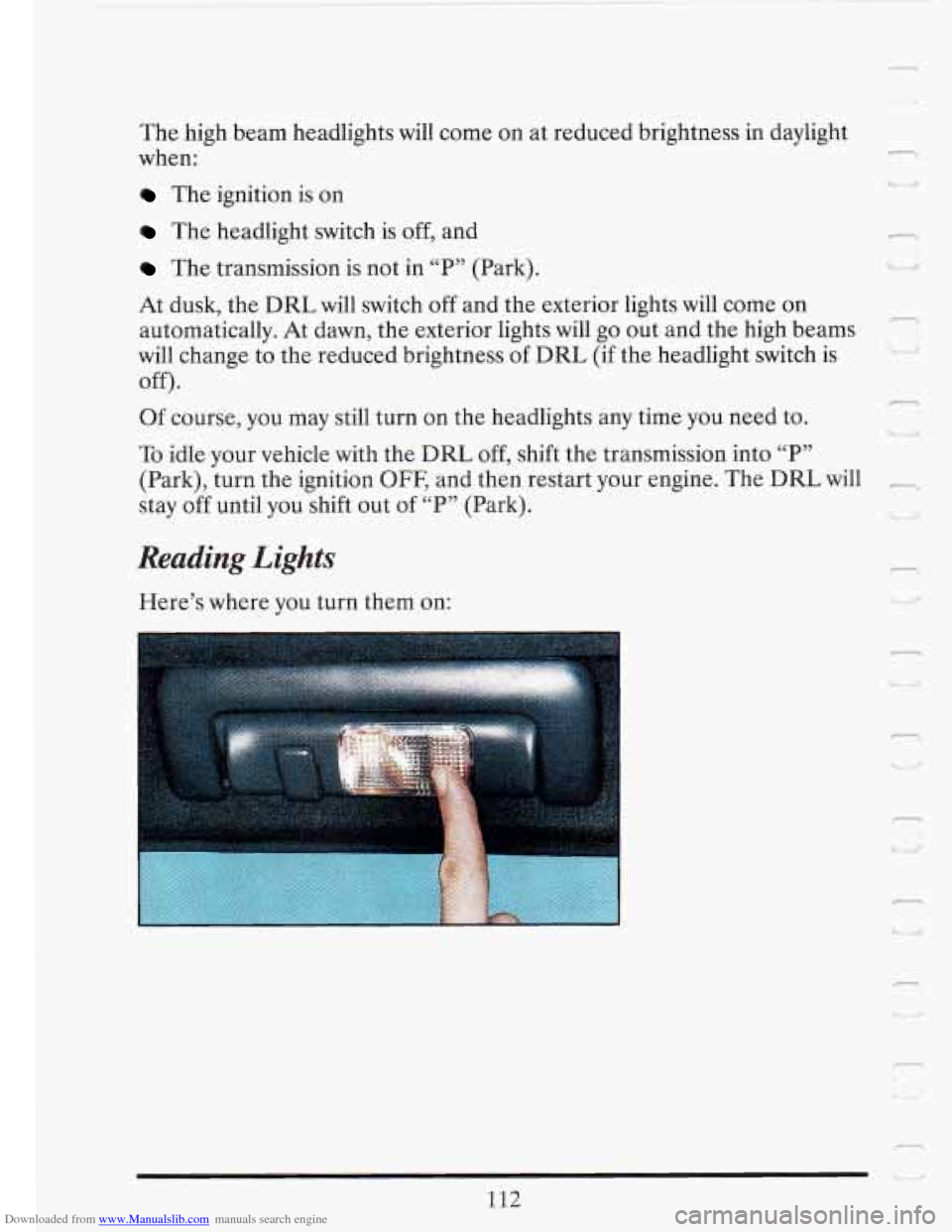

Downloaded from www.Manualslib.com manuals search engine The high beam headlights will come on at reduced brightness in daylight
when:
The ignition is on
The headlight switch is off, and
The transmission is not in “P” (Park).
At dusk, the DRL will switch off and the exterior lights
will come on
automatically. At dawn, the exterior lights will go out and the high beams
will change to the reduced brightness
of DRL (if the headlight switch is -
off).
Of course, you may still turn on the headlights any time you need to. W
To idle your vehicle with the DRL off, shift the transmission into “P”
(Park), turn the ignition
OFF, and then restart your engine. The DRL will -.
stay off until you shift out of “P” (Park). cd. 1
Reading Lights
Here’s where you turn them on:
n
c1 ’!
112

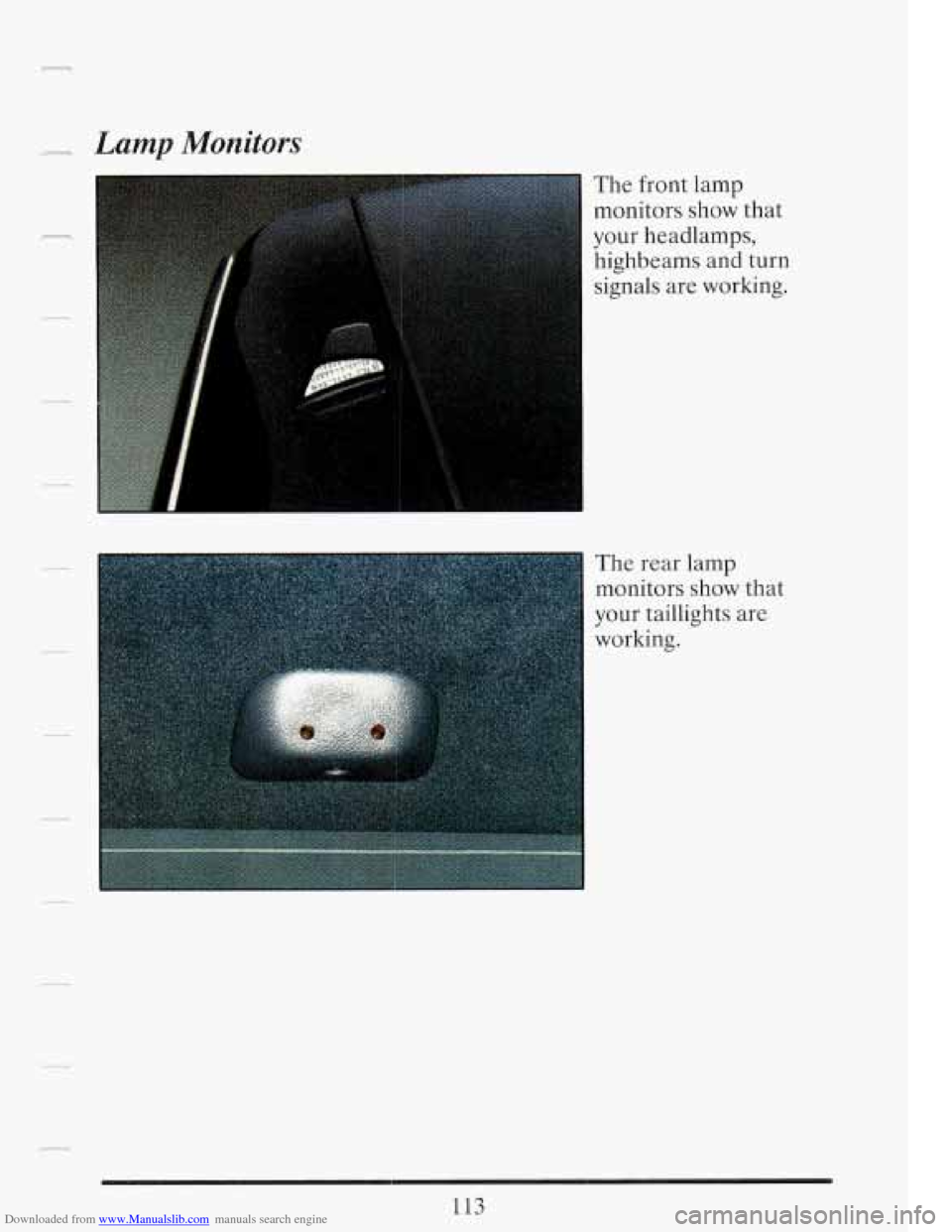

Downloaded from www.Manualslib.com manuals search engine --+. Lamp Monitors
.-
The front lamp
monitors show that
your headlamps, highbeams and turn
signals are working.
The rear lamp
monitors
show that
your taillights are
working.
113

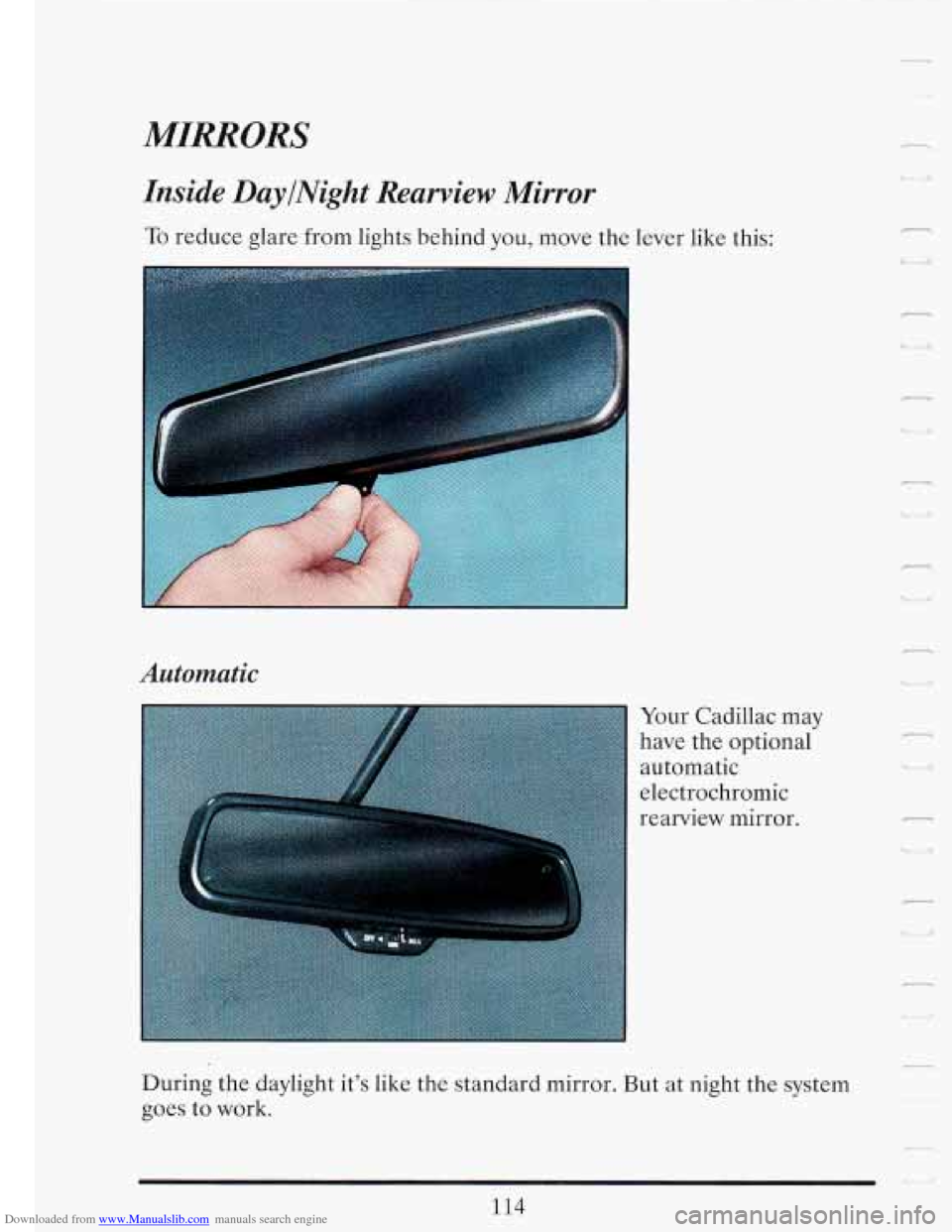

Downloaded from www.Manualslib.com manuals search engine MIRRORS
Inside DaylNight Rearview Mirror
To reduce glare from lights behind you, move the lever like this:
Automatic
Your Cadillac may
have the optional
automatic
electrochromic
rearview mirror.
During the daylight it’s
like the standard mirror. But at night the system
goes to work.
114
r
1y
r
I L-4
U
n
1; U

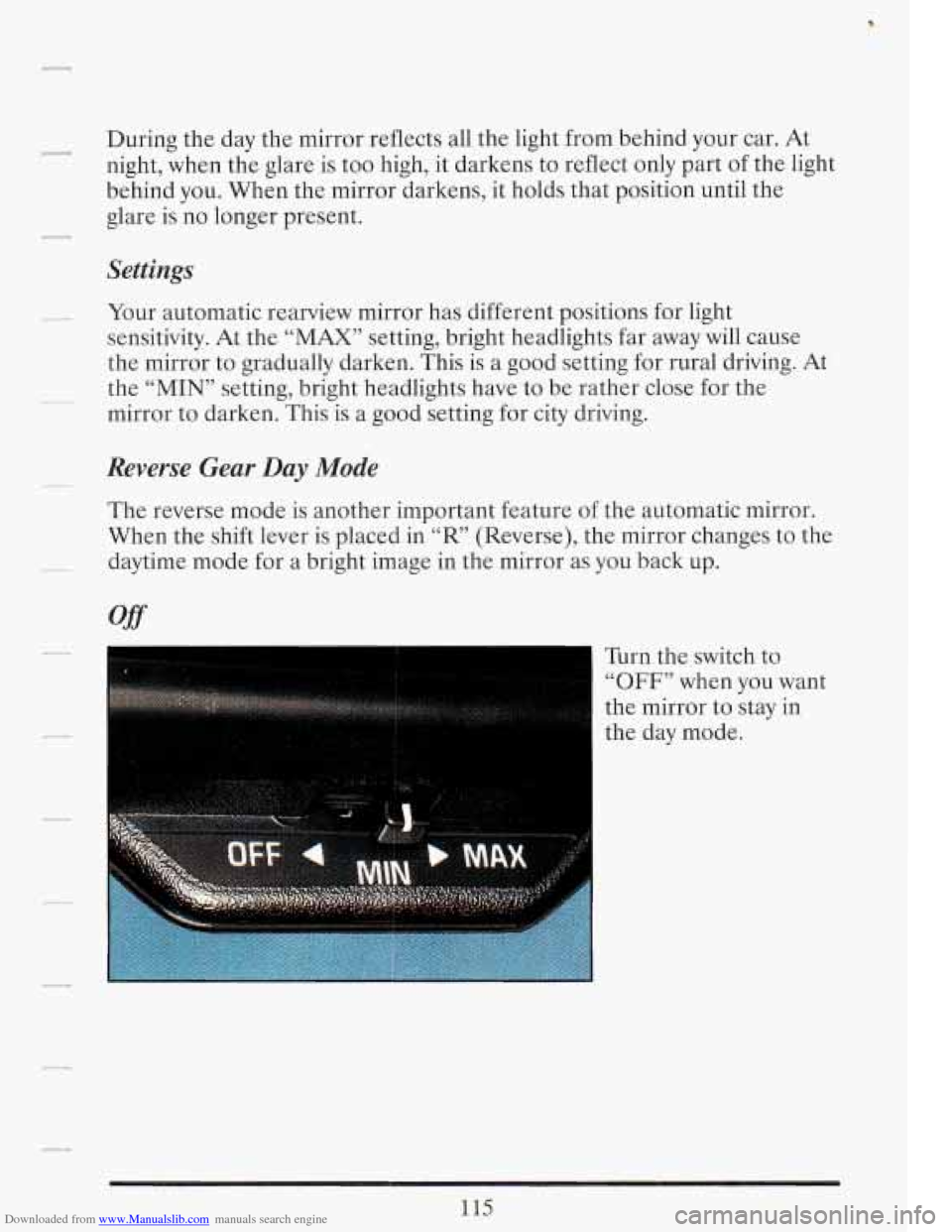

Downloaded from www.Manualslib.com manuals search engine - During the day the mirror reflects all the light from behind your car. At
night, when the glare is too high, it darkens to reflect only part
of the light
behind
you. When the mirror darkens, it holds that position until the
glare is no longer present.
R_
Settings
__ Your automatic rearview mirror has different positions for light
sensitivity. At the
“MAX” setting, bright headlights far away will cause
the mirror to gradually darken. This is a good setting for rural driving. At
mirror to darken. This
is a good setting for city driving.
-- the “MIN” setting, bright headlights have to be rather close for the
Reverse Gear Day Mode
The reverse mode is another important feature of the automatic mirror.
When the shift lever is placed in
“R’ (Reverse), the mirror changes to the
~
__ daytime mode for a bright image in the mirror as you back up.
off
Turn the switch to
“OFF” when you want
the mirror to stay in
the day mode.
115

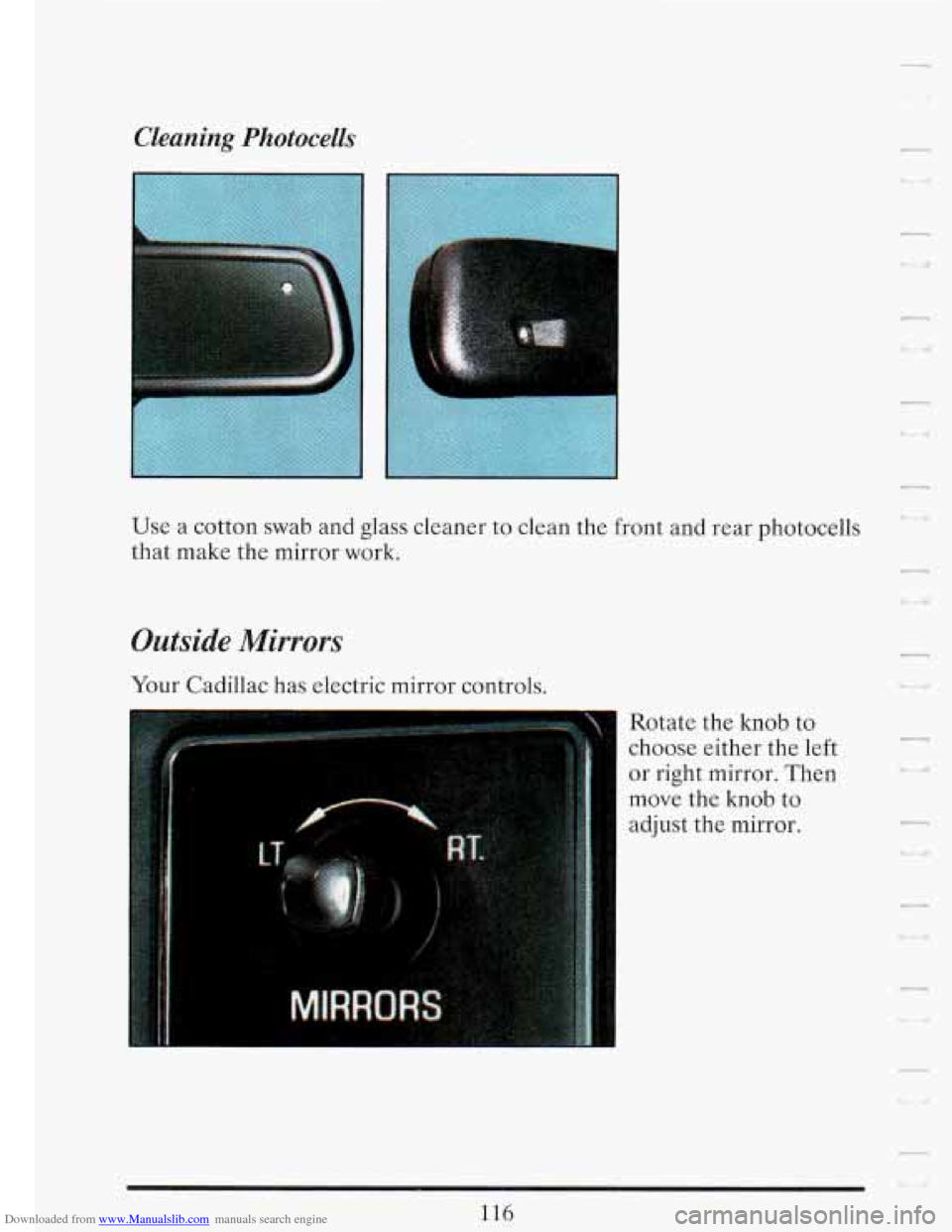

Downloaded from www.Manualslib.com manuals search engine Cleaning Photocells r
c1
Use a cotton swab and glass cleaner to clean the front and rear photocells
that make the mirror work. Li
Outside Mirrors
Your Cadillac has electric mirror controls.
Rotate the knob to
choose either the left
or right mirror. Then
move the knob to
adjust the mirror.
-
U <
