CADILLAC FLEETWOOD 1993 2.G Owners Manual

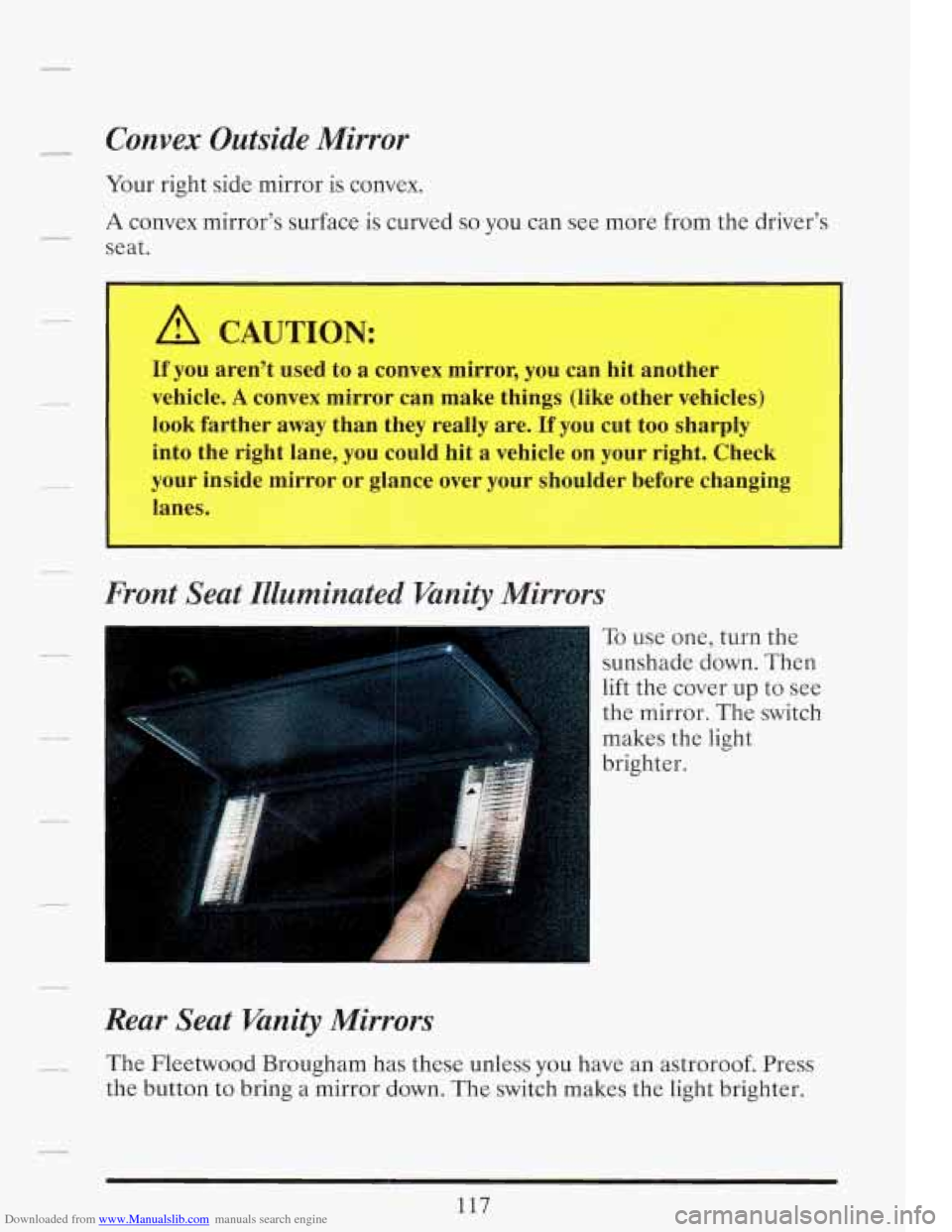

Downloaded from www.Manualslib.com manuals search engine - Convex Outside Mirror
Your right side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat. _1
- 1 A CAUTION:
If you aren’t used to a convex mirror, you can hit another
vehicle.
A convex mirror can make things (like other vehicles)
look farther away than they really are. If you cut too sharply
into the right lane, you could hit
a vehicle on your right. Check
your inside mirror or glance over your shoulder before changing
lanes.
I
To use one, turn the
sunshade down. Then
lift the cover
up to see
the mirror. The switch
makes the light
brighter.
Front Seat Illuminated Vanity Mirrors
Rear Seat Vanity Mirrors
__ The Fleetwood Brougham has these unless you have an astroroof. Press
the button to bring a mirror down. The switch makes the light brighter.
117

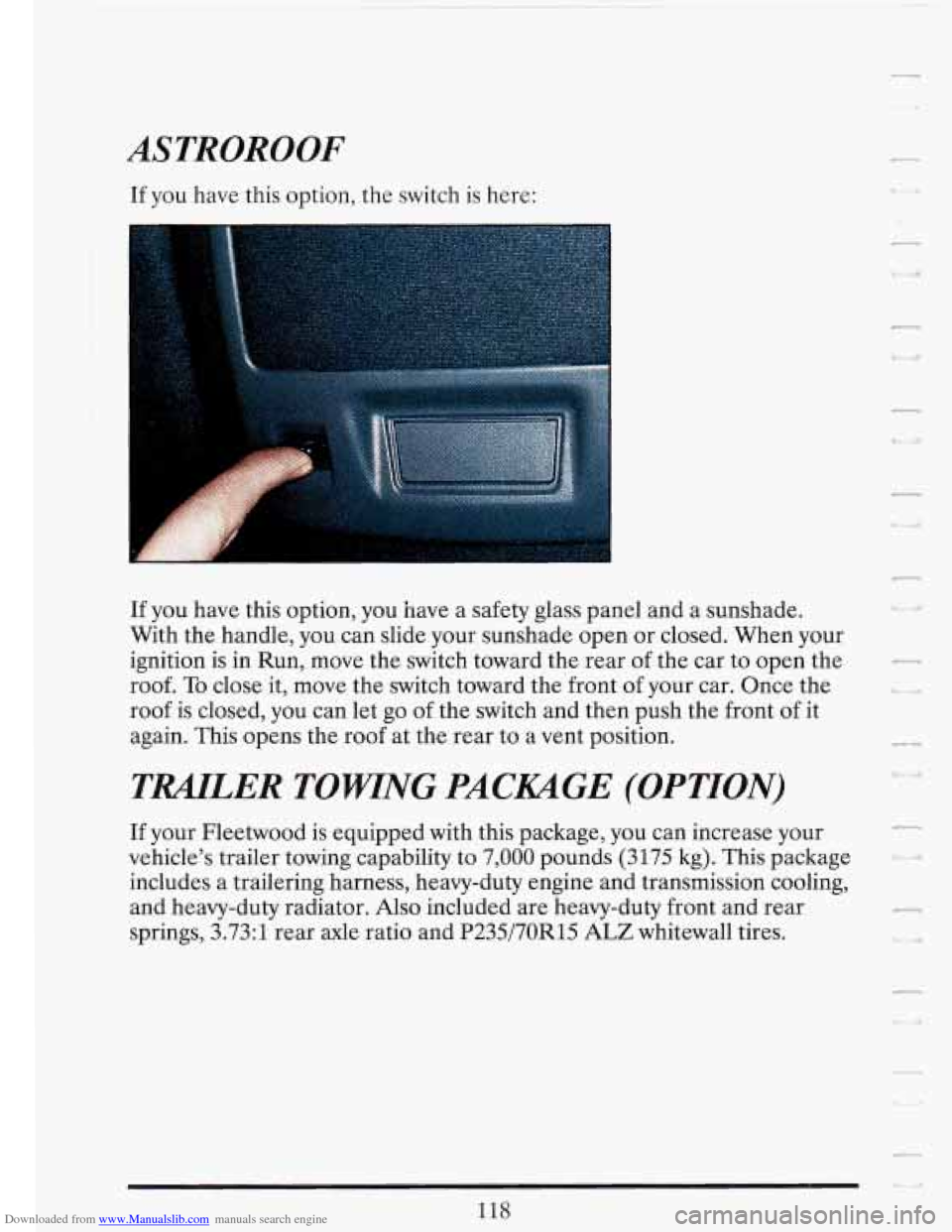

Downloaded from www.Manualslib.com manuals search engine ASTROROOF
If you have this option, the switch is here:
_.
If you have this option, you have a safety glass panel and a sunshade.
With the handle, you can slide your sunshade open or closed. When your
ignition is
in Run, move the switch toward the rear of the car to open the
roof.
To close it, move the switch toward the front of your car. Once the
roof is closed, you can let
go of the switch and then push the front of it
again. This opens the roof at the rear to a vent position.
TWLER TOWING PACKAGE (OPTION)
If your Fleetwood is equipped with this package, you can increase your 7
vehicle's trailer towing capability to 7,000 pounds (3175 kg). This package '
includes a trailering harness, heavy-duty engine and transmission cooling,
and heavy-duty radiator.
Also included are heavy-duty front and rear
springs, 3.73:l rear axle ratio and P235/70R15
ALZ whitewall tires.
7
n

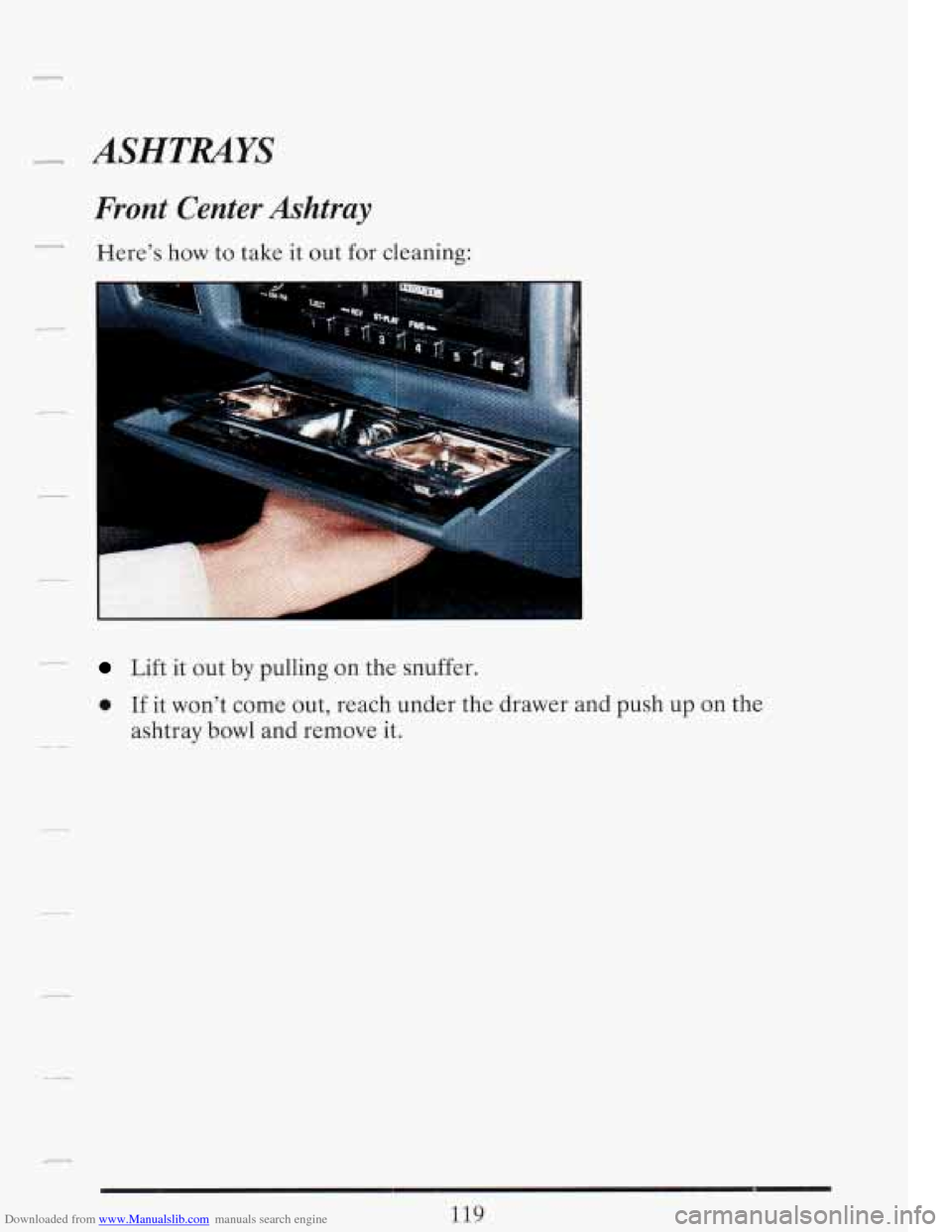

Downloaded from www.Manualslib.com manuals search engine P- ASHTMYS
Front Center Ashtray
Here’s how to take it out for cleaning:
Lift it out by pulling on the snuffer.
0 If it won’t come out, reach under the drawer and push up on the
ashtray bowl and remove it.
119

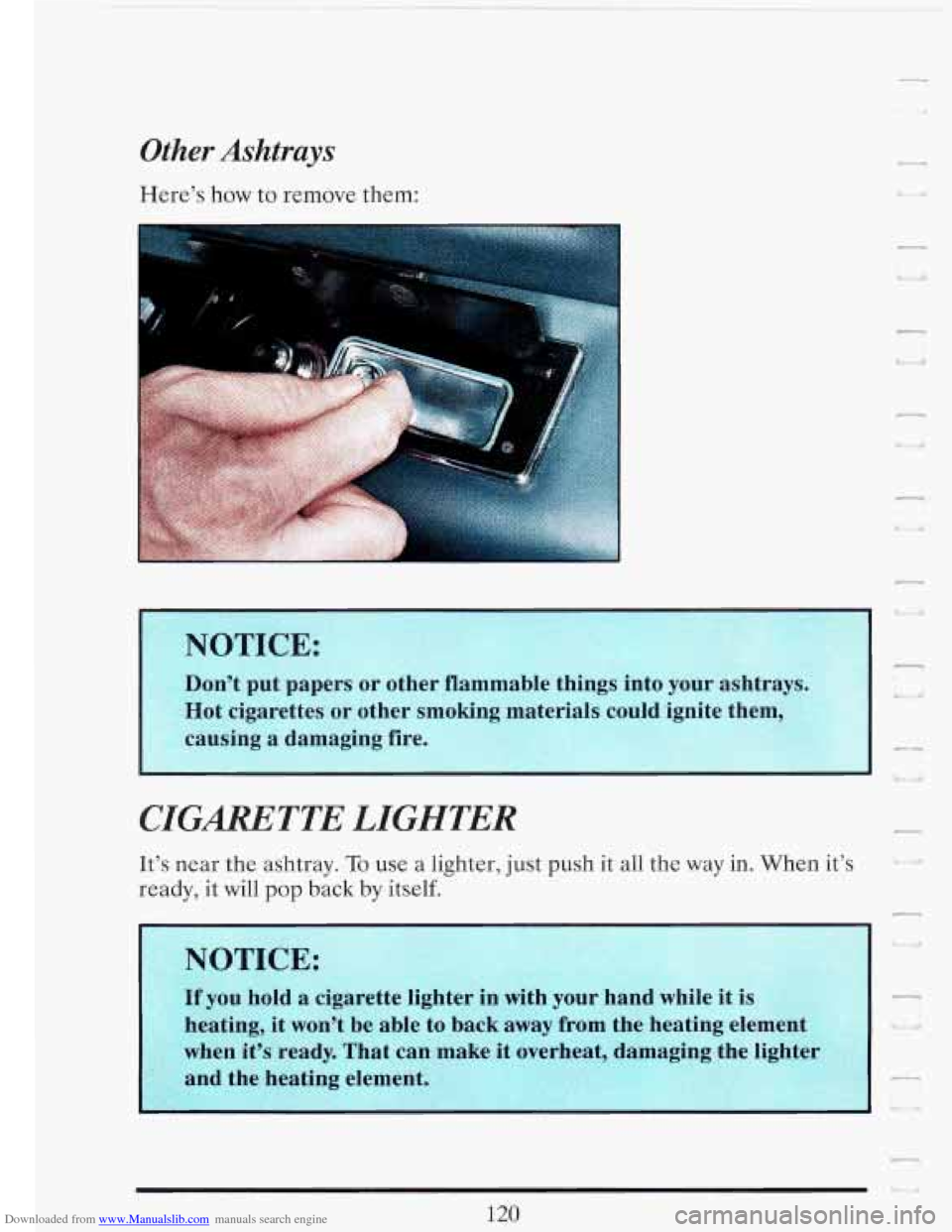

Downloaded from www.Manualslib.com manuals search engine Other Ashtrays
Here's how to remove them:
NOTICE:.
..-
Do& -put papers or t,Lller flfrlllmable things into your ashtray
Hot cigarettes
or other SII- -%ng material
causing a damaging
.. fire.
CIGmTTE LIGHTER
It's near the ashtray. To use a lighter, just push it all the way in. When it's
ready, it will pop back by itself.
I
heating, it won't be able to back away from the heating element
ken
it's ready. That can
and the heating element.
120
a
I
LJ
n

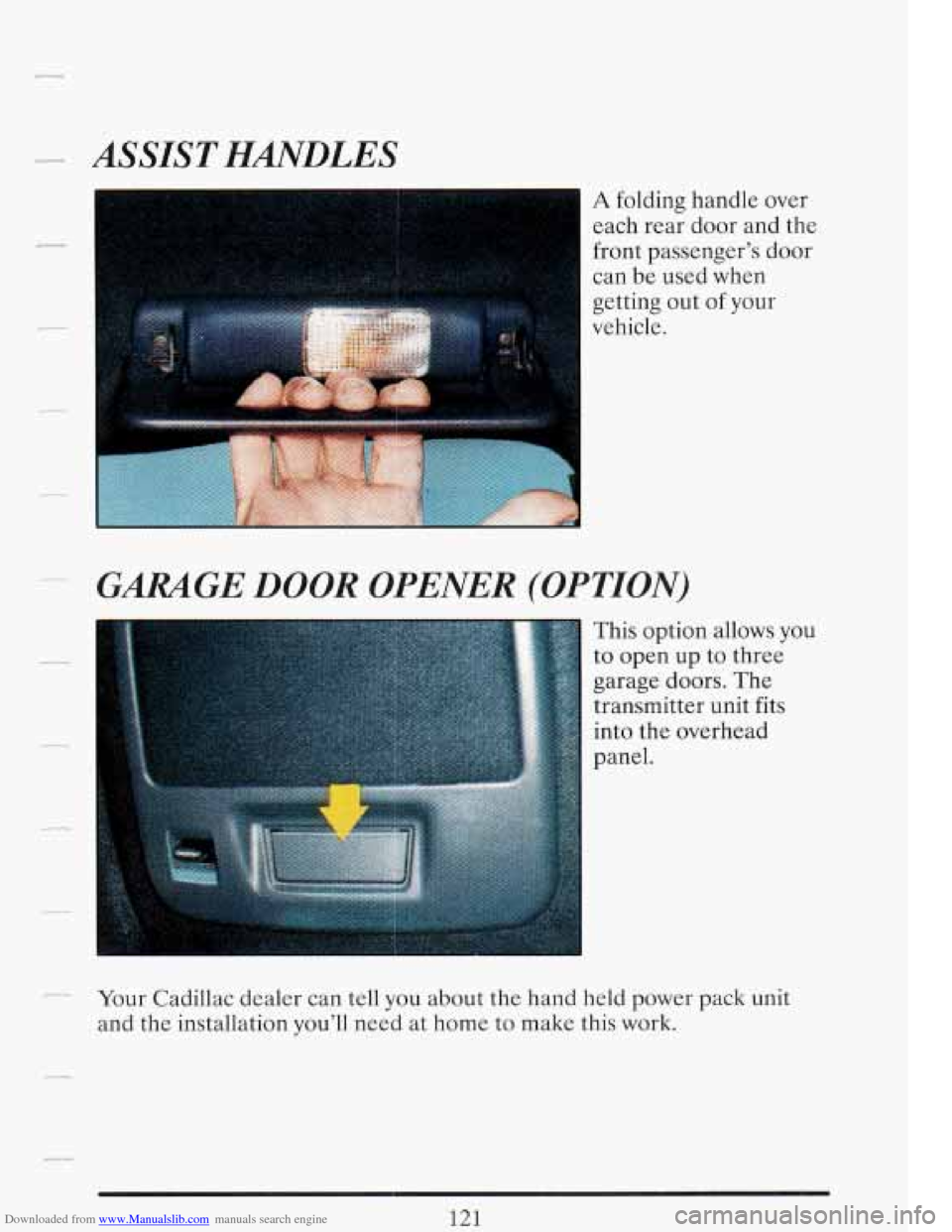

Downloaded from www.Manualslib.com manuals search engine - ASSIST HIAlvDLES
r
1
A folding handle over
each rear door and the
front passenger’s door
can be used when
getting out of your
vehicle.
GARAGE DOOR OPENER (OPTION)
This option allows you
to open up to three
garage doors. The
transmitter unit fits
into the overhead
-- Your Cadillac dealer can tell you about the hand held power pack unit
and the installation you’ll need at home to make this work.
121

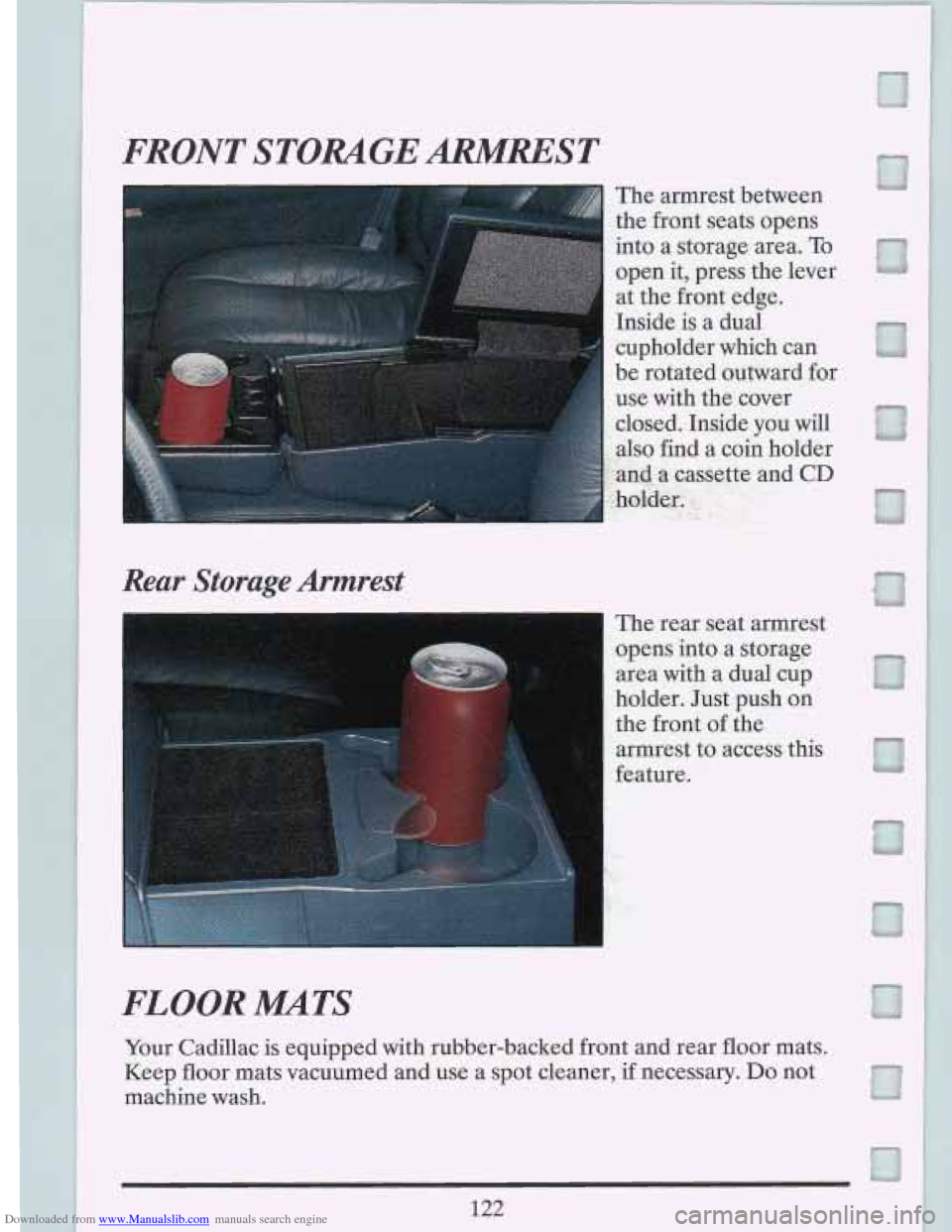

Downloaded from www.Manualslib.com manuals search engine FRONT STORAGEARMREST
The armrest between
the front seats opens
into a storage area.
To
open it, press the lever
cupholder which can
be rotated outward for
use with the cover
closed. Inside
you will
nd a coin holder
-%cassetteand
CD
Reur Storage Armrest
The rear seat armrest
opens into a storage area with a dual cup
holder. Just push on
the front
of the
armrest to access this
feature.
FLOOR MMTS
Your Cadillac is equipped with rubber-backed front and rear floor mats.
Keep floor mats vacuumed and use a spot cleaner,
if necessary. Do not
machine wash.
122

Downloaded from www.Manualslib.com manuals search engine THE INSTRUMENT PANEL: YOUR
INFOWTION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac is running. You’ll know how fast you’re going, how much fuel
you’re using, and many of other things you’ll need to know
to drive safely
and economically.
EnglishlMetric Button
1
You can change from
English (miles) to
metric (kilometers) by
pushing this button.

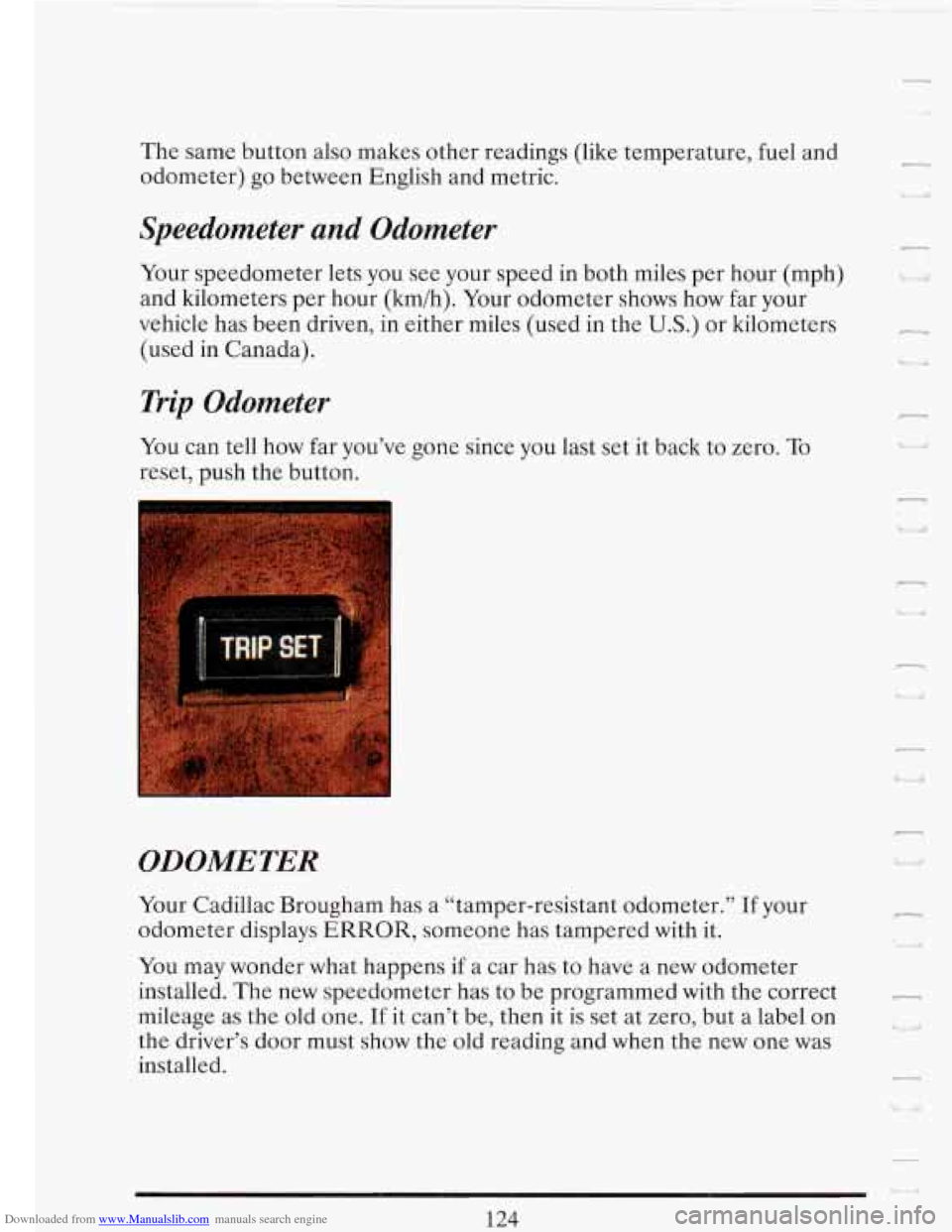

Downloaded from www.Manualslib.com manuals search engine The same button also makes other readings (like temperature, fuel and
odometer) go between English and metric.
Speedometer and Qdometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (kmih). Your odometer shows how far your
vehicle has been driven, in either miles (used in the
U.S.) or kilometers
(used
in Canada).
Trip Qdometer
You can tell how far you’ve gone since you last set it back to zero. To
reset, push the button.
n
‘I a
-
w ‘I
ODOMETER
Your Cadillac Brougham has a “tamper-resistant odometer.” If your
odometer displays
ERROR, someone has tampered with it.
You may wonder what happens if a car has to have a new odometer
installed. The new speedometer has to be programmed with the correct
mileage as the old one.
If it can’t be, then it is set at zero, but a label on
the driver’s door must show the old reading and when the new one was
installed.
n
r
L
124

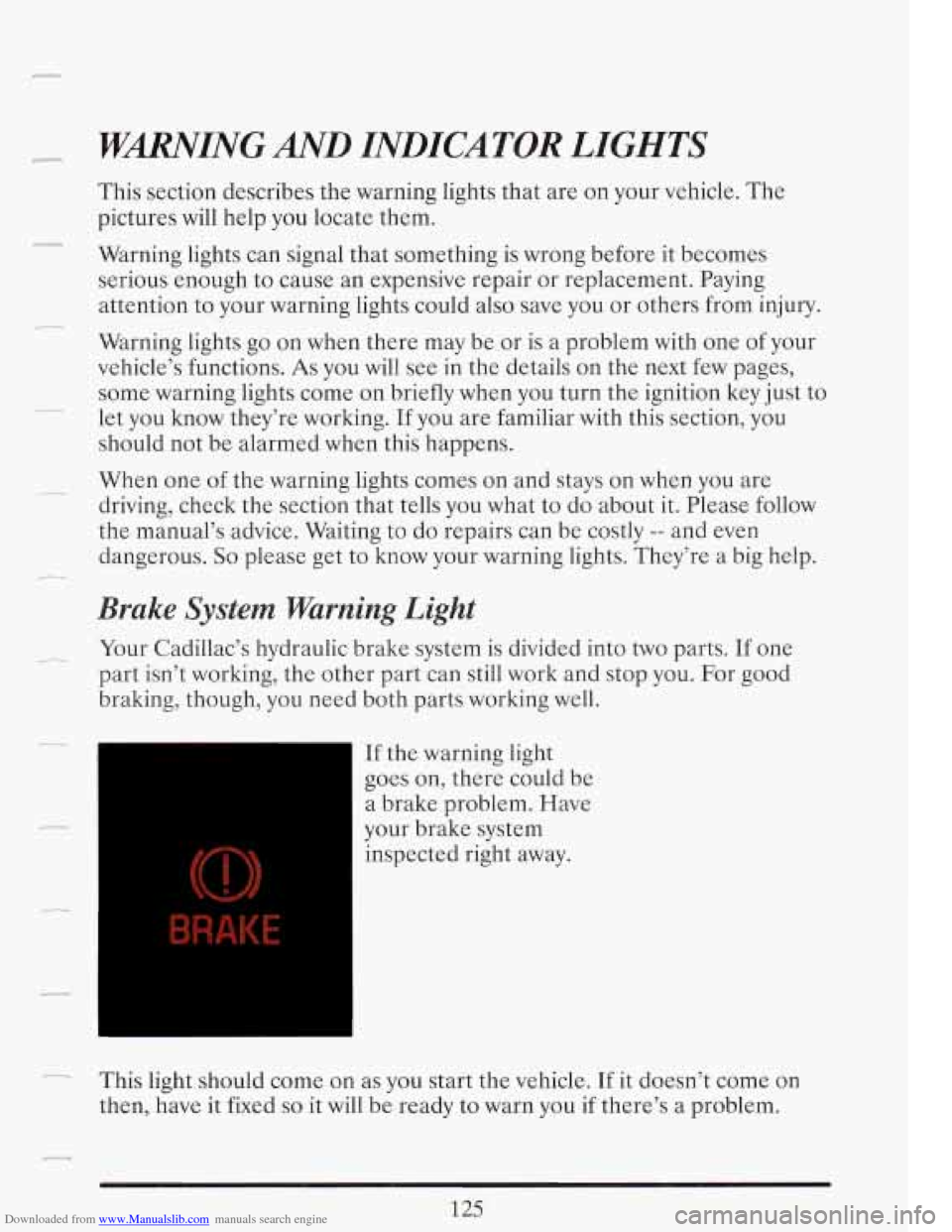

Downloaded from www.Manualslib.com manuals search engine r WmING AND INDICATOR LIGHTS
This section describes the warning lights that are on your vehicle. The
pictures will help you locate them.
Warning lights can signal that something is wrong before it becomes
serious enough to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you or others from injury.
Warning lights go on when there may be or is a problem with one of your
vehicle’s functions.
As you will see in the details on the next few pages,
some warning lights come on briefly when you turn the ignition key just
to
let you know they’re working. If you are familiar with this section, you
should not
be alarmed when this happens.
When one
of the warning lights comes on and stays on when you are
driving, check the section that tells you what to do about it. Please follow
the manual’s advice. Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights. They’re a big help.
Brake System Warning Light
Your Cadillac’s hydraulic brake system is divided into two parts. If one
part isn’t working, the other part can still work and stop you. For good
braking, though, you need both parts working well.
If the warning light
goes on, there could be
a brake problem. Have
your brake system
inspected right away.
125
I_ This light should come on as you start the vehicle. If it doesn’t come on
then, have it fixed
so it will be ready to warn you if there’s a problem.

Downloaded from www.Manualslib.com manuals search engine -I

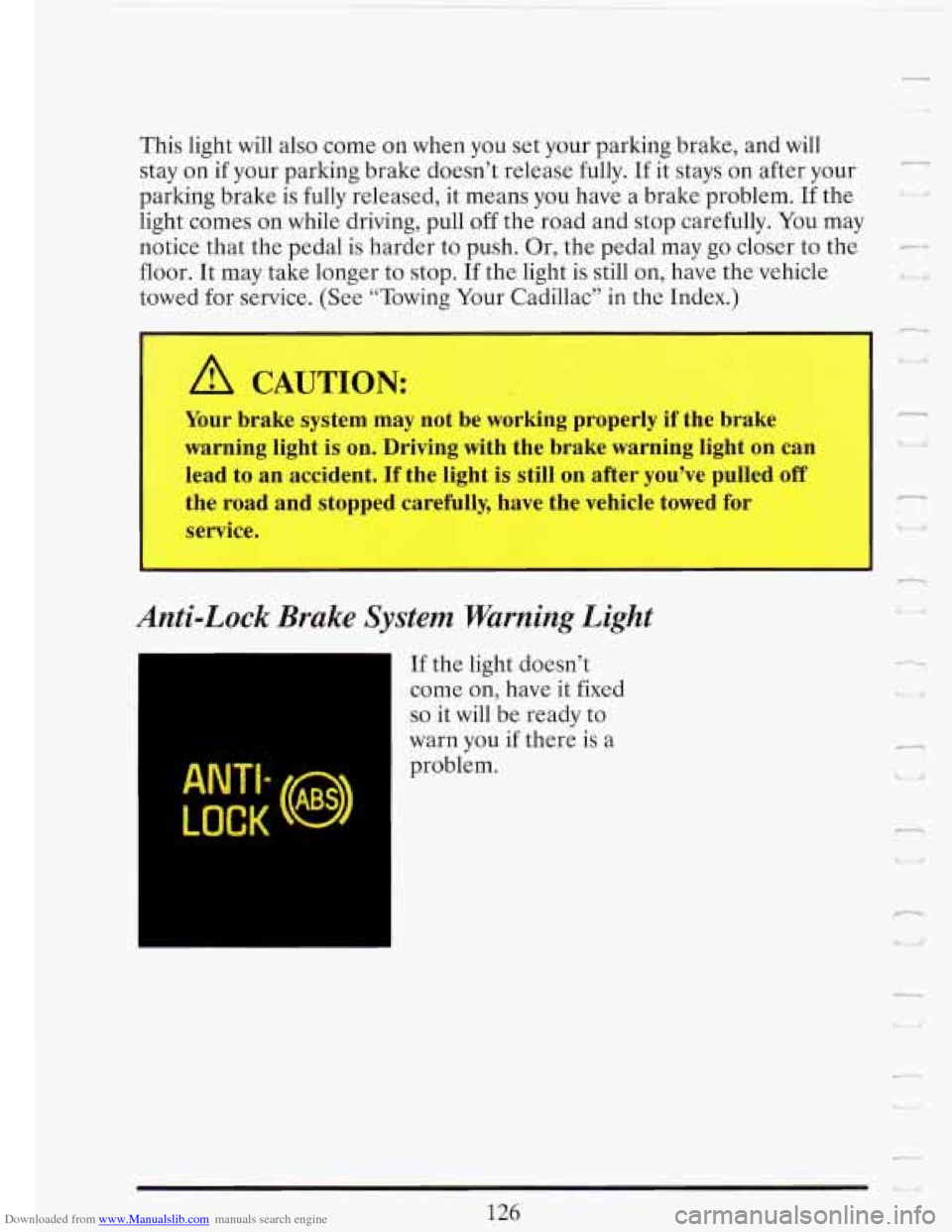

This light will also come on when you set your parking brake, and will
stay on if your parking brake doesn’t release fully. If it stays
on after your
parking brake is fully released, it means you have a brake problem.
If the
light comes on while driving, pull off the road and stop carefully.
You may
notice that the pedal
is harder to push. Or, the pedal may go closer to the
floor. It may take longer to stop. If the light is still
on, have the vehicle
towed for service. (See “Towing Your Cadillac” in the Index.)
A CAUTION:
Your brake system may not be working properly if the brake
warning light
is on. Driving with the brake warning light on can
lead to an accident.
If the light is still on after you’ve pulled off
the road and stopped carefully, have the vehicle towed for
service.
~
Anti-Lock Brake System Warning Light
ANTI
(
If the light doesn’t
come on, have
it fixed
so it will be ready to
warn you if there is a
problem.
126
,_.
h&
I n
w
4 .,
