CADILLAC FLEETWOOD 1993 2.G Owners Manual

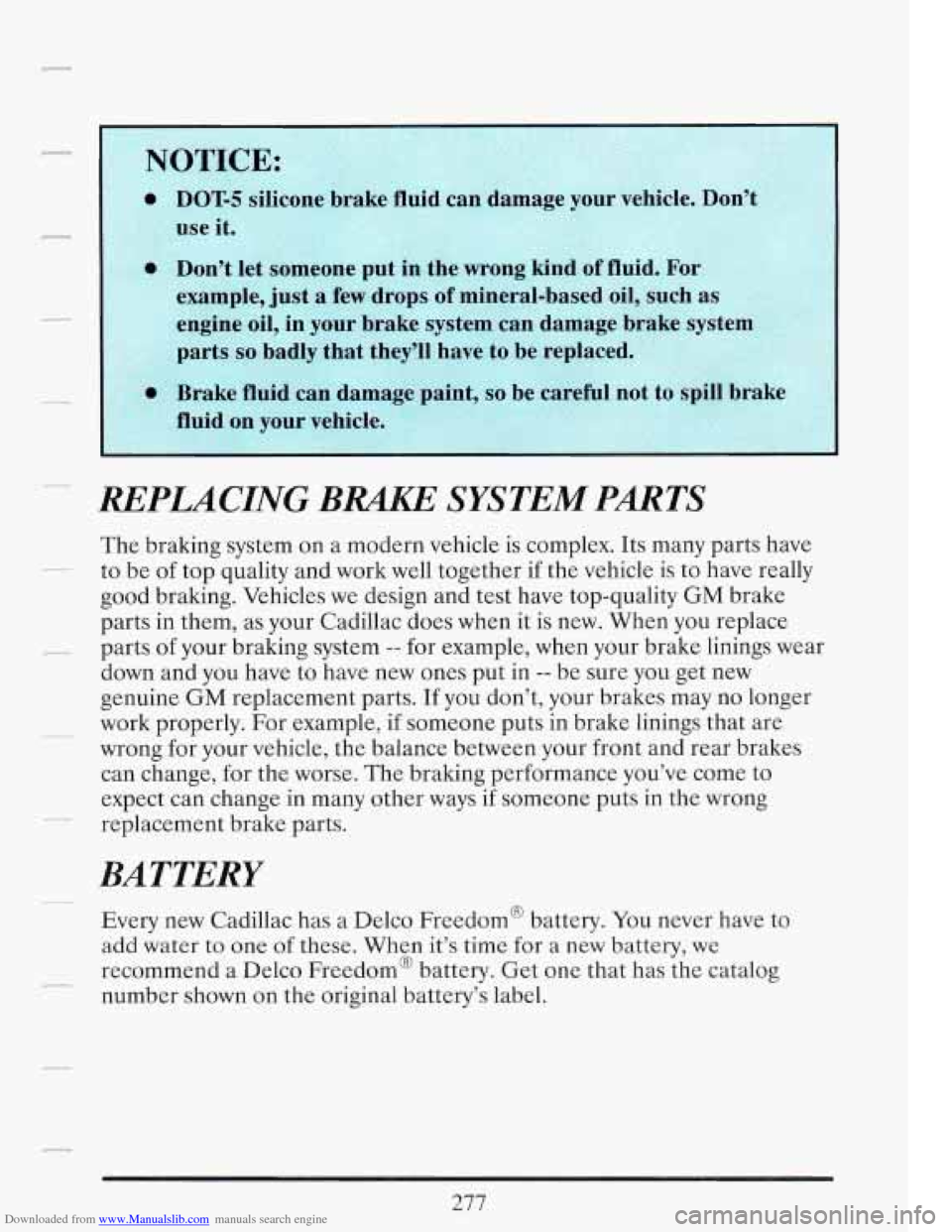

Downloaded from www.Manualslib.com manuals search engine REPLACING BRAKE SYSTEM PARTS
The braking system on a modern vehicle is complex. Its many parts have
to be of top quality and work well together if the vehicle is to have really
good braking. Vehicles we design and test have top-quality GM brake
parts in them, as your Cadillac does when it
is new. When you replace
parts of your braking system
-- for example, when your brake linings wear
down and you have to have new ones put in
-- be sure you get new
genuine
GM replacement parts. If you don’t, your brakes may no longer
work properly. For example, if someone puts in brake linings that are
wrong for your vehicle, the balance between your front and rear brakes
can change, for the worse. The braking performance you’ve come to
expect can change in many other ways if someone puts
in the wrong
replacement brake parts.
BATTERY
Every new Cadillac has a Delco Freedom’ battery. You never have to
add water to one of these. When it’s time for
a new battery, we
recommend a Delco Freedom@ battery. Get one that has the catalog
number shown
on the original battery’s label.
277

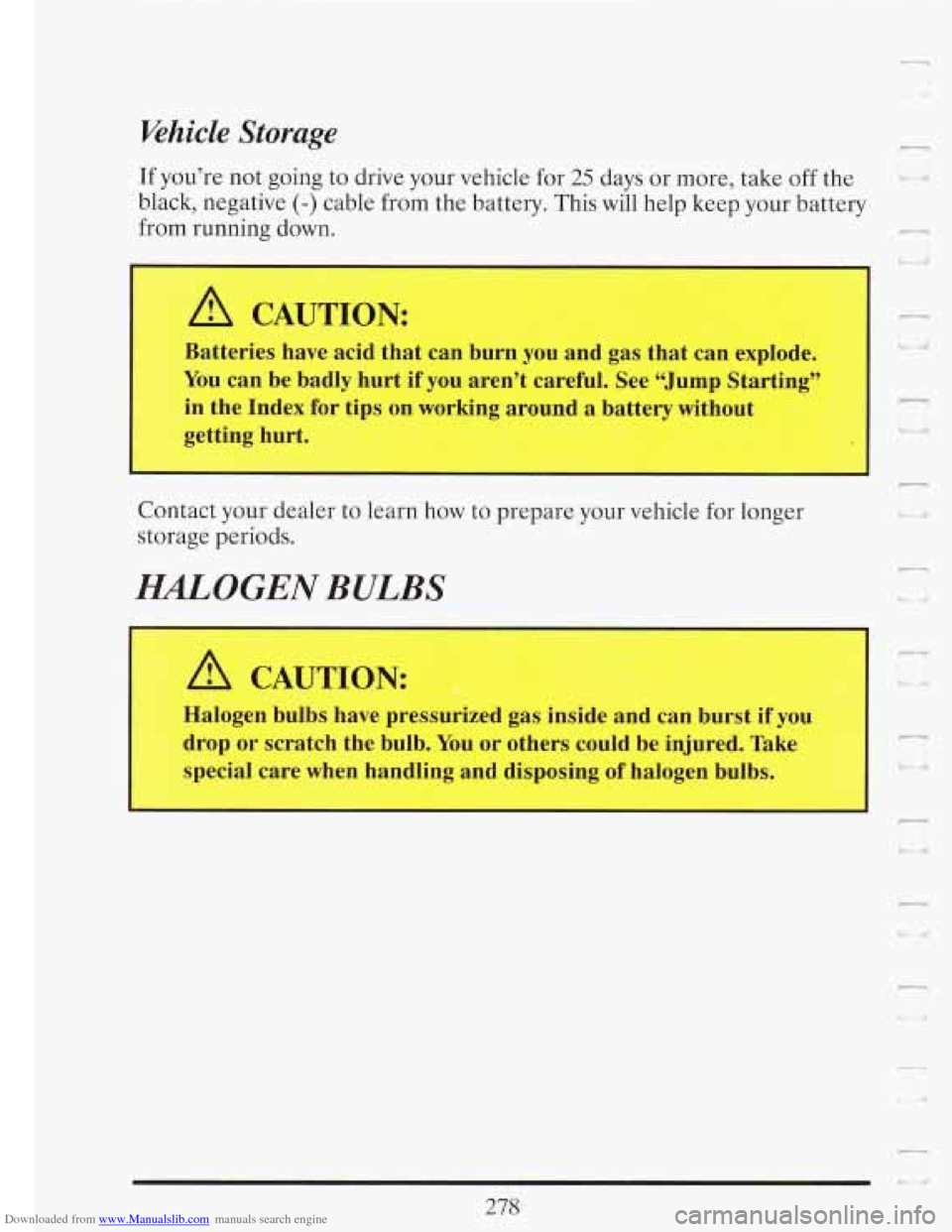

Downloaded from www.Manualslib.com manuals search engine Vehicle Storage c-
If you’re not going to drive your vehicle for 25 days or more, take off the ~
black, negative (-) cable from the battery. This will help keep your battery
from running down.
c-
I ,:I
A CAUTION: Fa
Batteries have acid that can burn you and gas that can explode.
You can be badly hurt if you aren’t careful. See “Jump Starting” km. .A
I
in the Index for tips on working around a battery without
getting hurt.
Contact your dealer to learn how to prepare your vehicle for longer
storage periods.
mOGEN BULBS
I A CAUTION:
I
Halogen bulbs have pressurized gas inside and can burst if you
drop or scratch the bulb.
You or others could be injured. Take
special care when handling and disposing of halogen bulbs.
- I ‘I LJ
rr
u
278

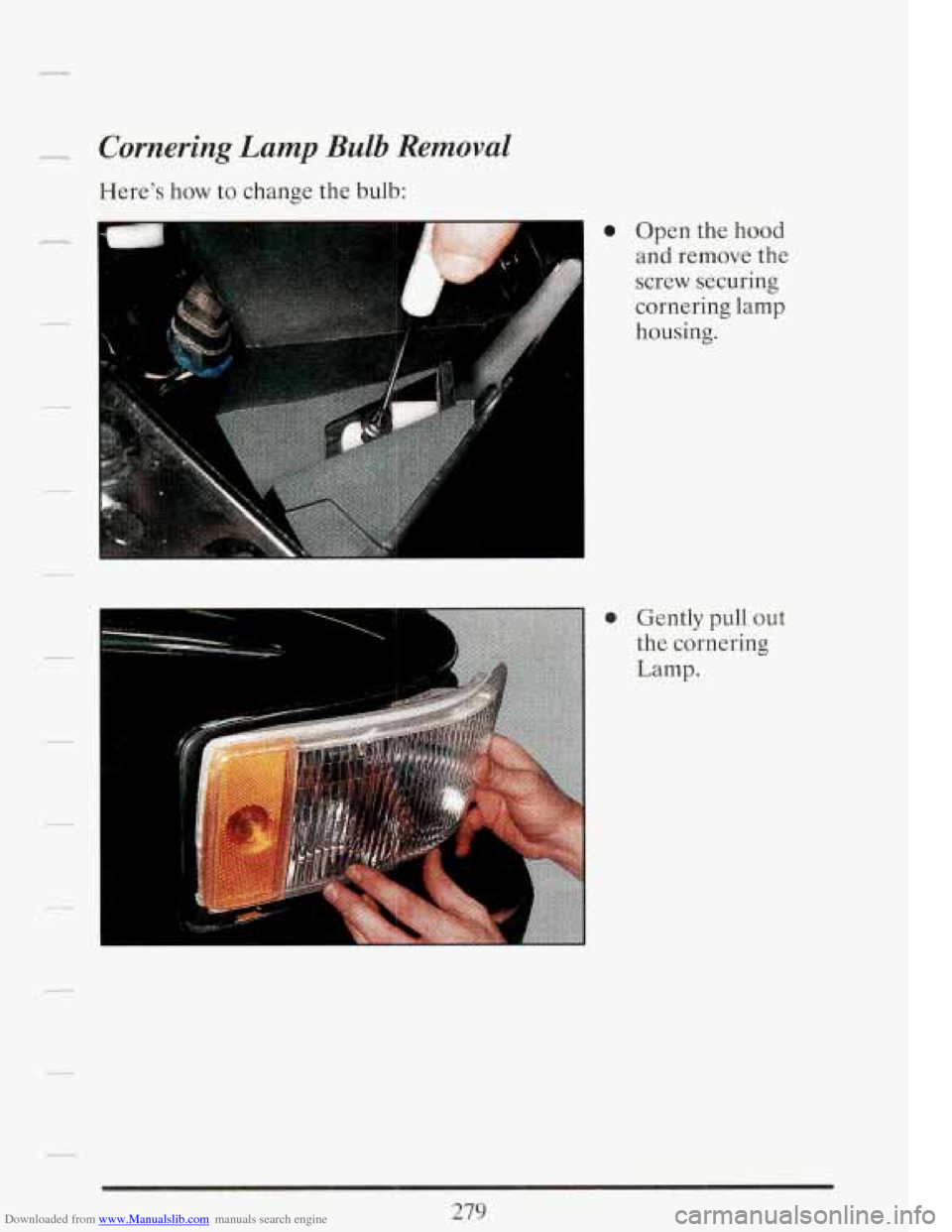

Downloaded from www.Manualslib.com manuals search engine Cornering Lamp Bulb Removal
Here's how to change the bulb:
I
0 Open the hood
and remove the
screw securing
cornering lamp
housing.
0 Gently pull out
the cornering
Lamp.

Downloaded from www.Manualslib.com manuals search engine n
-

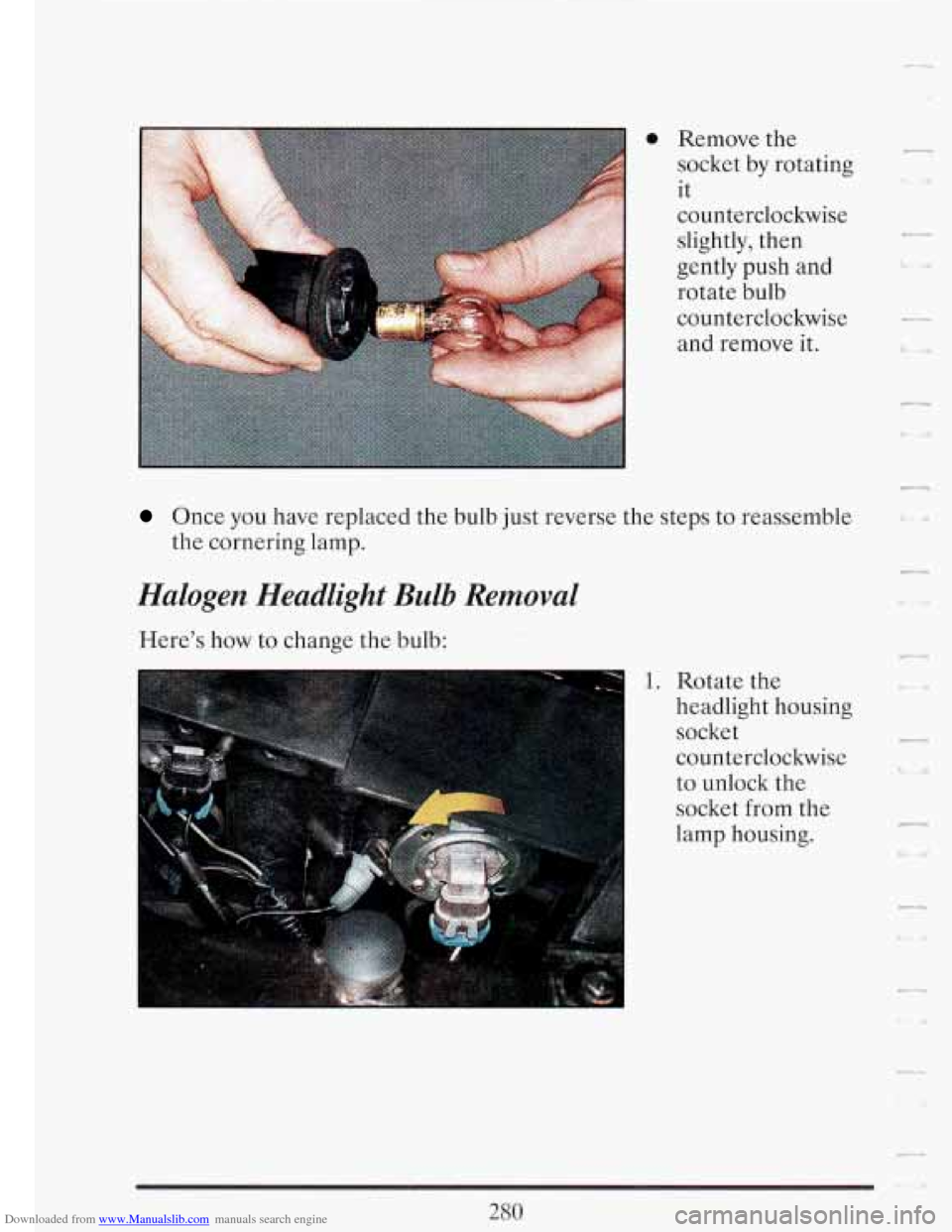

Once you have replaced the bulb just reverse the steps to reassemble
the cornering lamp.
Halogen Headlight Bulb Removal
Here's how to change the bulb:
1. Rotate the
headlight housing
socket
counterclockwise
to unlock the
socket from the
lamp housing.
280
.-
n
-I

Downloaded from www.Manualslib.com manuals search engine -
b

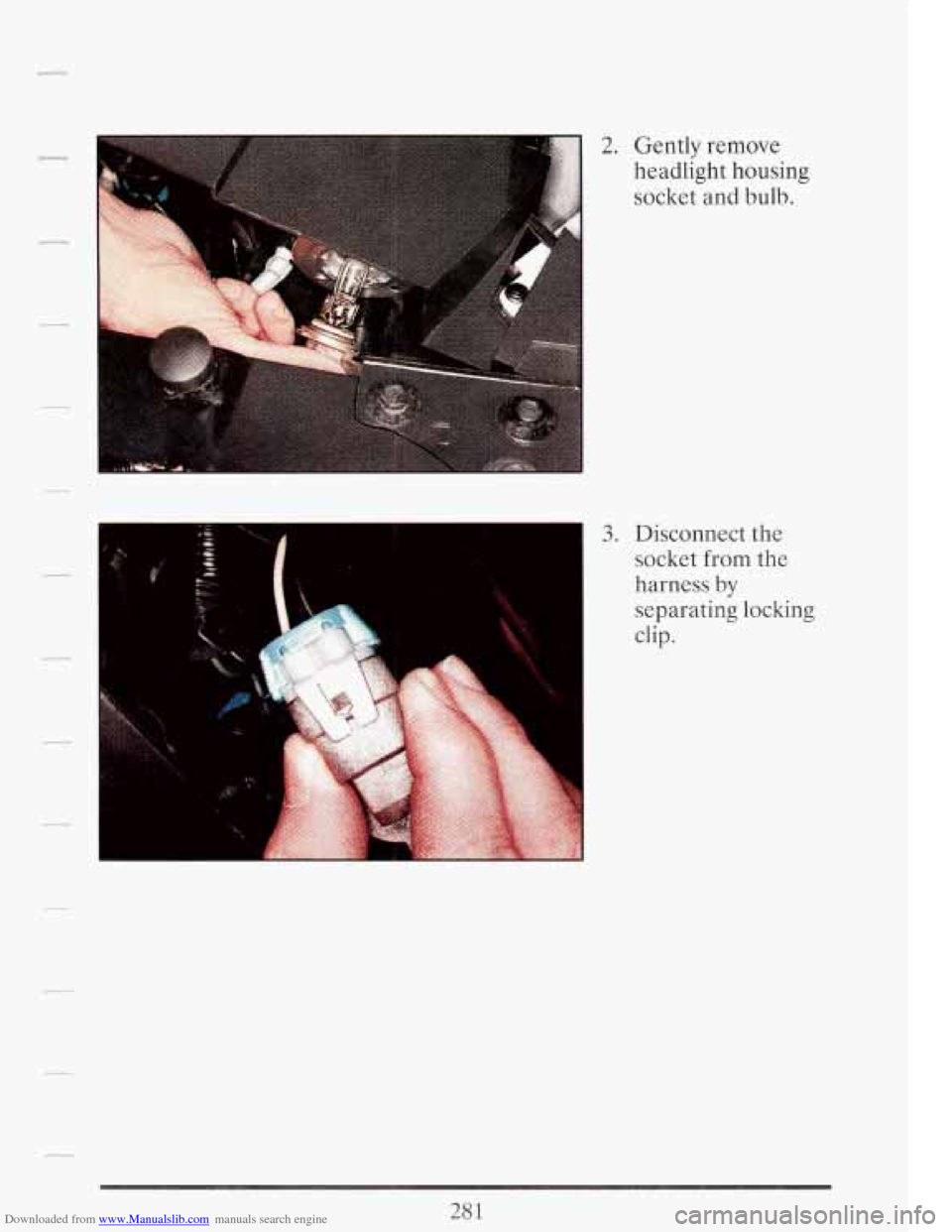

2. Gently remove
headlight housing
socket and bulb.
3. Disconnect the
socket from the
harness
by
separating locking
clip.

Downloaded from www.Manualslib.com manuals search engine 1 4. Install new bulb
and socket and
connect the wiring
harness. Make sure
that harness
is
locked to bulb
socket.
5. Install the headlight housing socket into the headlamp assembly.
TMLLIGHT BULB REPLACEMENT
1. Remove the upper
screw
from the
bezel.
282
-
L.3
r-p
L-B

Downloaded from www.Manualslib.com manuals search engine . I

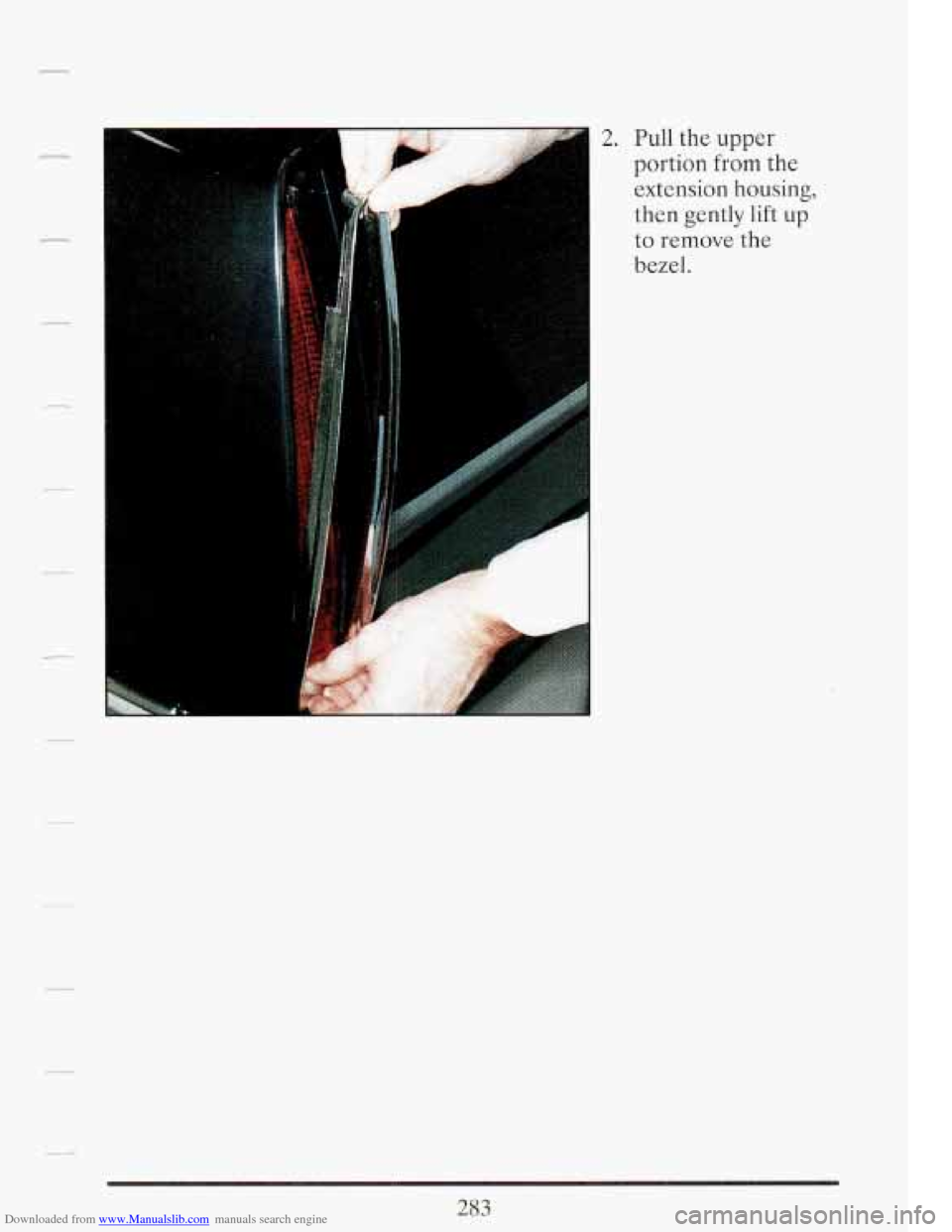

2. Pull the upper
portion
from the
extension
housing,
then gently lift up
to
remove the
bezel.

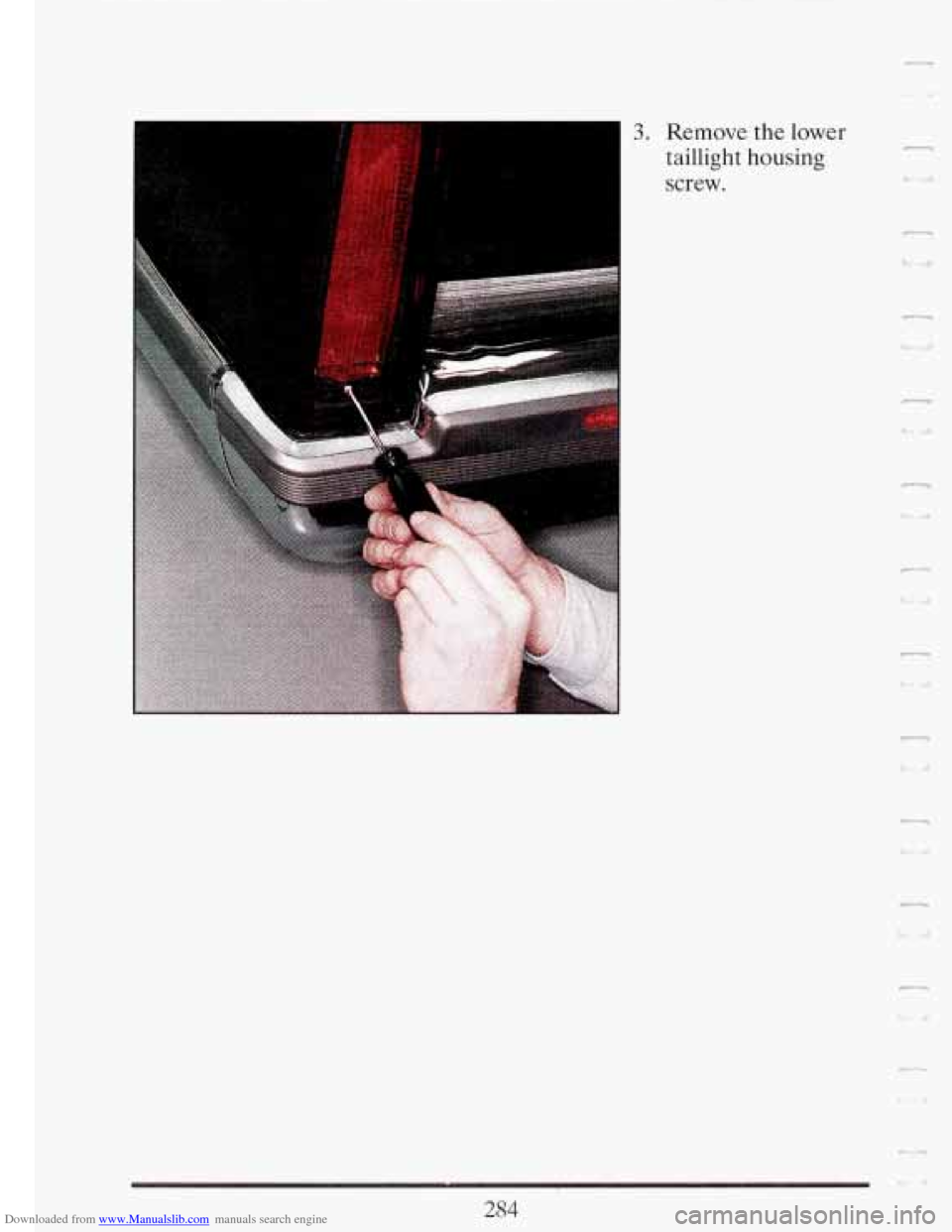

Downloaded from www.Manualslib.com manuals search engine 3. Remove the lower
taillight housing
screw.
1,
284

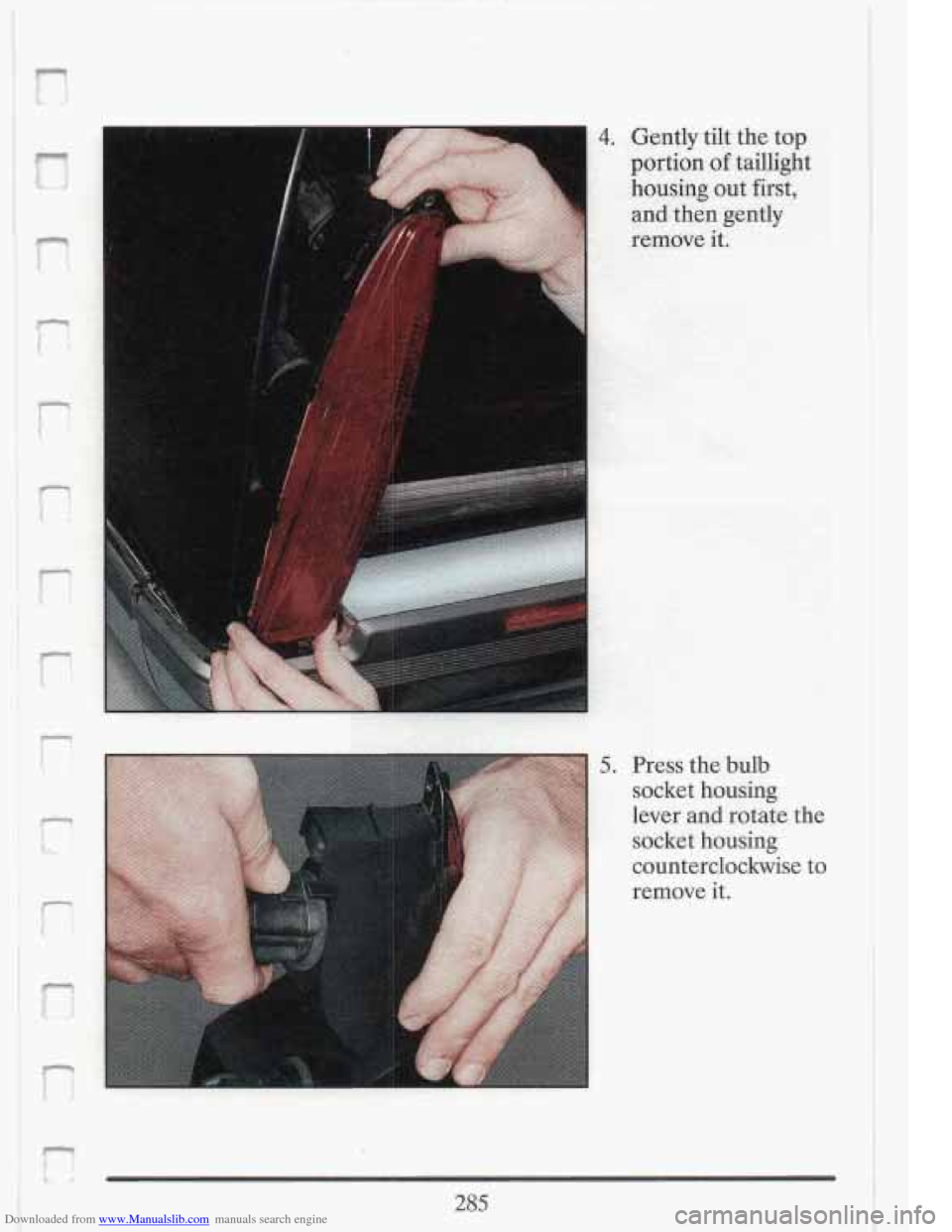

Downloaded from www.Manualslib.com manuals search engine r i 5. Press the bulb
socket housing
lever and-rotate the
socket
housing
counterclockwise to
remove it.
I
285

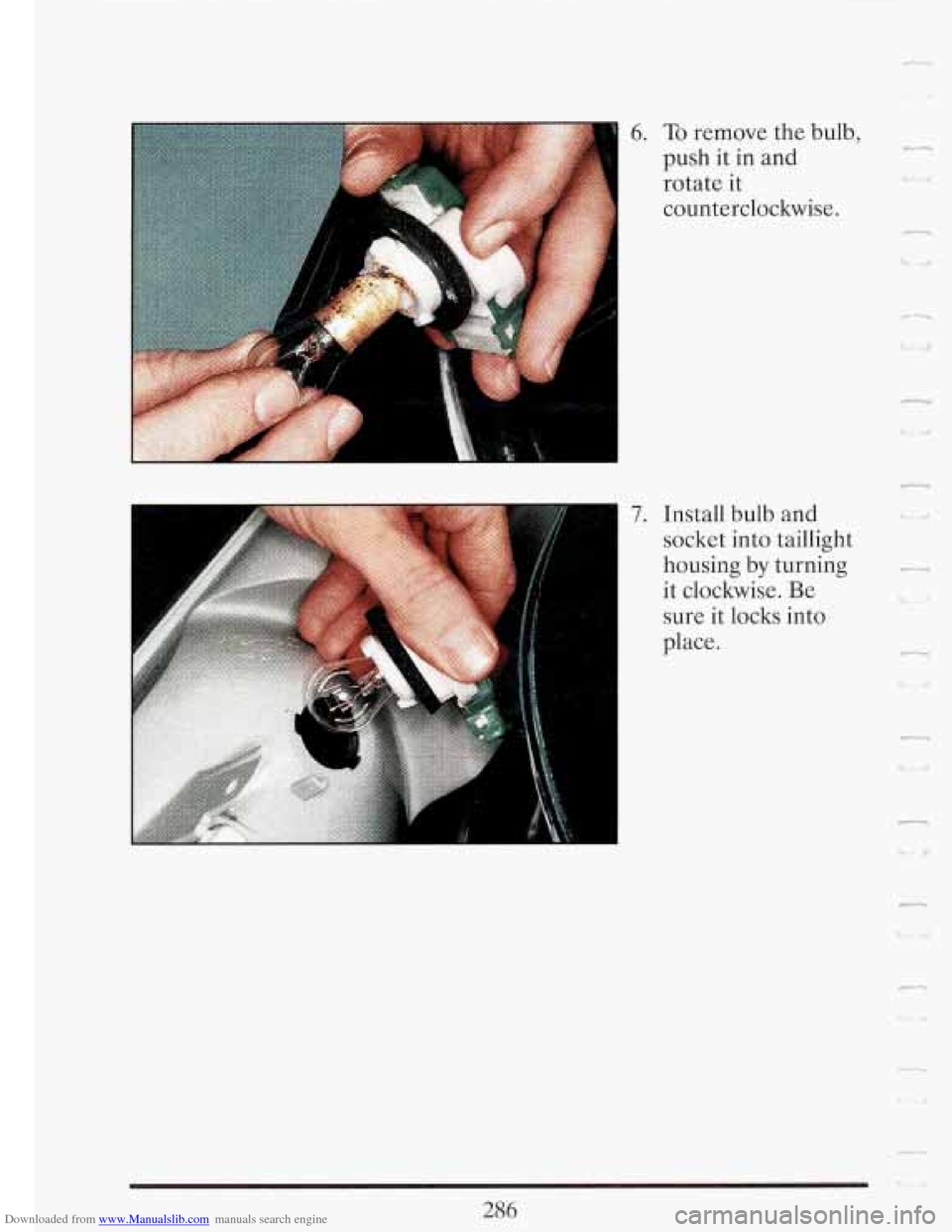

Downloaded from www.Manualslib.com manuals search engine 6. To remove the bulb,
push it in and
rotate it
counterclockwise. p_
d
7. Install bulb and
socket into taillight
housing by turning
it clockwise. Be
sure it locks into
place.
286
