CADILLAC FLEETWOOD 1993 2.G Owners Manual

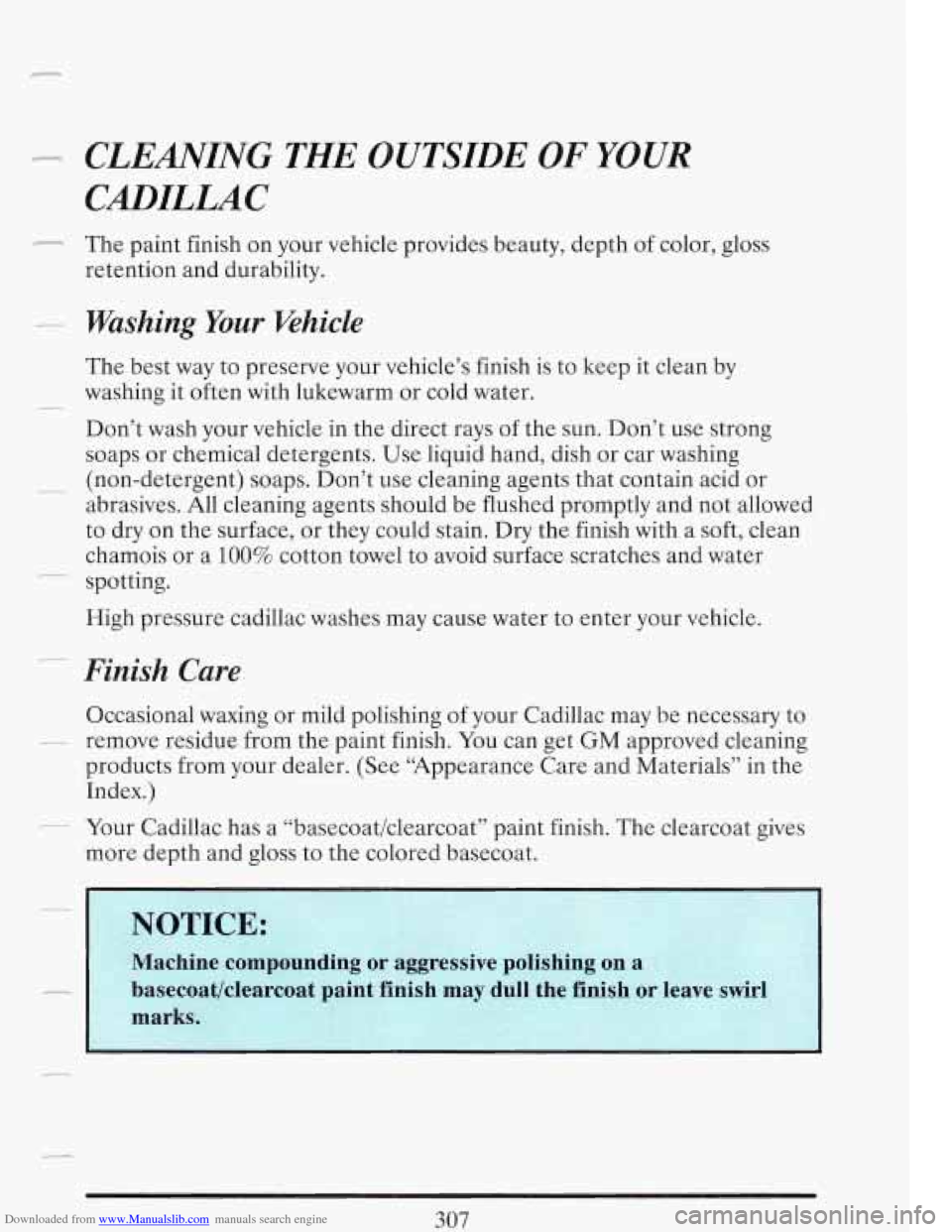

Downloaded from www.Manualslib.com manuals search engine - CLEANING THE OUTSIDE OF YOUR
CADILLAC
- The paint finish on your vehicle provides beauty, depth of color, gloss
retention and durability.
__ Washing Your Khicle
The best way to preserve your vehicle’s finish is to keep it clean by
washing it often with lukewarm or cold water.
Don’t wash your vehicle in the direct rays of the sun. Don’t use strong
soaps or chemical detergents. Use liquid hand, dish or car washing
-~ (non-detergent) soaps. Don’t use cleaning agents that contain acid or
abrasives. All cleaning agents should be flushed promptly and not allowed
to dry on the surface, or they could stain. Dry the finish with a soft, clean
chamois or a
100% cotton towel to avoid surface scratches and water
spotting.
High pressure cadillac washes may cause water to enter your vehicle.
.-
-_
_-
Finish Care
Occasional waxing or mild polishing of your Cadillac may be necessary to
remove residue from the paint finish. You can get GM approved cleaning
products from your dealer. (See “Appearance Care and Materials” in the
Index.)
-- Your Cadillac has a “basecoat/clearcoat” paint finish. The clearcoat gives
more depth and gloss to the colored basecoat.
1
I JC
307

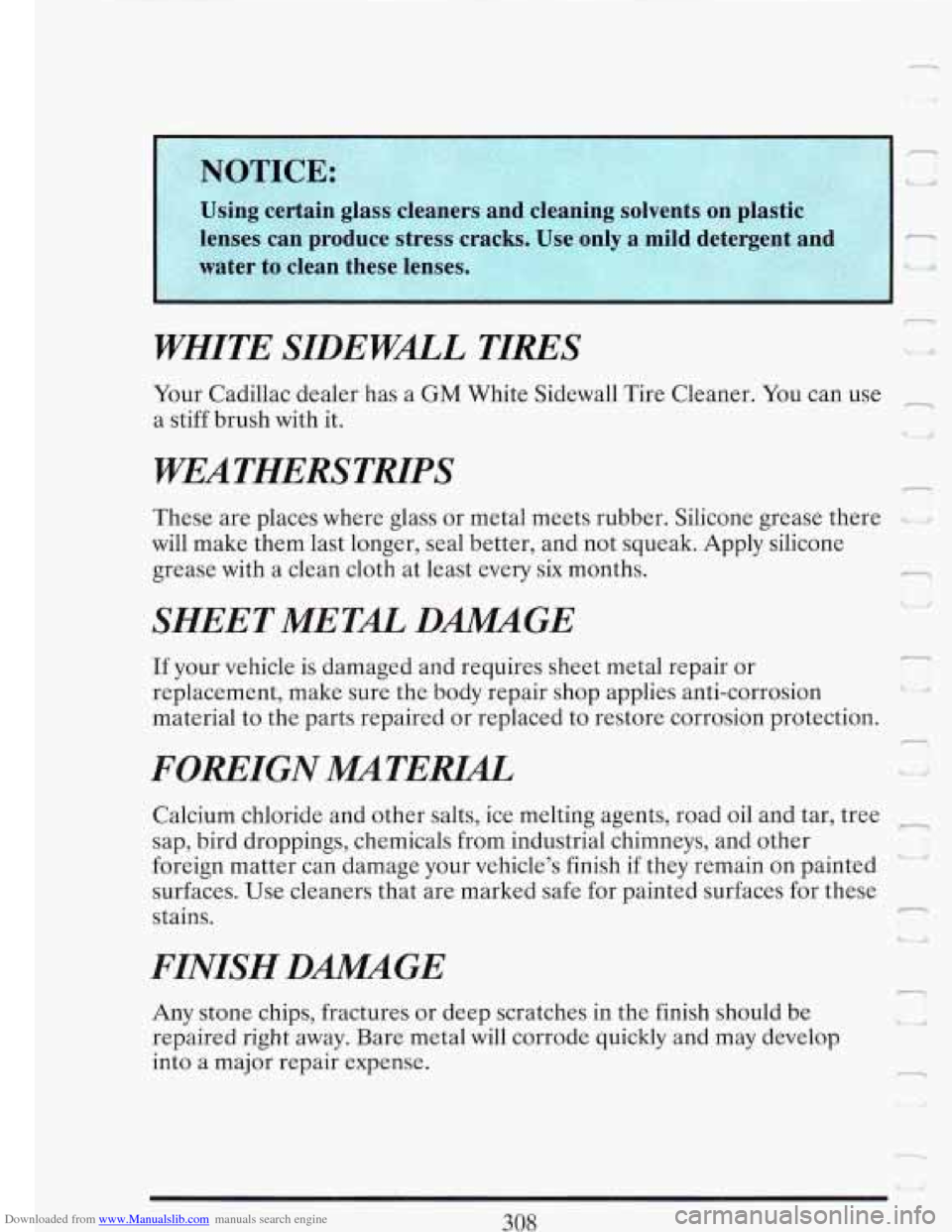

Downloaded from www.Manualslib.com manuals search engine WHITE SIDEWALL TIIRES
Your Cadillac dealer has a GM White Sidewall Tire Cleaner. You can use
a stiff brush with it.
WEATHERSTHPS
These are places where glass or metal meets rubber. Silicone grease there
will make them last longer, seal better, and not squeak. Apply silicone
grease with a clean cloth at least every
six months.
SHEETMETAL DMGE
If your vehicle is damaged and requi.res sheet metal repair or
replacement, make sure the body repair shop applies anti-corrosion
material to the parts repaired or replaced to restore corrosion protection.
FOREIGN IMATElUAL,
1
I 51
n'
u P F'
Calcium chloride and other salts, ice melting agents, road oil and tar, tree c.-.
sap, bird droppings, chemicals from industrial chimneys, and other
foreign matter can damage your vehicle's finish if they remain on painted
'
surfaces. Use cleaners that are marked safe for painted surfaces for these
stains. r
FINISH DMGE
Any stone chips, fractures or deep scratches in the finish should be
repaired right away. Bare metal
will corrode quickly and may develop
into a major repair expense.
308

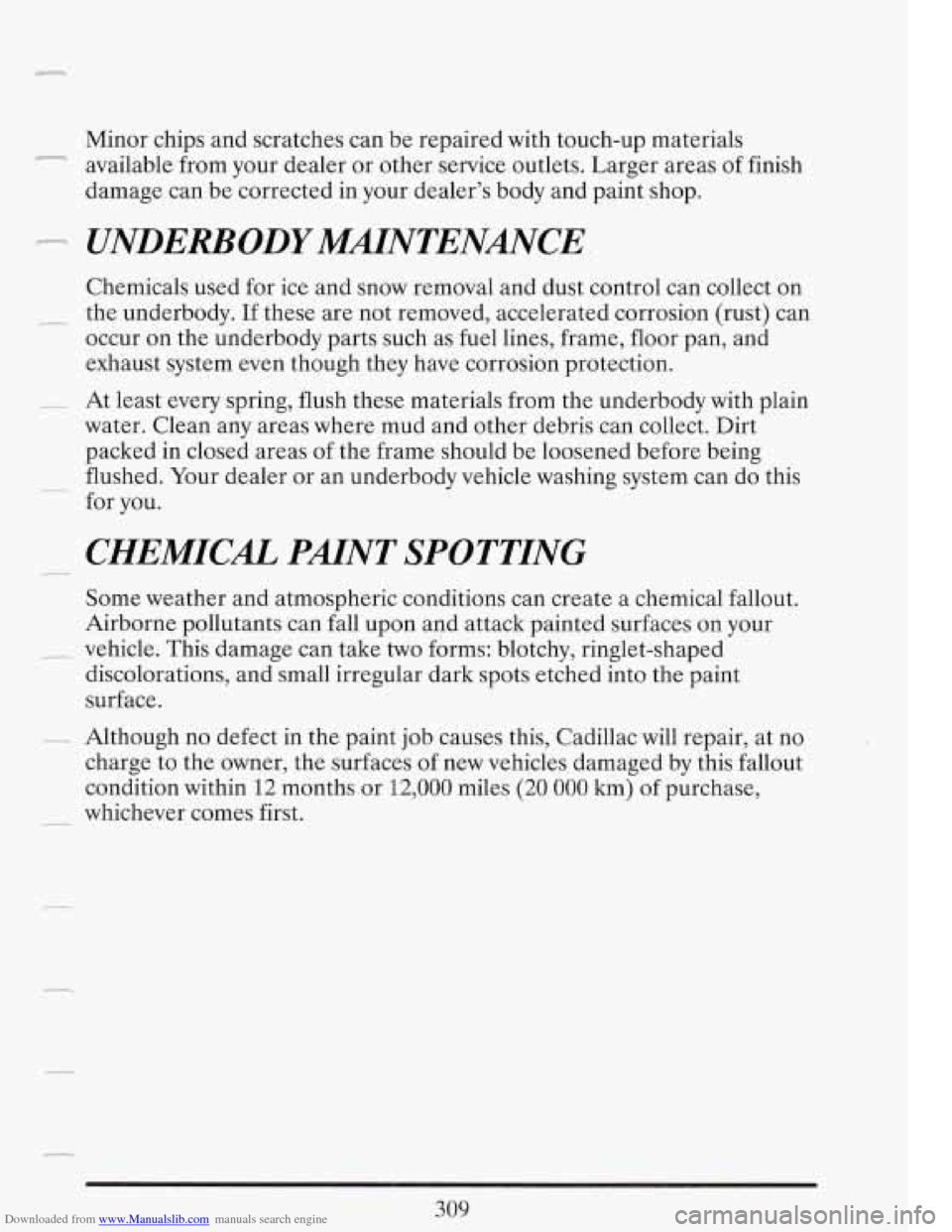

Downloaded from www.Manualslib.com manuals search engine Minor chips and scratches can be repaired with touch-up materials
I.1 available from your dealer or other service outlets. Larger areas of finish
damage can be corrected in your dealer's body and paint shop.
- UNDERBODYMMNTENAIVCE
Chemicals used for ice and snow removal and dust control can collect on
- the underbody. If these are not removed, accelerated corrosion (rust) can
occur on the underbody parts such as fuel lines, frame, floor pan, and
exhaust system even though they have corrosion protection.
- At least every spring, flush these materials from the underbody with plain
'water. Clean any areas where mud and other debris can collect. Dirt
packed in closed areas
of the frame should be loosened before being
__ flushed. Your dealer or an underbody vehicle washing system can do this
for you.
.- CHEMICAL, PMNT SPOTTING
Some weather and atmospheric conditions can create a chemical fallout.
Airborne pollutants can fall upon and attack painted surfaces on your
discolorations, and small irregular dark spots etched into the paint
surface.
I_ vehicle. This damage can take two forms: blotchy, ringlet-shaped
- Although no defect in the paint job causes this, Cadillac will repair, at no
charge to the owner, the surfaces of new vehicles damaged by this fallout
condition within 12 months or 12,000 miles (20
000 km) of purchase,
- whichever comes first.
309

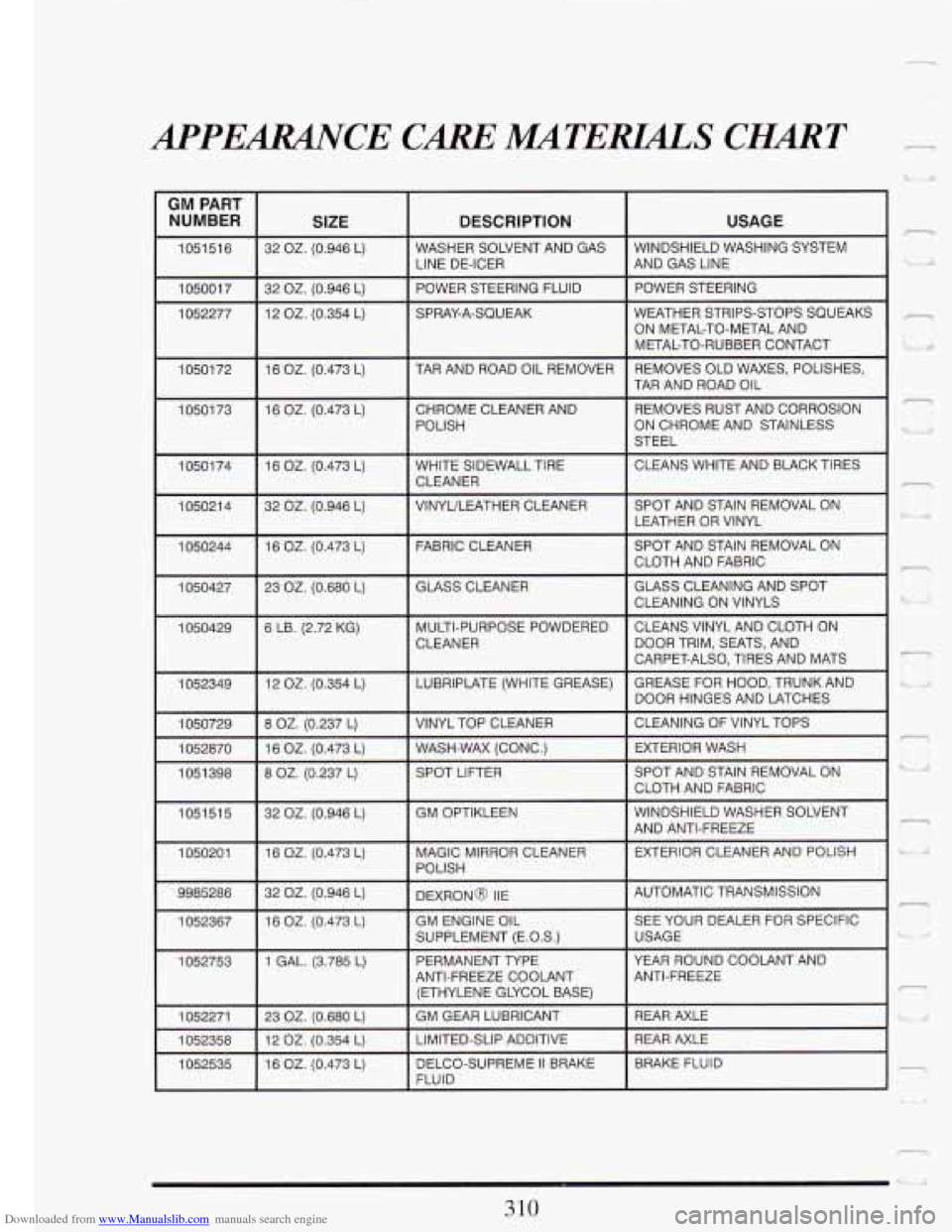

Downloaded from www.Manualslib.com manuals search engine APPEMCE CAREM!XTERUL,S CHMT
GM PART
NUMBER SIZE DESCRIPTION
1051516 32 OZ. (0.946 L) WASHER SOLVENT AND GAS
LINE DE-ICER
105001 7 32
OZ. (0.946 L) POWER STEERING FLUID
12
OZ. (0.354 L) SPRAY-A-SQUEAK
10501 72 16
OZ. (0.473 L) TAR AND ROAD OIL REMOVER
I 10501 73 I 16 OZ. (0.473 L) I CHROME CLEANER AND
I
1050174 16 OZ. (0.473 L) WHITE SIDEWALL TIRE
CLEANER
VINYL/LEATHER CLEANER
MULTI-PURPOSE POWDERED
CLEANER
1052870 16 OZ.
(0.473
L) WASH-WAX (CONC.)
8
OZ. (0.237 L) SPOT LIFTER
1051 51
5 32 OZ. (0.946 L) GM OPTIKLEEN
1050201 16
OZ. (0.473 L) MAGIC MIRROR CLEANER
POLISH
I 9985286 I 32 OZ. (0.946 L) I DEXRONB IIE
I 1052367
1052753
1052271 16
OZ. (0.473 L) GM
ENGINE OIL
SUPPLEMENT (E.O.S.)
1 GAL. (3.785 L) PERMANENT TYPE
ANTI-FREEZE COOLANT
(ETHYLENE GLYCOL BASE)
23
OZ. (0.680 L)
DELCO-SUPREME
II BRAKE
16 OZ. (0.473 L) LIMITED-SLIP ADDITIVE
12 OZ. (0.354 L) GM
GEAR LUBRICANT
FLUID
USAGE
WINDSHIELD WASHING SYSTEM
AND GAS LINE
POWER STEERING
WEATHER STRIPS-STOPS SQUEAKS
ON METAL-TO-METAL AND
METAL-TO-RUBBER CONTACT
REMOVES OLD WAXES, POLISHES,
TAR AND ROAD OIL
REMOVES RUST AND CORROSION
ON CHROME AND STAINLESS
STEEL
CLEANS WHITE AND BLACK TIRES
SPOT AND STAIN REMOVAL ON
LEATHER
OR VINYL
SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
GLASS CLEANING AND SPOT
CLEANING ON VINYLS
CLEANS VINYL AND CLOTH ON
DOOR TRIM, SEATS, AND
CARPET-ALSO, TIRES AND MATS
GREASE FOR HOOD, TRUNK AND
DOOR HINGES AND LATCHES
CLEANING OF VINYL TOPS
EXTERIOR WASH
SPOT AND STAIN REMOVAL ON
CLOTH AND FABRIC
WINDSHIELD WASHER SOLVENT
AND ANTI-FREEZE
EXTERIOR CLEANER AND POLISH
AUTOMATIC TRANSMISSION SEE YOUR DEALER FOR SPECIFIC
USAGE
YEAR ROUND COOLANT AND
ANTI-FREEZE
REAR AXLE
REAR AXLE
BRAKE FLUID
.-
JI
7
'I-i I I
J ~
.-
310

Downloaded from www.Manualslib.com manuals search engine r

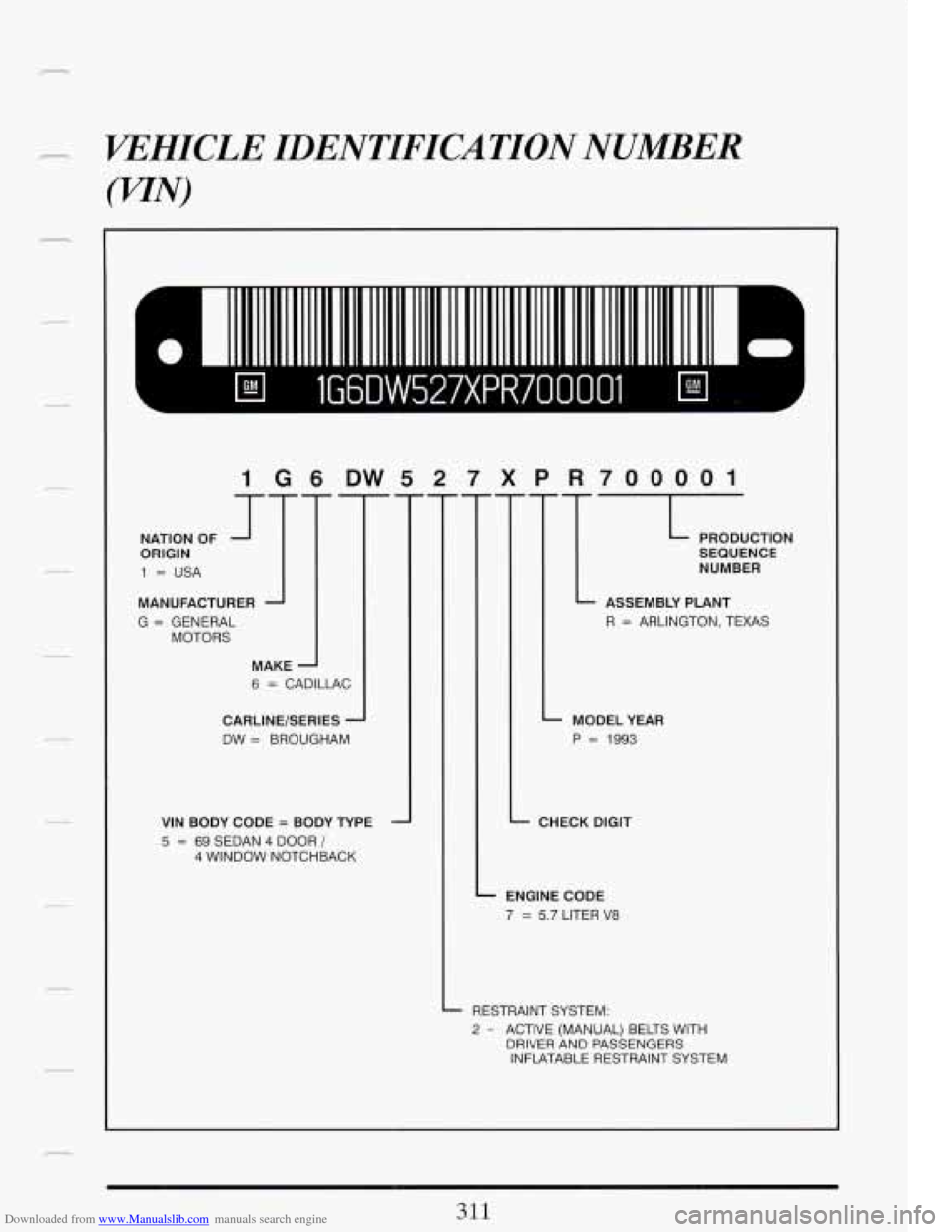

KEHICLE IDENTIFICATION NUMBER
(WN)
0 rnII I111 I II 1111 I It II 1111 II 1111 I111 111 111 II 1111 I II II 1111 II 1111 I111 II
lG6DW527XPR700001 A
1 G 6 DW5 2 7 X P R700001
NATION OF IT- ORIGIN
1 = USA
MANUFACTURER
G = GENERAL
MOTORS
MAKE - T 6 = CADILLAC
CARLINE/SERIES 1
DW = BROUGHAM
VIN BODY CODE = BODY TYPE
5 = 69 SEDAN 4 DOOR / 4 WINDOW NOTCHBACK
SEQUENCE
ASSEMBLY PLANT
R = ARLINGTON, TEXAS
1 MODEL YEAR
P = 1993
CHECK DIGIT
ENGINE CODE
7 = 5.7 LITER V8
- RESTRAINT SYSTEM:
2 - ACTIVE (MANUAL) BELTS WITH
DRIVER AND PASSENGERS
INFLATABLE RESTRAINT SYSTEM
311

Downloaded from www.Manualslib.com manuals search engine -1

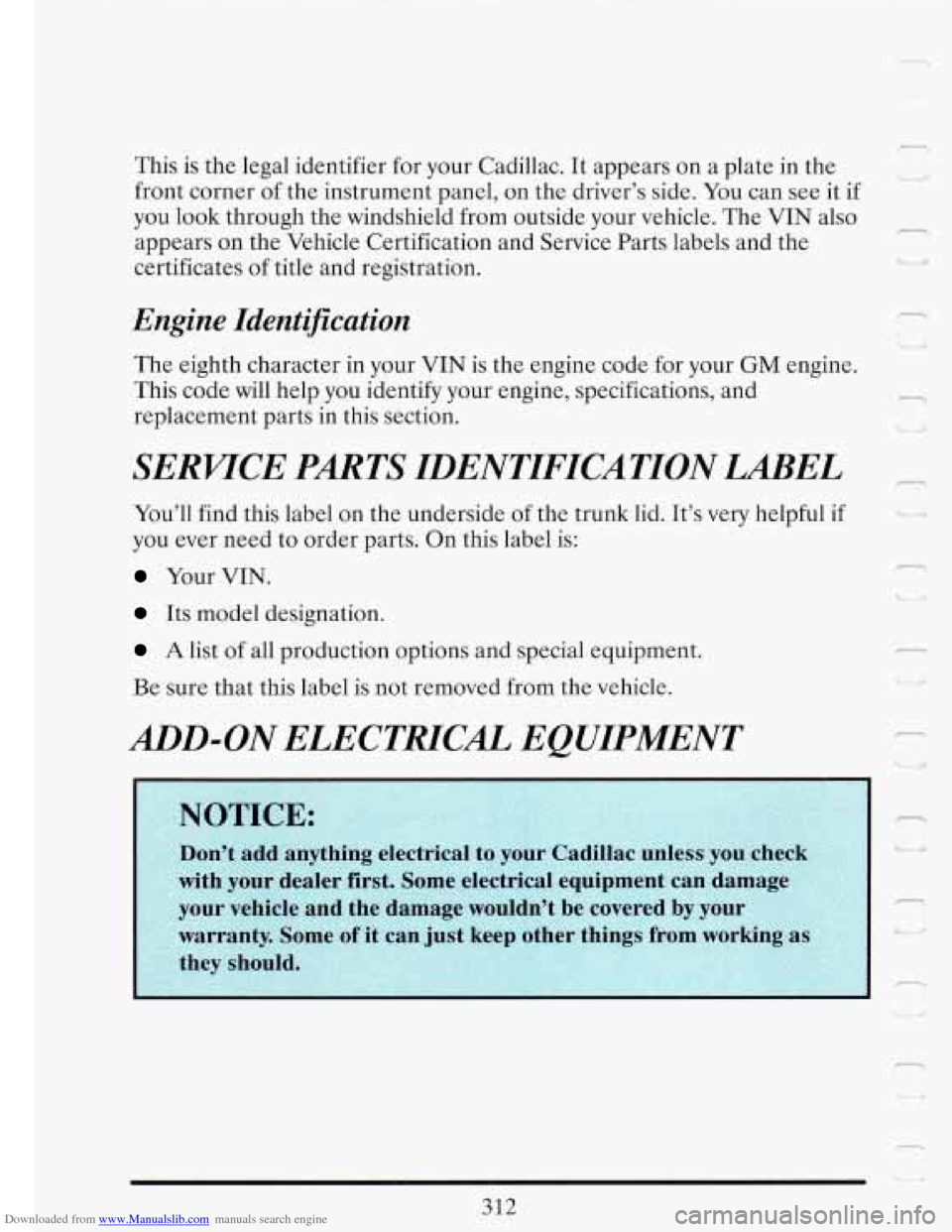

This is the legal identifier for your Cadillac. It appears on a plate in the
front corner of the instrument panel, on the driver’s side. You can see it if
you look through the windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates
of title and registration.
Engine Identification
The eighth character in your VIN is the engine code for your GM engine.
This code will help you identify your engine, specifications, and
replacement parts
in this section.
SERWCE PARTS IDENTIFICATION LABEL
You’ll find this label on the underside of the trunk lid. It’s very helpful if
you ever need to order parts. On this label is:
Your VIN.
Its model designation.
A list of all production options and special equipment.
Be sure that this label is not removed from the vehicle.
ADD-ON ELECTRICAL EQUIPMENT
n
n
n
L-4 I’
312

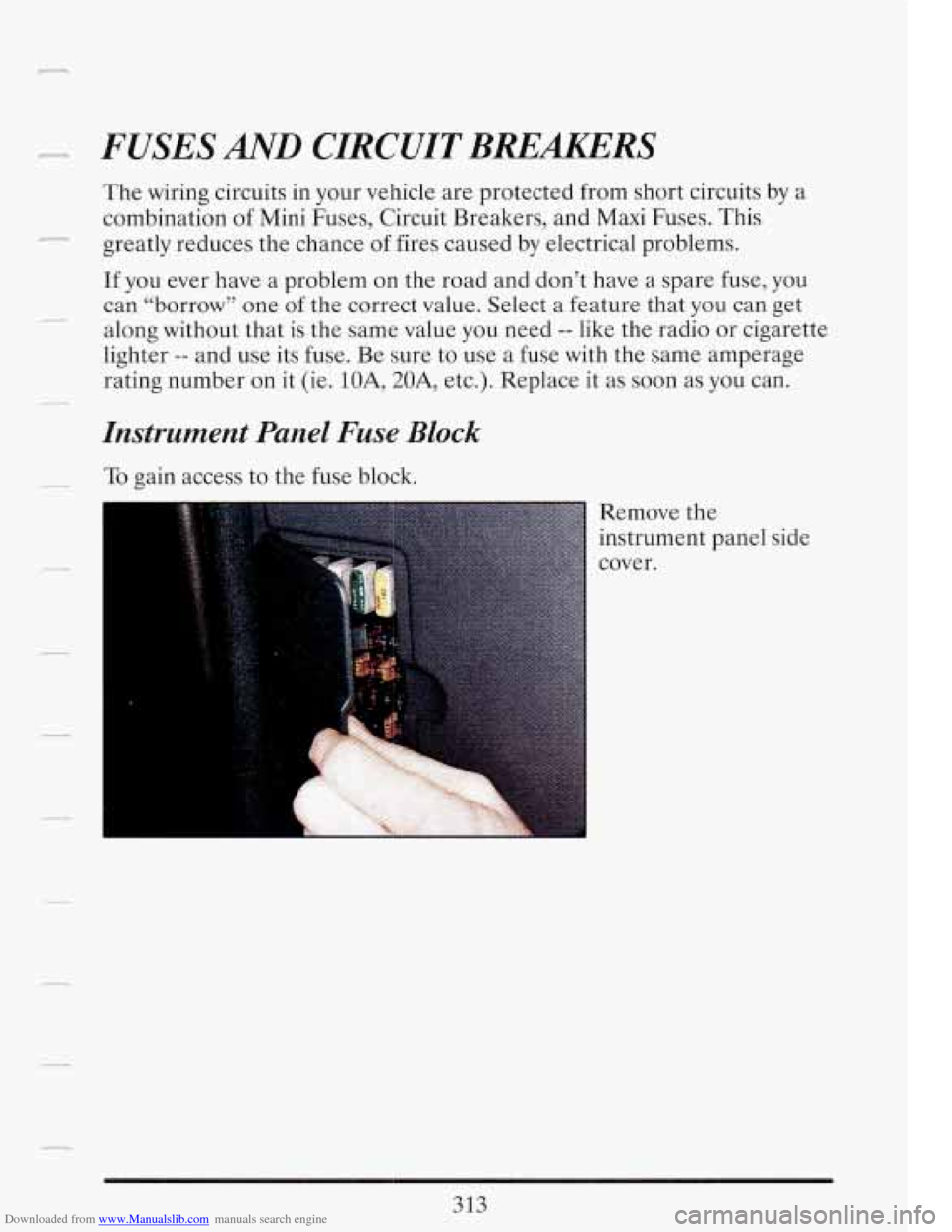

Downloaded from www.Manualslib.com manuals search engine ,- FUSES AND CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination
of Mini Fuses, Circuit Breakers, and Maxi Fuses. This
greatly reduces the chance of fires caused by electrical problems.
If you ever have a problem on the road and don’t have a spare fuse, you
can “borrow” one
of the correct value. Select a feature that you can get
along without that is the same value you need
-- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
lOA, 20A, etc.). Replace it as soon as you can.
.--,
-_ ~.
~. ~
Instrument Panel Fuse Block
__ To gain access to the fuse block.
.-
.-
313

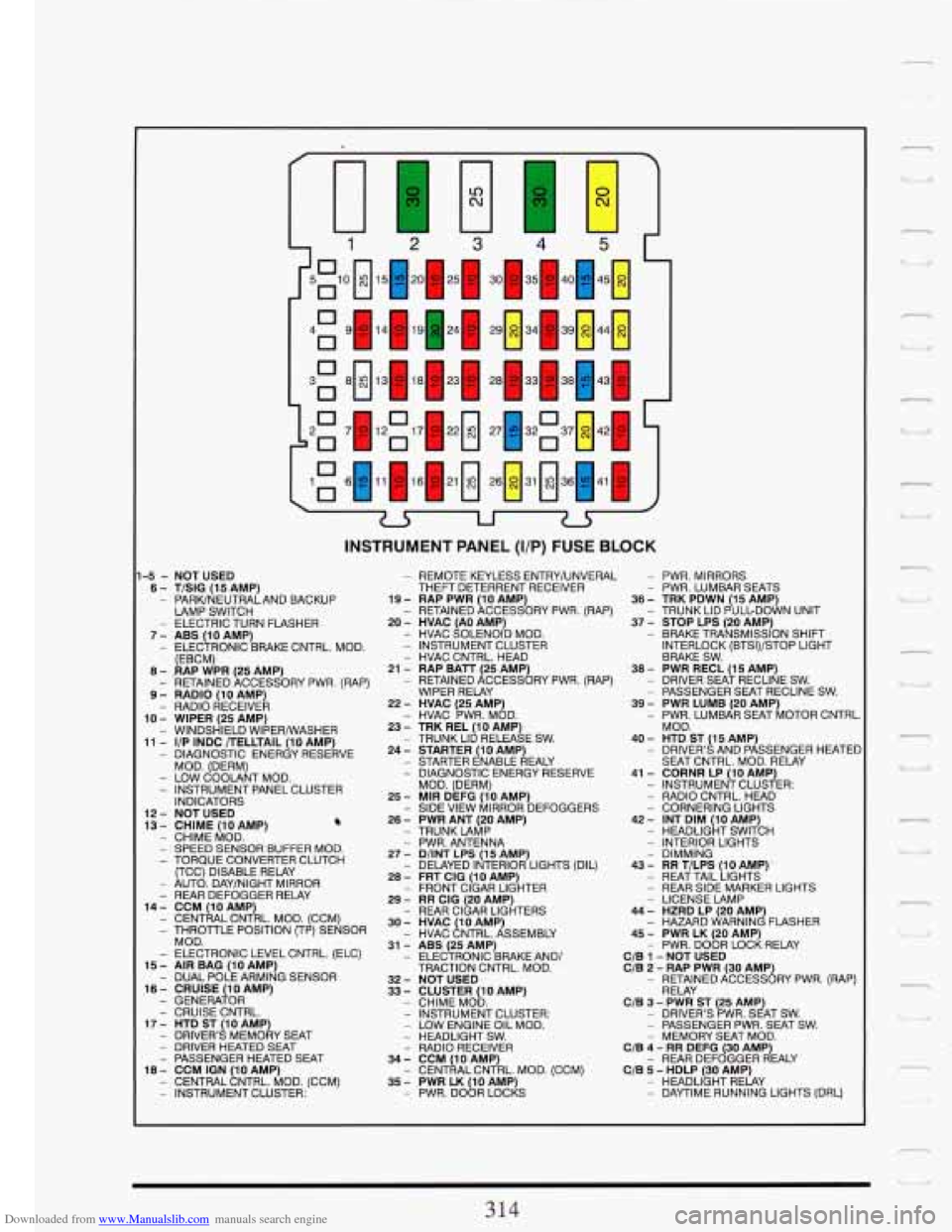

Downloaded from www.Manualslib.com manuals search engine 1
75:lO 15,
A
I
-
INSTRUMENT PANEL (I/P) FUSE BLOCK
-5 - NOT USED 6 - T/SIG (15 AMP) - PARWNEUTRALAND BACKUP LAMP SWITCH
7 - ABS (IO AMP) - ELECTRIC TURN FLASHER
- ELECTRONIC BRAKE CNTRL. MOD.
iEBCM)
8
- ,RAPWPR (25 AMP) - RETAINED ACCESSORY PWR. (RAP) 9 - RADIO (IO AMP) - RADIO RECEIVER 10 - WIPER (25 AMP) - WINDSHIELD WIPER/WASHER 11 - I/P INDC /TELLTAIL (10 AMP) - DIAGNOSTIC ENERGY RESERVE
- LOW COOLANT MOD.
MOD. (DERM) - INSTRUMENT
PANEL CLUSTER
INDICATORS
12 - NOT USED 13 - CHIME (10 AMP) - CHIME MOD.
SPEED SENSOR BUFFER MOD.
TORQUE CONVERTER CLUTCH
AUTO. DAY/NIGHT MIRROR
FCC)
DISABLE RELAY
REAR DEFOGGER RELAY
CCM (IO AMP) CENTRAL CNTRL. MOD. (CCM)
THROlTLE POSITION (TP) SENSOR
MOD. .,
15 - AIR BAG (IO AMP)
16 - CRUISE (10 AMP)
- ELECTRONIC LEVEL CNTRL. (ELC)
- DUAL POLE ARMING SENSOR
- GENERATOR - CRUISE CNTRL. 17 - HTD ST (10 AMP) - DRIVER'S MEMORY SEAT - DRIVER HEATED SEAT - PASSENGER HEATED SEAT
- CENTRAL CNTRL. MOD. (CCM) - INSTRUMENT CLUSTER:
18 - CCM IGN (10 AMP)
THEFT DETERRENT RECEIVER REMOTE KEYLESS ENTRY/UNVERAL RAP PWR (10 AMP) RETAINED ACCESSORY PWR.
RAP) HVAC (A0 AMP) ~ ~ HVAC SOLENOID MOD.
INSTRUMENT CLUSTER
HVAC CNTRL. HEAD
RAP BATT (25 AMP)
WIPER RELAY RETAINED ACCESSORY PWR. (RAP) HVAC (25 AMP
TRK REL
(IO AMP) TRUNK LID RELEASE SW. STARTER (10 AMP) STARTER ENABLE REALY
DIAGNOSTIC ENERGY RESERVE
MIR DEFG (IO AMP) MOD. (DERM)
SIDE VIEW MIRROR DEFOGGERS
PWR ANT (20 AMP) TRUNK LAMP
\,
HVAC PWR. M&D.
PWR. ANTENNA
D/INT LPS (15 AMP) DELAYED INTERIOR LIGHTS (DIL) FRT CIG (10 AMP) FRONT CIGAR LIGHTER RR CIG (20 AMP) REAR CIGAR LIGHTERS HVAC (10 AMP)
ABS
(25 AMP) HVAC CNTRL. ASSEMBLY
TRACTION CNTRL. MOD. ELECTRONIC BRAKE AND/
NOT USED
CLUSTER (IO AMP) CHIME MOD.
INSTRUMENTCLUSTER:
LOW ENGINE OIL MOD.
HEADLIGHT SW.
RADIO RECEIVER CCM (1 0 AMP) CENTRAL CNTRL. MOD. (CCM) PWR LK (10 AMP) PWR. DOOR LOCKS PWR. MIRRORS
TRK PDWN (15 AMP) PWR. LUMBAR SEATS
TRUNK LID PULL-DOWN UNIT
STOP LPS (20 AMP) BRAKE TRANSMISSION SHIFT
INTERLOCK IBTSIVSTOP LIGHT
BRAKESW.
' '. PWR RECL 115 AMPI DRIVER-SCT RECLIfiE SW.
PASSENGER SEAT RECLINE SW. PWR LUMB 120 AMP) PWR. LUMBARSEAT MOTOR CNTRL MOD. HTD ST 15 AMP)
SEAT CNTRL. MOD. RELAY CORNR LP (IO AMP) INSTRUMENT CLUSTER:
RADIO CNTRL. HEAD
CORNERING LIGHTS
INT DIM (IO AMP) HEADLIGHT SWITCH DRIVER4 AND PASSENGER HEATEL - INTERIOR LIGHTS - DIMMING 43 - RR T/LPS (IO AMP). - REATTAIL LIGHTS - REAR SIDE MARKER LIGHTS - LICENSE LAMP
- HAZARD WARNING FLASHER 44 - HZRD LP (20 AMP)
45- PWR LK 20AMP) - PWR. Doh LOCK RELAY
- RETAlNED ACCESSh PWR. (RAP)
C/B 1 - NOT USED CIB 2 - RAP PWR (30 AMP
RELAY CIS 3 - PWR ST (25 AMP) - DRIVERS PWR. SEAT SW. - PASSENGER PWR. SEAT SW. - MEMORY SEAT MOD.
- REAR DEFOGGER REALY C/B 4 - RR DEFG (30 AMP)
C/B
5 - HDLP (30 AMP) - HEADLIGHT RELAY - DAMIME RUNNING LIGHTS (DRL)
314

Downloaded from www.Manualslib.com manuals search engine Underhood (UIH) Electrical Center
_-. The U/H electrical center is located on the passenger side wheel housing
in the engine compartment.
I
I
Remove the cover to
gain access.
3 15

Downloaded from www.Manualslib.com manuals search engine n
I
I-
1 E
I
rm
i
I
UNDERHOOD (U/H) ELECTRICAL CENTER 1 - BODY 1 (50 AMP) - #45 PWR. DR. LOCK RELAY - #36 TRUNK PULL-DOWN - #37 STOP/HAZARD - #38 RECLINE SW. . . . . - -. . . - - . . . - #39 PWR. LUMBAR
- #3 PWR. SEAT CIRCUIT BREAKER - $4 REAR DEFOG RELAY CIRCUIT
- #40 HEATED SEAT
BREAKER
- #44 MIRROR DEFOG 2 - BODY 2 (50 AMP) - #26 I/P-PWR. ANTENNA - #27 l/P-DELAYED INTERIOR
- #28 WFRONT CIGAR - #29 I/P-REAR CIGAR
- #21 IIP-RAP ACCESSORY RELAY - #30 I/P-HVAC CNTRL. HEAD
- #22 I/P-HVAC PWR. MOD. - #23 WTRUNK RELEASE - #9 I/P-RADIO - #10 I/P-RAP ACCESSORY - #31 I/P-TRACTION CNTRL.
LIGHTS (DIL) - #33 GP-TELTALE - #34 I/P-CCM 2 - #35 I/P-PWR. DR. LOCK SW. - #I8 U/H-AIR PUMP - #2 CIRCUIT BREAKER I/P-RAP
PWR. RELAY
3 - IGN 1 (50 AMP) - #E I/P-RETAINED ACCESSORY
- #6 I/P-TURN FLASHER - #24 I/P-CRANK - #15 FAIR BAG
PWR. (RAP) - #11 IWTELTALE
- #14 VP-CENTRAL CNTRL. MOD. 12 - PARK LIGHTS (20 AMP) (CCM) - #4 F/L-PARK LIGHTS - #13 I/P-CHIME - #7 I/P-TRACTION CNTRL. - #I3 U/H-INJECTORS - #42 I/PI-DIMMER - #I4 U/H-ENGINE
CNTRL. MOD. - #43 I/P-REAR TAIL LIGHTS
- #5 F/L-FORWARD LIGHTS - #41 I/P-CORNERING LIGHTS
- IN-LINE CONCEALED I/P-REMOTE (ECW
- IGNITION COIL 4 - IGNS 3 (40 AMP) - #I6 I/P-CRUISE - #I7 I/P-HEATED SEATS - #18 I/P-CCM IGNITION - #19 WRAP PWR. RELAY - #20 I/P-HVAC CNTRL. HEAD - #17 U/H-COOLING FAN RELAY
KEYLESS ENTRY RECEIVER 5 - ABS (50 AMP) - ANTILOCK BRAKE SYSTEM/
TRACTION CNTRL.
(ABSKC)
HYDRAULIC MODULATOR
6- NOTUSED 7 - PRIMRY CLG FAN (50 AMP)
8 - SCNDRY CLG FAN (50 AMP)
9 - LEVEL CNTRL. (30 AMP)
- PRIMARY COOLING FAN RELAY
- SECONDARY COOLING FAN RELAY
- #15 U/H-ELECTRONIC LEVEL
10 - FUEL PUMP (20 AMP)
11 - HEADLlGHTSlHORNS 130 AMP)
CNTRL. (ELC)
- #16 U/H-FUEL PUMP
- #I F/L-HORNRELAY ' - #2 F/L-HEADLIGHTS RELAY - #5 CIRCUIT BREAKER
I/P-HEADLIGHTS
13 - INJECTORS (IO AMP) - FUEL INJECTORS - ENGINE CNTRL. MOD. (ECM)
- EXHAUST GAS RECIRCULATION 14 - EGR/PCM (IGN) (IO AMP)
(EGR) VALVE - AIR PUMP RELAY - PURGE CANISTER 15 - LEVEL CNTRL. (20 AMP) - ELECTRONIC LEVEL CNTRL. (ELC)
- ELC COMPRESSOR/RELAY HEIGHT SENSOR
ASSEMBLY
16- FUEL PUMP (10 AMP) - ENGINE CNTRL. MOD. (ECM) - FUEL PUMP RELAY - FUEL PUMP/OIL PRESSURE SW.
- SECONDARY COOLING FAN RELAY - COOLING FANS CNTRL. RELAY
- AIR PUMP RELAY
17 - COOLING FANS (1 0 AMP)
18
- AIR PUMP (20 AMP)
A- NOT USED B - COOLING FANS CNTRL. RELAY
C
- A/C DISABLE RELAY - COOLING FAN CNTAL. RELAY
- AIR COND. DISABLE RELAY D - FUEL PUMP RELAY - FUEL PUMP RELAY
-
9 I
316
